仁恒前湾国际社区，杭州/建筑设计

项目位于杭州市萧山区的科技城启动区，这座总规模超过百万方的立体城市，并汇集国际学校、医院、邻里中心等丰富业态。以开放、恒久、成长的理念打造一座无界的“国际社区”。项目以人性化规划理念为出发点，在比较狭小的地块内思考各个设计节点的更好关系。高层点板结合，洋房临河而立。保证所有产品均可观赏河景，景观资源最大化。因场地局限，我们通过简洁富有层次的空间设计提升回家体验。

The project is located in the start-up area of the science and Technology City in Xiaoshan District, Hangzhou, a three-dimensional city with a total scale of more than one million square meters, and a collection of international schools, hospitals, neighborhood centers and other rich business forms. Build an unbounded "international community" with the concept of openness, permanence and growth. The project takes the humanized planning concept as the starting point, and considers the better relationship between various design nodes in a relatively small plot. The high-rise buildings are combined with the buildings, and the western-style houses stand near the river. Ensure that all products can enjoy the river scenery and maximize the landscape resources. Due to the limited space, we improved the home experience through simple and hierarchical space design.

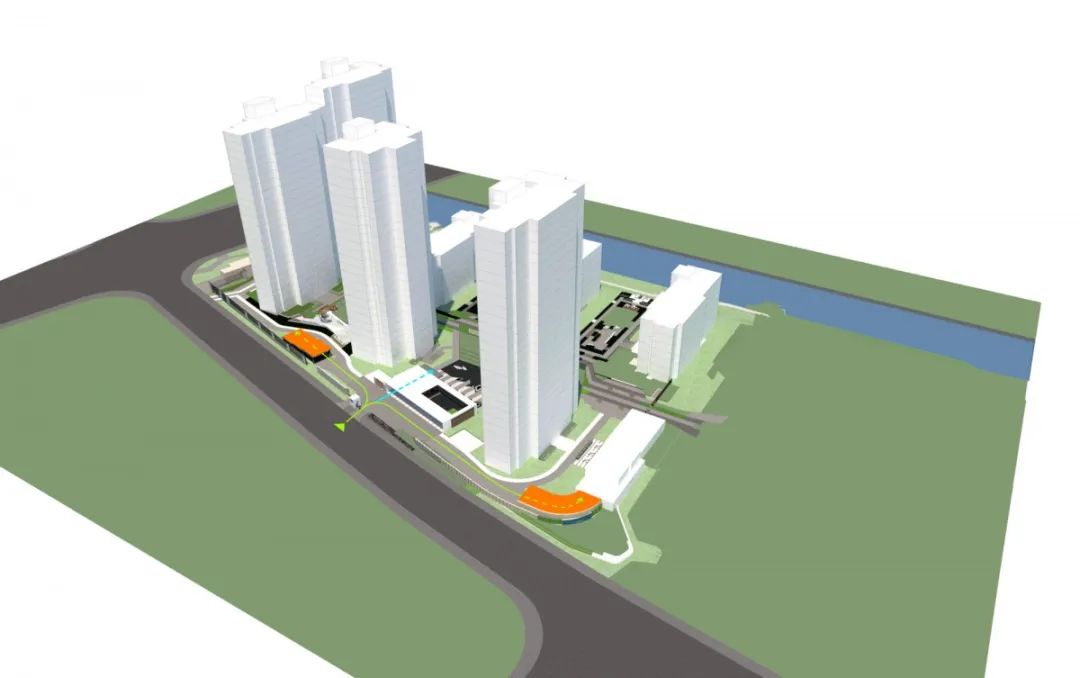

▼总平面图，General layout

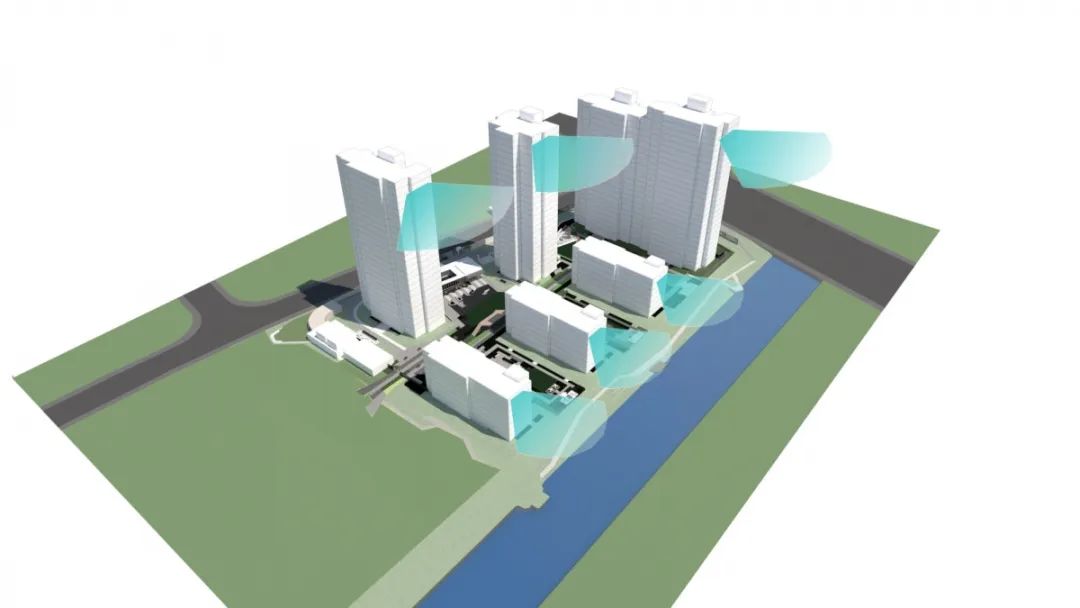

规划五大优势：
1、板楼偏转，增加离路距离；减轻对城市道路的压力；
2、高层景观视线无遮挡；
3、洋房占比最大，货值最高；
4、洋房总宽减小，中轴花园；宽度加大，景观体系完整；
5、墅质洋房，一梯一户，极致品质，拥有定价权。

Five advantages of planning:

1. Deflection of slab building to increase the distance from the road; Reduce the pressure on urban roads;

2. The sight of high-rise landscape is not blocked;

3. Foreign houses account for the largest proportion and the highest value;

4. The overall width of the Western-style house is reduced, and the central axis garden; The width is enlarged and the landscape system is complete;

5. Villa style houses, one elevator and one household, with the highest quality and pricing power.

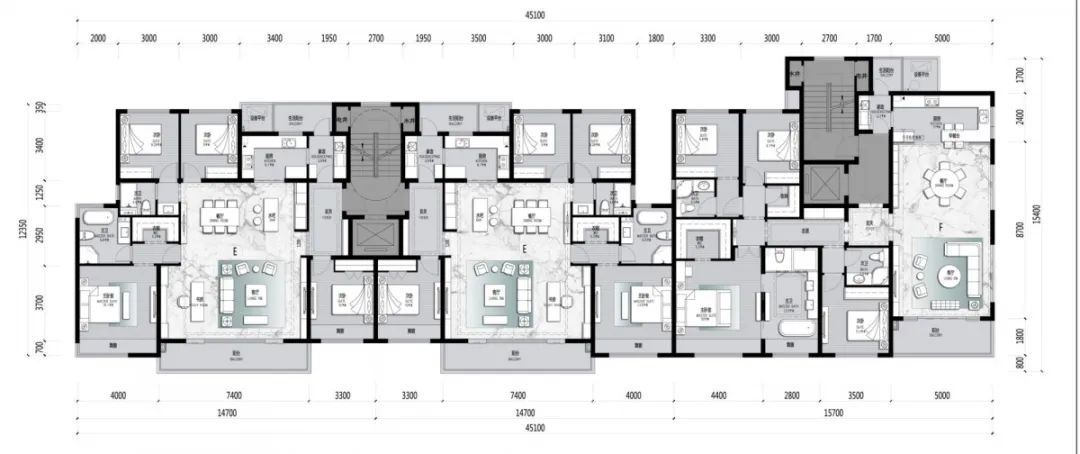

▼洋房平面图，Villa plan

对一期产品进行优化提升，采用“去走道”的设计手法，创造出了视觉上震撼人心、使用上利用率最高的超宽横厅。

The phase I products were optimized and upgraded, and the design method of "going to the walkway" was adopted to create an ultra wide horizontal hall that is visually impressive and has the highest utilization rate in use.

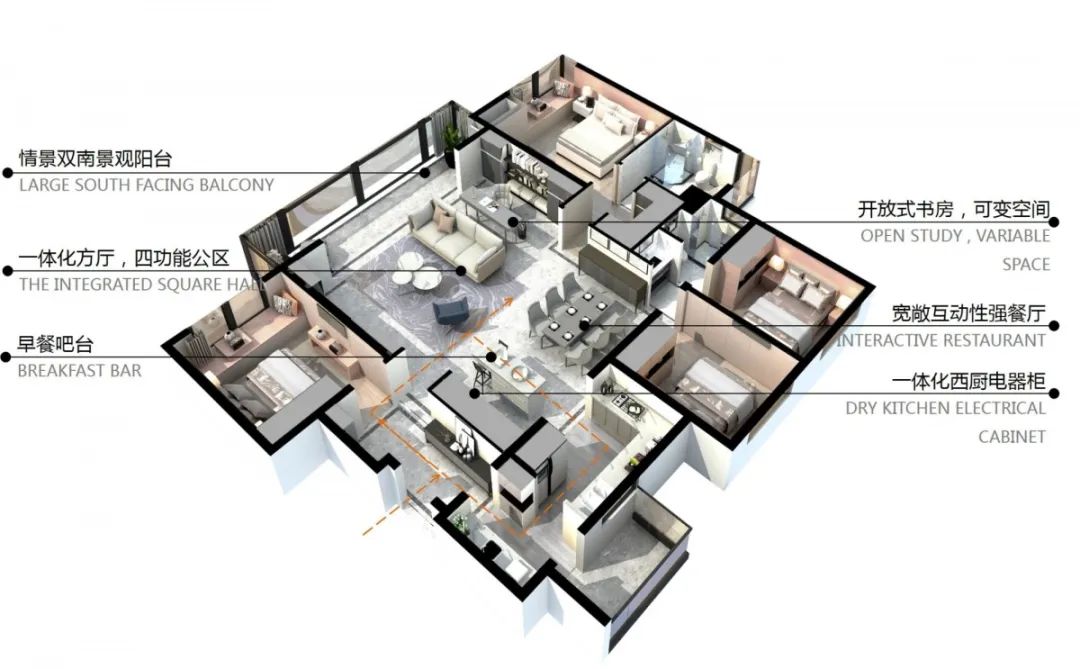

▼洋房空间模型，Villa space model

立体模拟空间效果，洄游动线、可变空间、一体方厅等理念都实现了户型前沿概念。

The concept of three-dimensional simulation of space effect, migration moving line, variable space and integrated square hall has realized the frontier concept of house type.

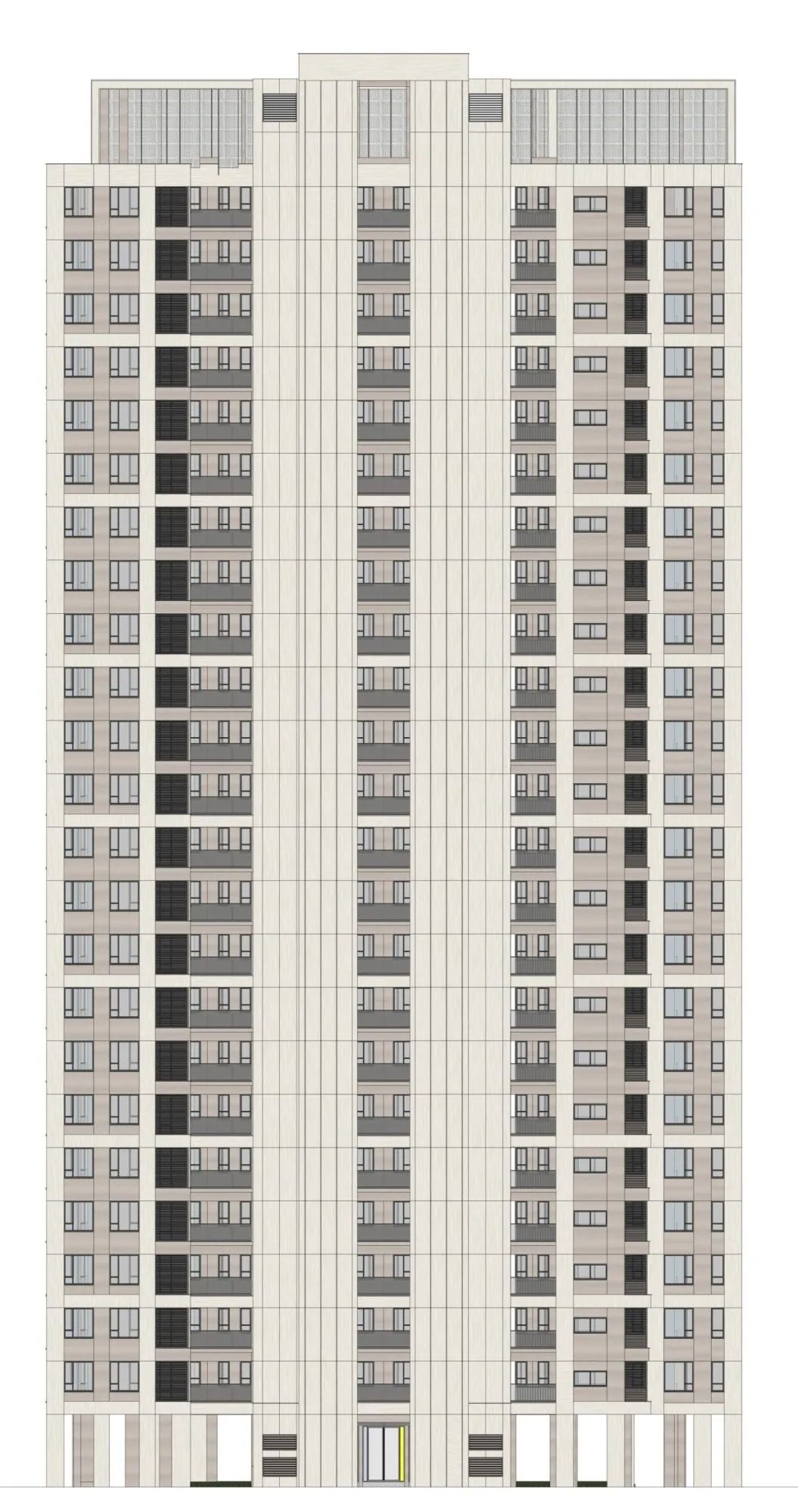

▼高层北立面，North elevation of high rise

核心筒及主体框架为浅色铝板，顶部穿孔铝板、金属百叶等与之同色，强调整体统一性。不同材料间搭配恰当，勾勒出建筑线条的现代感。

The core tube and the main frame are light colored aluminum plates, and the top perforated aluminum plates and metal shutters are the same color, emphasizing the overall unity. Different materials are properly matched to outline the modern sense of architectural lines.

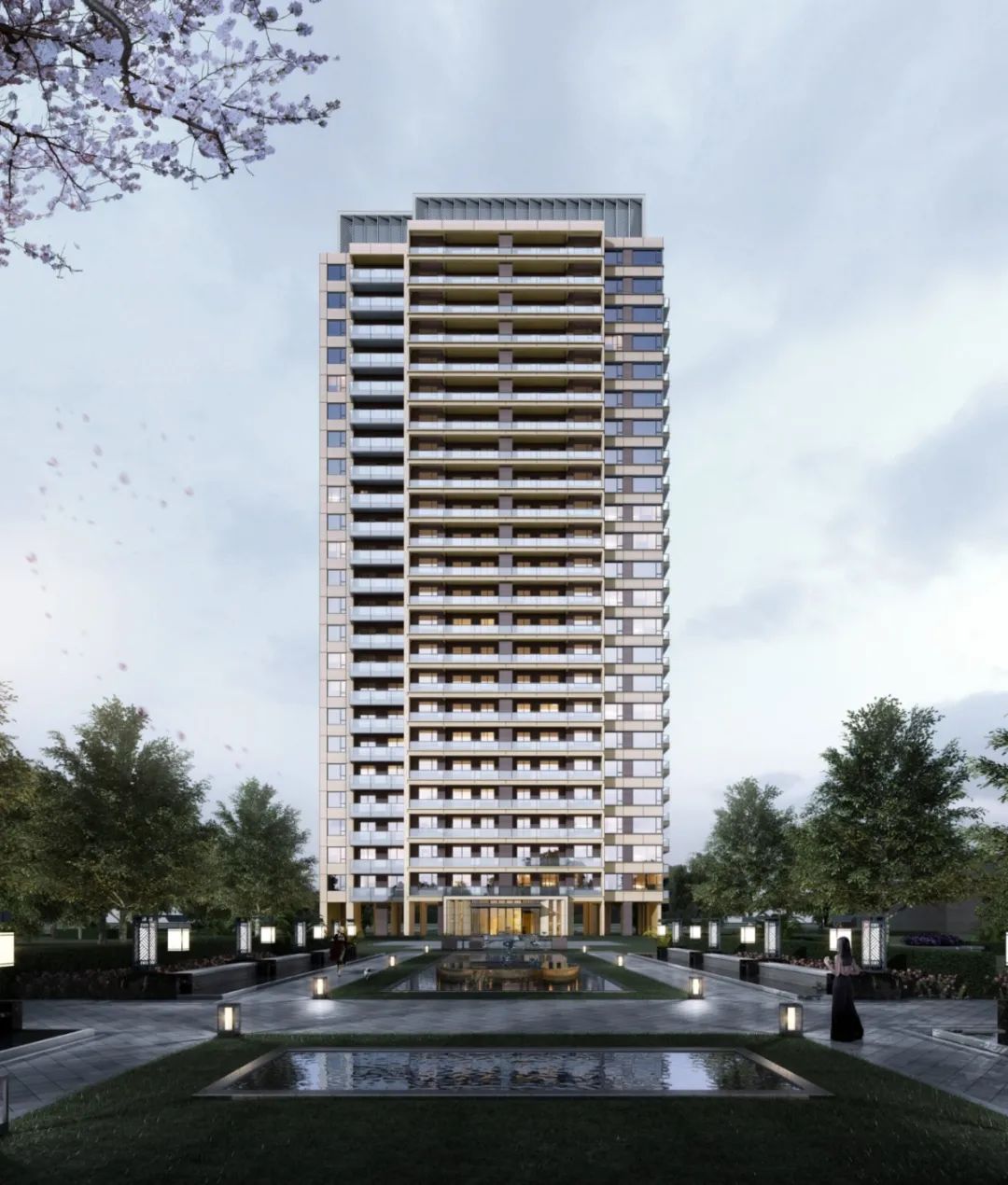

▼高层南立面，South elevation of high rise

主体框架为浅色铝板，阳台通过横向线脚拉通，搭配连贯的玻璃栏板，提升现代风格的品质感。入户门头为浅色石材，满足色系统一的同时，升华近人尺度内迎宾的尊贵感。

The main frame is light colored aluminum plate, and the balcony is pulled through the horizontal line foot, matched with the continuous glass breast board to enhance the sense of quality of the modern style. The entrance door is made of light colored stone, which meets the requirements of color system one and sublimates the sense of honor of welcoming guests in the near scale.

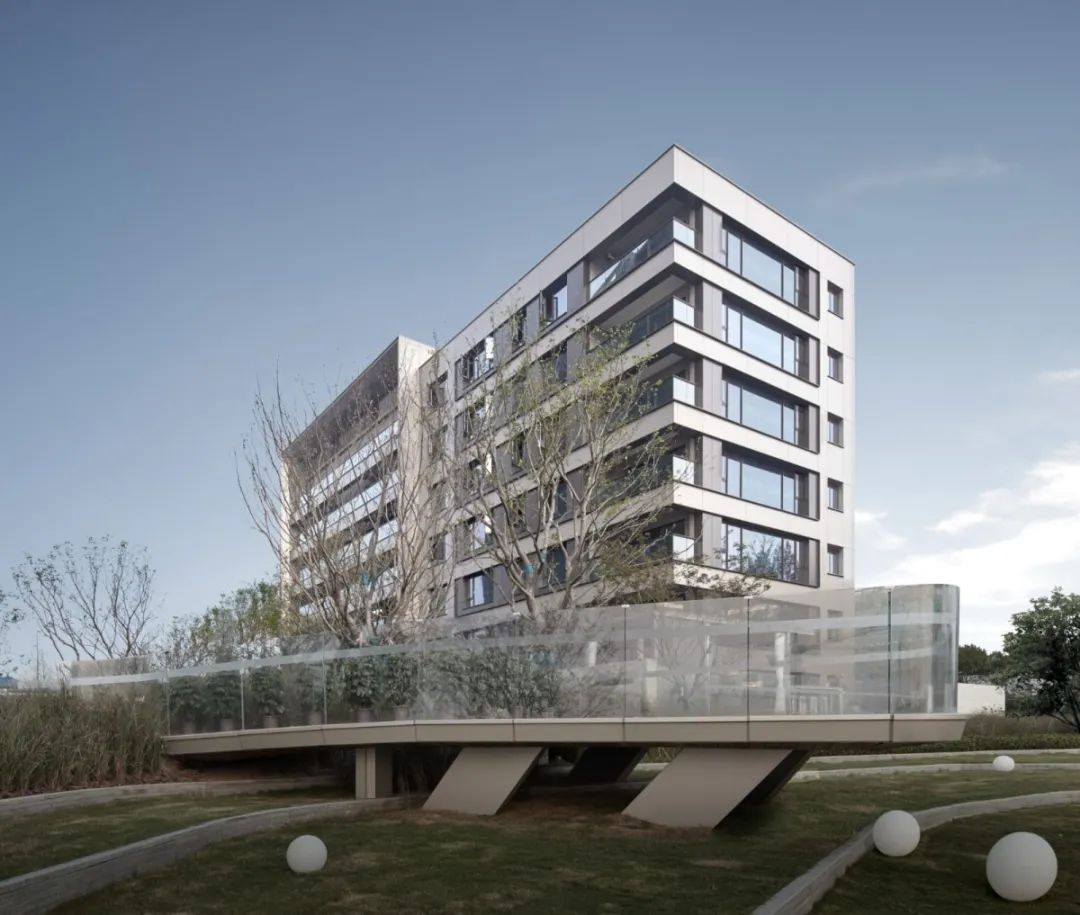

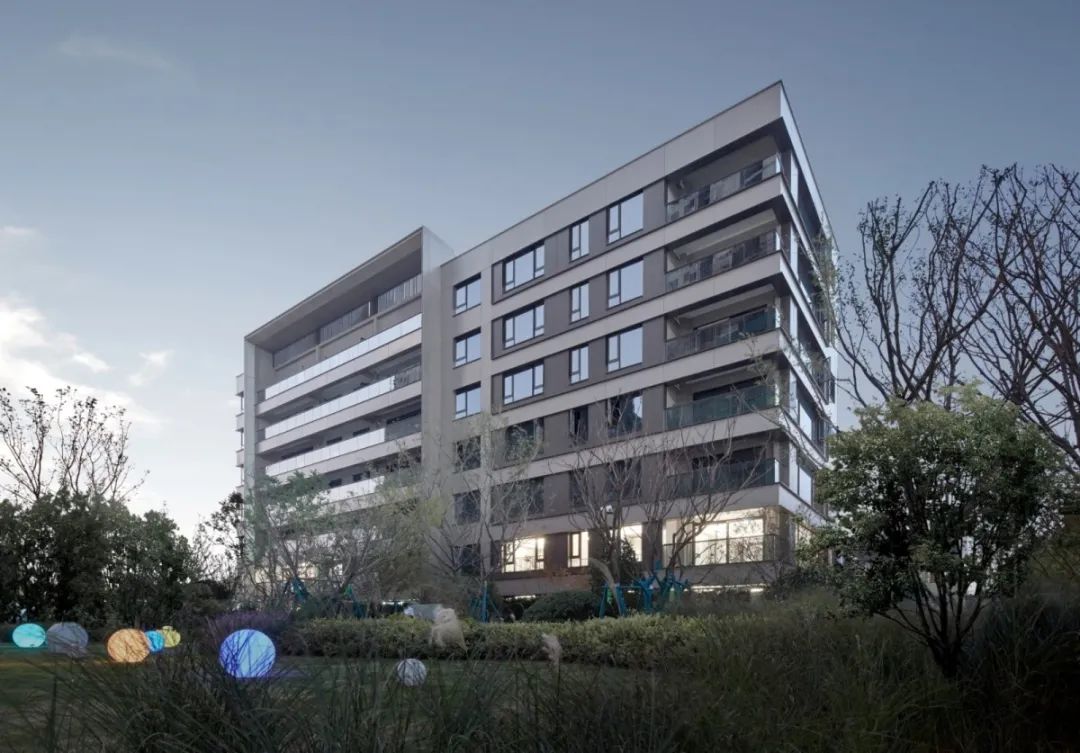

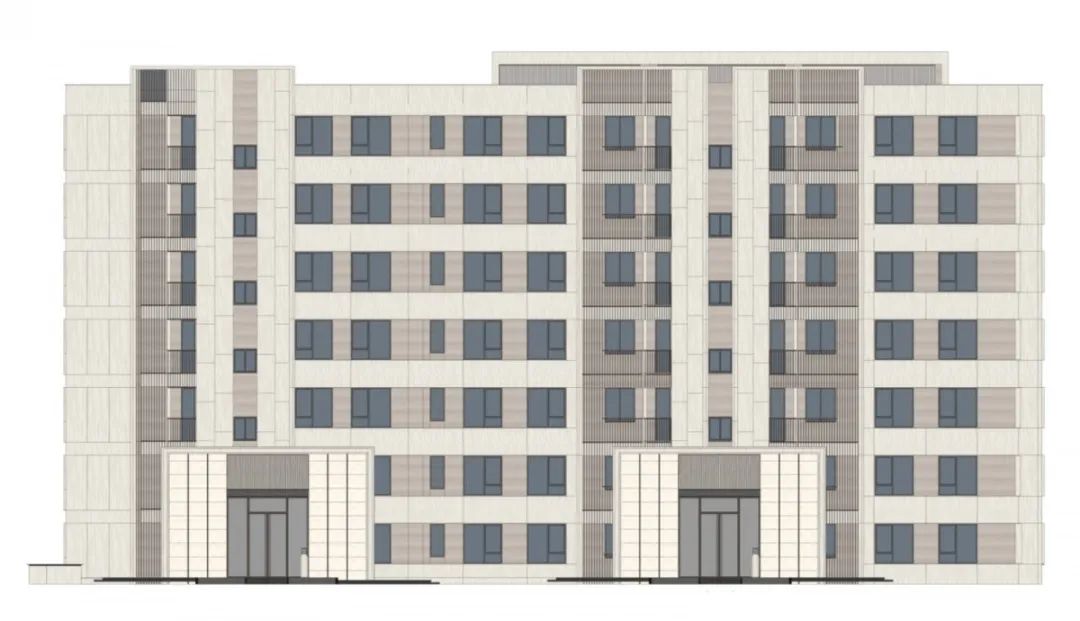

▼洋房北立面，North elevation of western style house

主体浅色铝板特殊设计，平均分缝、错位分缝相结合，在简洁中“低调”地做些点缀，赋予建筑灵性和独特。

The light colored aluminum plate of the main body is specially designed with the combination of average joint and dislocation joint. It makes some ornaments in a simple and "low-key" way, endowing the building with spirituality and uniqueness.

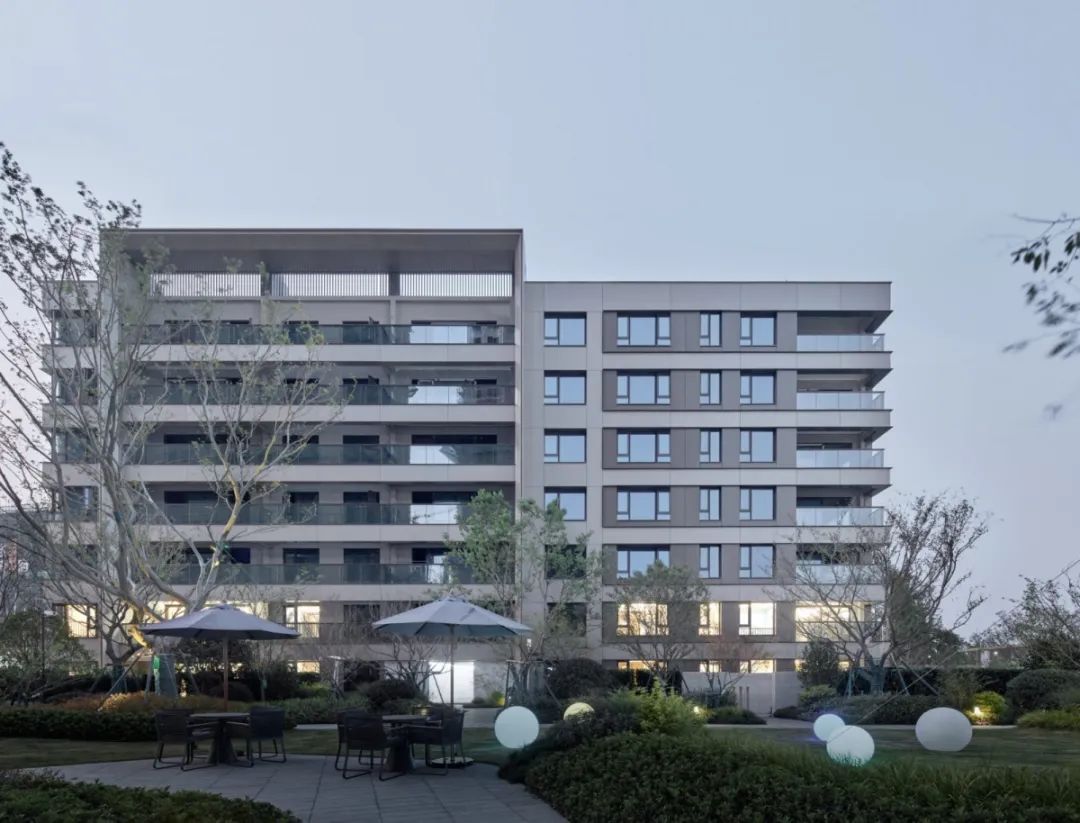

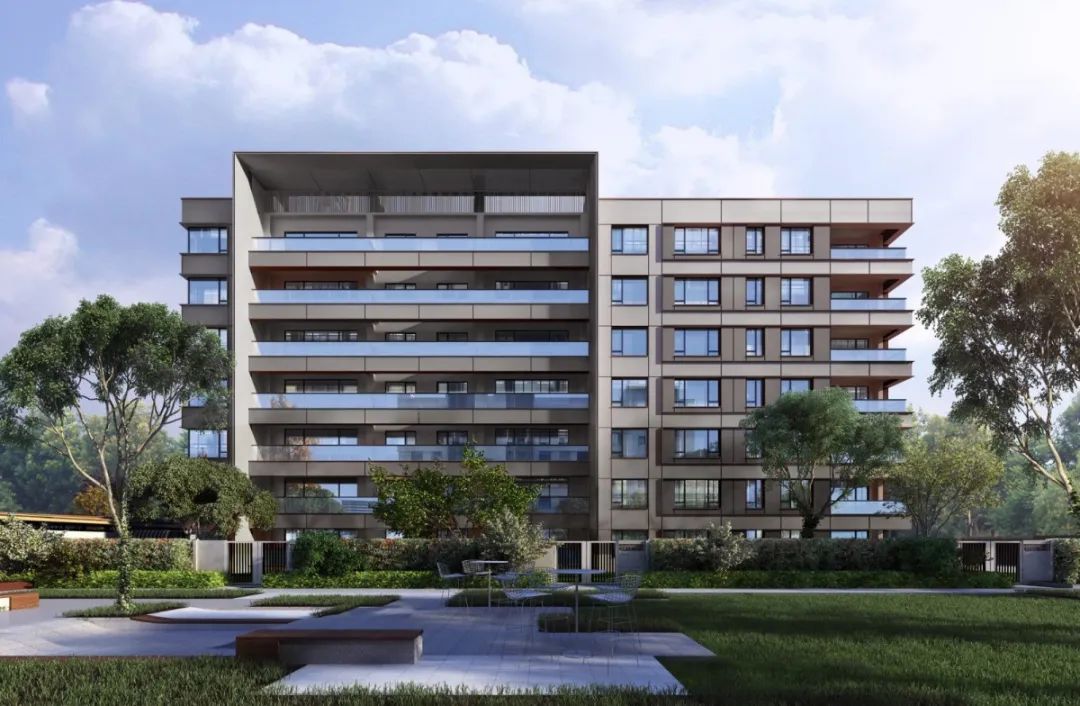

▼洋房南立面，South elevation of Villa

紧密结合户型原有界面——大阳台、落地窗、平齐的南立面，从功能出发做“最适合”的立面设计。

Closely combine the original interface of the house type - large balcony, floor to ceiling windows, and the flush south facade, and make the "most suitable" facade design from the perspective of function.

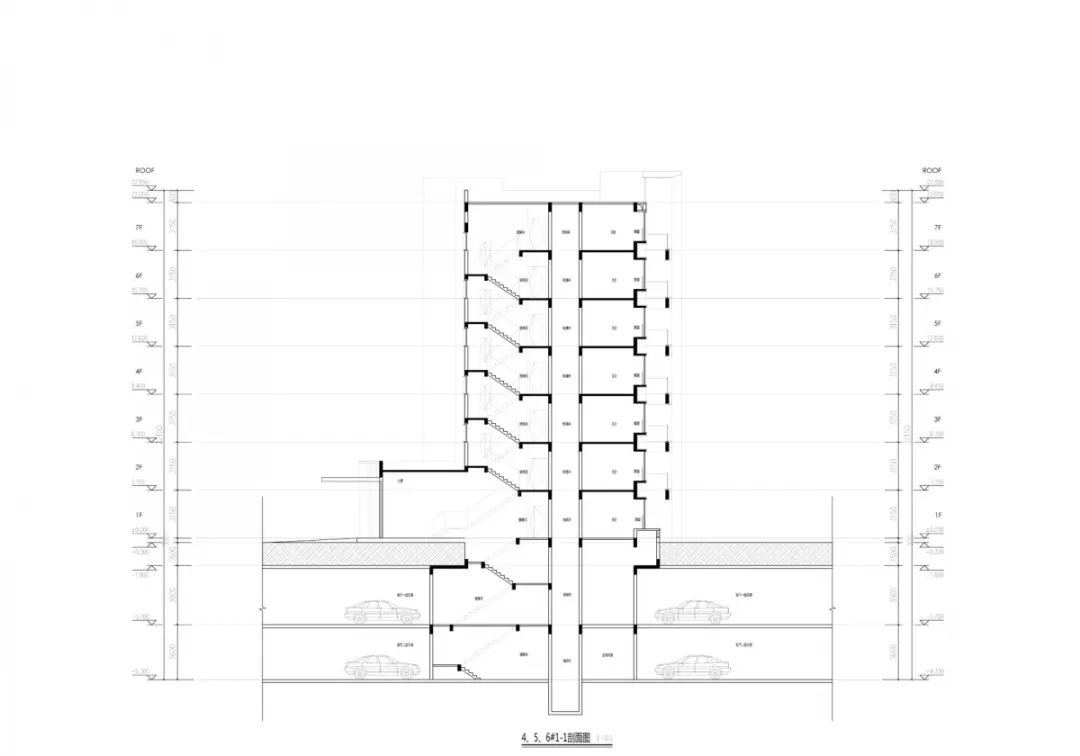

▼洋房剖面图，Section of western style house

车行组织：车行出入口位于地块西侧，分为两个坡道下到地下室。

Vehicle organization: the vehicle entrance and exit is located in the west of the plot, which is divided into two ramps to the basement.

人行组织：人行入口选址于南侧，贴临配套商业和公园，可以起到带活商业和欣赏美景的双向促进作用。回家通过商业和公园，生活场景也很丰富。

People's Bank Organization: the entrance of the people's Bank is located in the south, adjacent to supporting businesses and parks, which can play a two-way role in promoting the living business and enjoying the beautiful scenery. Home through business and parks, life scene is also very rich.

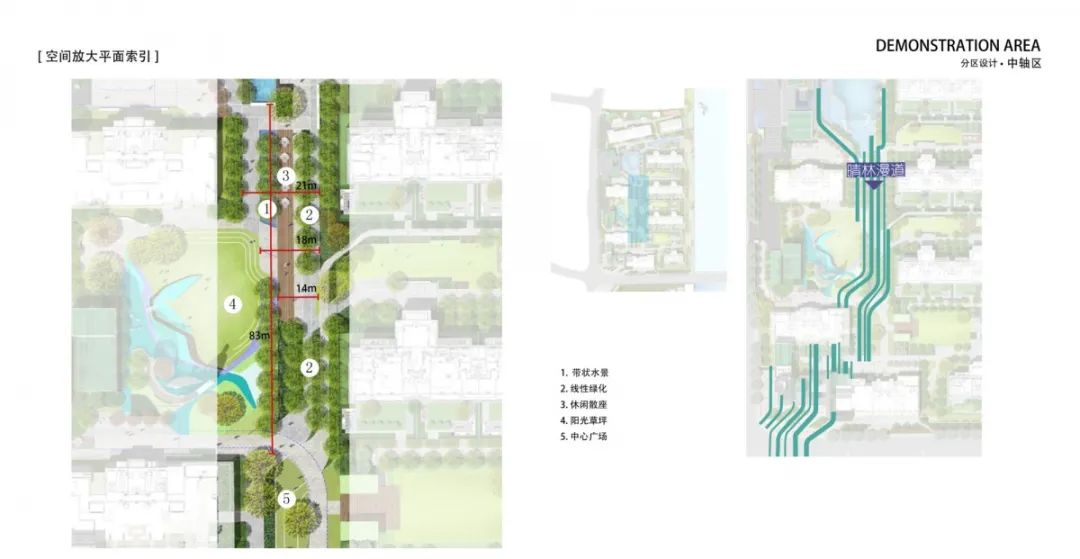

景观分析：

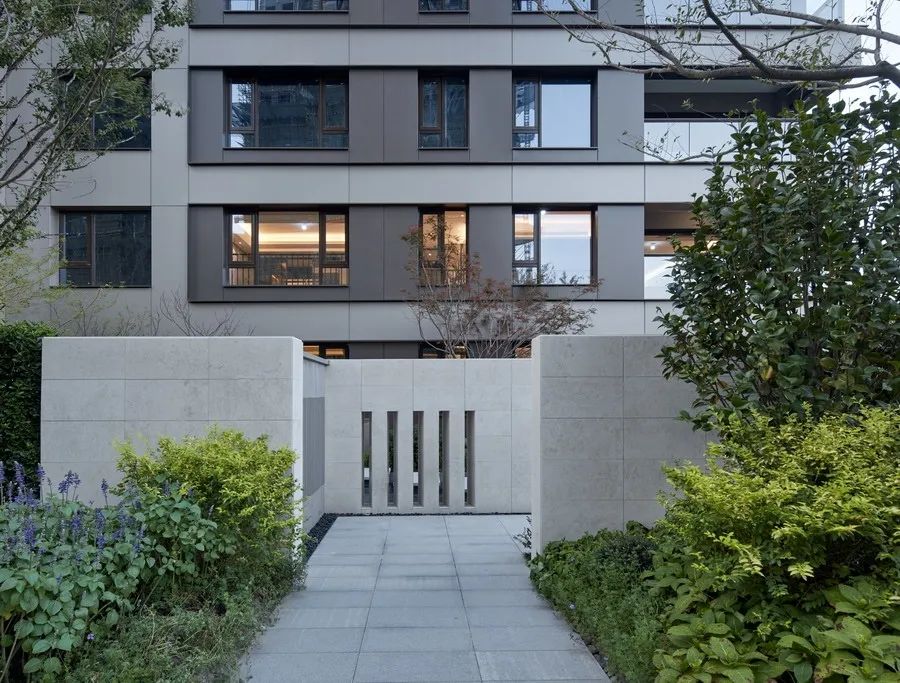

在场地局限的条件下，我们通过酒店式入口来提升回家体验。通过简洁富有层次的空间设计，让“小场地”产生“大空间”的感受，增添回家的仪式感。

Landscape analysis:

Under the limited conditions of the site, we use the hotel entrance to improve the home experience. Through the concise and hierarchical space design, the "small site" will have the feeling of "big space" and add the sense of home ceremony.

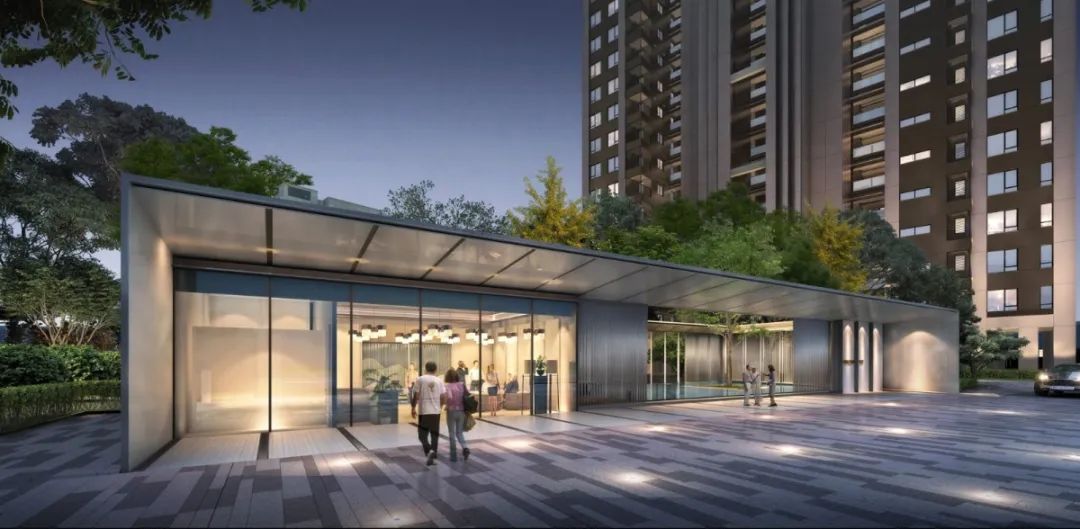

▼迎宾楼效果，Welcome building effect

以一种简练、高级的年轻化设计语言来展示建筑的艺术。

The art of architecture is displayed in a concise and advanced young design language.

外立面的铝板、精细框线，使建筑轻盈丰富又不失品质感。

The aluminum plate and fine frame lines on the facade make the building light, rich and tasteful.

加入景观环境的设计，进一步形成“筑景一体”的创新风格。

Add the design of landscape environment to further form the innovative style of "integrating landscape construction".

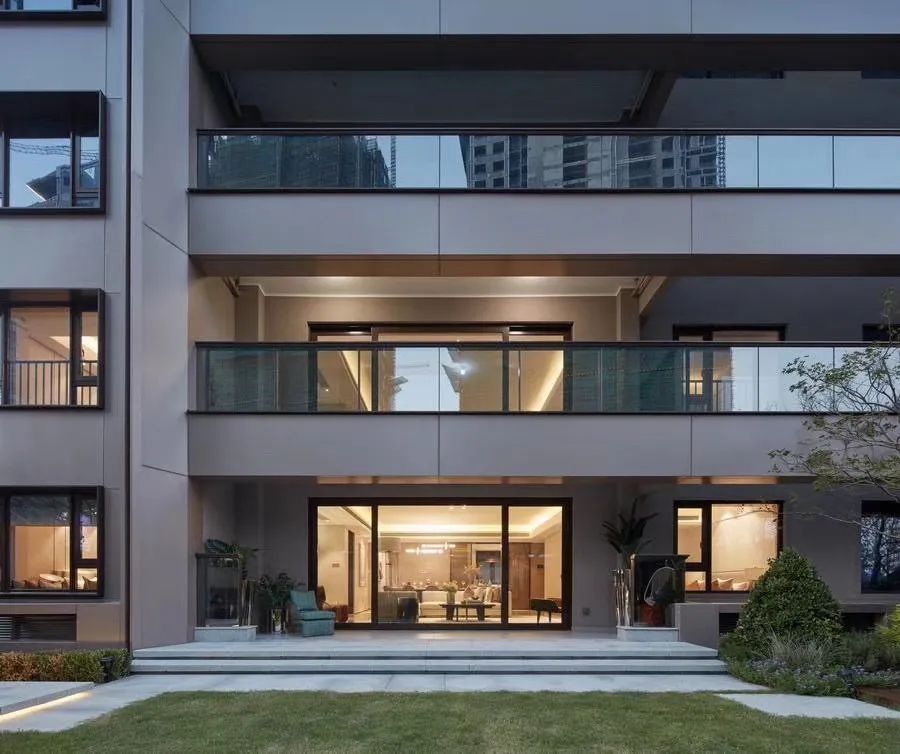

通透的阳台及飘窗来体现与环境的融合，而非一味强调昂贵材料的奢华感。

Transparent balconies and bay windows reflect the integration with the environment, rather than blindly emphasizing the luxury of expensive materials.
