河南安阳红旗渠机场，河南/建筑
2023年11月29日，CZ8225次“空客320”飞机平稳降落在由中建三局总承包公司参与承建的河南省重点民生工程，豫北地区首个民航机场——安阳红旗渠机场，标志着机场正式通航。
On November 29, 2023, CZ8225 "Air 320" aircraft landed smoothly in the key livelihood project of Henan Province, which was built by the General contracting company of the Third Bureau of Construction, and the first civil aviation airport in northern Henan Province - Anyang Hongqi Canal Airport, marking the official navigation of the airport.
项目按照年旅客吞吐量55万人次，货邮吞吐量2000吨目标设计，飞行区等级为4C，中建三局承建旅客航站楼及附属工程，可直接服务周边约1160万人航空出行，进一步完善了河南机场布局。
The project is designed according to the annual passenger throughput of 550,000 people and cargo and mail throughput of 2,000 tons, the flight area level is 4C, and the third Bureau of Construction of the passenger terminal and ancillary works can directly serve about 11.6 million people around the air travel, further improving the layout of Henan Airport.

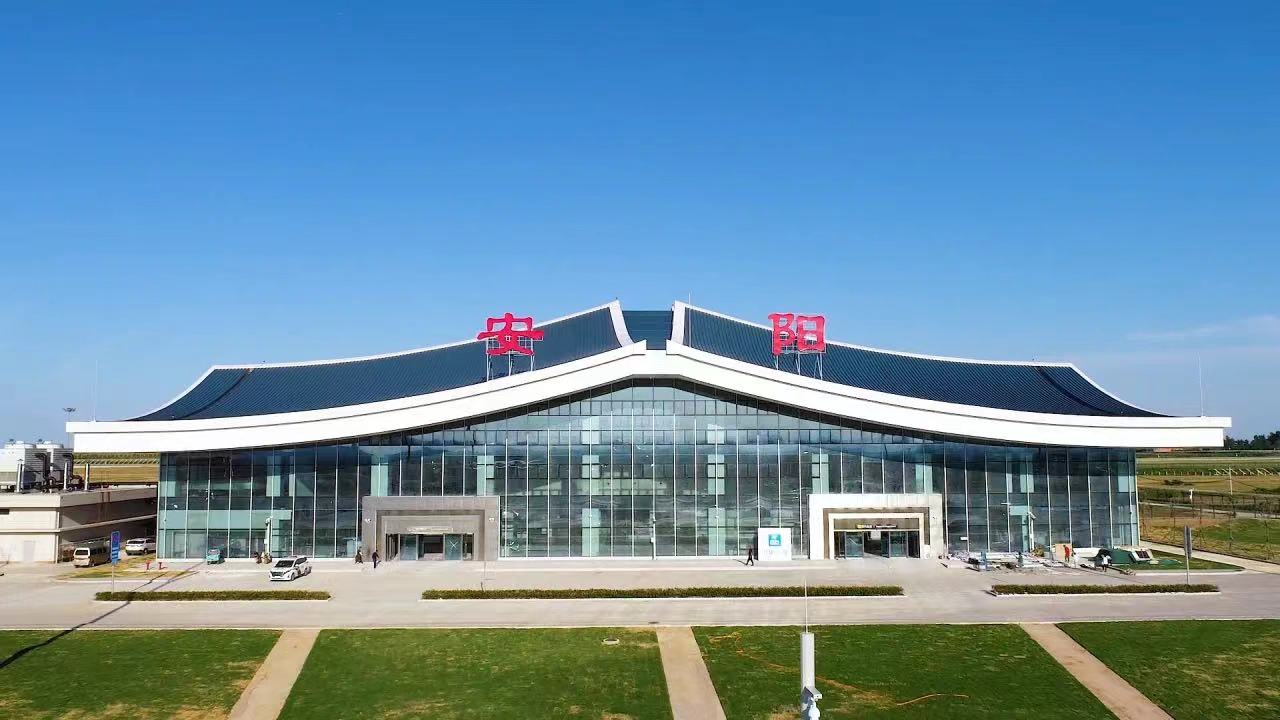

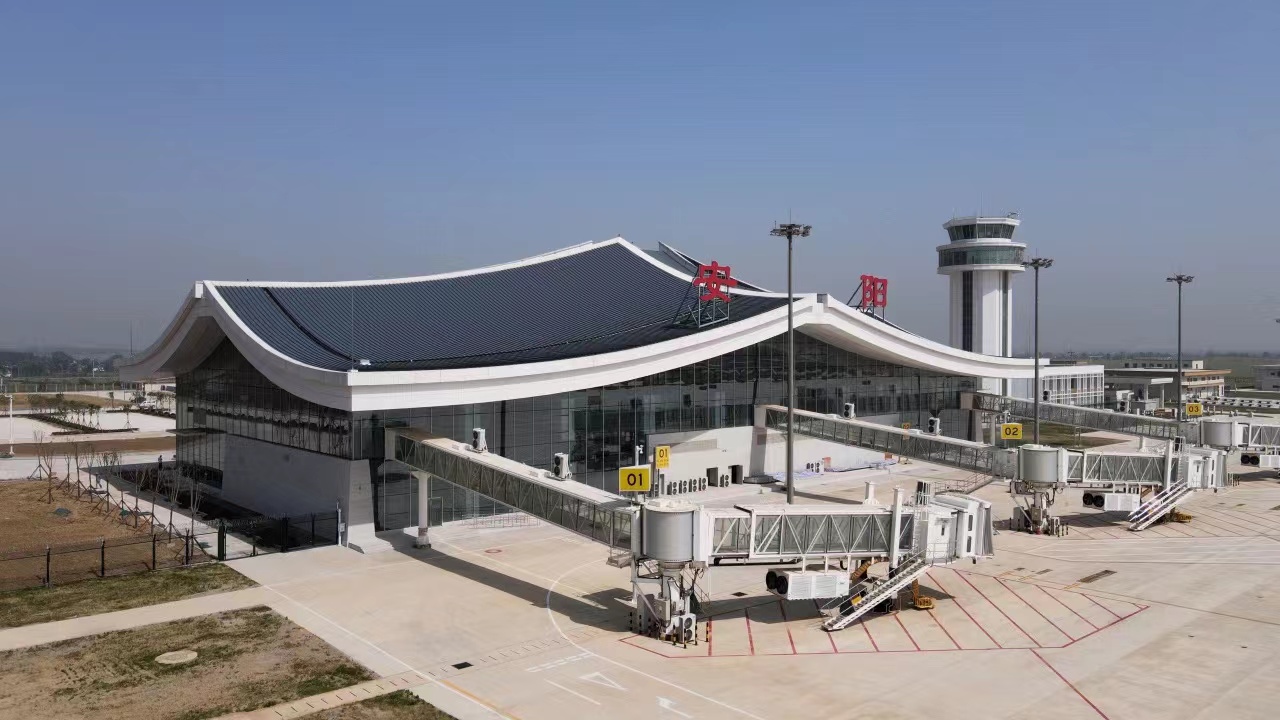

机场航站楼屋面为双层曲面网架钢结构+金属屋面的动感流线型屋面设计，远眺宛若飞鸟双翼，屋面造型高差达14.8米，单坡长度约30米，曲率非线性变化大、造型复杂。项目结合BIM协同管理平台，全过程运用3D实景扫描技术，实现钢结构工程深化设计施工，为每个钢结构构件进行编码，采用“分片吊装+高空散拼”施工工艺，实现快速定位和定点安装。
The roof of the airport terminal is a dynamic and streamlined roof design of double-layer curved mesh steel structure + metal roof, which looks like a bird's wings when viewed from a distance. The height difference of the roof modeling is 14.8 meters, the length of the single slope is about 30 meters, and the curvature nonlinear changes are large and the modeling is complex. Combined with BIM collaborative management platform, the project uses 3D reality scanning technology throughout the whole process to realize the deepening design and construction of steel structure engineering, codes each steel structure component, and adopts the construction process of "fragment lifting + high-altitude scattering" to achieve rapid positioning and fixed-point installation.

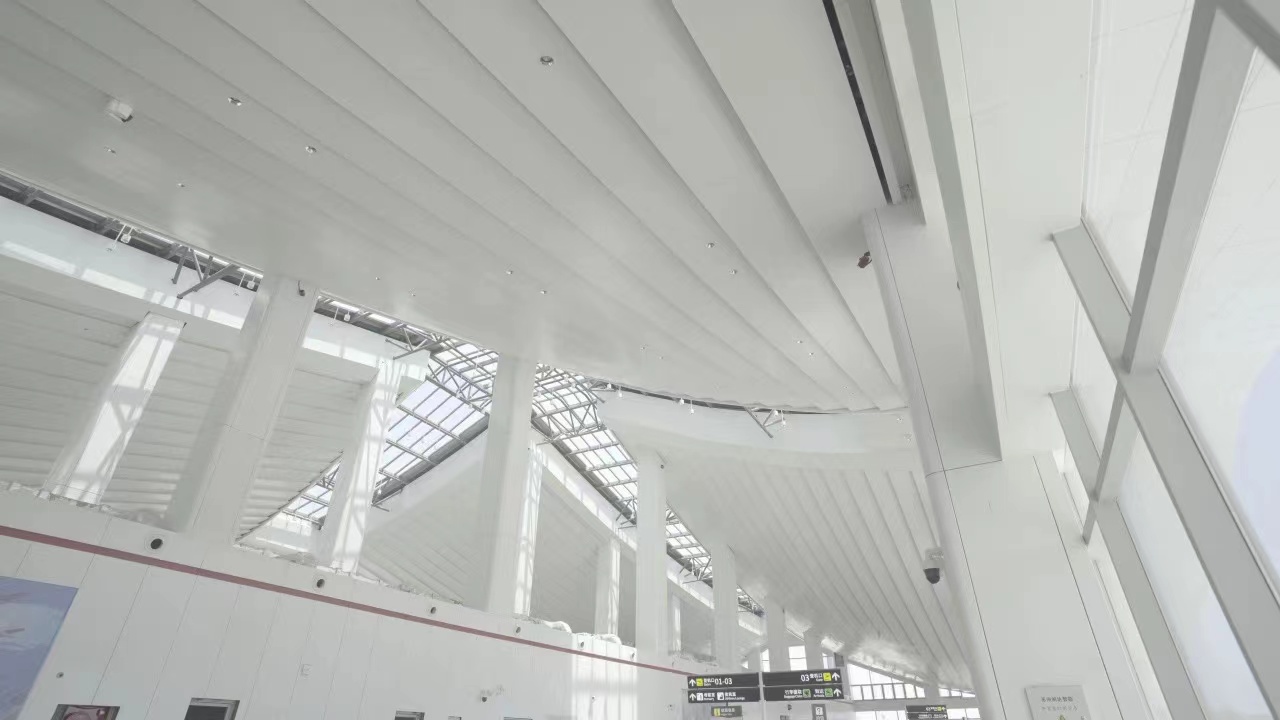

室内大空间异形吊顶以“十字”天窗为轴分隔对称排列，通过特制万向节组件和双层龙骨转换挠度，将1832块铝合金条板层压排布形成双曲形态，宛如“五线谱”，尽展优雅灵动之美。项目采用倒置式屋面做法，运用新型涂料+防水卷材铺设+保温层铺设的复合式防水系统，有效提高防水材料，使用寿命及防水效果，航站楼屋面流畅顺滑的坡度也为排水提供了有利条件。
The special-shaped ceiling of the indoor large space is symmally arranged by the "cross" skylight as the axis. Through the special universal joint component and double keel to convert the deflection, the 1832 aluminum alloy strips are laminated to form a hyperbolic shape, like a "staff", showing the elegant and flexible beauty. The project adopts the inverted roof method and the composite waterproof system of new coating + waterproof coil laying + insulation layer laying can effectively improve the waterproof material, service life and waterproof effect. The smooth and smooth slope of the terminal roof also provides favorable conditions for drainage.
航站楼室内风格雅致、意趣、古朴、简约、太行魂、盘庚迁殷、妇好出征等传统壁画元素，彰显厚重的历史文化，采用透光十字天窗，采光效果更优，同时热空气蓄积在屋脊部分，通过侧天窗形成自然通风，运用竖明横隐玻璃幕墙系统减少室内照明灯具使用，采用新型ALC隔墙板节能材料大大提升砌体隔热、隔音、保温性能，极大减少建筑能耗，打造出节能高效、舒适便捷的现代化机场室内空间。
The interior style of the terminal building is elegant, interesting, simple, simple, traditional mural elements such as Taihang soul, Pangengqian Yin, and women Hao go to war, highlighting the heavy history and culture. Transparent cross skylights are adopted to achieve better lighting effect. At the same time, hot air is stored in the roof ridge part, natural ventilation is formed through side skylights, and vertical horizontal hidden glass curtain wall system is used to reduce the use of indoor lighting lamps. The new ALC wall panel energy-saving material greatly improves the heat insulation, sound insulation and thermal insulation performance of masonry, greatly reduces building energy consumption, and creates an energy-saving, efficient, comfortable and convenient modern airport indoor space.
项目名称：河南安阳红旗渠机场
项目地点：河南
设计公司：中建三局
竣工日期：2023年11月
Project name: Henan Anyang Red Flag Canal Airport
Project location: Henan
Design company: China Construction Third Bureau
Completion date: November 2023
