旭辉甜甜圈幼儿园，合肥 /建筑

The site was located right beside the junction of Feicui Rd and Qingnian Rd. Considering the major highway and local bureau of ecological environment nearby, the design applied enclosing spatial arrangement in order to get rid of any negative influences from these site conditions.

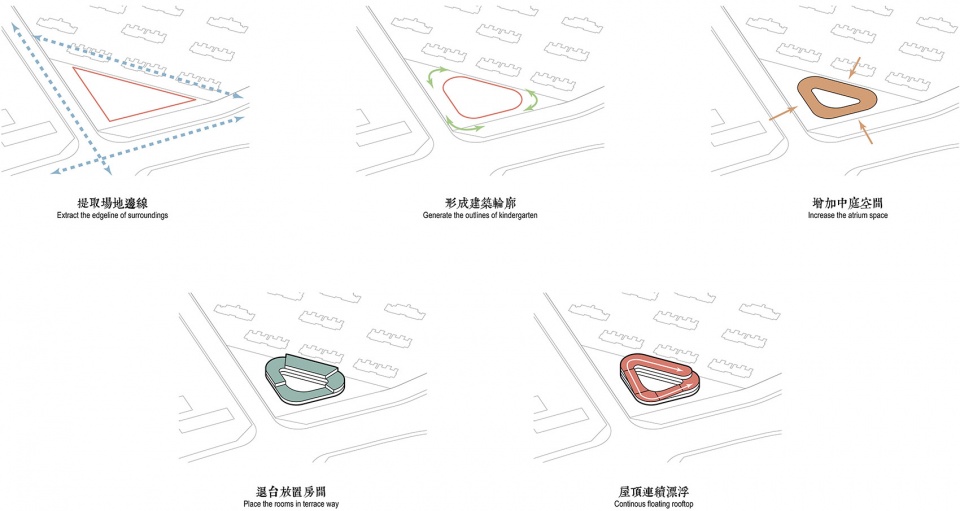

▼形体生成过程，generation

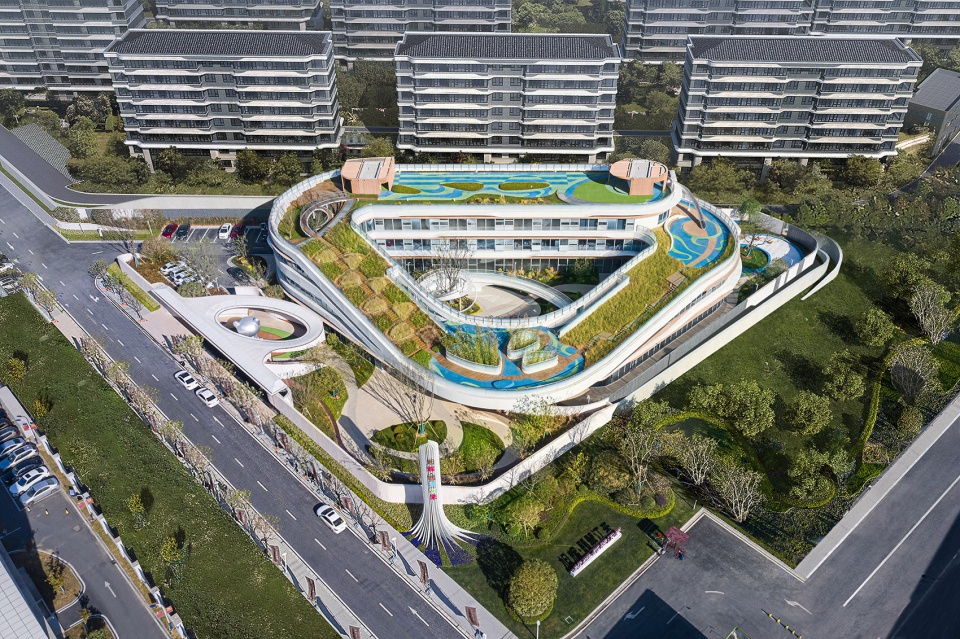

▼幼儿园俯视图，采用围合式的空间布局，top view of the kindergarten with an enclosing spatial arrangement

为了保证孩子们活动中所需的日照时间，北侧朝南的3层体量被设置为12个班级的主要教学空间，两侧逐渐跌落，分别附以其他功能用房。整体形体在不同的方位再由不同高度的坡道整合，串通二层以及三层的屋顶，创造了一个连续的屋顶活动平台。这样，每一层的小朋友都可以在所在层享受到室外活动场地的同时，不知不觉玩到下一层或者上一层，与更多的朋友交流互动。建筑内部布局采用了单边廊道，将室内自然采光及通风的效率最大化。

To ensure necessary sunlight hours required for children’s activity, the three-floor high volume in the north was designated as the main education space for 12 classes. Then it was stepping downwards and sheltering other function rooms on the both sides. The overall form was united through two individual ramps that joined roof terraces of different heights, which created a continuous open space. As a result, in addition to enjoying corresponding outdoor playgrounds, children of each floor would be capable of communicating with more friends when they approached the upper or the lower level unintendedly. Within the building, all the rooms had been arranged on the same side of the corridor to maxi-mize the efficiency of natural light and ventilation.

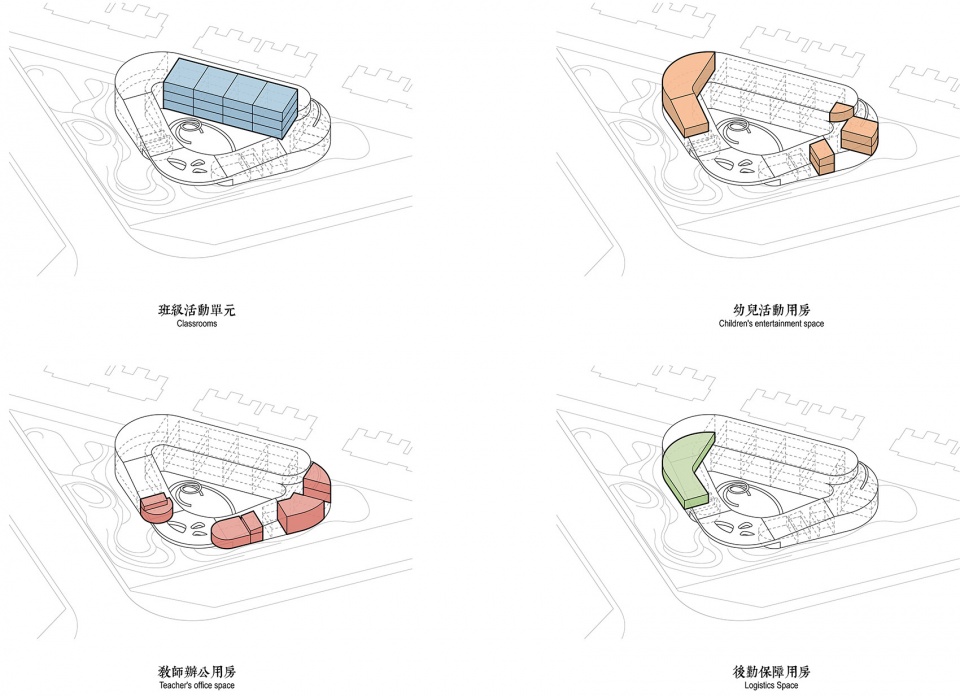

▼功能分析图，function analysis

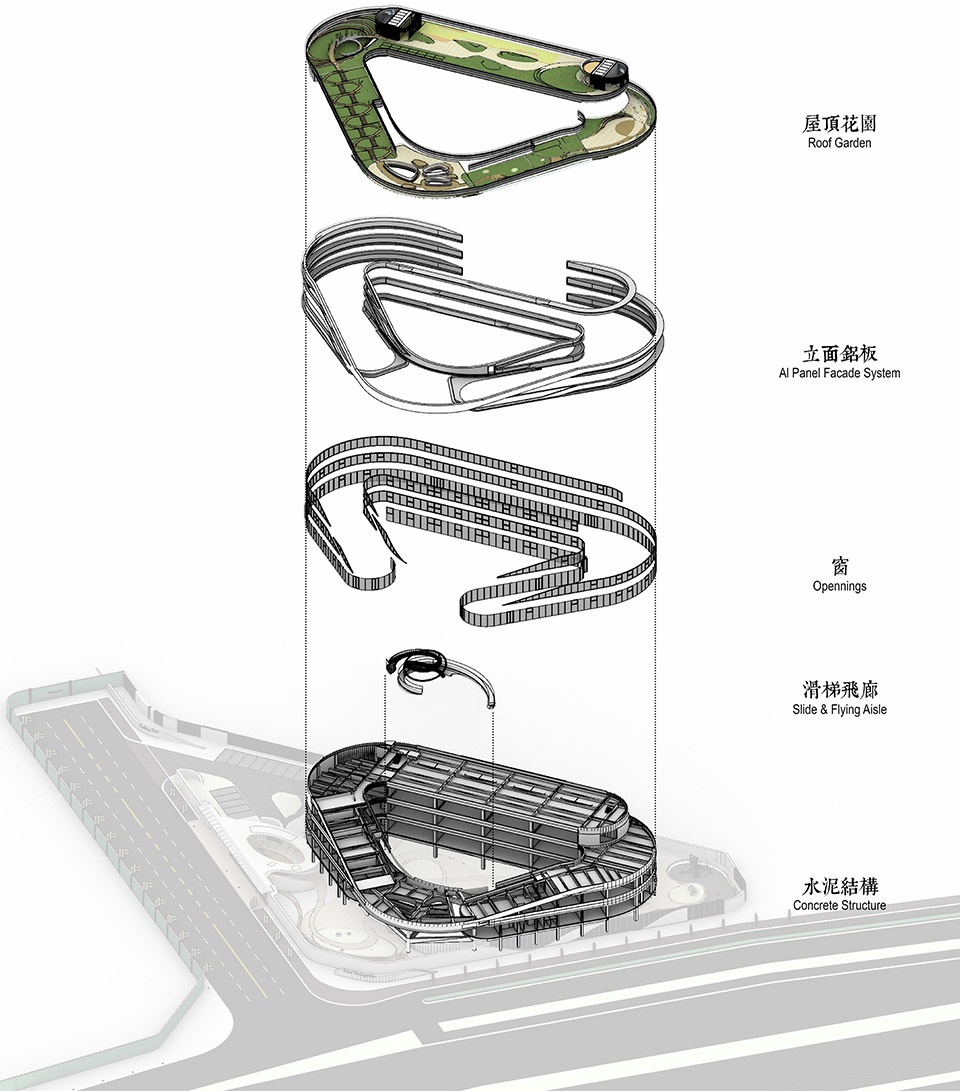

▼幼儿园爆炸轴测图，exploded axon

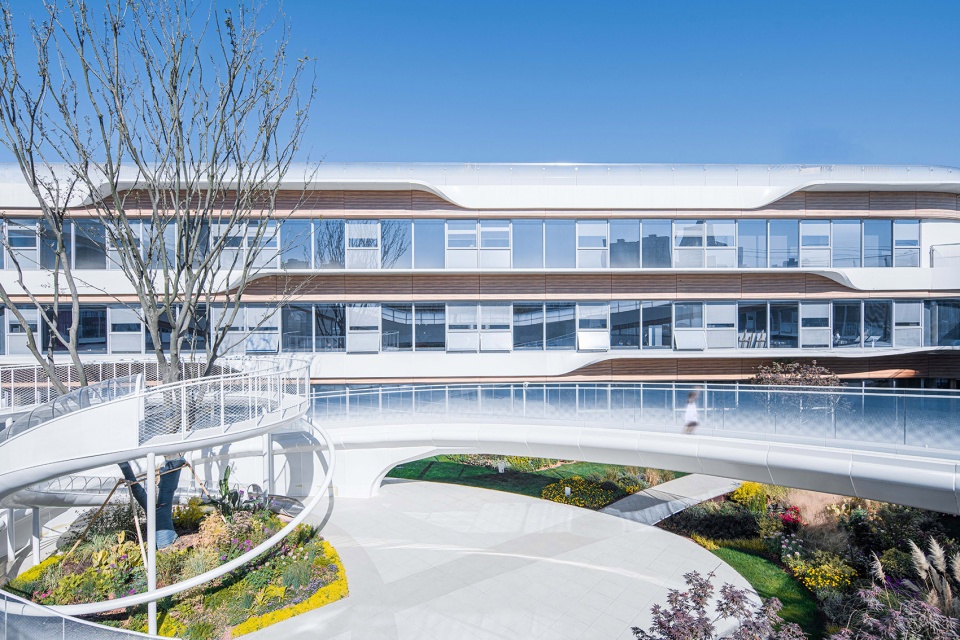

▼幼儿园内部庭院，整体形体在不同的方位由不同高度的坡道整合

the courtyard of the kindergarten, the overall form is united through individual ramps

通过白色铝板在表面的流动和扭转，建筑立面在观感上显得流畅且富有韵律。木纹转印的铝板作为衬托，为建筑进一步增添了温暖和细腻的氛围。双曲铝板在深化过程中做了充分的优化，以此实现了模块化的加工和建筑表现力之间的平衡。而扶手采用的雾化玻璃为连续的屋面勾勒出兼顾安全与诗意的边界。

As white aluminum panels flew and twisted on the surface, the expression of the façade was quite fluid and rhythmic. The sub-panels beneath with timber texture heat-transfer-printed further flattered the building with a hint of warmness and delicacy. All the double-curved panels had been processed with sufficient digital optimization to achieve a good balance between modular production and architectural performance. The cloudy glass for handrail drew a border that was both secure and poetic for the continuous roof.

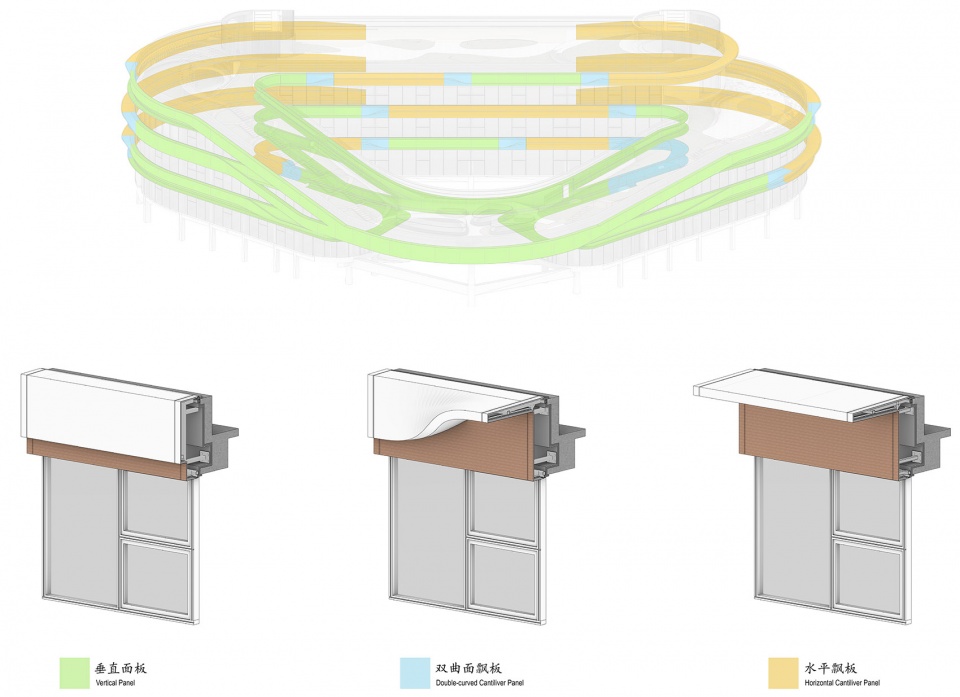

▼立面铝板分析，facade units

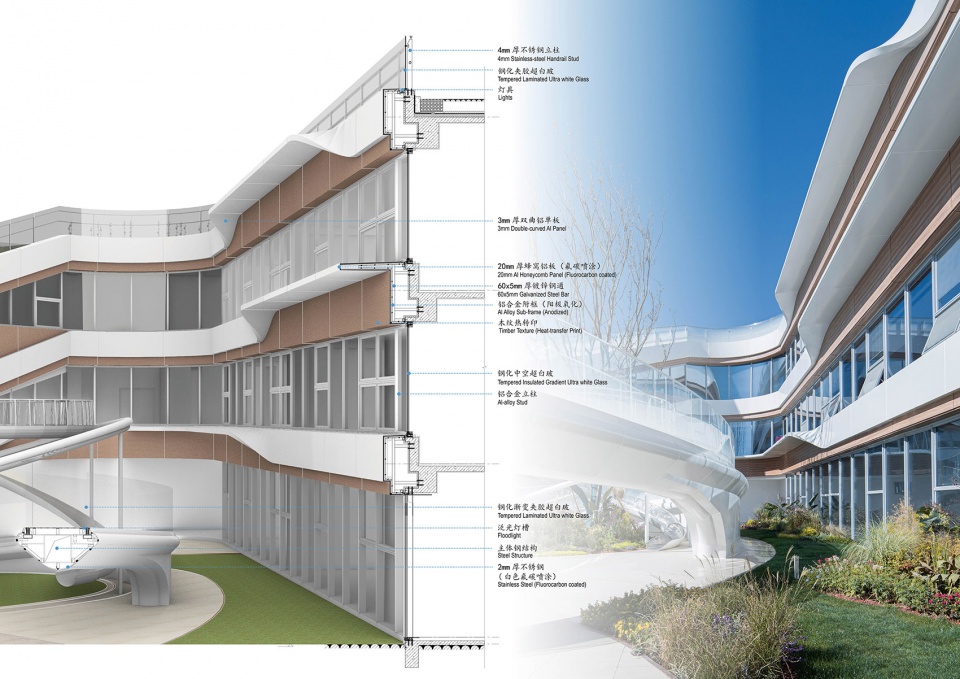

▼墙身大样，wall details

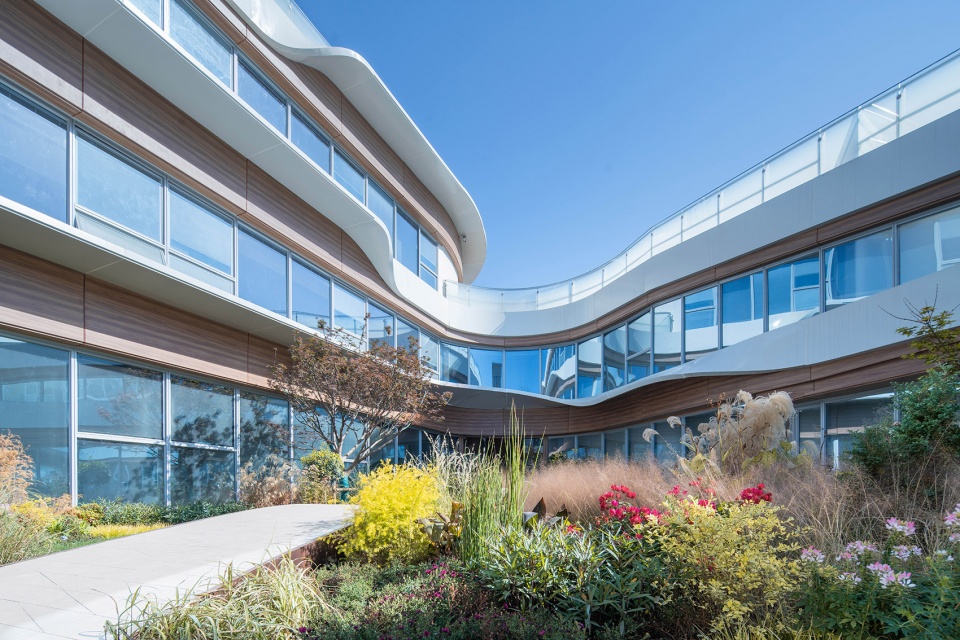

▼通过白色铝板在表面的流动和扭转，建筑立面在观感上显得流畅且富有韵律

as white aluminum panels flew and twisted on the surface, the expression of the façade is quite fluid and rhythmic

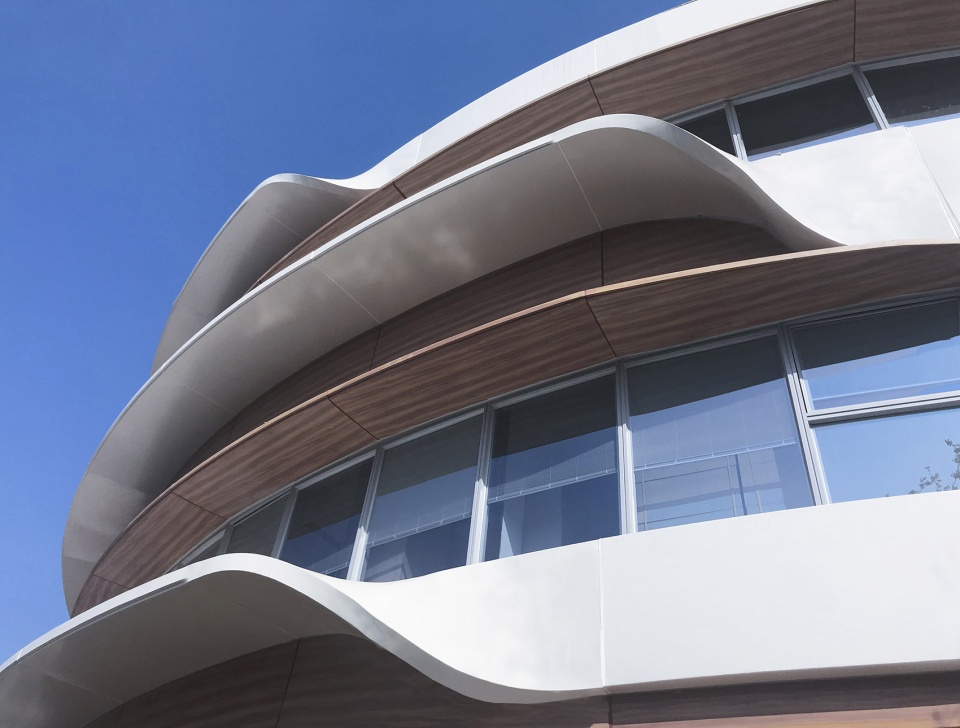

▼立面上外圈铝板细节，details of the white aluminum panels of the facade

为了增加趣味性，建筑的设计和景观要素在三维上皆做了充分的融合，使整个幼儿园成为了能让孩子们流连忘返的乐园。首层入口处利用反梁创造了一个开敞的16米跨度的低矮空间。两层通高的音体多功能室的上空通过降板使屋顶下沉花园成为可能。而在建筑体量围合出的中庭所设置的飞廊和滑梯，不仅是整个室外活动的高潮，更从流线上将屋顶活动空间与首层景观无缝对接，促成循环更为无痕、层次更为丰富的空间体验。孩子们可以从首层的中庭攀爬飞廊来到二层，通过二层的开洞和下面的伙伴打招呼，再坐滑梯回到首层；亦或是穿过斜坡花园来到顶楼，再坐滑梯回到二层…

To further amplify the pleasure, architecture had collaborated with landscape thoroughly and three-dimensionally, which made the whole kindergarten turn into a fascinating wonderland for children. The reversed beam at the entrance on the ground floor allowed a low yet open space to span 16 metres. Above the double height multi-media room, roof structure descended on purpose of the roof sunken garden. The slide and flying corridor in the centre of the courtyard defined by architecture’s volume not only provoked the climax of the overall outdoor activity but also connected the roof space and garden on the ground floor seamlessly. Consequentially, the circulation loop was smoother and spatial experience was more of diversity. For example, children could climb up the courtyard’s flying corridor to the 1st floor to say hi to the friends on the ground floor through the floor opening and then use slide to come back. Or they could run across the ramp garden to the 2nd floor and then go to the 1st floor with another slide etc.

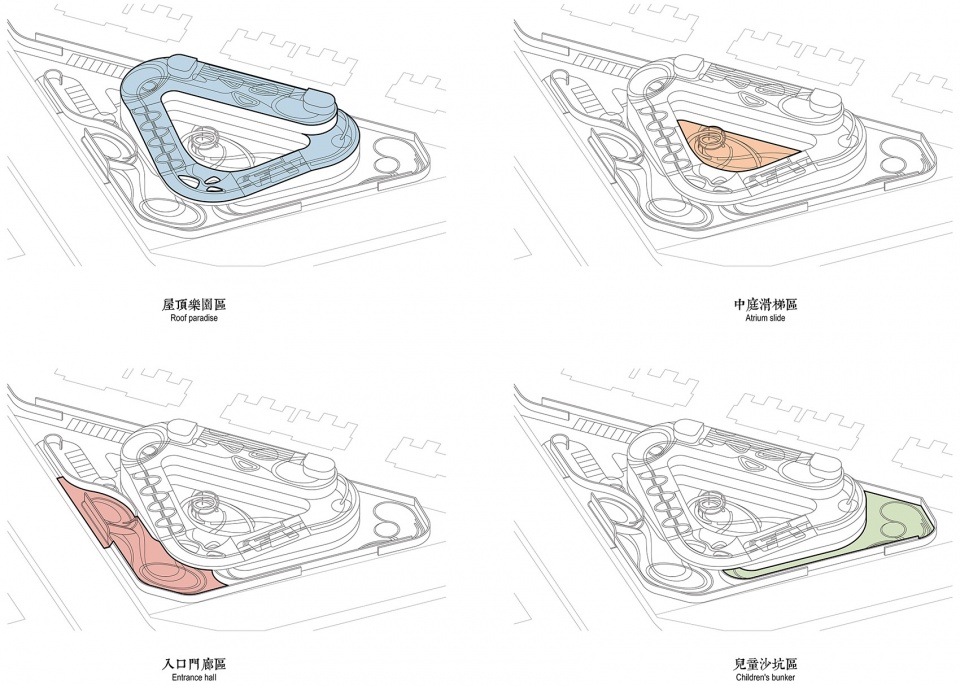

▼景观分区分析，landscape analysis

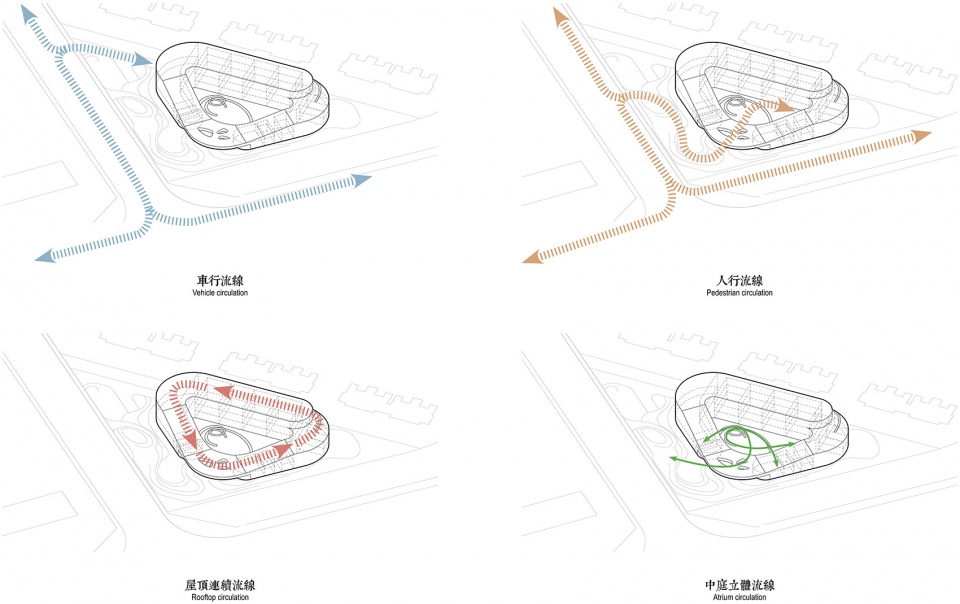

▼流线分析，circulation analysis

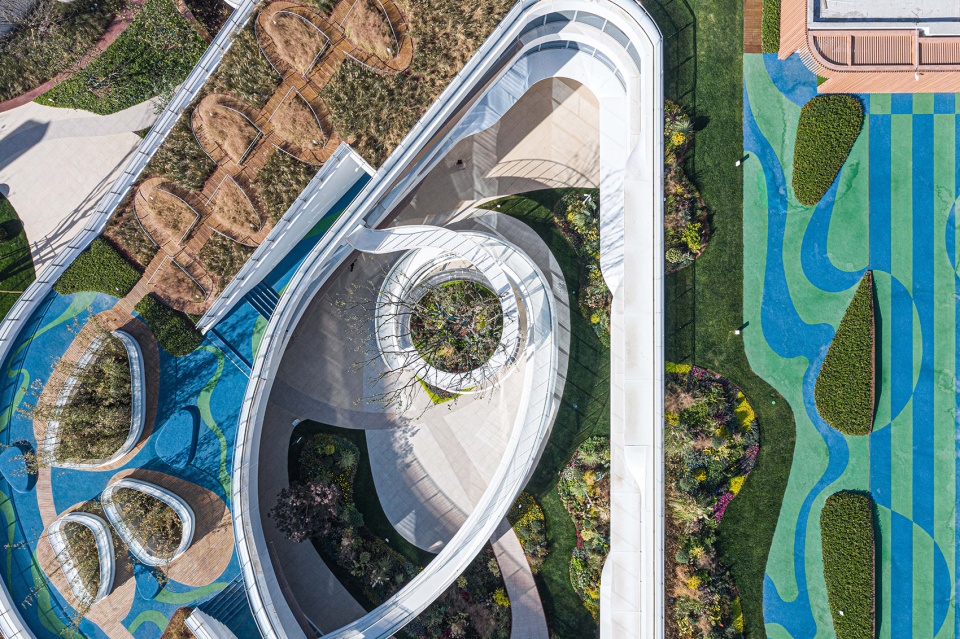

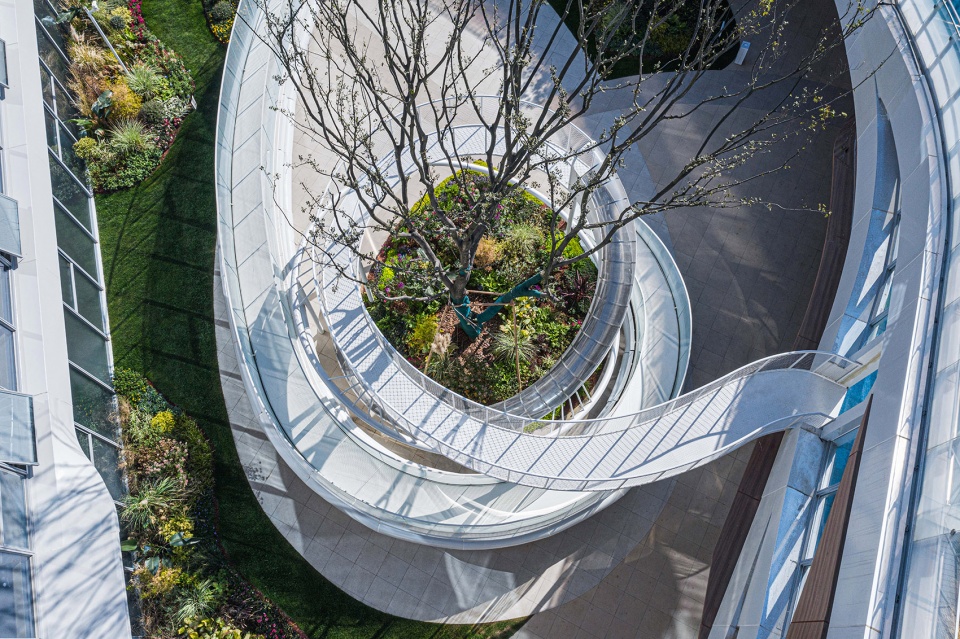

▼中庭中央位置的滑梯与飞廊俯视图，top view of the slide and flying corridor in the centre of the courtyard

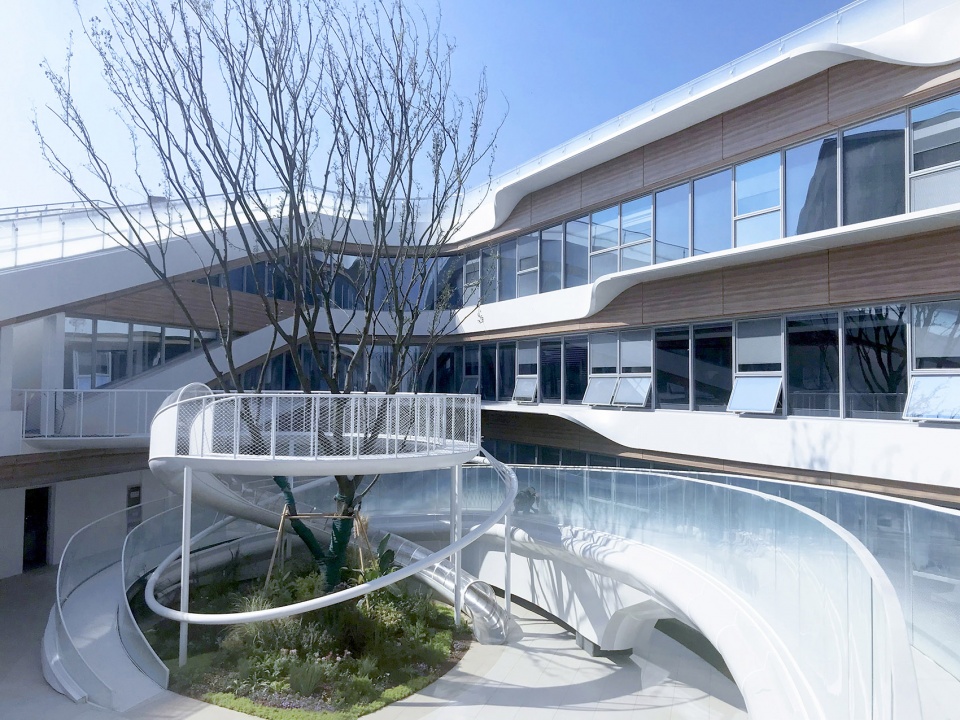

▼中庭飞廊与滑梯，从流线上将上层活动空间与首层景观无缝对接

the courtyard and the children’s slide, connecting the activity space on the upper floors and garden on the ground floor seamlessly

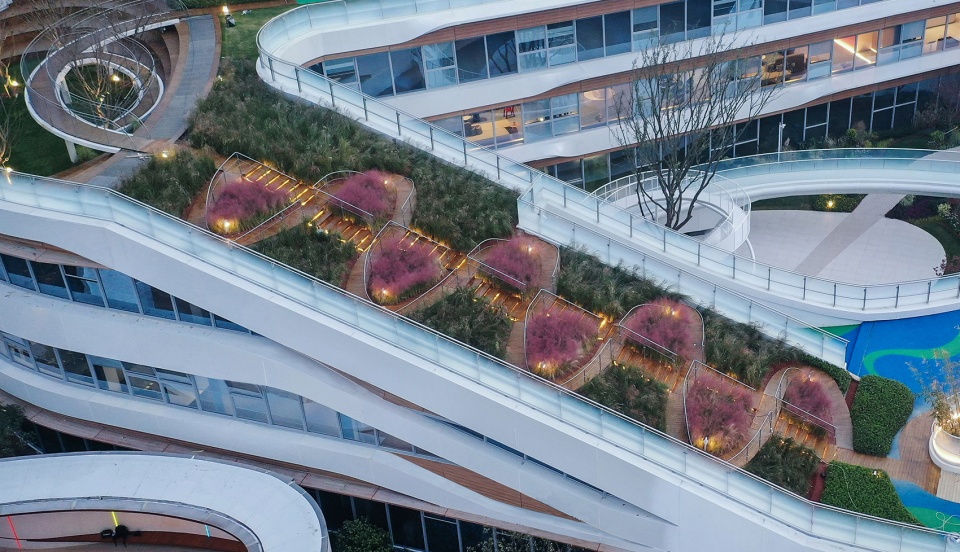

▼穿过斜坡花园来到顶楼，the ramp garden on the roof

整个幼儿园的体量相对克制，并未撑满整个场地而是给入口部分留有了一定的余地，保证家长接送孩子时有足够的空间能等待和告别，从而避免未来高峰时期给场地交通带来压力。

The overall volume of the kindergarten was restrained to save some space for the entrance where parents would have enough time and space to wait and say goodbye. It would relieve the pressure on traffic during peak periods in the future.

▼流线分析，the circulation analysis

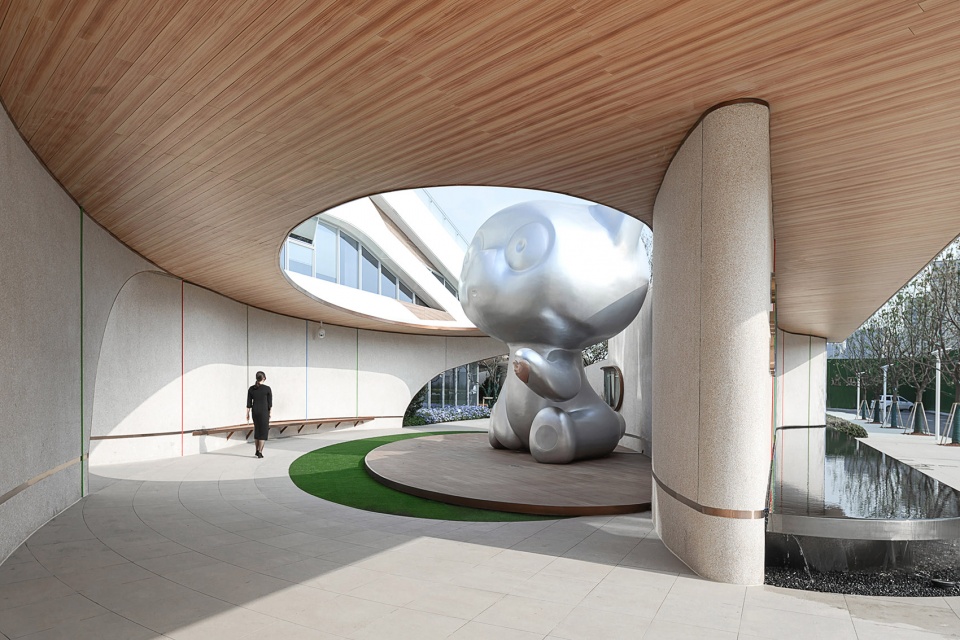

▼幼儿园入口，预留了等待和缓冲空间，the entrance of the kindergarten with a waiting and buffer space

建筑室内设计则主要采用了温暖柔和的糖果色系，结合圆弧的造型营造出了具有安全感的温馨氛围。纤细而不失大胆的造型也能更好地迎合孩子们对世界的各种可爱想象。

The interior design was dominated by mild candy colors and circular arcs. With its warmer and securer atmosphere, the delicate yet bold outcome would cater to all the lovely imagi-nations of a child about the world.

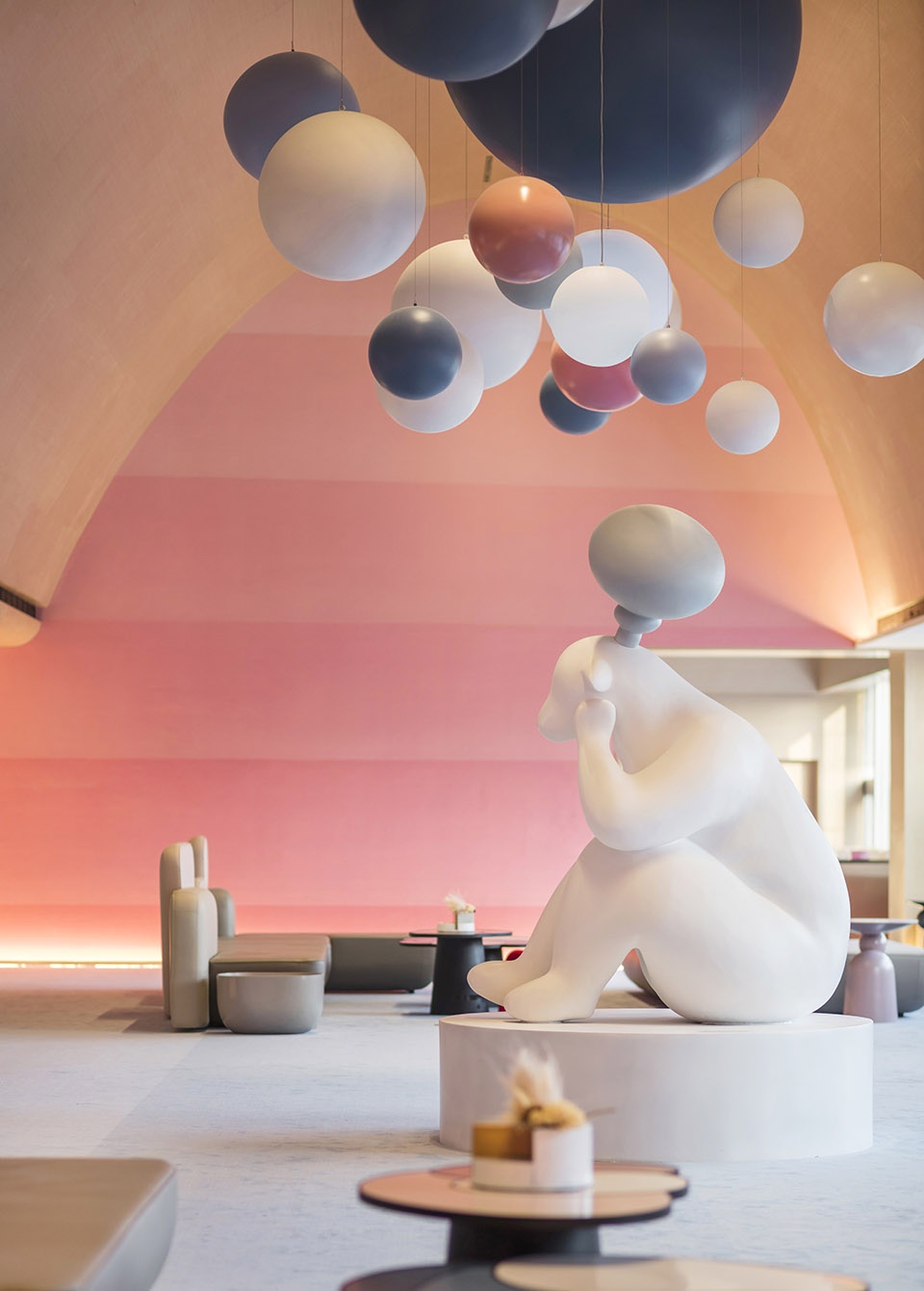

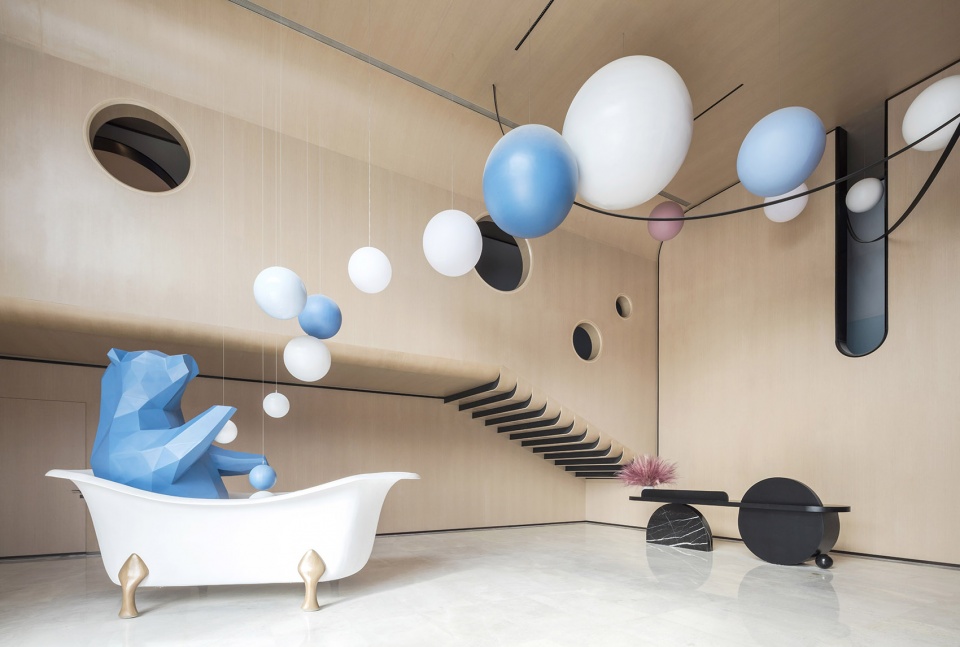

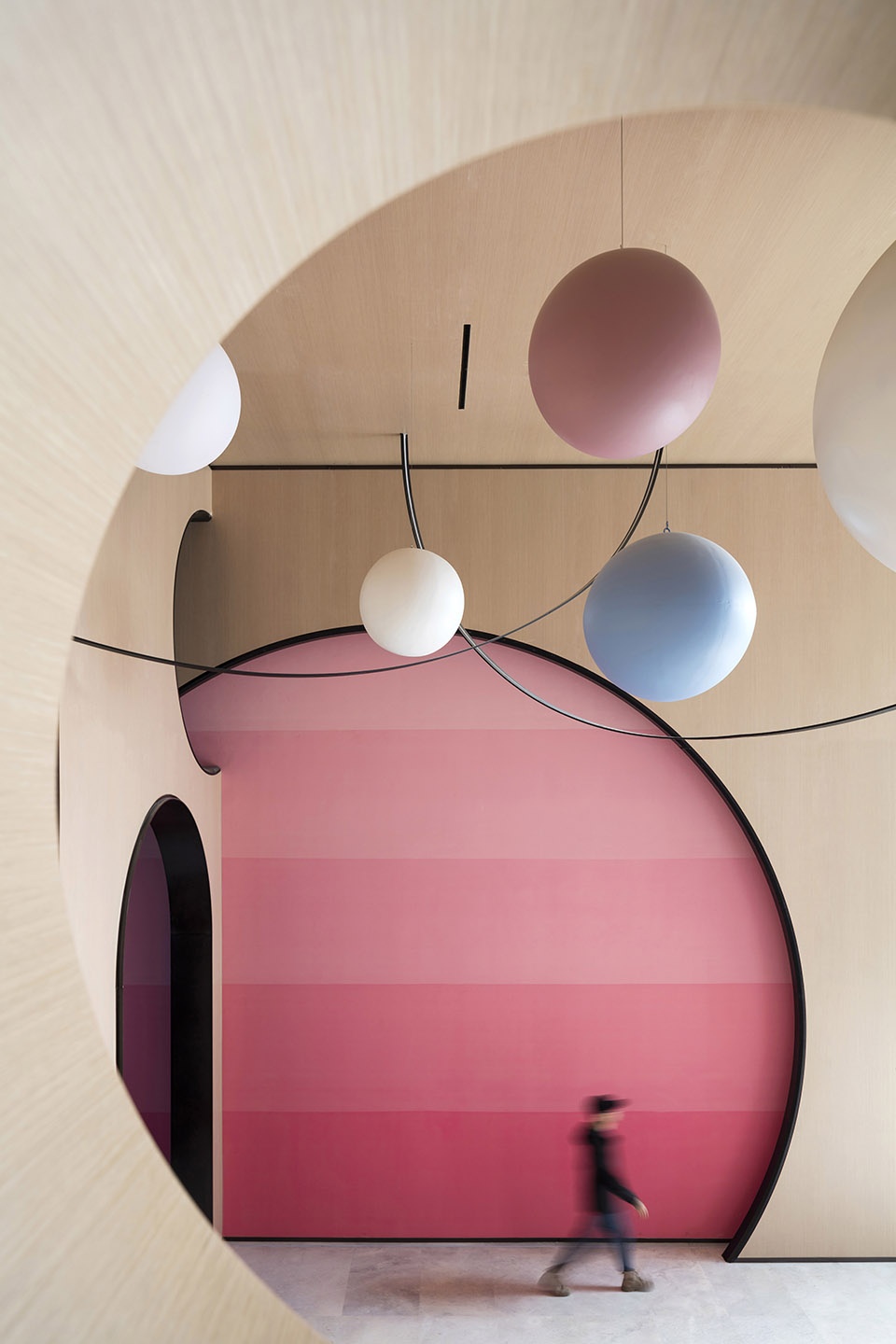

▼幼儿园门厅，the lobby of the kindergarten
