我们是专业的设计工作室,专注高端私宅整案设计项目。始终坚持以人的需求为出发点,让空间服务生活,用空间作品去呈现和理解更多的不同生活方式。我们从不关心我们是不是做的最大的,我们只关心是不是还可以做得更好!
减法亦是加法-126㎡安福路旧宅的新生,上海/室内
有别于往常承接较多北欧、MCM、法式等装饰性较浓的项目,这对业主夫妇来自朋友的推荐,重视空间收纳的同时,更偏好简练色彩,也因此我们完成了一个做减法而有别于其它项目的低彩度空间。
Different from the usual Nordic, MCM, French and other decorative projects, this couple of owners from the recommendation of friends, pay attention to space storage, prefer simple colors, so we completed a subtraction and different from other projects low color space.

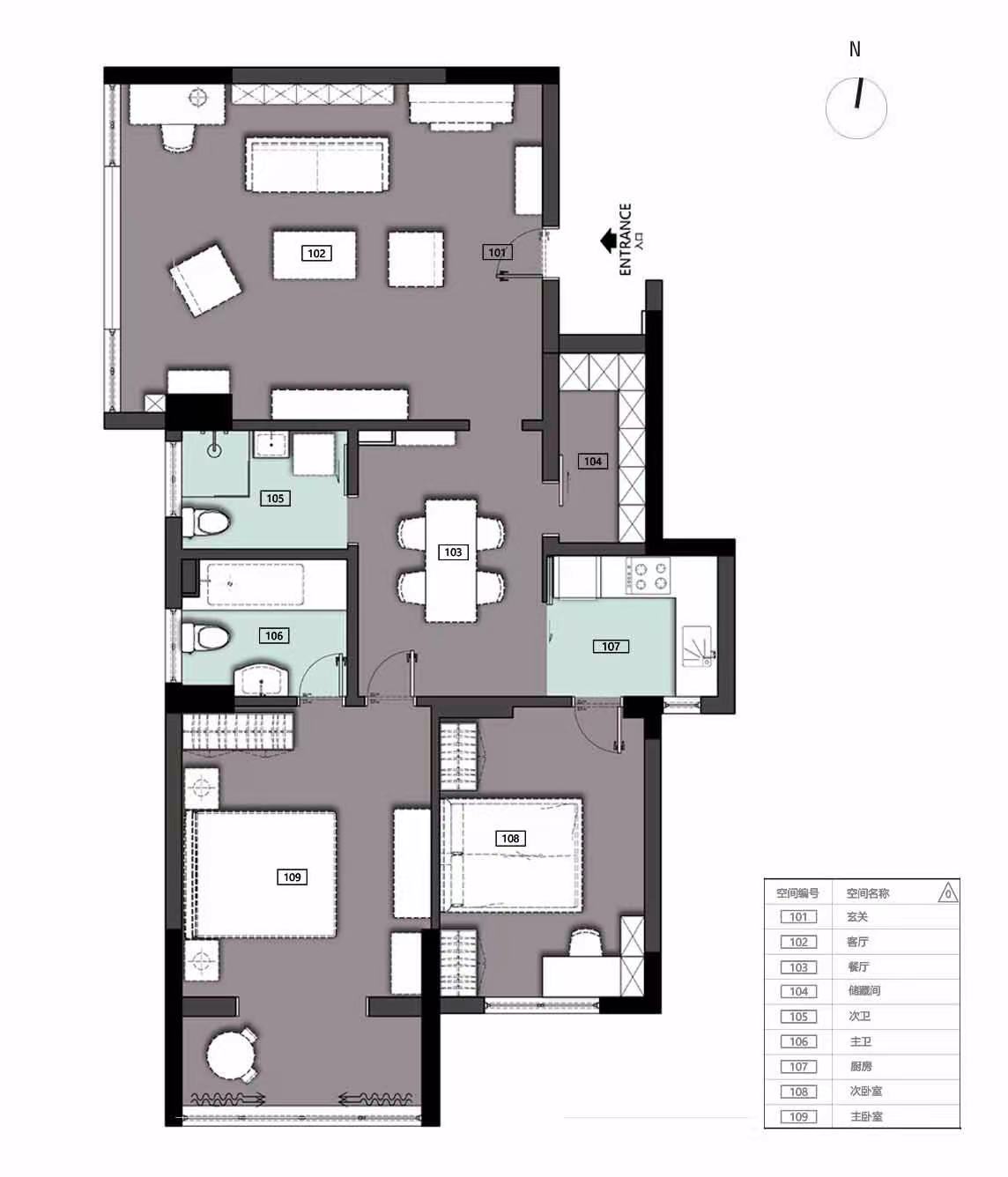

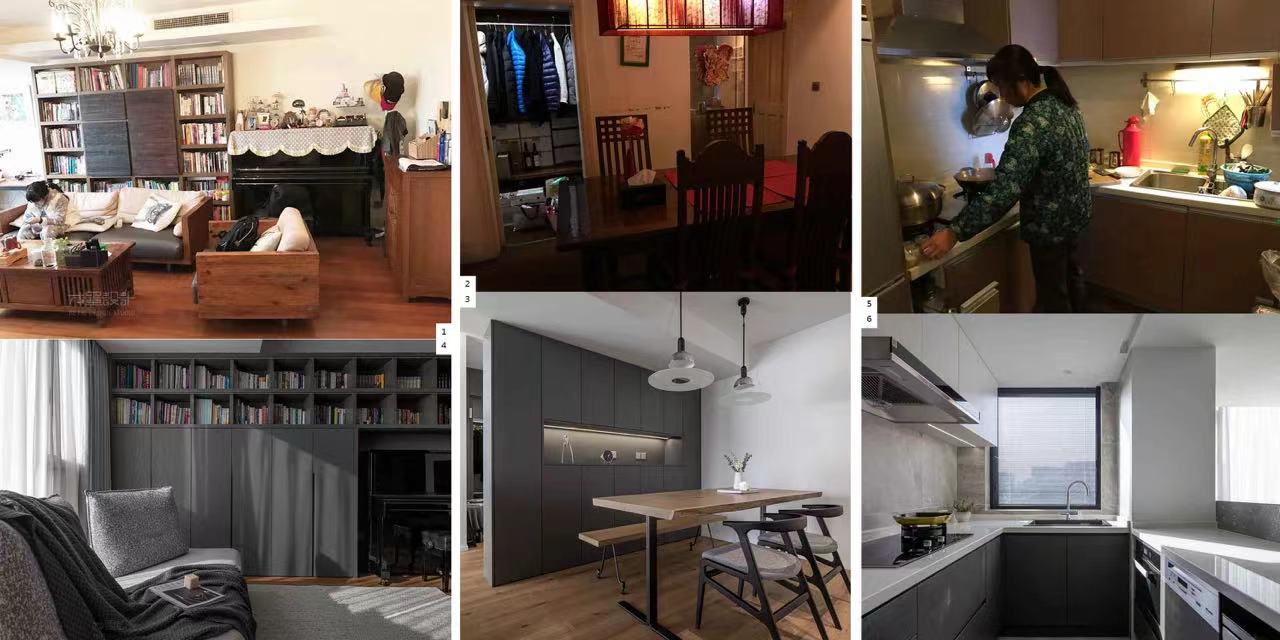

改造前:
入户无玄关私密性较差,脱衣换鞋不便;
餐厅在主动线上,四周门窗闭合常年无采光;
狭长衣帽间,存储量有限且拿取不便;
厨房次卧相连,出入卧室经过厨房,烟易侵入卧室;
厨房开窗,管道井风口将油烟内灌,屋内油烟味不易散 ;
主卫面积较大,实际却不经常使用,用率低,家人更多使用次卫;
主、次卧面积充足,但收纳比较有限。
Before renovation:
Entrance without porch privacy is poor, undress for shoes inconvenience;
The restaurant is on the active line, and the Windows and doors around it are closed all year round.
Narrow and long cloakroom, limited storage and inconvenient access;
Kitchen second bedroom connected, access to the bedroom through the kitchen, smoke easy to invade the bedroom;
Kitchen window, pipe well tuyere will be filled with lampblack, the smell of lampblack is not easy to disperse;
The main sanitation area is large, but the actual use is not often, the rate is low, the family more use the secondary sanitation;
The main and second bedrooms are ample, but the storage is limited.

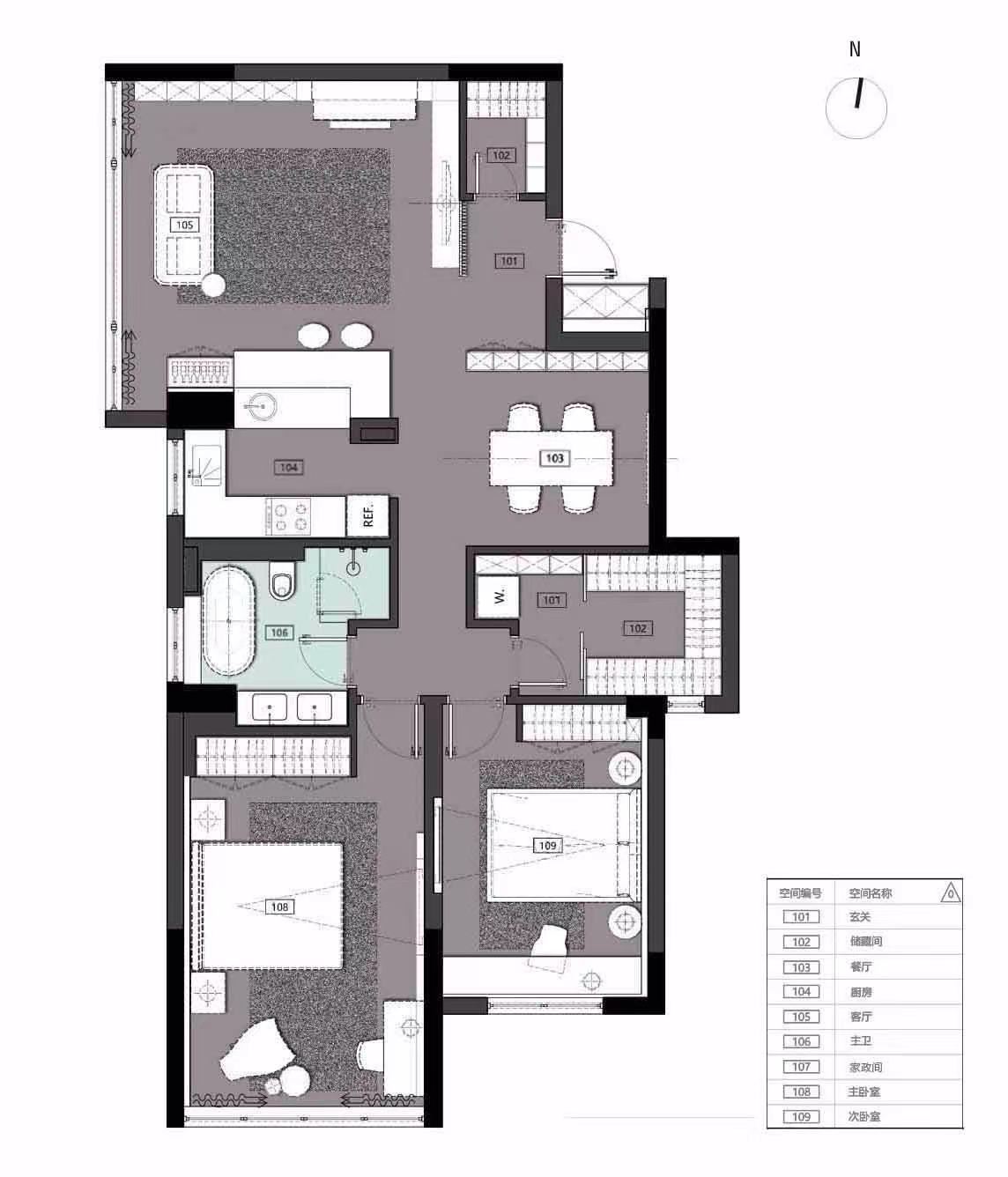

改造后:
入户处增设玄关收纳间,出入随行物品有去处,利用电视背景墙做隔断,增加私密性;
将原来常年无光的餐厅调整到原衣帽间区域,借助厨房的自然光线,餐厅更加明亮通畅;
次卫拆改成与客厅互动的开放式厨房,LDK空间增强互动性;
调整次卧动线,让原厨房向走道延展,增加储存空间,改变功能做为:衣帽间+洗衣房+家政间,家政工作更轻松;
调整主卫动线改主卫为公卫,向走道延展,置入淋浴区及浴缸功能满足不同沐浴需求;
客厅、主卧、次卧均采用顶天立地的木作柜,最大化空间的内存。
After the transformation:
The entrance is equipped with a entrance storage room to provide places for accompanying items. The TV background wall is used as a partition to increase privacy.
The original dark dining room is adjusted to the original cloakroom area, with the natural light of the kitchen, the dining room more bright and unobtrusive;
The second bathroom is changed into an open kitchen that interacts with the living room. The LDK space enhances the interaction;
Adjust the moving line of the second bed, let the original kitchen extend to the corridor, increase the storage space, change the function as: cloakroom + laundry room + housekeeping room, housekeeping work is easier;
Adjust the moving line of the main bathroom to change the main bathroom to public health, extend to the corridor, put in the shower area and bathtub functions to meet different bathing needs;
The living room, the master bedroom and the second bedroom are all made of wood cabinet, which maximizes the memory of the space.

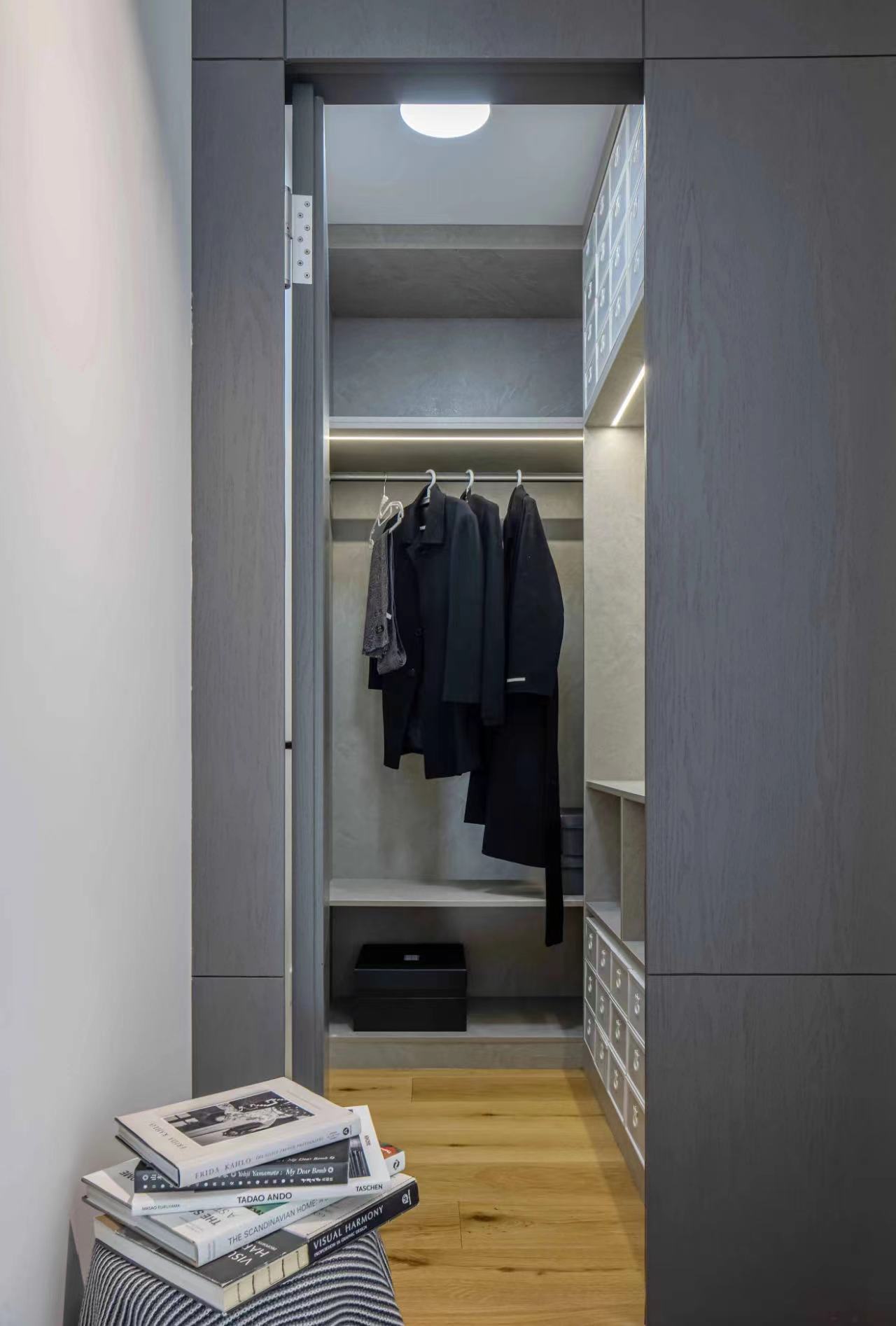

入户设置玄关,在右侧隐形门内设置了1.2米*1.6米约2㎡的储藏间(卸货区),内部柜体分别设置350mm和550mm深两种规格柜体可满足放不同种类尺寸的物品,例如外套、包包、快递、出门携带的运动器材等,保证门厅的畅通、整洁,秩序井然。
The entrance door is set up in the right invisible door 1.2 meters *1.6 meters about 2 square meters of storage room (unloading area), the internal cabinet is set 350mm and 550mm deep two specifications of the cabinet can meet the different sizes of the items, such as coats, bags, express, go out to carry sports equipment, to ensure the entrance hall smooth, clean, orderly.

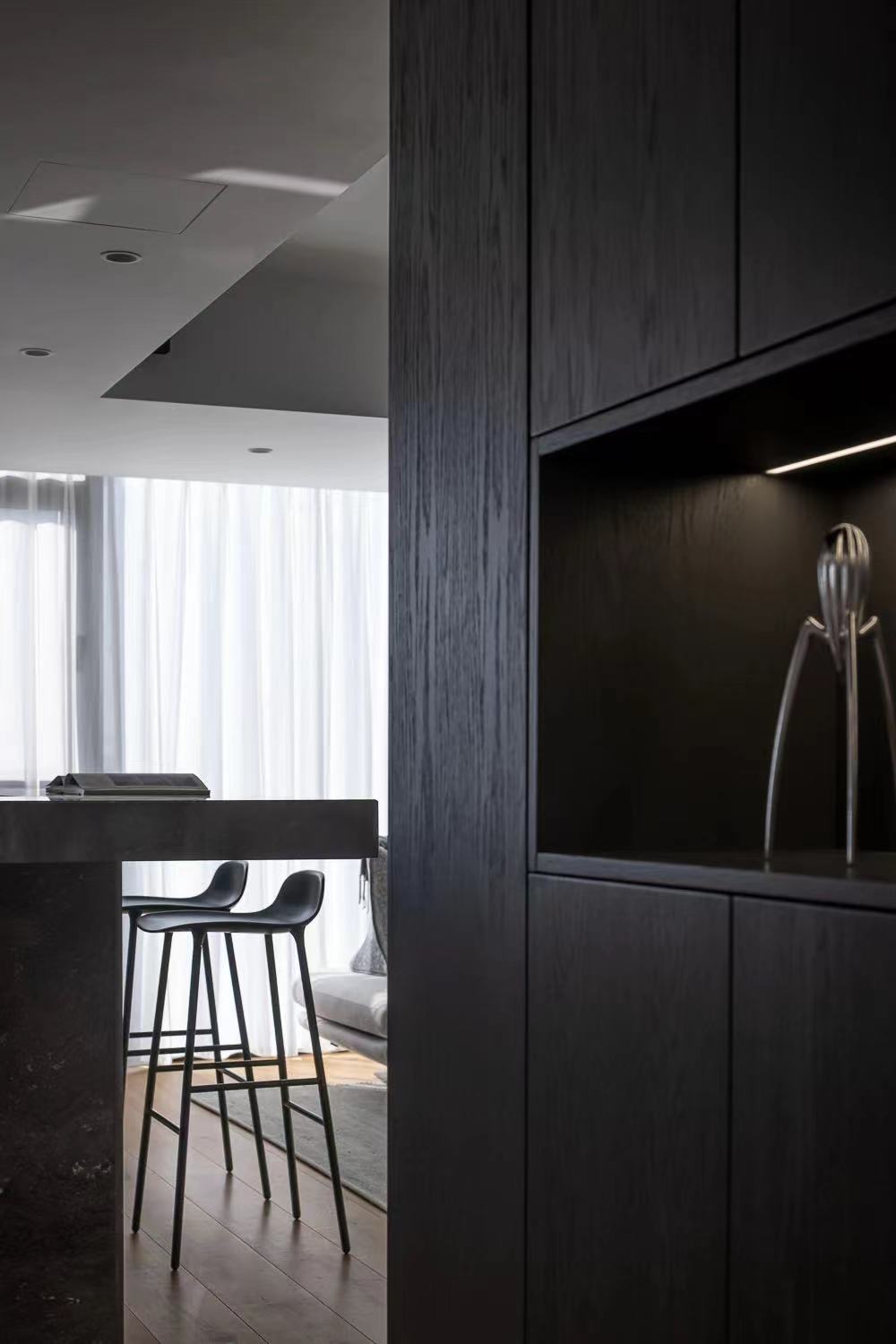

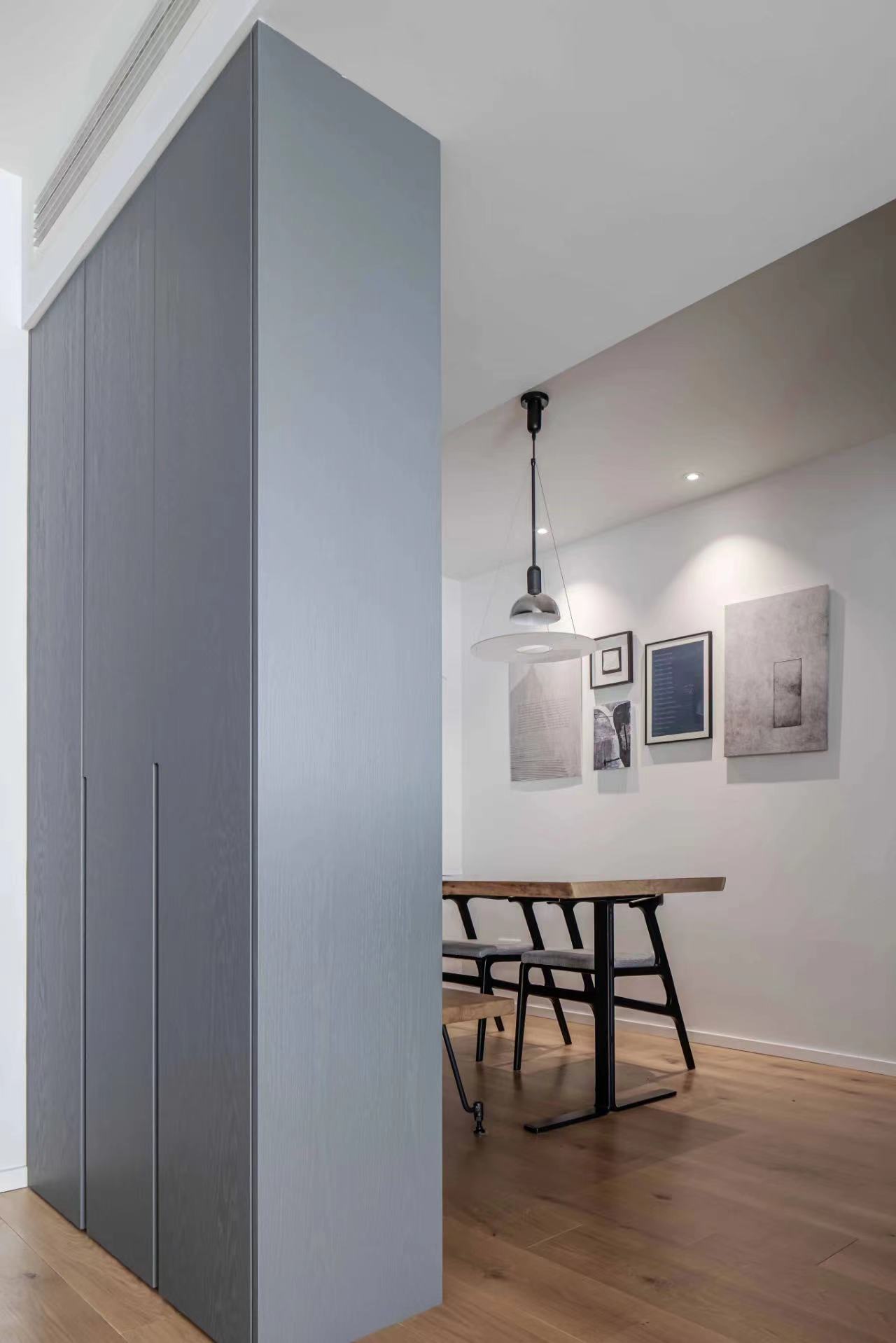

另一侧与背后的餐边柜集成,做成了顶天立地的对外鞋柜,将餐厅隐蔽在后方起到空间分割作用。
The other side is integrated with the side cabinet at the back to make a sky-high exterior shoe cabinet, which plays the role of space segmentation by hiding the restaurant in the rear.

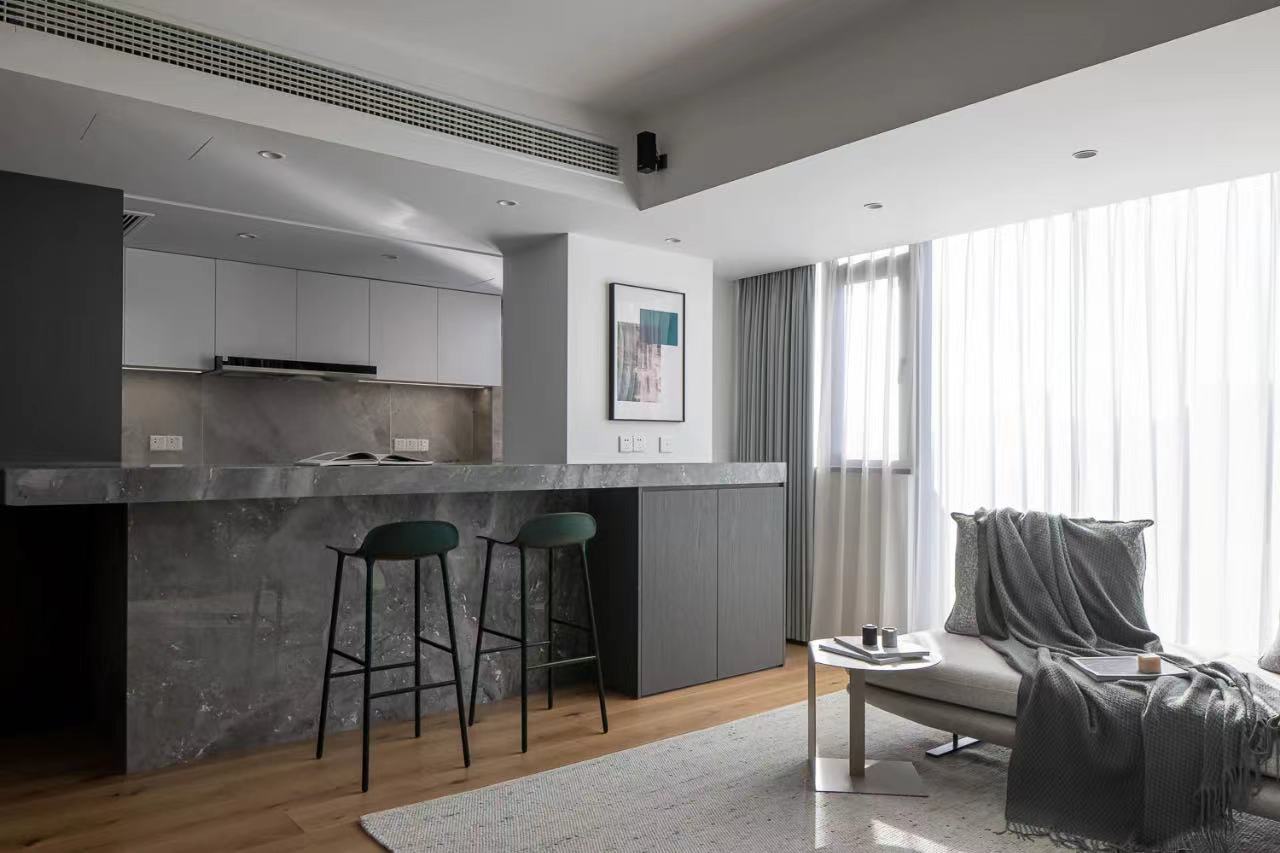

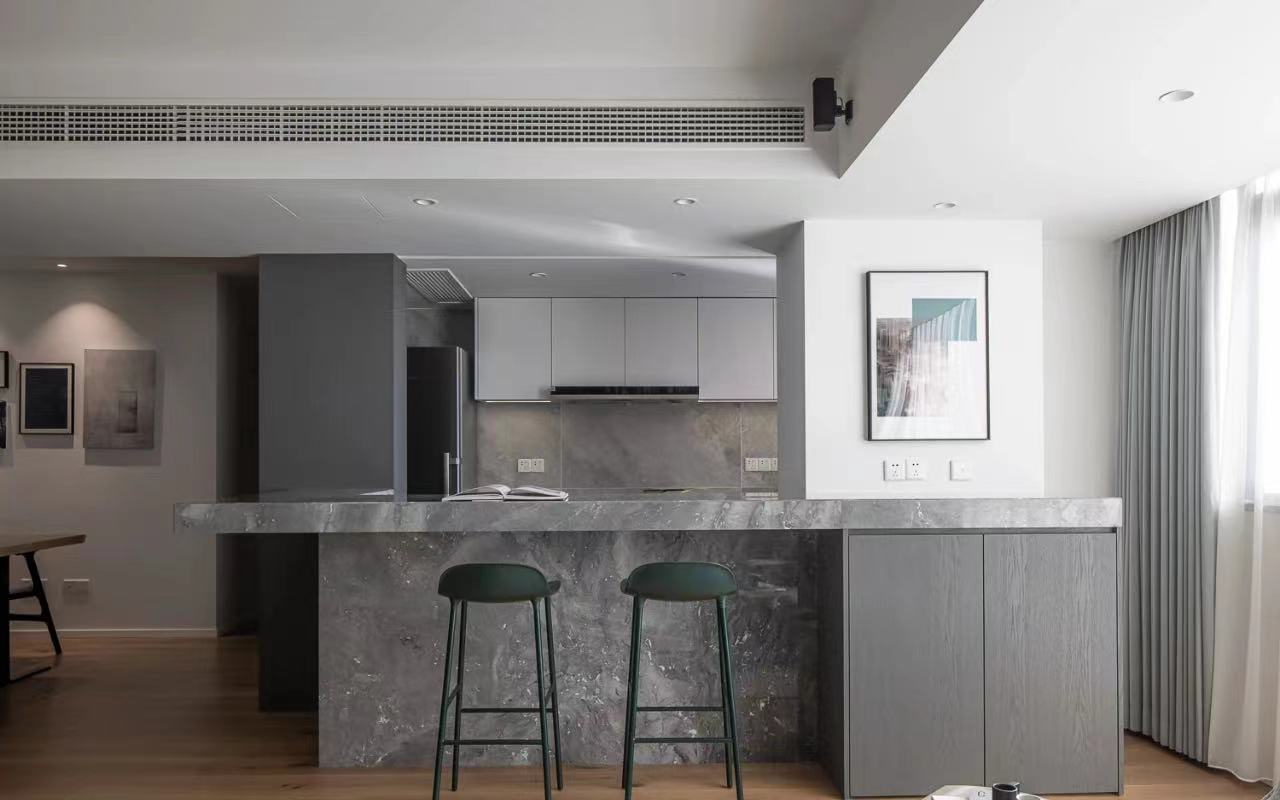

拆除原客卫改建为厨房,和客厅之间形成开放形态,通过吧台作为衔接,在厨房备餐或料理时视线可以照顾到坐在吧台或者沙发上的家人。
The original guest bathroom is dismantled and rebuilt into a kitchen, which forms an open form between the living room and the kitchen. Through the bar as the connection, the family sitting on the bar or sofa can be taken care of in the sight when preparing or cooking in the kitchen.

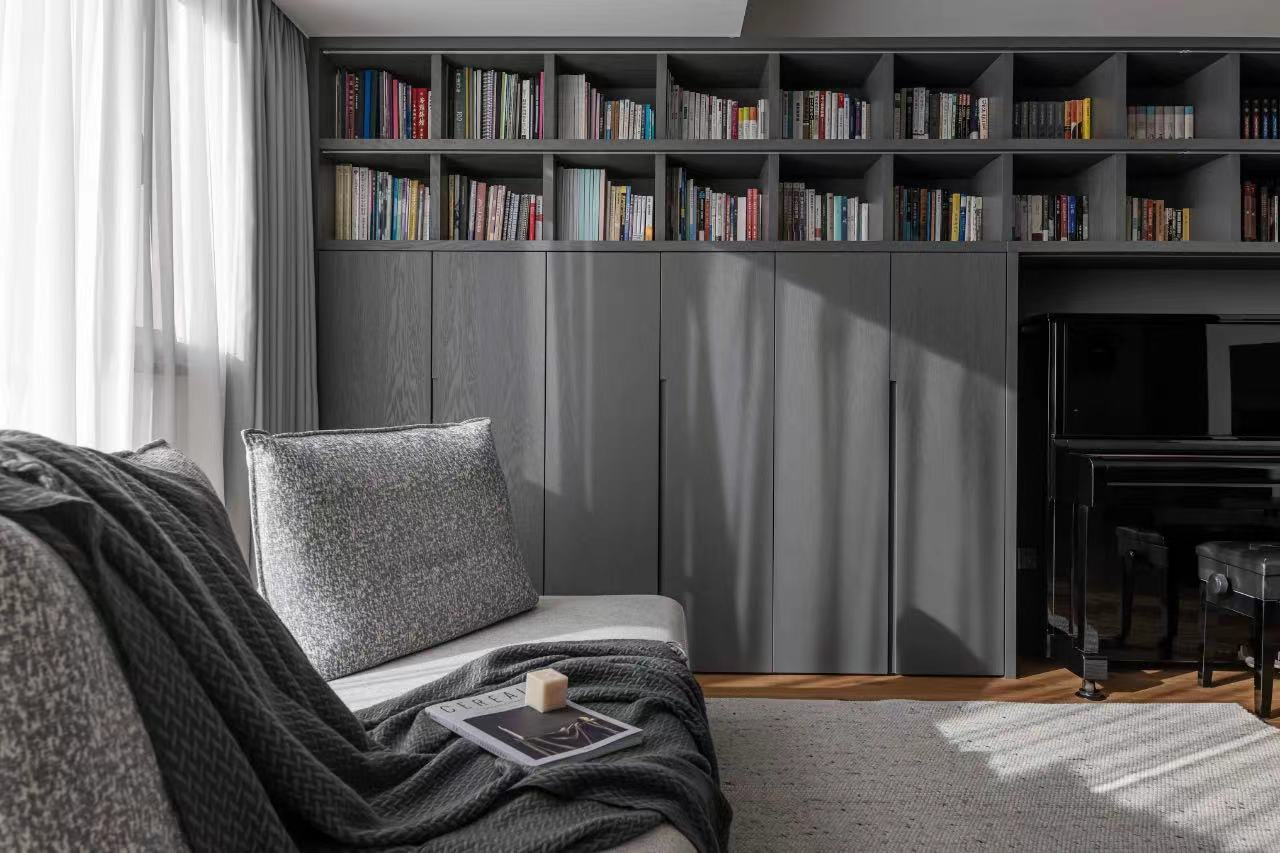

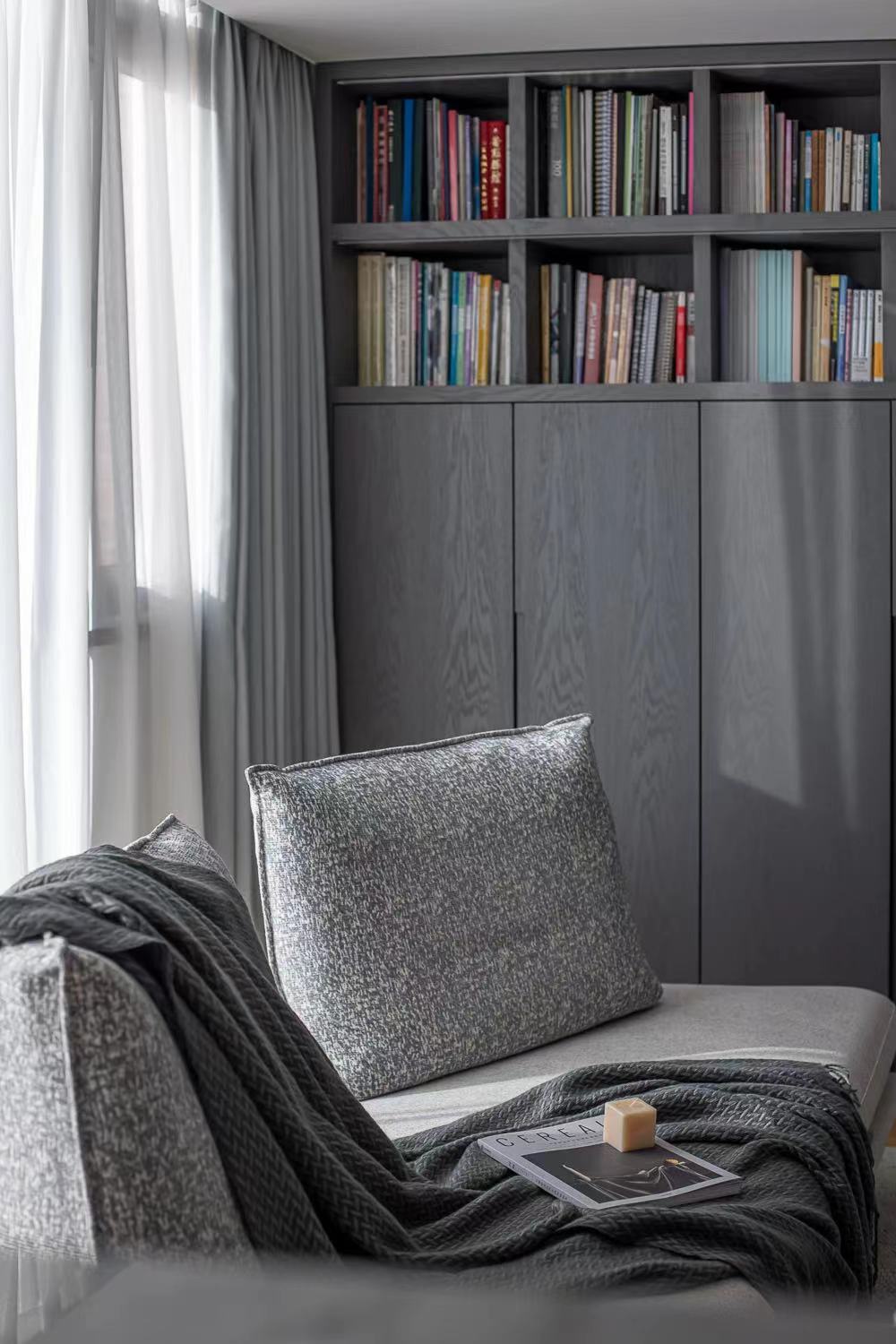

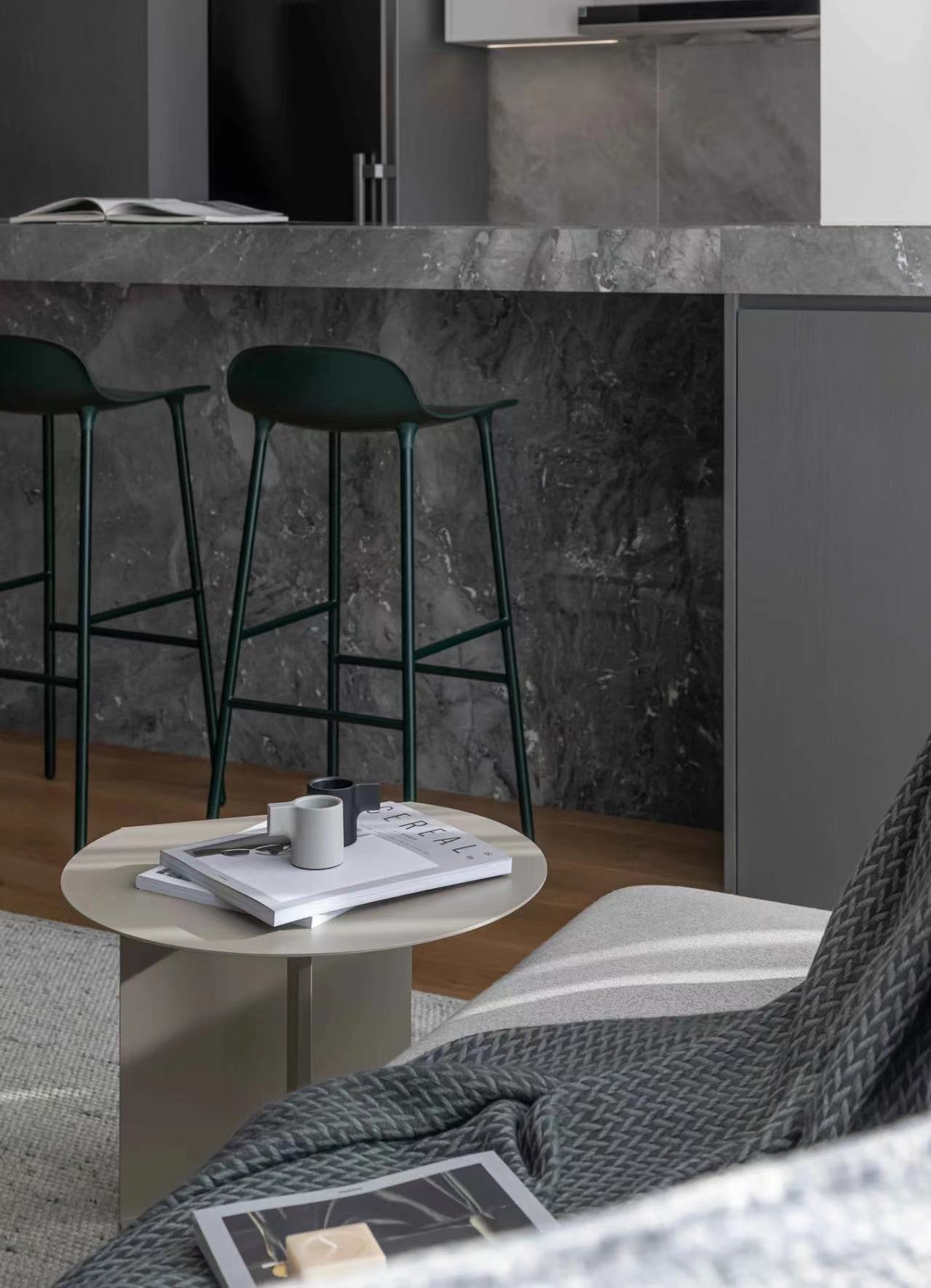

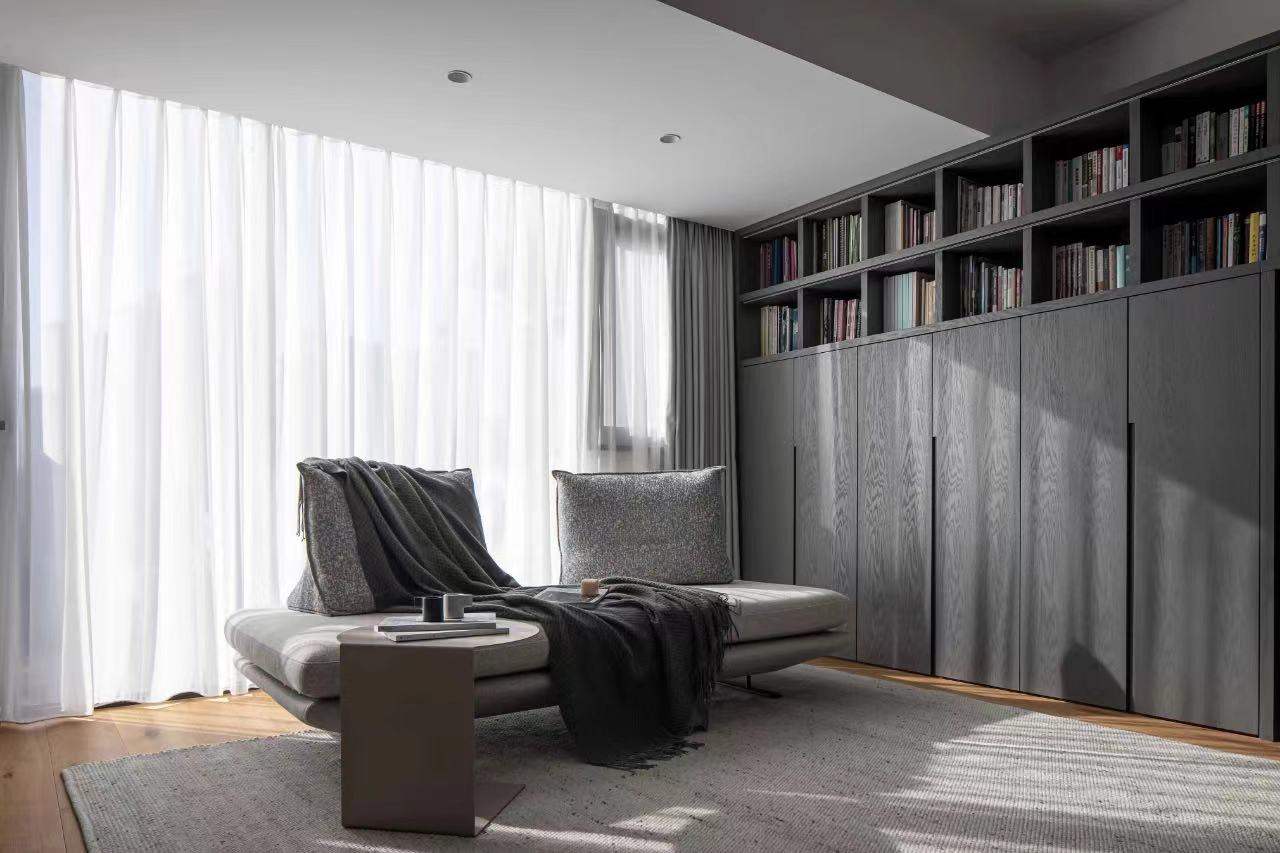

希望客厅灵活多变,用轻巧的边几取代传统的茶几,留出更多的活动空间。木作柜体,采用半开放形式,看过的书籍,展示在柜体上方,举手方便拿取。开放书架隔层板下方嵌入LED灯条夜晚开启既能为书架带来层次感又给客厅空间提供柔和光线。
Hope the living room is flexible and changeable, with light side to replace the traditional tea table, leave more space for activities. Wooden cabinet body, with semi-open form, read the books, displayed on the top of the cabinet, hands up convenient to take. An LED light strip embedded below the partition of the open bookshelf is opened at night to give the bookshelf a sense of hierarchy and provide soft light to the living room space.

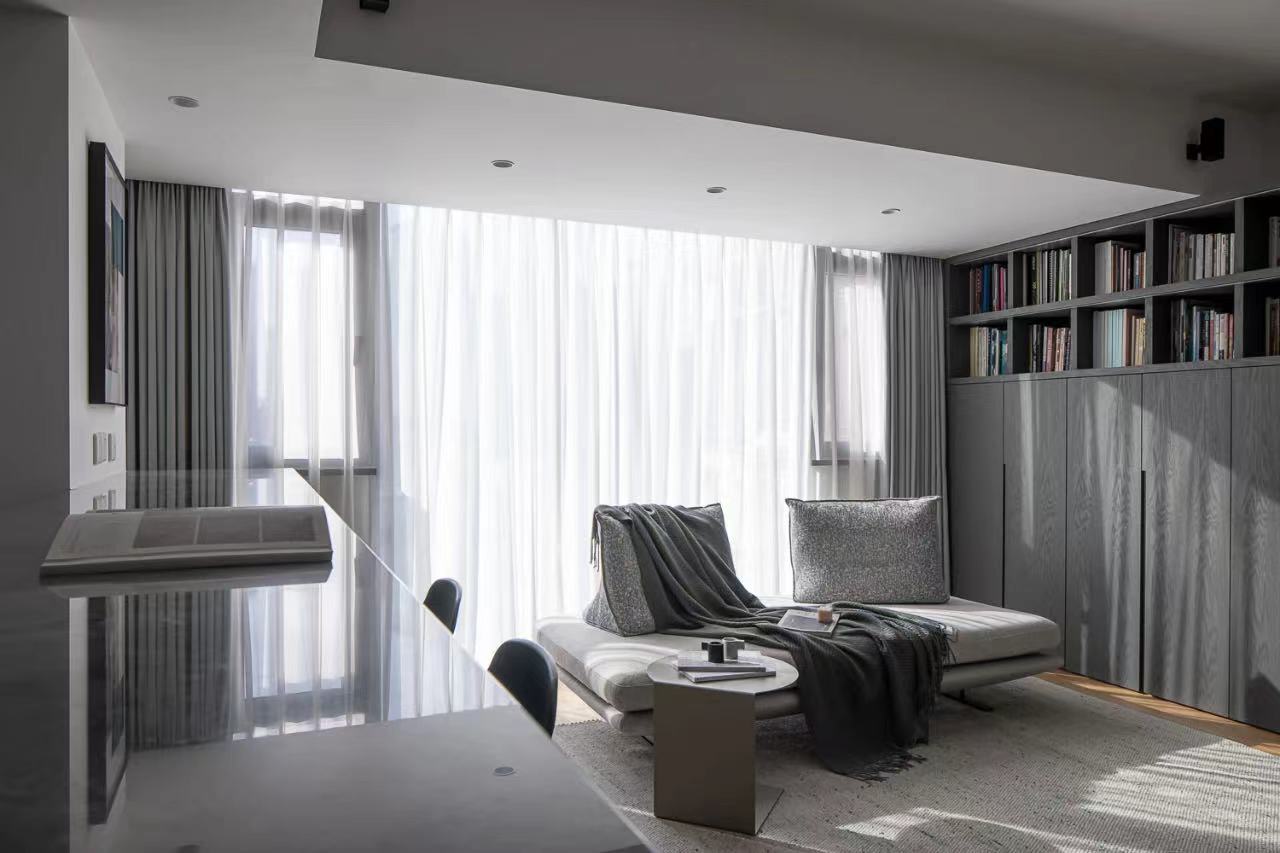

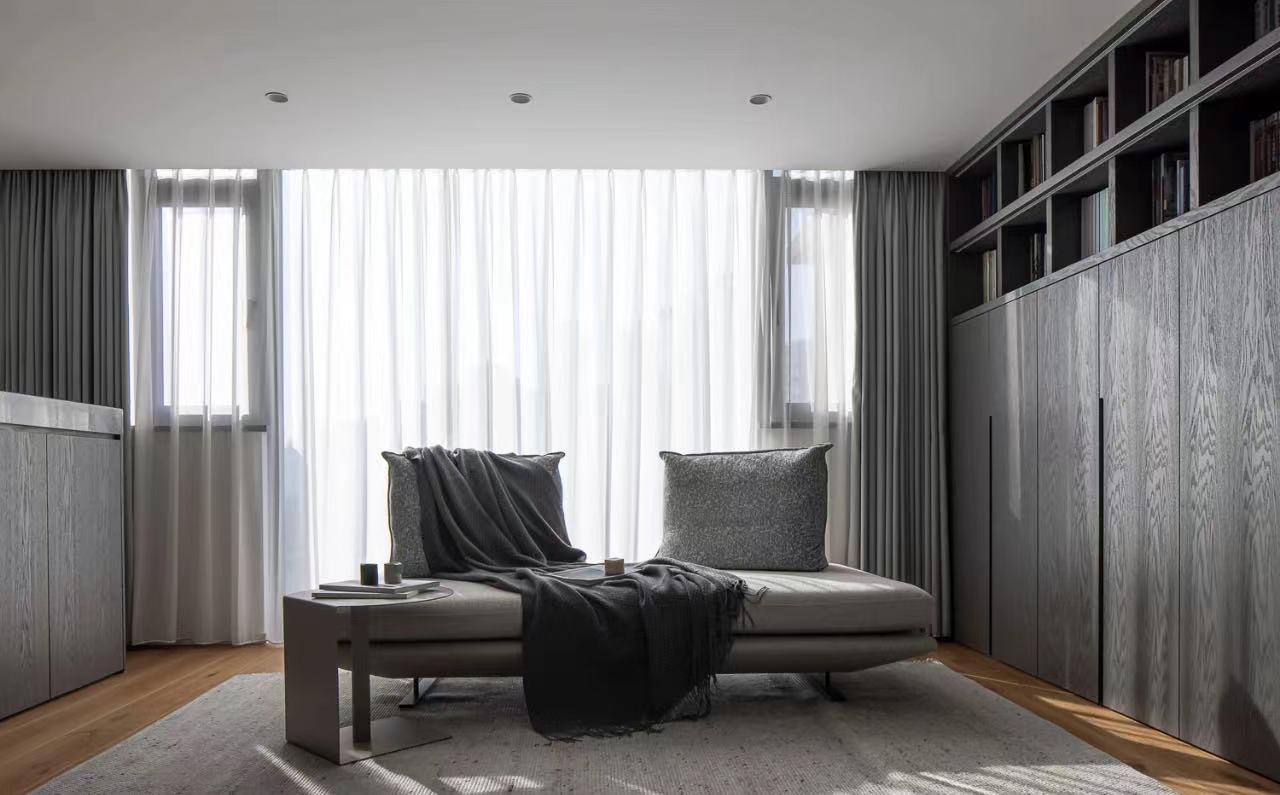

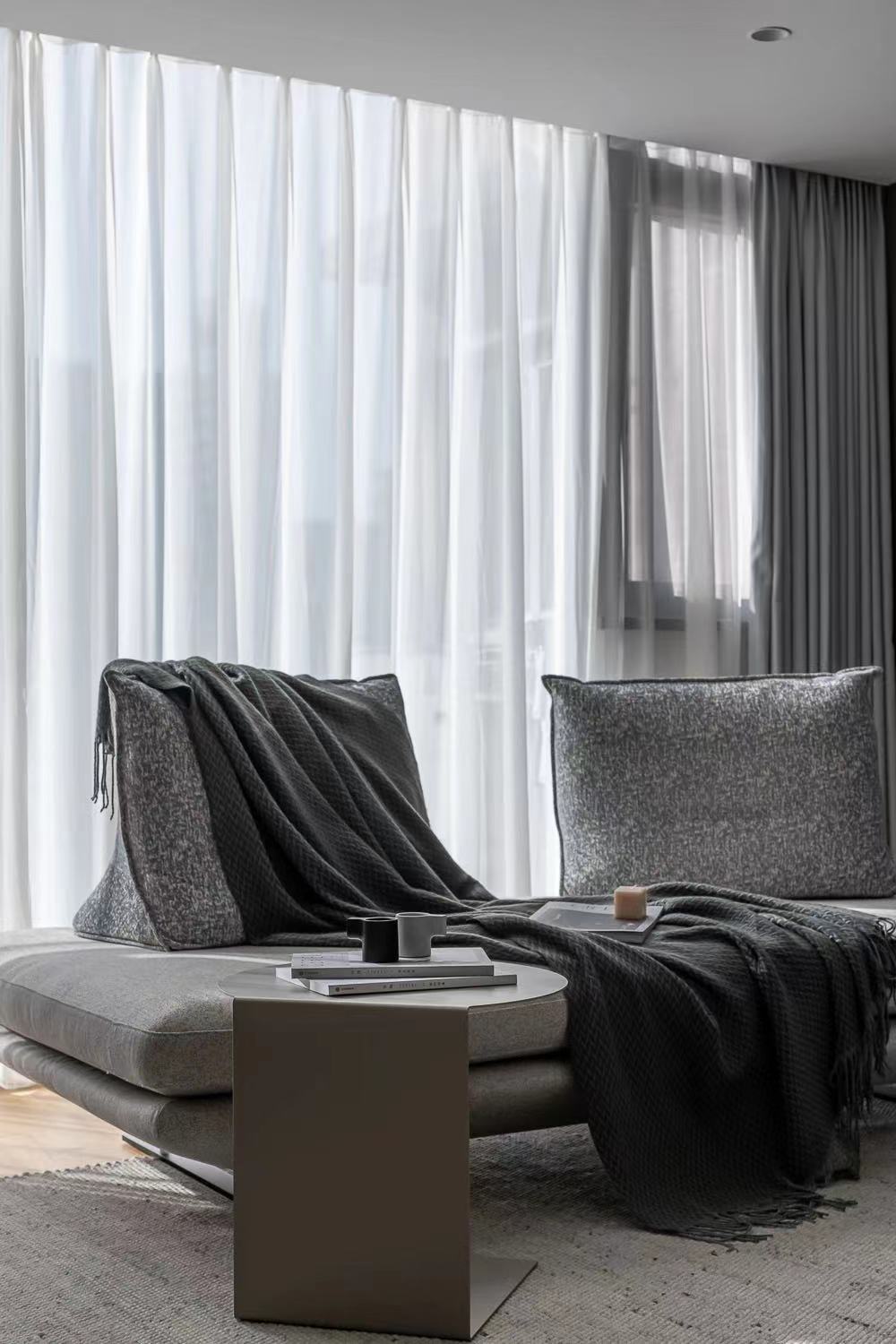

为了多用途,选自写意空间可移动靠背的沙发,无固定靠背不会对客厅光线遮挡,也可以轻松换一个方向,躺靠沙发欣赏落地窗外景色,傍晚的阳光变成暖色给室内带来不同的色温变化。
In order to be versatile, choose the sofa with movable backrest in freehand space, without fixed backrest will not block the light in the living room, you can also easily change the direction, lie on the sofa to enjoy the scenery outside the French window, the sunlight in the evening into warm colors bring different color temperature changes to the room.

书柜内部安装插座,办公用的一些设备打印机,耗材统统收纳进去,即方便使用又整齐利索。
The bookcase is installed inside the socket, some office equipment printers, consumables are all put in, that is easy to use and neat.

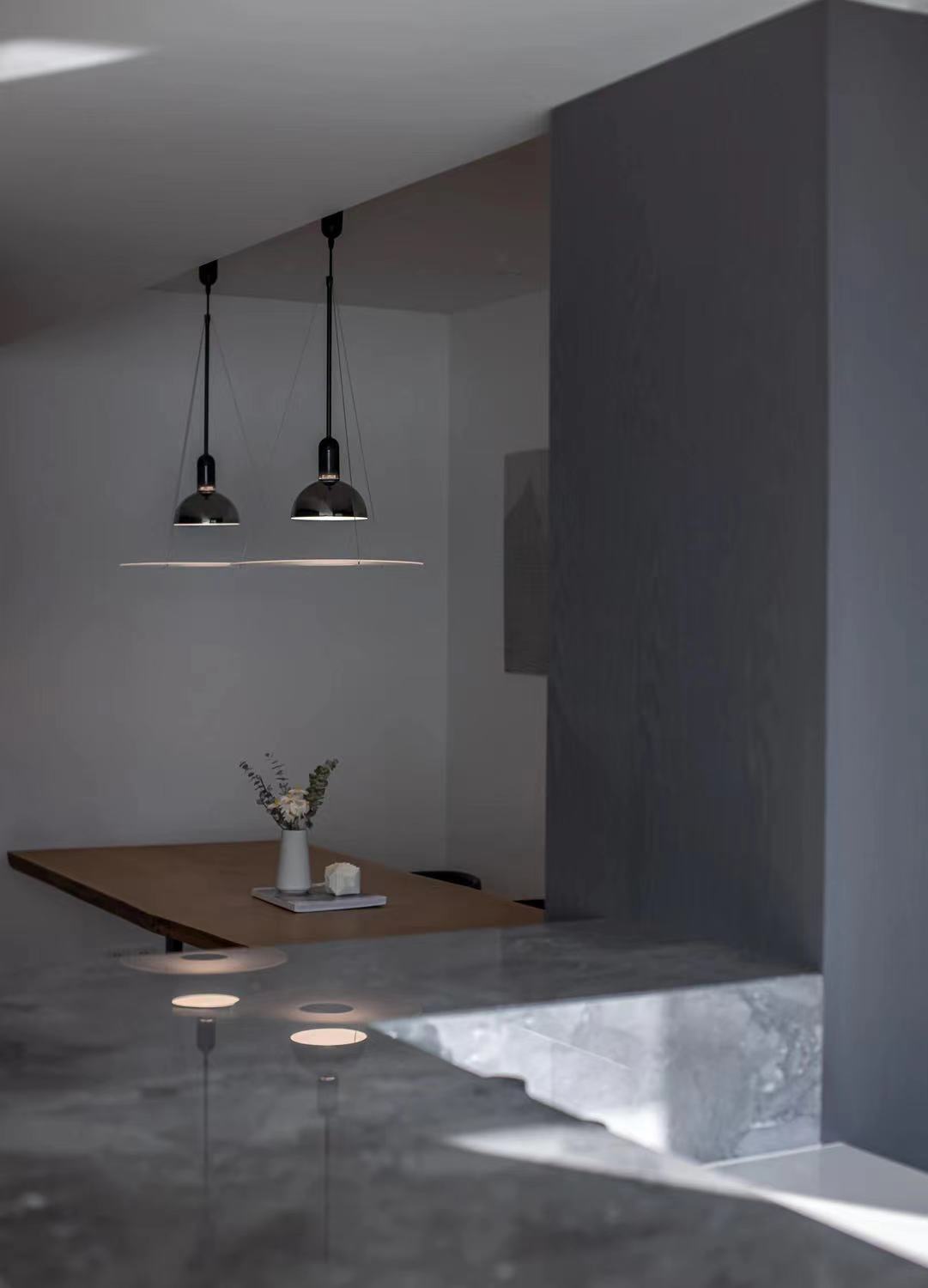

餐厅不再是之前封闭空间,自然光线也能更好透入,在视线之间可以和客厅的家人互动。在吧台上方为电动升降帘预留了凹槽,作为阻隔油烟作用,关闭后可以形成封闭式空间。
The dining room is no longer a closed space, natural light can be better penetrated, and the line of sight can interact with the family in the living room. Grooves are reserved above the bar for the electric lifting curtain, which acts as a barrier to oil smoke, and can form a closed space after closing.

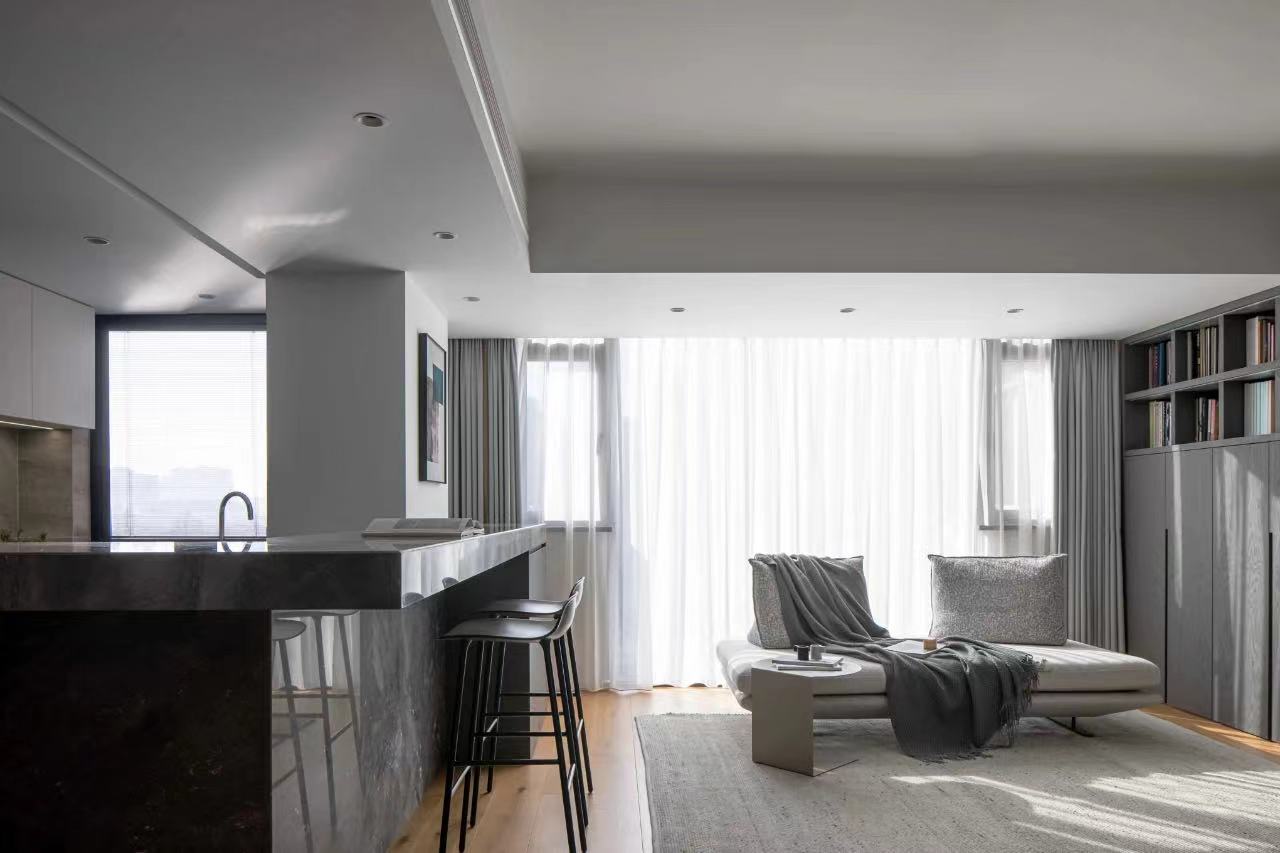

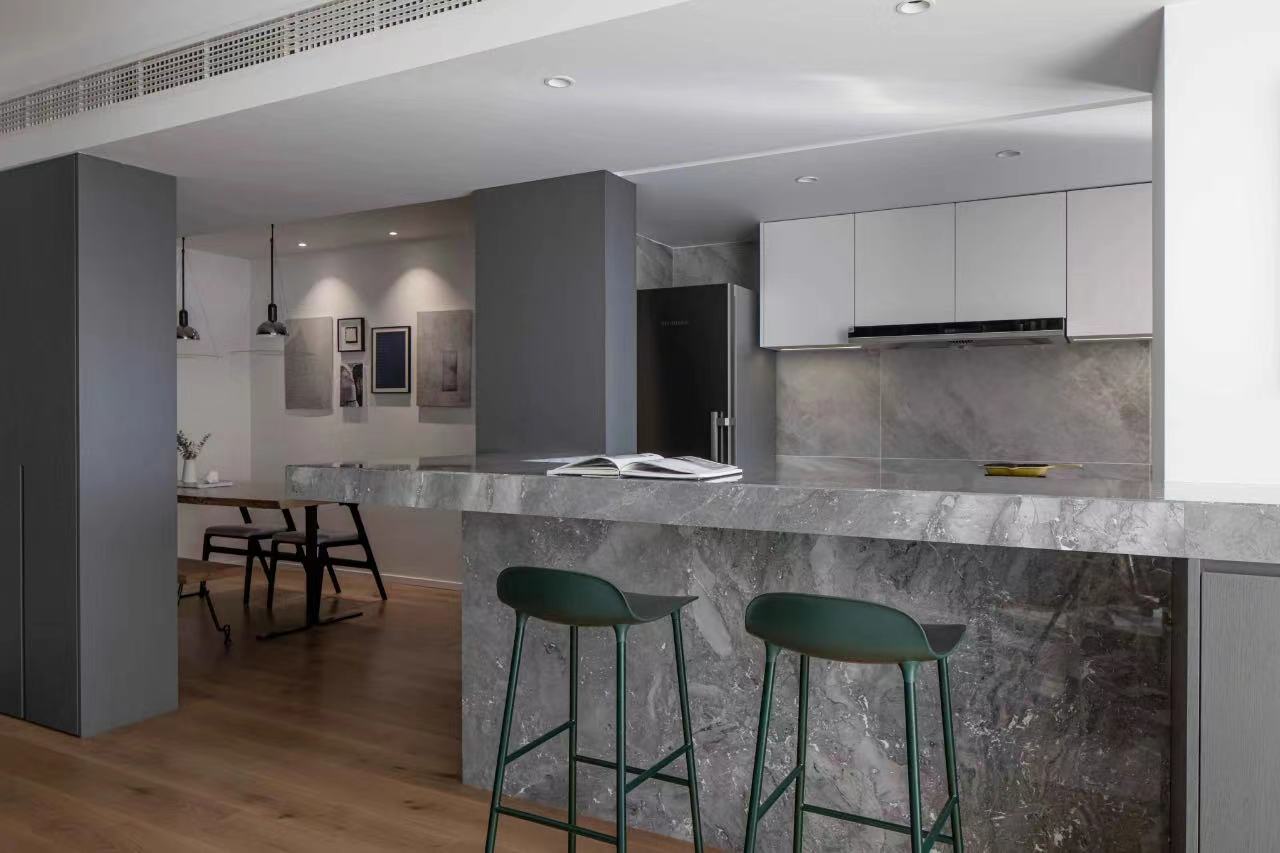

吧台处观望餐厅的视角,LDK集成的厨房、客厅、餐厅,最大化了空间视野与互动性!吧台现在除了早餐、简餐,也成为了男主人最喜欢的办公场所。
The view of the restaurant at the bar, LDK integrated kitchen, living room, dining room, maximize the space vision and interaction! In addition to breakfast and simple meals, the bar has also become the host's favorite office space.

这里我们将吧台做到了1100mm,这样站在内外两侧的人便于交接食物,而坐在沙发上,视线中所看到的是家人前后忙碌的身影,却看不到备餐的过程。
Here, we make the bar 1100mm, so that people standing on both sides of the inside and outside can easily hand over the food, while sitting on the sofa, you can see the busy figure of the family, but you can't see the process of meal preparation.

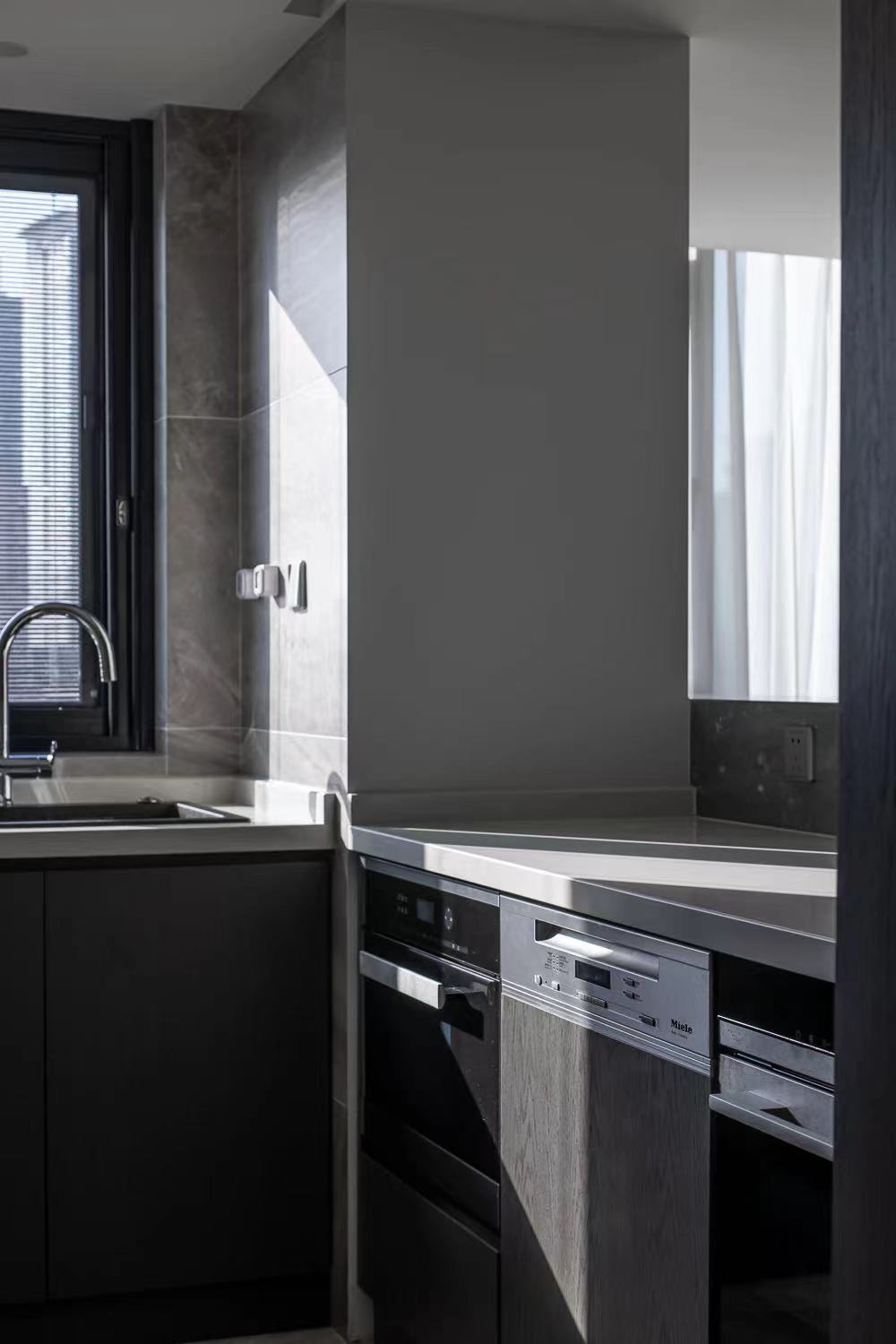

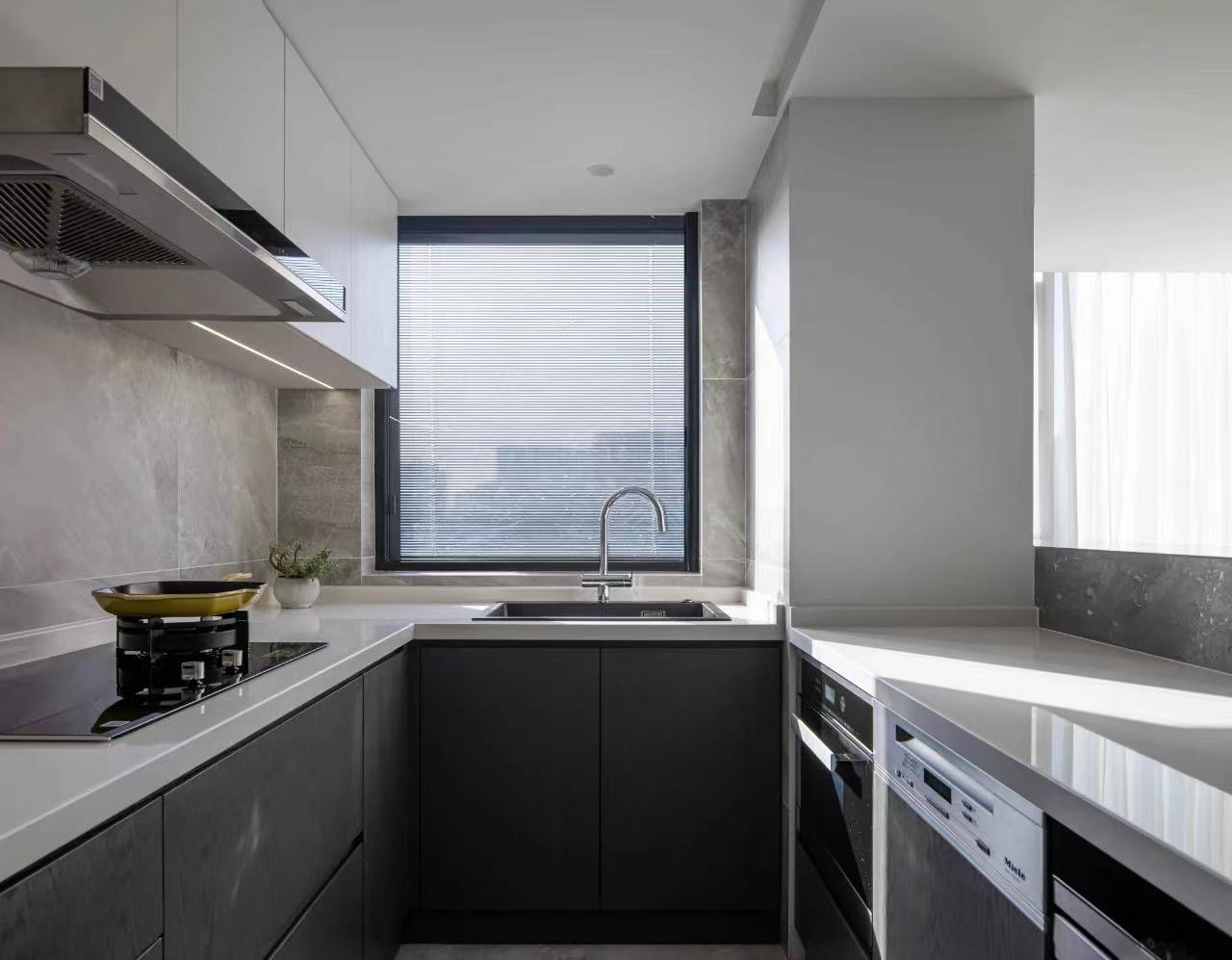

U型5米长的厨房台面更好满足各种料理及收纳需求,将中西料理分别安排在左右两侧,中式区域洗、切、烧的使用动线,并在橱柜的下方规划了大量的收纳空间。在右侧西式料理台面下内嵌蒸箱、烤箱、洗碗机、微波炉,做不同料理时互不干扰。
U-shaped 5-meter-long kitchen countertop better meets the needs of various cooking and storage. Chinese and Western dishes are arranged on the left and right sides respectively. The use of washing, cutting and burning in the Chinese area is moved. The steamed box, oven, dishwasher and microwave oven are embedded under the western cooking table on the right side, so that different dishes do not interfere with each other.

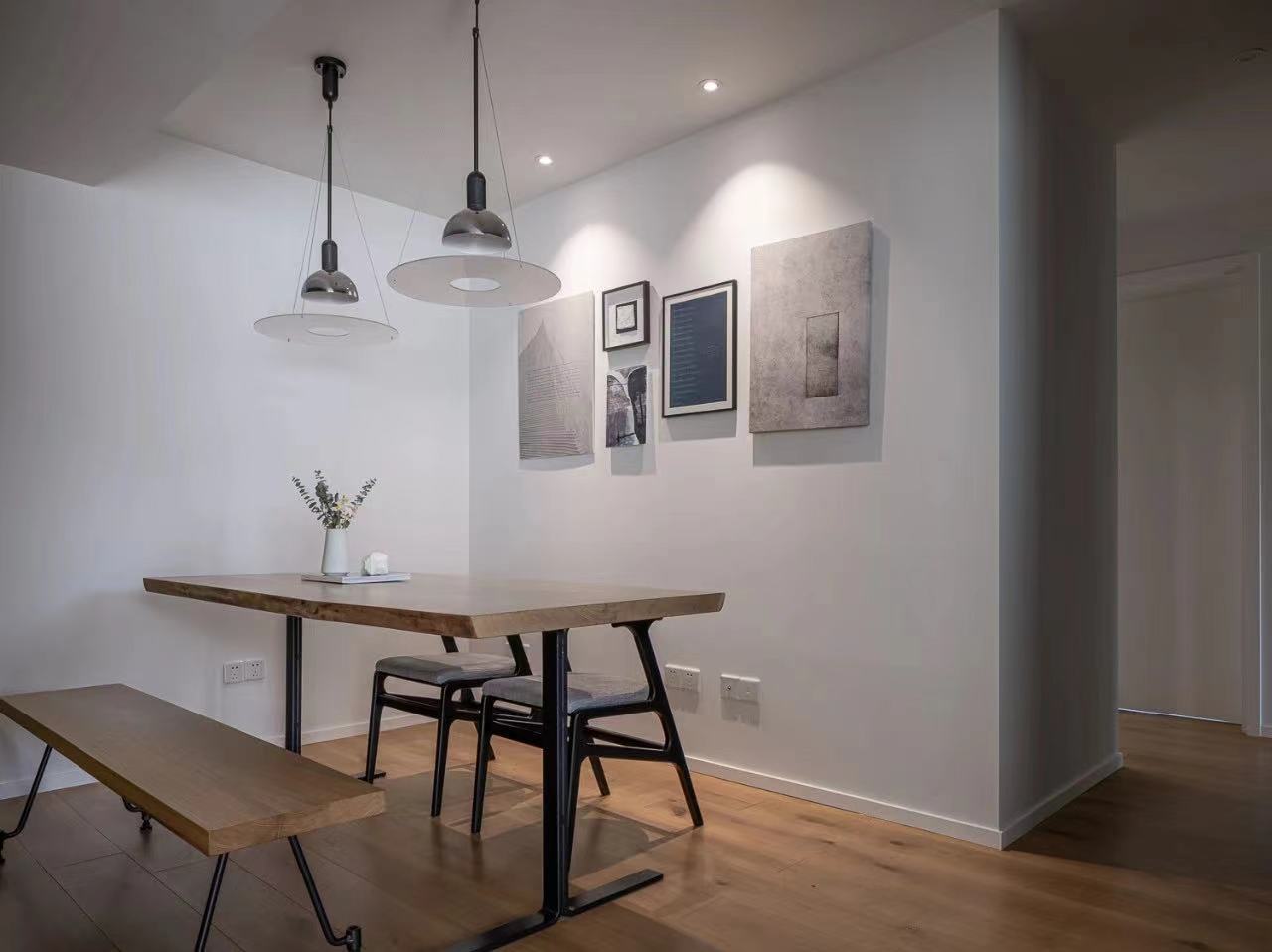

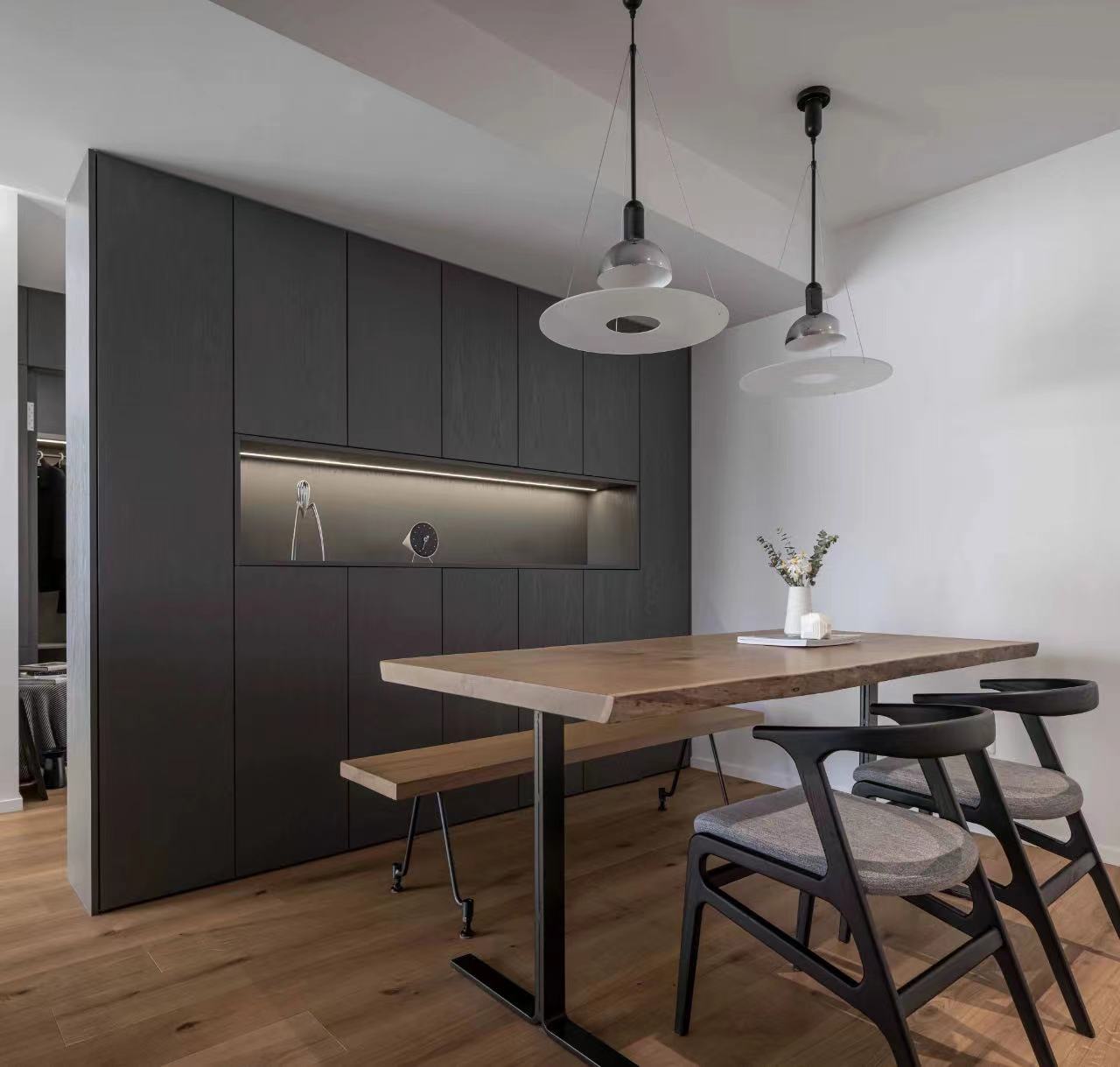

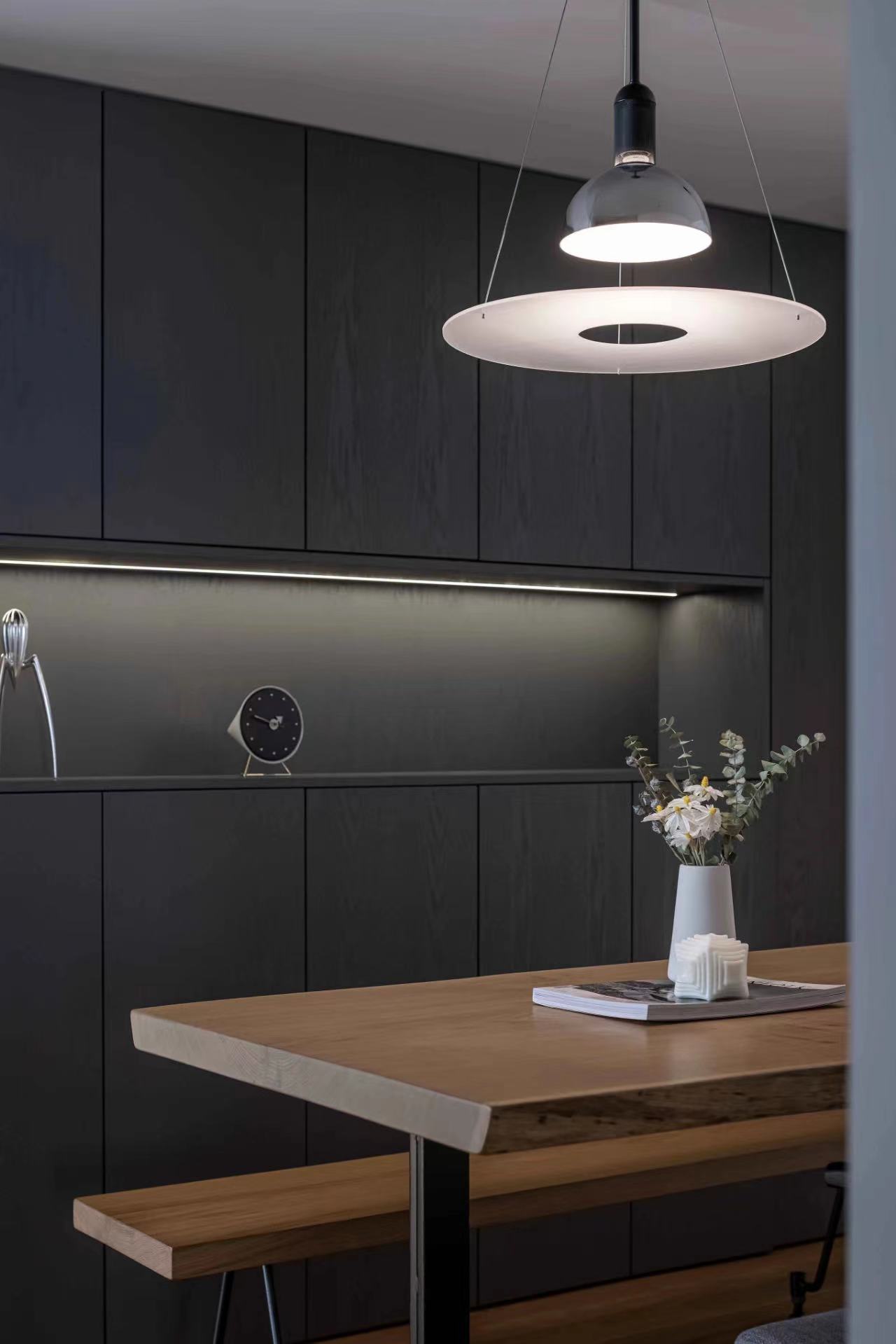

避开主动线形成3.7米*2.7米的独立餐厅区,一侧的餐边柜,满足就近收纳的需求可以更好的保持餐厅的整洁。
Avoid the active line to form an independent restaurant area of 3.7 meters *2.7 meters. The side cabinets meet the needs of nearby storage and can better maintain the cleanliness of the restaurant.

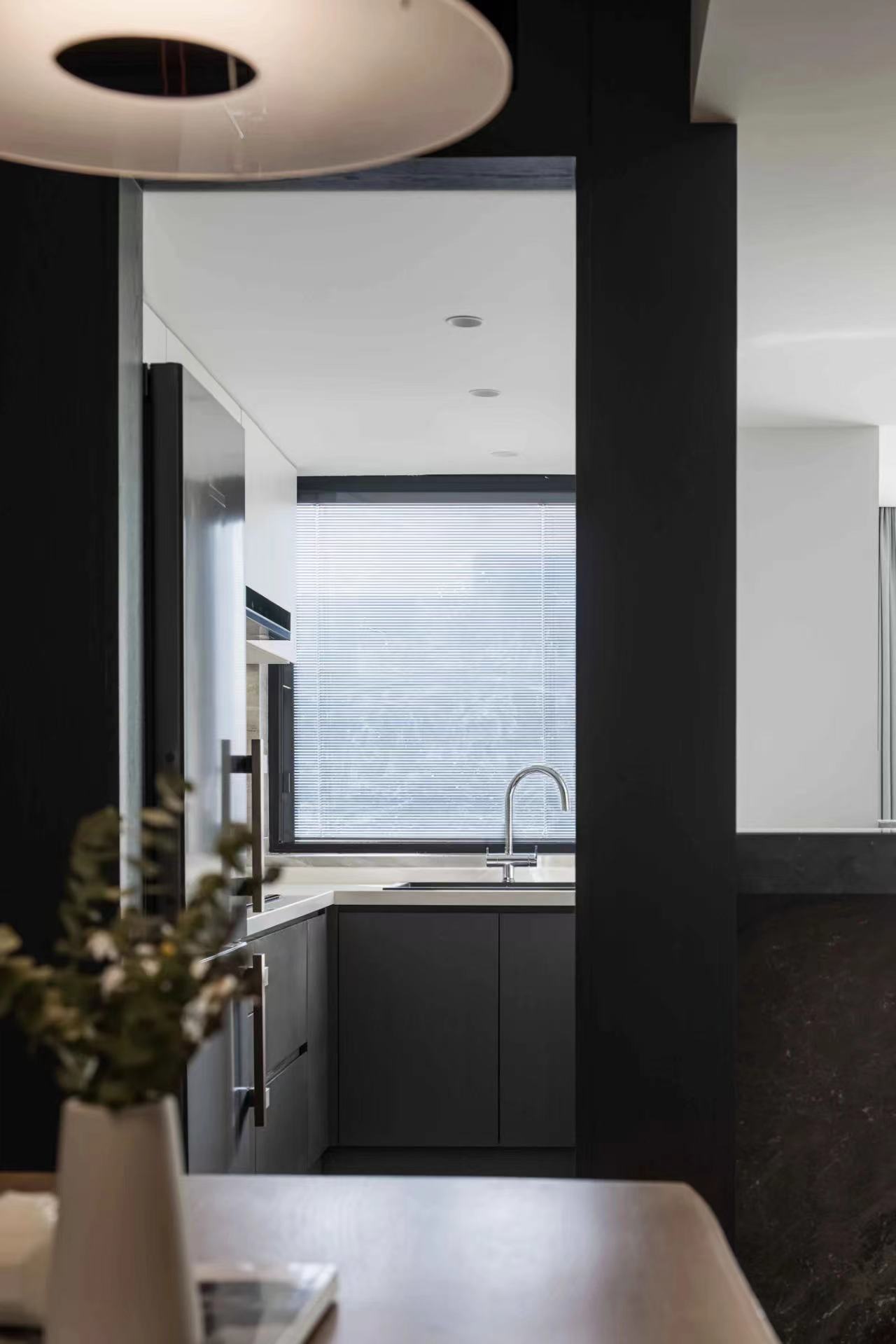

光线透过客厅及厨房直接进入餐厅,不再是之前暗无天日,在厨房备餐的同时也可以照顾到餐厅的客人。
The light enters the dining room directly through the living room and kitchen, which is no longer dark before. While preparing meals in the kitchen, you can also take care of the guests in the dining room.

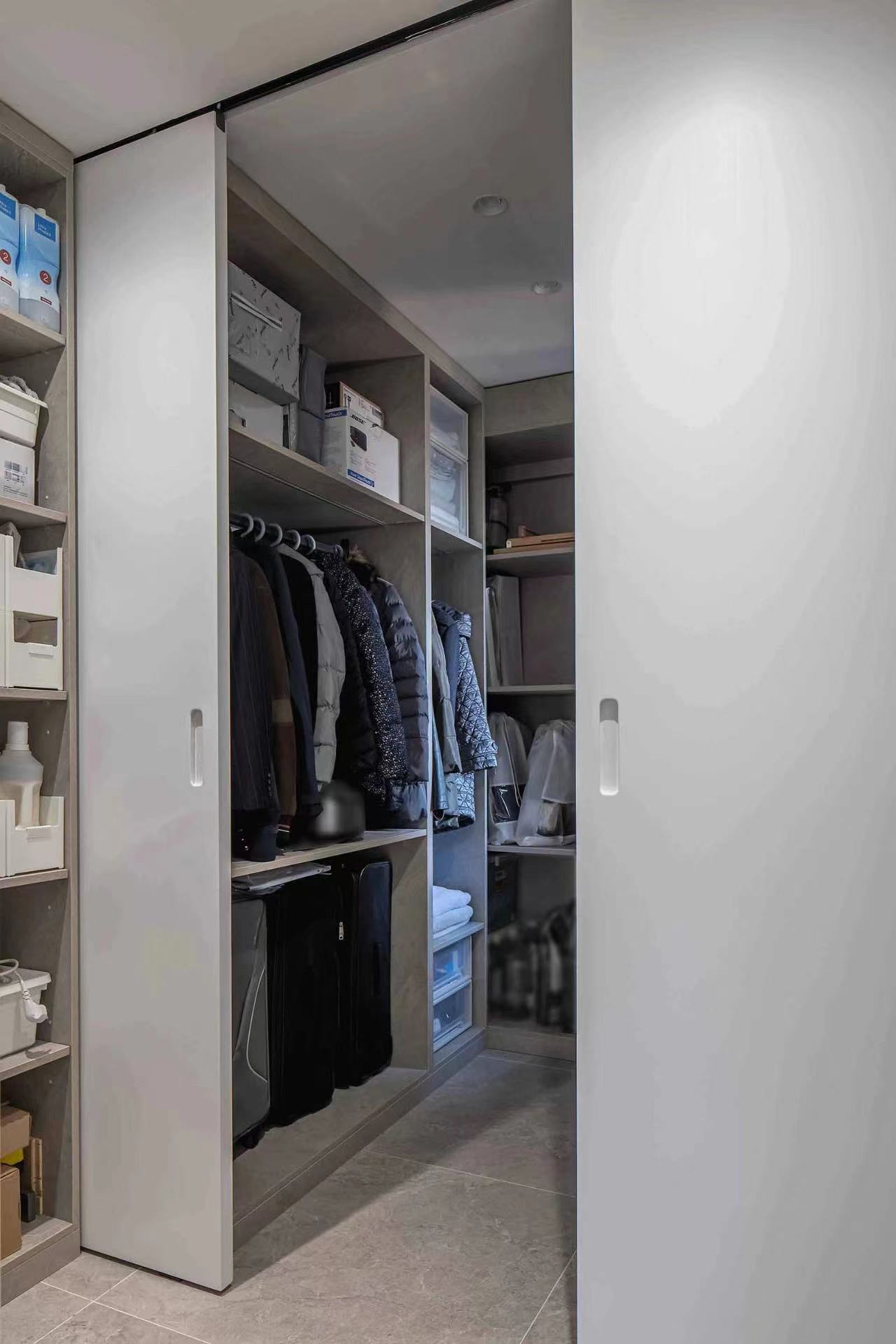

将原来4.2㎡的小厨房向外延展2.6㎡,通过移门分成内外两个区域,内部为衣帽间外部为家政洗衣间。可以将洗完烘干的衣服直接收纳进衣帽间家政动线最短,衣帽间内也可以放换季的衣物、行李箱。
The original small kitchen of 4.2 square meters is extended to 2.6 square meters outward, and divided into two areas inside and outside through the sliding door. The inside is the cloakroom and the outside is the housekeeping laundry room. Can be washed and dried clothes directly into the cloakroom housekeeping line shortest, cloakroom can also put seasonal clothes, suitcases.

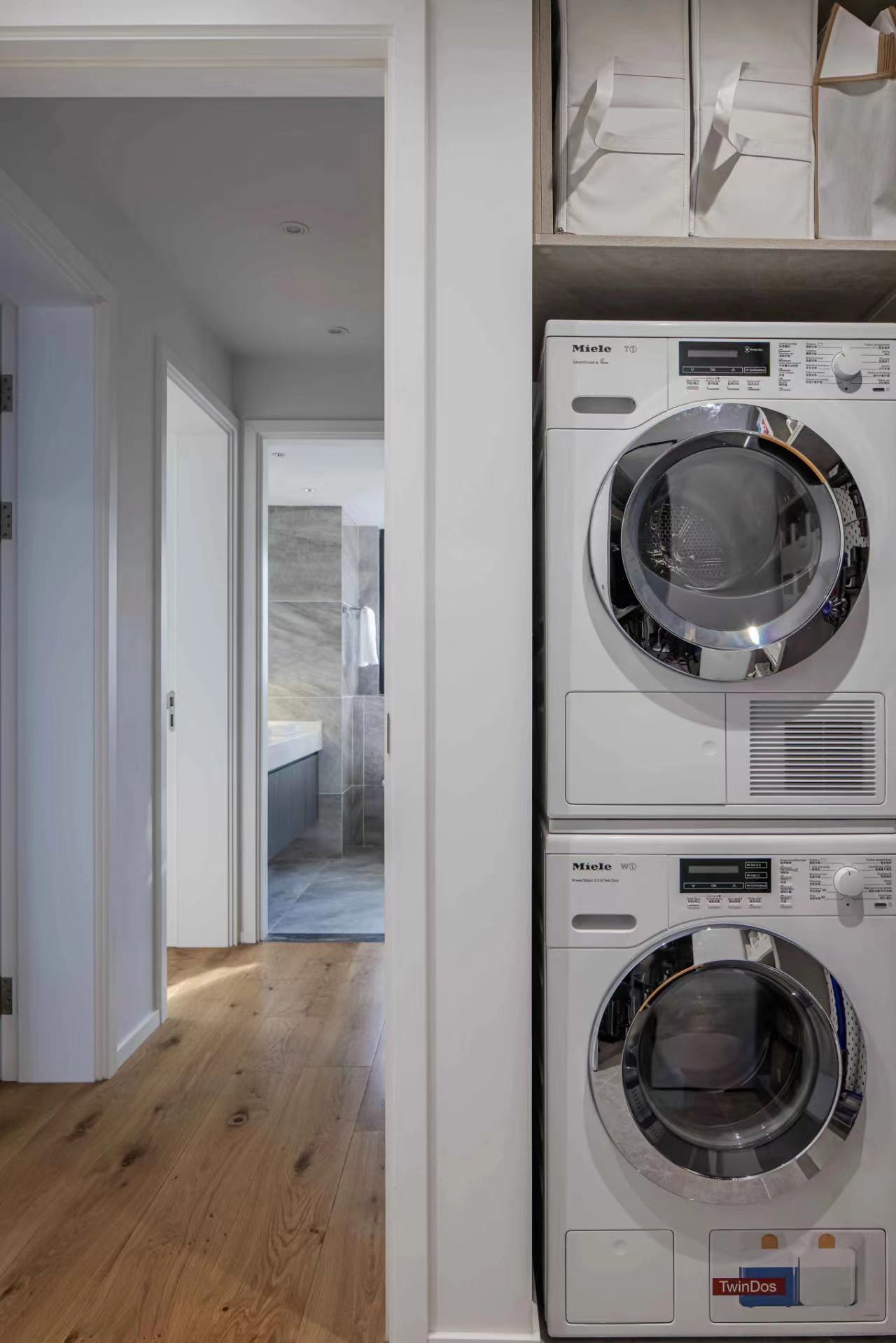

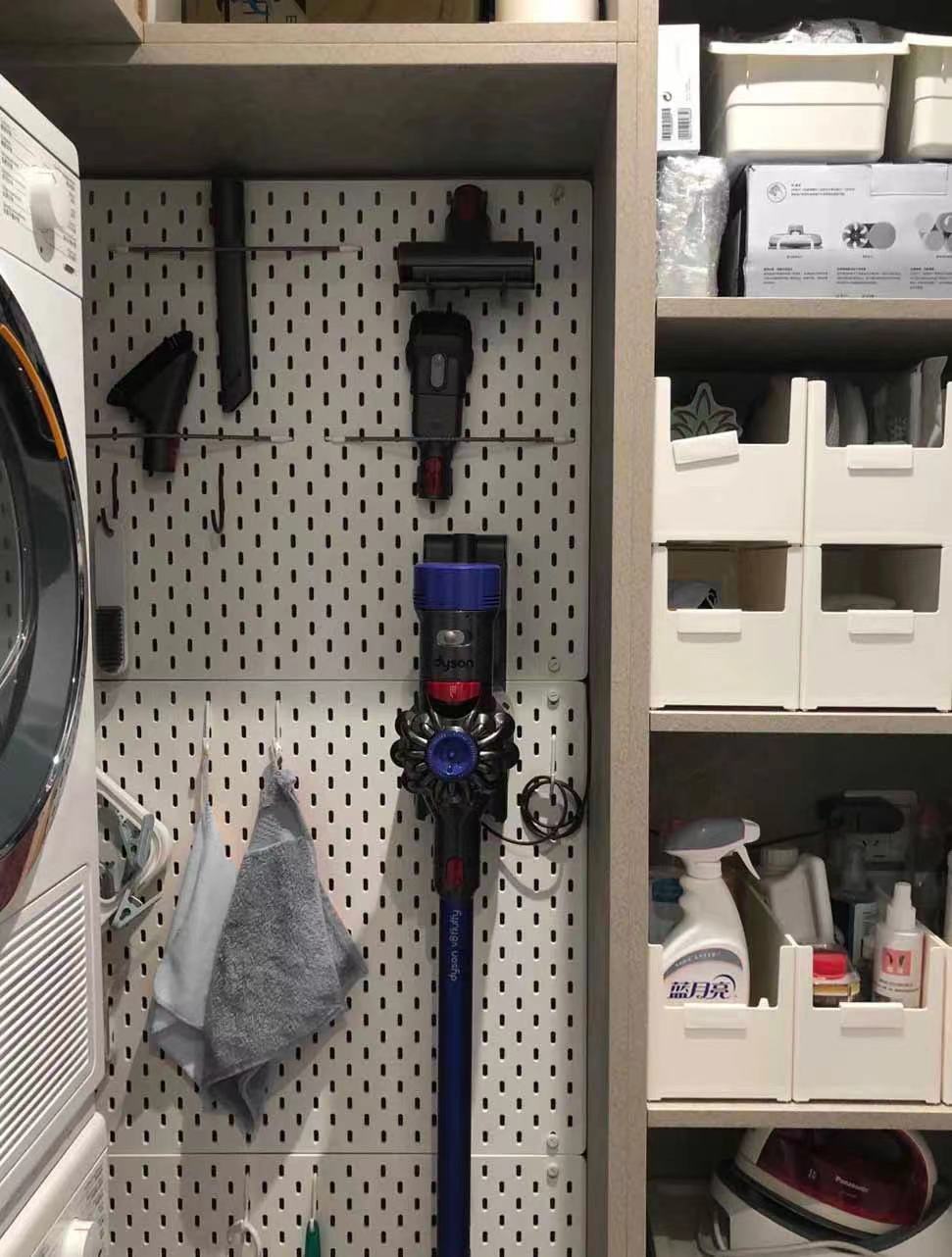

外部洗衣间设置开放式壁柜,日用品储存便于拿取。洗衣机烘干机嵌入在柜体中间,侧面空间使用洞洞板,也可高效收纳家里的吸尘器等清洁工具。洗衣+烘衣+储存收纳,一步到位后,阳台面积也得到解放。
External laundry room set open wall cabinet, daily necessities storage easy to take. The washer dryer is embedded in the middle of the cabinet, and the side space uses cavity panels to efficiently store the home's vacuum cleaner and other cleaning tools. After laundry, drying and storage, the balcony area is also liberated.

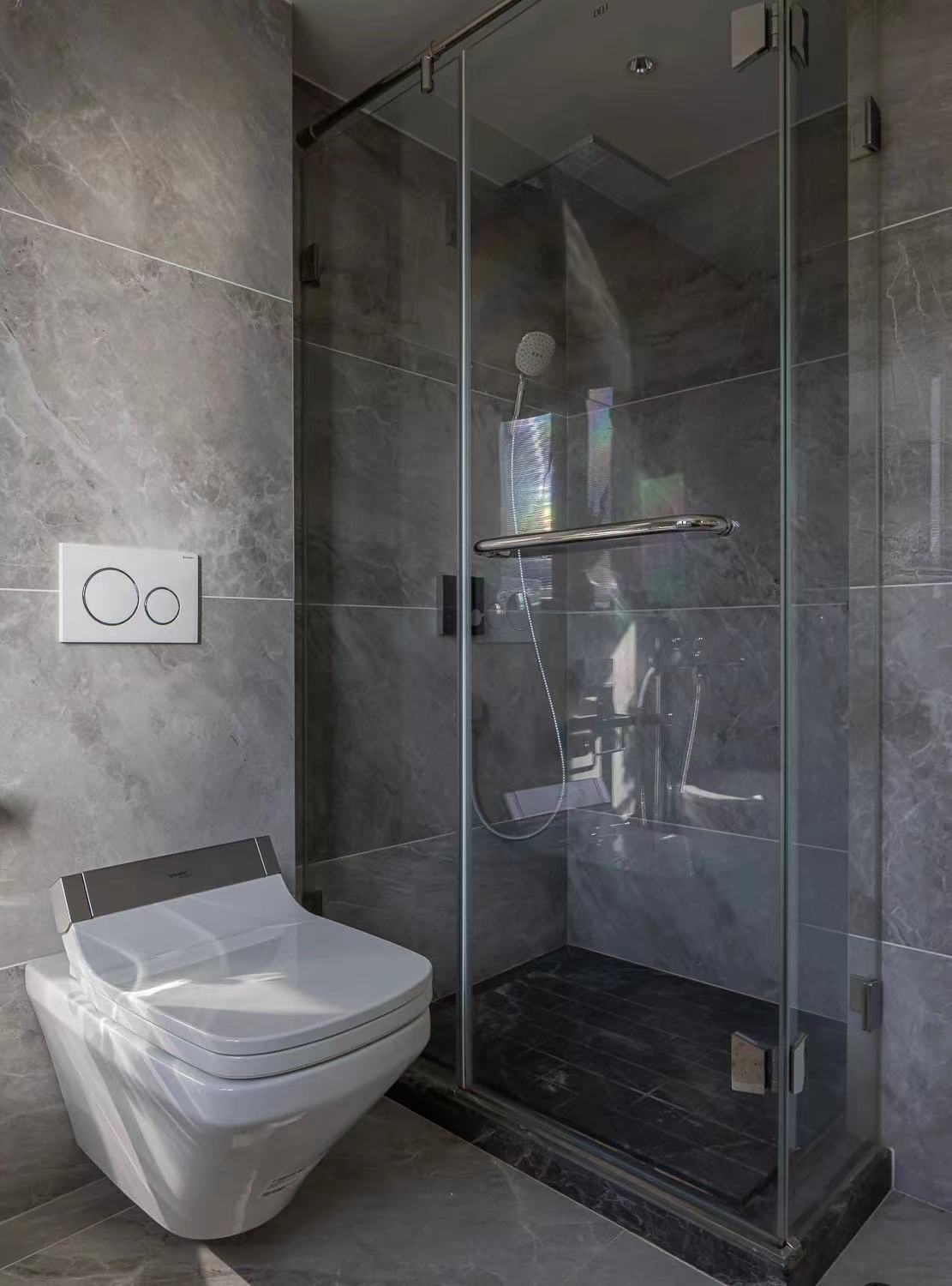

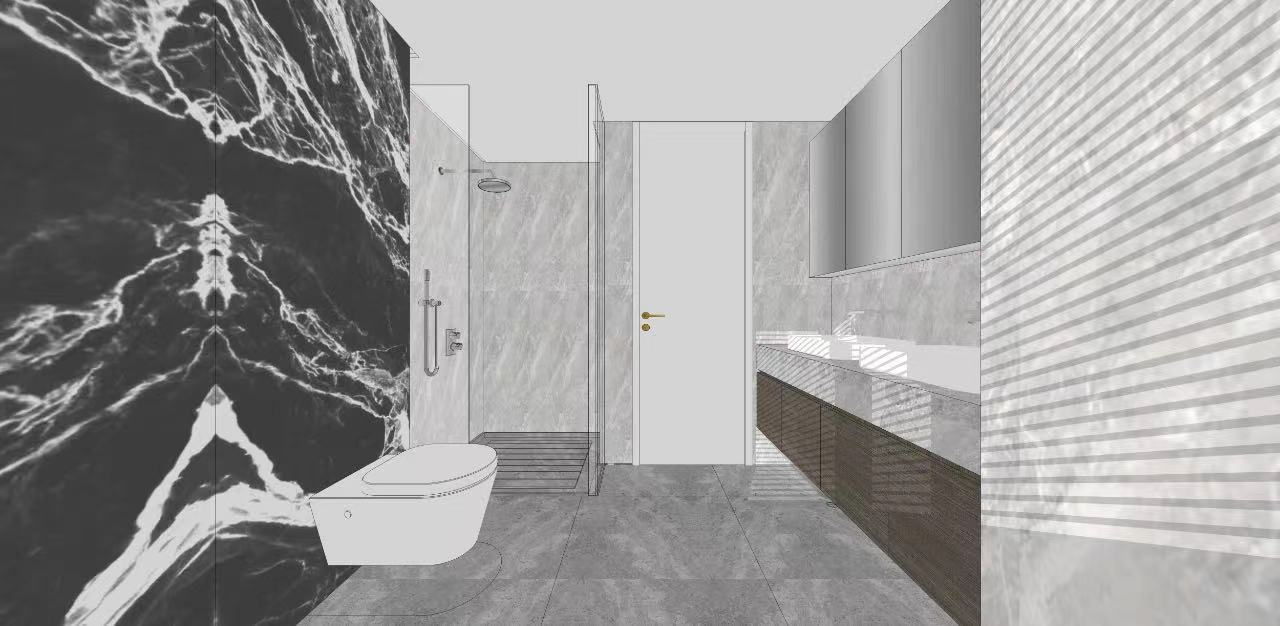

将淋浴房内嵌藏于门后侧,较为隐蔽,淋浴房地面使用大理石拉槽处理保证整体感的情况下达到防滑效果!
The shower room embedded in the door behind the side, more hidden, shower room floor using marble groove treatment to ensure the overall sense of the situation to achieve non-slip effect!

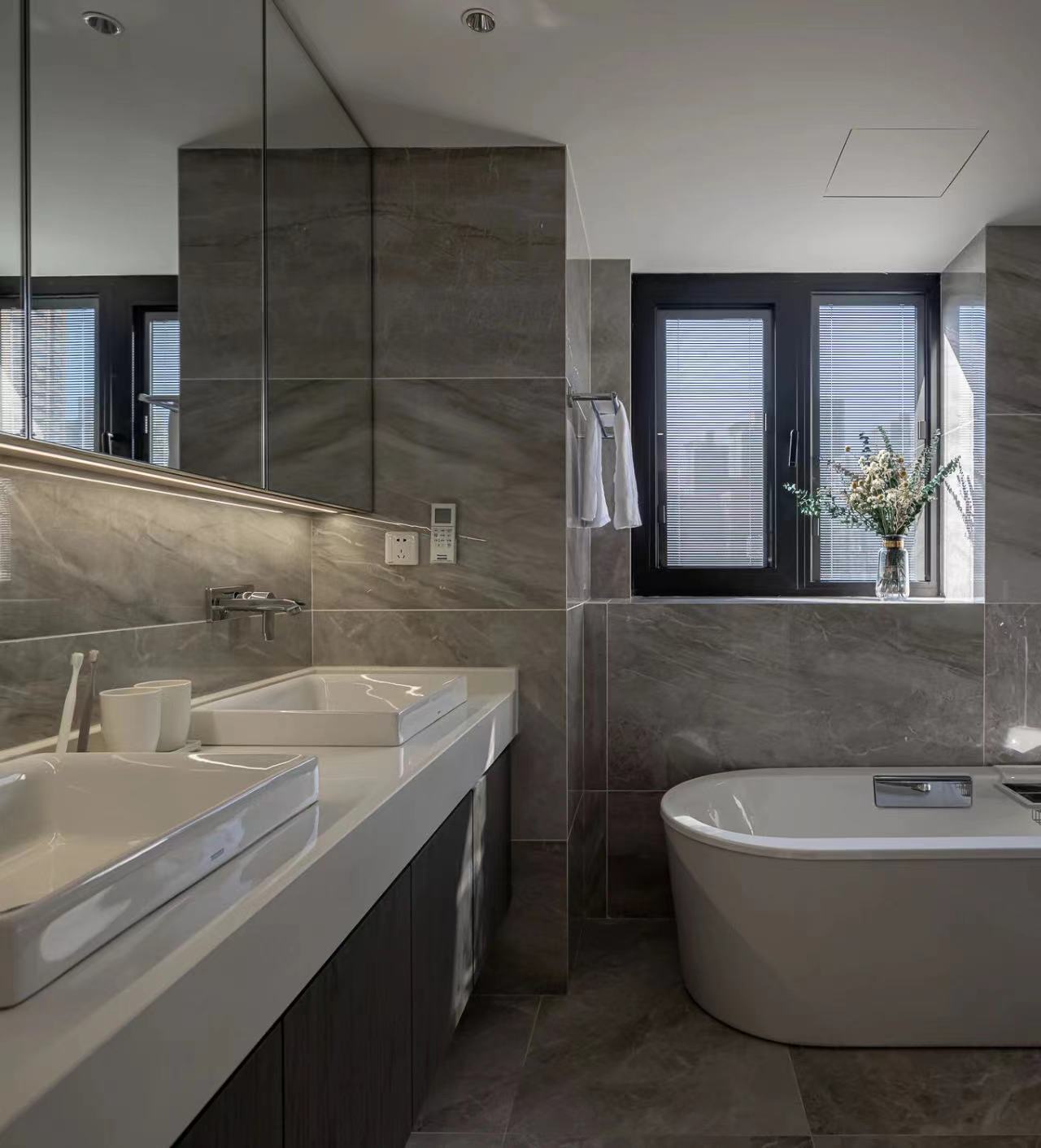

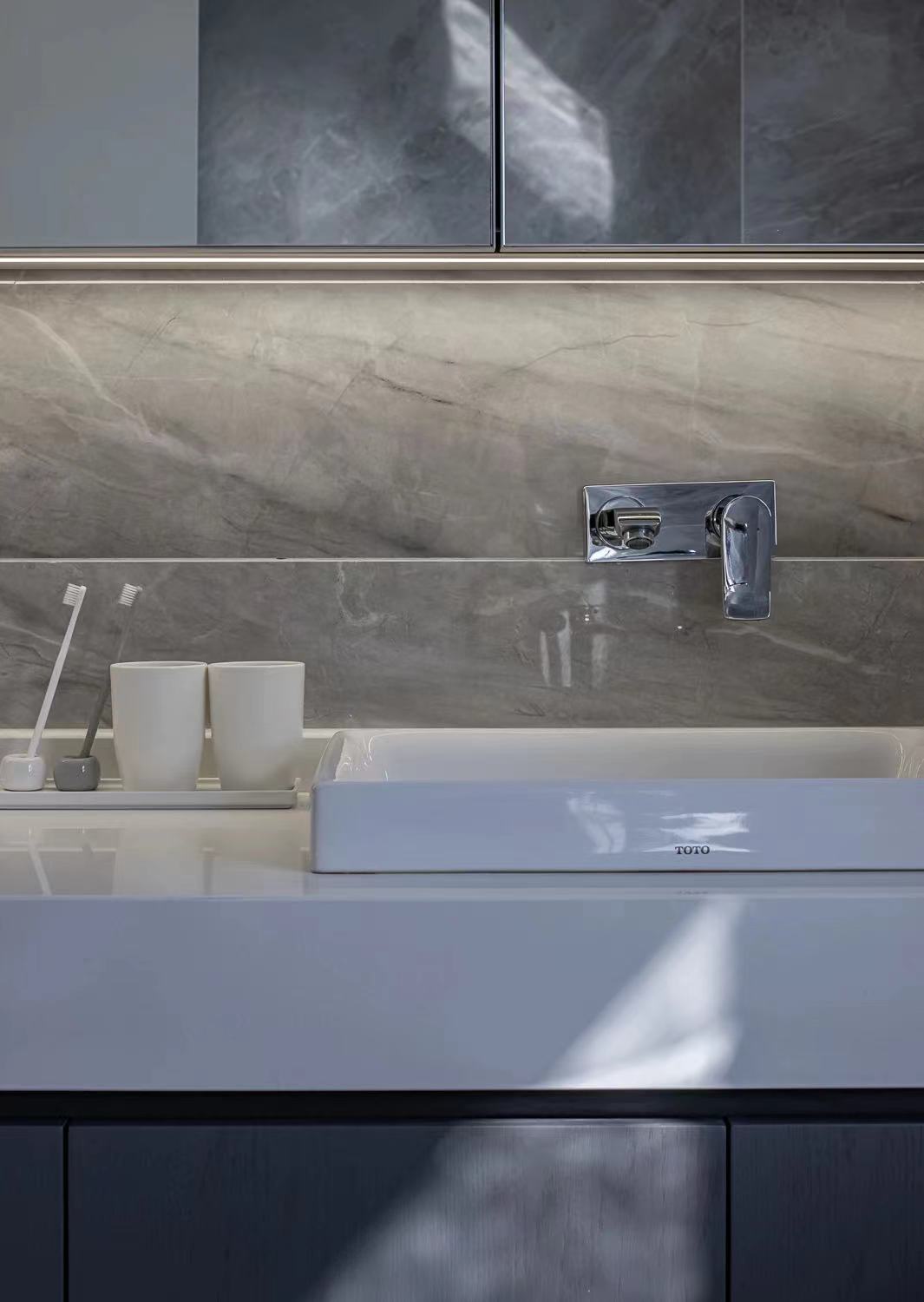

台盆区域向主卧室方向平推350mm形成内嵌双台盆区位,在早高峰洗脸刷牙可供2人同时使用;保持台面的整洁在上方设置镜柜,可以将牙刷以及护理用品放置在内,另外在镜柜内设置了电源,可以提供电动牙刷充电使用。
The basin area is pushed 350mm to the direction of the master bedroom to form an embedded double basin location, which can be used by 2 people at the same time in morning peak. To keep the table clean, a mirror cabinet is set up above, where toothbrushes and nursing supplies can be placed. In addition, a power supply is set up in the mirror cabinet, which can provide electric toothbrush for charging use.

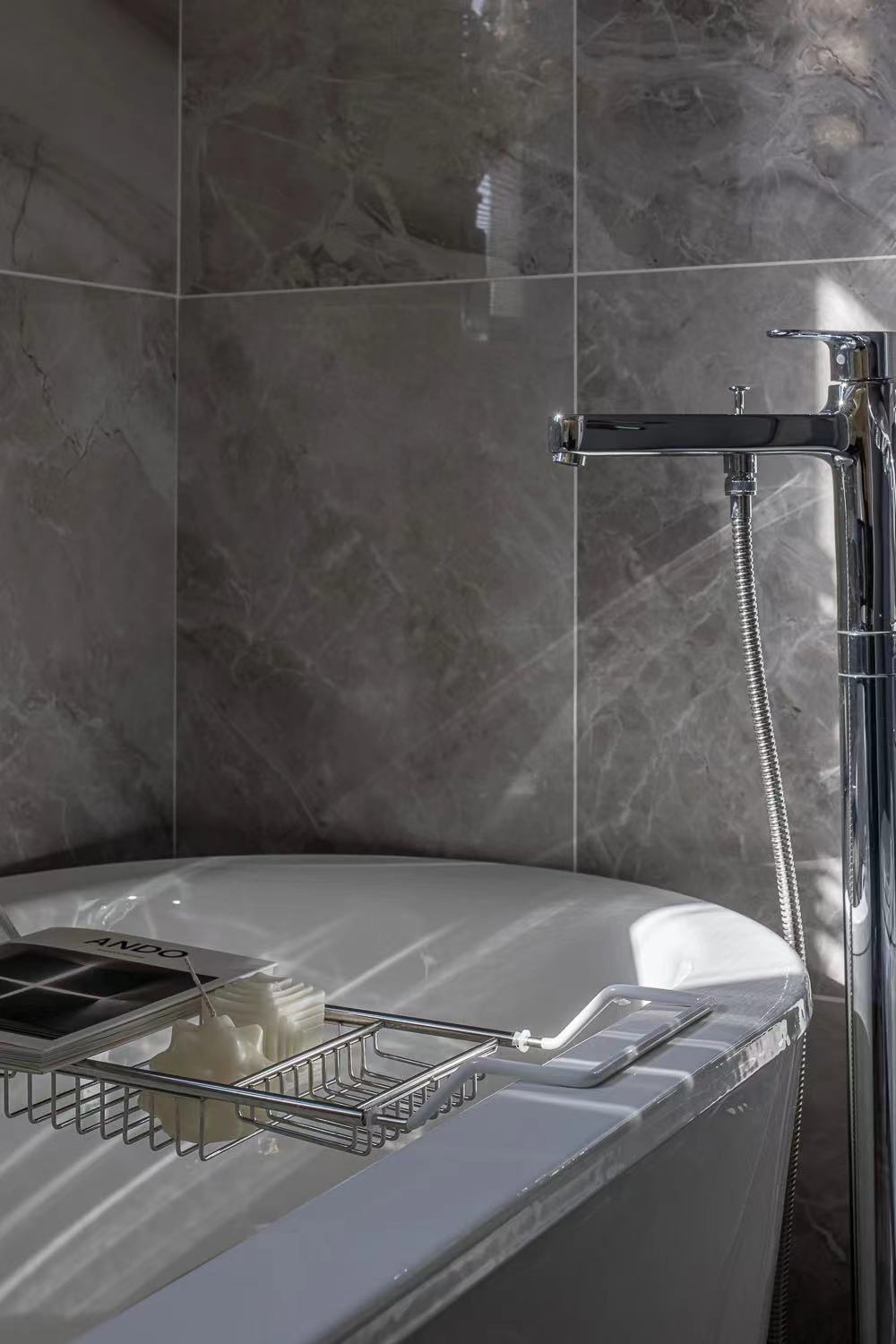

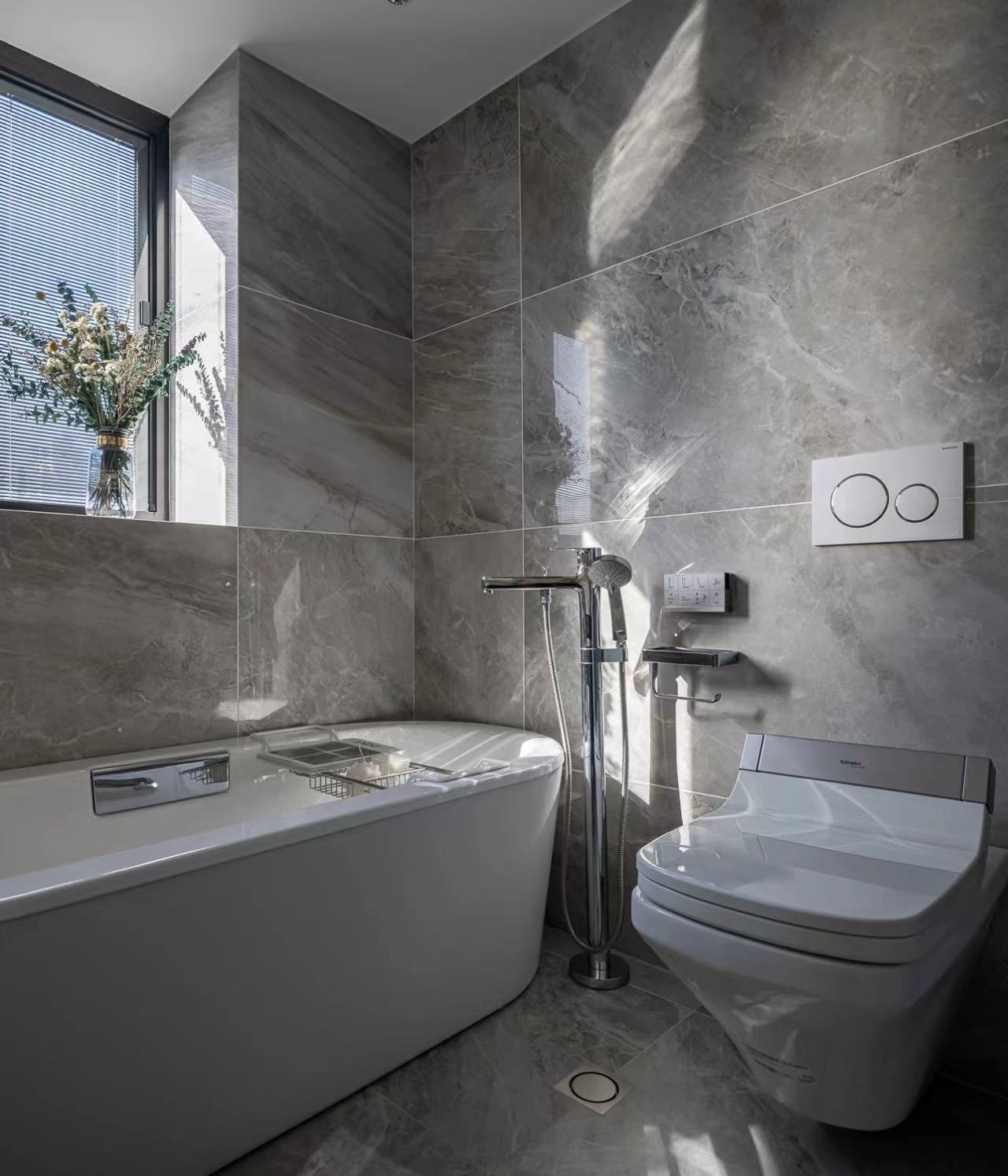

卫生间设置浴缸和淋浴满足不同沐浴需求。
The toilet is equipped with bathtub and shower to meet different bathing needs.

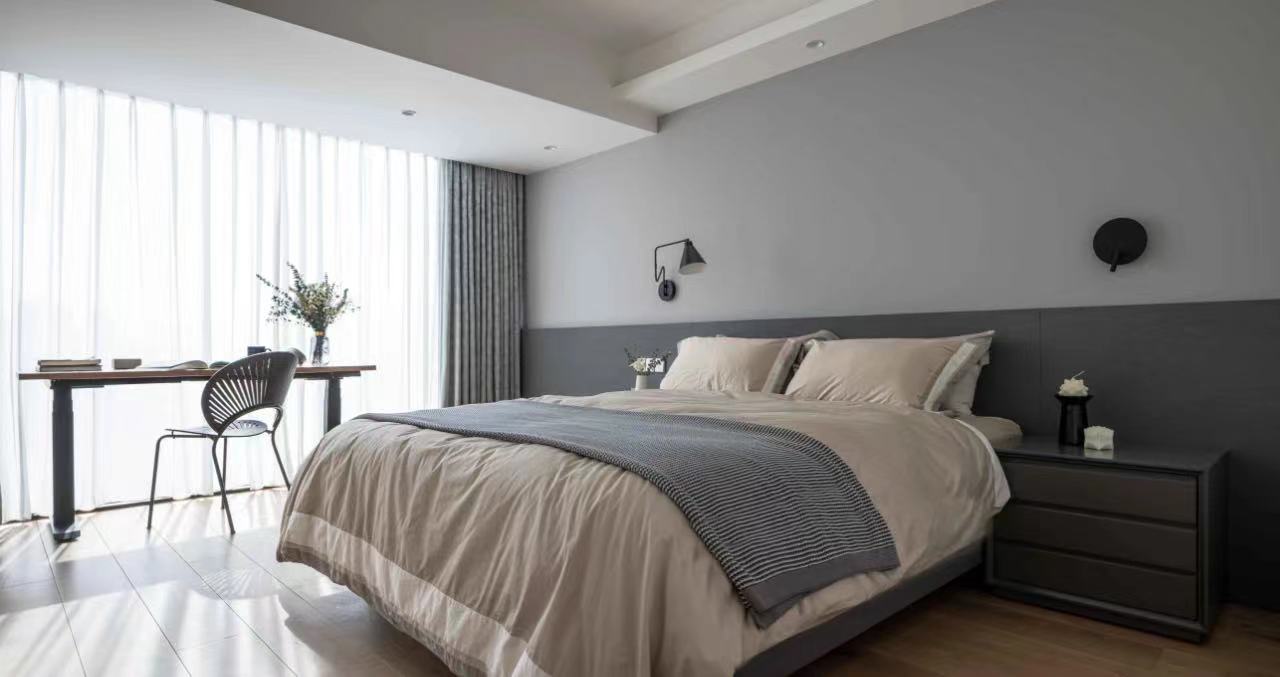

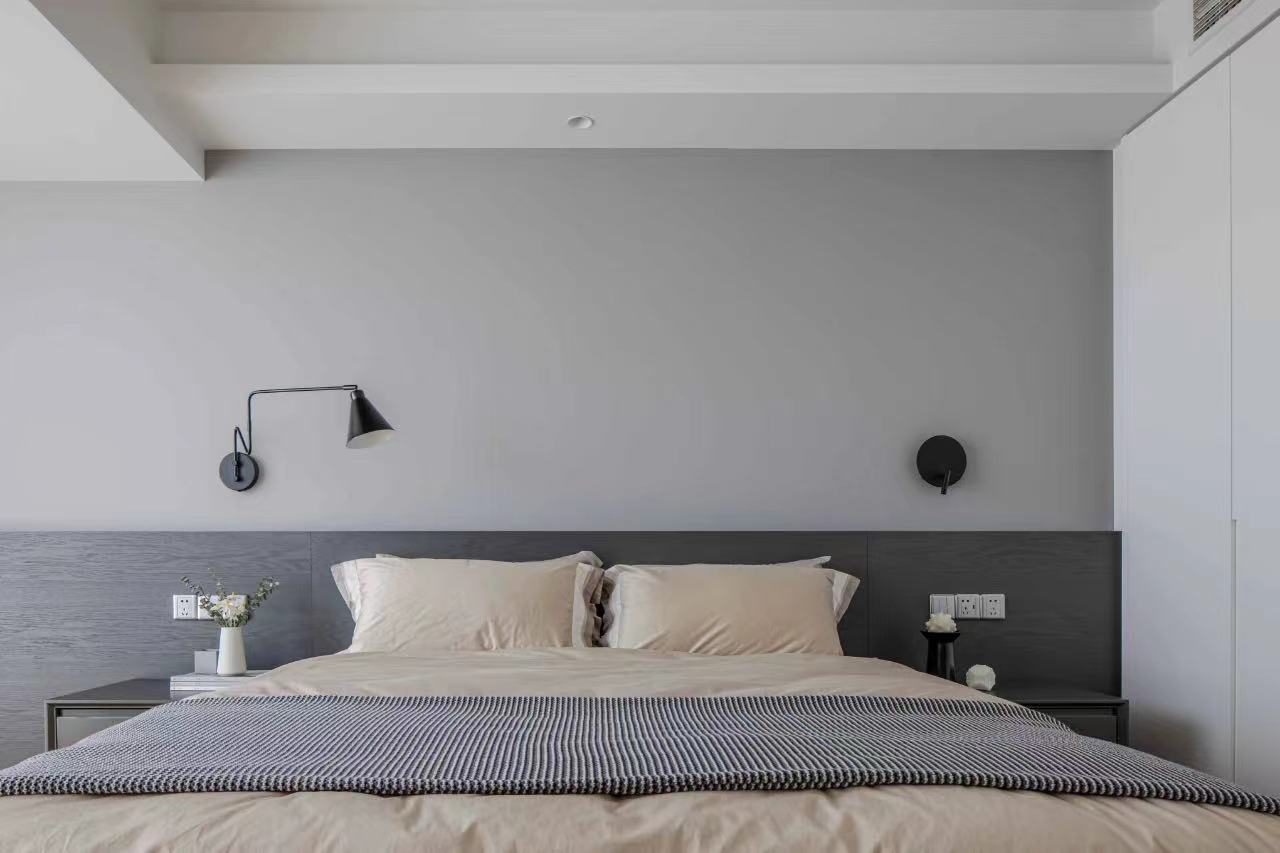

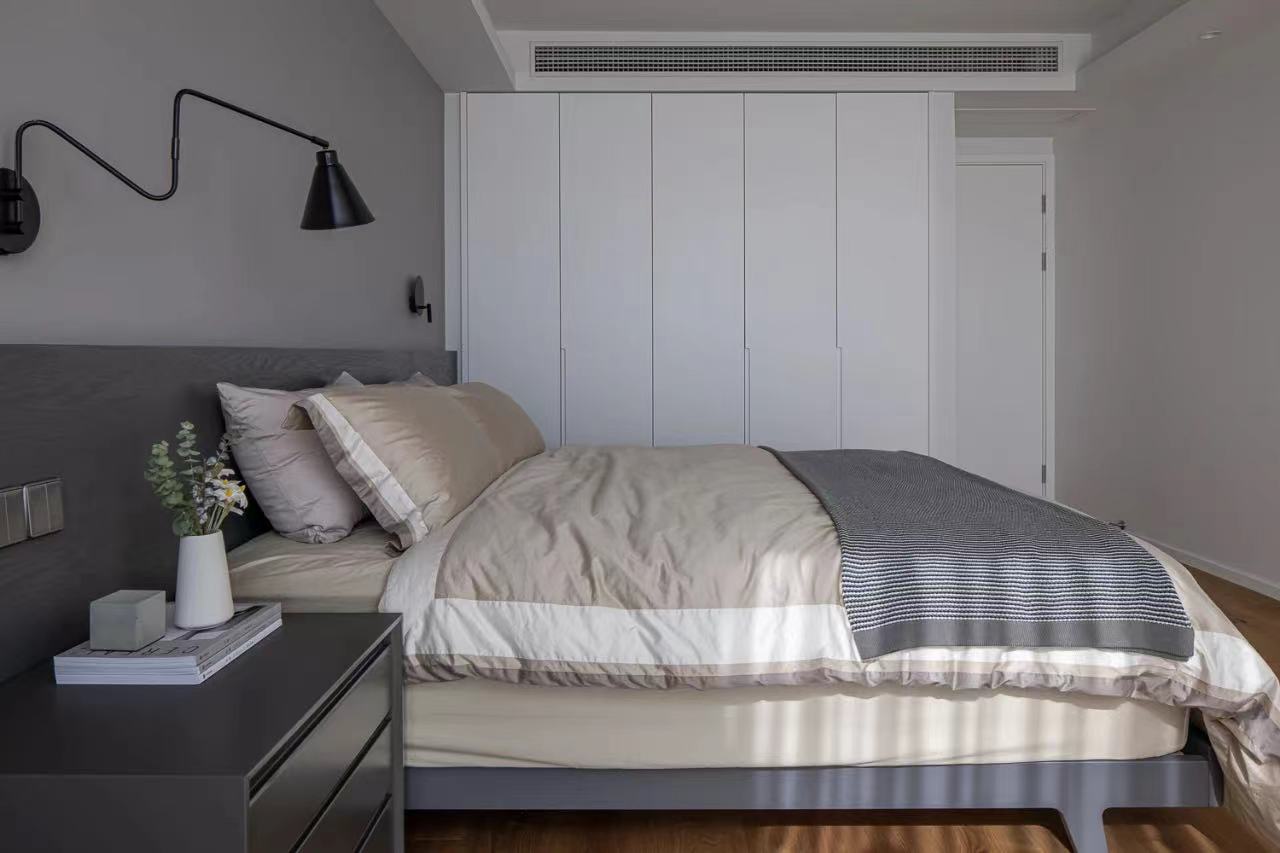

主卧室,将原阳台打通,灰色一字型床头板延展过去,加深空间的纵深感。
The master bedroom, which opens through the original balcony, has a grey monograph headboard extending past to deepen the depth of the space.

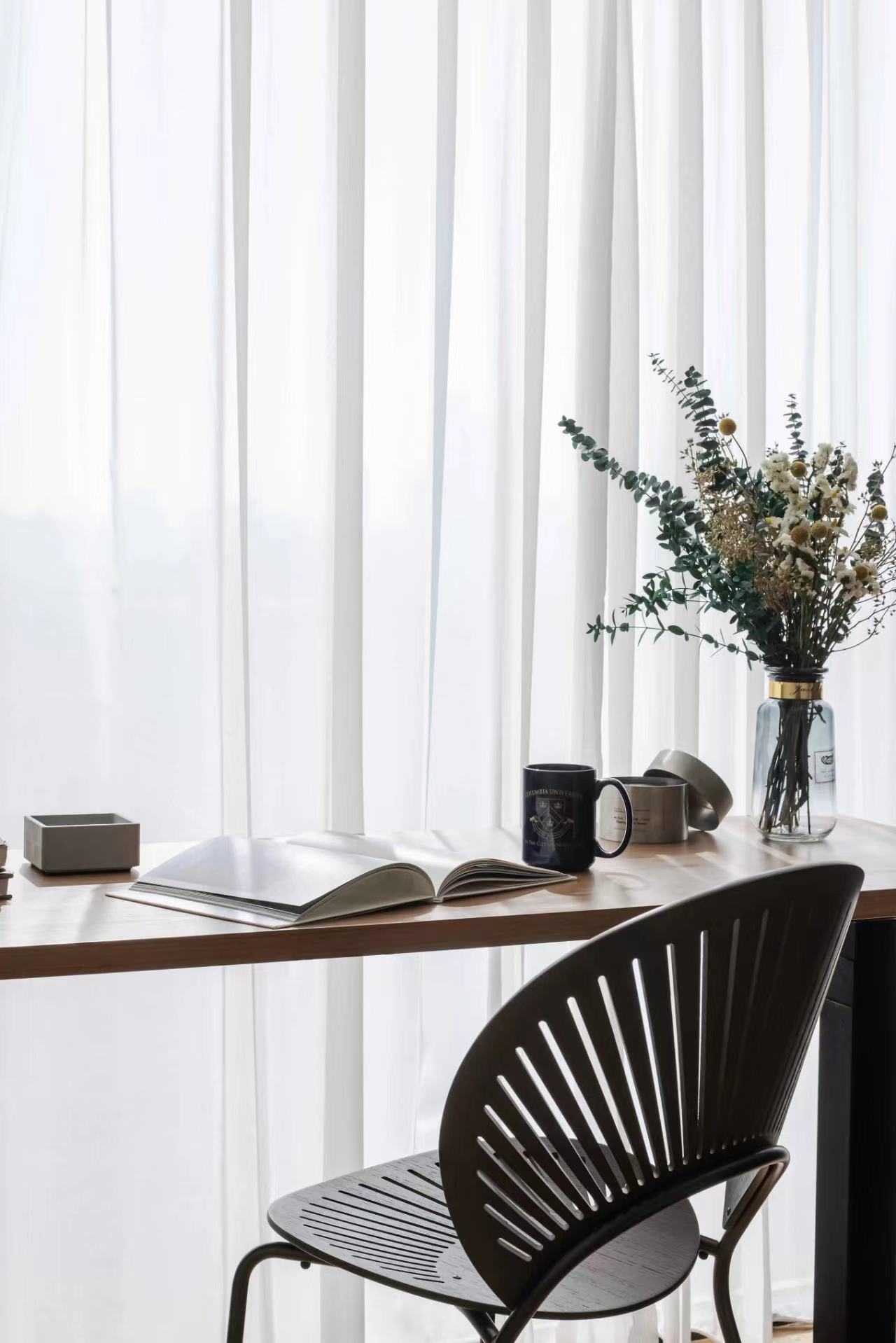

不再作为晒衣区的阳台,摆放电动升降桌满足工作需要。
No longer as a clothes-drying area balcony, placed electric lifting table to meet the needs of work.

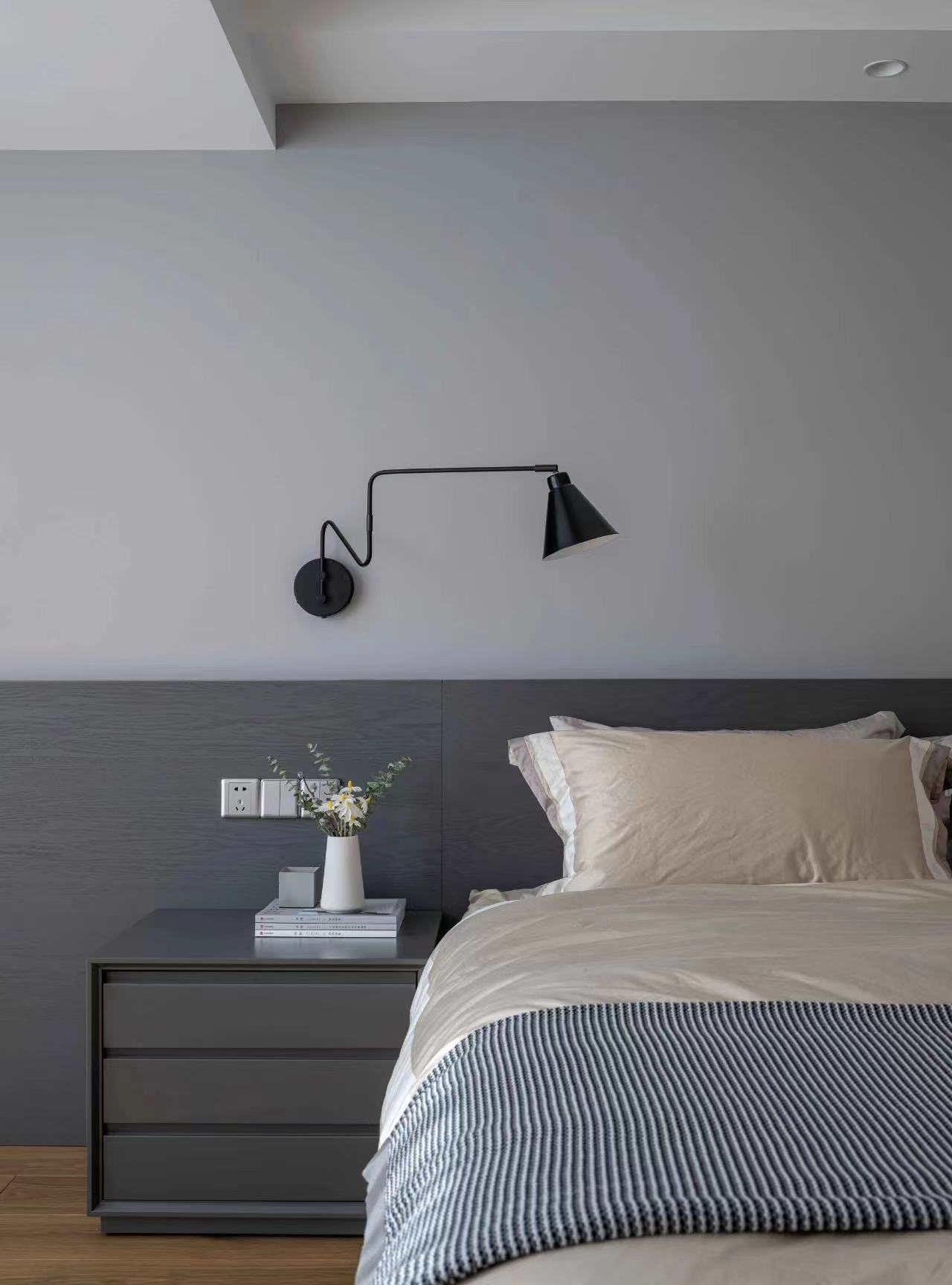

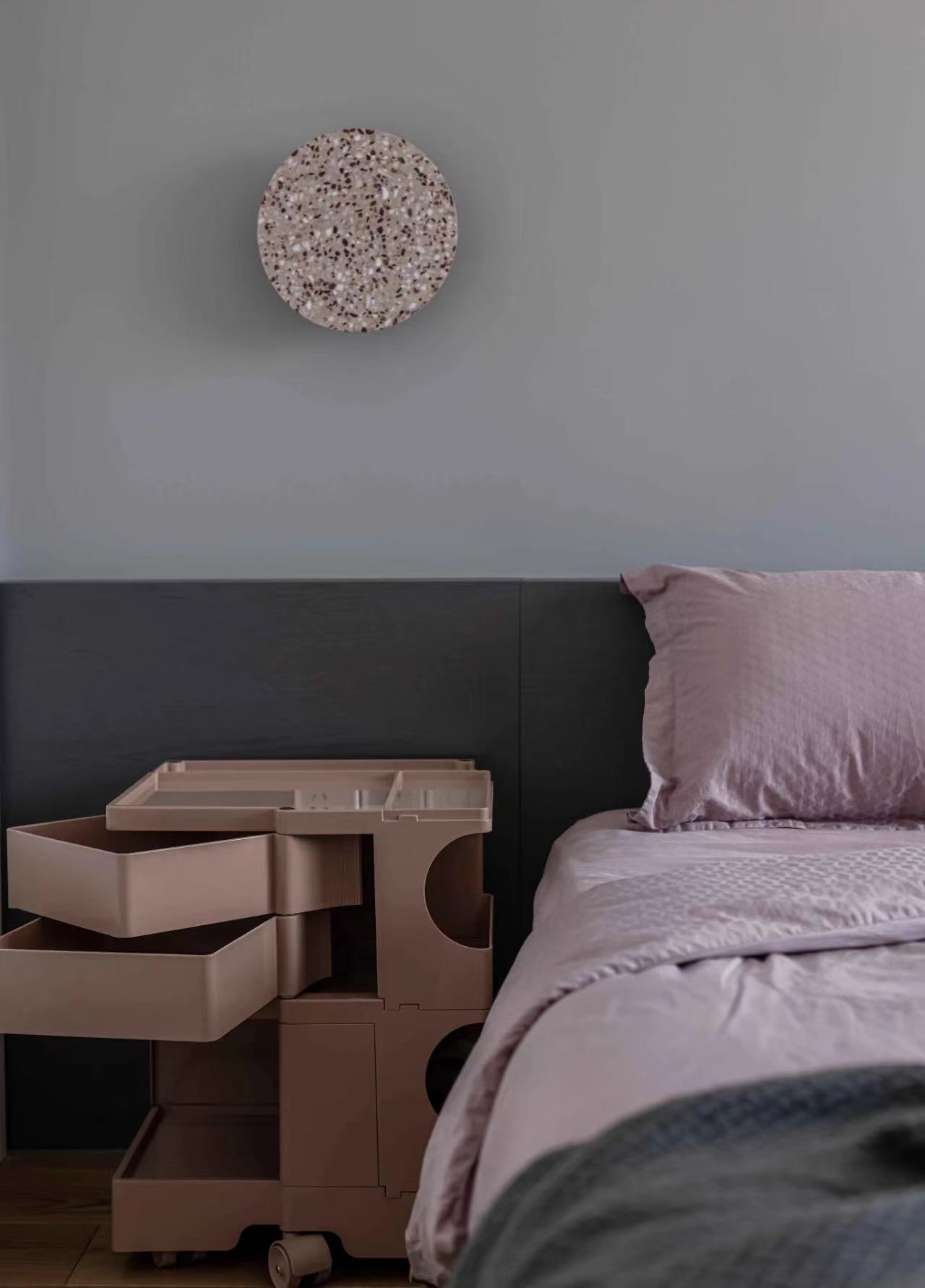

不规则的床头壁灯,可以任意调整高矮、方向,睡前阅读,灯光改变方向也不会影响枕边人。
Irregular bedside wall lamp, can be arbitrarily adjusted height, direction, bedtime reading, light change direction will not affect the pillow.

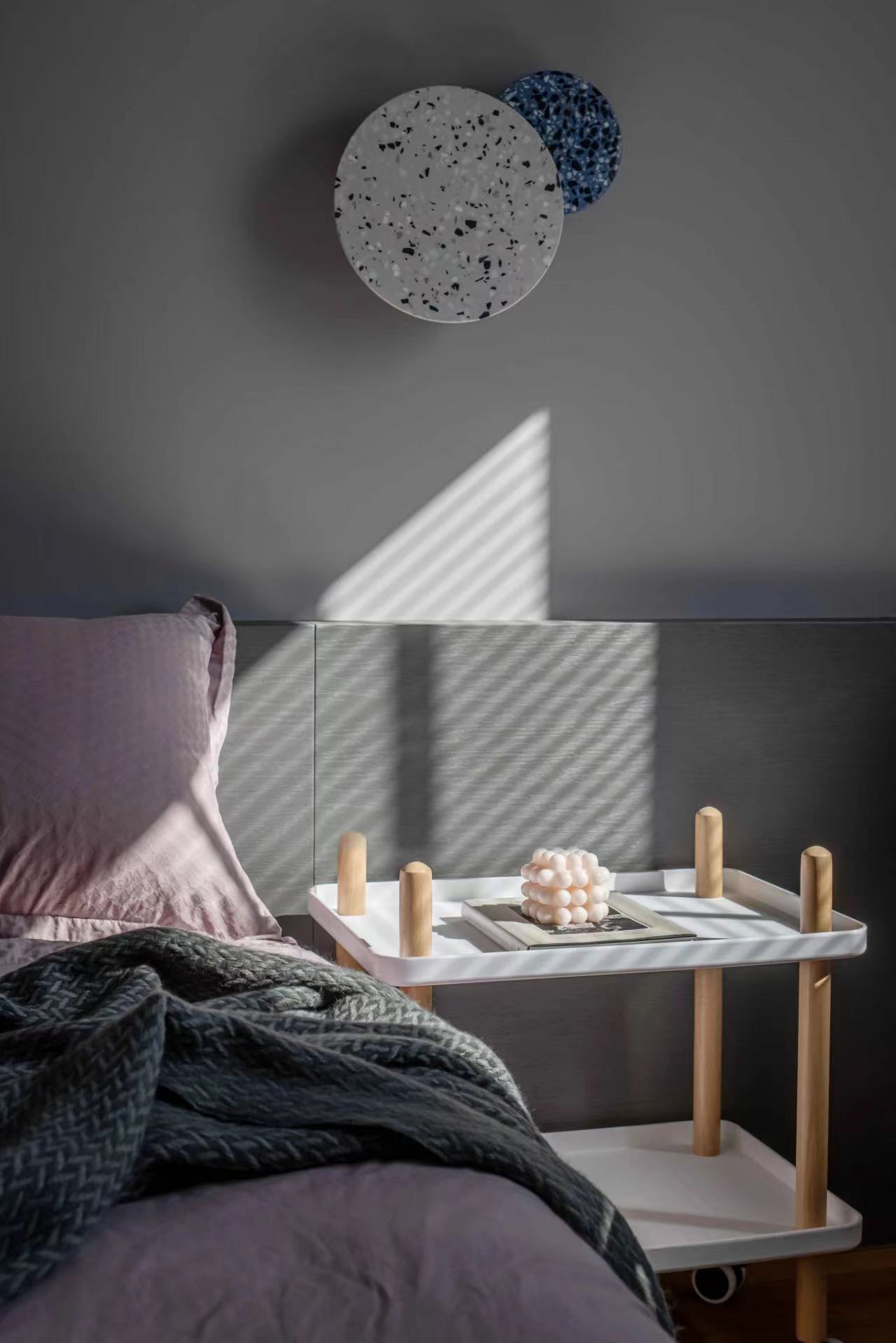

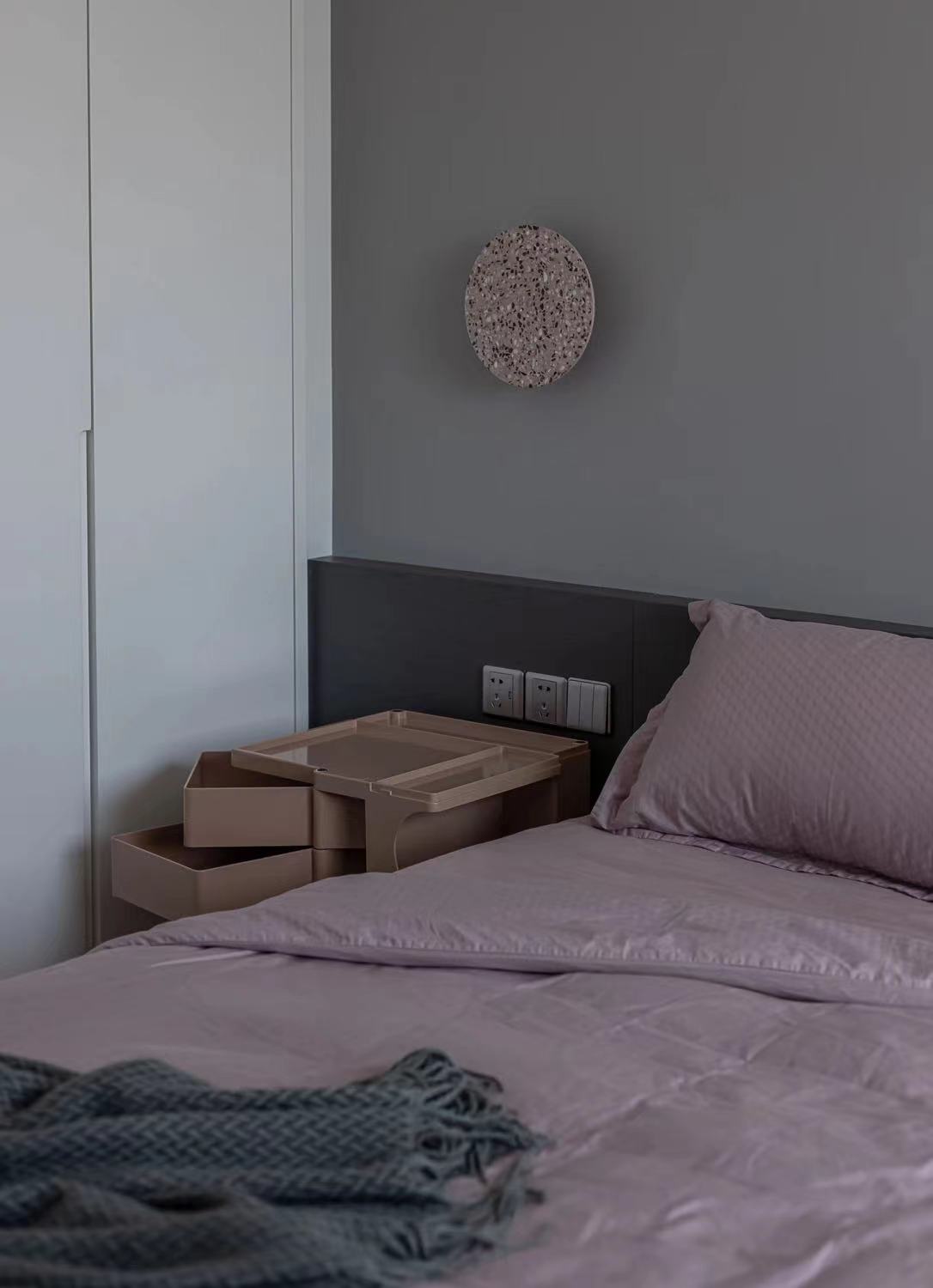

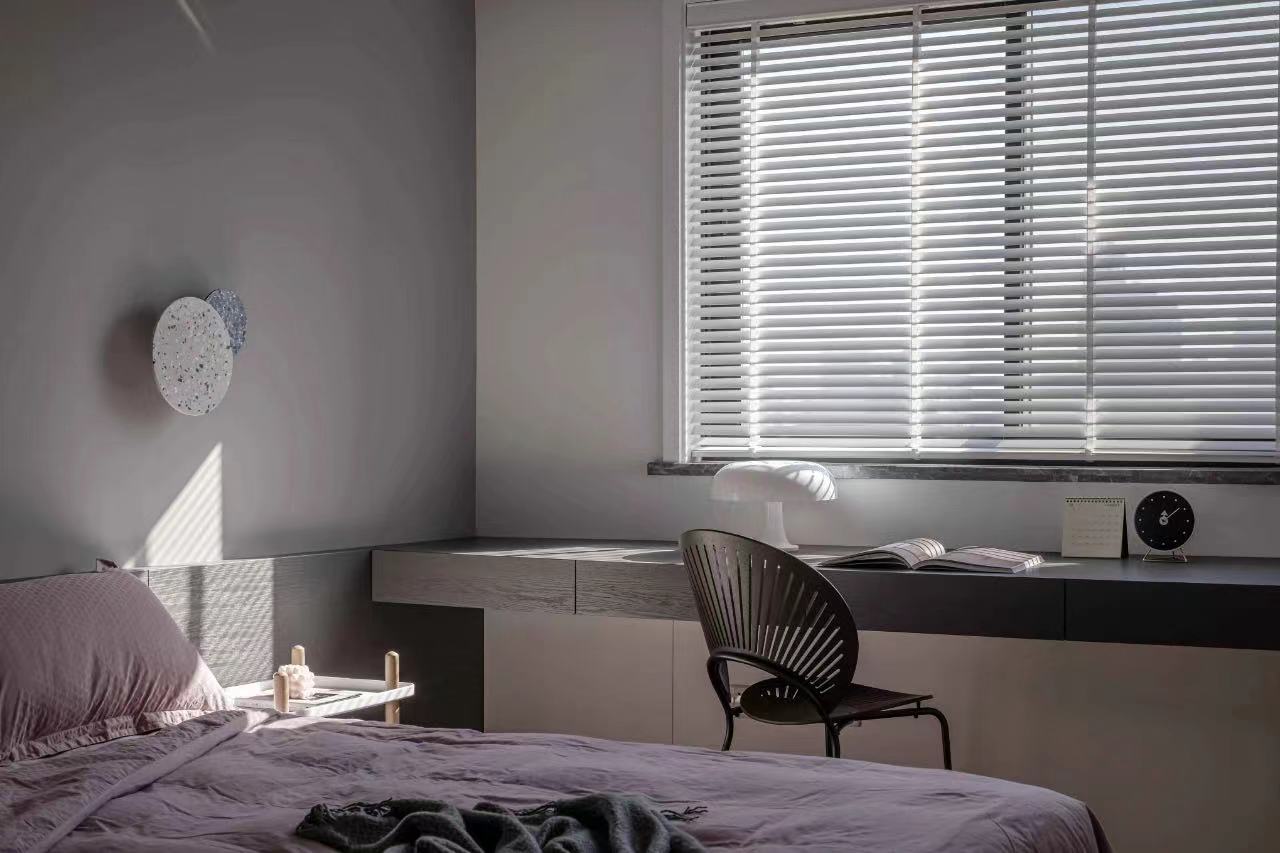

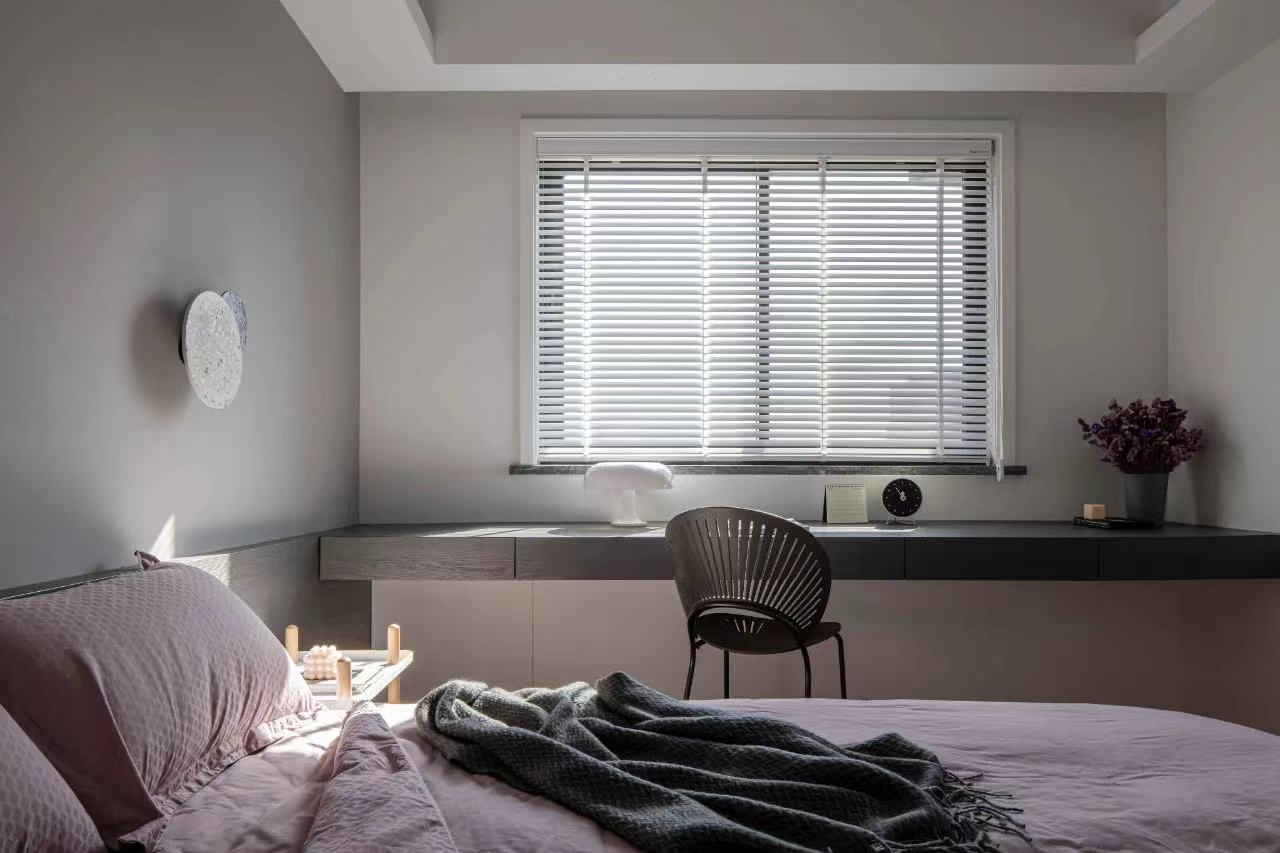

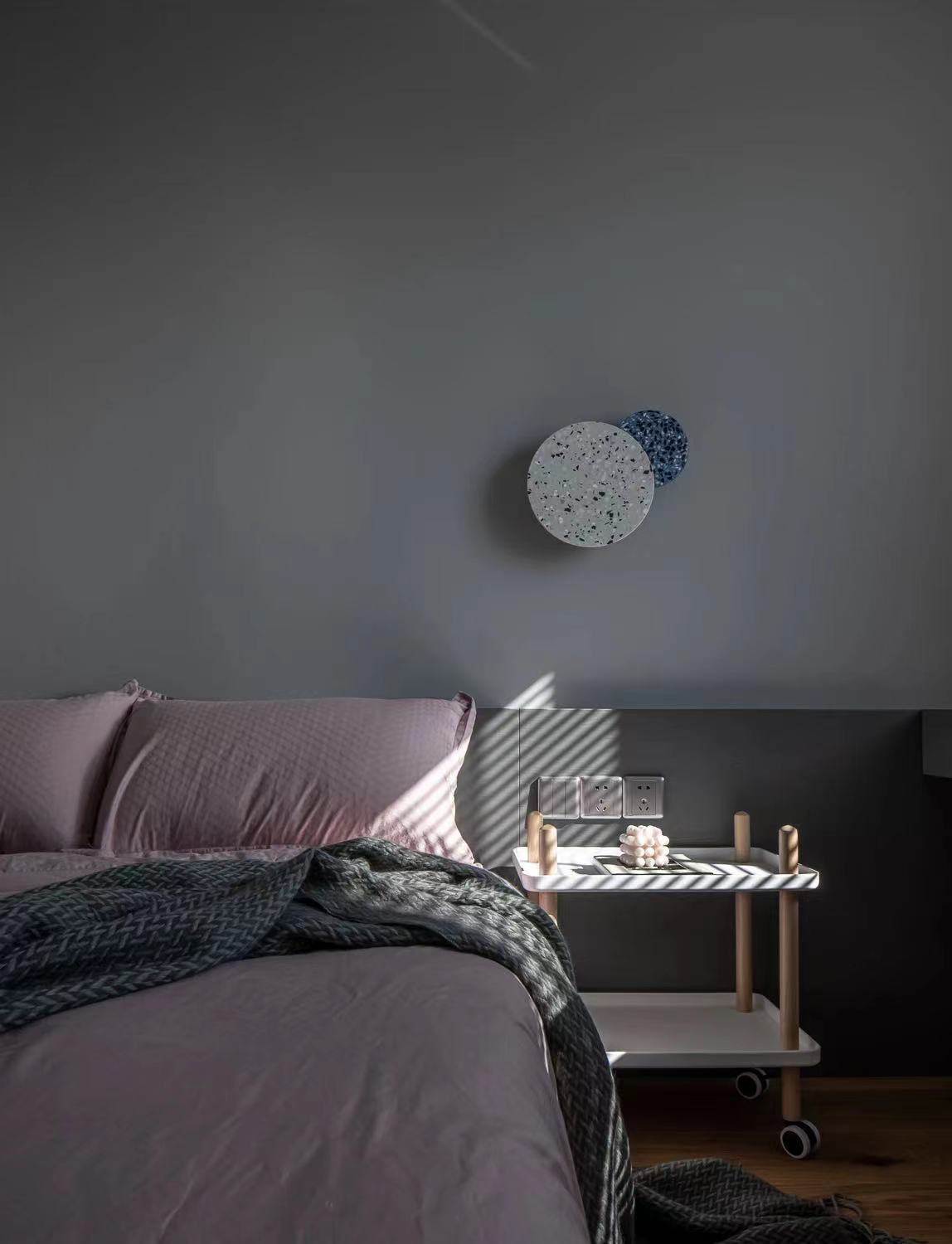

还在校园生活的女儿日常课业较重,我们在卧室设置了2900mm的超长学习桌,再多的课本,都能轻松“摊”开。
My daughter is still living in the campus. She has heavy schoolwork every day. We set up a 2900mm long learning desk in the bedroom, so that more textbooks can be easily spread out.


书桌和床靠背连接一体形成L围合形态,空间更加整体。
The desk and the back of the bed are connected together to form an enclosing form, making the space more integrated.

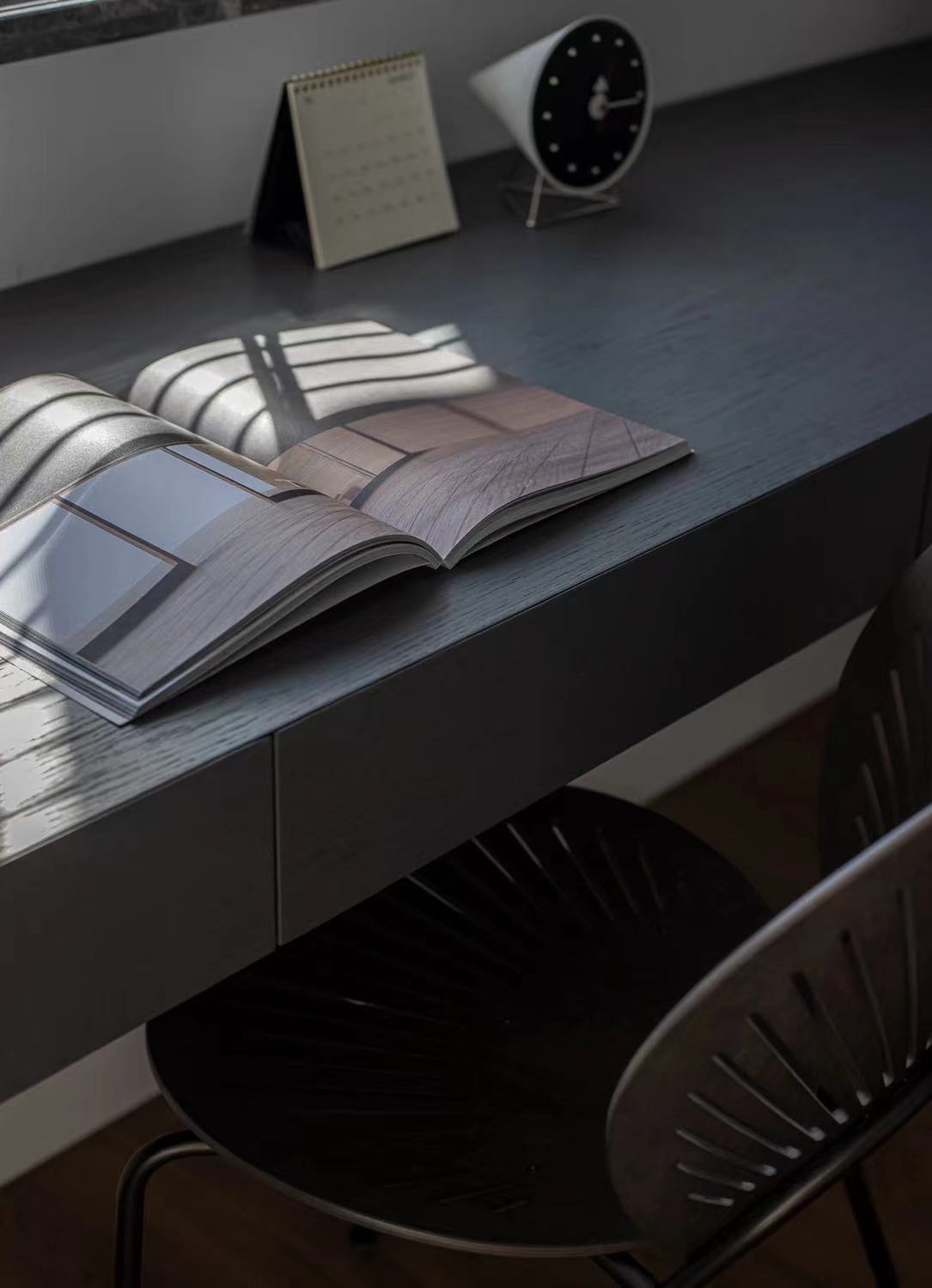

白色的蘑菇台灯来自:Artemide,太阳椅来自丹麦品牌Fredericia。
The white mushroom table lamp is from Artemide and the sun chair is from Danish brand Fredericia.

Vitra的小钟,购置于CASA CASA。
Small bell of Vitra, purchased from CASA CASA.








项目地点 | 上海徐汇
项目面积 | 126㎡
项目类型 | 全案设计
设计公司 | 本墨室内设计工程(上海)有限公司
设计总监 | 史宁
设计团队 | 史宁 贺勤
设计时间 | 2018.07
完成时间 | 2018.12
project site | Shanghai xuhui
Project area | 126 ㎡
| project type in project design
Design company | this ink interior design engineering (Shanghai) co., LTD
Design director | Shi Ning
The design team | Shi Ning He Qin
Design | 2018.07
Completion time | 2018.12
