音乐与社交互动的混合空间A Hybrid Space for Music and Social Interaction

最初被规划为录音棚的Ring项目，在建筑师与业主的持续对话中不断演变，最终成为一个集音乐制作、社交交流与跨学科合作于一体的多功能场所。项目并未遵循传统录音棚的模式，而是探索建筑如何促进人与人之间的互动，将录音棚、咖啡厅、联合办公空间与活动平台融合为一体。随着远程工作与数字沟通改变城市生活方式，城市亟需重新思考空间如何促进协作。Ring提供了一个区别于孤立办公环境的替代方案——在这里，独立艺术家、学者、程序员、设计师和创意工作者可以共享空间、相互连接。“Living Room（客厅）”这个名称，反映了该空间既非正式又充满活力的特性，鼓励在传统工作场所之外展开交流与合作。

Initially planned as a recording studio, Ring evolved into a multi-functional venue through discussions between architects and the client, integrating music production, social engagement, and interdisciplinary collaboration. Rather than a conventional studio, the project explores how architecture can facilitate interaction, combining a recording studio, café, coworking space, and event platform. As remote work and digital communication reshape urban life, cities must rethink how spaces foster collaboration. Ring provides an alternative to isolated work environments, offering a shared space where independent artists, academics, coders, designers, and creatives connect. The name Living Room reflects its informal yet dynamic nature, encouraging interaction beyond traditional workspaces.

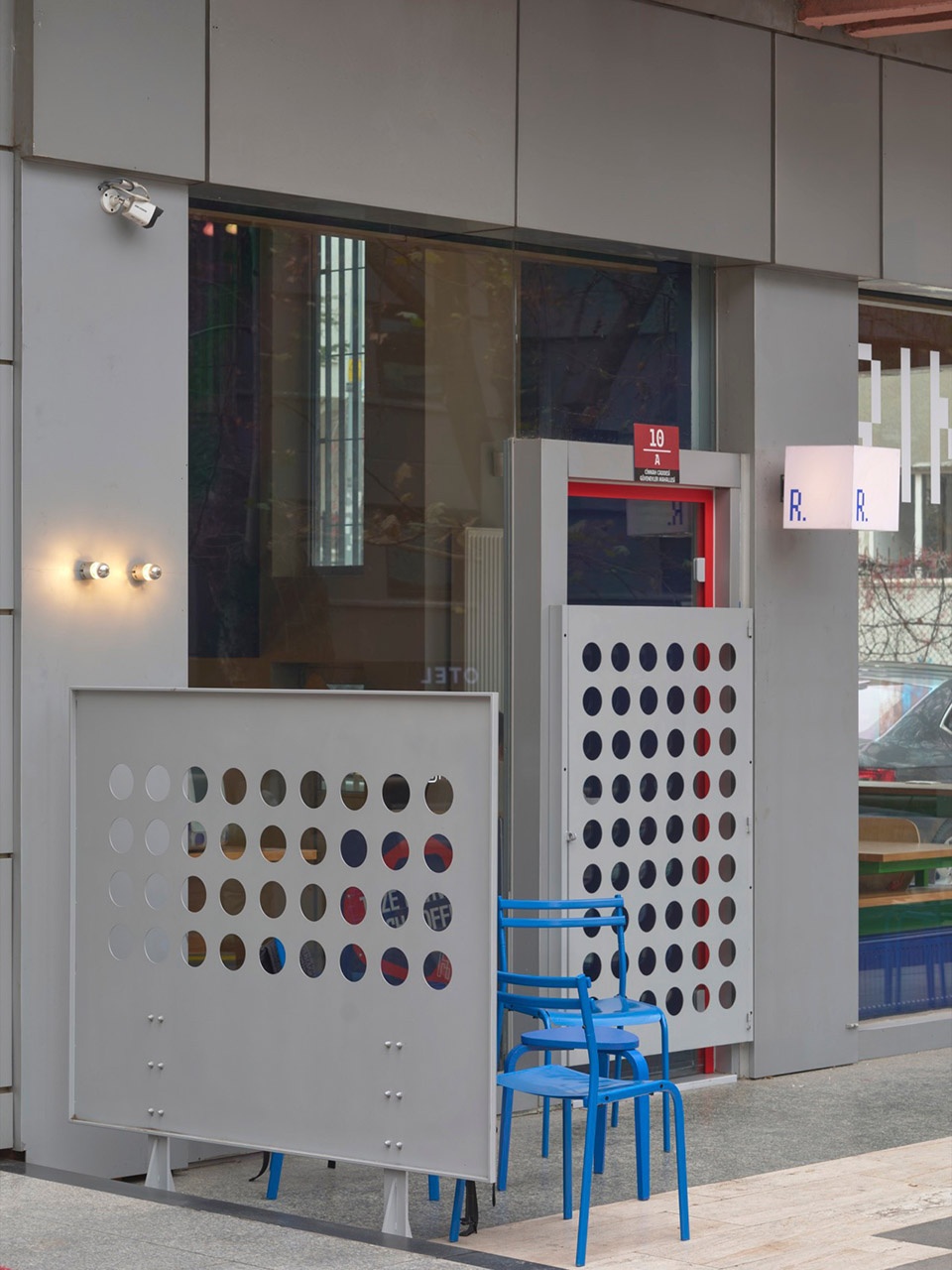

▼外观，exterior view of the project

▼外摆区，terrace area

城市语境与建筑策略Urban Context and Architectural Approach

Ring位于土耳其安卡拉Cinnah大街上一栋建于1980年代的建筑一层。改造前，空间已被拆除至骨架结构。设计在满足技术性能的同时兼顾社交灵活性，确保录音棚在不影响共享空间功能的前提下顺利运行。项目进行了全面的基础设施升级，包括电力和供暖系统的重建、内部隔热与声学处理。一层作为联合办公空间、活动场所与咖啡厅使用；二层设有录音棚与控制室，实现结构有序却流动自如的空间氛围。

Located on Cinnah Street in Ankara, Ring occupies the ground floor of a 1980s-built structure. Before renovation, the space was stripped to its framework. The design balances technical performance with social flexibility, ensuring the recording studio can operate alongside communal areas without disruption. A full infrastructure upgrade was implemented, including a new electrical and heating system, internal insulation, and acoustic treatment . The ground floor functions as a coworking space, event venue, and café, while the upper floor houses the recording studio and control room, maintaining a structured yet fluid environment.

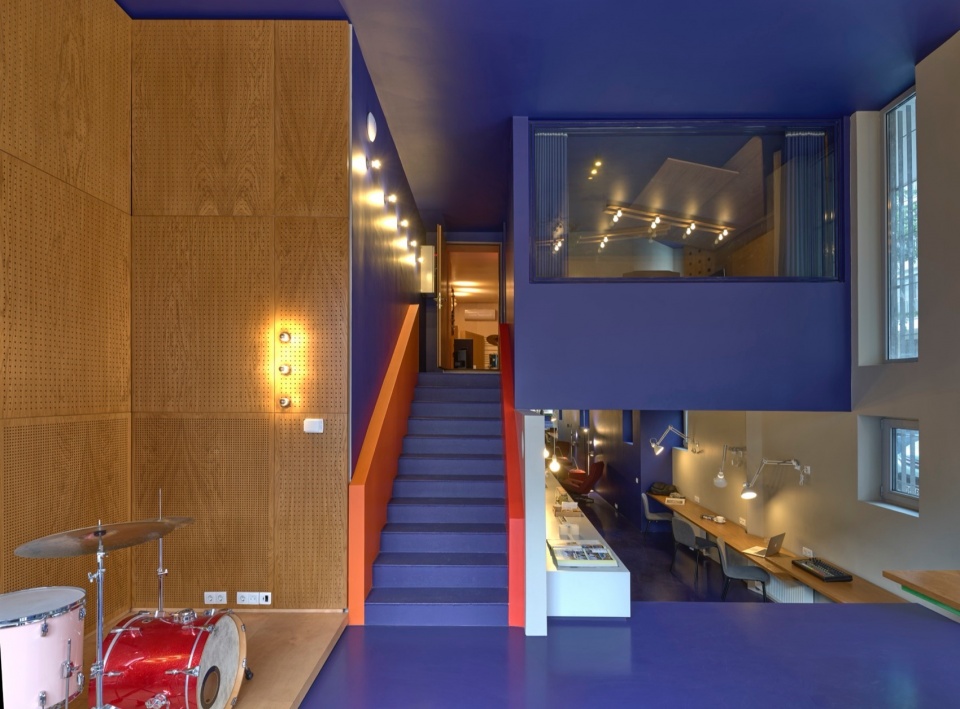

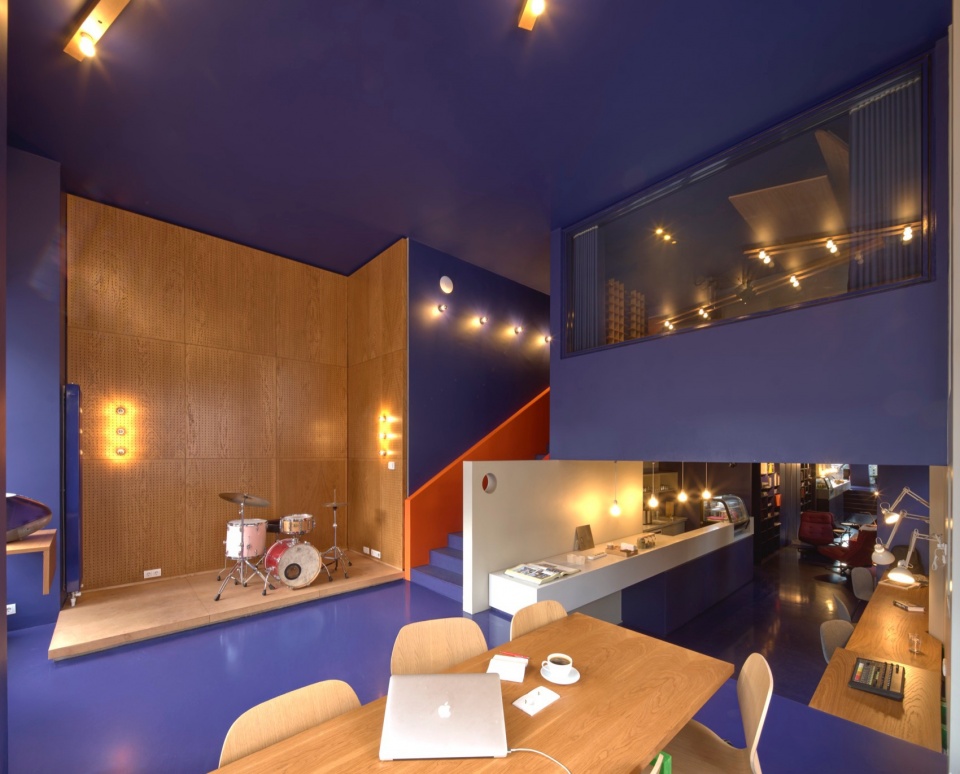

▼室内空间概览，overall of interior

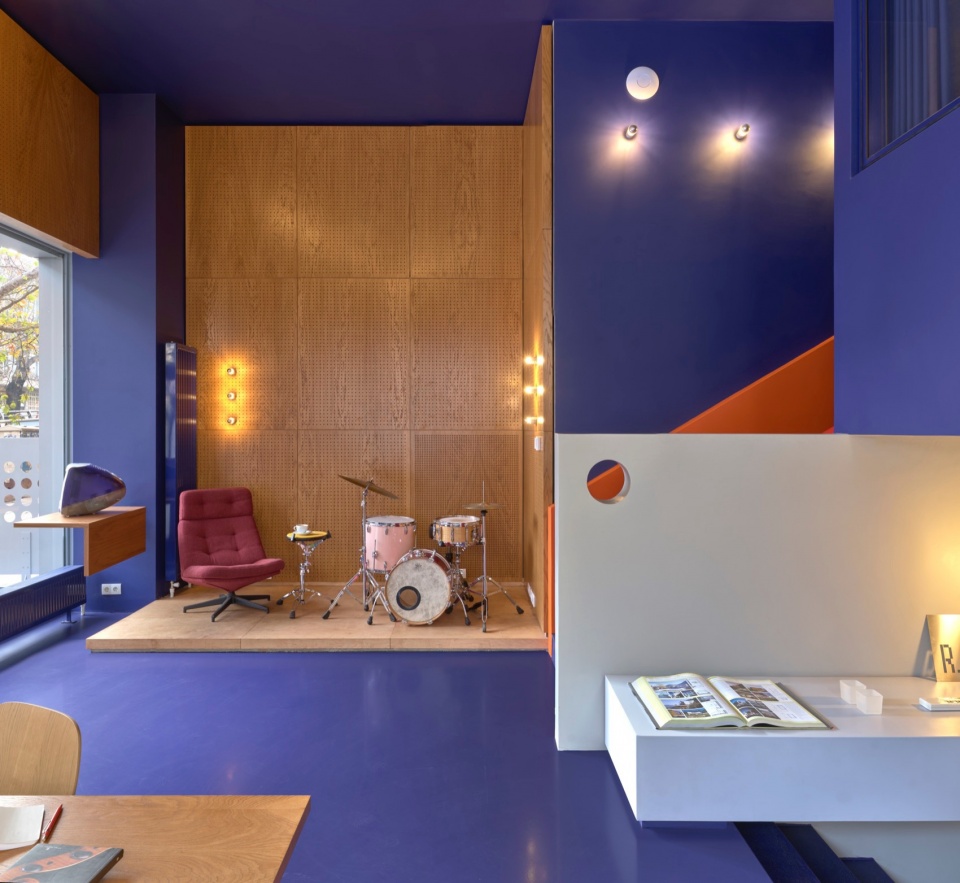

▼空间一角，corner of the studio

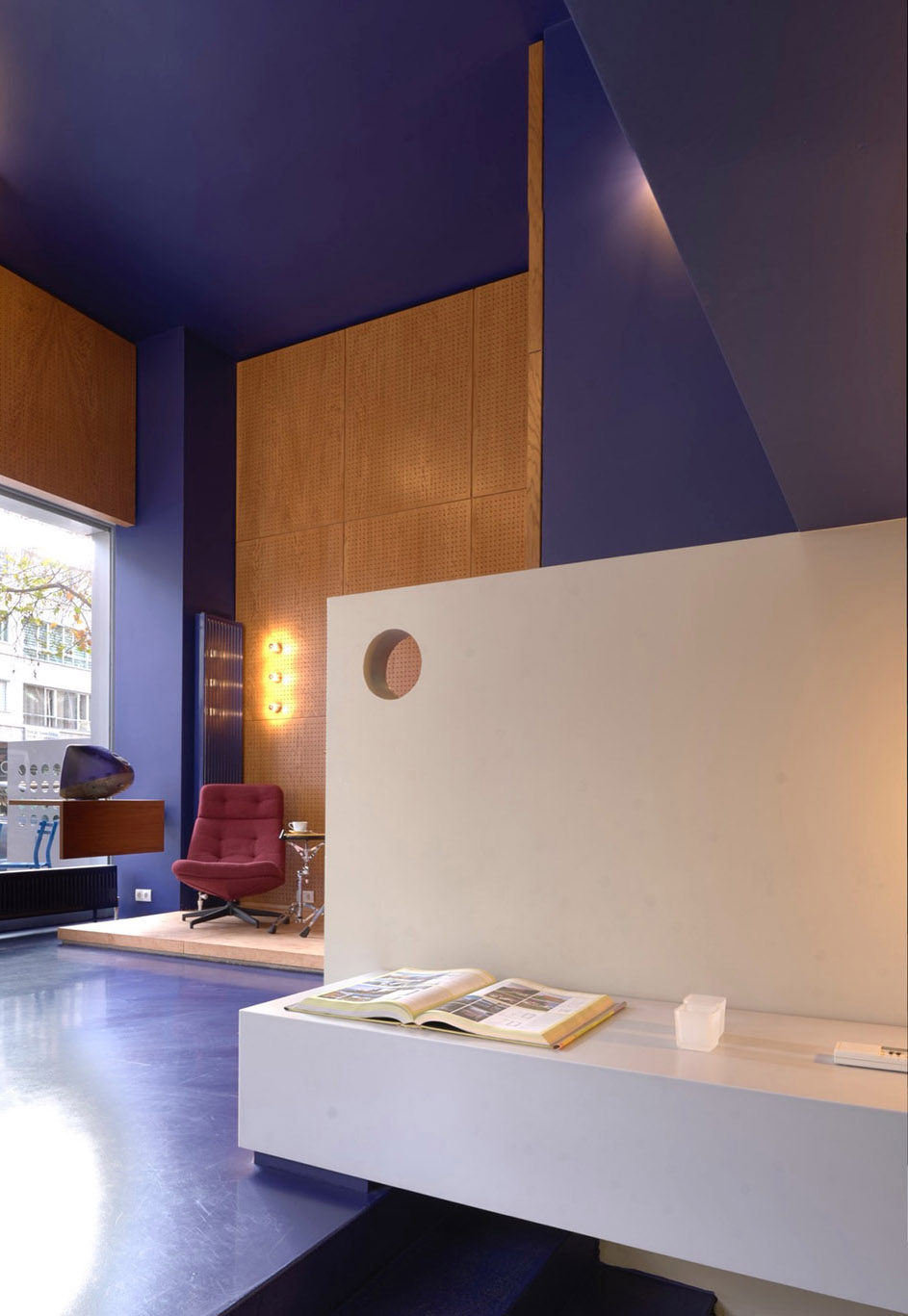

▼细部，details

声学设计与录音功能Acoustic Design and Studio Functionality

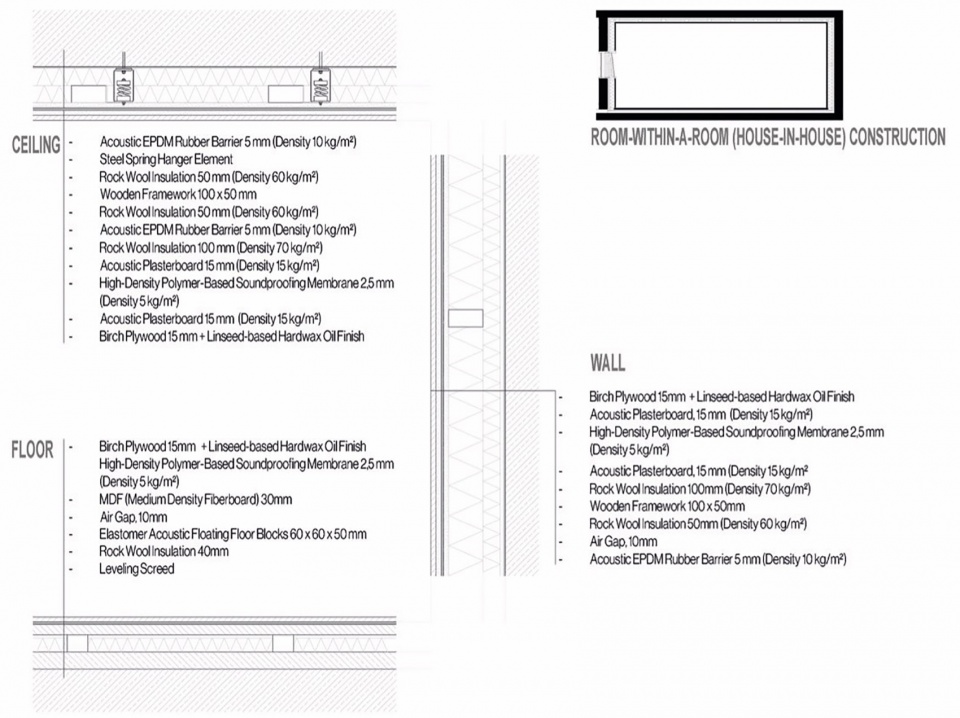

现场录音室（Birch Box）采用“箱中箱”（room-within-a-room）的隔音原理建造，确保声学独立性。墙体、天花板与地面均采用分离结构，减少声音传导与结构震动。空间整体包覆桦木板，为录音营造出可控的声学环境，确保高质量录音所需的均衡混响。控制室则经过专业声学优化，实现中性监听效果，支持高水平音乐制作。由于空间限制，通过钢结构向外延伸地板 40–50 厘米，进一步改善听音条件。

The live room (Birch Box) was designed using the room-within-a-room principle, ensuring acoustic isolation. Its walls, ceiling, and floor feature decoupled layers, reducing sound transmission and structural vibrations. Fully clad in birch panels, it provides a controlled acoustic environment, ensuring balanced reverberation for high-quality recordings. The control room was optimized for neutral sound monitoring to support professional production. Due to space constraints, the floor slab was extended by 40–50 cm with a steel framework, improving listening conditions.

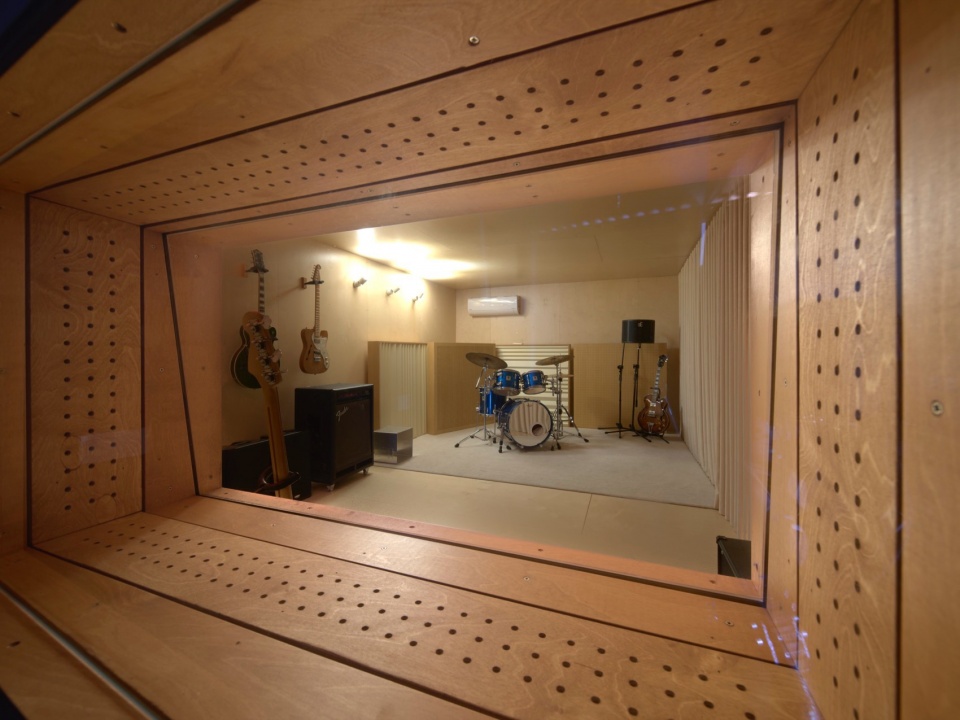

▼现场录音室，Birch Box

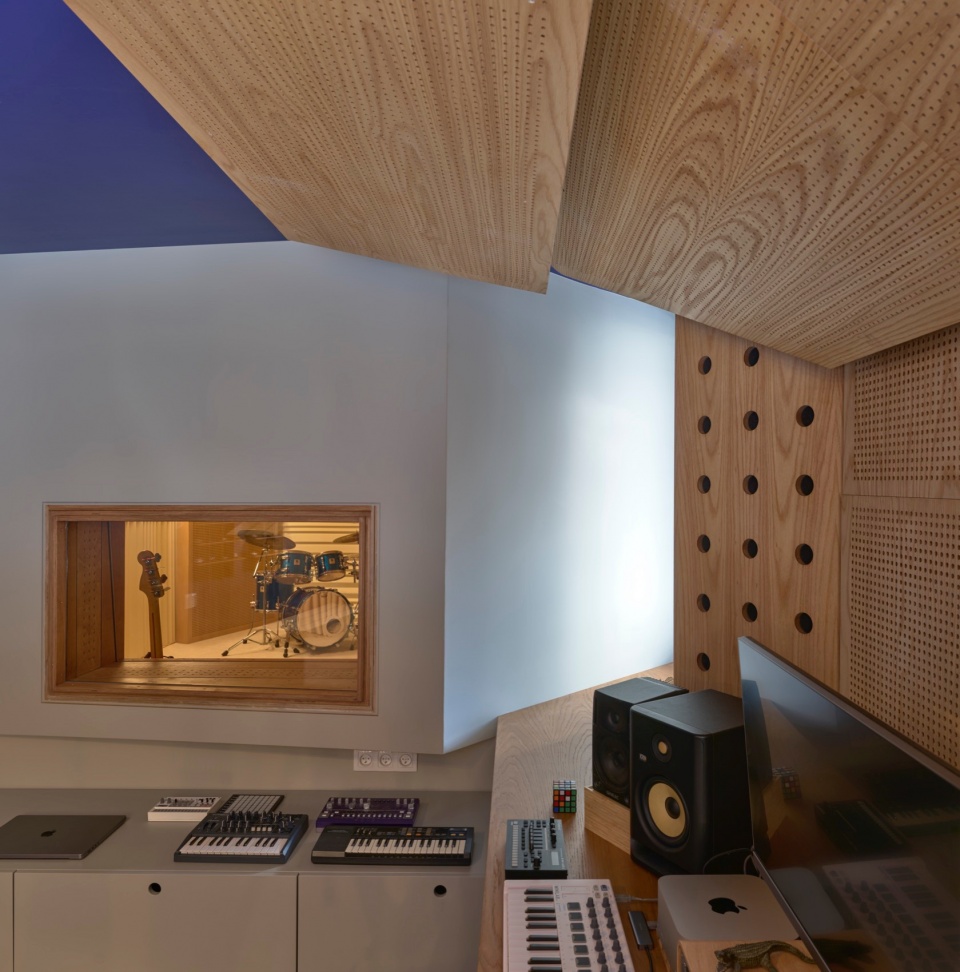

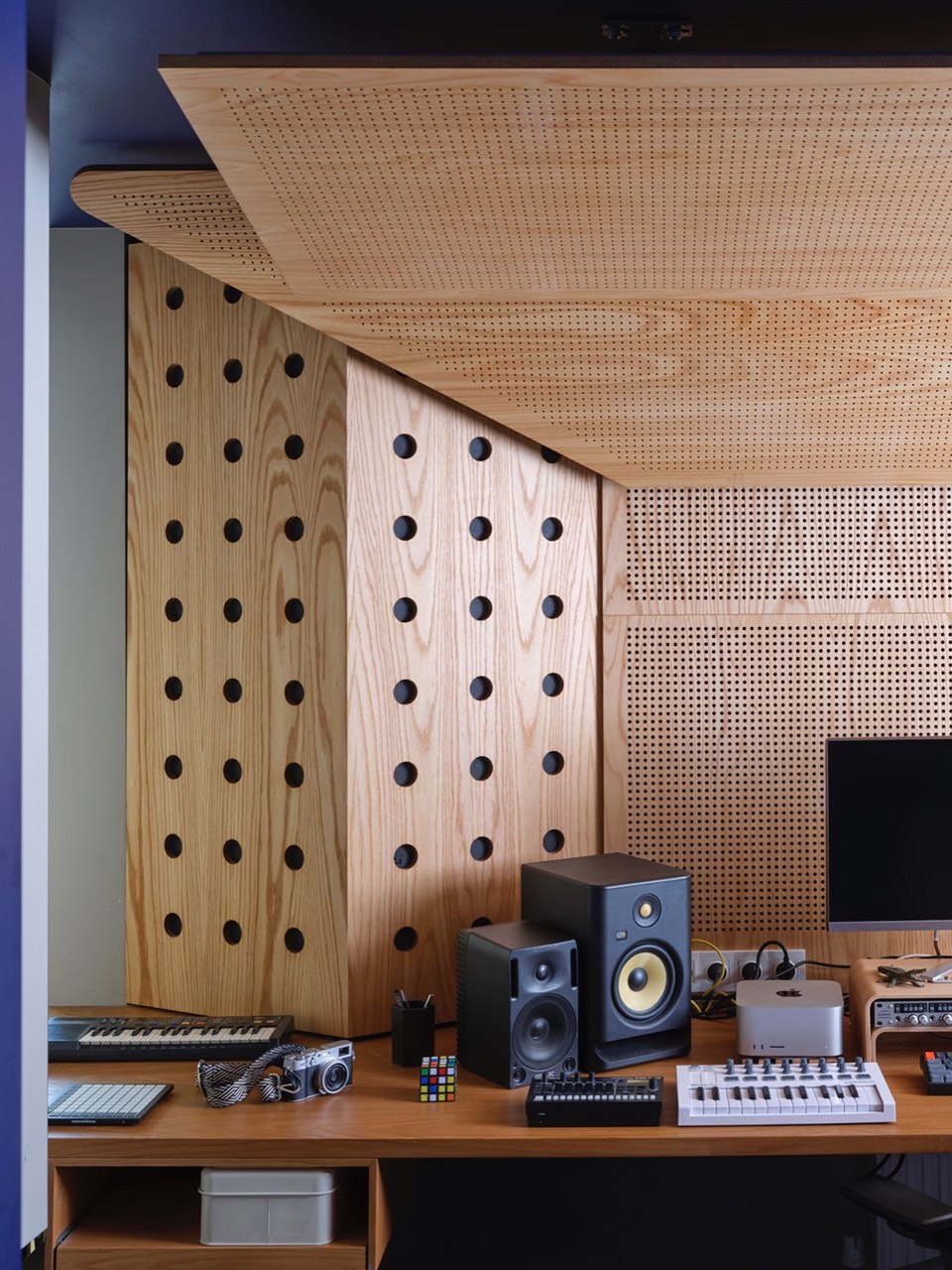

▼控制室则经过专业声学优化，the control room was optimized for neutral sound monitoring

空间组织与建筑体验Spatial Organization and Architectural Experience

Ring不仅是一个录音设施，更回应了工作与文化参与方式的变化。设计并未采用固定的功能分区，而是鼓励工作、社交与艺术创作之间的自由过渡。进入室内后，多层次的布局引导人流动线。略低于主层的服务台，巧妙划分空间；位于中央的舞台既是视觉焦点，也是概念核心，具备高度灵活性。它可用于声学音乐会、DJ 表演、电影放映、工作坊与讨论会，使 Ring 成为另类文化活动的聚集地。

Beyond a recording facility, Ring responds to changing work and cultural engagement patterns. Instead of rigid programming, the design encourages fluid transitions between work, socialization, and artistic production. Upon entry, the multi-leveled layout directs movement. The service counter, set slightly below the main level, subtly delineates the space, while the centrally located stage serves as a spatial and conceptual anchor. Designed for flexibility, it accommodates acoustic concerts, DJ sets, film screenings, workshops, and discussions, positioning Ring as a hub for alternative cultural movements.

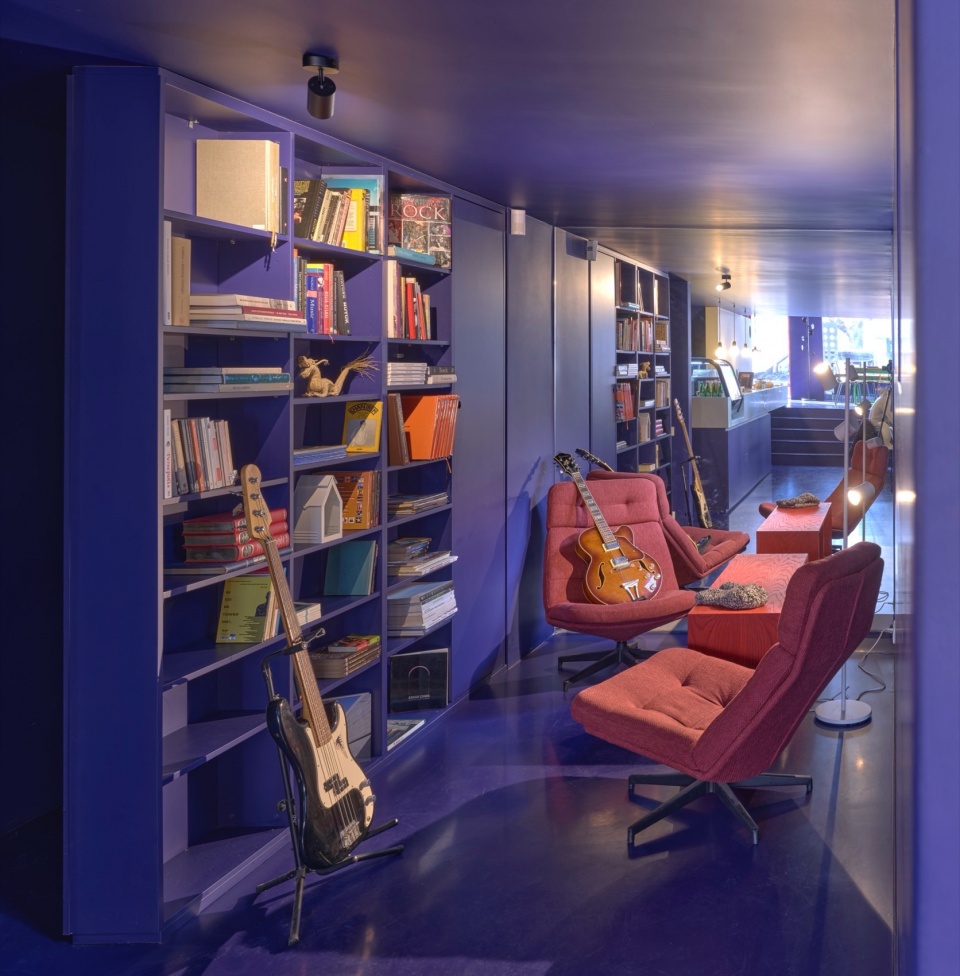

▼阅读区/交流区，reading/communicating area

材料与氛围Materiality and Atmosphere

经过精心选择的材料调色板，强化了录音空间与公共空间之间的联系。深海蓝、焦橘色与日落红，与橡木表面和定制家具形成鲜明对比，在技术精度之外营造出温暖而富有触感的空间氛围。

A carefully curated material palette strengthens the connection between studio and communal spaces. Deep ocean blue, burnt orange, and sunset red tones contrast with oak surfaces and custom-designed furniture, blending technical precision with a warm, tactile atmosphere.

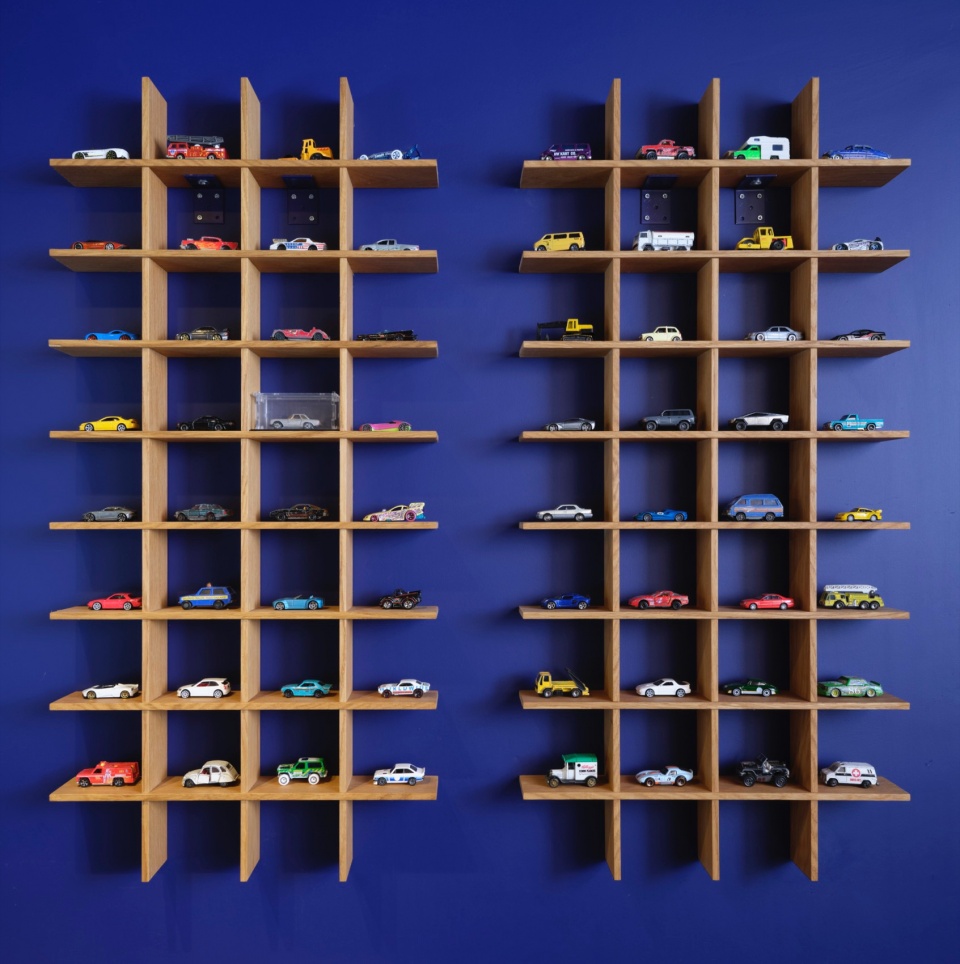

▼置物架，shelves

▼材料与色彩，matel and color

多层次的建筑探索A Multi-Layered Architectural Exploration

通过融合音乐、建筑与城市文化，Ring 展示了一个技术导向的项目如何转化为具有社会参与度的空间模型。它不仅是一个音乐工作场所，更重新定义了数字时代下物理空间如何促进人与人的交流。它提出一种新的建筑视角，将艺术创作、专业工作与文化互动融为一体，共同塑造更具连接性的城市体验。

By merging music, architecture, and urban culture, Ring demonstrates how a technical program can evolve into a socially engaged spatial model. More than just a music studio, it redefines how physical spaces foster interaction in a digitally dominant world. It presents a new architectural perspective on collaboration, where artistic production, professional work, and cultural engagement shape a more connected urban experience.

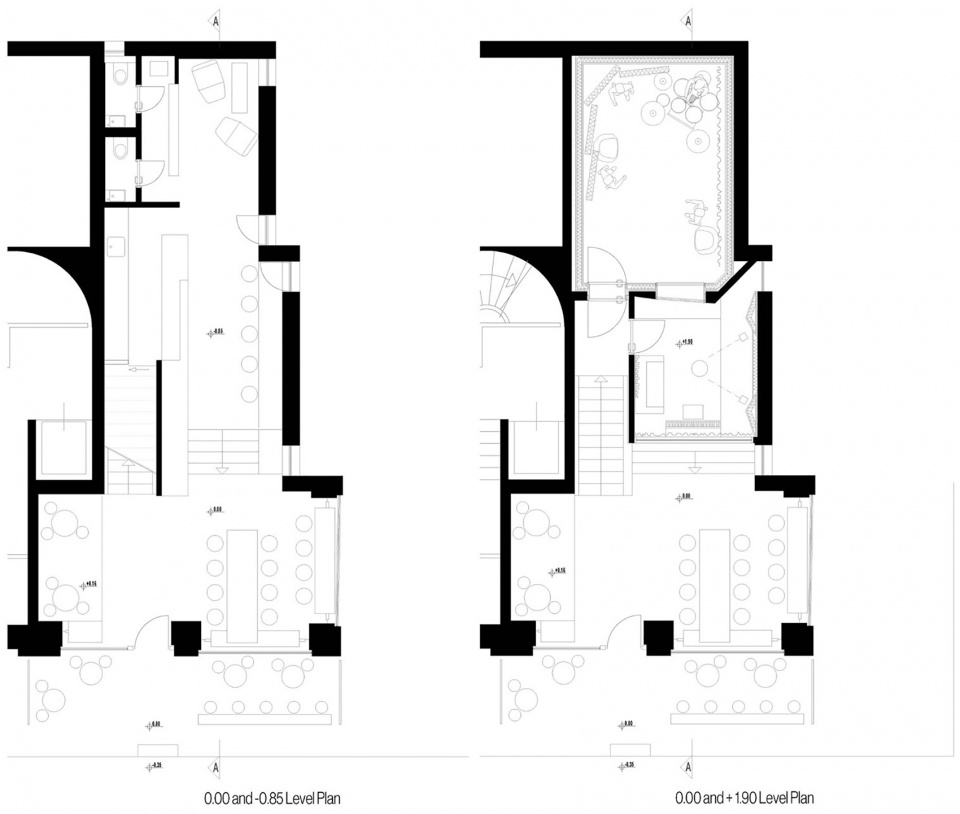

▼平面图，plan
