广州观达路数据中心，广州/建筑
项目位于广州市黄埔区观达路20号，距广深高速萝岗出口约2公里，为公司华南云计算数据中心集群的一期项目。观达路数据中心为4层建筑，总面积约2.4万平方米，规划建设2,764个机柜，于2018年投入运行。
Guangzhou Guanda Data Center, the 1st phase project of South China Cloud Computing Data Center Cluster, is located in No. 20 Guanda Road, Huangpu District, Guanghzou, 2km from Luogang Exit of Guangzhou-Shenzhen Highway. With 4 storeys and 24,000㎡ construction area, Guanda Road Data Center will provide 2,764 cabinets in total, and put into operation in 2018.
主要服务于大型互联网企业、云计算等客户。 项目所在的广州开发区位于广州市东部，地处珠江三角洲腹地，是国家创新城区、国家电子商务示范基地、国家级文化和科技融合示范基地，在云计算领域拥有巨大的发展潜力。驱车50分钟可达中国三大国际机场之一的白云机场，25分钟可达年吞吐能力达6000万吨的黄埔新港，交通便利，配套设施齐全。 项目已通过数据中心基础设施A级（GB50174-2017）认证，通过信息安全管理体系（ISO27001）、信息技术服务管理体系（ISO20000）认证。
It mainly serves large Internet enterprises, cloud computing and other customers. The Guangzhou Development Zone, where the project is located, is located in the east of Guangzhou and in the hinterland of the Pearl River Delta. It is a national innovation city, a national e-commerce demonstration base, and a national cultural and technological integration demonstration base. It has great development potential in the field of cloud computing. It takes 50 minutes by car to reach Baiyun Airport, one of China's three major international airports, and 25 minutes to reach Huangpu new port with an annual handling capacity of 60million tons. The transportation is convenient and the supporting facilities are complete. The project has passed the class a certification of data center infrastructure (gb50174-2017), the certification of information security management system (ISO27001) and information technology service management system (ISO20000).
建设参数
Construction Parameters
地理位置
Location
广东省广州市黄埔区科学城观达路20号
No. 20 Guanda Road, Guangzhou Science City, Huangpu District, Guangzhou, Guangdong

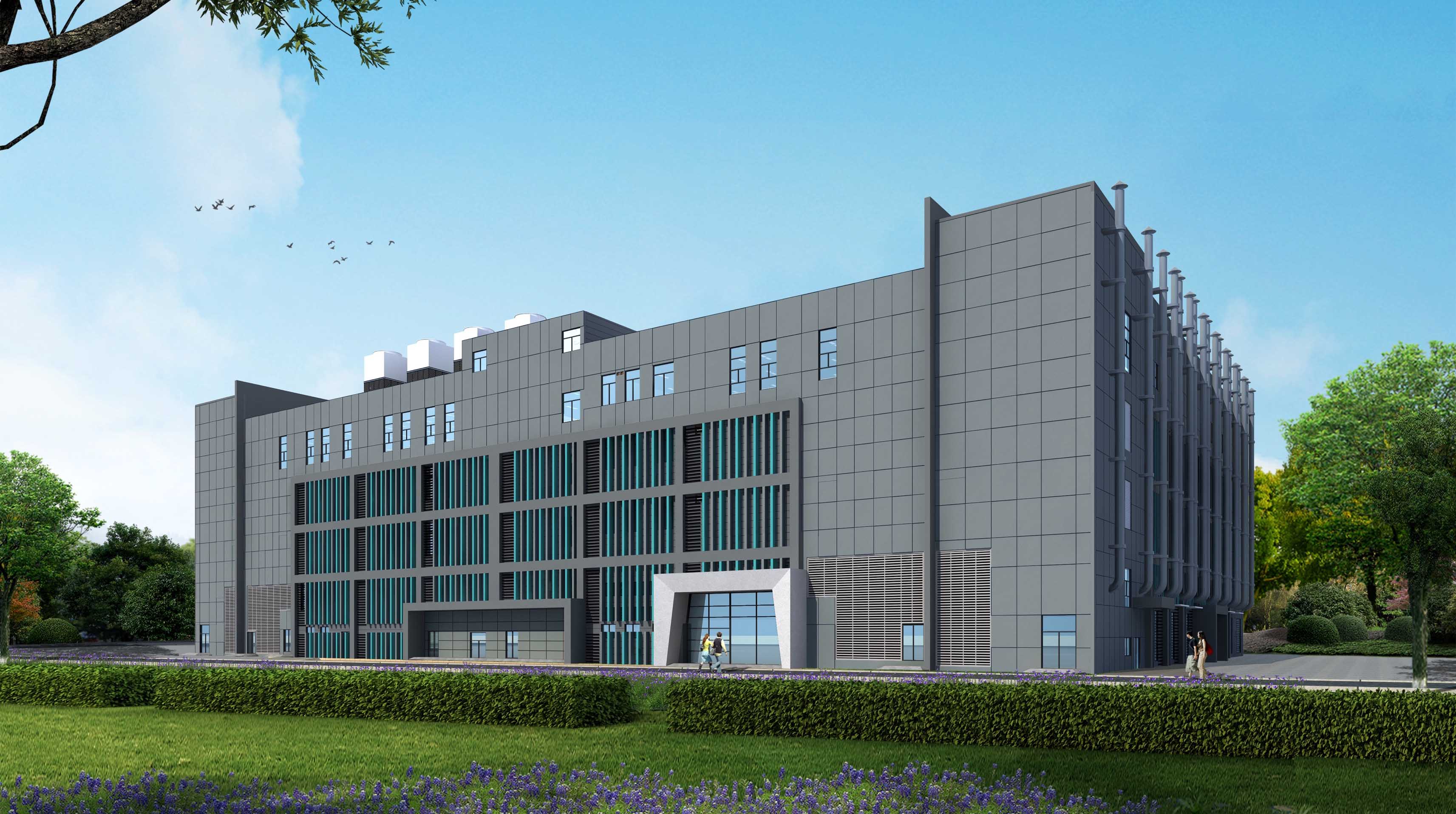

建筑设计
Building
独栋，钢筋混凝土框架结构体系
层高一层6.8m，二、三层3.83m，四层4.82m
地板承重10-15KN/㎡
专用货运电梯及货物卸载区，货梯载重2吨
Detached building, ferroconcrete frame structure
Story heights: 1st floor: 6.8m, 2nd-3rd floor: 3.83m, 4th floor: 4.82m
Loading capacity: 10-15KN/㎡
Freight elevator (2 tons), loading bay

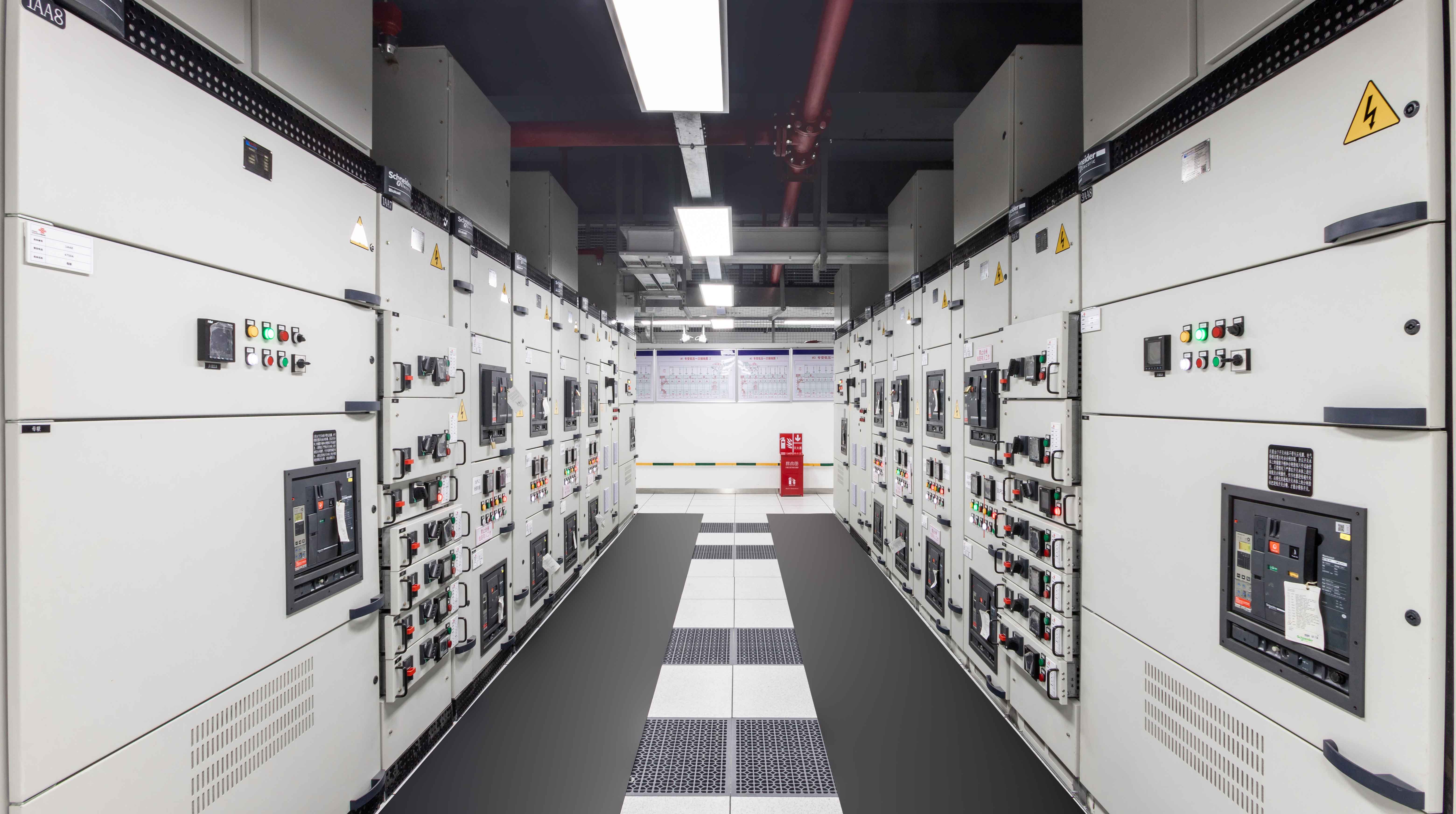

电力系统
Power Supply
双路供电，供电容量37500KVA
UPS系统2N冗余配置，满载后备电力15分钟
柴发采用N+1配置，满载后备供电12小时，与附近供油部门签署协议
单机柜电力13A~20A，局部可按需改造
Dual paths, power supply capability: 37,500KVA
UPS system with 2N redundant configuration; UPS battery backup time at rated load: 15minutes
Diesel generator with N+1 redundant configuration, operating 12 hours without refueling, and have been signed agreement with the suppliers nearby.
Each rack power: 13A~20A; partial rack power could be expanded
制冷系统
Air Conditioning
机房使用精密空调调节室内温度和湿度
空调系统采用UPS电源供电，空调冗余N+1

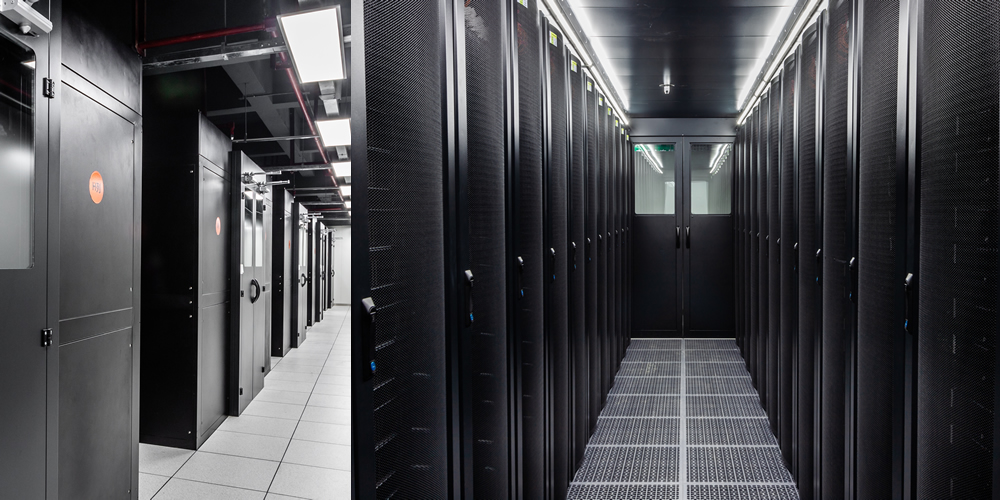

地板下送风，上回风，冷通道封闭（冷热通道严格隔离）

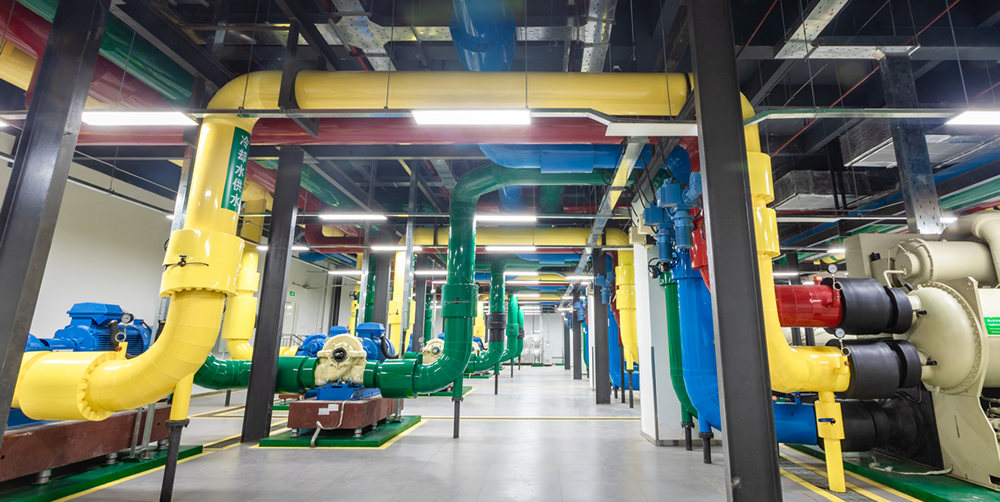

水冷，给水中断的情况下系统24小时的正常运行；蓄冷罐15分钟不间断制冷
Precision air-conditioners control IDC temperature and humidity
N+1 redundant air-conditioning system powered by UPS

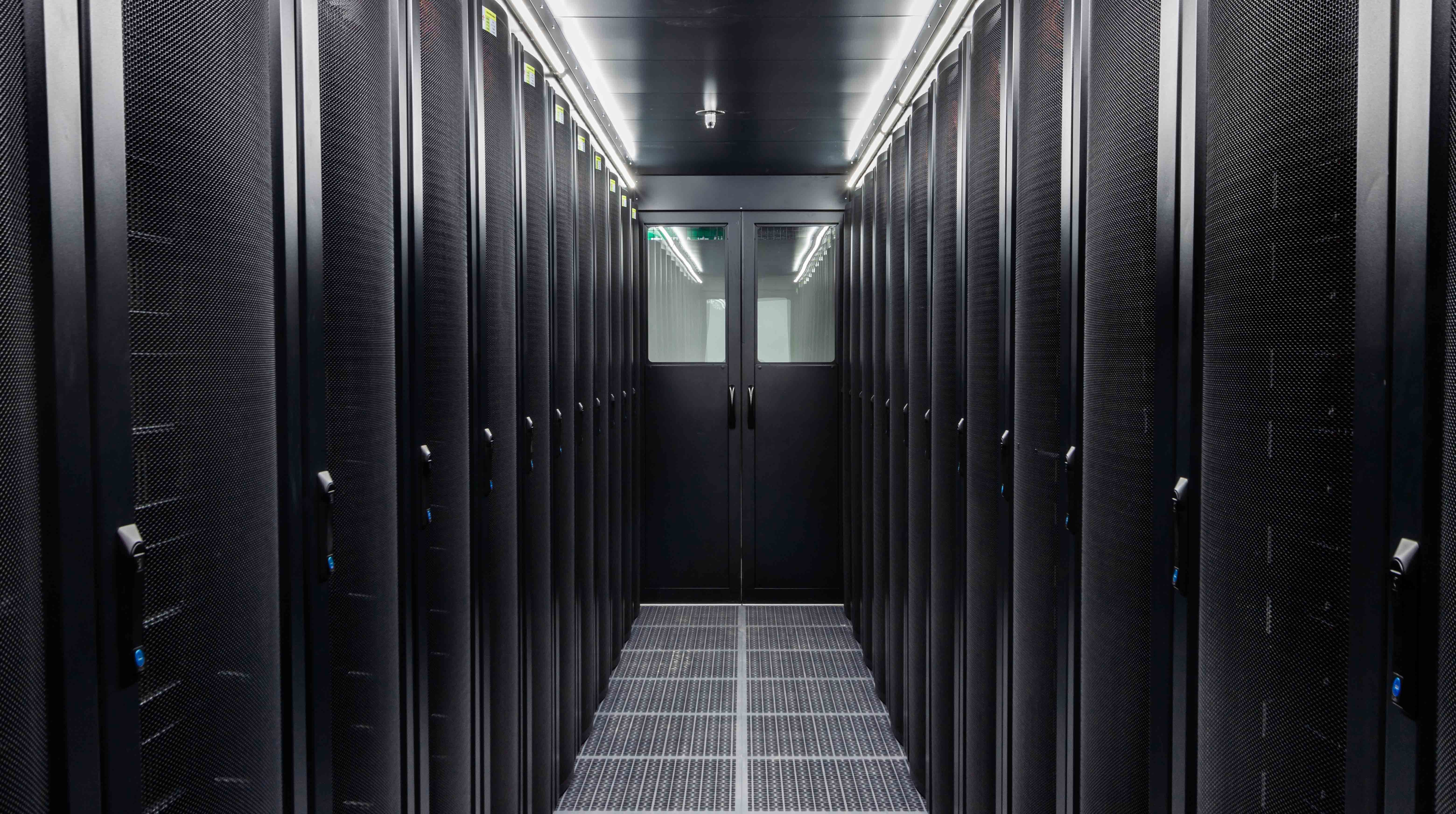

Down-flow air supply, up-flow air return, enclosed cold passages (cold and hot passages are isolated)
Water cooling system operates 24 hours without water supply; cold storage tank provides 15 minutes’ cooling in case chillers
安保系统
Security
可根据用户需求定点增加高清摄像设备
授权门禁系统、红外探测，支持重点区域设施改造
人员权限设置，设备安全管理，多层安全防范与管理
HD cameras could be added as needed on spot
Access control system, infrared detection, renovation for key area infrastructure
Staff permission setting, devices safety management, multi-levels security protection and management
网络环境
Connectivity
按需接入各大运营网络
多线均万兆对接，可随时根据实际需求进行扩容
提供144芯裸纤资源，可支持链路改造
Backbone network link to China Mobile
Tens of gigabit multiline, scalable as needed
144 core bare fiber resource, supporting link renovation
管理服务
Management
7×24小时值守，5 分钟内响应，15分钟内应急处理反馈
拥有完备的应急方案、完善的应急管理流程，切实保障业务连续性
7×24 hours guarding, quick response in 5 minutes, emergency processing and feedback in 15 minutes
Complete emergency solutions and emergency management process to guarantee business continuity
消防系统
Fire-Fighting

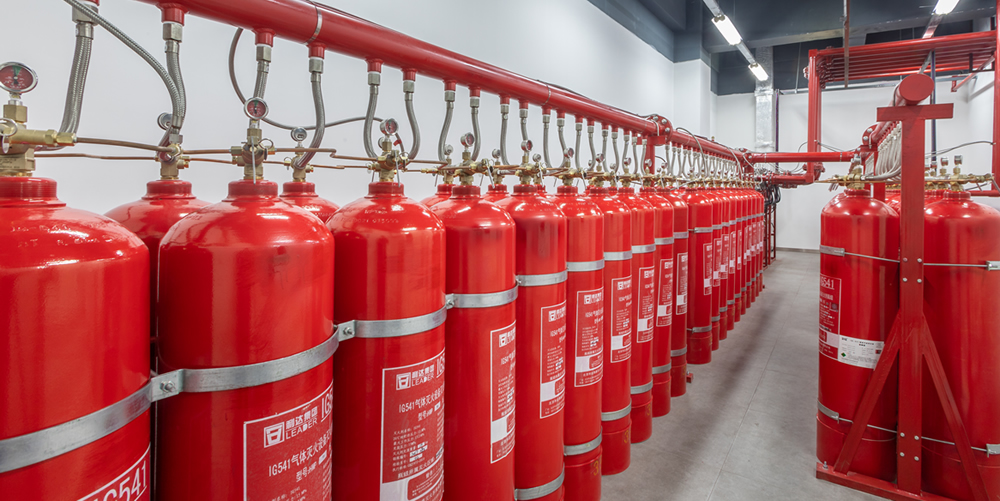

采用IG541自动气体灭火系统
分区相互独立，可以实现分区灭火，此外配备手持式灭火器及空气呼吸器
与空调、新风、门禁、计算机供电和市电等系统联动
IG541 automatic gas fire-fighting system
Independent zone for fire-fighting separately, each zone equipped with handheld extinguisher and air-breather
Linked air-conditioning, air, access control, computer power supply and city power etc. system
