崖门游艇会所，广州/建筑

2023-05-05 15:19:59建筑设计,酒店会所,商业建筑 , 现代风格

项目标签

项目名称

崖门游艇会所

文章分类

建筑设计-酒店会所

项目地址

广州新会区

设计公司

北京殊舍建筑科技有限公司

简介：本项目位于广州新会区崖门镇海边一个狭长地块，地块长64米，宽19米，两面临海，一边紧贴工业用地，只有西面有一条马路通往基地内，地块狭长用地紧张。

Introduction: This project is located near the sea in Yamen Town, Xinhui District, Guangzhou. The site is 64 meters long and 19 meters wide, which is faced to the sea in two directions and closed to an industrial estate. There is only one way leading people to the site from the west. Therefore, the land in the site is narrow and tension.

平面——在狭长且只有一面具有设置交通出入口的条件下，我们合理布局建筑平面形状，改变出入口位置，不但让交通流线缩短一半，且形成了地面广场和室内两个小庭院的意想不到的空间。

Plan—On the circumstance that there is only one entrance to the site, the plan is arranged logically and the entrance is moved to the middle, which results in not only is half of the circulation minimized, but also unexpected spaces are formed—public square and two interior courtyards.

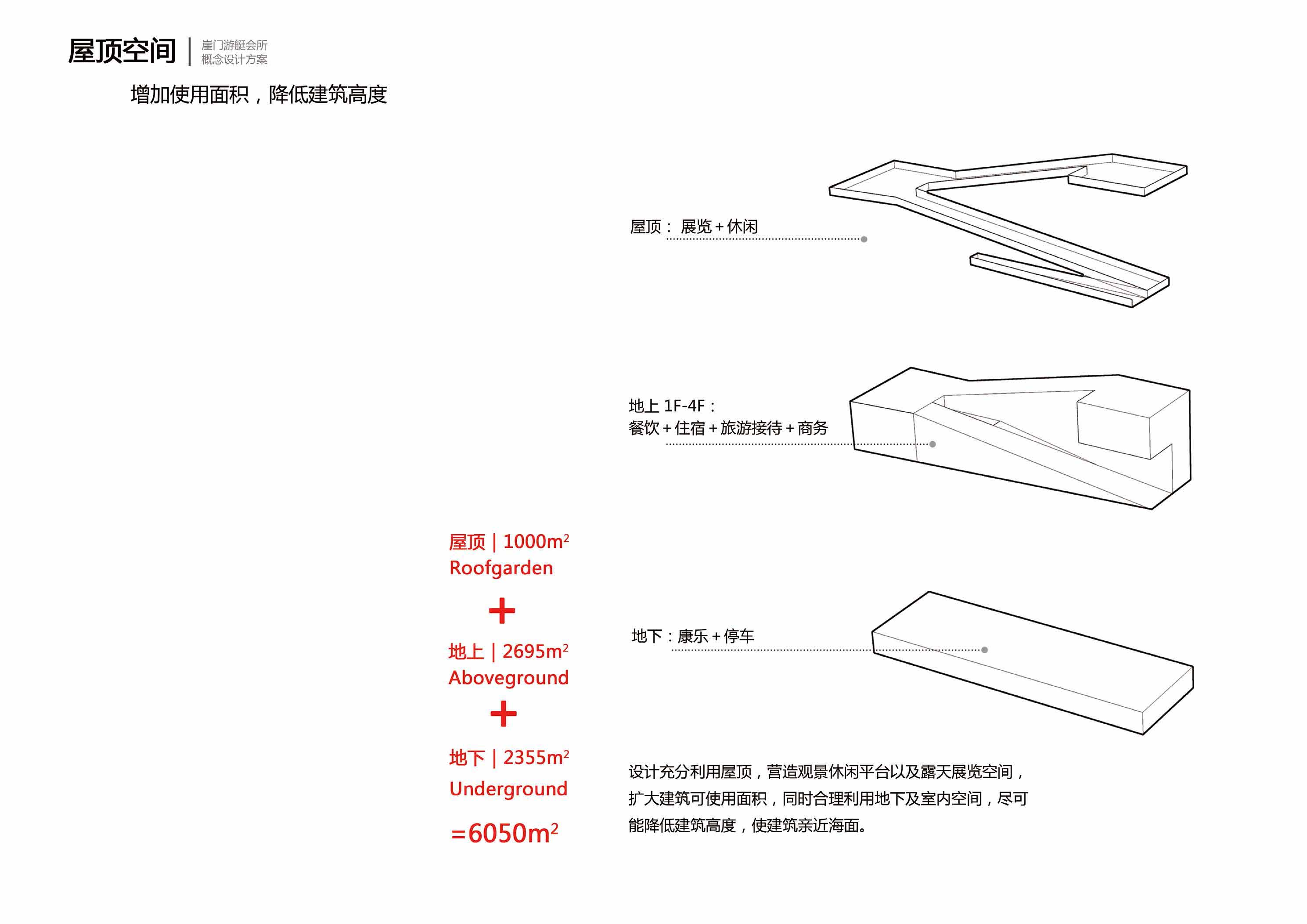

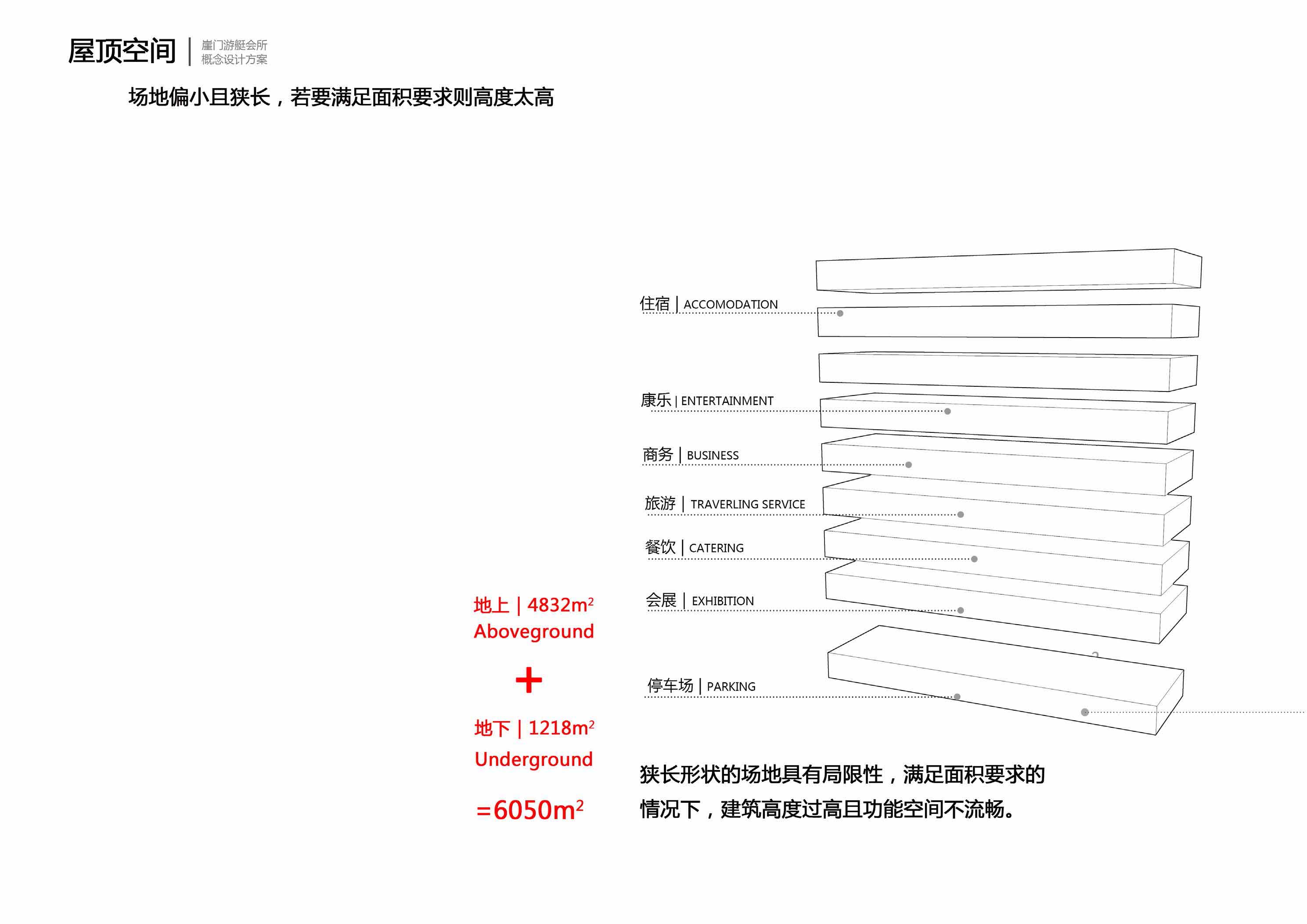

空间——要在这么紧张的地块内解决娱乐、休闲、会议、住宿、餐饮、展览等多个功能，建筑密度和建筑高度非常高（做到8层），形态与海边休闲会所性质不太符合。所以我们把建筑的屋顶也纳入了我们建筑功能空间组成部分，可以从地面或者建筑内部达到屋顶空间，满足休闲和展览的功能。

Space—To solve the problem of accumulating multiple functions in such a narrow site like entertainment, relaxation, meeting, accommodation, catering, exhibition et al, the building needs high density and height (8 stories in total), which is not appropriate for a yacht club. Therefore, we take advantage of roof and let people reach the roof from the ground or internal space, which satisfy the relaxation and exhibition functions.

意境——我们完成一次建筑与大海的对话，在这个建筑内部或者屋顶，我们会近距离、且毫无外界干扰的聆听大海的呼吸。一个人、一片天、一面海 ……

Artistic conception—In or out the building, we can communicate with the sea and listen to the sound of sea closely and without any disturbance. One person, one piece of sky and one piece of sea….

一、场地布局 | Site layout

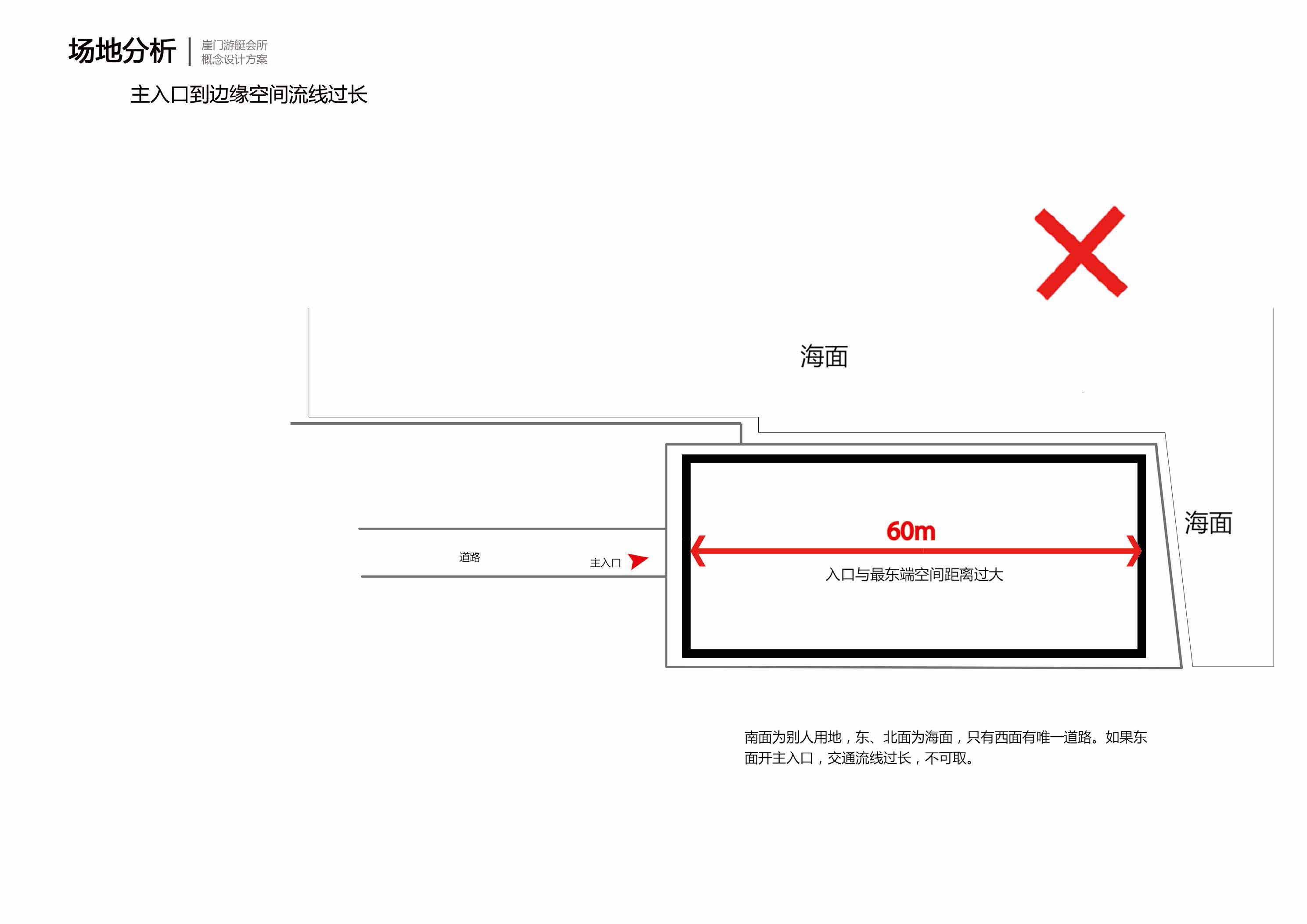

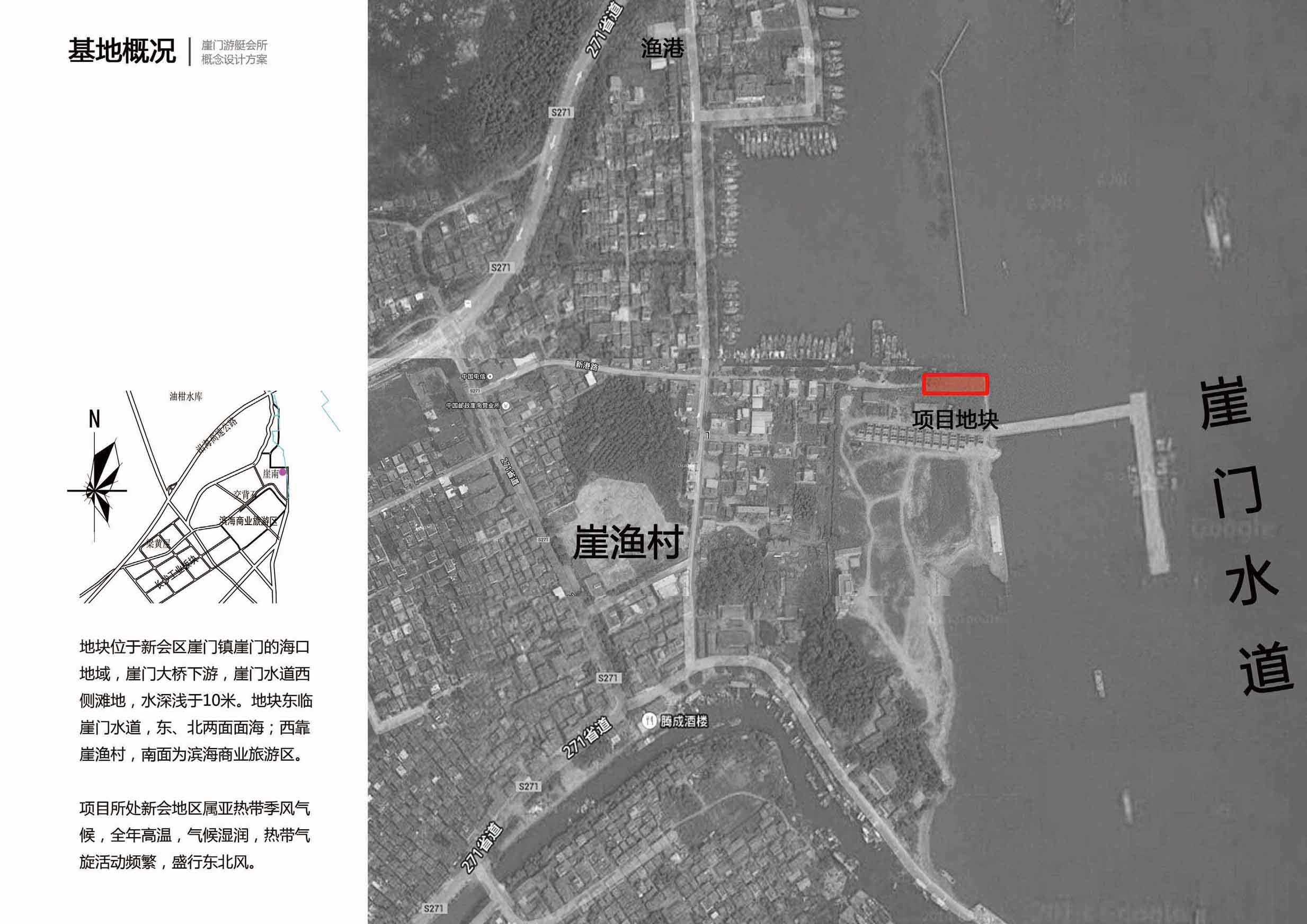

1. 基地位于海边的一个狭长地块，地块长64米，宽19米，两面临海，一边紧贴工业用地，只有西面有一条马路通往基地内，地块狭长且用地紧张。（如何处理好场地、广场、景观、流线及主次入口等要求？）

2.要求的建筑功能面积超过6000㎡，对于总用地面积只有1200㎡的基地确实有些紧张。（如何处理面积紧张的问题并能形成为水景的渗透？）

3.基地两面的水体景观紧贴场地，为绝佳风景界面。（如何去呼应景观界面？）

1. The base is located on a narrow plot of land by the sea, 64 meters long and 19 meters wide, with two sides facing the sea and one side adjacent to industrial land. There is only one road to the west that leads to the base, and the plot is narrow and land is tight. How to handle the requirements of venue, square, landscape, streamline, and primary and secondary entrances

2. The required building functional area exceeds 6000 square meters, which is indeed a bit tight for a base with a total land area of only 1200 square meters. How to deal with the problem of tight area and form the infiltration of water features

3. The water landscape on both sides of the base is closely attached to the site, providing an excellent scenic interface. How to echo the landscape interface

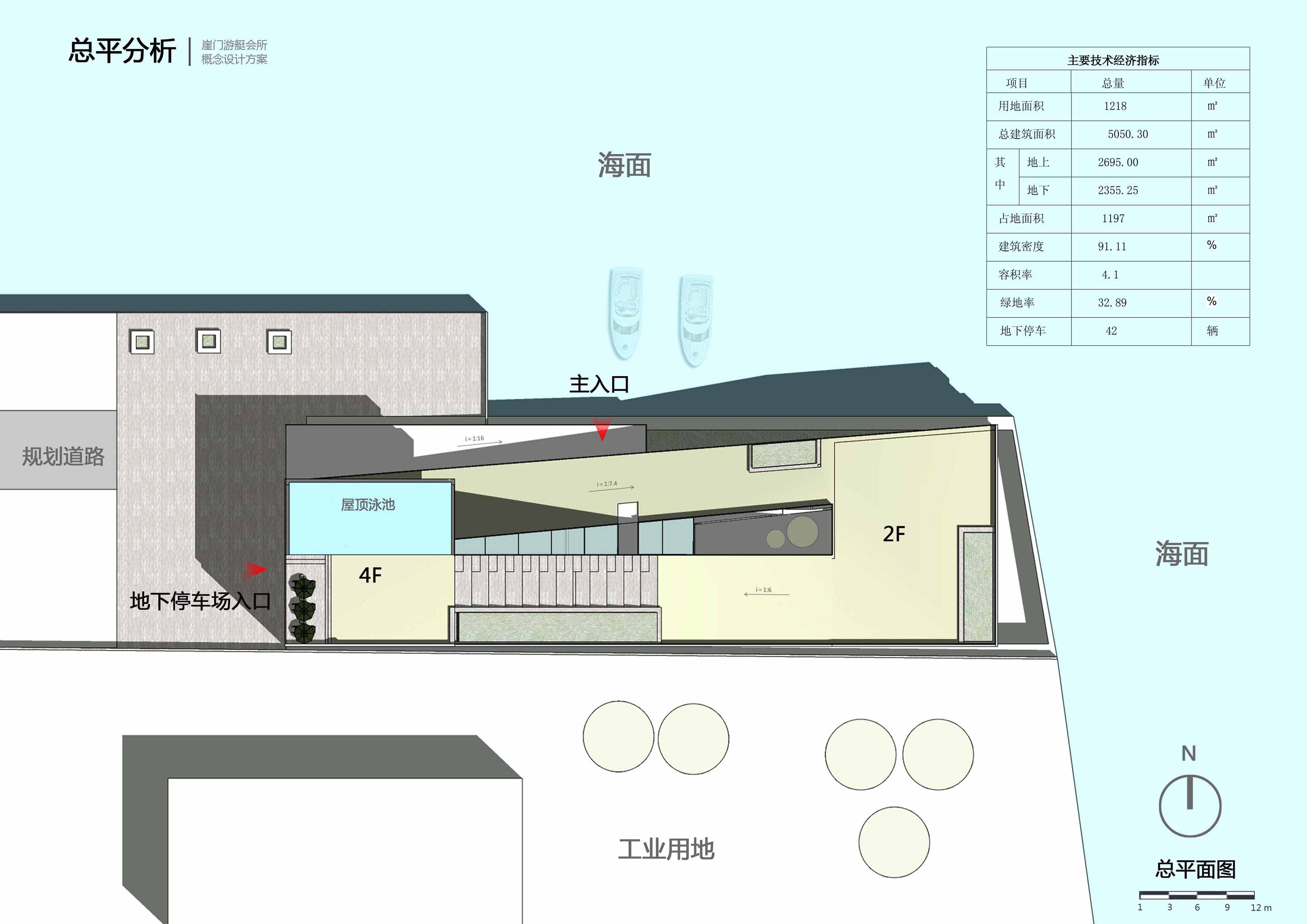

▼总平面图，General layout plan

二、应对策略 | Coping strategies

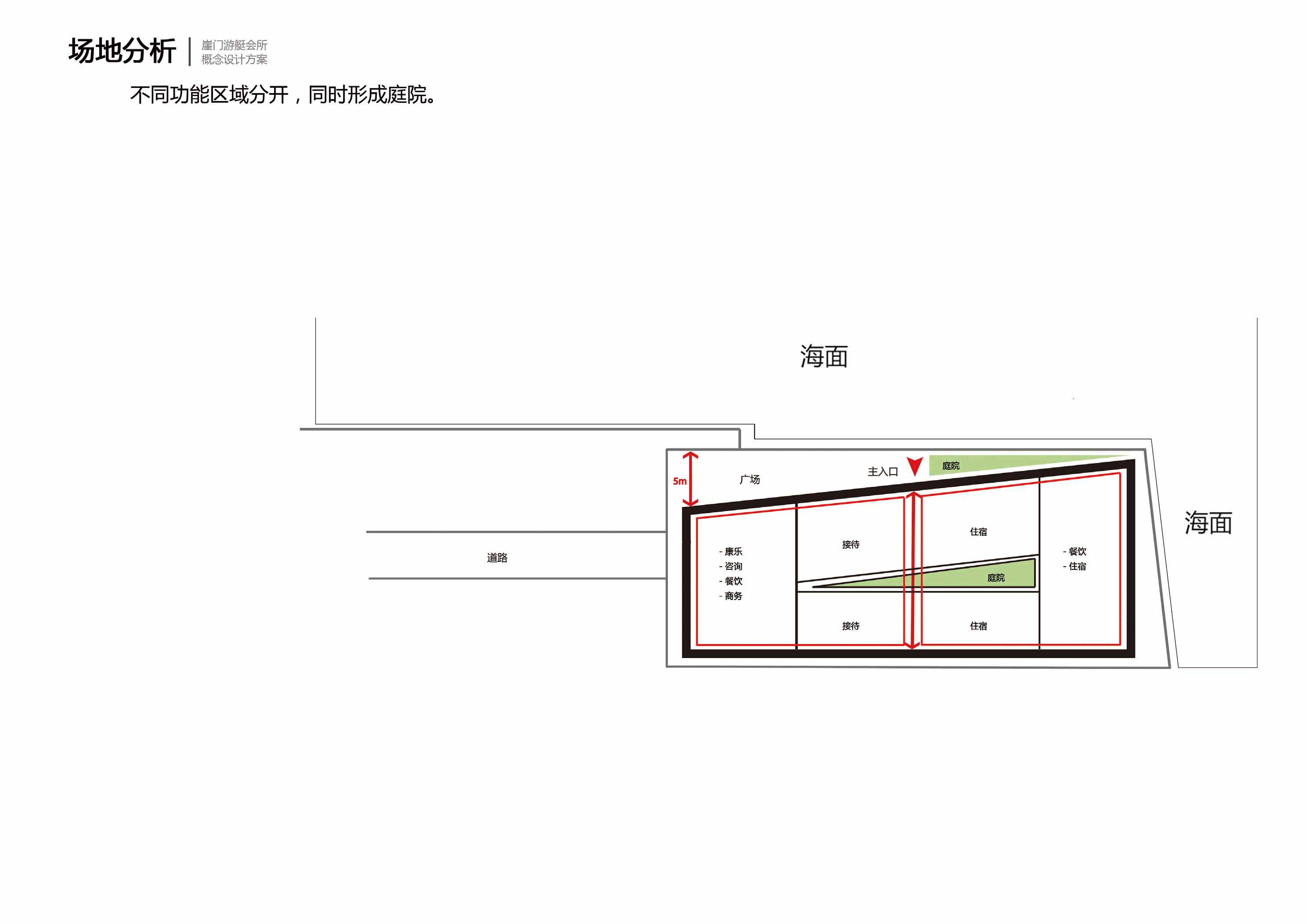

1.应对紧张用地策略

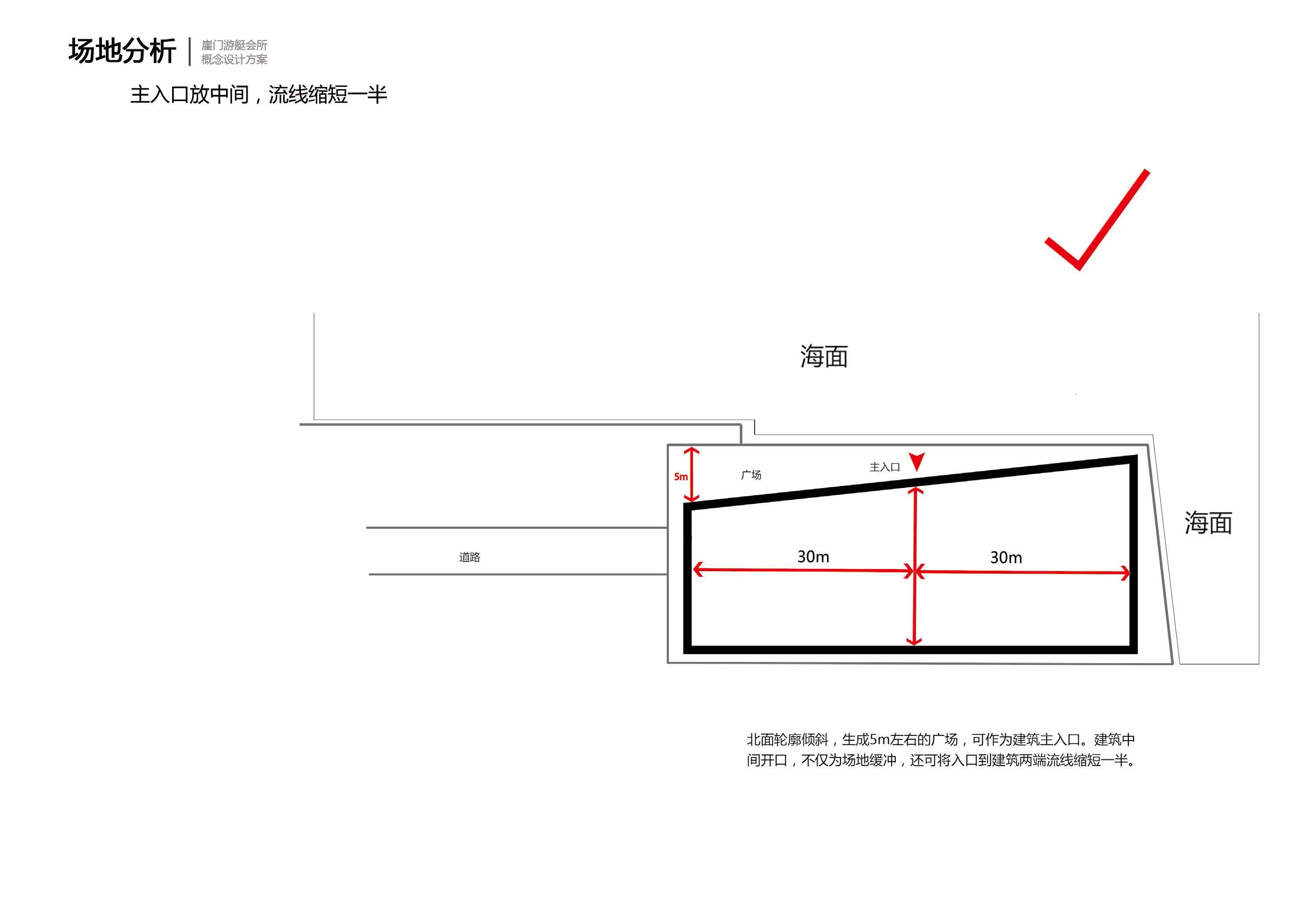

a. 建筑师将建筑北侧（较长临海一面）轮廓线向西南方向倾斜，生成5m左右的小广场作为基地主要出入口（斜向切割，巧妙营造入口广场和入口庭院，自然引导到主入口）

b. 在建筑北侧中部开设通往首层的主入口。(不仅为场地做缓冲，还将首层主入口到建筑东西两侧的流线缩短一半)

c. 始于基地出入口做了坡道式覆土上人屋面，垂直方向空间架空处理。（缓解了基地被建筑占用之后的紧张局面，同时上空形体架空轻盈，化解紧张氛围）

1. Strategies for dealing with tense land use

a. The architect tilts the contour line of the north side of the building (the longer seaward side) towards the southwest, creating a small square of about 5m as the main entrance and exit of the base (oblique cutting, cleverly creating the entrance square and courtyard, naturally guiding to the main entrance)

b. Set up a main entrance to the first floor in the middle of the north side of the building. (Not only does it provide a buffer for the site, but it also shortens the streamline from the main entrance on the first floor to the east and west sides of the building by half)

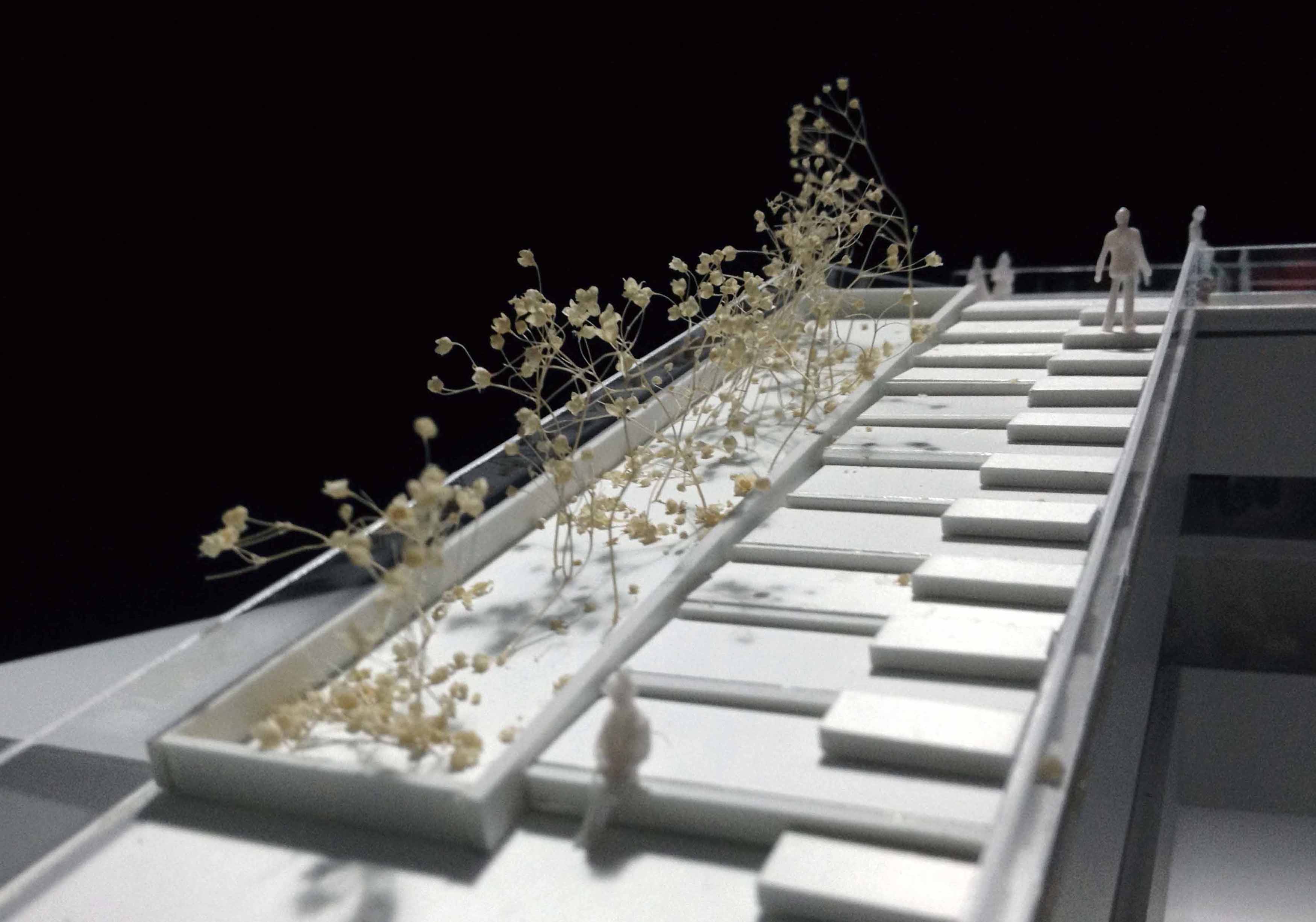

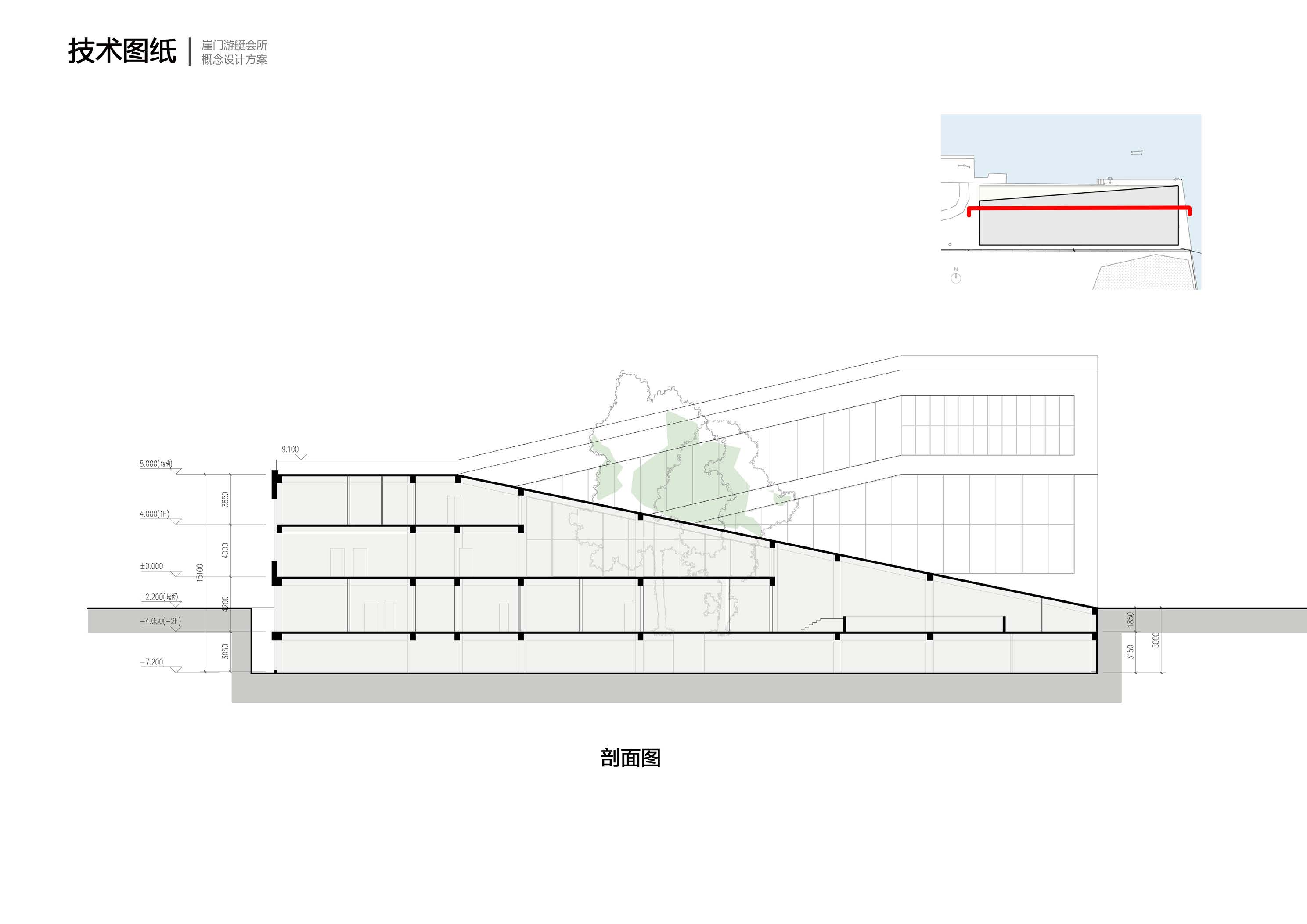

c. Starting from the entrance and exit of the base, a sloping soil covered pedestrian roof was constructed, and the vertical space was elevated. (Alleviated the tense situation after the base was occupied by buildings, and at the same time, the aerial form was elevated and lightweight, resolving the tense atmosphere)

2.应对功能要求策略

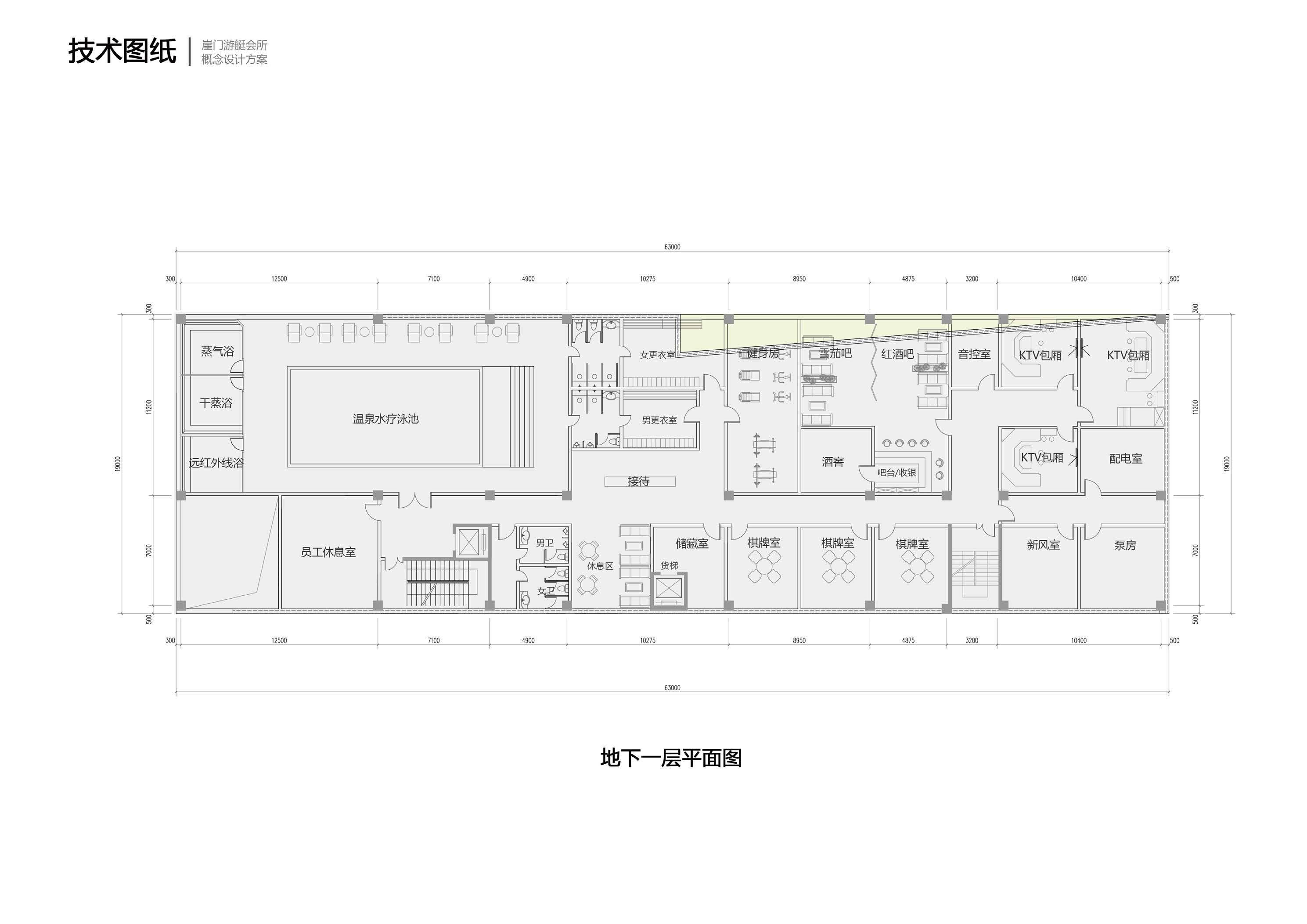

a. 为了压缩建筑尺度感和满足功能要求。将建筑部分的内部功能置于地下。

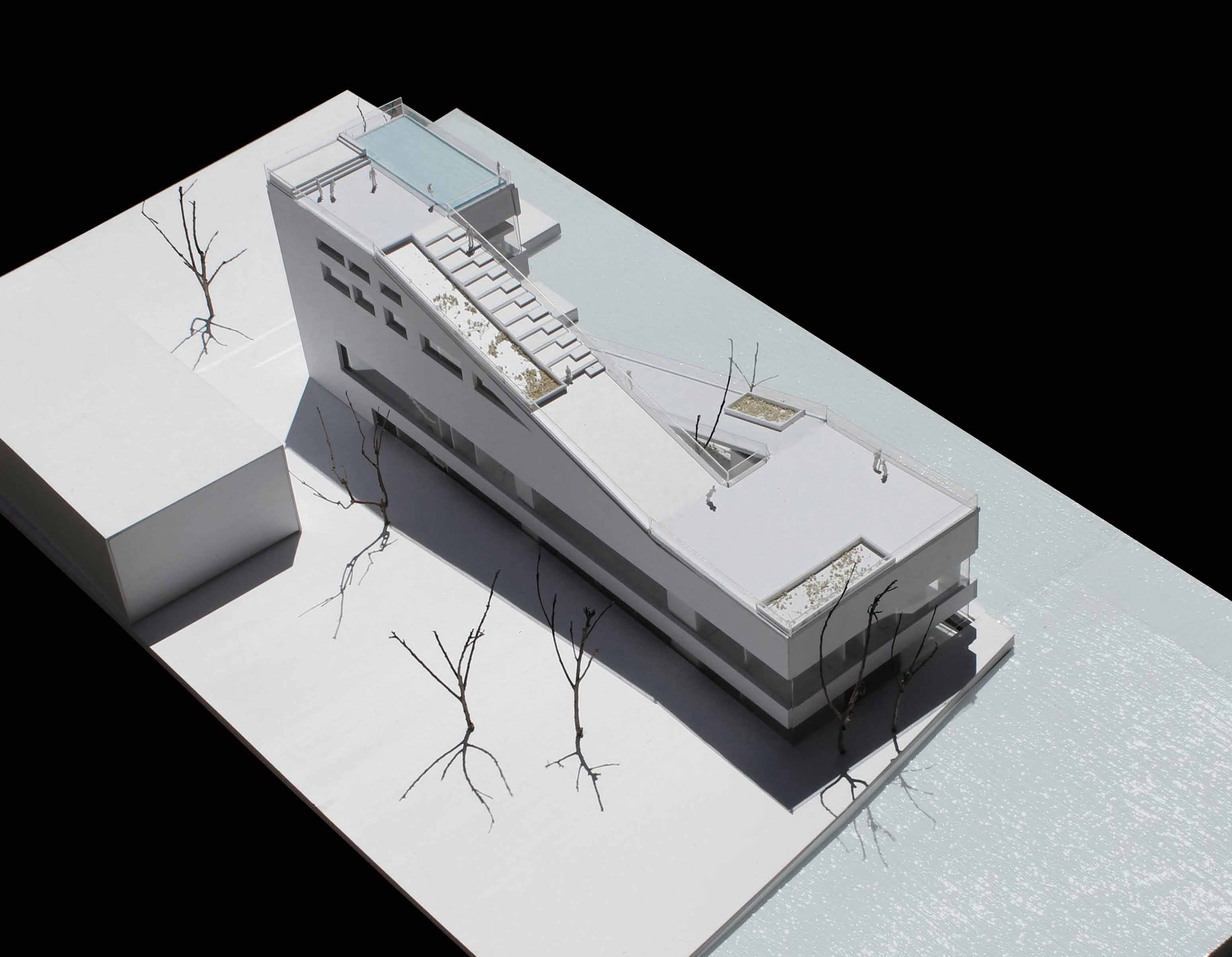

b. 将建筑形体处理为与基地融合性很好的坡道覆土式，赋予覆土屋面一定的功能。

2. Strategies for responding to functional requirements

a. In order to compress the sense of architectural scale and meet functional requirements. Place the internal functions of the building underground.

b. Treat the building form as a slope covered soil type that integrates well with the base, endowing the covered soil roof with certain functions.

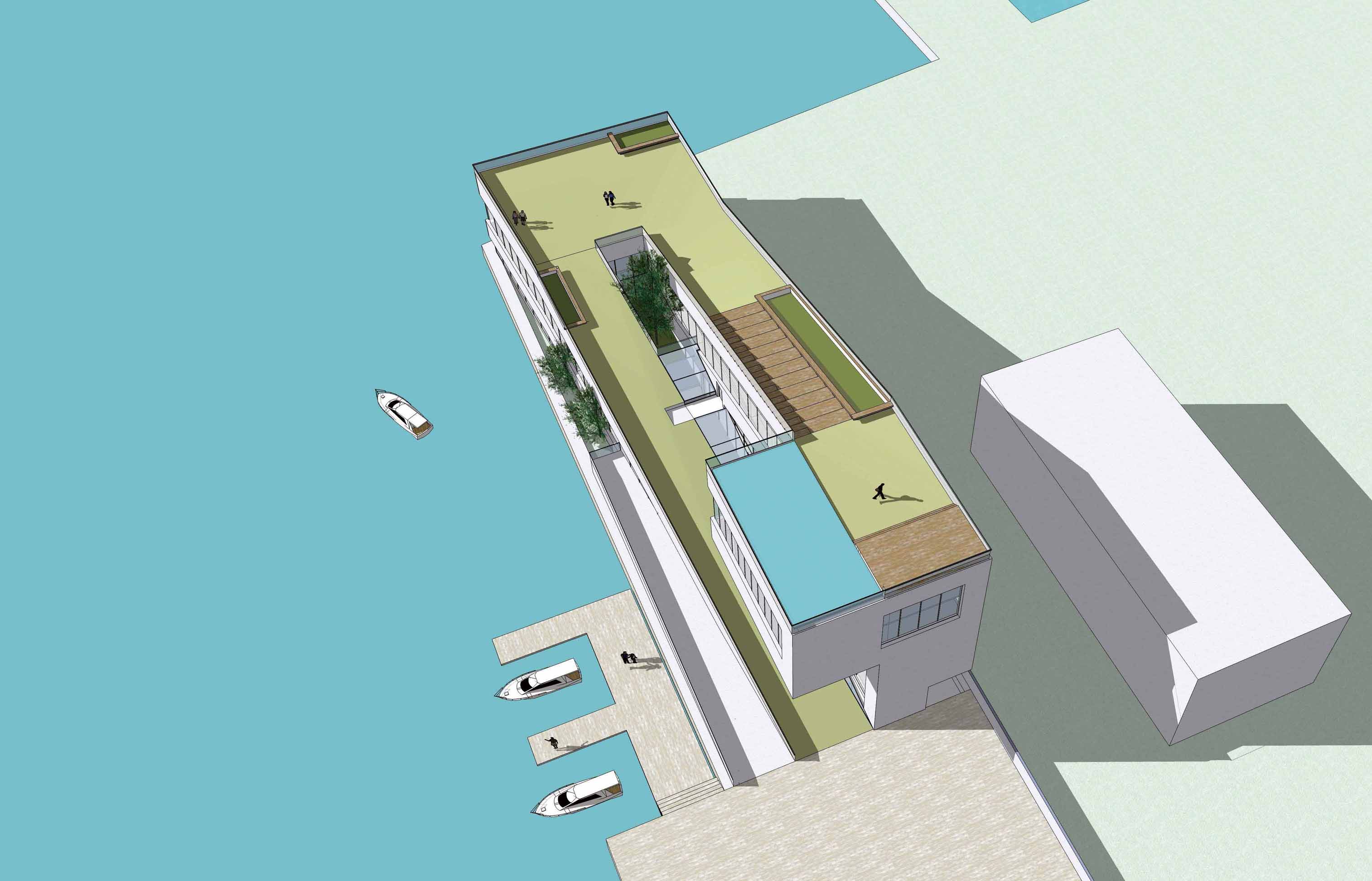

3.应对景观视线策略

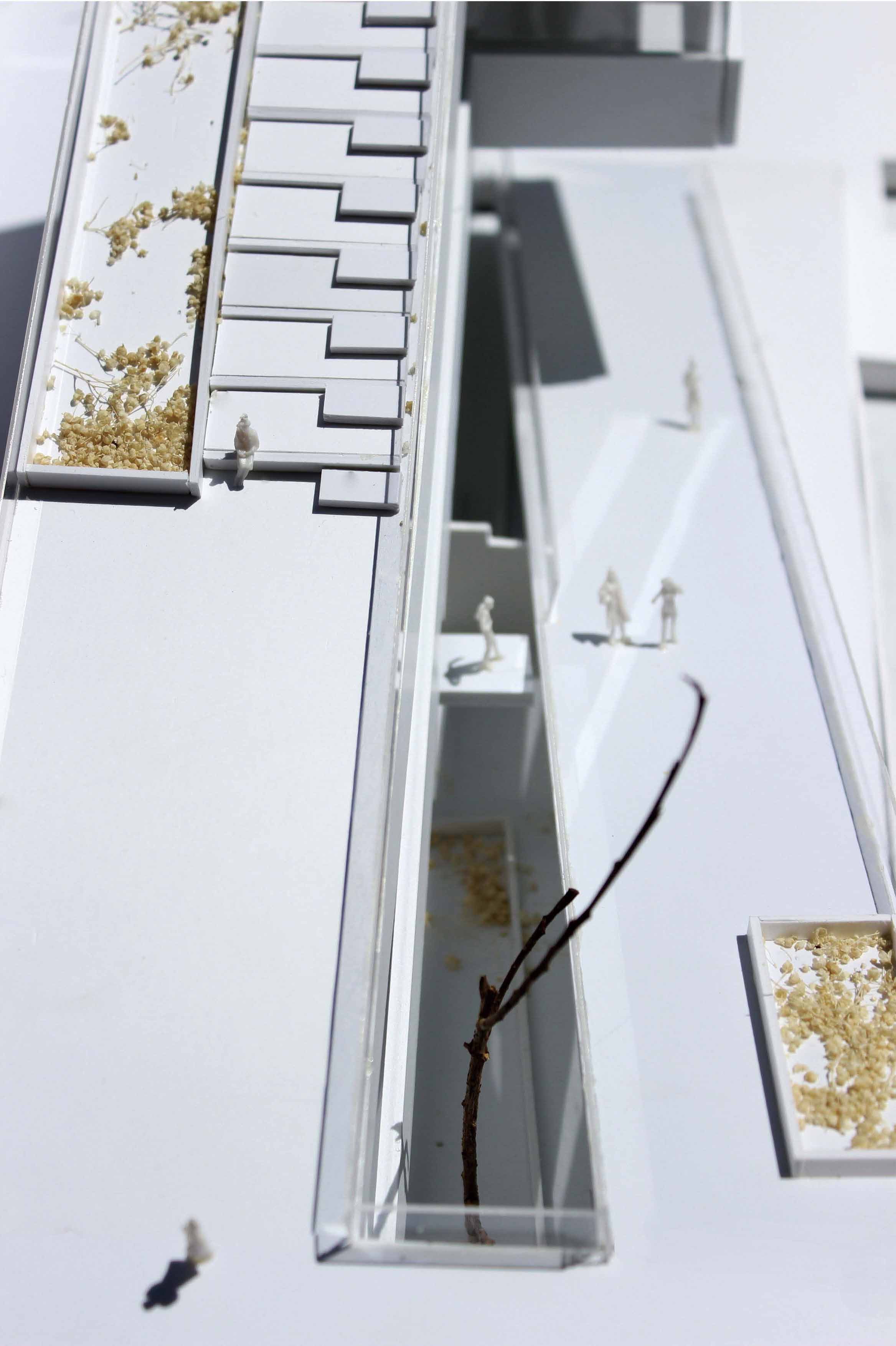

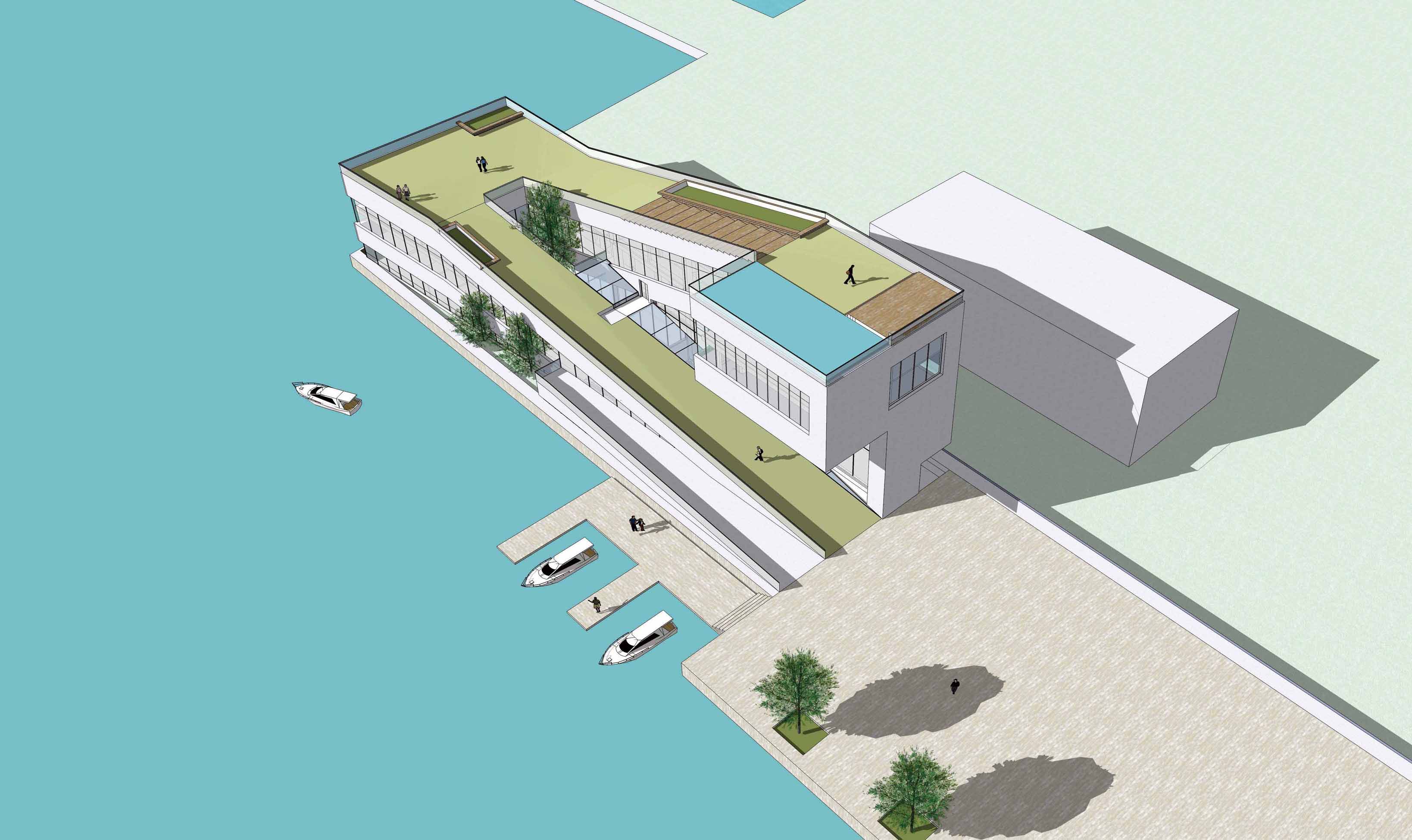

a. 路径始于入口小广场以及坡道式覆土上人屋面，结合两个节点观景平台空间。（路径：以线带点的迎合景观策略）；

b. 建筑体块面向海景的跌落式处理方式和大片玻璃窗；（立面：大面积虚空间，增加景观的通透性和渗透性。如果加入部分精致的灰空间则更完美。）

3. Strategies for responding to landscape vision

a. The path starts from the entrance square and the sloping earth covered pedestrian roof, combined with two node observation platform spaces. (Path: catering to the landscape strategy with lines and points);

b. The drop style treatment of building blocks facing the sea view and large glass windows; (Facade: Large virtual space, increasing the permeability and permeability of the landscape. Adding some exquisite gray spaces would be more perfect.)
