De Hartenrust住宅楼，鹿特丹 / van Bergen Kolpa Architects

2026-03-13 16:35:12建筑设计住宅办公建筑现代风格

项目标签

项目名称

项目地址

De Hartenrust是位于鹿特丹罗特河弯曲处的一栋新建社会住宅楼。建筑由塔楼公寓、联排别墅以及街角住宅组成，共同形成一座多功能雕塑，标志着人口稠密的Oude Noorden社区与绿色宜居的河岸之间的联系。该建筑包含36套可负担社会住宅，包括家庭住宅和公寓。尽管面积紧凑，每套公寓都拥有宽敞空间、遮蔽的露台以及可俯瞰城市的法式阳台，同时共享屋顶花园。独栋家庭住宅的前门面向街道，并配有屋顶露台。坚固的雕塑式建筑通过温暖而丰富的材料得以柔化。立面采用坚固砖砌结构，配以竖向排列的浅色窗户节奏和绿色釉面砖基座，与周边19世纪建筑风格相呼应。De Hartenrust通过建设被动式、良好隔热、面向未来的住宅，并配备自然通风与绿色蓄水屋顶，为健康宜居的城市作出贡献。

De Hartenrust is a new social housing building on the bend of the River Rotte in Rotterdam. The building consists of tower apartments, townhouses and corner houses. Together they form a versatile sculpture that marks the connection between the densely populated Oude Noorden neighbourhood and the green, liveable riverbanks. The building contains 36 affordable social housing units, including family homes and apartments. Despite their compact size, all apartments are spacious with sheltered loggias and wide French balconies overlooking the city, while sharing a communal roof garden. The single-family homes have front doors facing the street and roof terraces. The sturdy, sculptural building is softened by warm and rich materials. The façades are made of robust brickwork with an alternating rhythm of vertical, light-coloured windows and a green glazed brick plinth that matches the surrounding 19th-century neighbourhood. De Hartenrust contributes to a healthy and liveable city by building passive, well-insulated, and future-proof homes with natural ventilation and green, water retention roofs.

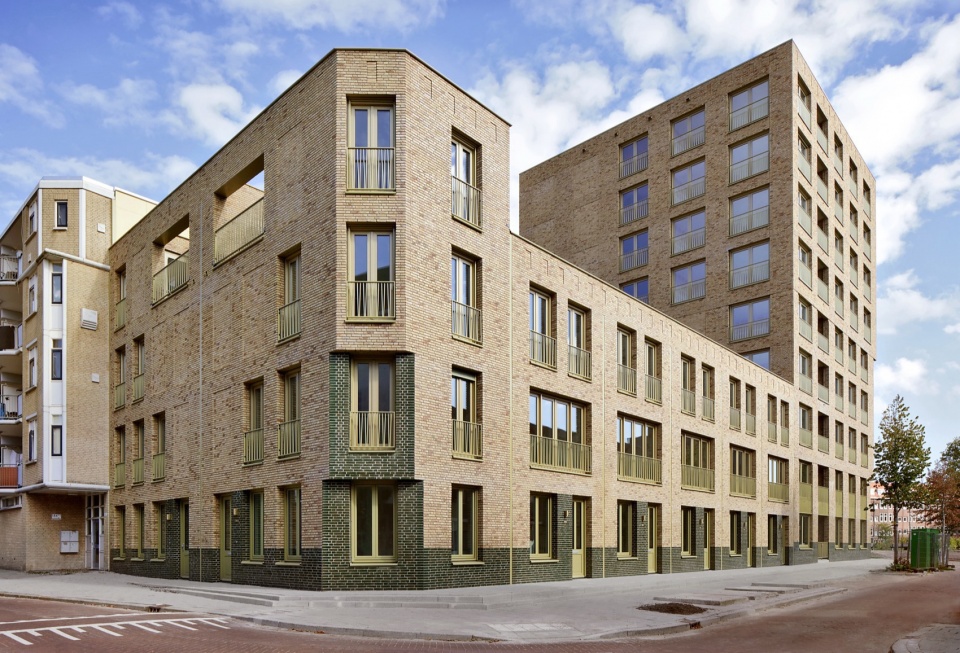

▼建筑概览，Overall view

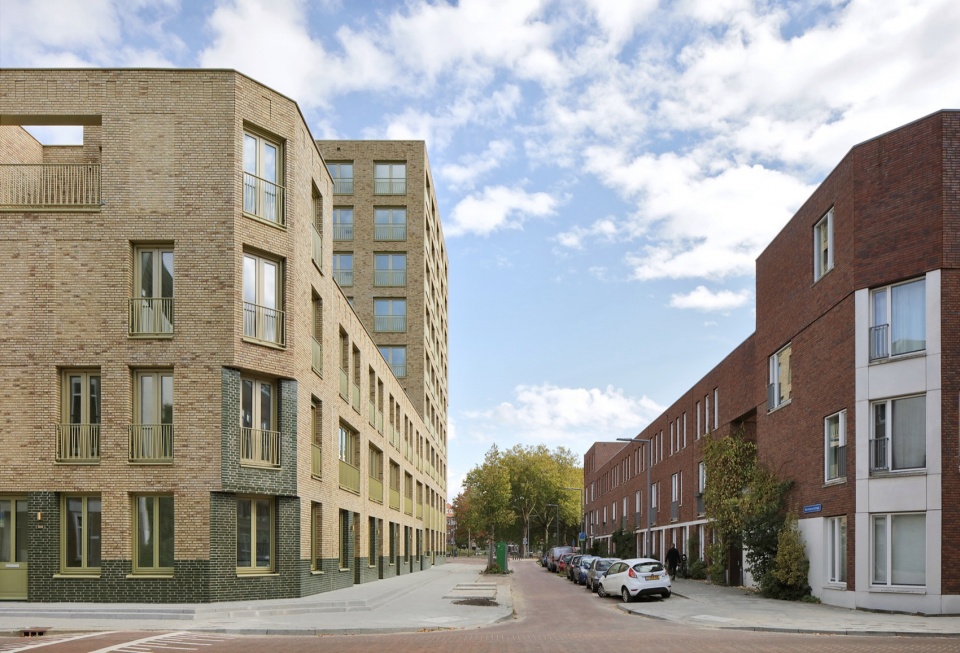

▼街景，street views

多功能雕塑Versatile sculpture

De Hartenrust延续了罗特河桥附近高层建筑的城市序列。建筑由三部分组成，其独特的街角造型形成了街道、社区和城市尺度的多功能雕塑。九层塔楼成为罗特河的地标。基座、中段和顶端的阶梯式悬挑与河流弯曲处巧妙呼应。四层街角住宅通过经典的阶梯倒角标示街道交叉点。塔楼与街角住宅之间的三层联排别墅突出各个住宅单元的独立性。

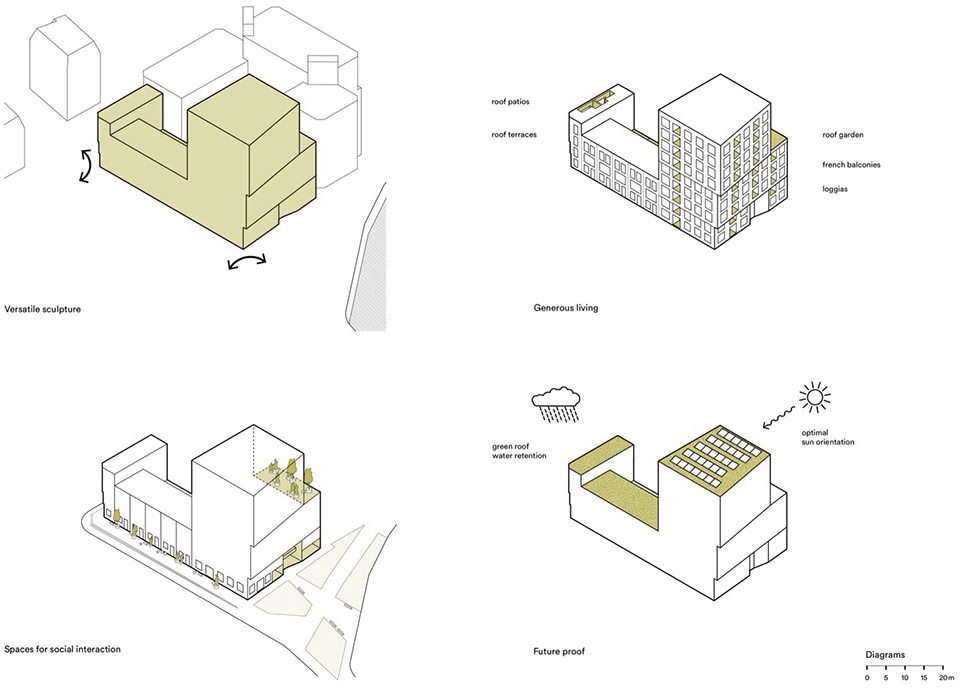

▼分析图，analysis diagram

De Hartenrust continues the urban sequence of taller buildings near the bridges over the Rotte. The building consists of three sections and, with its distinctive corners, forms a versatile sculpture on the scale of the street, the neighbourhood, and the city. The nine-storey tower serves as a landmark on the Rotte. The stepped cantilever of the plinth, middle and top interacts subtly and elegantly with the bend in the river. The four-storey corner houses mark the intersection of the streets with a classic stepped chamfer. Between the tower and corner houses, three-storey townhouses on the street accentuate the individual homes.

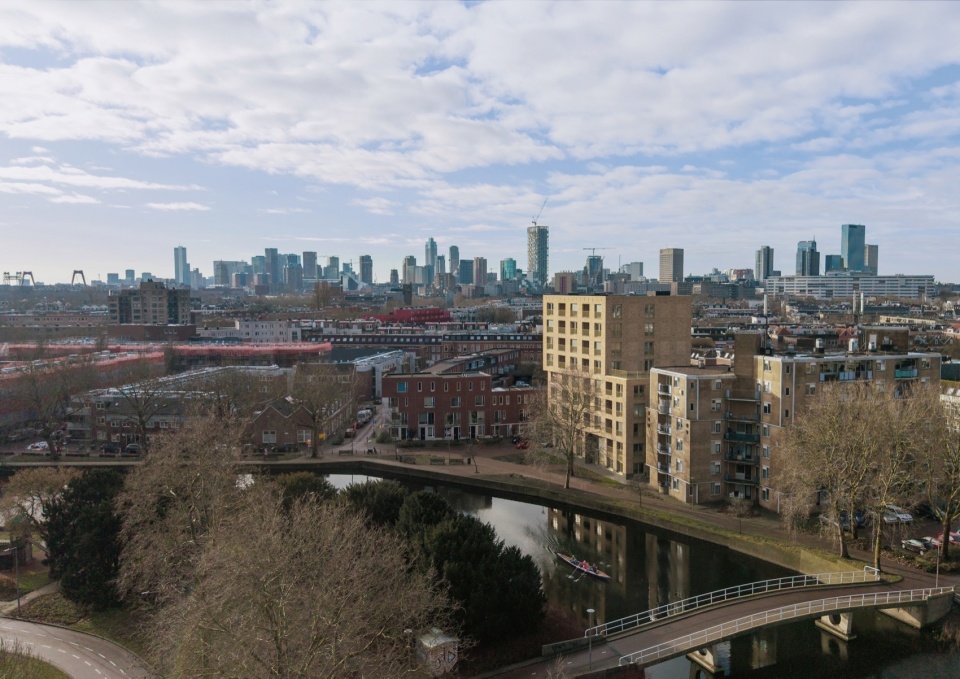

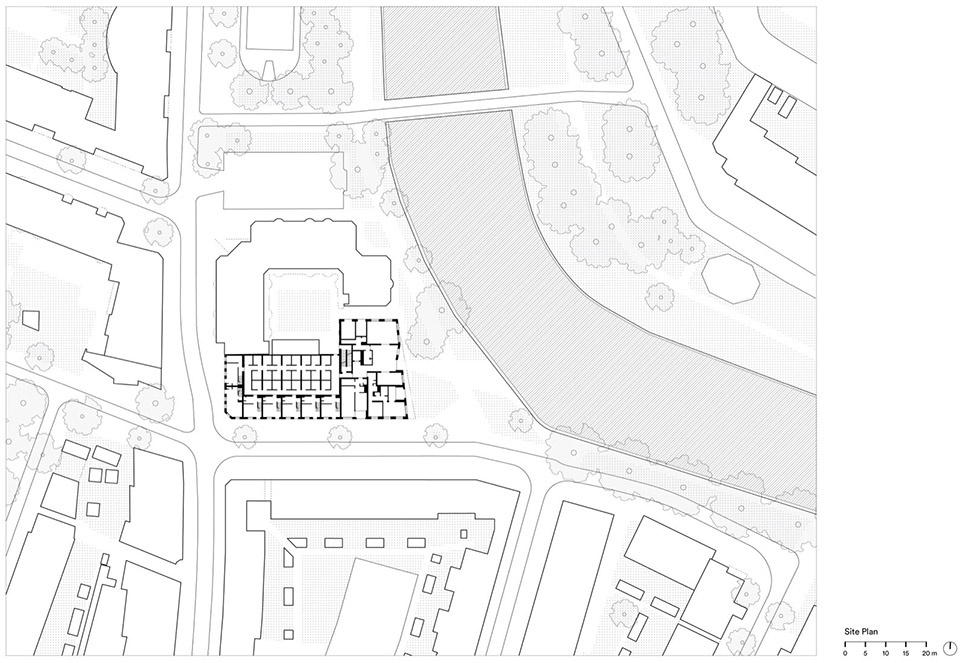

▼城市环境鸟瞰，aerial view of the site

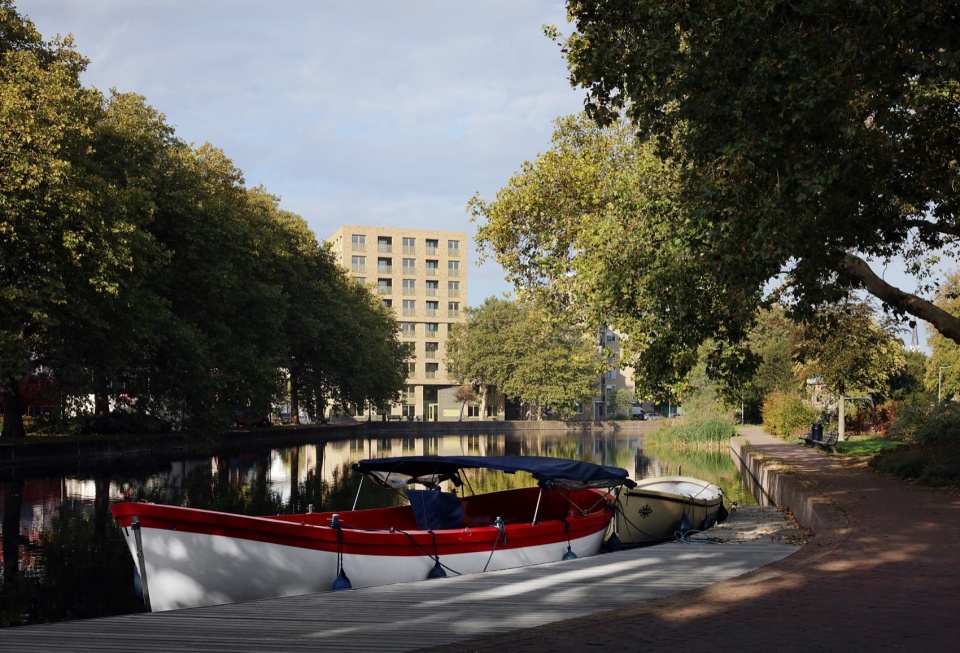

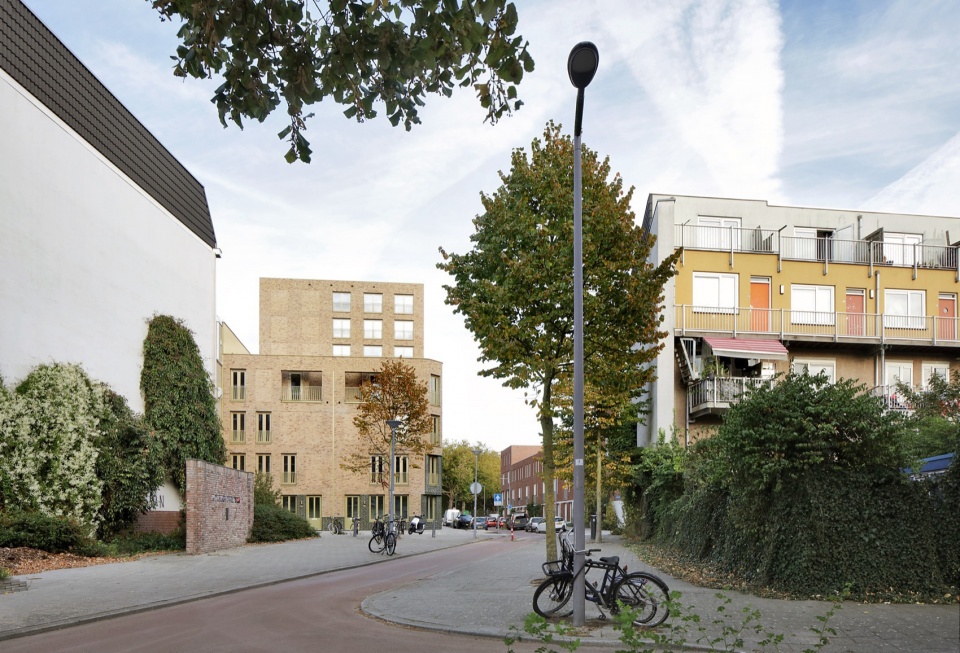

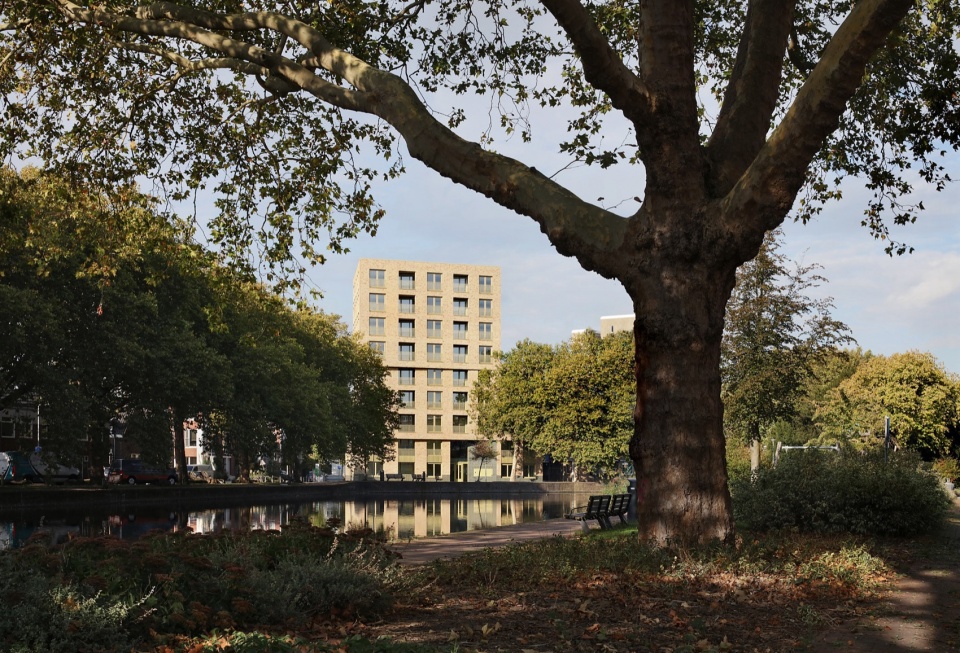

▼由周边环境看住宅楼，viewing the residential building from surrounding environment

▼街景，street view

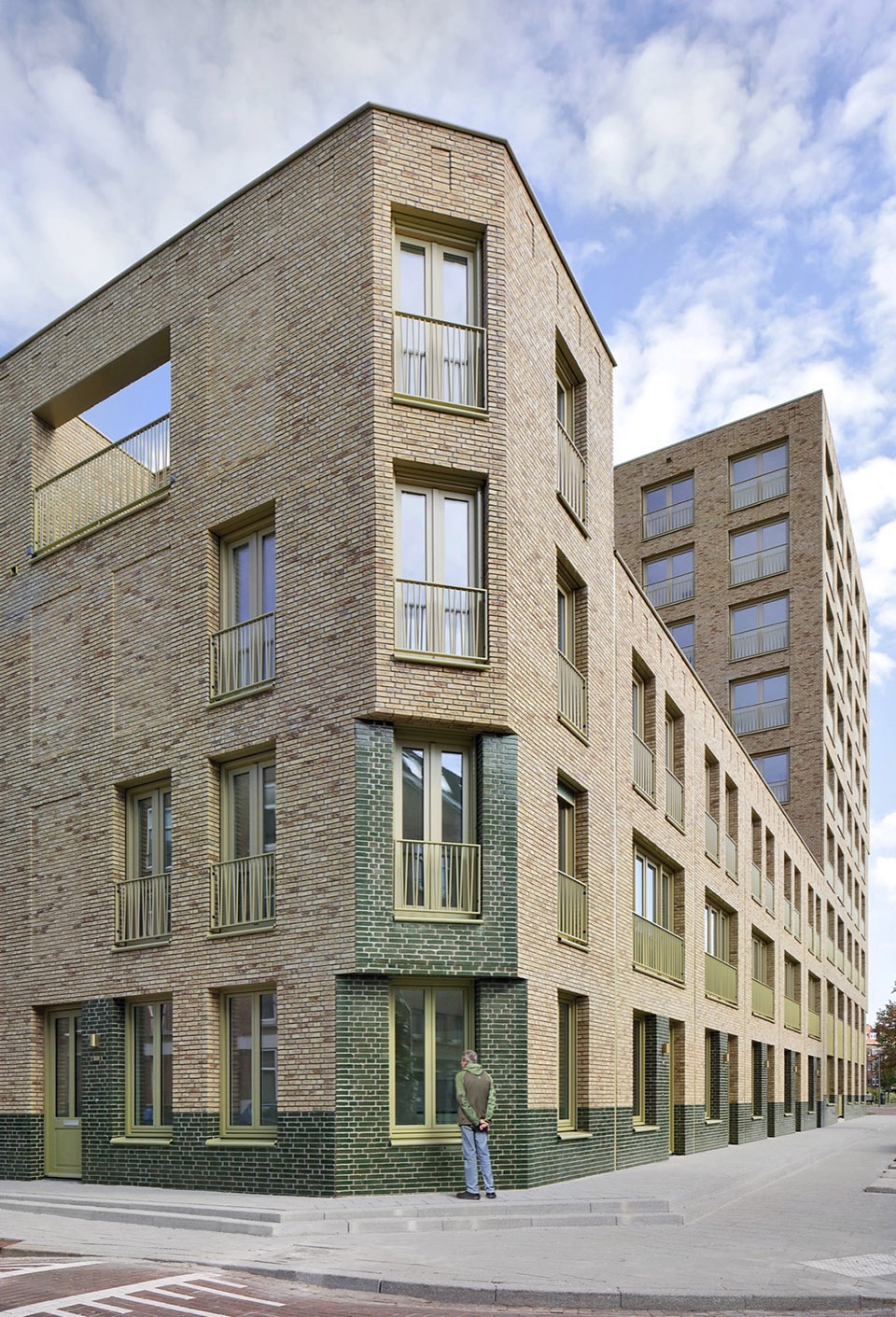

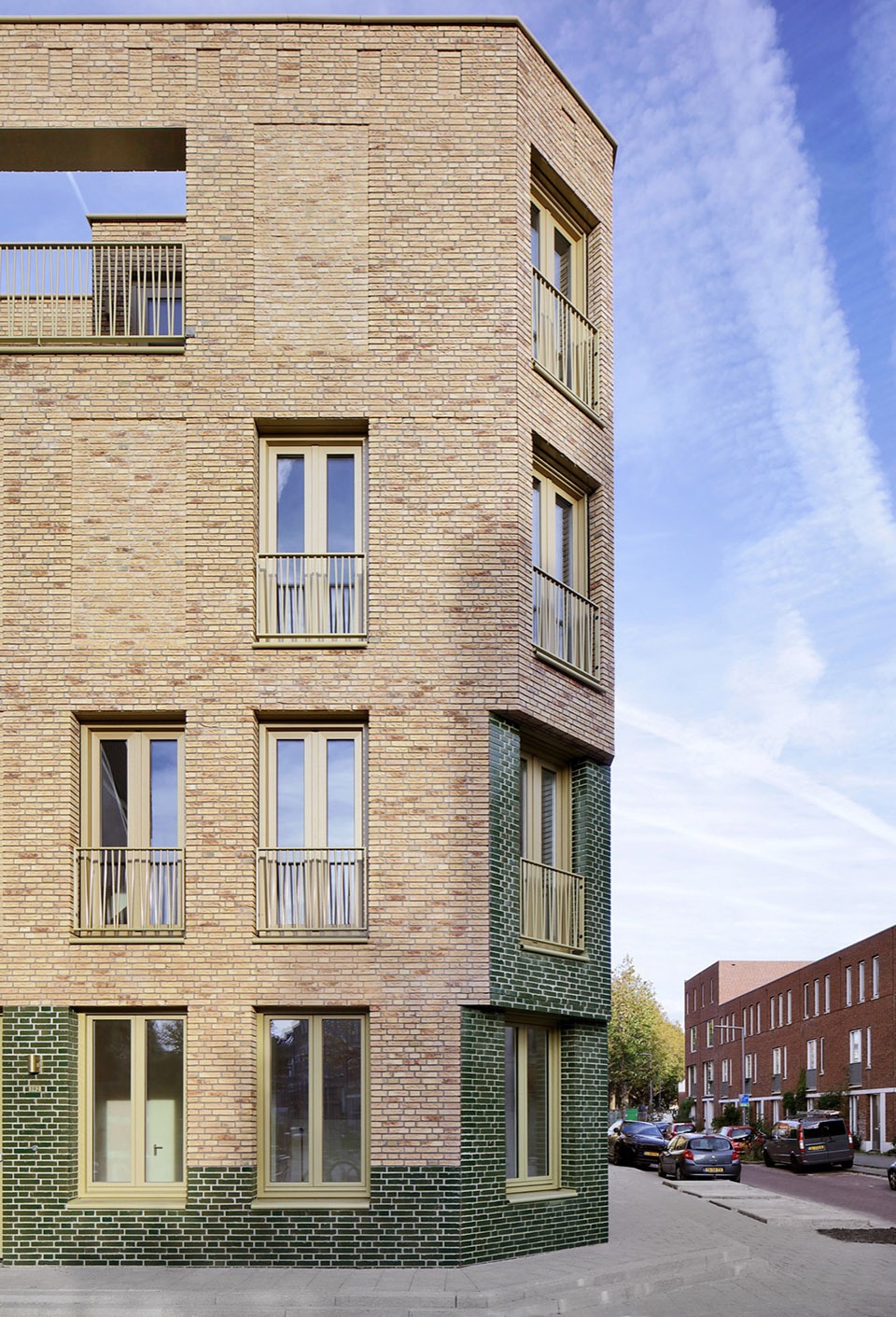

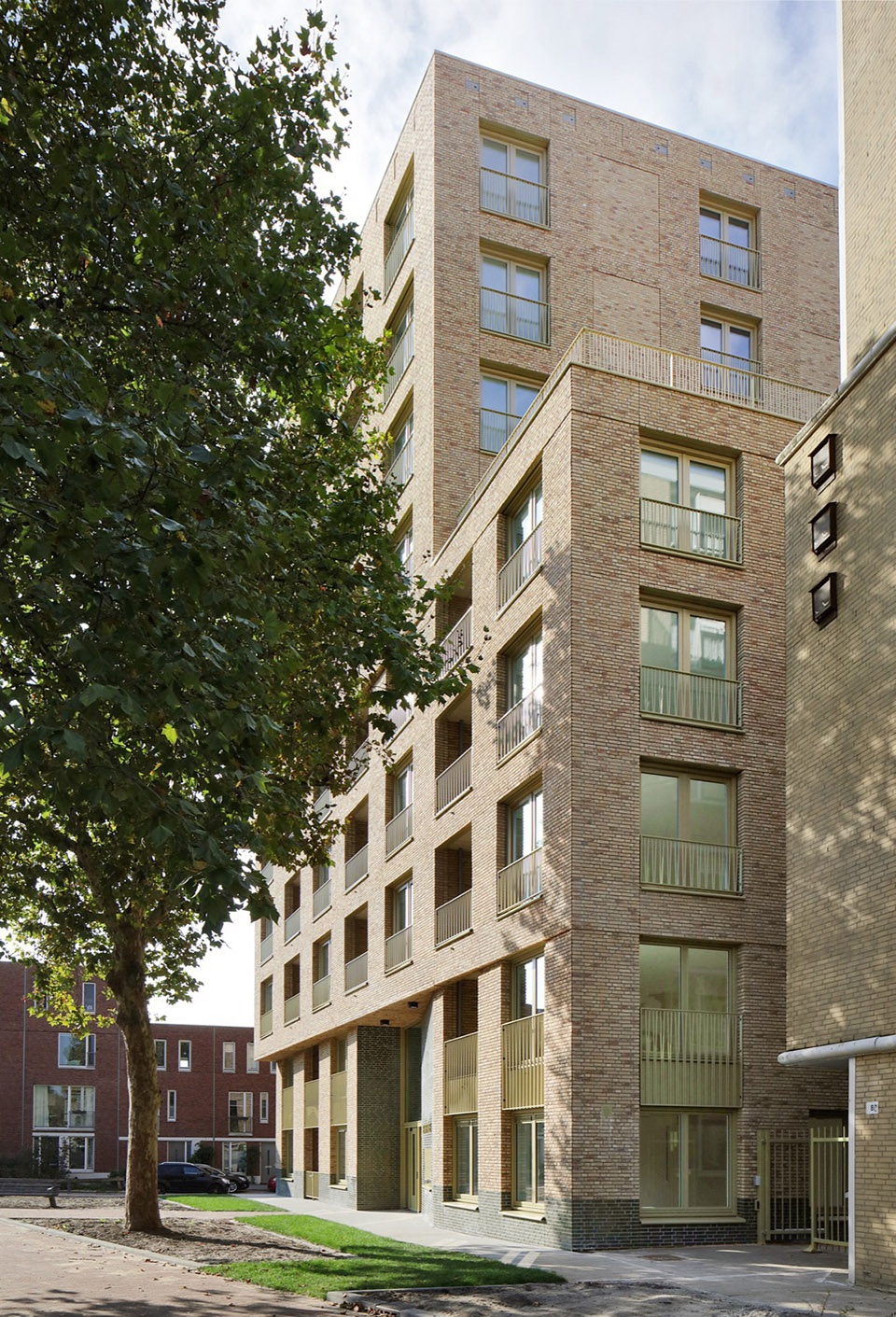

▼独特的街角造型，unique corner style

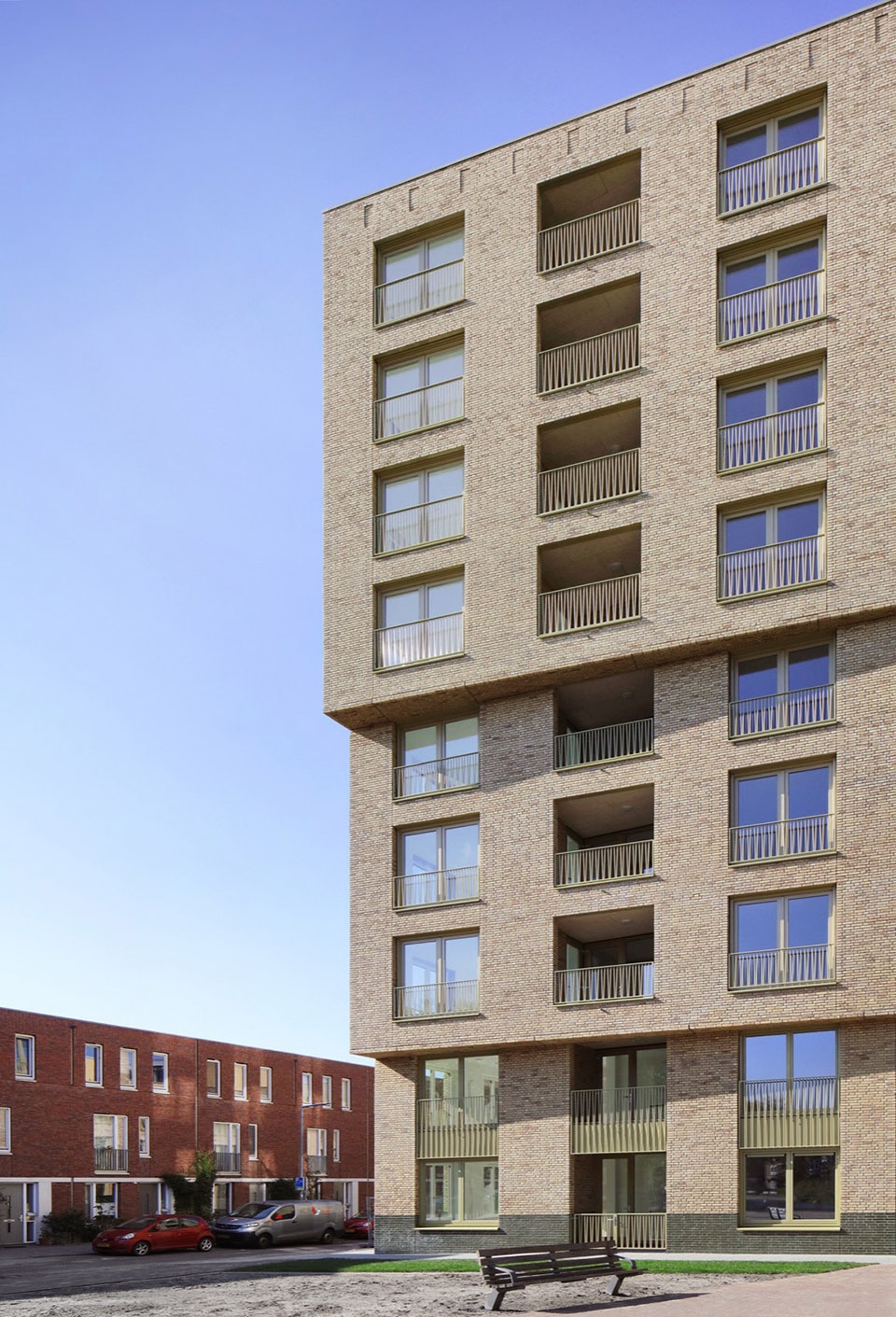

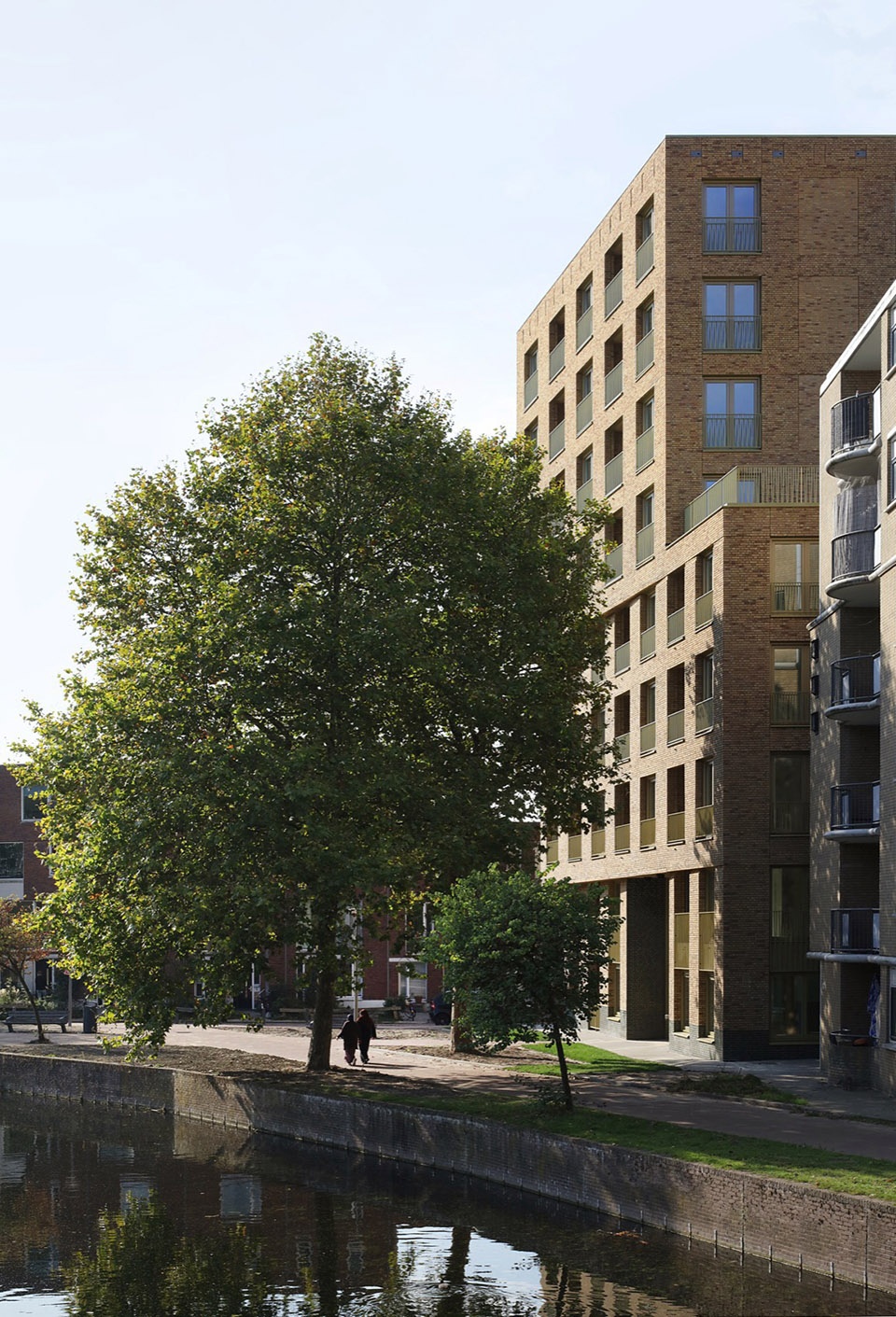

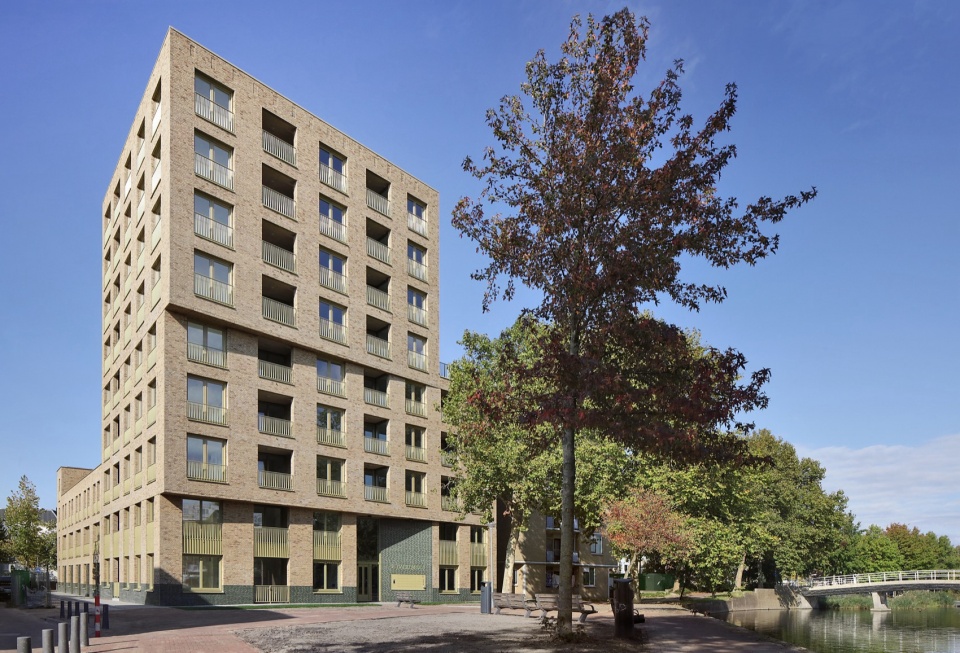

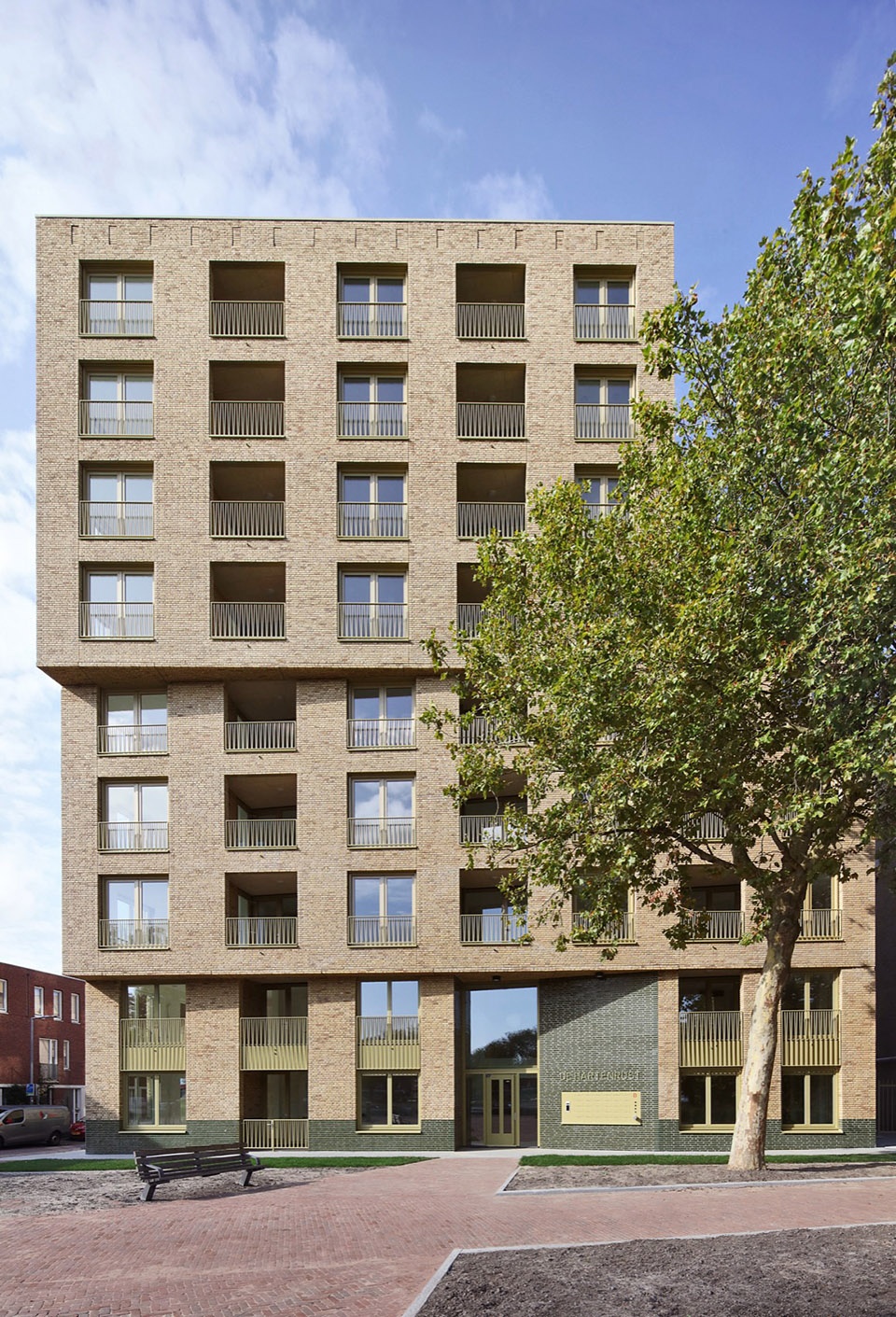

▼九层塔楼立面，facade of the nine-story tower

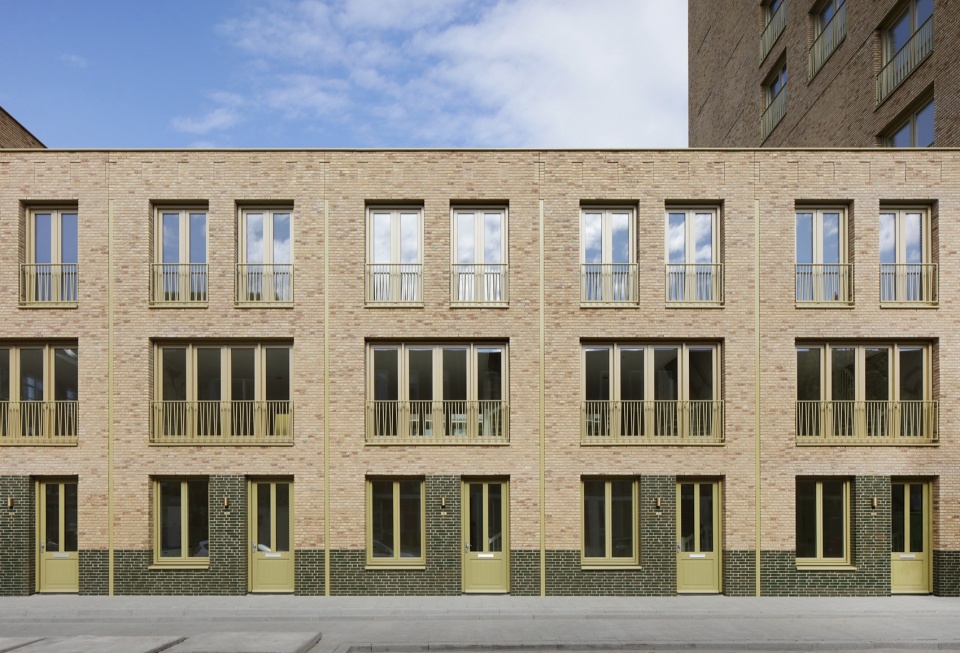

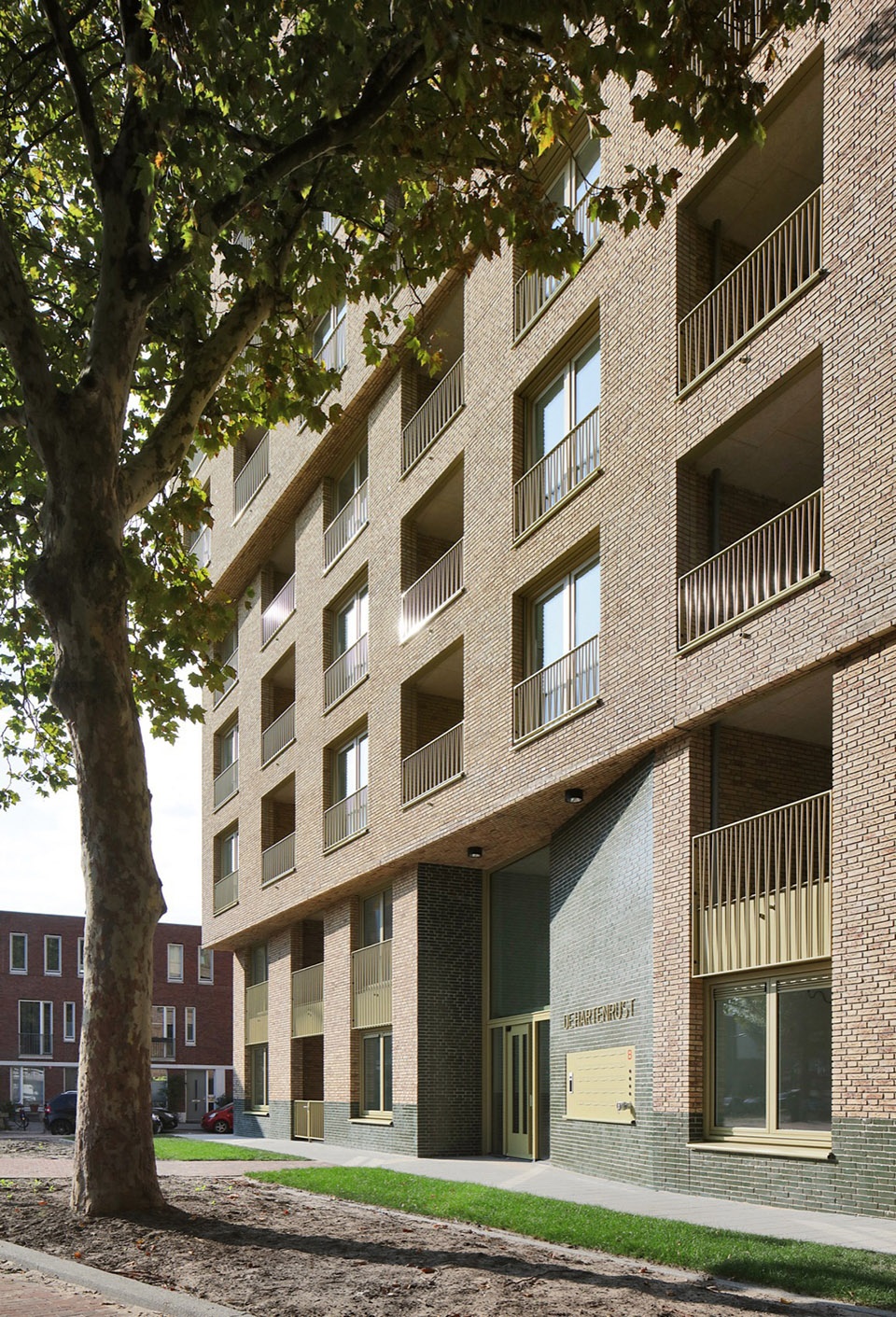

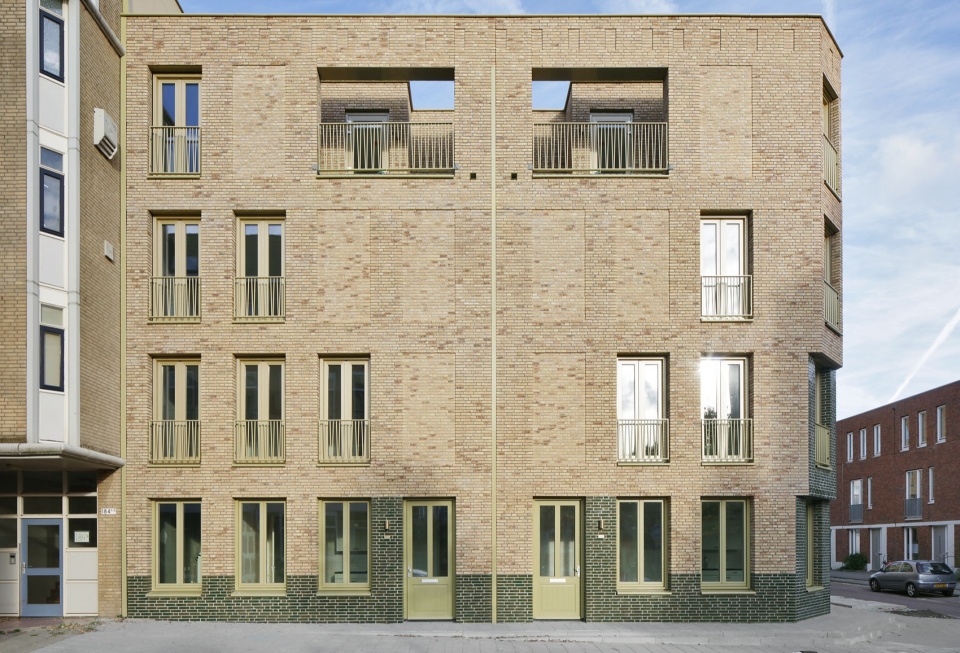

▼沿街立面近景，closer views of the facade along the street

宽敞的社会住宅Generous social housing

De Hartenrust在延续社会住宅丰富传统的同时，满足了现代对多样性与空间宽敞性的需求。建筑提供从大型家庭住宅到紧凑公寓的多种户型。尽管面积紧凑，角落位置与宽法式阳台让公寓光线与空气充盈每个房间，使居住体验宽敞舒适。家庭住宅的厨房、客厅和卧室贯通全宽，楼层间通过开阔楼梯连接。

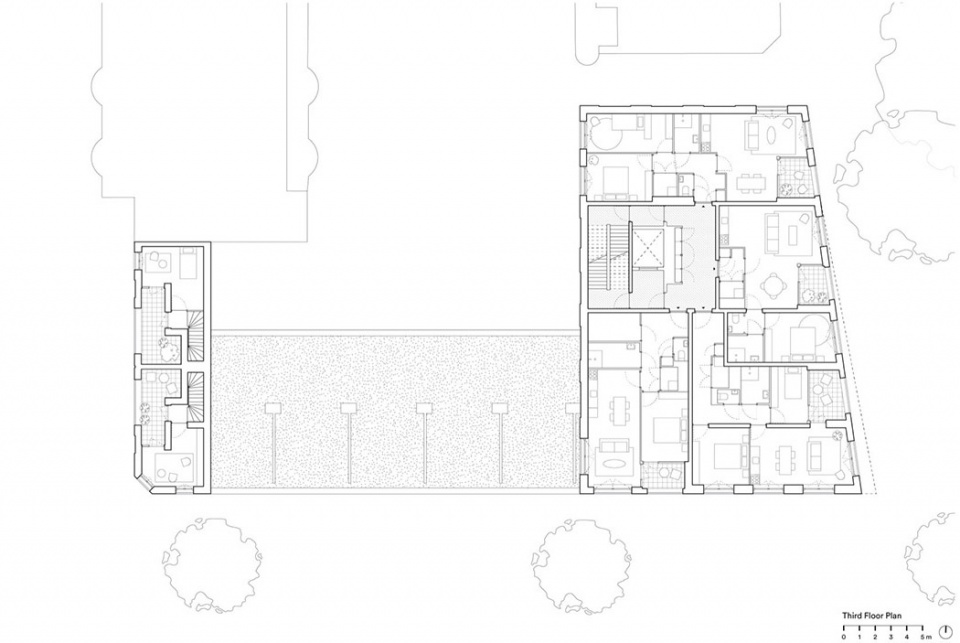

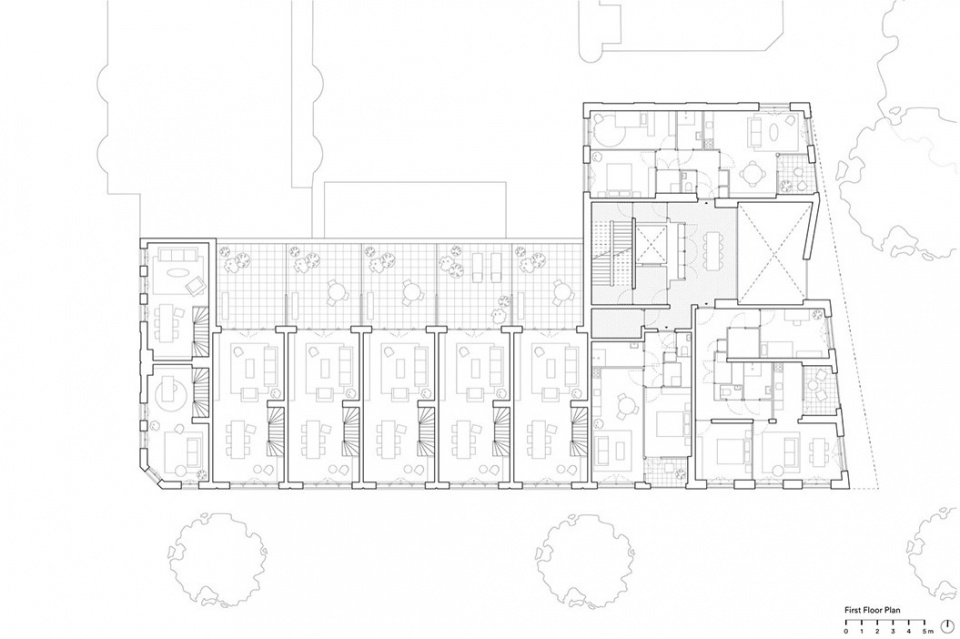

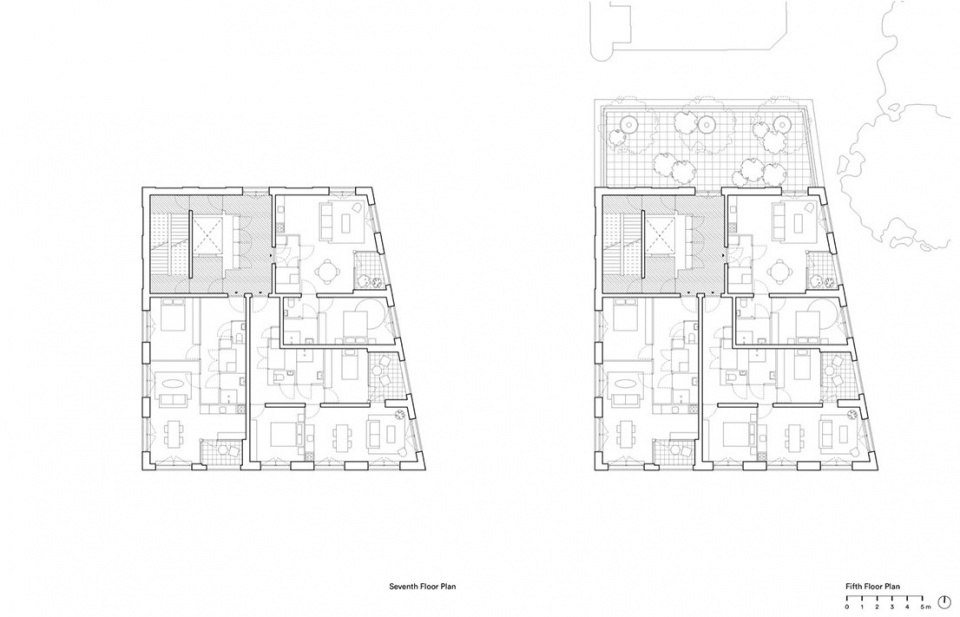

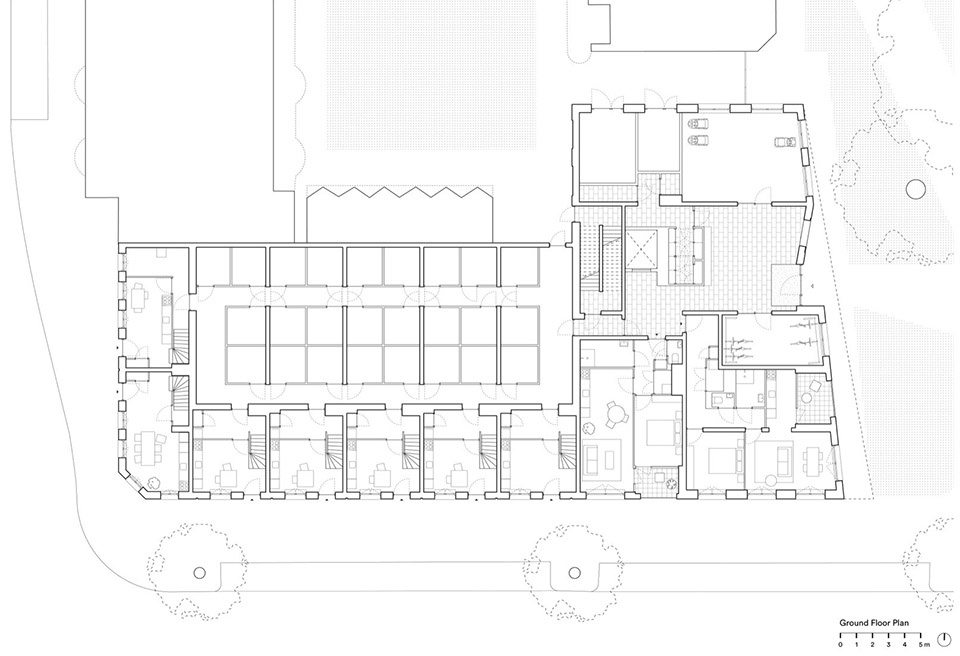

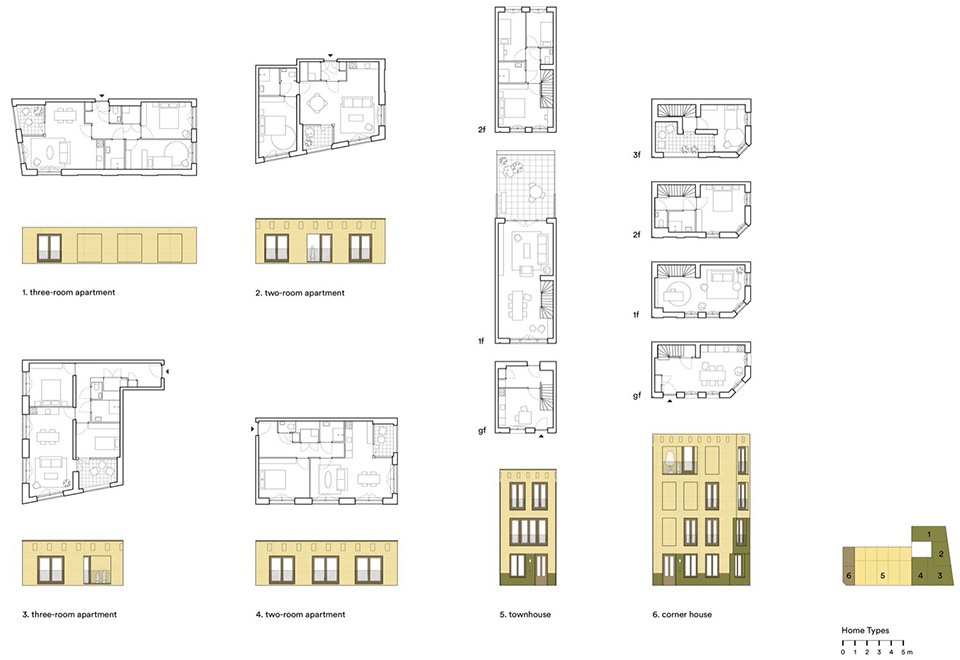

▼户型分析图，analysis of the home types

De Hartenrust celebrates the rich tradition of social housing with a contemporary need for diversity and spatial generosity. The building offers a variety of housing types for its residents, from large family homes to compact apartments. Despite the compactness, the apartments feel very spacious thanks to their corner position with wide French balconies that allow light and air to flow into every room. In the family homes, the kitchen, living room and bedroom span the full width of the home, and the floors are connected by a spacious, open staircase.

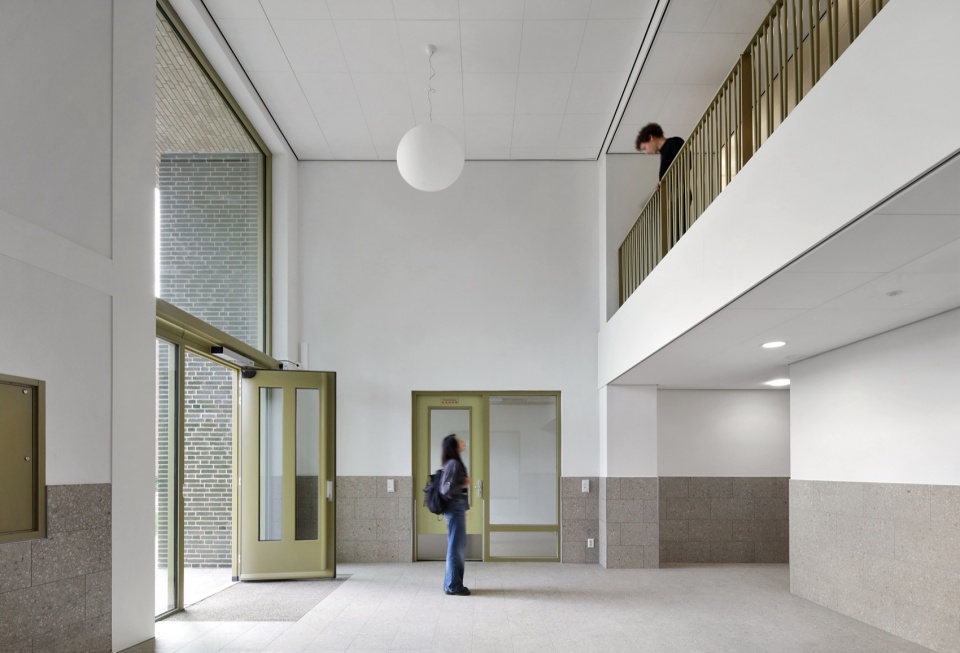

▼入户大堂，entrance lobby

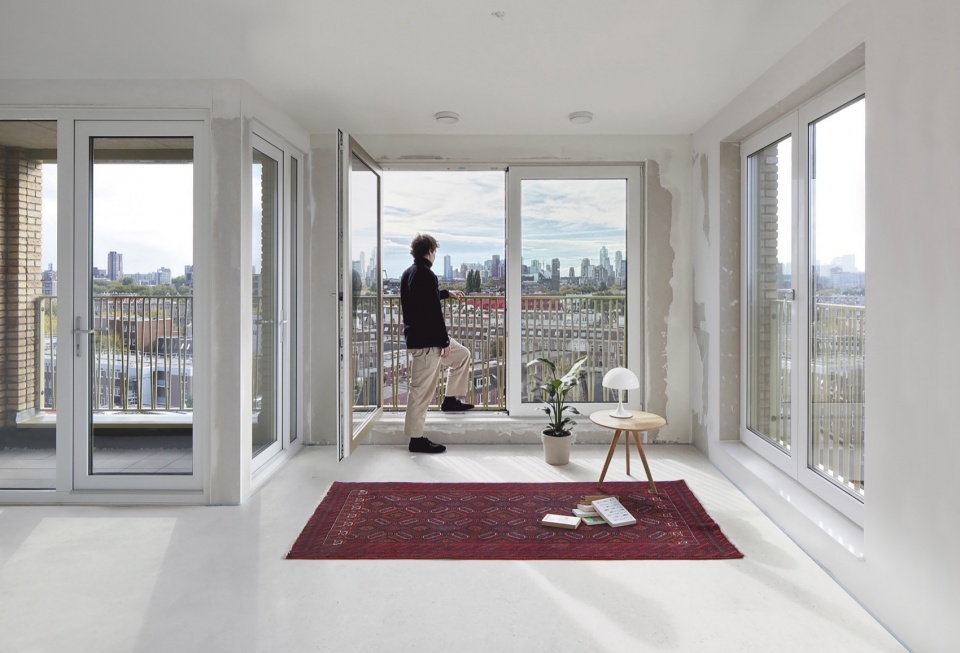

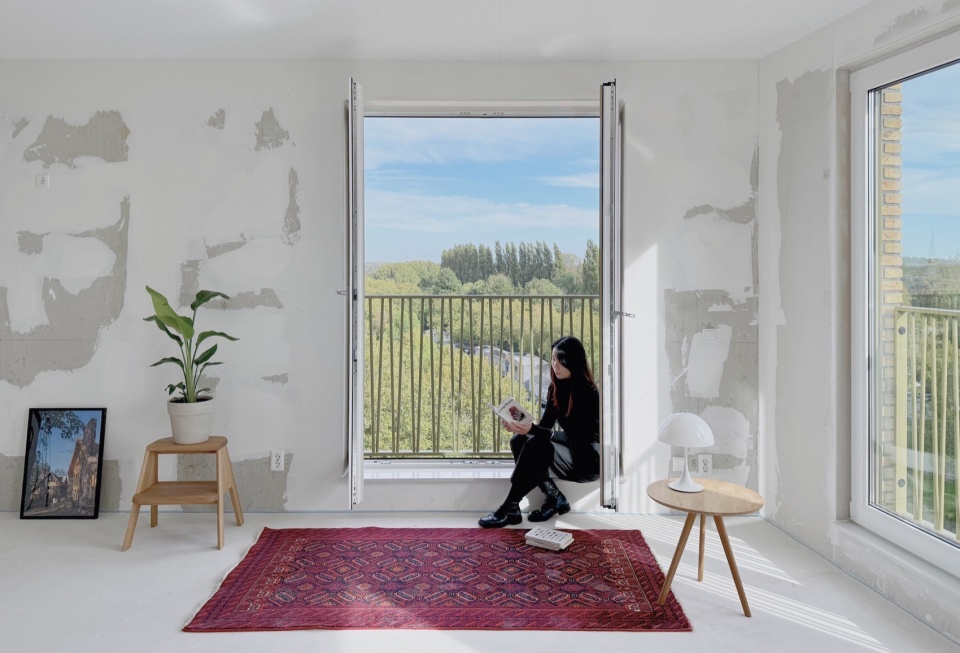

▼公寓室内，interior of the apartment

社交空间Spaces for social interaction

建筑为居民创造了社交空间，并向周边环境开放。双层入口大厅构成中心、欢迎性的入口，各项设施和自行车停放区一目了然。夹层适用于公共活动。入口前设有小型绿色广场和河边长椅。屋顶共享露台坐落在树梢间，为户外活动提供空间并拥有全景视野。家庭住宅前门及带大窗的厨房餐区面向街道，活跃了人行道，促进与邻里的互动。

The building creates spaces for residents to meet each other and is invitingly open to the surrounding area. The double-height entrance hall forms a central, welcoming entrance, with the various facilities and bike parking areas immediately visible. The mezzanine floor lends itself to communal use and activities. In front of the entrance is a small green square with benches by the water. The shared roof terrace, nestled among the treetops, offers space for outdoor activities with panoramic views. The family homes have their front doors and kitchen-diners with large windows facing the street, which activate the pavement and encourage interaction with the neighbourhood.

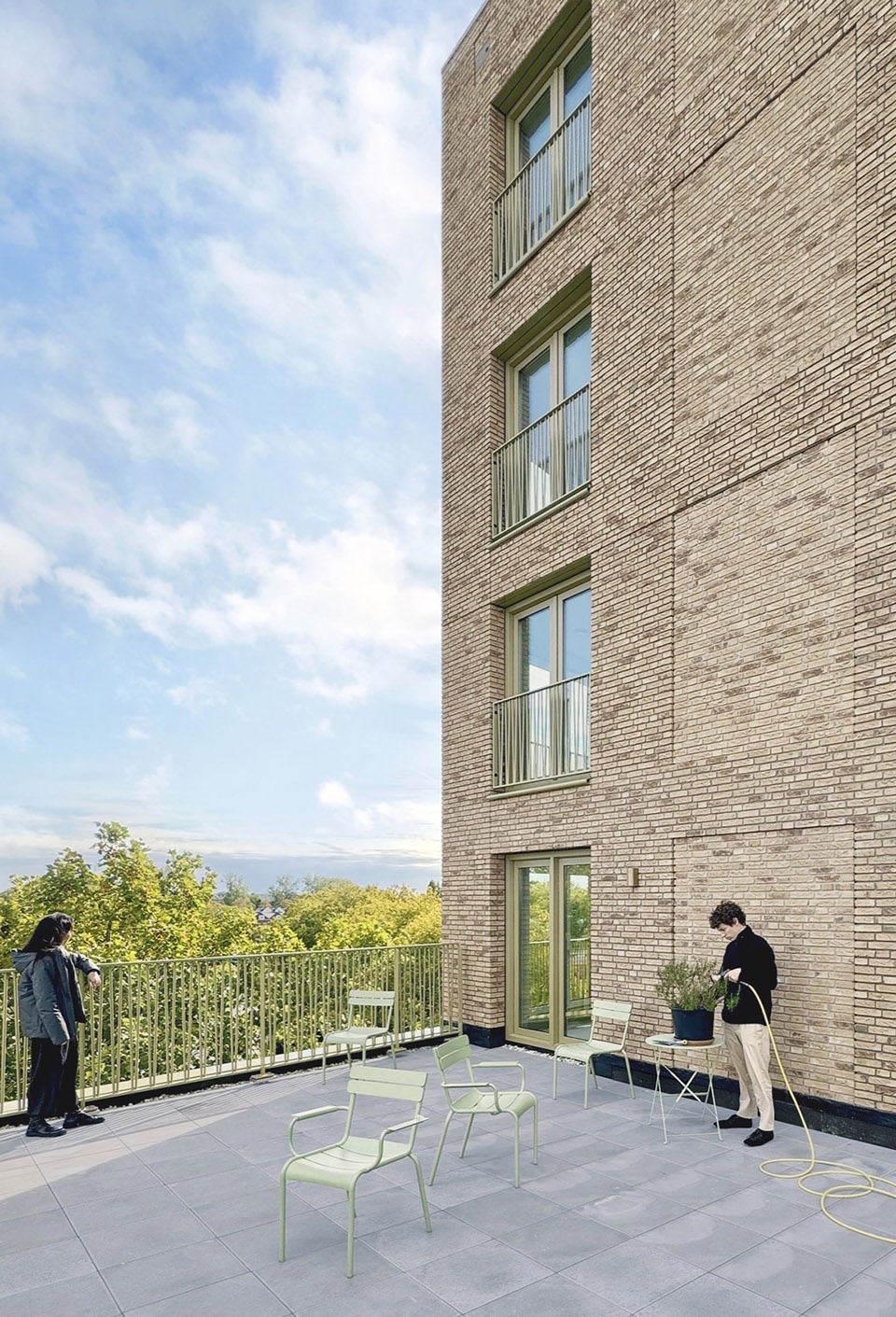

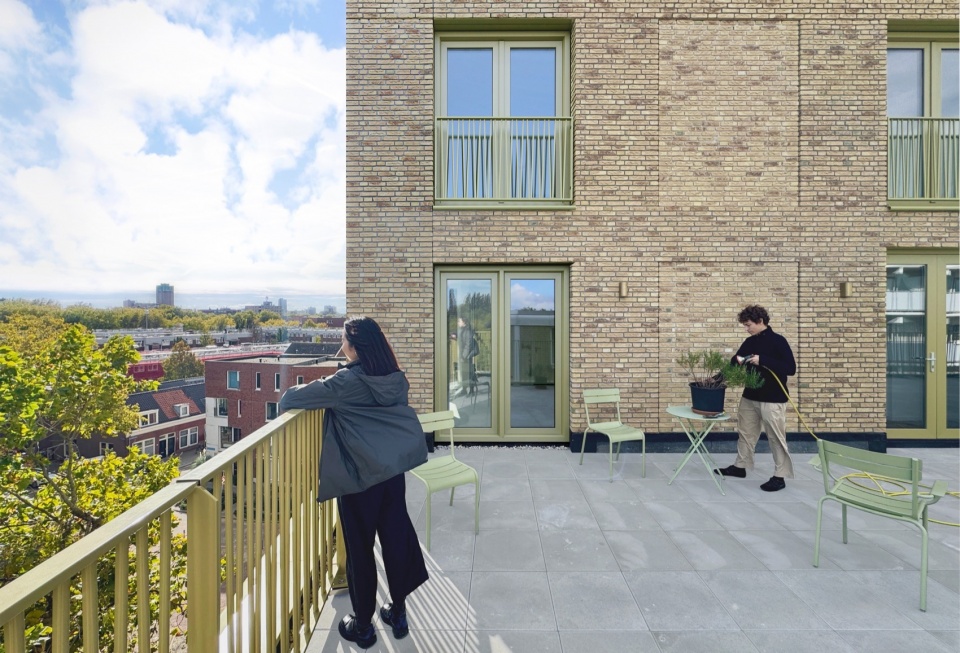

▼露台，terrace

温暖而丰富的材料应用Warm and rich materialisation

坚固的建筑雕塑通过温暖而丰富的材质得到柔化，与周边19世纪社区呼应。三部分建筑以细腻的黄色砖砌完成，绿色釉面砖基座呼应街区。灰色两色的勾缝处理在建筑分段、凹入窗户与檐口凹槽间创造微妙差异。浅橄榄黄窗框与栏杆与双色砖形成温和“ton sur ton”效果。黄铜灯具与门牌细节赋予建筑丰富而真实的质感。

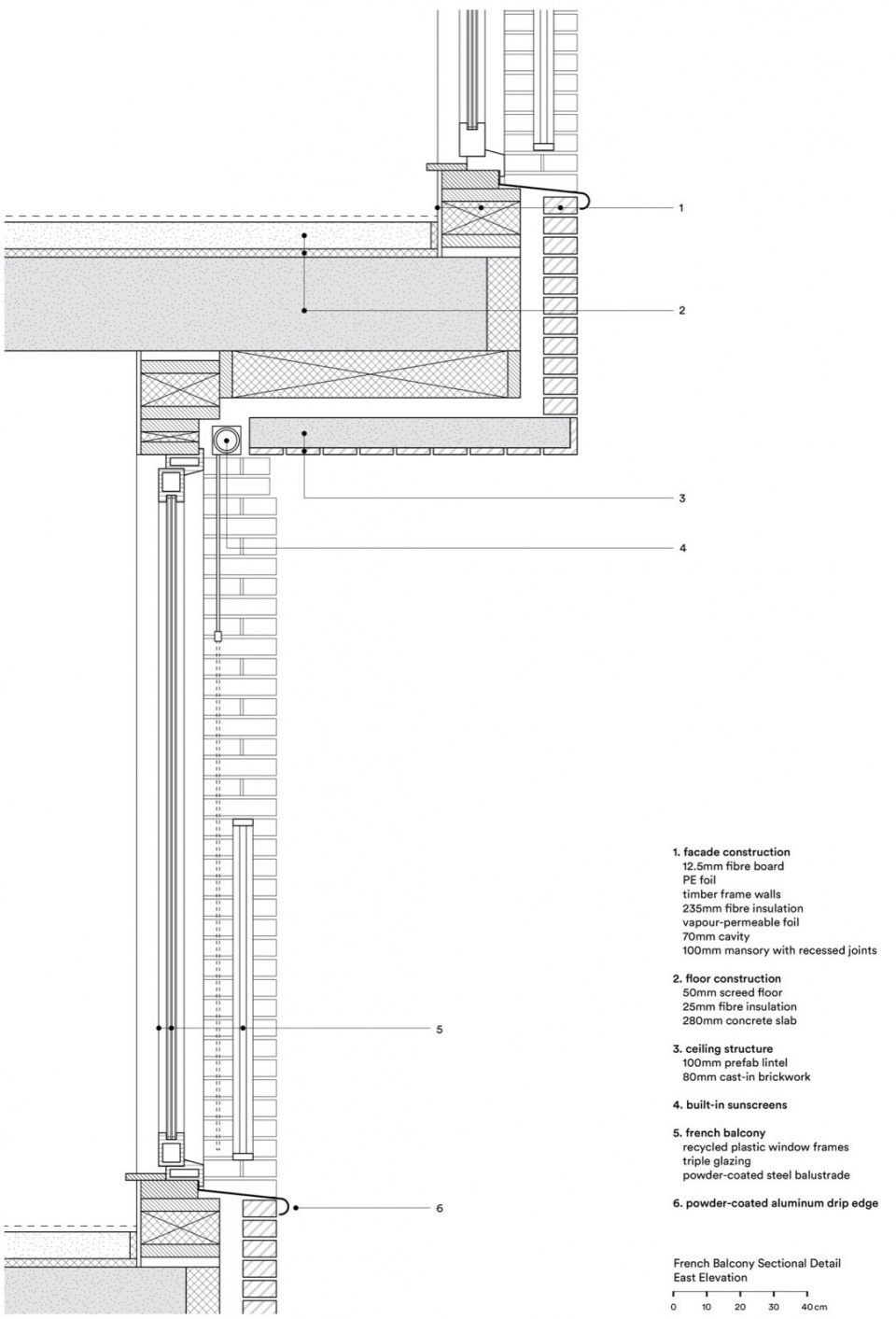

The sturdy building sculpture is softened by warm and rich materialisation that matches the surrounding 19th-century neighbourhood. The three building sections are finished in nuanced yellow brickwork on a plinth of green glazed bricks. The jointing in two shades of grey creates a subtle difference between the building sections, recessed windows and indentations in the cornice. The light olive-yellow window frames and railings create a calm “ton sur ton” effect with the brickwork in two colours. Brass details for lighting and house numbering give the whole building a rich and authentic character.

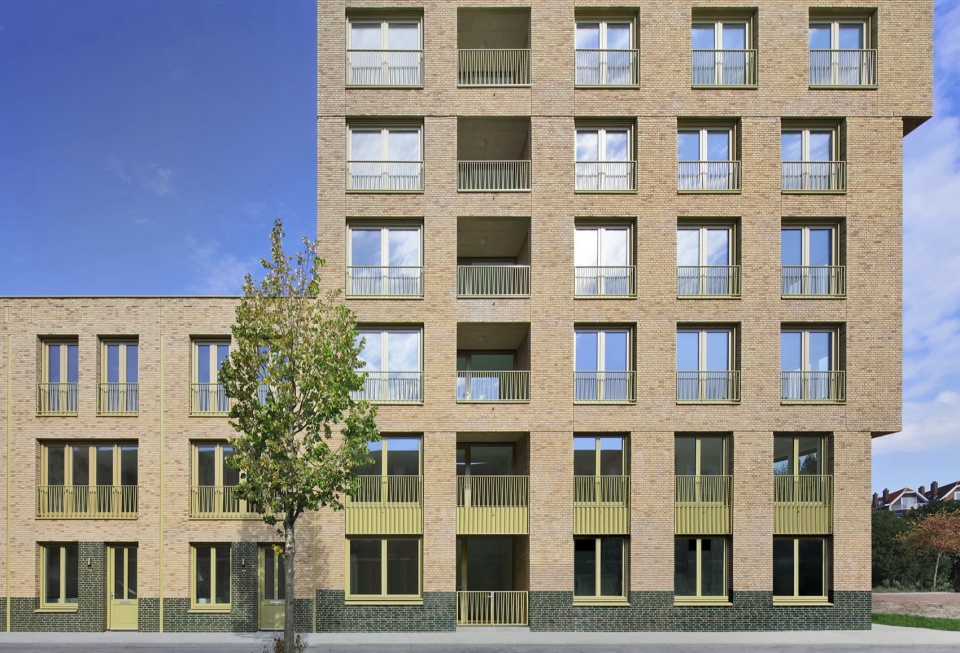

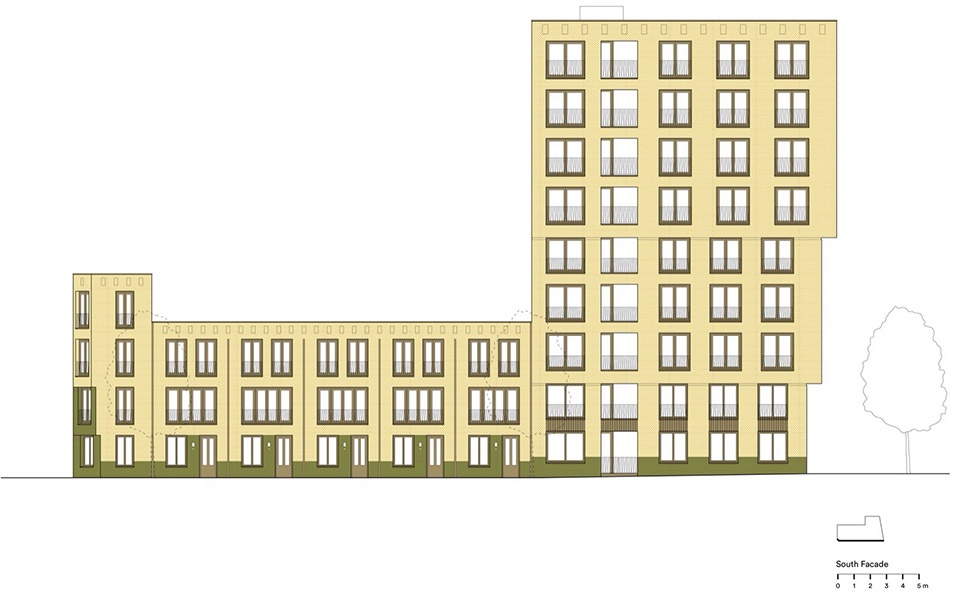

▼建筑立面，facade

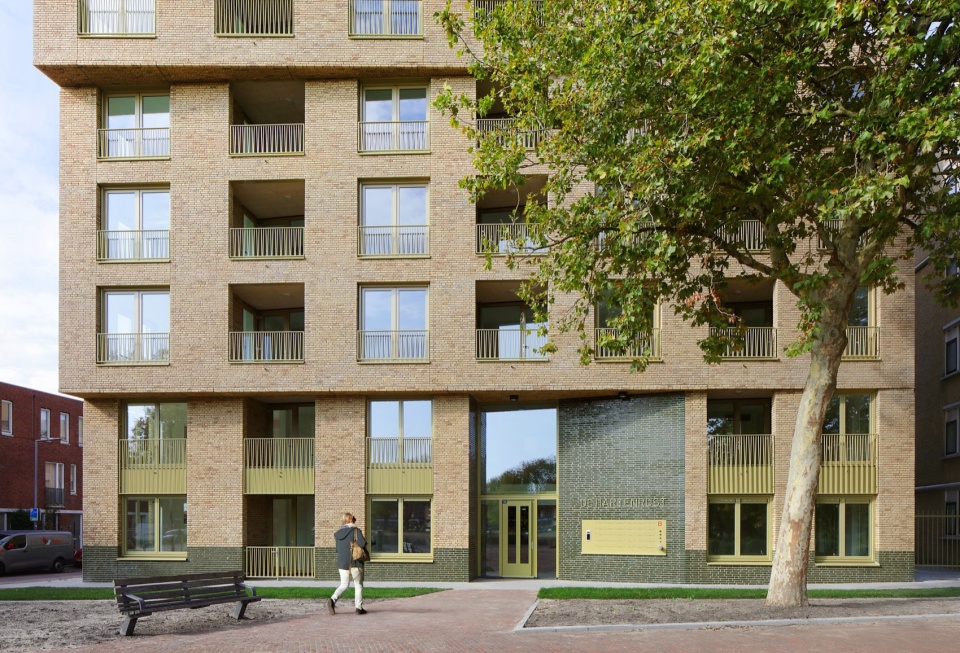

▼公寓楼入口，entrance of the apartment building

面向未来Future proof

建筑通过面向未来的设计为健康宜居城市作出贡献。被动式、蓄热良好且隔热完善的住宅实现了极低能耗，并配备内置遮阳和自然通风系统。绿色蓄水屋顶与露台缓解洪涝与干旱，改善生活环境并提升生物多样性。

The building contributes to a healthy and liveable city by being future proof. Minimal energy demand is achieved through passive, heat-accumulating and well-insulated homes, combined with built-in sun blinds and natural ventilation. Green, water retention terraces and roofs mitigate flooding and drought, improve the living environment, and enhance biodiversity.

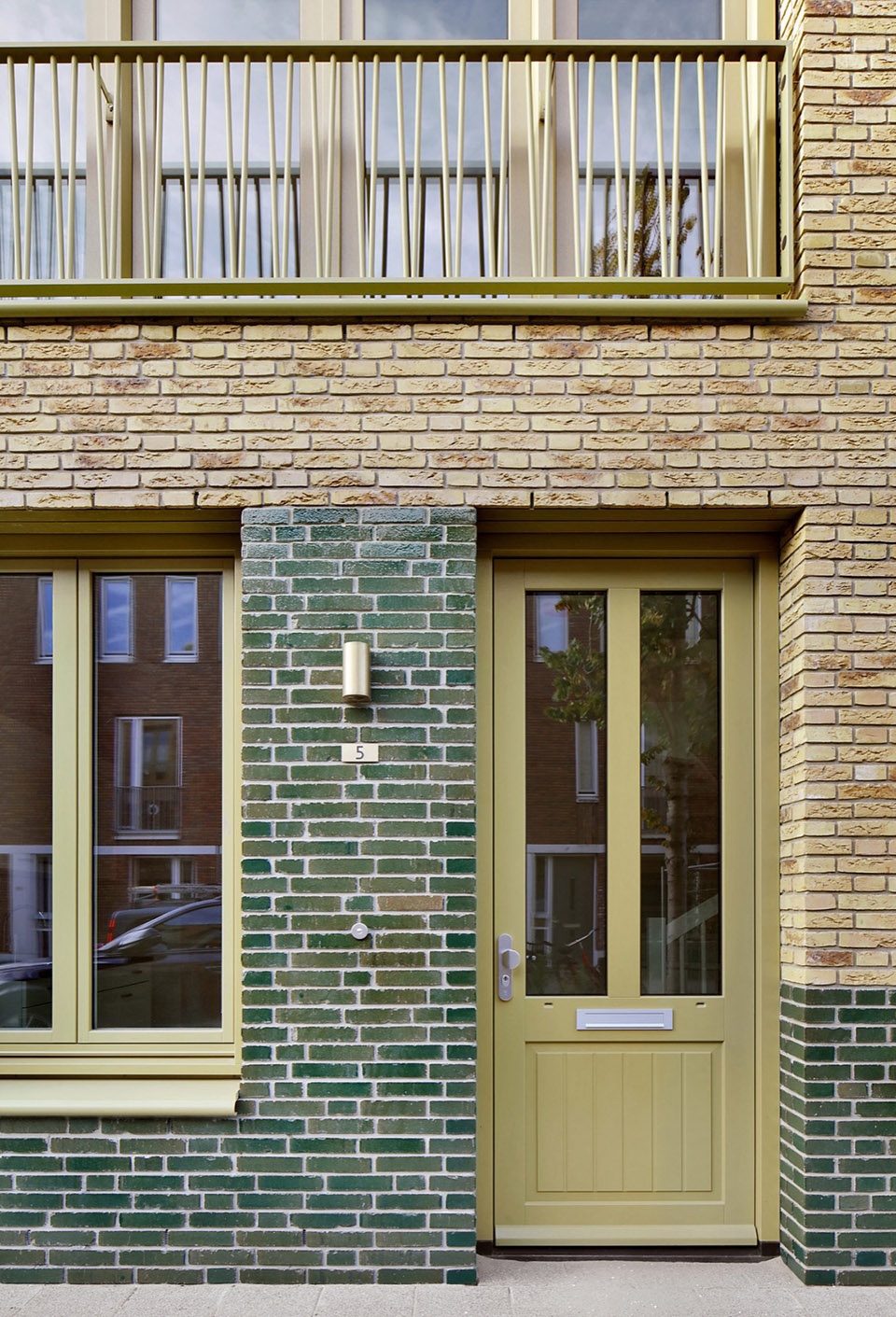

▼浅橄榄黄窗框与栏杆与双色砖，light olive yellow window frames and railings with two-tone bricks
