国旅海棠湾国际购物中心，三亚/建筑

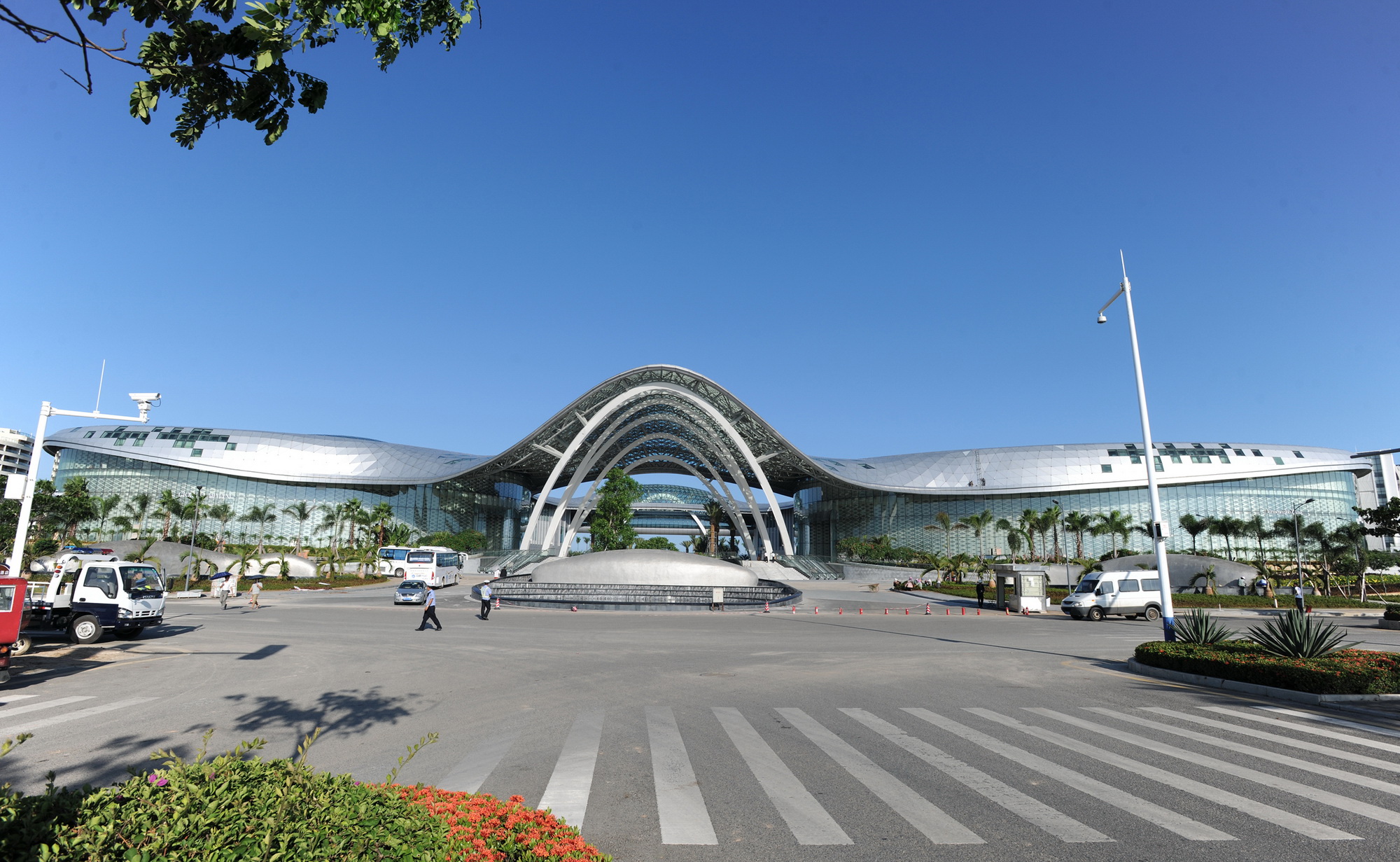

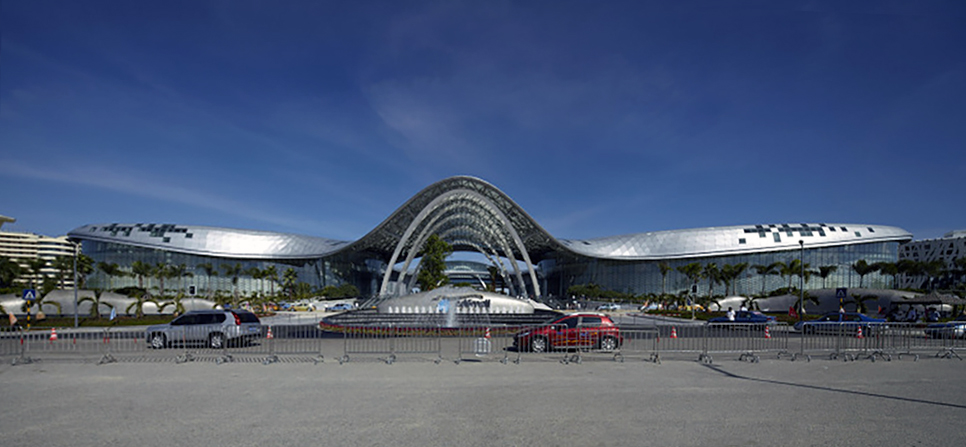

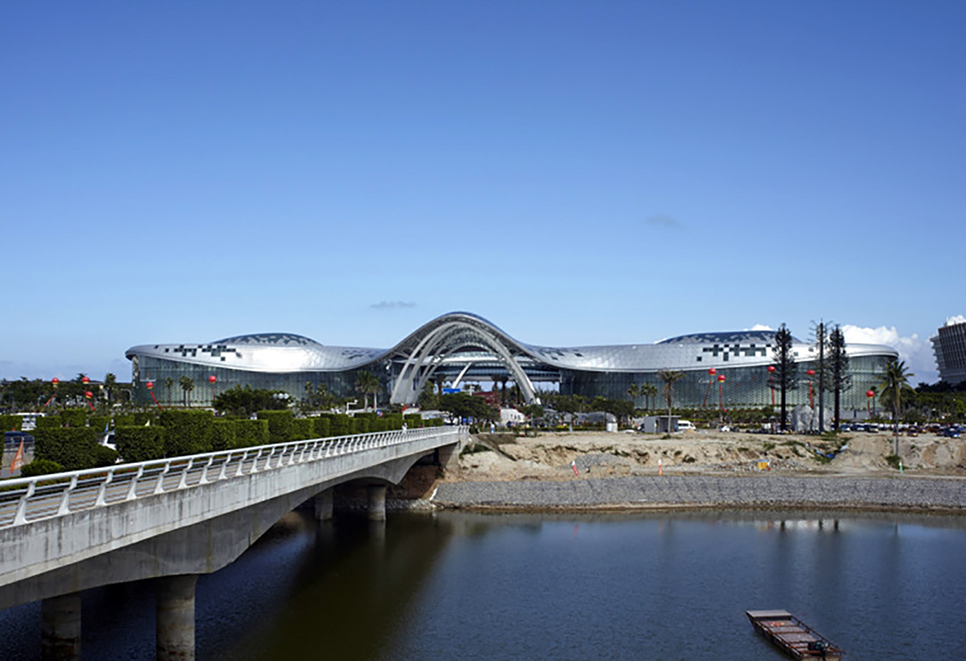

国旅海棠湾国际购物中心位于三亚市海棠湾黄金地段北端，距三亚凤凰机场32千米，与亚龙湾和陵水湾相连。规划包含购物中心、酒店以及别墅。项目于2011年开工，预计2014年8月交付使用。 整个商业中心创作灵感来源于象征三亚地区的海棠花。两个建筑作为免税购物商厦，中间有一条五十米公共轴线从北面穿过场地，南面有公共街道与海边相连。两建筑分别围绕下沉式中心庭院，庭院装饰水景和绿植、可用于展览。造型独特的自由金属屋面勾勒出建筑轻盈的流线，也为购物者提供良好的舒适遮光环境，尤其是主入口屋面跨度50米、高35米更凸显了项目的标识性特征。法国VP建筑设计事务所在本项目中承担方案设计与建筑专业初步设计的工作。
CITS Haitang Bay International Shopping Center is located at the north end of the prime section of Haitang Bay in Sanya, 32 kilometers away from Sanya Phoenix Airport, and connected with Yalong Bay and Lingshui Bay. The planning includes shopping centers, hotels and villas. The project started in 2011 and is expected to be delivered in August 2014. The creative inspiration of the whole business center comes from the begonia flower, which symbolizes Sanya. The two buildings serve as duty-free shopping malls, with a 50-meter public axis in the middle passing through the site from the north, and a public street connected to the seaside in the south. The two buildings are surrounded by a sunken central courtyard, which is decorated with waterscape and green plants and can be used for exhibition. The unique free metal roof outlines the lightweight streamline of the building, and also provides a good comfortable shading environment for shoppers. Especially, the main entrance roof has a span of 50 meters and a height of 35 meters, which highlights the project's iconic characteristics. French VP Architectural Design Office undertakes the work of schematic design and preliminary design of architectural discipline in this project.
整个项目分两期建设，一期为购物中心、二期为酒店及别墅，总投资额达到50亿元。项目总占地面积约19万 m²，购物中心总建筑面积约123 098 m²，包括地上3层，约66 589 m²；地下1层，约56 508 m²，是全球最大的单体免税商城之一。
The whole project is constructed in two phases, the first phase is shopping center, and the second phase is hotels and villas, with a total investment of 5 billion yuan. The total area of the project is about 190000 m ²， The total building area of the shopping center is about 123098 m ²， Including 3 floors above the ground, about 66589 m ²； 1 underground floor, about 56 508 m ²， It is one of the largest single duty-free shopping malls in the world.
海棠湾 CITS 购物中心地处海棠湾二亚，海南岛，从SanyaPhoenx机场-32公里，与YalongBay 连接和 LingshuiBay.The 方案包括免税店中心，酒店和私人别墅的黄金地段。整个项目将分两期建设。
Haitang Bay CITS Shopping Center is located in Haitang Bay Second Asia, Hainan Island, 32 kilometers from Sanya Phoenix Airport, connected to YalongBay and LingshuiBay. The plan includes the prime location of duty-free shop center, hotels and private villas. The whole project will be constructed in two phases.
项目于2011年开工，于2014年9月1日投入运营，总投资额达到50亿元。它是全球最大的单体免税商城之一，汇集了众多国际顶级奢侈品牌，集免税购物、有税购物、餐饮娱乐、文化展示等多种业态，全方位满足消费者对“吃、住、行、游、购、娱”的需求。商业中心创作灵感来源于象征三亚地区的海棠花。建筑室内空间由主题中庭引导串联，北侧的主入口、南侧连廊以及大型自由体犀面连接两座建筑，形成有机整体。
The project was started in 2011 and put into operation on September 1, 2014, with a total investment of 5 billion yuan. It is one of the largest single duty-free shopping malls in the world. It gathers many international top luxury brands, including duty-free shopping, duty-free shopping, catering and entertainment, cultural display and other forms of business, and comprehensively meets the needs of consumers for "food, housing, transportation, travel, shopping and entertainment". The creative inspiration of the business center comes from the begonia flower, which symbolizes Sanya. The interior space of the building is guided and connected by the theme atrium. The main entrance on the north side, the corridor on the south side and the large free body rhinoceros face connect the two buildings to form an organic whole.
在2011年动工，总投资5亿元十亿，这是9月1日运行，2014年作为国内最大的免税商业的全球复杂的之一，它容纳了大量的全球顶级奢侈品牌，并整合免税购物，完税购物，餐饮，娱乐场所和文化展示。它提供了全方位的服务，如餐饮，购物，娱乐，旅游和住宿的技巧等等，铸就了完美的购物体验。
The project started in 2011 with a total investment of 500 million yuan, which was put into operation on September 1. In 2014, as one of the largest tax-free businesses in China and one of the most complex in the world, it accommodated a large number of top luxury brands in the world, and integrated tax-free shopping, tax-paid shopping, catering, entertainment venues and cultural exhibitions. It provides a full range of services, such as catering, shopping, entertainment, tourism and accommodation skills, etc., creating a perfect shopping experience.

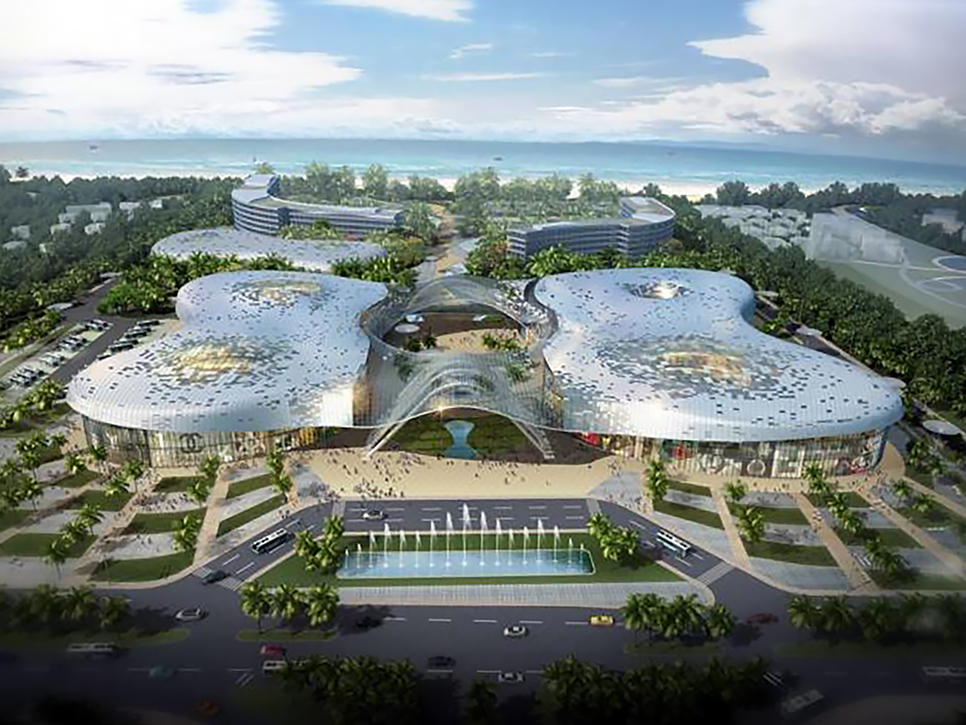

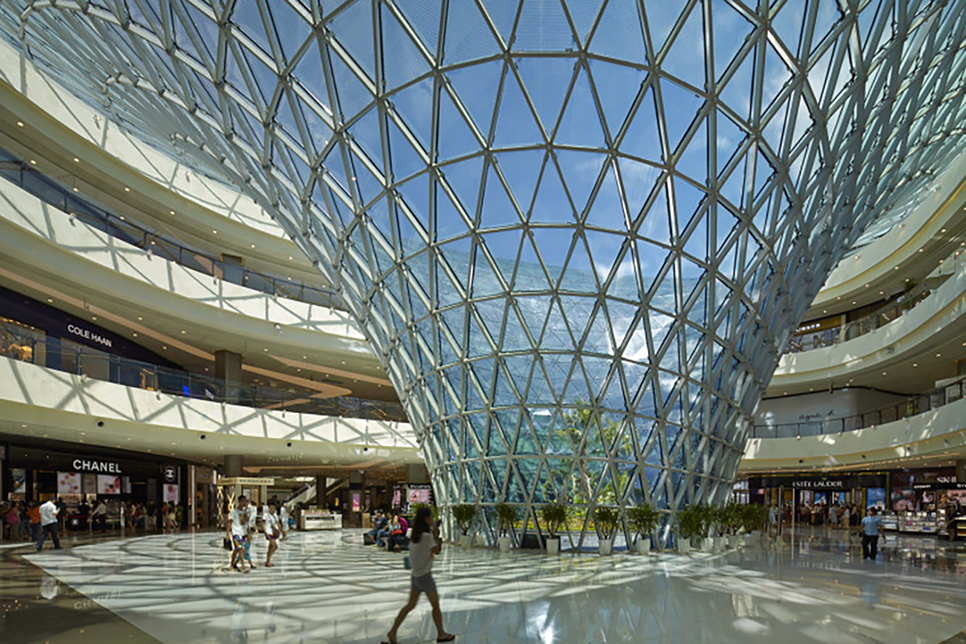

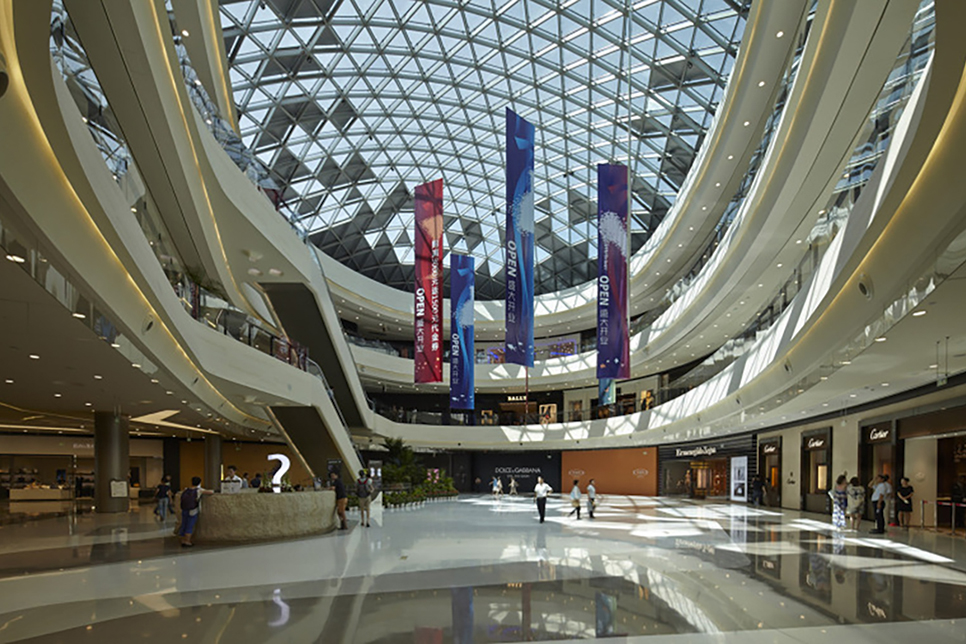

项目整体造型为蝴蝶状，由北侧主入口、南侧连廊以及大型自由体屋面连接两座建筑形成有机整体。建筑室内空间由4个主题中庭和1个下沉式采光井（漏斗采光顶）引导串联，中庭玻璃采光顶根据采光特点由彩釉玻璃及普通玻璃组合而成，巧妙引入自然元素为顾客提供海南特有的明媚光源；漏斗采光顶内设计有热带绿植和水景，为顾客提供休闲放松的场所，更提升了整体空间的商业价值。
The overall shape of the project is butterfly, which is formed by connecting the two buildings with the main entrance on the north side, the corridor on the south side and the large free-form roof. The interior space of the building is guided and connected by four theme atriums and one sunken lighting well (funnel lighting roof). The atrium glass lighting roof is composed of colored glazed glass and ordinary glass according to the lighting characteristics, and ingeniously introduces natural elements to provide customers with Hainan's unique bright light source; The funnel lighting roof is designed with tropical green plants and waterscape, which provides customers with a place to relax and enhance the commercial value of the overall space.
整个屋面采用较大板块三角形分格设计，玻璃根据采光特点由8+12A+8+1.52PVB+8双银Low-E中空钢化夹胶彩釉玻璃和10+12A+8+1.52PVB+8双银Low-E中空钢化夹胶玻璃组成，局部设置不规则3 mm厚氟碳喷涂单层铝板，内衬50 mm厚保温岩棉+2 mm厚铝合金背板，既能保证曲面变化更平滑、接缝拼接更整齐，又能巧妙形成一种蓝天、白云的装饰效果。
The whole roof is designed with large triangular panels, and the glass is composed of 8+12A+8+1.52PVB+8 double-silver Low-E hollow tempered laminated glass and 10+12A+8+1.52PVB+8 double-silver Low-E hollow tempered laminated glass according to the lighting characteristics. The irregular 3-mm thick fluorocarbon spraying single-layer aluminum plate is set locally, and the inner lining is 50 mm thick thermal insulation rock wool+2 mm thick aluminum alloy back plate, which can not only ensure smoother surface changes and more neat joint splicing, It can also skillfully form a decorative effect of blue sky and white clouds.

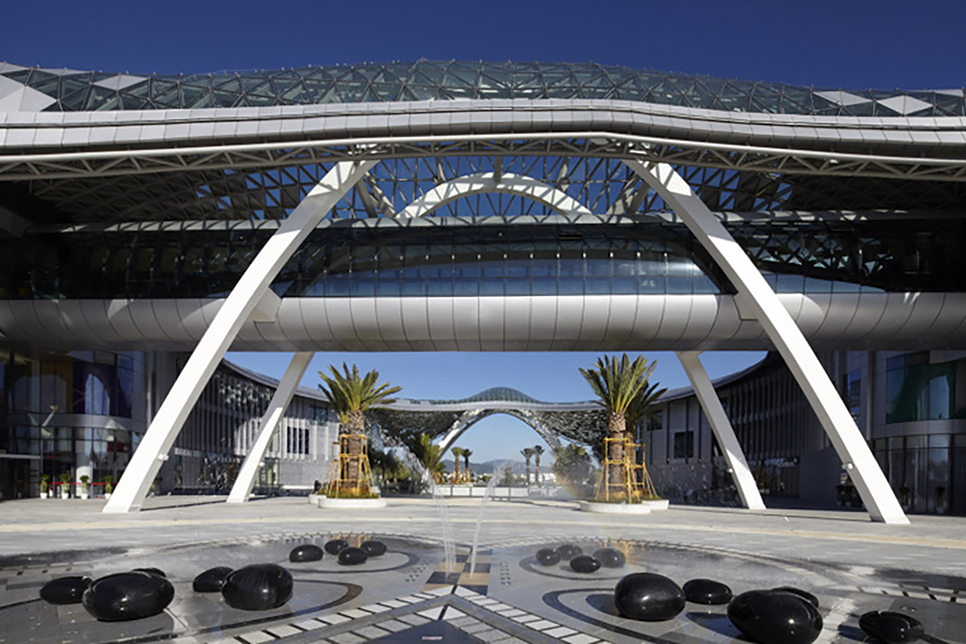

两座建筑中间有一条 50米宽的公共轴线从北面穿过场地，南面与海边相连。主入口迎宾大门靠近城市道路，是中心景观轴线的起点，具有天然的向心力。
There is a 50-meter-wide public axis between the two buildings that passes through the site from the north and connects with the sea in the south. The main entrance welcoming gate is close to the city road, which is the starting point of the central landscape axis and has natural centripetal force.

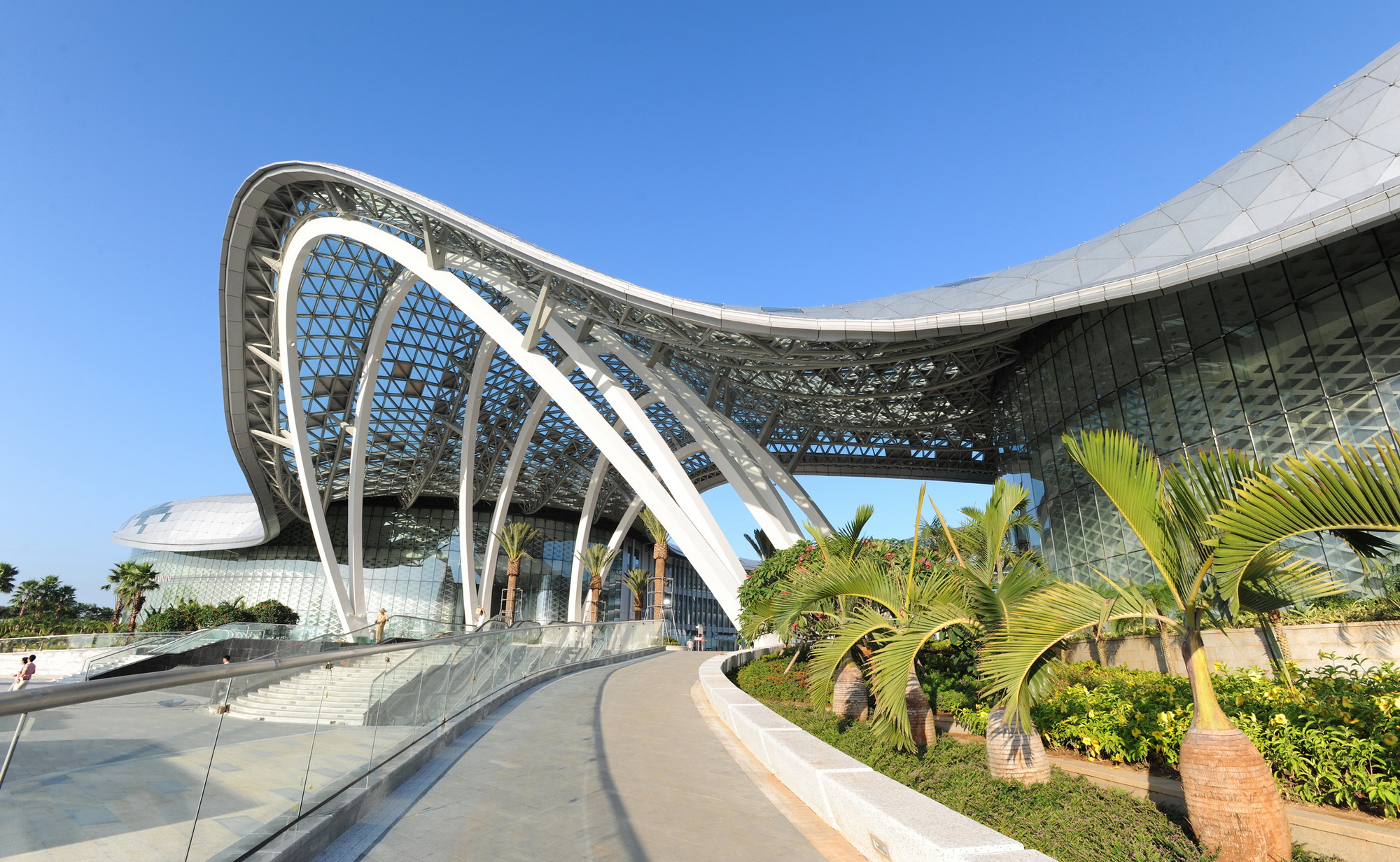

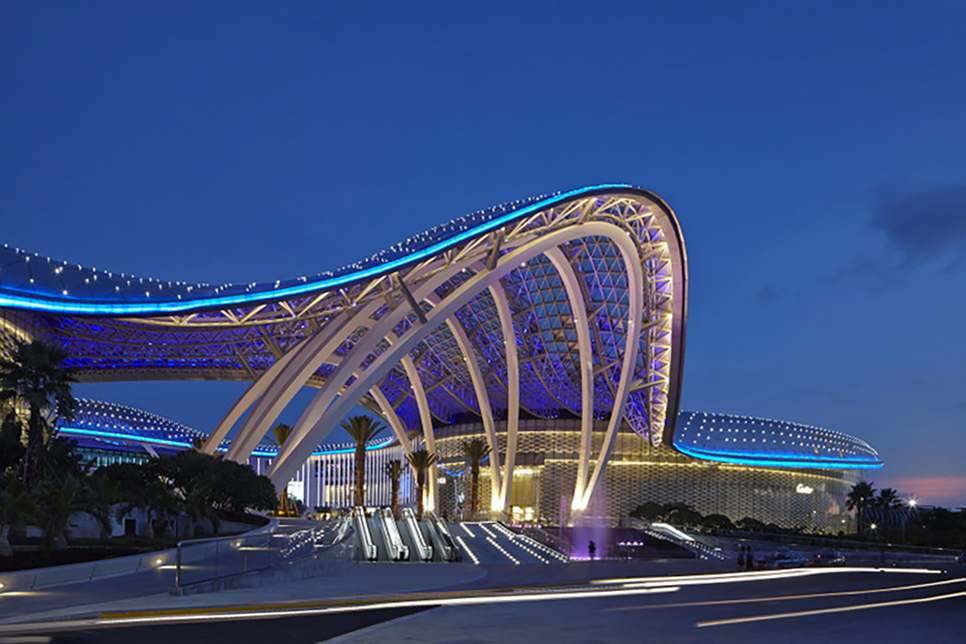

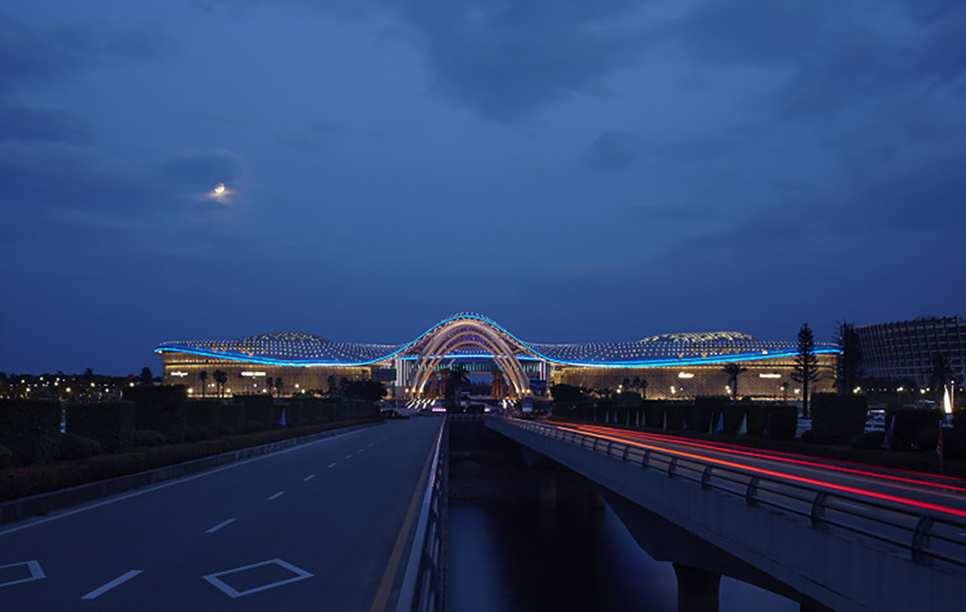

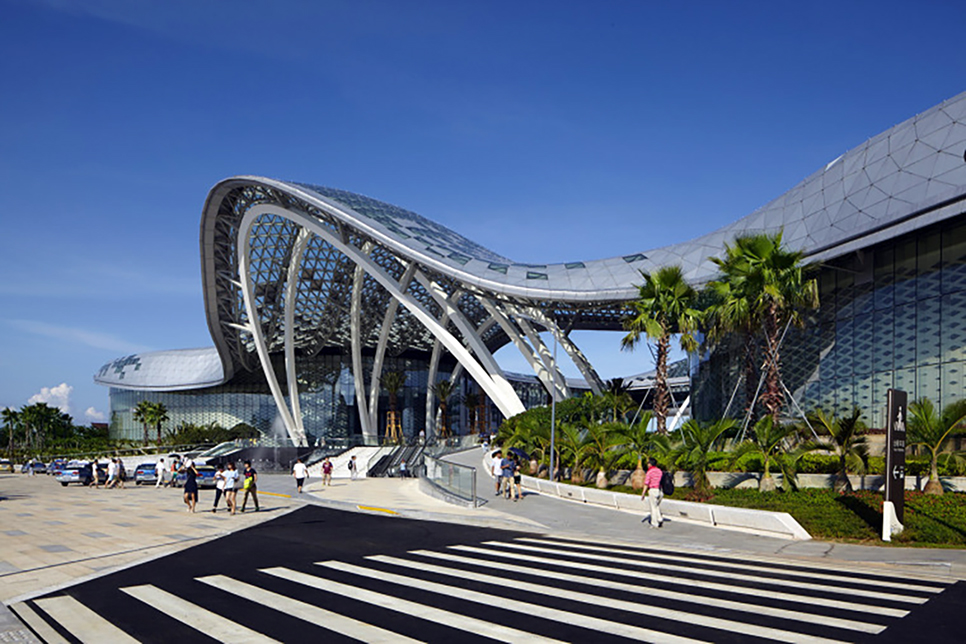

它跨度 50米、高35米，下面由三组巨大的钢拱支撑，由1900块金属板和3200块玻璃板通过曲线围合而成，气势宏伟，。功能上既保证了良好的自然通风采光，提供游人休闲遮阳的环境，又营造出理想的半室外商业入口空间氛围。主入口广场是主要的交通疏导和公共活动区，为了鼓励无污染的交通方式，特别设计了人行步道来建立起街道与建筑的联系，并设计了多种通道和台阶来引导使用者来到商业中心。设计灵感来自干海棠湾花，对 Sanva.The 内部空间的象征购物中心已经连接了特点是大型中央四个专题内法院通过釉面的自由形式的。屋顶空隙，并在上面覆盖的最大化自然采光。巨大的入口在北，桥南面和大型自由形式的屋顶帮助链接两个建筑物作为一个有机的整体。建筑，有机形，拥抱在中心50米公共轴直接在北南海滨连接网站的入口。购物中心将分割成两部分彼此连接由一个巨大的入口即起点独立建筑物景观轴线。撰写1900金属板和3200 玻璃的人正门是一个很大的跨越盖超过 50米和 35 米高的支持大钢 arches.It 制度伪造，以确保满足自然光，提供了遮阳庇护所，供游人并创建一个半商业活动-open 环境。正门交通连接和地方举办公益活动。走道连接城市街道与建筑和各种通道，步骤是专为主要客户进商场。
It has a span of 50 meters and a height of 35 meters. It is supported by three groups of huge steel arches. It is composed of 1900 metal plates and 3200 glass plates enclosed by curves. It is magnificent,. Functionally, it not only ensures good natural ventilation and lighting, provides an environment for tourists to relax and shade, but also creates an ideal semi-outdoor commercial entrance space atmosphere. The main entrance square is the main traffic diversion and public activity area. In order to encourage pollution-free transportation, pedestrian walkways are specially designed to establish the connection between streets and buildings, and a variety of passages and steps are designed to guide users to the business center. The design inspiration comes from the dried Begonia Bay flower. The shopping center has been connected with the symbol of the interior space of Sanva. The roof gap is covered on it to maximize natural lighting. The huge entrance is in the north, the south side of the bridge and the large free-form roof help link the two buildings as an organic whole. The building, organically shaped, embraces the entrance of the website directly at the north and south seashore of the 50-meter public axis in the center. The shopping center will be divided into two parts and connected with each other by a huge entrance, namely the starting point of the independent building landscape axis. The front door of the person who wrote 1900 metal plate and 3200 glass is a large span covering more than 50 meters and 35 meters high, supporting the forgery of the large steel arches.It system to ensure that the natural light is met, providing a sunshade shelter for tourists and creating a semi-commercial activity-open environment. The main gate is connected with the local public welfare activities. The walkway connects the city streets and buildings and various channels. The step is to enter the mall for the main customers.

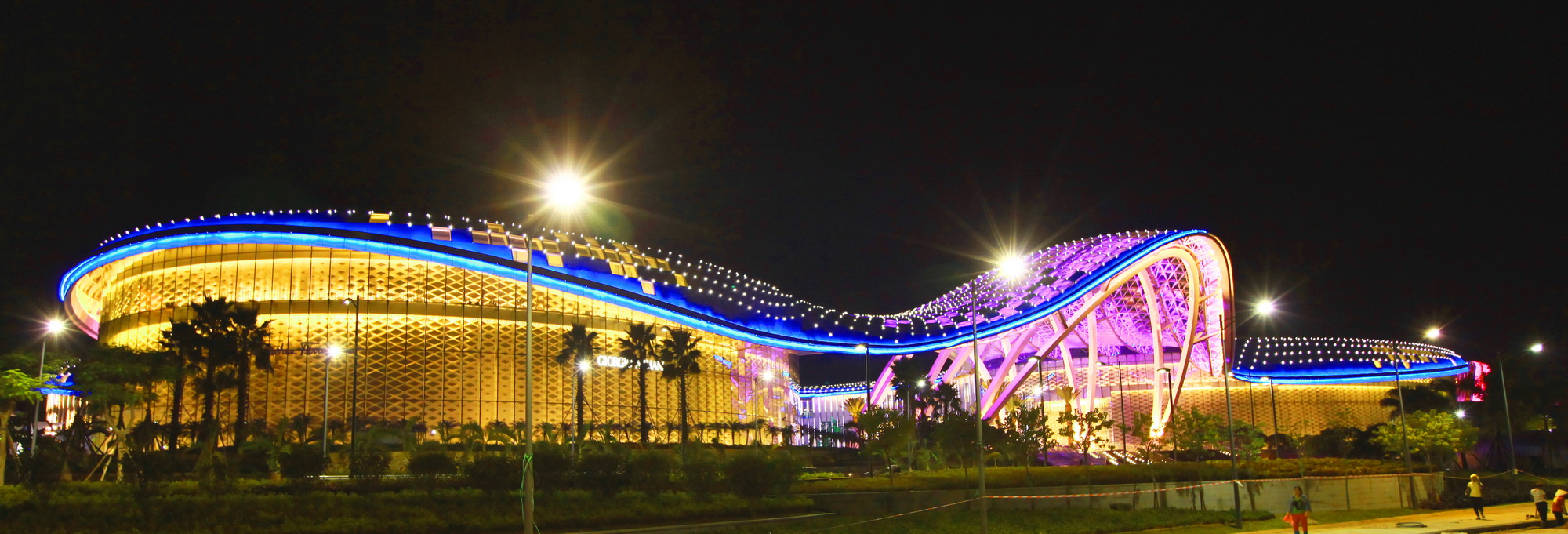

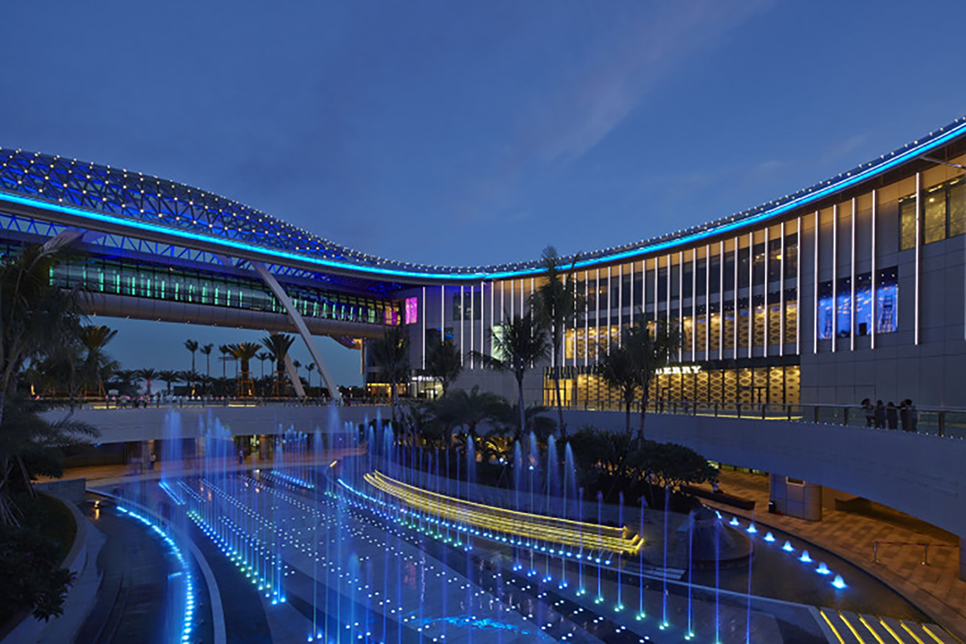

两座建筑分别围绕下沉式中心庭院，庭院装饰水景和绿植、中心设置T台口用于展览。庭院周围的店铺也全部采用通透的玻璃幕墙，并可对外直接开门以便活跃商业氛围。位于建筑南侧的连廊适于观景。向南可以远眺海景，向北可以欣赏下沉庭院的景观，具有承上启下的作用。巨大的自由体屋面由玻璃及金属板组成，覆盖两座建筑，轻盈飘逸，造型独特的裙边勾勒出建筑流畅的轮廓，也为购物者提供良好的舒适遮光环境。主入口两侧外立面均采用通透的超白玻璃，以提升奢华品牌的店面档次及可视度。内层为通用立面，取意于深海中的银色鱼群，在此基础上各品牌分别设立自己的标识。这样既保证了建筑的整体形象，又不失各品牌的个性化展现。考虑到建筑的地理环境，南部紫外线照射强烈，建筑师采用了金属板与玻璃板相结合的方式从东西两侧逐渐过度到南侧。为保证立面完整性，采用穿孔铝板，铝板图案为飘曳翩翩的云朵。建筑。内四个中庭各被赋予独特主题，由 4个形态各异的壳型钢结构构成。根据采光特点由彩釉玻璃及普通玻璃组合而成，不仅引入自然元素为消费者提供海南特有的明媚光源，更能引导顾客在庞大的购物中心消费、购物:下沉式采光井内设计有热带绿植和水景，不仅吸引顾客、提供放松休闲的场所，更提升了整体空间的商业价值。两栋楼拥抱他们的中心下沉式庭院不同层次，一体化的景观和水景。T 型台上，中间是展示和商业演出。在围绕中心广场的商店都设计有透明的玻璃幕墙，以动画和激活商业氛围。大桥南被视为景观观景廊。人站立在桥上可以欣赏到海景向南和景观精心设计的庭院。在自由形式的屋顶已经被模拟为玻璃和节奏的有机表面铝合金面板类似的海棠花。主要建筑立面所面临的城市街道，并以提供在前面的知名度最高的旗舰店，它一直使用设计的超透明玻璃和全玻璃结构体系。通用门面放在楼内皮肤条子鱼群体深海的设计理念。在设计原则上，每个品牌则以自己的标志门面遍布建筑物individualization.The 其余部分是玻璃组成的面板展示，铝面板，太阳 protection.For必要的通风的地方，设计师把穿孔铝板伴飞的云模式。在内部空间的购物中心已经使用特点是大型专题内法院的序列设计的玻璃自由形式roof.They 中央空隙和覆盖在上面，不仅有利于引入自然光，也为指导导致客户流连inside.Tropical 植物和水景并入漏斗通过提供一种用于休闲的空间，以吸引顾客并休息以及升华的空间质量。
The two buildings are surrounded by a sunken central courtyard, which is decorated with waterscape and green plants, and the center is equipped with a T platform for exhibition. The shops around the courtyard also use transparent glass curtain walls, and can open directly to the outside to activate the business atmosphere. The corridor on the south side of the building is suitable for viewing. To the south, you can overlook the seascape, and to the north, you can enjoy the landscape of the sunken courtyard, which plays a connecting role. The huge free-body roof is composed of glass and metal plates, covering two buildings. It is light and elegant. The unique skirt outlines the smooth outline of the building, and also provides a good comfortable shading environment for shoppers. The exterior facades on both sides of the main entrance are made of transparent ultra-white glass to improve the level and visibility of luxury brands. The inner layer is a general facade, which is taken from the silver fish in the deep sea. On this basis, each brand has its own logo. This not only ensures the overall image of the building, but also does not lose the personalized display of each brand. Considering the geographical environment of the building and the strong ultraviolet radiation in the south, the architect adopted a combination of metal plates and glass plates to gradually transition from the east and west to the south. In order to ensure the integrity of the facade, perforated aluminum plates are used, and the patterns of the aluminum plates are fluttering clouds. Architecture. Each of the four atriums is given a unique theme, which is composed of four shell steel structures with different shapes. According to the lighting characteristics, it is composed of colored glazed glass and ordinary glass. It not only introduces natural elements to provide consumers with the unique bright light source of Hainan, but also guides customers to consume and shop in the huge shopping center. The sunken lighting well is designed with tropical green plants and waterscape, which not only attracts customers, provides a place for relaxation and leisure, but also improves the commercial value of the overall space. The two buildings embrace their central sunken courtyard with different levels, integrated landscape and waterscape. On the catwalk, there are exhibitions and commercial performances in the middle. The shops around the central square are designed with transparent glass curtain walls to animate and activate the business atmosphere. The south of the bridge is regarded as a landscape corridor. People standing on the bridge can enjoy the sea view facing south and the carefully designed courtyard. The free-form roof has been simulated as a glass and rhythmic organic surface aluminum alloy panel similar to the begonia flower. The main building facade faces the city street, and provides the most famous flagship store in front. It has always used the designed ultra-transparent glass and all-glass structural system. The design concept that the general facade is placed in the deep sea of the skin sliver fish group in the building. In terms of design principles, each brand has its own logo to cover the buildings with individualization. The rest of the building is a glass panel display, aluminum panel, solar protection. For the necessary ventilation, the designer will fly the perforated aluminum panel with the cloud mode. The shopping center in the interior space has been characterized by the use of the glass free form of the sequence design of the court in the large theme room. The central space and the cover are not only conducive to the introduction of natural light, but also for the guidance of customers to linger inside. Tropical plants and waterscape are integrated into the funnel by providing a space for leisure to attract customers and rest and sublimate the quality of space.
【采光顶防水设计】
采光顶的防水设计遵循“保证功能、构造合理、防排结合、优选用材”的原则，综合运用“导”、“堵”等措施，一方面利用采光屋面系统的坡度，将雨水快速排除；另一方面利用耐候密封胶对玻璃面板间的缝隙进行封堵。
[Waterproof design of daylighting roof]
The waterproof design of the daylighting roof follows the principle of "ensuring function, reasonable structure, combination of prevention and drainage, and optimization of materials", and comprehensively uses "guiding", "blocking" and other measures. On the one hand, the slope of the daylighting roof system is used to quickly drain rainwater; On the other hand, weatherproof sealant is used to seal the gap between glass panels.
合理的排水设计
本工程屋面为起伏较大的空间屋面，屋面自身形成的排水坡度较大（采光顶边部最小排水坡度设定为3%），且周边相对较低，水在重力作用下往屋面周边排，在周边设置裙边，裙边内设置排水沟，将屋面汇水排出；漏斗采光顶的底部同样设置排水沟，将漏斗采光顶汇水排出。具体操作时，为了保证屋面汇水以最快的速度排出，还需按“距离最短、最有效、最清晰”的原则对屋面进行排水区域划分。
Reasonable drainage design
The roof of this project is a large undulating space roof, the drainage slope formed by the roof itself is relatively large (the minimum drainage slope at the edge of the daylighting top is set to 3%), and the surrounding area is relatively low. The water is drained to the surrounding area of the roof under the action of gravity, and the skirt is set around, and the drainage ditch is set inside the skirt to drain the roof water; A drainage ditch is also set at the bottom of the funnel daylighting roof to drain the water from the funnel daylighting roof. During the specific operation, in order to ensure that the roof catchment is discharged at the fastest speed, the roof drainage area shall be divided according to the principle of "the shortest distance, the most effective and the clearest".
合理的排水设计，Reasonable drainage design

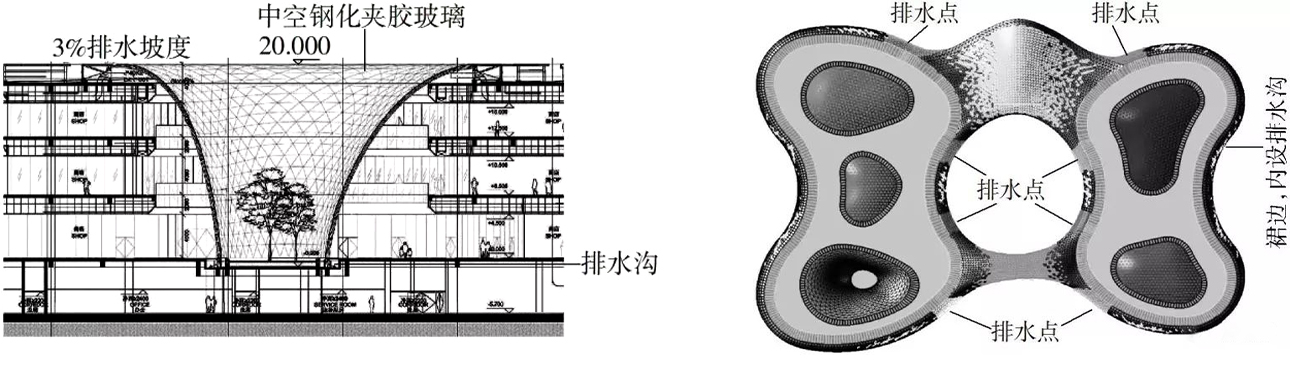

▼漏斗采光顶排水设计，Drainage design of funnel lighting roof | 屋面裙边及排水点的布置，layout of roof skirt and drainage points
防水密封设计
本项目采光顶的防水密封设计主要是玻璃板块间的接缝密封，选用的材料为具有25级位移能力的硅酮耐候密封胶，接缝宽度为16 mm，选材原则是：保证密封胶处于拉伸或压缩状态时，仍能保持粘结性不受破坏，并具有较好的弹性回复率。
Waterproof sealing design
The waterproof and sealing design of the daylighting roof of the project is mainly the joint sealing between the glass plates. The selected material is silicone weatherproof sealant with 25 levels of displacement capacity, and the joint width is 16 mm. The principle of material selection is to ensure that the sealant can maintain the adhesion without damage when it is in the tensile or compressive state, and has a good elastic recovery rate.
防水密封设计，Waterproof and sealing design

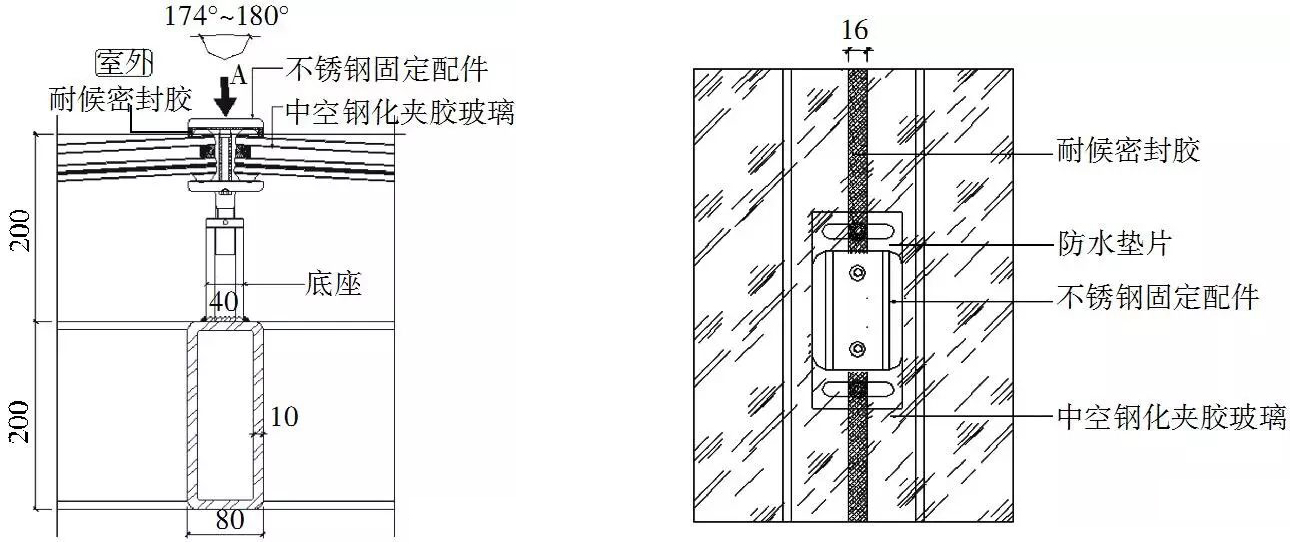

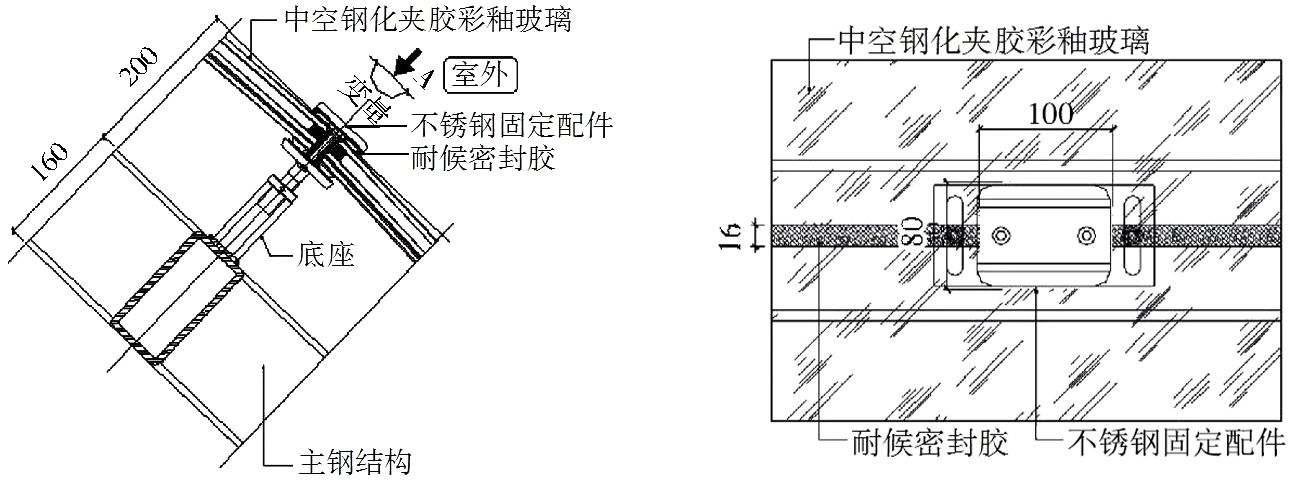

▼采光穹顶节点，Daylighting dome node | 采光穹顶A向视图，Daylighting dome A view
▼漏斗采光顶节点，Funnel lighting top node | 漏斗采光顶A向视图，Funnel lighting top A view
对于最容易出现渗漏的不锈钢固定配件处，先在下层加设防水垫片进行加强处理，再对四周采用硅酮耐候密封胶全密封。
For the stainless steel fixed fittings that are most prone to leakage, the waterproof gasket shall be added at the lower layer for strengthening treatment, and then the silicone weatherproof sealant shall be used to seal all around.
【施工要点】
要保证采光顶的防水效果，除了进行合理的防排水设计外，还应严格控制现场施工质量。
[Key points of construction]
To ensure the waterproof effect of the daylighting roof, in addition to the reasonable waterproof and drainage design, the site construction quality should also be strictly controlled.
屋面平整度控制
采光顶屋面系统采用单层网壳支承结构，玻璃面板直接通过点式固定系统固定在单层网壳结构上，实现了玻璃面板与网壳结构之间的三维安装调节需要，进而保证了整个屋面系统平整度。
Roof flatness control
The daylighting roof system adopts the single-layer reticulated shell supporting structure, and the glass panel is directly fixed on the single-layer reticulated shell structure through the point-type fixing system, which realizes the three-dimensional installation and adjustment between the glass panel and the reticulated shell structure, thus ensuring the flatness of the entire roof system.
采光屋面系统的安装
采光穹顶和漏斗采光顶安装时，都应注意将中空玻璃的夹层面置于下表面，即使夹层玻璃破碎，也不致于形成玻璃碎片雨。
Installation of daylighting roof system
When installing the daylighting dome and funnel daylighting dome, attention should be paid to placing the interlayer surface of the insulating glass on the lower surface. Even if the interlayer glass is broken, it will not form a rain of glass fragments.
接缝密封的施工
注胶工作不能在风雨天进行，注胶面要求干净，无水、油渍、铁锈、砂浆、灰尘等；注胶面净化完成后，10~15 min内进行注胶；胶缝要求外观光滑，无扭曲变形，胶缝表面无裂纹、无杂质、无明显缺陷，无三面粘接现象。
Construction of joint sealing
The glue injection shall not be carried out in rainy days. The glue injection surface shall be clean without water, oil, rust, mortar, dust, etc; After the glue injection surface is cleaned, the glue injection shall be carried out within 10-15 minutes; The adhesive joint shall be smooth in appearance, free from distortion and deformation, and the surface of the adhesive joint shall be free from cracks, impurities, obvious defects and three-sided bonding.
三亚海棠湾国际购物中心采光屋面项目于2011年开工，2014年9月1日投入运营，项目建成以来经历了多次暴雨和台风考验，未发生过渗漏现象。
The daylighting roof project of Haitang Bay International Shopping Center in Sanya was started in 2011 and put into operation on September 1, 2014. Since its completion, the project has experienced many storms and typhoons, without leakage.
项目名称：国旅海棠湾国际购物中心
作品类型：建筑设计
图片类型：设计方案
所在地区：中国海南三亚
Project name: CITS Haitang Bay International Shopping Center
Work type: architectural design
Picture type: design scheme
Location: Sanya, Hainan, China
