承德云山酒店室内改造概念方案，承德/室内

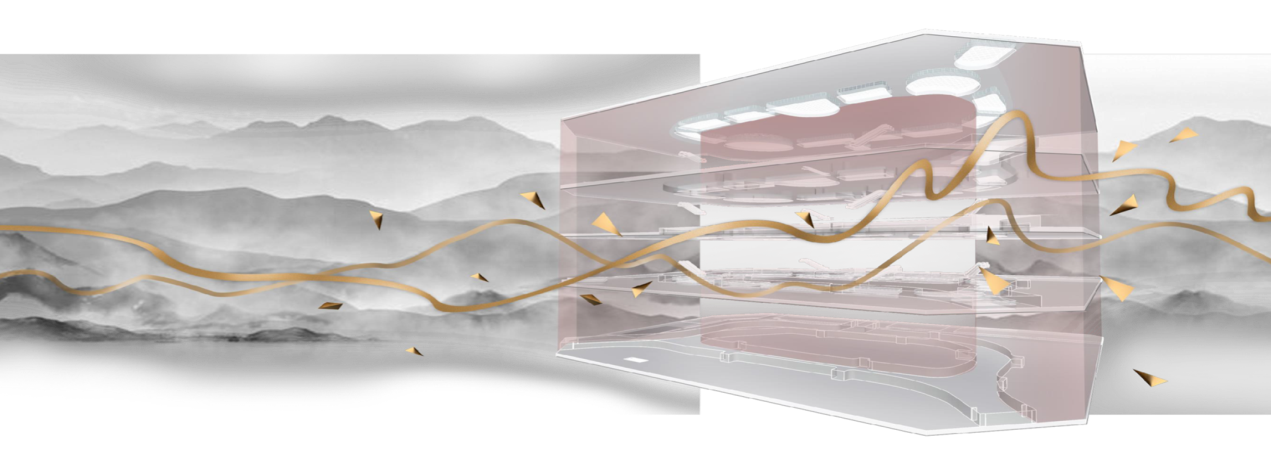

设计概念
亦是酒店之城，亦是承德之景
结合承德当地特色，融入山水理念，刚柔并济，景城交错
Design concept
It is also a shopping city, and also a sight of Yongkang
Combining the characteristics of Yongkang hardware, integrating the metal texture, enriching the space level
01
项目分析与定位
PROJECT ANALYSIS AND POSITIONING

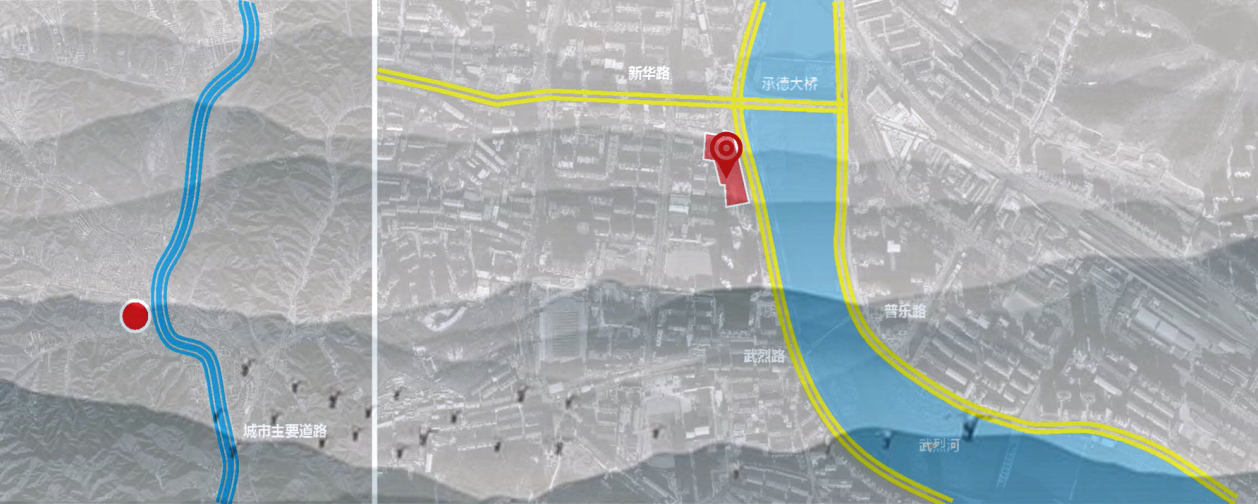

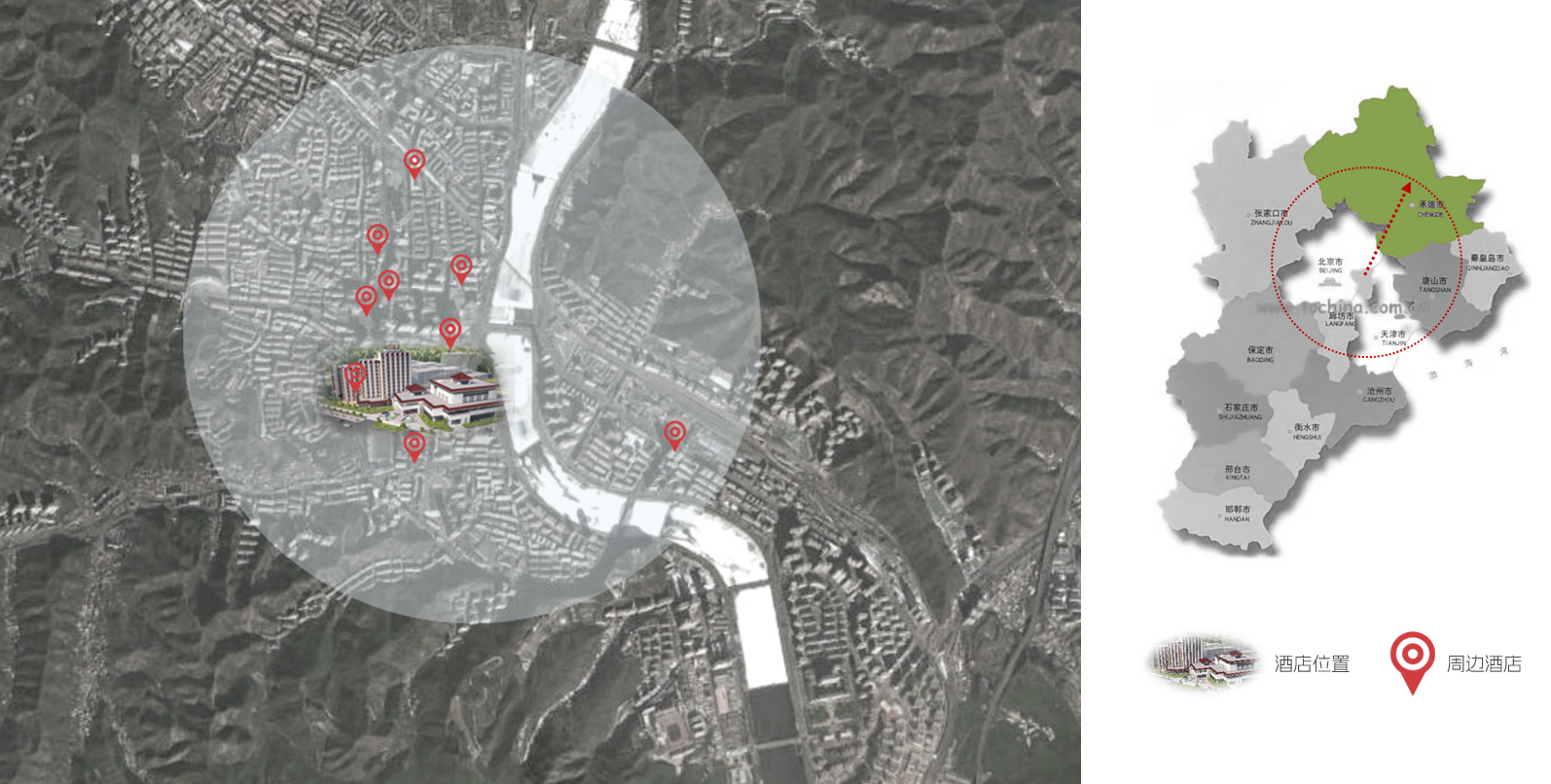

▼项目位置，Project location
竞品分析
项目周边主要以住宅和酒店为主，酒店标准以快捷酒店为主，因此在本酒店标准以及服务客群上需明确的定位。利用现有位置的优势，如何做到周边以及承德市标杆型酒店，并且作为城市武烈河岸的景观存在。作为北京周边最近的避暑胜地，针对客群考虑打造品质型酒店。
Competitive analysis
The surrounding areas of the project are mainly residential and hotel areas, with hotel standards mainly focused on express hotels. Therefore, a clear positioning is needed in terms of hotel standards and service customer groups. How to make use of the advantages of the existing location to become a benchmark hotel in the surrounding area and Chengde City, and to exist as a landscape on the banks of the Wulie River in the city. As the nearest summer resort around Beijing, we are considering creating a quality hotel for our customer base.

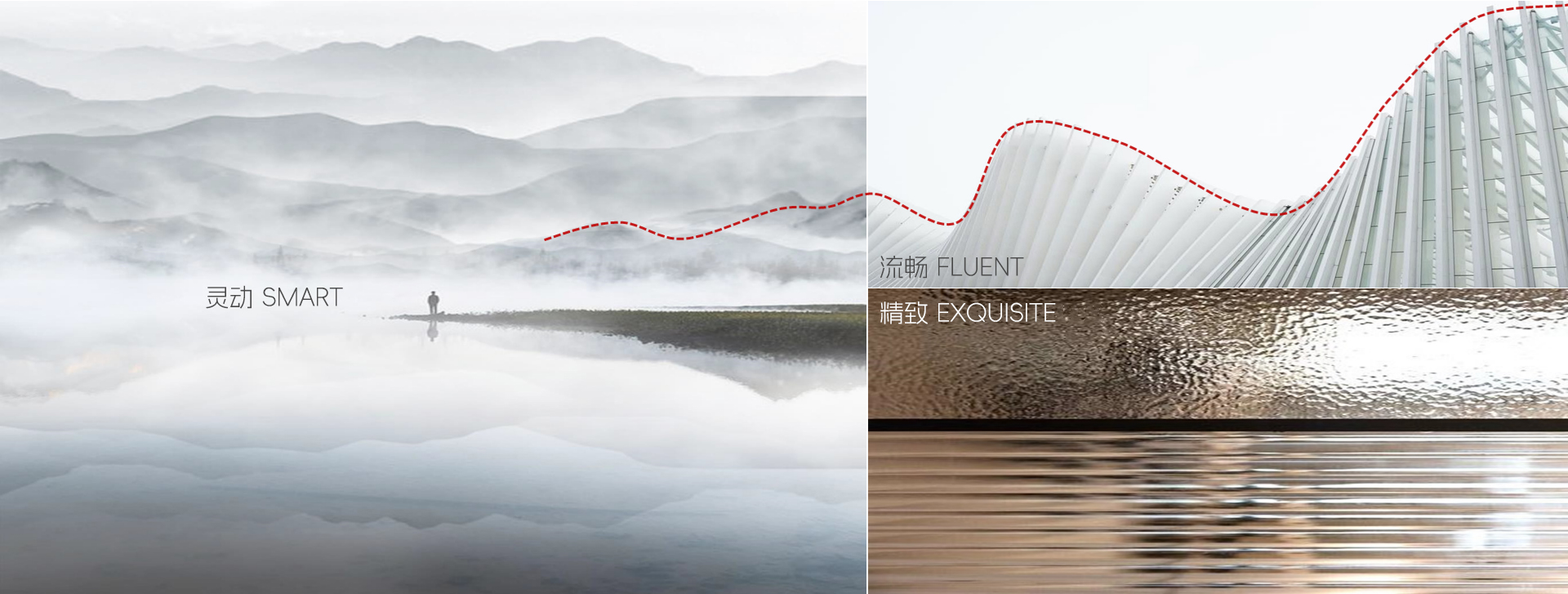

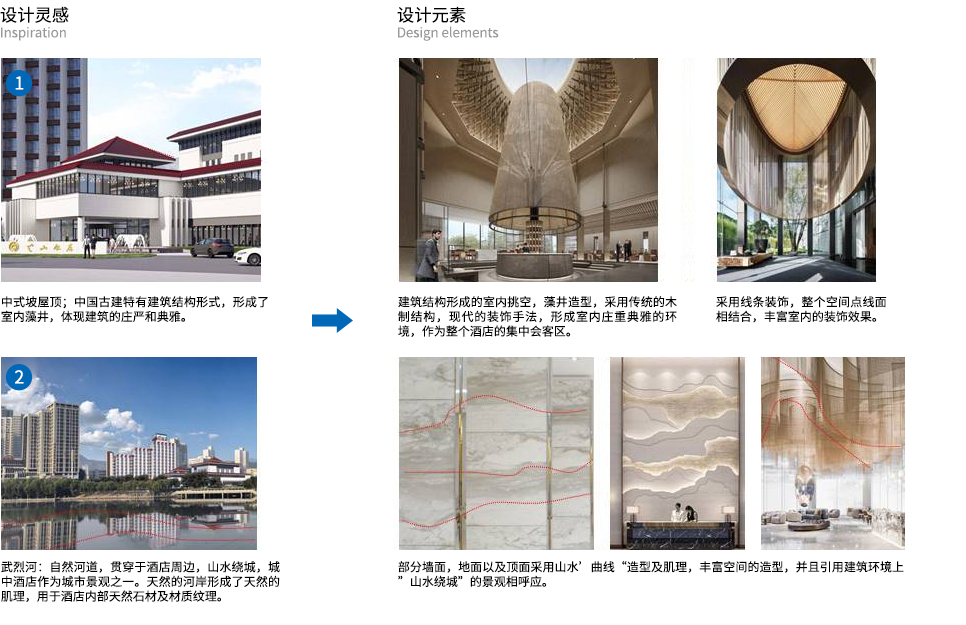

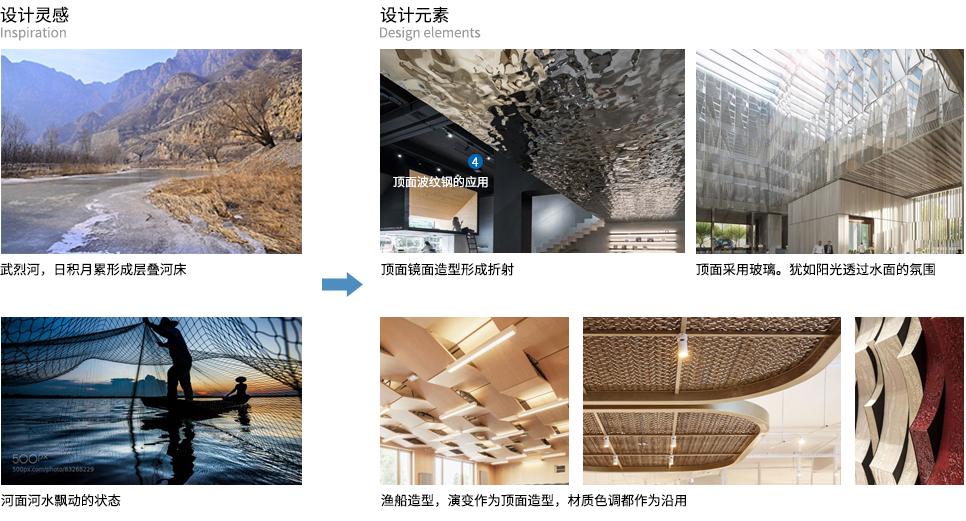

设计元素
延续山的流畅，水的自然灵动，水墨的精致
淡彩水墨 + 香槟色 为主基调，主题色彩为香槟色，主题元素为曲线，贯穿空间，突出环绕与柔美理念
Design element
Continue the smoothness of the mountain, the natural agility of the water, the refinement of the metal
The main tone is light colored ink and champagne, with the theme color being champagne. The theme elements are curves that run through the space, highlighting the concept of surround and softness

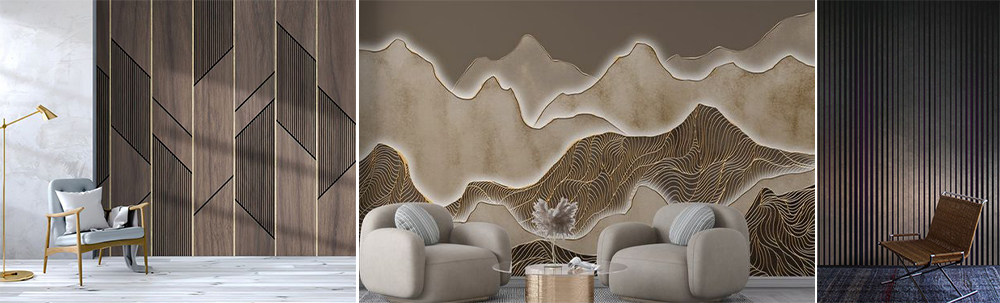

▼主要材质，Main materials
02
平面及空间功能划分
PLANE AND SPACE FUNCTION DIVISION

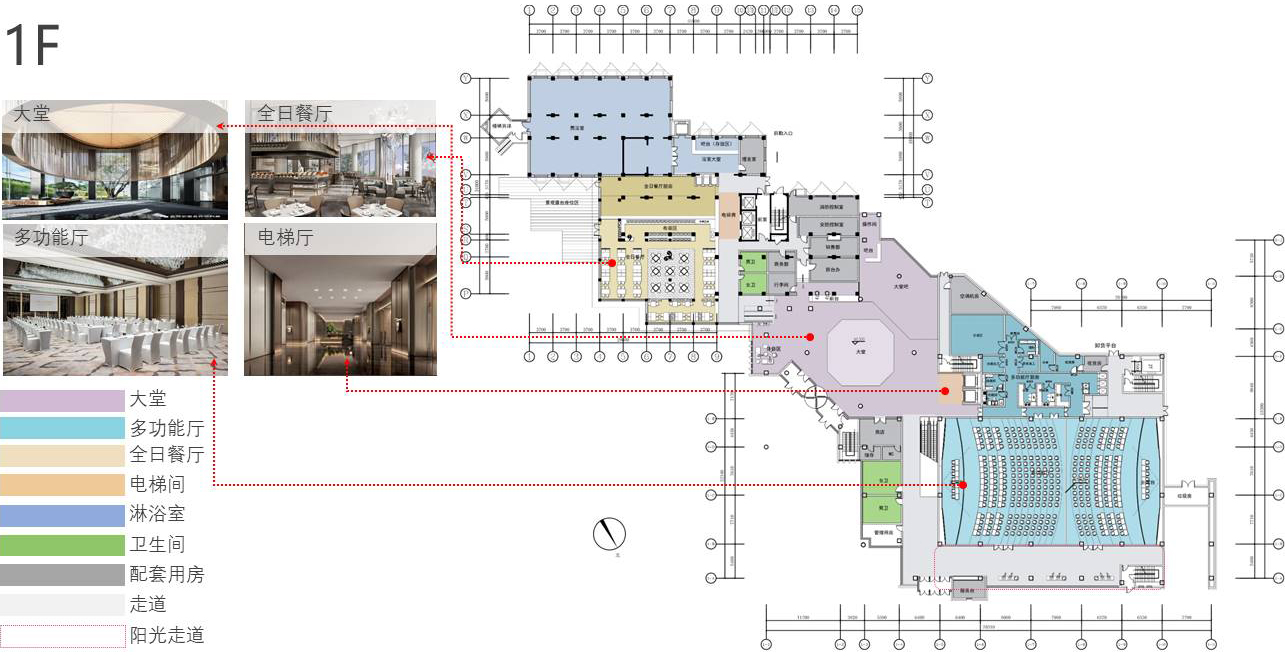

▼平面划分，Planar division
03
主空间设计
MAIN SPACE DESIGN
云·聚
BRIGHT SPOT
空间功能：主入口、大堂、首层电梯厅
Space functions: main entrance, lobby, first floor elevator hall

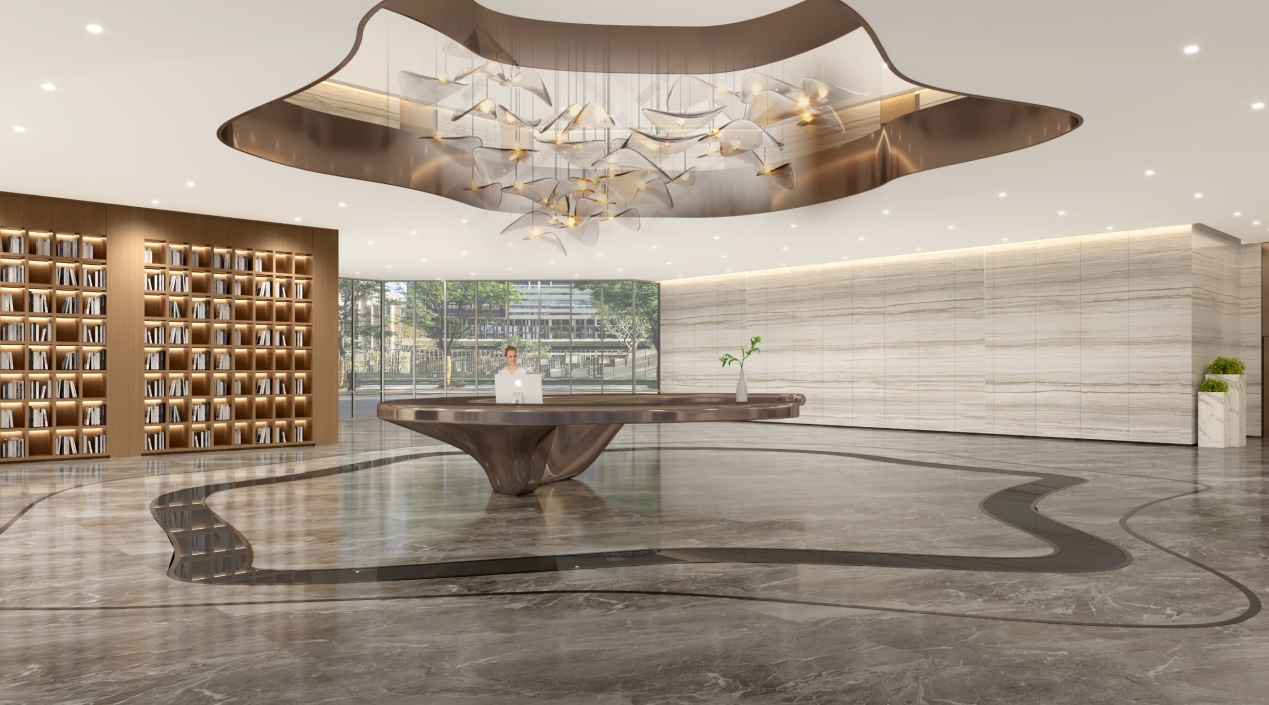

▼大堂（效果图）角度一，Lobby (rendering) angle one

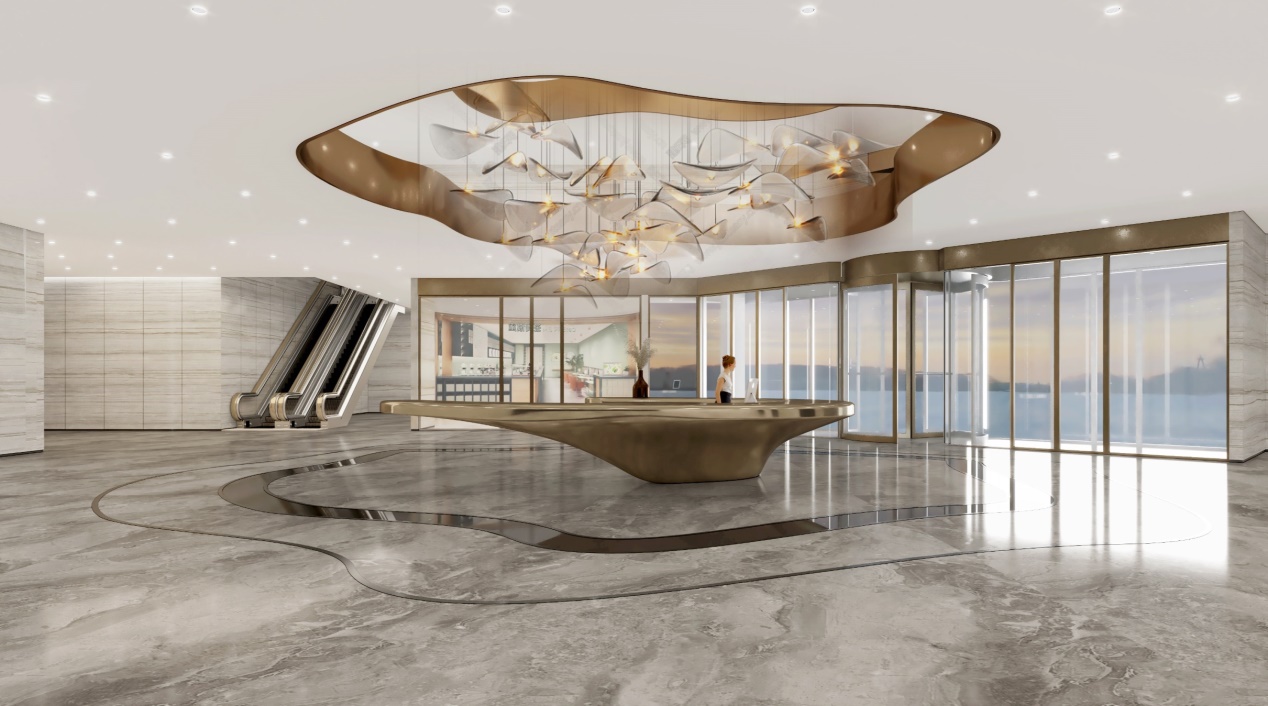

▼大堂（效果图）角度二，Lobby (rendering) angle two

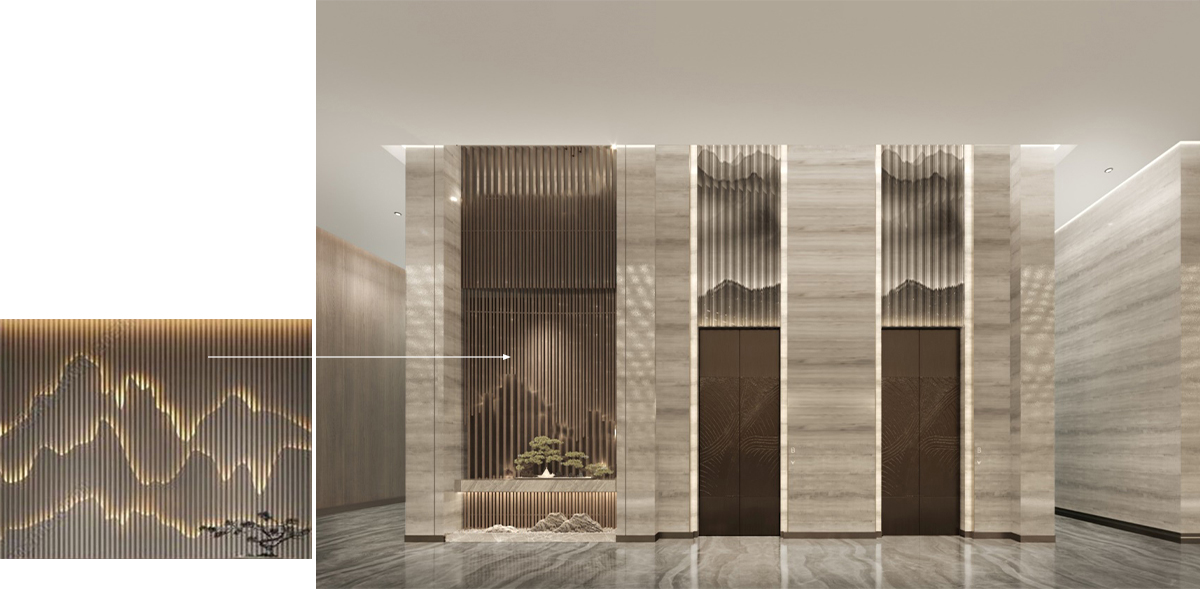

▼首层电梯厅方案（立面效果图），First floor elevator hall plan (facade rendering)
顶面通过山水绕城概念中“远山” 进行简化，应用到电梯间立面及配景，星点光源作为点缀，“远山之朦胧，璀璨之烟火“整个空间虚实结合。
The top surface is simplified through the concept of "distant mountains" in the landscape surrounding the city, applied to the elevator room facade and scenery, with star point light sources as embellishments. The entire space is a combination of reality and virtuality, with the hazy of distant mountains and dazzling fireworks.

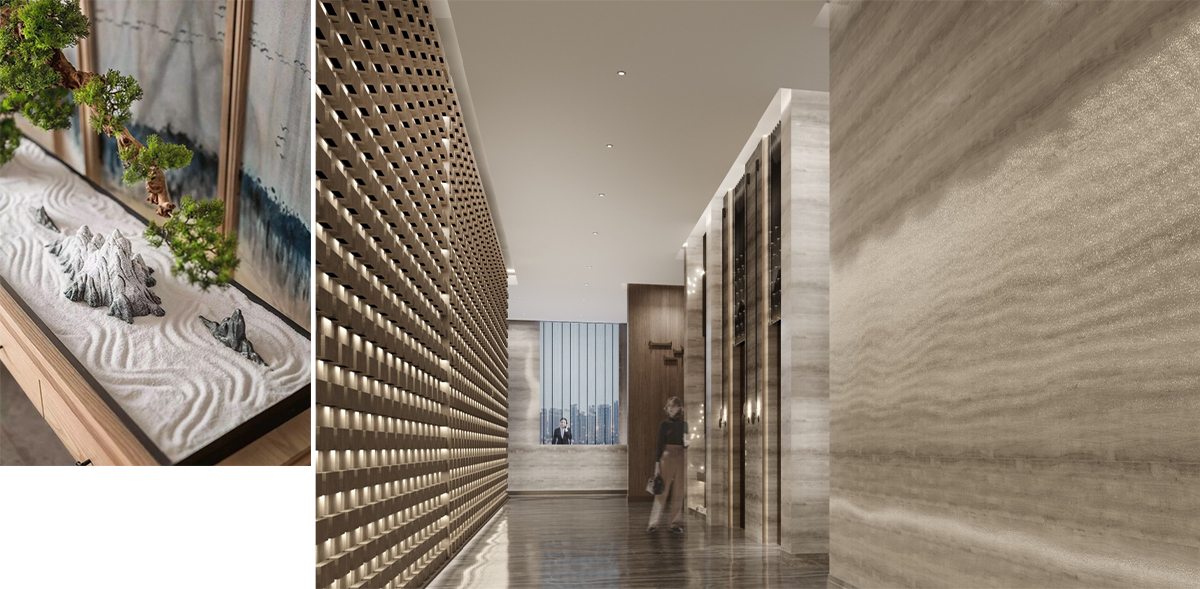

▼首层电梯厅（效果图），First floor elevator hall (rendering)
利用柱体之间的基础结构，配景选用小型“枯山水”，与空间元素进行呼应。
By utilizing the foundation structure between the columns, a small "dry mountain and water" landscape is selected to complement the spatial elements.
悦·聚
BRIGHT SPOT
空间功能：宴会厅、多功能厅、会议室
Space function: banquet hall, multi-functional hall, conference room
▼多功能厅（效果图），Multi function hall (renderings)

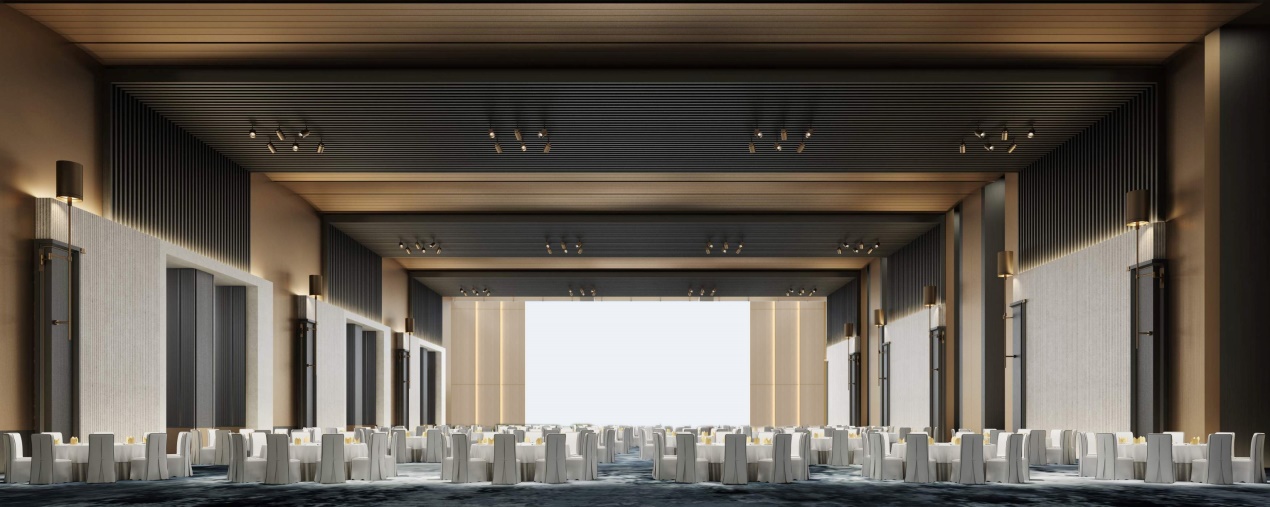

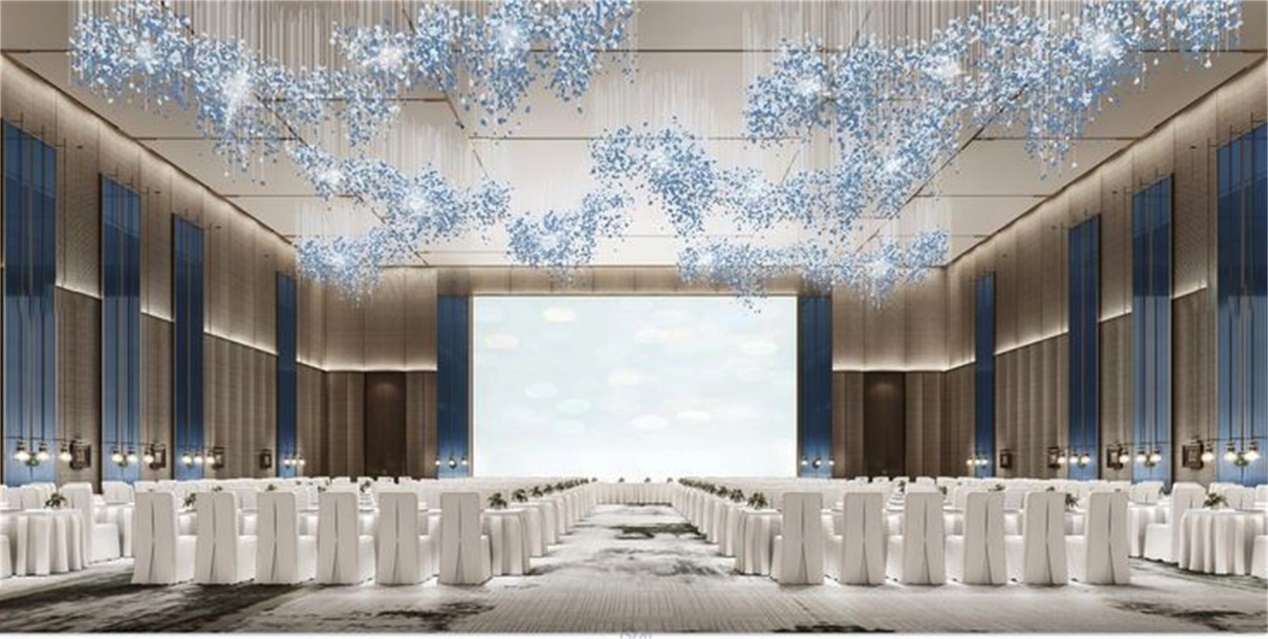

▼宴会厅（效果图），Banquet hall (renderings)

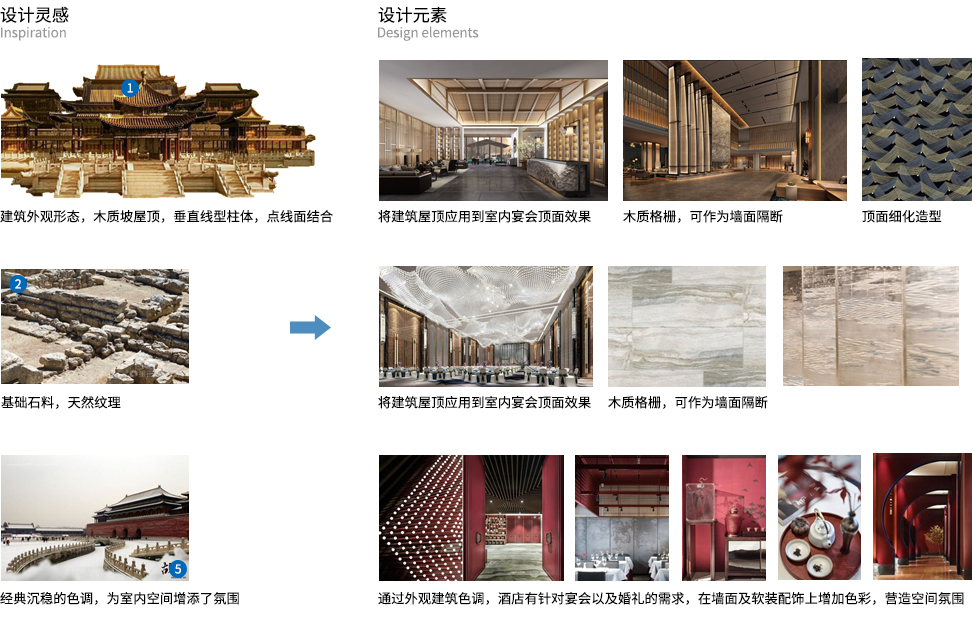

顶面通过山水绕城概念中“城中之景”“屋顶造型“进行简化，应用到空间顶面，视觉上提高空间层高。
The top surface is simplified by "landscape in the city" and "roof shape" in the concept of landscape around the city, and applied to the top surface of the space to visually improve the height of the space.
▼中式婚宴概念应用，Application of Chinese wedding banquet concept

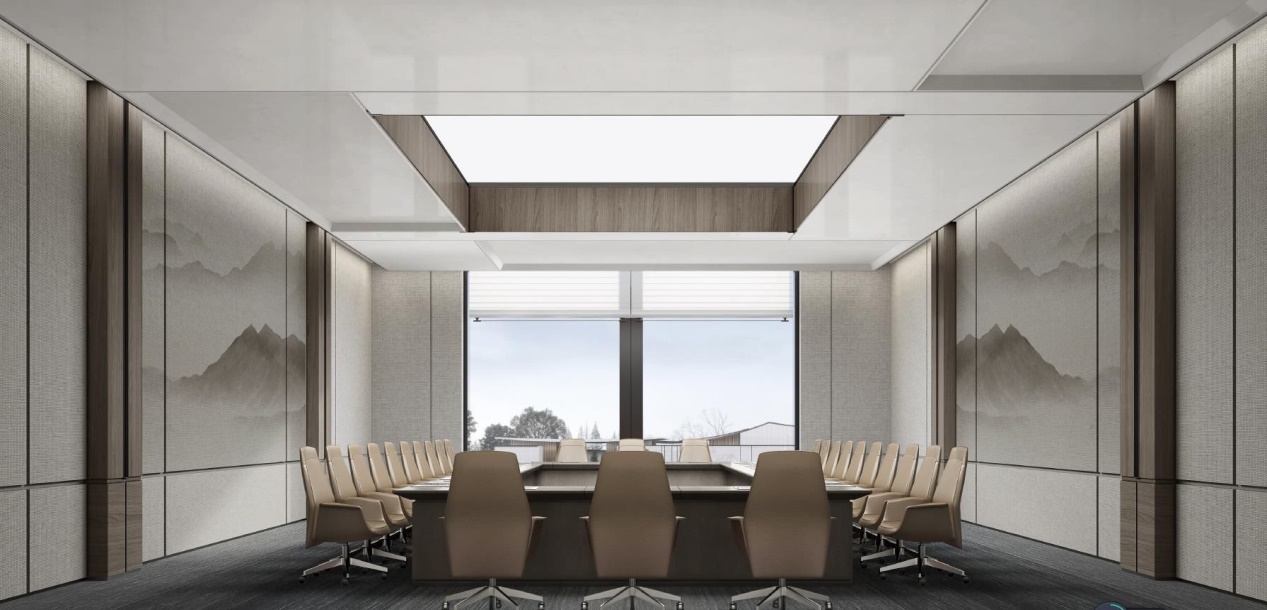

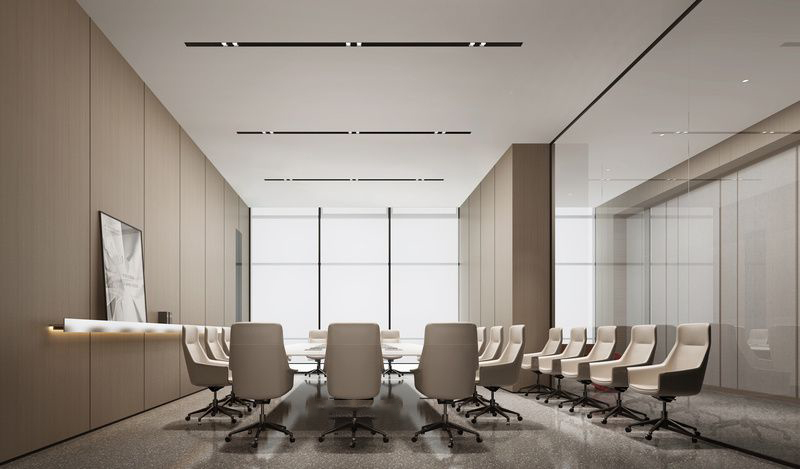

▼中会议室（效果图），Medium meeting room (renderings)
▼小会议室（效果图），Small meeting room (renderings)
跃·动
BRIGHT SPOT
空间功能：餐饮、包房
Space function: Catering and private room

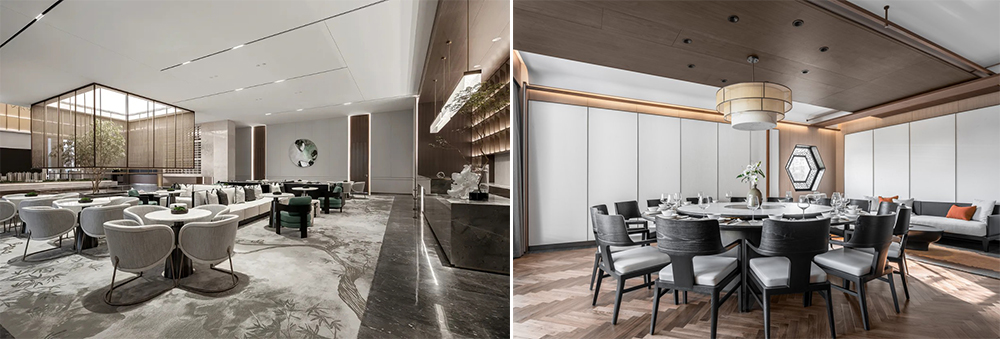

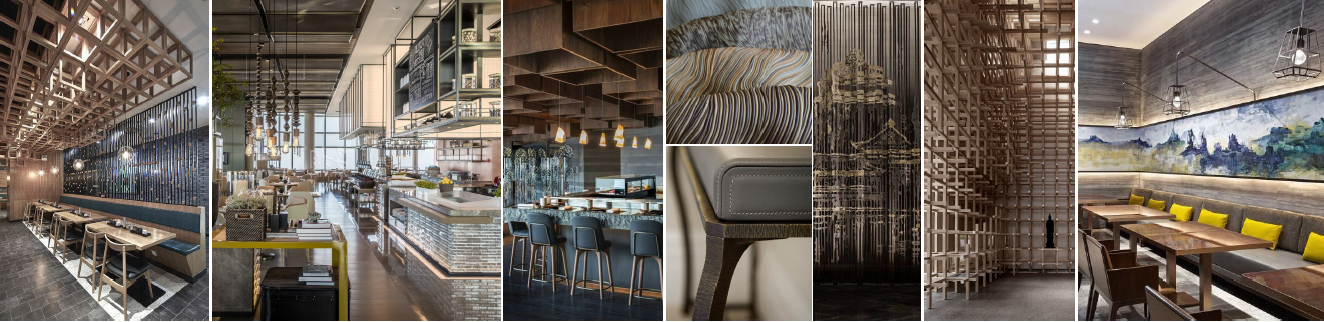

▼全日制餐厅概念应用，Application of full time restaurant concept

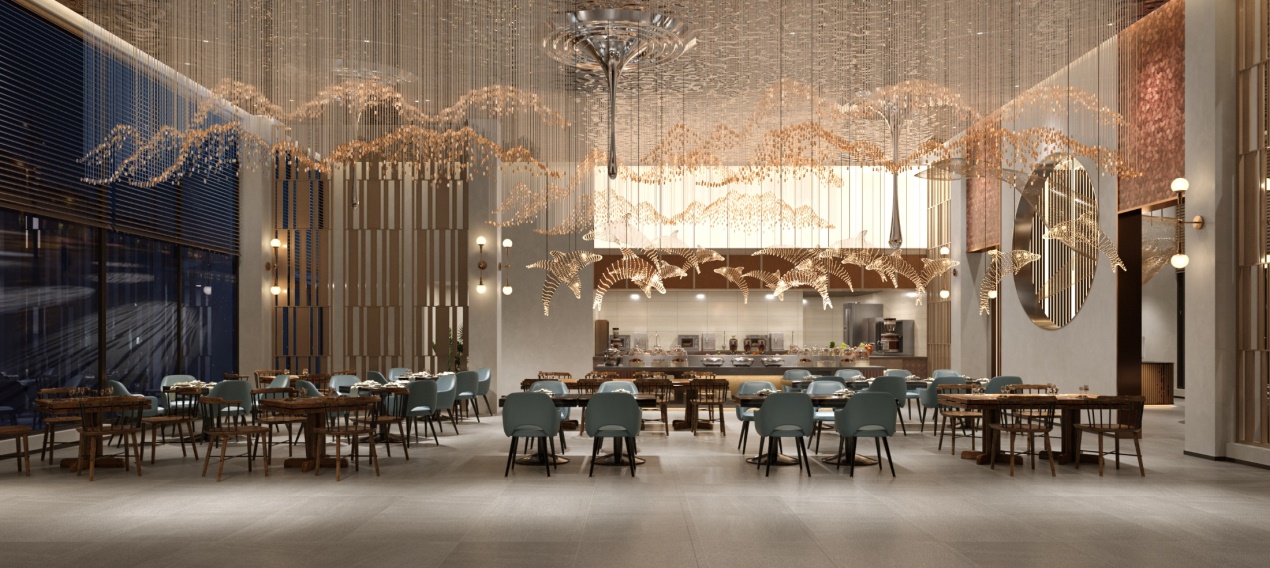

▼全日餐厅（效果图），All day restaurant (renderings)

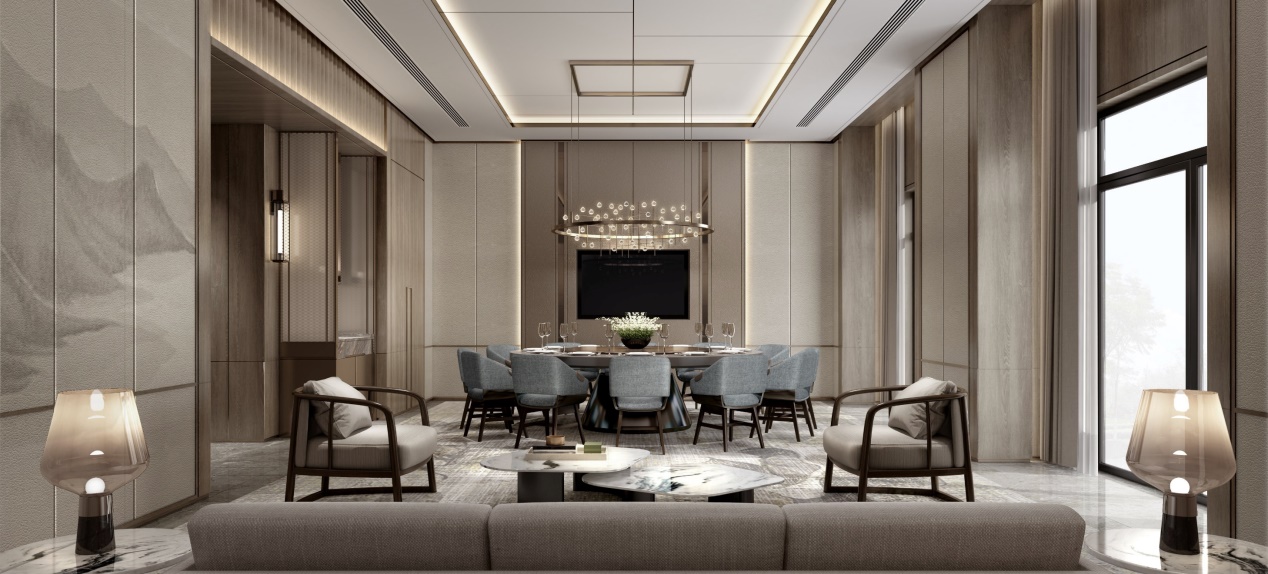

▼中包房（效果图），Private room (renderings)
▼小包房(效果图)，Small private room (renderings)
04
设计工艺及材料
DESIGN PROCESS AND MATERIAL
设计中新科技/ 新工艺/ 新材料的应用（市场中主要集成速装材料分类与说明）
Application of new technology/new process/new materials in design (classification and description of main integrated quick loading materials in the market)
1.竹木纤维集成墙面
以竹粉、木粉、钙粉、PVC料等为原料通过高分子界面化学原理和塑料填充改性的特点，采用挤压工艺制造而成，可以根据需要对产品的色彩、尺寸、形状进行控制，实现按需定制，代替实木最大程度降低使用成本，节约森林资源。墙面采用外置中空的结构，达到隔音防潮的作用。
1. bamboo wood fiber integrated wall
It is made of bamboo powder, wood powder, calcium powder, PVC material and other raw materials by extrusion process based on the principle of polymer interface chemistry and the characteristics of plastic filling modification. It can control the color, size and shape of products according to needs, realize customization on demand, replace solid wood, reduce the use cost to the greatest extent, and save forest resources. The wall adopts an external hollow structure to achieve the effect of sound insulation and moisture resistance.
2.铝合金集成墙面
铝合金环保节能保温板是铝合金集成墙面的前身。直到2009年集成墙面概念的提出，铝合金节能保温板才改名为铝合金集成墙面，开启了墙面的集成化装修时代。铝合金集成墙面以铝合金为基材，与聚氨酯隔音发泡材料，防潮防蛀铝箔层压制而成。铝合金集成墙面中的聚氨酯隔音发泡层不仅绝热效果好，具有隔音，耐寒耐热，电绝缘等优点之外，而且质量又轻，属于轻质材料，因此可以被运用在天花板上，实现利用集成墙面打造顶墙一体。
2. aluminum alloy integrated wall
Aluminum alloy environmental protection and energy saving insulation board is the predecessor of aluminum alloy integrated wall. Until the concept of integrated wall was put forward in 2009, the aluminum alloy energy-saving insulation board was renamed as aluminum alloy integrated wall, opening the era of integrated decoration of the wall. The aluminum alloy integrated wall is made of aluminum alloy as the base material, polyurethane sound insulation foam material, moisture-proof and mothproof aluminum foil layer. The polyurethane sound insulation foam layer in the aluminum alloy integrated wall has not only good heat insulation effect, sound insulation, cold and heat resistance, electrical insulation and other advantages, but also light weight and belongs to light material, so it can be used on the ceiling to achieve the integration of the top wall with the integrated wall.
3.生态铝集成墙面
与竹木纤维集成墙面一样采用外置中空的结构，但是其采用纯铝制成，质地坚硬但是质量过重，与作为轻质材料的铝合金不同，并不适于应用在天花板上。
3. ecological aluminum integrated wall
The exterior hollow structure is the same as the bamboo wood fiber integrated wall, but it is made of pure aluminum, which is hard but too heavy. Unlike the aluminum alloy as a lightweight material, it is not suitable for application on the ceiling.
4.高分子集成墙面
以高分子化合物为基础材料，加入增强纤维，应用高科技工艺高温脱模处理，具有高致密性及超强抗腐性，防变形，不褪色，不发霉等优越性能。
4. polymer integrated wall
Based on polymer compound, reinforced fiber is added, and high-tech technology is applied to demould at high temperature. It has high compactness, super corrosion resistance, deformation resistance, color fastness, mildew resistance and other superior properties.
5.生态石材集成墙面
采用天然大理石石粉加入食品级树脂材料共挤形成，平整度高，硬度高，柔韧性佳。
5. ecological stone integrated wall
It is formed by CO extrusion of natural marble powder and food grade resin material, with high flatness, high hardness and good flexibility.

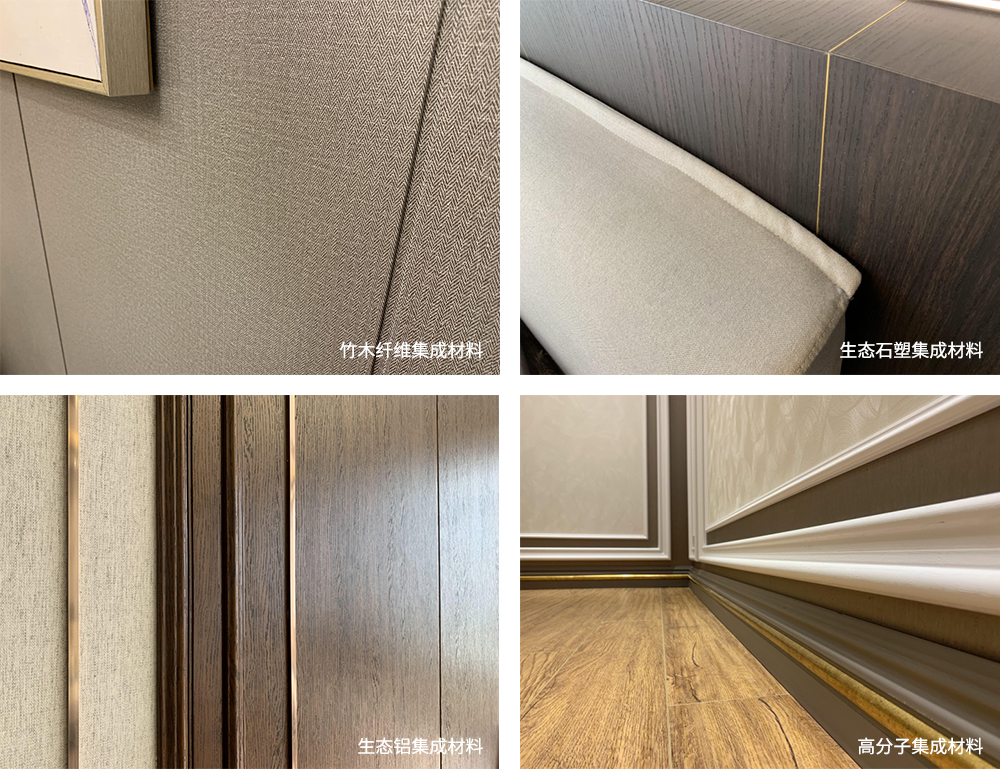

1.竹木纤维集成材料
以竹粉、木粉、钙粉、PVC料等为原料通过高分子界面化学原理和塑料填充改性的特点，采用挤压工艺制造而成，可以根据需要对产品的色彩、尺寸、形状进行控制，实现按需定制，代替实木最大程度降低使用成本，节约森林资源。墙面采用外置中空的结构，达到隔音防潮的作用。主要应用于宿舍的墙面及接待室，营造温馨的氛围。
1. bamboo wood fiber integrated materials
It is made of bamboo powder, wood powder, calcium powder, PVC material and other raw materials by extrusion process based on the principle of polymer interface chemistry and the characteristics of plastic filling modification. It can control the color, size and shape of products according to needs, realize customization on demand, replace solid wood, reduce the use cost to the greatest extent, and save forest resources. The wall adopts an external hollow structure to achieve the effect of sound insulation and moisture resistance. It is mainly applied to the wall of dormitory and reception room to create a warm atmosphere.

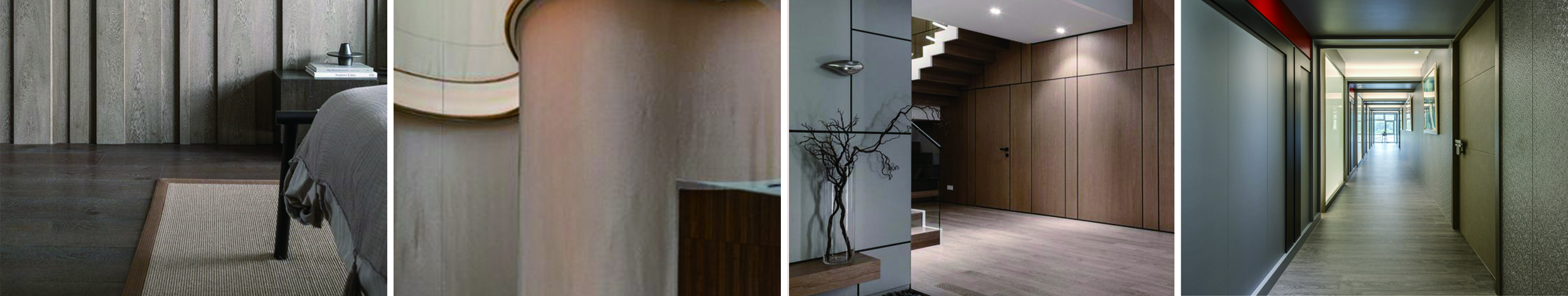

▼空间墙面，space wall
2.石英纤维装饰板
石英纤维装饰板以精细石英砂、进口原生木浆纤维为主要原料，抄取成型，经高温高压、蒸压养护等技术制成芯材，并通过二次高温高压，将特殊浸渍装饰纸复合于芯材表面。表面装饰纹理多种多样，可做成纯色、木纹、布纹、石纹、数码定制纹理等。具有七大优点：A级不燃、防水防潮、耐磨耐刮、耐污抗菌、防腐防蛀、坚固耐用、绿色环保。可用于办公建筑中会议室、办公室等空间的墙面、吊顶等。
2. quartz fiber decorative board
The quartz fiber decorative board is made of fine quartz sand and imported raw wood pulp fiber as the main raw materials. The core material is made by high temperature and high pressure, autoclave curing and other technologies. Through the secondary high temperature and high pressure, the special impregnated decorative paper is compounded on the surface of the core material. The surface decoration texture is various, which can be made into solid color, wood grain, cloth grain, stone grain, digital customized texture, etc. It has seven advantages: class a non combustible, waterproof and moisture-proof, wear-resistant and scratch resistant, stain resistant and antibacterial, anti-corrosion and moth proof, durable, green and environmental protection. It can be used for the wall and ceiling of meeting rooms, offices and other spaces in office buildings.

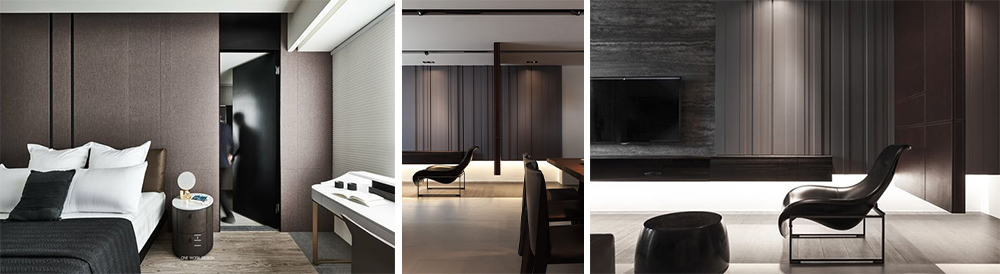

▼客房，guest rooms
4.穿孔吸音硅酸钙板
穿孔吸声板具有出色的吸声功能，在低频至中频均有极佳的吸音表现。其拥有多种布孔款式和孔径，除用作各种场所的天花板外，同时还可作为吸音墙板的使用。本项目主要应用于三层的会议室及办公区走廊部分。
4. perforated sound-absorbing calcium silicate board
Perforated sound-absorbing panel has excellent sound-absorbing function and excellent sound-absorbing performance from low frequency to medium frequency. It has a variety of hole patterns and apertures, which can be used not only as ceilings in various places, but also as sound-absorbing wallboards. The project is mainly applied to the meeting room on the third floor and the corridor of the office area.
▼公共区域顶面，Top surface of public area
5.生态石塑集成材料
采用天然大理石石粉加入食品级树脂材料共挤形成，平整度高，硬度高，柔韧性佳，截面可做成矩形、弧形等多种样式。可应用于入口大堂墙面、电梯厅墙面。
5. ecological stone plastic integrated materials
It is formed by CO extrusion of natural marble powder and food grade resin material. It has high flatness, high hardness and good flexibility. The section can be made into rectangular, arc and other styles. It can be applied to the wall of entrance lobby and elevator hall.
6.铝合金集成墙面
铝合金集成墙面开启了墙面的集成化装修时代。铝合金集成墙面以铝合金为基材，与聚氨酯隔音发泡材料，防潮防蛀铝箔层压制而成。铝合金集成墙面中的聚氨酯隔音发泡层不仅绝热效果好，具有隔音，耐寒耐热，电绝缘等优点之外，而且质量又轻，属于轻质材料，因此可以被运用在天花板上，实现利用集成墙面打造顶墙一体。本项目可用于文化中心展厅、科技展厅等，打造时尚、科技、现代感。
6. aluminum alloy integrated wall
The aluminum alloy integrated wall has opened the era of integrated decoration of the wall. The aluminum alloy integrated wall is made of aluminum alloy as the base material, polyurethane sound insulation foam material, moisture-proof and mothproof aluminum foil layer. The polyurethane sound insulation foam layer in the aluminum alloy integrated wall has not only good heat insulation effect, sound insulation, cold and heat resistance, electrical insulation and other advantages, but also light weight and belongs to light material, so it can be used on the ceiling to achieve the integration of the top wall with the integrated wall. This project can be used in the exhibition hall of the cultural center and the science and technology exhibition hall to create a sense of fashion, technology and modernity.

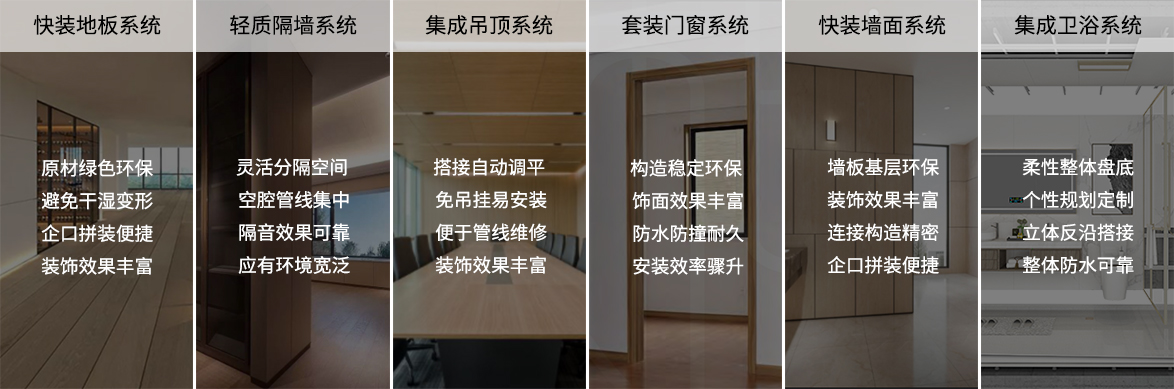

设计中新科技/ 新工艺/ 新材料的应用（标准化生产与装配式装修）
Application of new technology/new process/new materials in design (standardized production and fabricated decoration)
材料六大特点
Six characteristics of materials
1. 成本突破
节省时间，节省人力，成本直降20%-30%
全系材料工厂加工，快速安装，节省时间，节省人力
装饰效果出众，持久如新，20-30年不用重新装修，保洁方便，省心省钱
1. cost breakthrough
Save time, save manpower, and reduce costs by 20%-30%
Full range of materials factory processing, rapid installation, saving time and manpower
Excellent decoration effect, lasting as new, 20-30 years without redecoration, convenient cleaning, worry and money saving
2. 工期突破
工厂加工，现场5-7天安装完毕，拎包入住
模块化：工厂加工定制，现场快速安装
工业化：按图纸分部分件加工生产
装配化：系列材料、系列安装件，现场装配组件
全系性：墙、顶、地、五金、家具卫浴，全部一站式安装
2. construction period breakthrough
Factory processing, on-site installation completed in 5-7 days, bag check-in
Modularization: factory processing and customization, rapid installation on site
Industrialization: processing and production by parts and pieces according to drawings
Assembly: series of materials, series of mounting parts, field assembly components
Complete system: wall, roof, floor, hardware, furniture, bathroom, all one-stop installation
3. 耐久性突破
防水、防腐，耐磨，不开裂不变形、不起翘
轻质：重量仅是普通材料的30%左右，抗拉强度7-9倍
防火：碳纤维基材抗高温300℃，防火阻燃性能突出
耐寒：抗低温-40℃，不脆裂，冬季户外用都不用担心
耐磨：磨划不留痕迹，耐磨系数超6000N
3.Durability breakthrough
Waterproof, anti-corrosion, wear-resistant, no cracking, no deformation, no warping
Light weight: the weight is only about 30% of that of ordinary materials, and the tensile strength is 7-9 times
Fire protection: the carbon fiber substrate is resistant to high temperature of 300 ℃, with outstanding fire and flame retardant performance
Cold resistance: low temperature resistance of -40 ℃, no embrittlement, no need to worry about outdoor use in winter
Wear resistance: no trace left by grinding, wear resistance coefficient over 6000N
4. 环保突破
不含甲醛，当天施工当天入住
材料不含甲醛，甲苯等，无异味
材料封闭完善，阻隔水汽和有害物质，不发霉更环保
隔音降噪，吸引效果好，保障室内环境清新健康，自然舒适
4. Environmental protection breakthrough
Formaldehyde free, check in on the day of construction
The material does not contain formaldehyde, toluene, etc., and has no odor
The material is well sealed to block water vapor and harmful substances. It is not moldy and more environmentally friendly
Sound insulation and noise reduction, good attraction effect, and protection of fresh, healthy, natural and comfortable indoor environment
5. 工艺突破
智能装配，严丝合缝
全系材料配套安装，严丝合缝
局部损坏，相应进行局部拆卸更换即可
边角均有金属配件收口，造型处固定后配套，配套扣件安装
5. process breakthrough
Intelligent assembly, perfect fit
The whole series of materials shall be installed in a complete set, and they shall fit together perfectly
Local damage, local disassembly and replacement can be carried out accordingly
Metal fittings are provided at the edges and corners. After the shape is fixed, supporting fasteners are installed
6. 效果突破
效果多样，可满足各式设计风格
材质纹理丰富多样，图案逼真自然，豪华有品质
装饰感强，工艺精美
与软装有机结合，尽显高贵品味
6. effect breakthrough
Various effects can meet various design styles
Rich and varied materials and textures, realistic and natural patterns, luxury and quality
Strong sense of decoration and exquisite workmanship
Organically combined with soft clothing, showing noble taste
细节处理
DESIGN CONCEPT
项目名称：承德云山酒店室内改造方案
设计理念：亦城亦景
文章分类：室内设计-酒店会所
项目地址：承德
设计主创：王建伟
设计团队：栾雪婷,张振波,叶建森,于本彦
建 材：镜面不锈钢 木饰面 夹丝玻璃 瓷砖
项目年份：2023年
业主单位：云山酒店
结构形式：框架结构
Project Name: interior renovation scheme of Yunshan hotel in Chengde
Design concept: both city and scenery
Article classification: Interior Design - Hotel clubhouse
Project address: Chengde
Designer: wangjianwei
Design team: Luan Xueting, zhangzhenbo, yejiansen, Yu benyan
Building materials: mirror stainless steel wood veneer wire glass tile
Project year: 2023
Owner: Yunshan Hotel
Structural form: frame structure
