五建办公楼玻璃幕墙项目，上海/建筑
项目位于大渡河路和金沙江路交汇处，总建筑面积为17955.58㎡，地上总建筑面积为11995.68m，其中计容建筑面积11995.68㎡，地下总建筑面积5959.9㎡；本项目由1栋建筑组成，总层数为12层；建筑高度(至屋顶钢结构顶)79.95米。基于建筑功能、环境兼容性等方面因素，建筑外立面均采用了玻璃幕墙的形式。
The project is located at the intersection of Daduhe road and Jinshajiang Road, with a total construction area of 17955.58 square meters, and a total aboveground construction area of 11995.68m, including a capacity building area of 11995.68 square meters and a total underground construction area of 5959.9 square meters; The project consists of 1 building with 12 floors in total; The building height (to the top of the roof steel structure) is 79.95 meters. Based on the building function, environmental compatibility and other factors, the external facade of the building adopts the form of glass curtain wall.

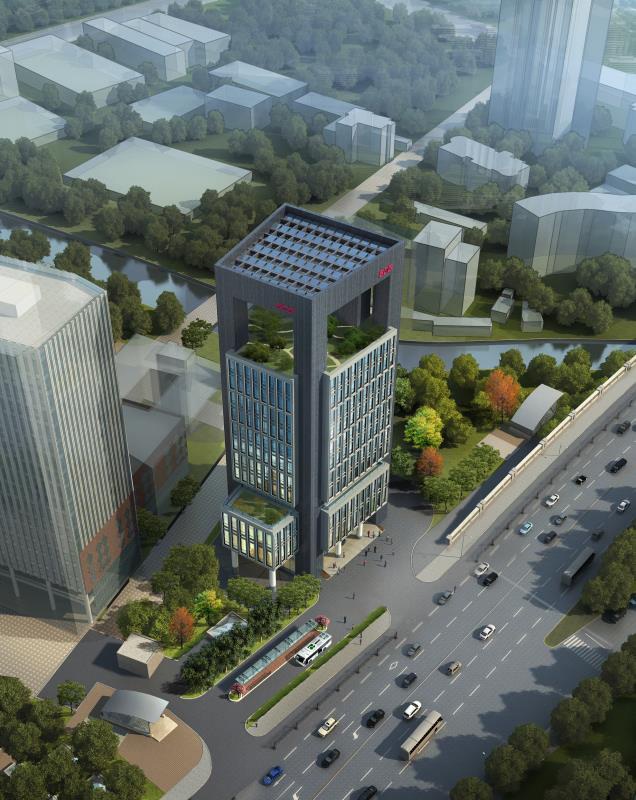

▼鸟瞰图，Aerial view
本项目主体功能主要分为高层办公、食堂、报告厅、地下机械车库及相关设备用房。综合考虑使用需求、用地条件及规划要求，地上建筑主要布置在地块中心区域，并突出主入口的可视性；地上塔楼的主入口设置在靠大渡河路一侧，可形成良好的形象展示；地下一层主要为设备机房和自行车库，地下二层、三层为地下机械车库，在地下三层区域，人防单元结合车库设置，平战结合。
The main functions of the project are mainly divided into high-rise office, canteen, lecture hall, underground mechanical garage and related equipment rooms. Considering the use demand, land conditions and planning requirements, the above ground buildings are mainly arranged in the central area of the plot, and highlight the visibility of the main entrance; The main entrance of the above ground tower is set on the side of Daduhe Road, which can form a good image display; The first floor underground is mainly equipment room and self-propelled garage, and the second and third floors underground are underground mechanical garages. In the area of the third floor underground, the civil air defense unit is set in combination with the garage, combining peacetime and wartime.

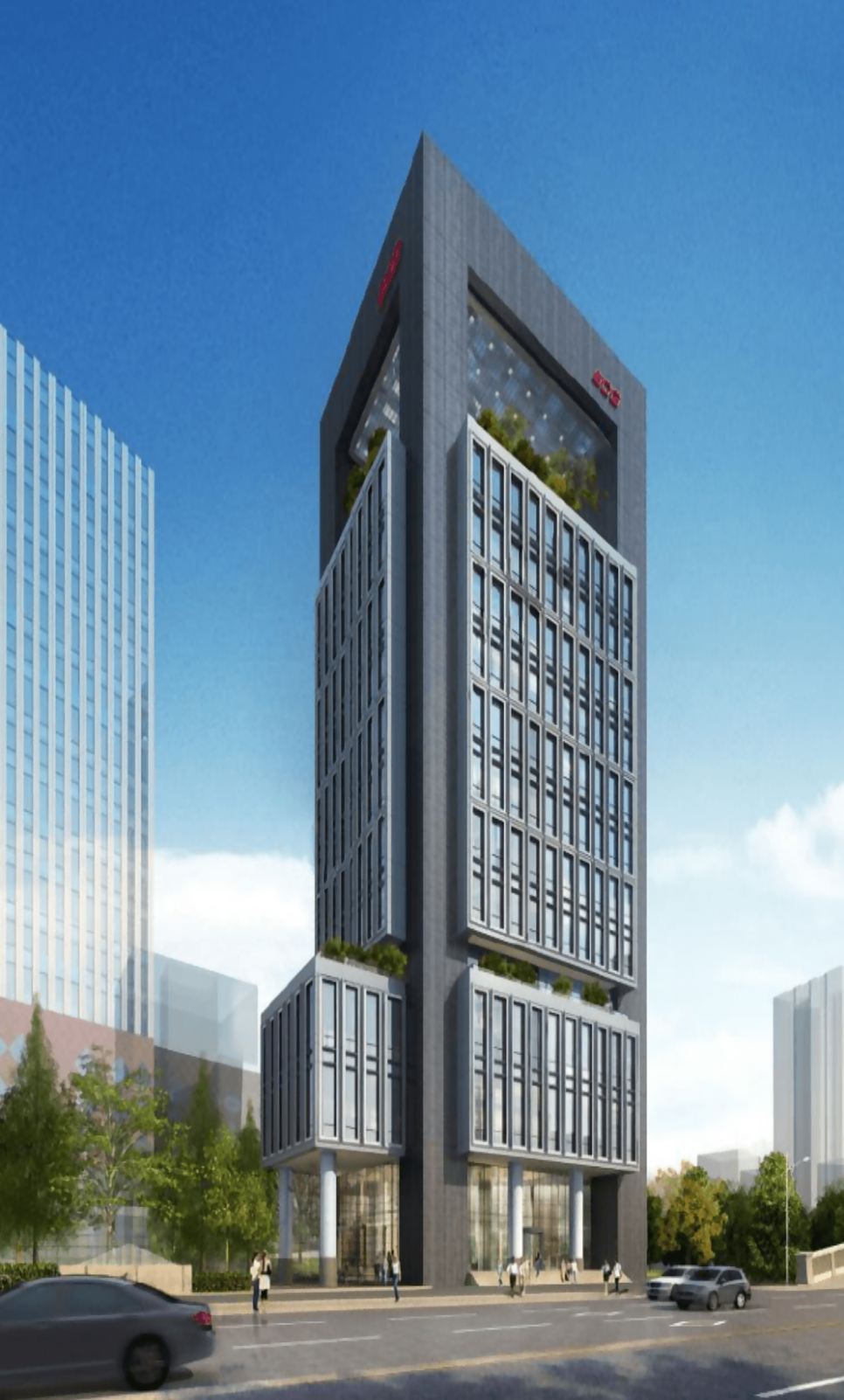

▼单体透视图，Monomer Perspective
建筑设计希望创造出大气、简洁的环境。立面材料拟选用铝合金型材+low-E中空玻璃以为主，力求以简洁的体量和明快的立面处理手法，塑造优雅而洗炼的现代商业楼形象。
Architectural design hopes to create an atmosphere and simple environment. The facade material is planned to use aluminum alloy profile +low-e insulating glass as the main material, and strive to create an elegant and refined image of a modern commercial building with simple volume and lively facade treatment methods.
本项目建筑塔楼部分12层，总体高度约80米;塔楼沿主入口广场一侧无裙房包裹，主楼直接落地，营造出“基底稳定、主体挺拔”的大气形象。塔楼平面在不影响室内空间使用的前提下，通过角部的凹凸处理，形成整体有虚有实的造型风格 加之外立面干净的玻璃幕墙，形体行 简洁质朴，明快有力， 象征着上海建工五建集团高效朴实的工作作风。塔楼顶层构架与南侧长风公园景观绿轴呼应，结合夜间的灯光效果，可形成点线面结合的丰富的夜景效果。塔楼立面来采用石材幕墙与玻璃幕墙结合的方式，营造出丰富有韵律变化的立面效果。
The tower part of the project has 12 floors, and the overall height is about 80 meters; There is no podium package on the side of the tower along the main entrance square, and the main building directly falls to the ground, creating an atmospheric image of "stable foundation and tall and straight main body". On the premise of not affecting the use of indoor space, the tower plane forms an overall virtual and real modeling style through the concave convex treatment of corners, plus a clean glass curtain wall on the outer facade. The shape is simple, simple, lively and powerful, symbolizing the efficient and simple working style of the fifth construction group of Shanghai Construction Engineering Group. The top frame of the tower echoes with the green axis of the landscape of Changfeng Park on the south side, and combined with the lighting effect at night, it can form a rich night scene effect of combining points, lines and surfaces. The facade of the tower adopts the combination of stone curtain wall and glass curtain wall to create a rich and rhythmic facade effect.
