瓦伦西亚ALAQUÀS牙科诊所，西班牙 / PRÁCTICA

2025-09-24 16:55:44建筑设计,康养医疗,商业建筑 , 现代风格

项目标签

项目名称

项目地址

该项目是一个商业空间的室内翻新，旨在利用157平方米面积打造一座设有四个治疗室的牙科诊所。项目从建筑的不规则形状出发，重点优化了所有区域的自然采光，并创造了一个有机流动的空间布局，将公共区域与员工区域分开。

This interior renovation project of a commercial space for a new 157 m² dental clinic with four treatment rooms takes as its starting point the irregular shape of the property and focuses on optimizing natural light in all areas, as well as creating an organic circulation flow that separates the public from the staff.

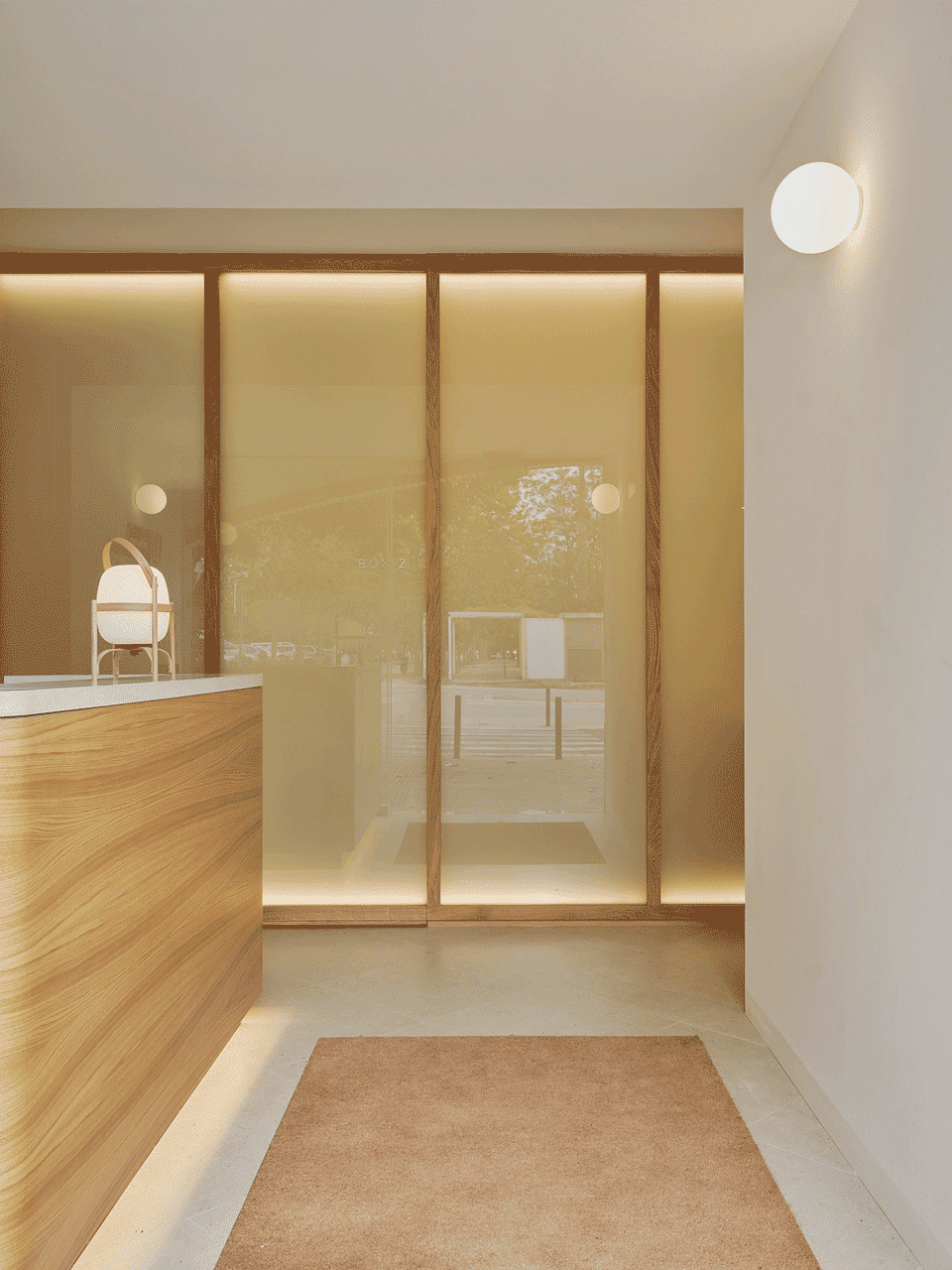

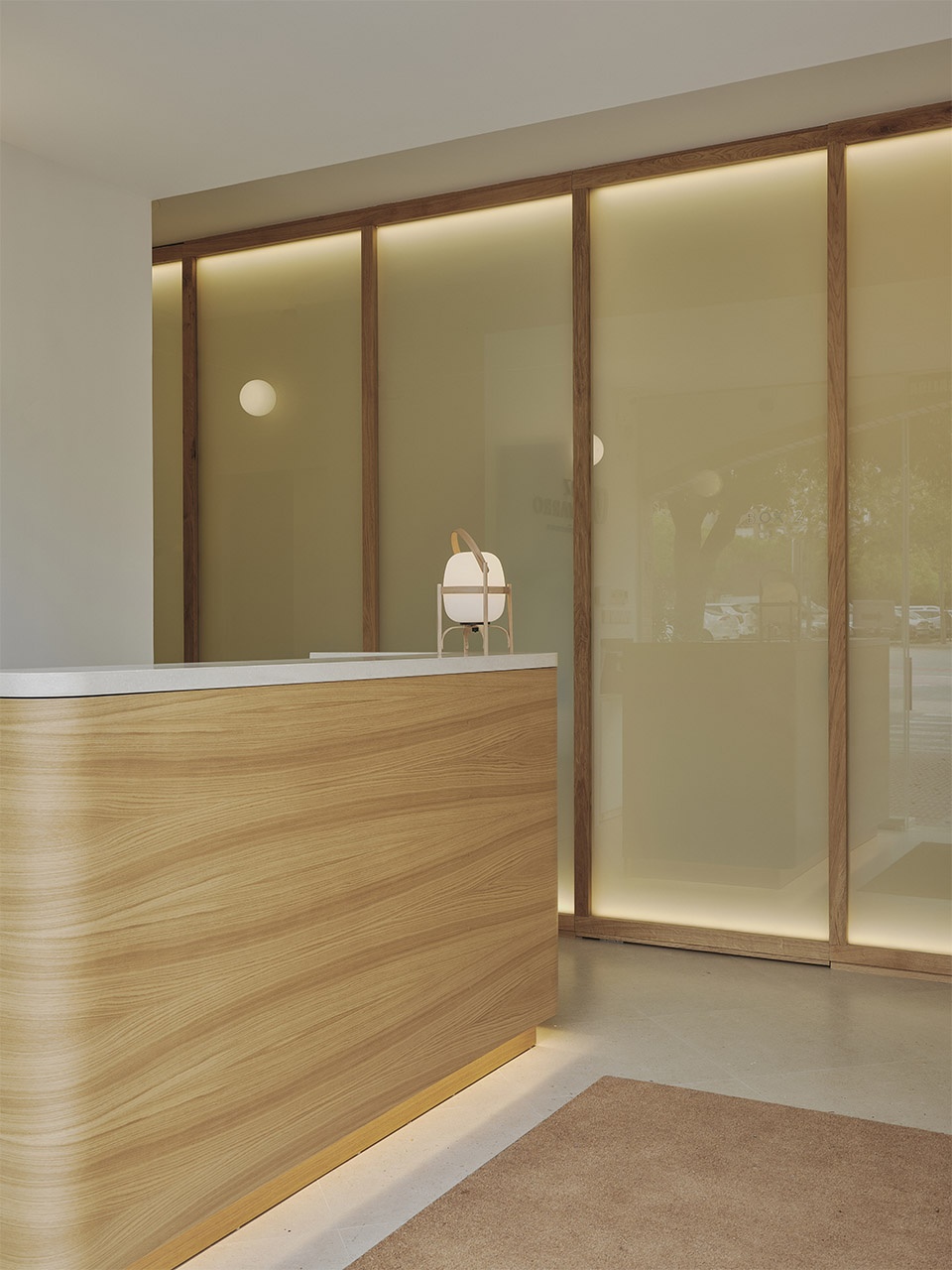

▼诊所入口，the entrance

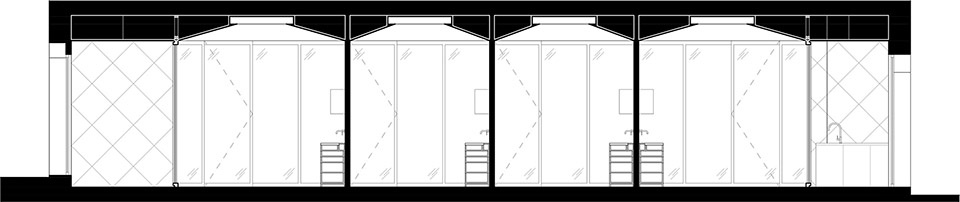

项目设计了一个纯净的中央玻璃盒子，采用半透明玻璃、实心橡木窗框和圆角设计，内设四个治疗室。光滑的酸蚀玻璃表面让自然光透过进入每个房间，同时保证患者隐私并提供声学隔音效果。每个房间的天花板呈喇叭形设计，最终汇聚在一个人工天窗下，增强了与外部环境直接接触的感觉，营造出一个平静、温馨的室内环境，最大限度提升患者的舒适感。

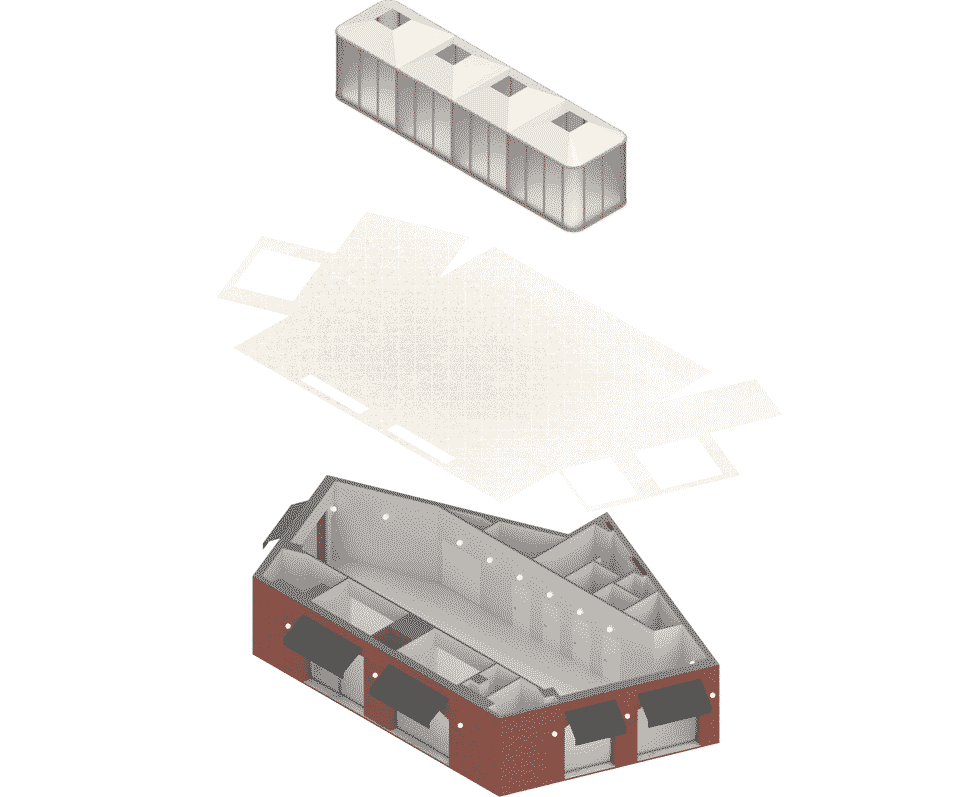

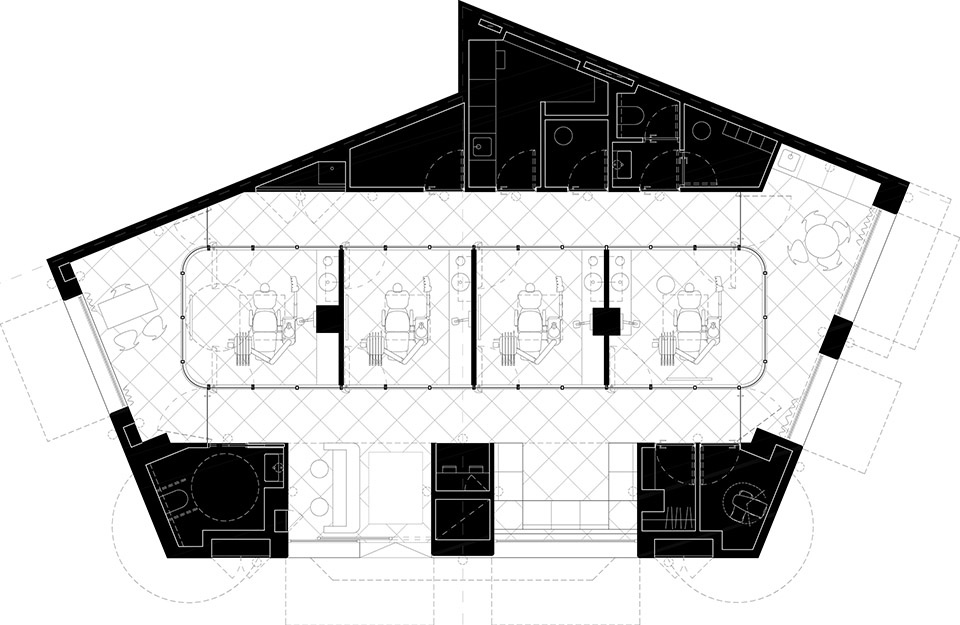

▼设计策略，design strategy

A pristine central box of translucent glass with solid oakwood mullions and rounded corners houses the four treatment rooms. The smooth, acid-etched glass surface allows natural light to permeate into all rooms while preserving patient privacy and providing acoustic insulation. The ceiling of each room, shaped like a flared funnel, culminates in an artificial skylight that heightens the sensation of being in direct contact with the outdoors, creating a calm and welcoming interior that maximizes patient comfort.

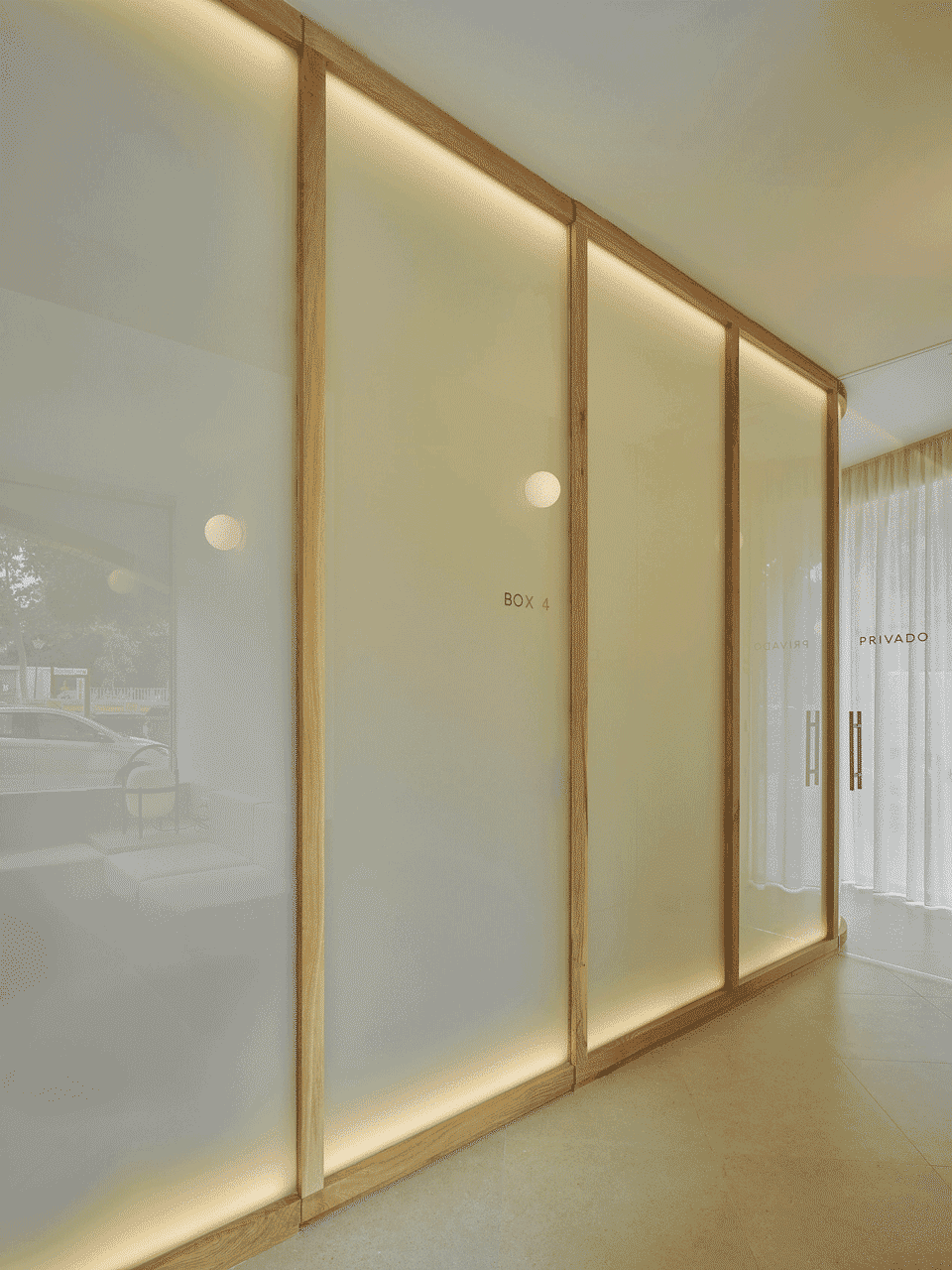

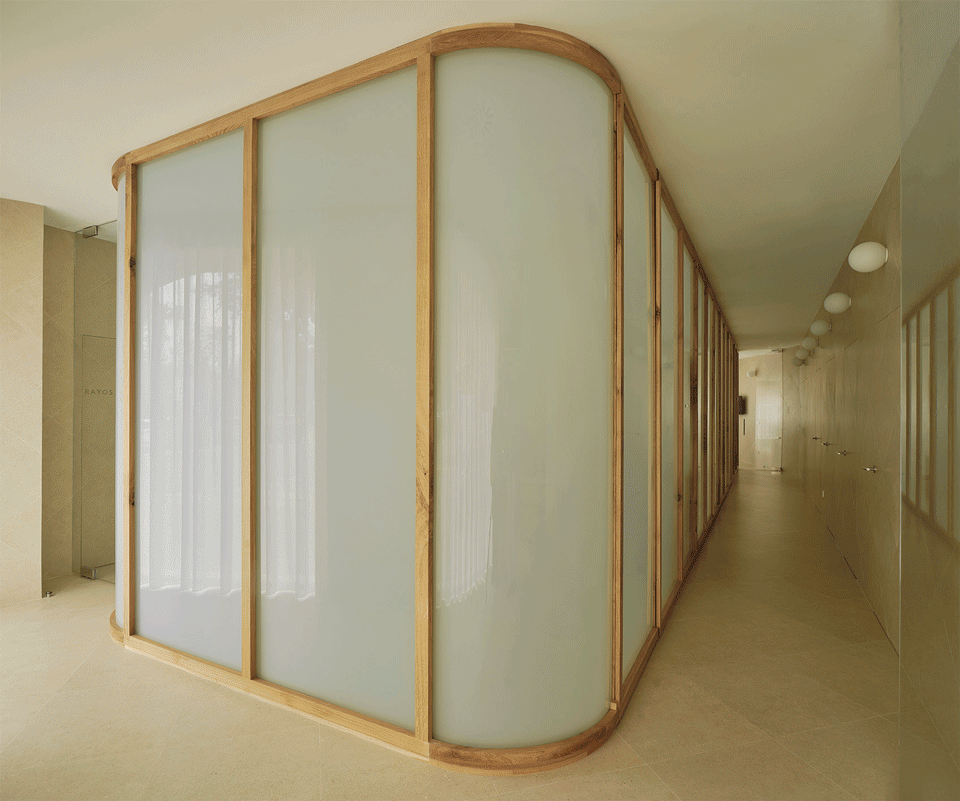

▼中央半透明玻璃盒子，the pristine central box of translucent glass

▼保护隐私的设计，privacy-protecting design

围绕中央盒子布置了一系列互联的开放空间，包括诊所的公共区域、员工流动区、接待区、候诊室、患者咨询室和员工休息室。所有这些空间都享有直射的自然光，在需要临时隐私的区域，可以通过天然亚麻窗帘进行遮挡。

Around this central box lies a series of interconnected open spaces, including the clinic’s public and staff circulation areas, reception, waiting room, patient consultation office, and staff lounge. All these spaces enjoy direct natural light, filtered by natural linen curtains in areas requiring occasional privacy.

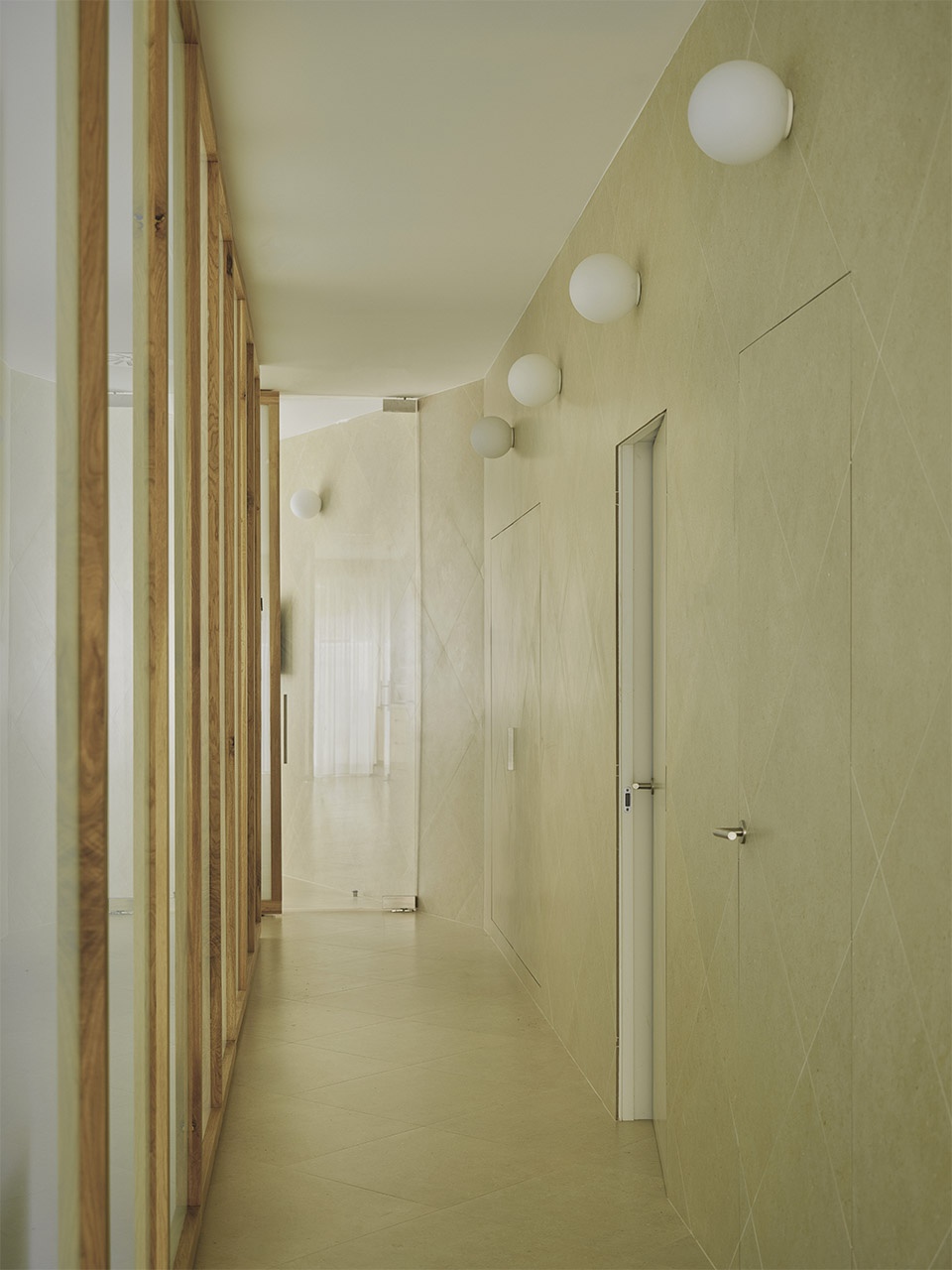

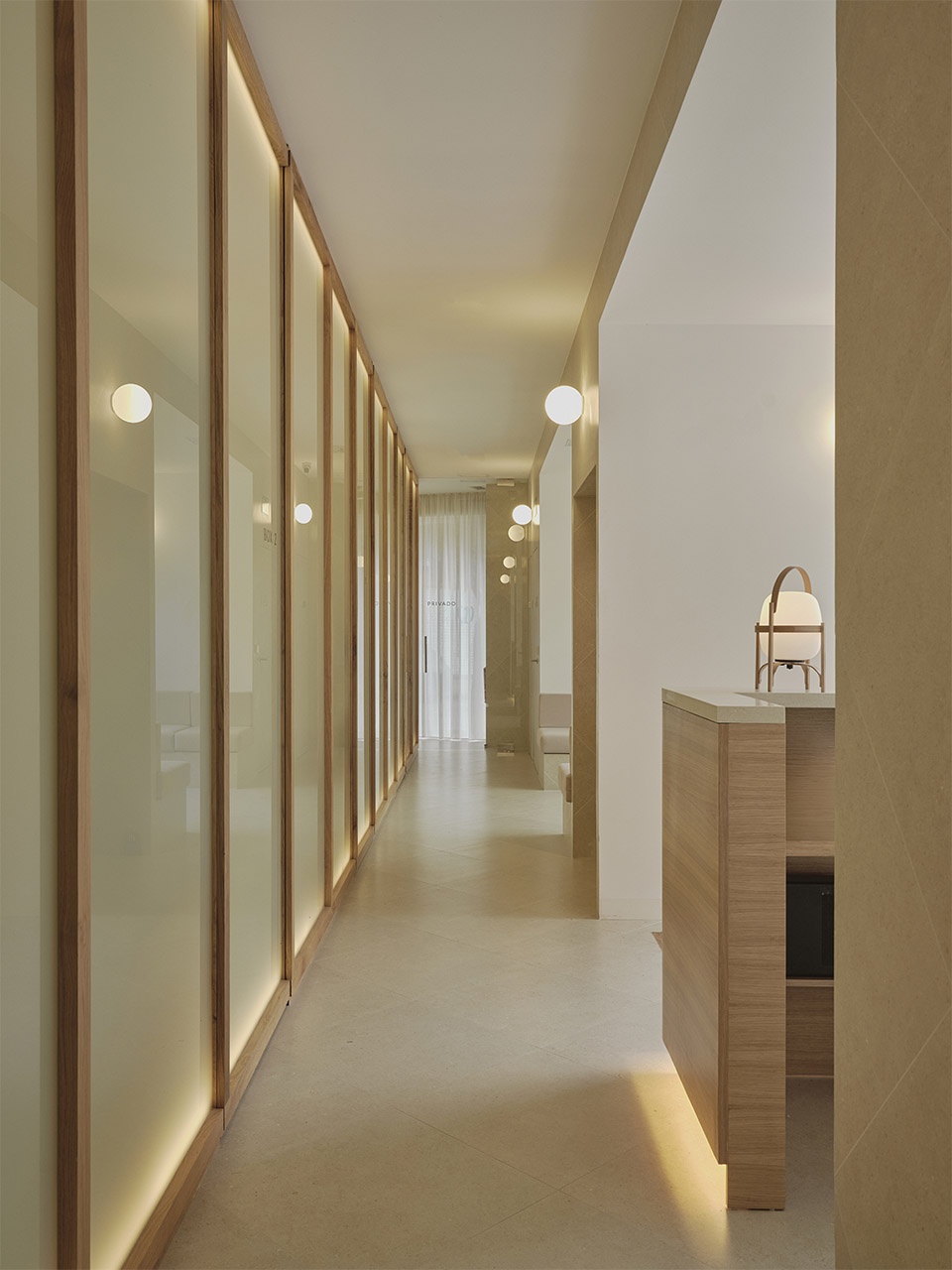

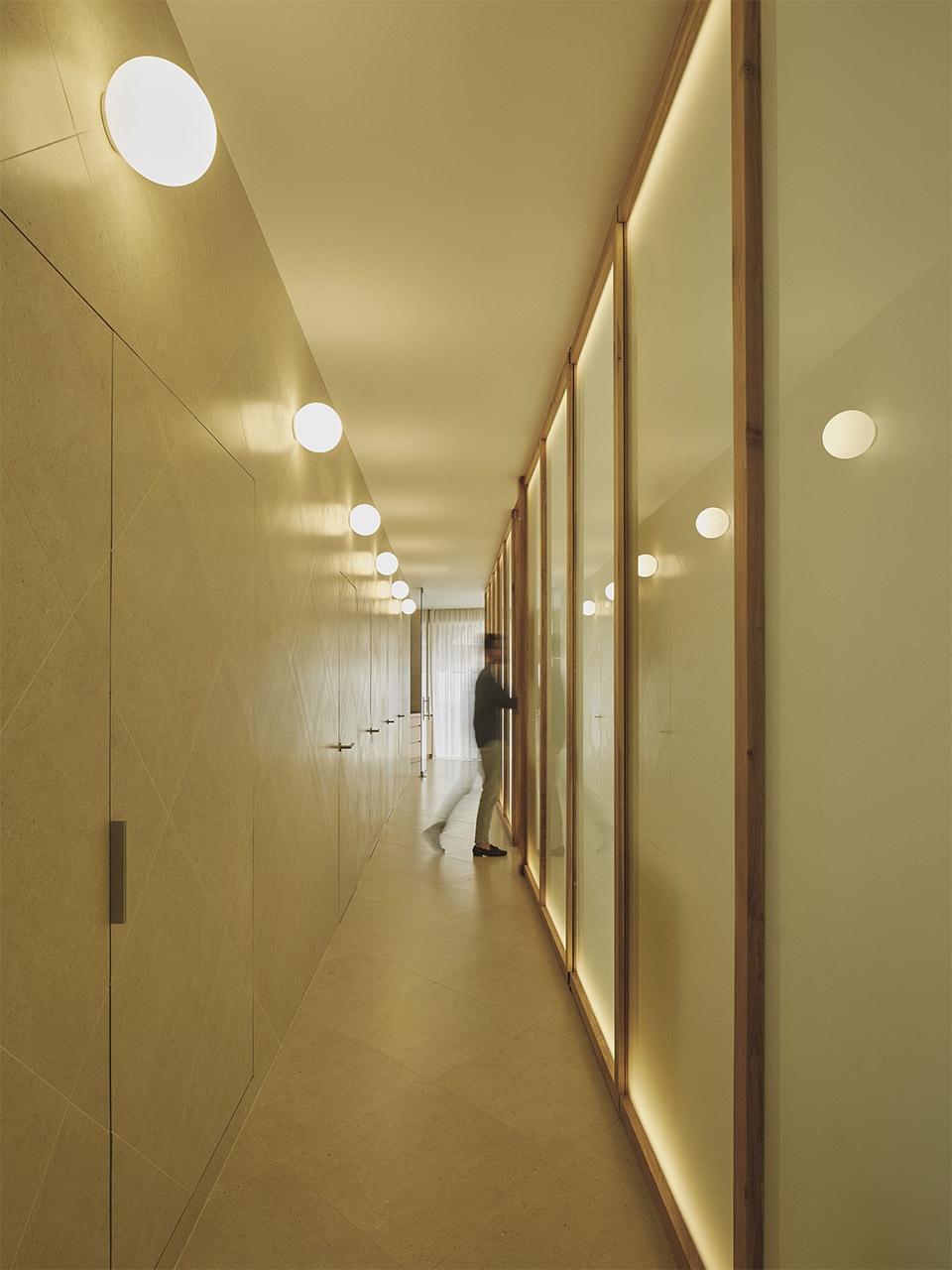

▼走廊空间，the corridor space

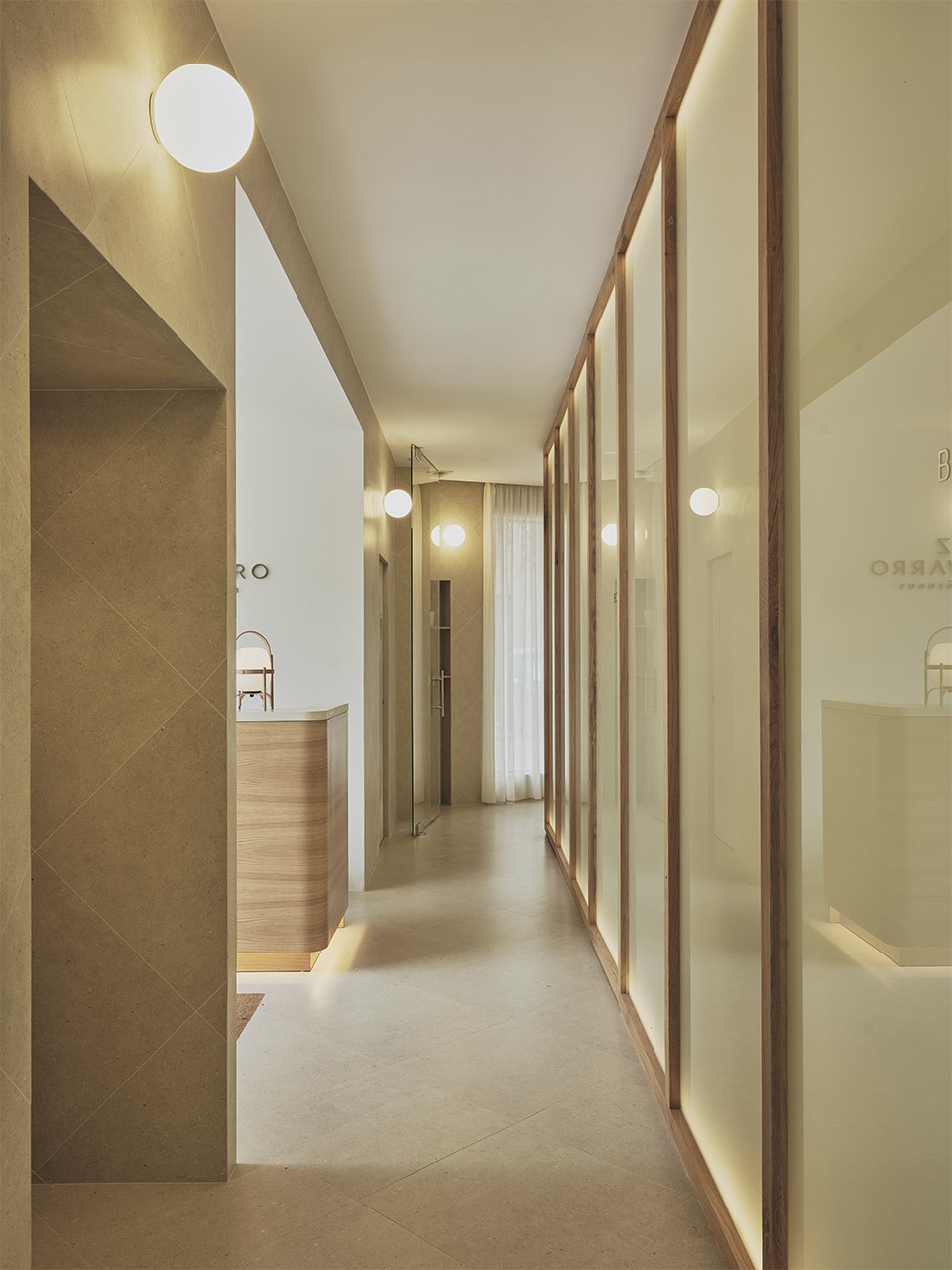

▼走廊照明，the corridor lighting

整个诊所的地面铺设了大规格60×60厘米的瓷质石材，铺设角度为45°。这款本地生产的陶瓷致敬了西班牙东部的材料文化，同时提供了一个连续、耐用且无菌的表面，非常适合牙科诊所使用。石材表面向上折叠，包裹了诊所内周边的垂直墙面，作为上述空间的墙面覆层，也进一步被设计为候诊区的座椅，并覆盖所有服务室的门。这些可伸缩的、石材包裹的门仅通过隐蔽的顶部装置标识其位置。

The entire clinic floor is finished with large-format 60×60 cm porcelain stoneware tiles set at a 45° angle. This locally manufactured ceramic pays tribute to the material culture of eastern Spain, while providing a continuous, durable, and aseptic surface, ideal for a dental clinic. The stoneware surface folds up to wrap the vertical walls along the clinic’s interior perimeter, serving as wall cladding in the aforementioned spaces, even forming the seating in the waiting area and covering all the service room doors. These retractable, stoneware-clad doors are only identified by discreet overhead fixtures marking their location.

▼当地石材，the local stone

▼灵活的空间形态，flexible spatial form

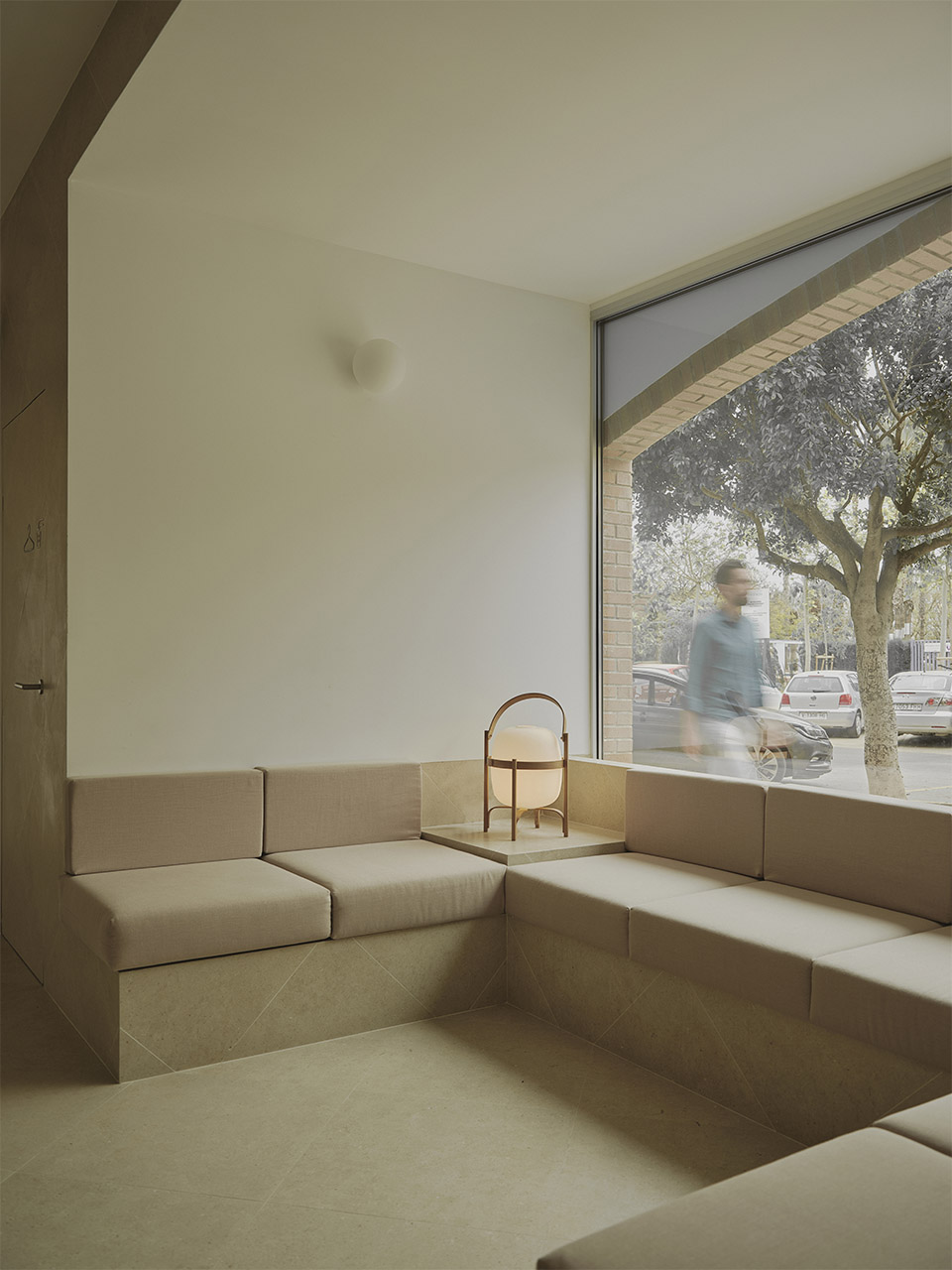

▼候诊区，the waiting area

服务室作为诊所“空隙”的一部分，消化了建筑形状的不规则性，规范了室内空间并充当主要空间、街道与邻近建筑之间的接口。这些服务性质的房间包括储物间、机房、卫生间、更衣室、X光室和影像室。诊所的材料搭配通过一系列定制设计的天然橡木家具完成，形成了接待区和小厨房。

The service rooms, conceived as part of the clinic’s poché, absorb the irregularities of the building’s shape, regularizing the interior and serving as an interface between the primary spaces, the street, and the adjoining buildings. These rooms include storage, machine room, bathrooms, changing rooms, X-ray room, and photography room. The clinic’s material palette is completed with a series of custom-designed natural oakwood furniture pieces that make up the reception and kitchenette.

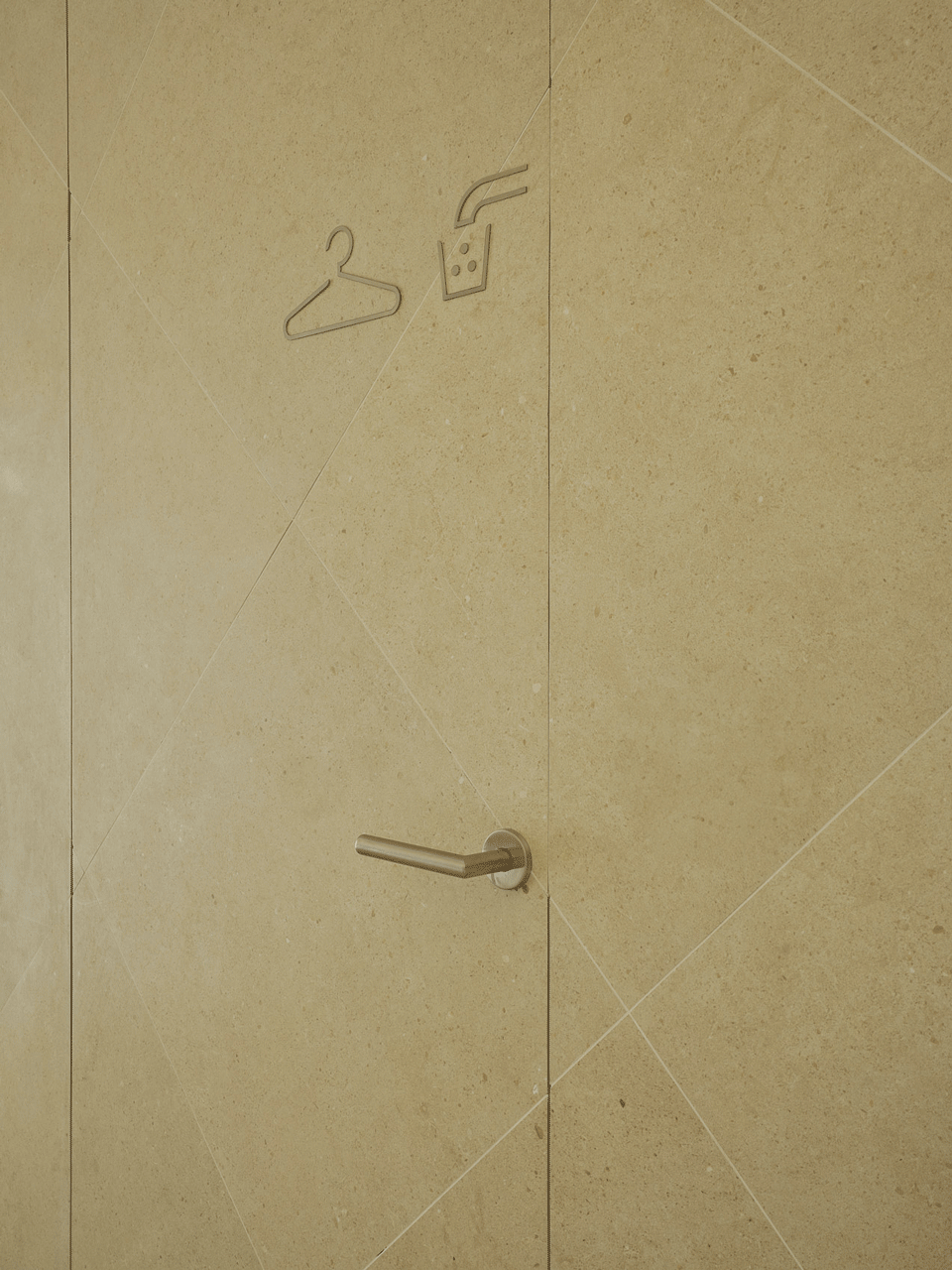

▼隐蔽的服务空间，hidden service space

最终，这座牙科诊所融合了宁静与高效。这是一个旨在减少与医疗环境相关的常见焦虑的空间，提供患者平静的体验，同时为员工创造理想的工作条件，重申了建筑作为提升幸福感工具的价值。

The result is a dental clinic that combines serenity and efficiency—a space designed to reduce the usual anxiety associated with healthcare environments, offering patients a calm experience and staff optimal working conditions, reaffirming the value of architecture as a tool for well-being.

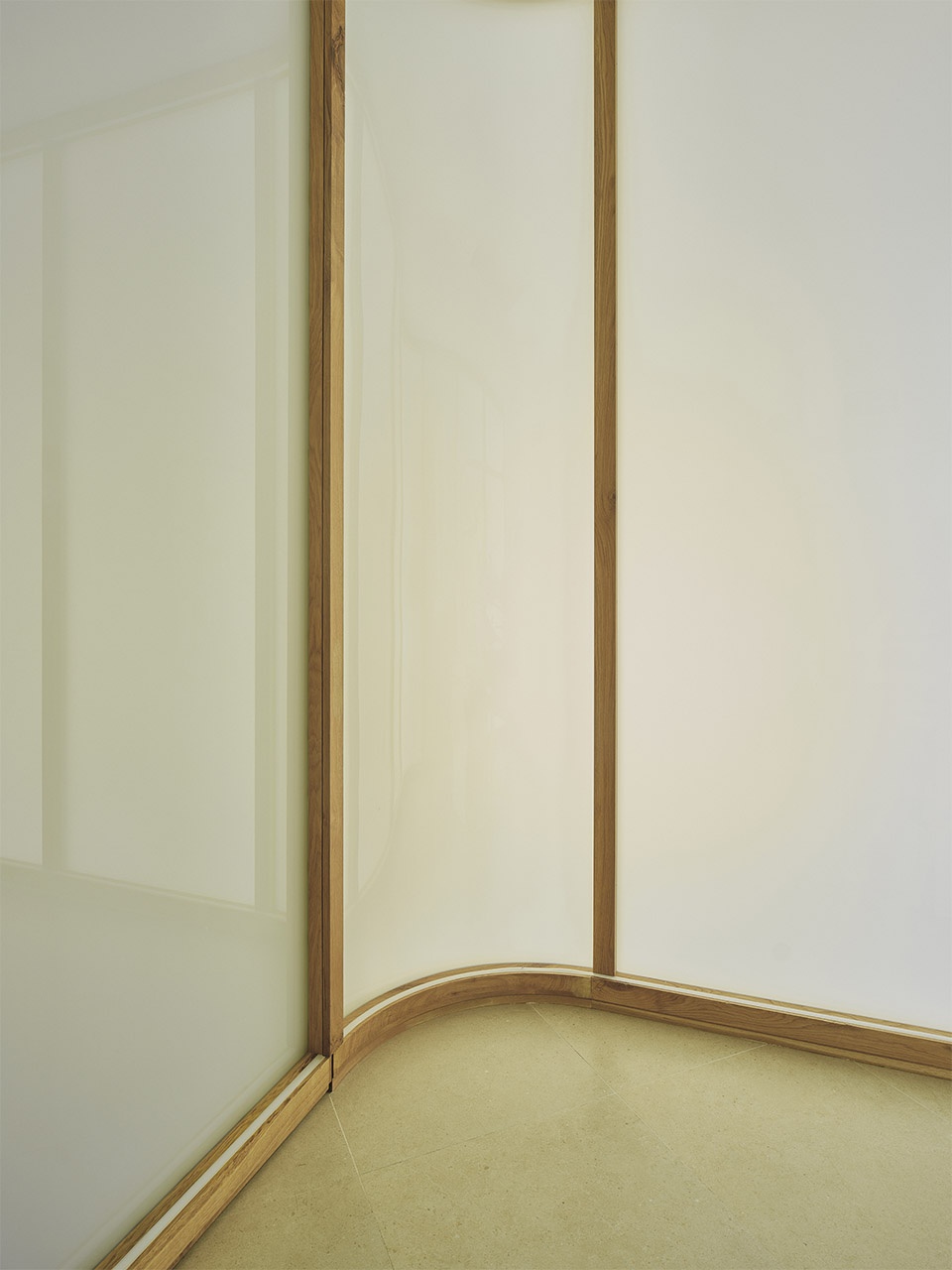

▼细部设计，design details
