北京建谊一成寿寺B5地块项目，北京/建筑设计
我们建谊集团这几年几乎买遍了市场上常用的国内外各类BIM协同平台，但是还是遇到很多困难挑战没有用起来。一直到发现了BDIP平台并试用了一个项目以后，决定集团层面购买2套企业级产品，一套用于海外，一套用于国内。BDIP建筑数据集成平台更新迭代特别快;而且服务到位，在模型处理和协同这方面确实做得很好，能帮助建谊在建筑工业化道路上快速占领制高点。
In recent years, Jianyi group has almost bought all kinds of BIM collaboration platforms commonly used in the market at home and abroad, but it still encountered many difficulties and challenges and didn't use them. Until the bdip platform was discovered and a project was tried out, it was decided to buy two sets of enterprise level products at the group level, one for overseas use and one for domestic use. Bdip building data integration platform updates and iterates very fast; Moreover, the service is in place, and has indeed done a good job in model processing and coordination, which can help Jianyi quickly occupy the commanding heights on the road of building industrialization.
1.项目流程管理
通过对项目的设计变更、质量、进度、安全和成本的审批管理，可实现以项目为主体的流程化管理，同时支持BIM模型与流程的关联互查。
1.Project process management
Through the approval management of project design change, quality, progress, safety and cost, the process management with the project as the main body can be realized, and the correlation and mutual check between BIM model and process can be supported.

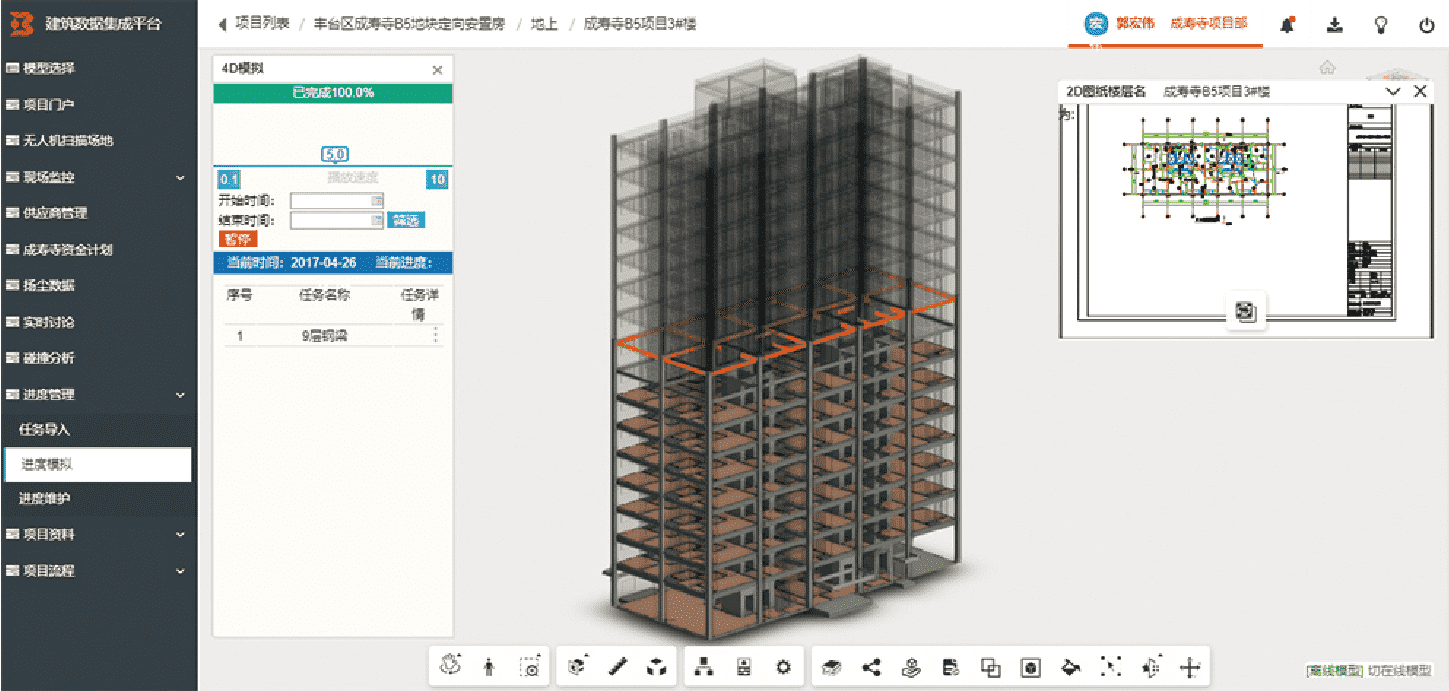

2.施工进度管理
项目进度计划与分解BIM模型进行一一关联，可分别查看计划、实时和虚实结合的施工进度模拟，直观反映工程施工进展、延误标识。
2. Construction progress management
The project schedule is associated with the decomposed BIM model one by one, which can view the construction schedule simulation of plan, real-time and virtual reality respectively, and visually reflect the construction progress and delay identification of the project.

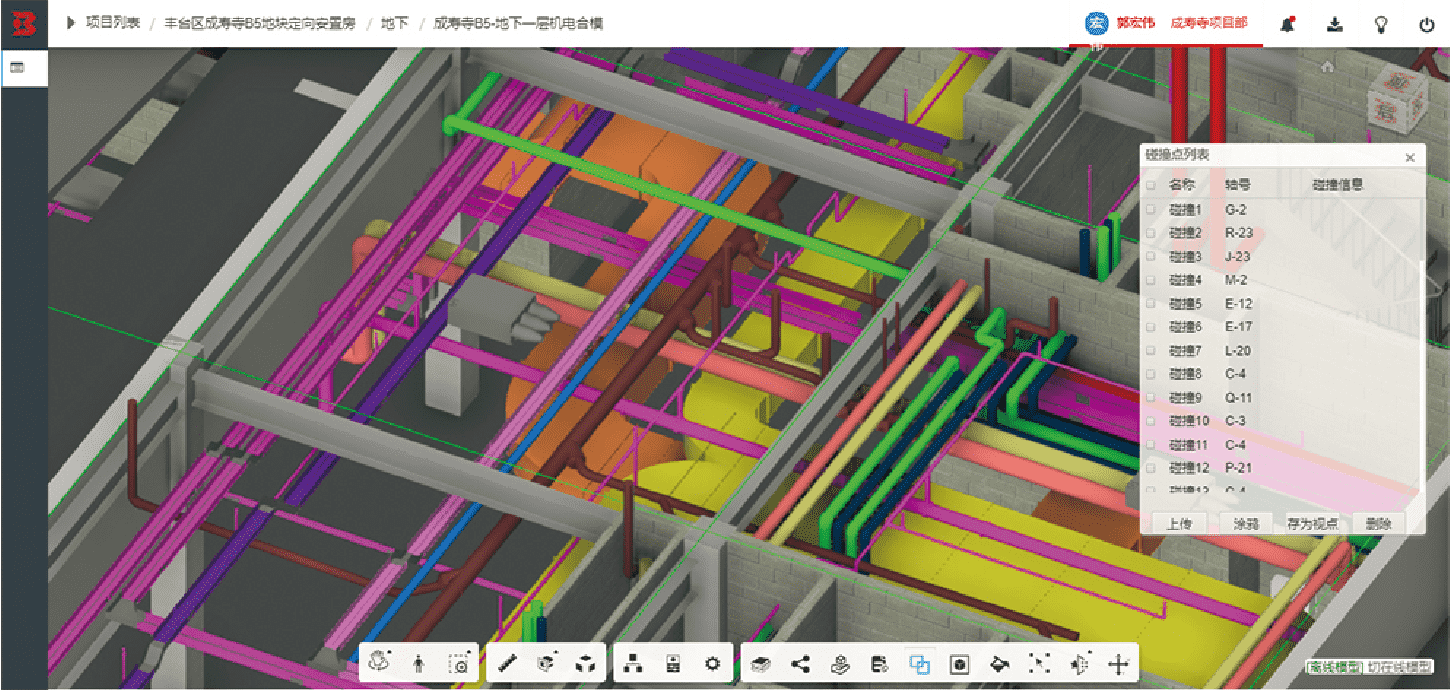

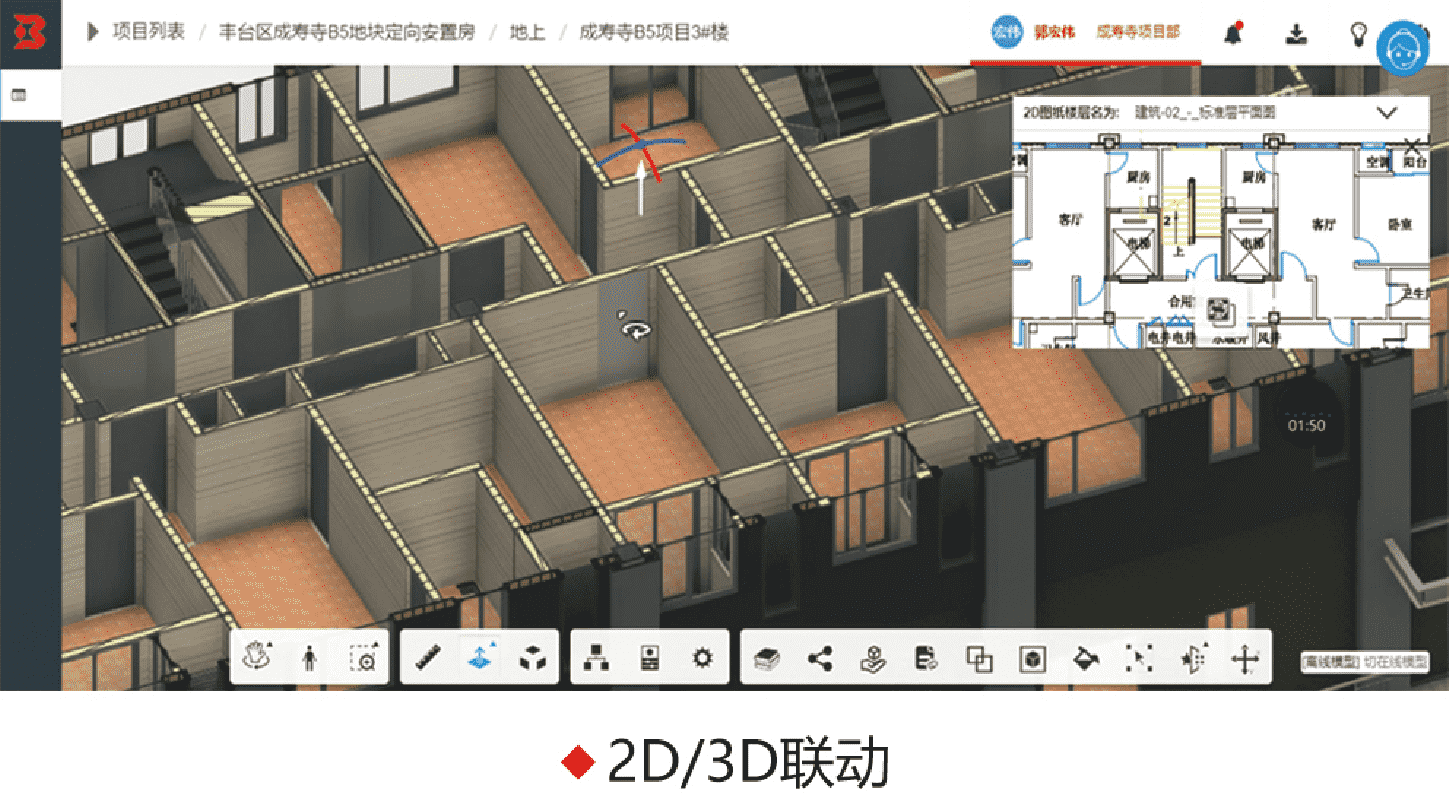

3.设计协同与碰撞分析
通过涂鸦视点和navisworks导入视点，发起在线碰撞报告，能很好完成设计交圈工作。
3. Design collaboration and collision analysis
Through the graffiti viewpoint and NavisWorks to import the viewpoint and launch the online collision report, the design intersection can be well completed.

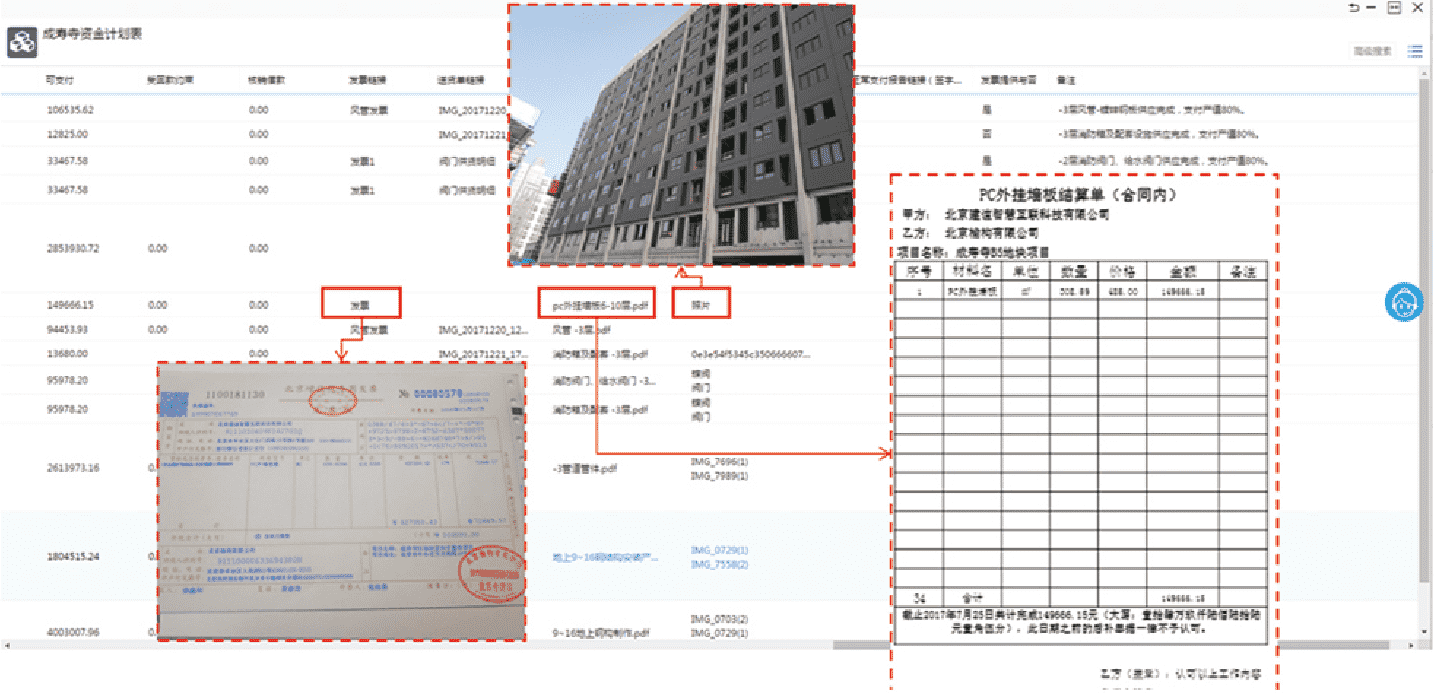

4.资金计划管理
依据合同内容进行产值审核，同时关联发票、送货清单、分包结算单和支付协议，现场验收照片等关键信息，做到结算有据可依，有据可查。
4. Fund plan management
Audit the output value according to the contract content, and correlate the invoice, delivery list, subcontracting settlement sheet, payment agreement, on-site acceptance photos and other key information to ensure that the settlement has evidence to rely on and check.

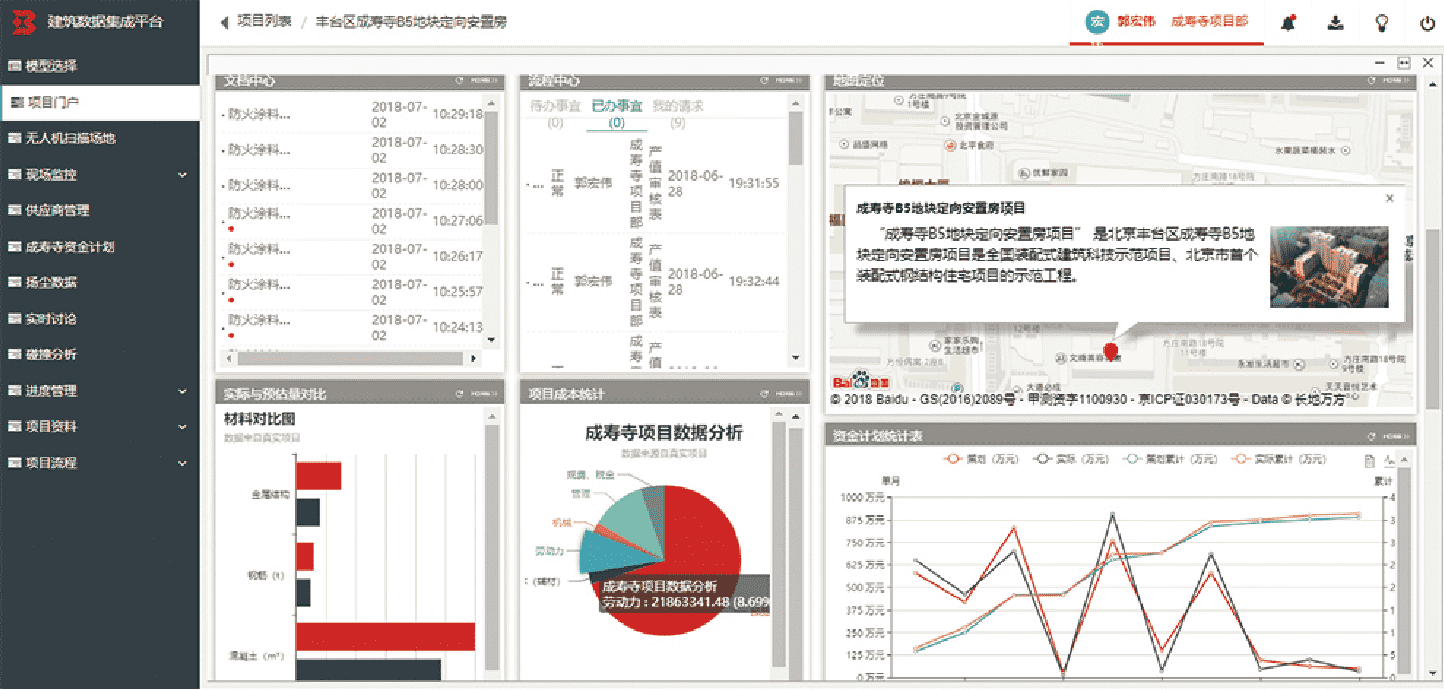

5.项目门户界面
通过权限设置不同单位及管理人员的个人门户，主要包括:项目会议、现场天气、项目百度定位、施工照片、工程资料管理、项目管理流程、成本数据分析(主材单价比率分析、材料对比分析、资金计划统计)、项目进度计划管理等。
5. Project portal interface
Set personal portals for different units and managers through permissions, mainly including: project meeting, on-site weather, project Baidu positioning, construction photos, project data management, project management process, cost data analysis (unit price ratio analysis of main materials, material comparison analysis, capital plan Statistics), project schedule management, etc.

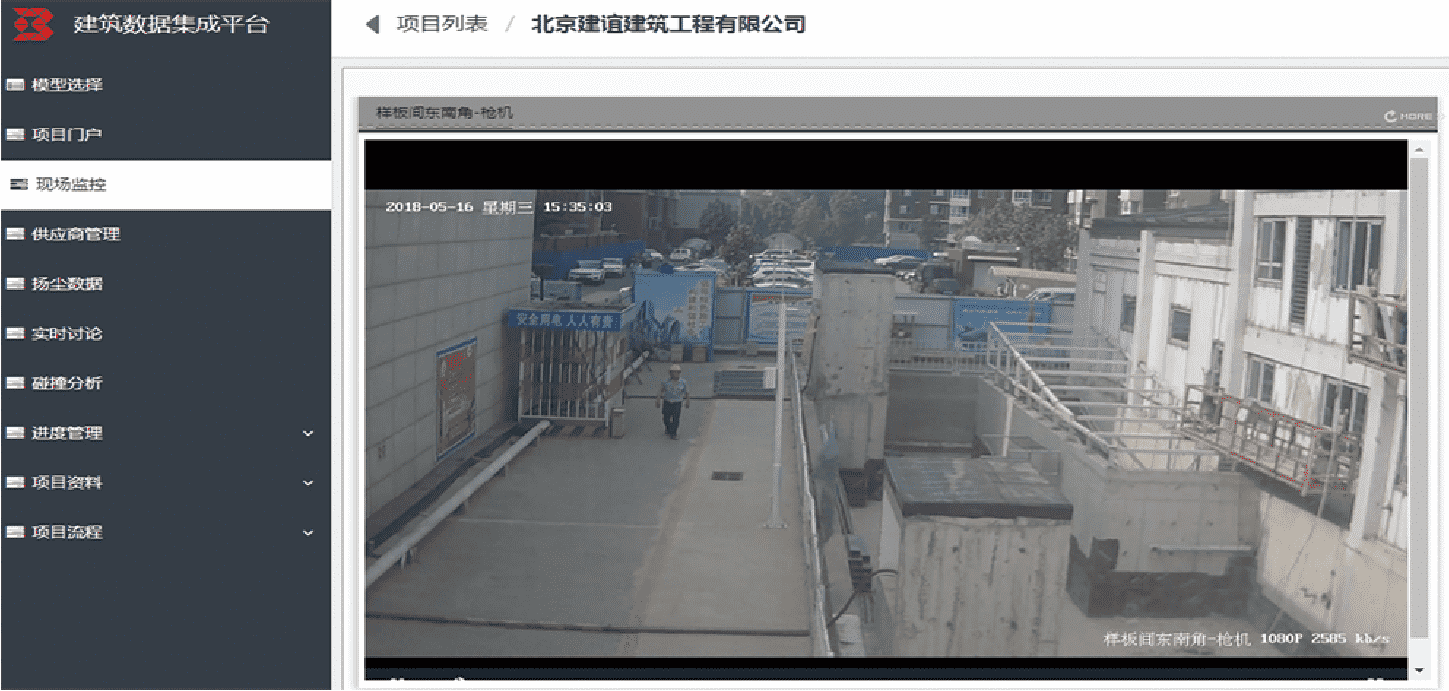

6.现场监控
通过在施工现场东大门、西大门、通道进口及样板间东南角等主要通道进出口布置监控，项目管理人员不分时间、天气和地点，可以对现场情况实时掌控。
6. On site monitoring
By arranging monitoring at the east gate, west gate, channel entrance, southeast corner of the model room and other main channel entrance and exit of the construction site, the project management personnel can control the site situation in real time regardless of time, weather and place.
7.供应商管理
针对供应商服务详情的记录，进行供应商评级管理，同时保证在运维阶段信息可及时查询。
7. Supplier management
Carry out supplier rating management for the records of supplier service details, and ensure that the information can be queried in time in the operation and maintenance stage.

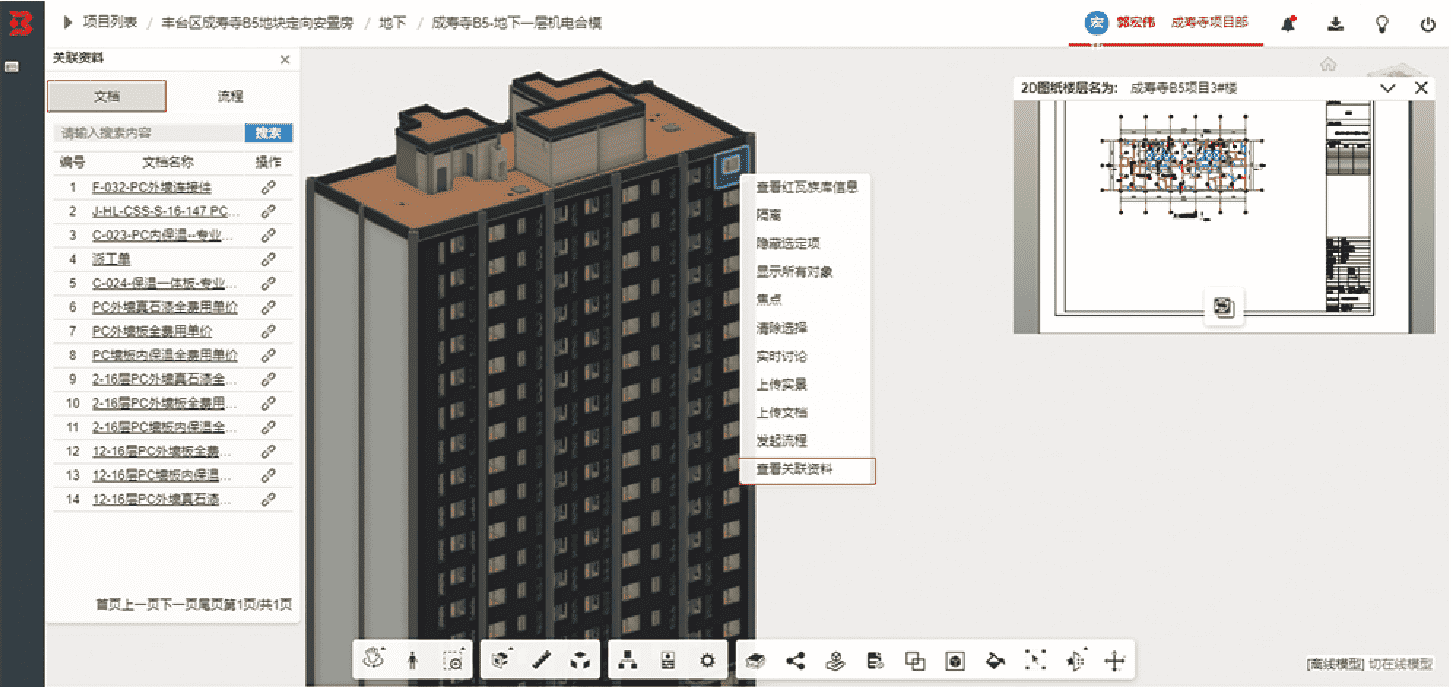

8.工程资料管理
通过对建设、设计、监理、施工和BIM交付物等工程资料分类归档、在线查阅，并与BIM模型进行关联互查，实现工程资料的智能化、无纸化管理。
8. Engineering data management
The intelligent and paperless management of engineering data is realized by classifying, archiving, online consulting and mutual checking with the BIM model of engineering data such as construction, design, supervision, construction and BIM deliverables.
“成寿寺B5地块定向安置房项目” 是北京丰台区成寿寺B5地块定向安置房项目是全国装配式建筑科技示范项目、北京市首个装配式钢结构住宅项目的示范工程。本项目总用地面积6691.2㎡，4栋9—16层装配式钢结构住宅，总建筑面积31685.49㎡。本项目中尝试采用了EPC总承包模式。项目采用钢管混凝土框架+组合钢板剪力墙（阻尼器）结构形式，加气混凝土外墙、钢筋桁架楼承板、钢楼梯及一体化内装系统。在施工过程中展现了钢结构建筑“节能、节地、节水、节材和保护环境”的优势，通过信息化管理和装配化施工，保证工程质量的同时，缩短了工期，节约了综合成本。
"Chengshousi B5 plot directional resettlement housing project" is the directional resettlement housing project of chengshousi B5 plot in Fengtai District, Beijing. It is the national prefabricated building science and technology demonstration project and the first prefabricated steel structure residential project in Beijing. The total land area of the project is 6691.2 m2. There are four 9-16 storey fabricated steel structure houses with a total construction area of 31685.49 m2. The EPC mode is tried in this project. The project adopts the structural form of concrete-filled steel tubular frame + composite steel plate shear wall (damper), aerated concrete exterior wall, reinforced truss floor support plate, steel staircase and integrated interior system. In the construction process, the advantages of "energy saving, land saving, water saving, material saving and environmental protection" of steel structure buildings are displayed. Through information management and assembly construction, the project quality is guaranteed, the construction period is shortened and the comprehensive cost is saved.

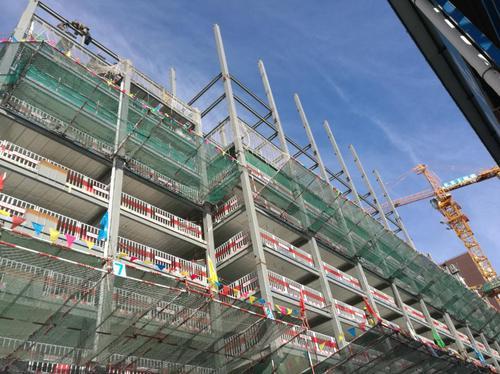

▼ 施工现场，Construction site

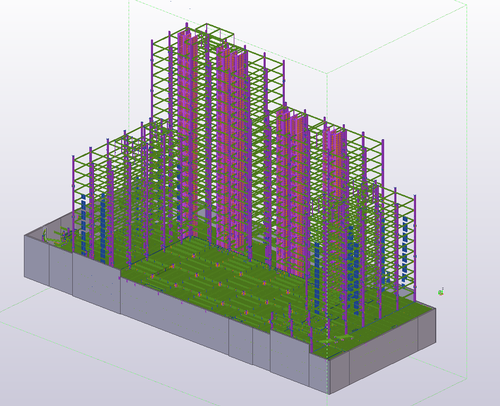

▼ 钢结构BIM模型，BIM model of steel structure
项目主体结构、水暖电专业、装饰装修集成一体的装配式设计，采用BIM三维软件将建筑、结构、水暖电、装饰等专业通过信息化技术的应用，将水暖电位与主体装配式结构、装饰装修实现集成一体化的设计，并预先解决各专业间在设计、生产、装配施工过程中的协同问题。建谊集团秉承“简约、快捷、优质、价廉”八字方针，坚持走产业化、信息化、数据化、标准化发展道路，随着ChinaBIM平台逐步实现商业化，市场空间将越来越大。
The assembly design integrating the main structure, plumbing and electricity specialty and decoration of the project adopts the BIM three-dimensional software to integrate the plumbing potential with the main assembly structure and decoration through the application of information technology, and solve the problems in design, production Cooperation in assembly construction. Adhering to the eight character policy of "simplicity, quickness, high quality and low price", Jianyi group adheres to the development path of industrialization, informatization, digitization and standardization. With the gradual commercialization of chinabim platform, the market space will be larger and larger.
高乃社任组长的专家组代表、丰台区成寿寺B5地块定向安置房项目执行经理曹启光、监理总监张大鹏，建谊集团结构总工程师苏磊及项目部全体成员参加了现场评审。曹经理向现场复查组专家介绍了工程的创新特点和工程隐蔽部位的施工过程，建设、设计、监理、施工等单位代表分别进行汇报。在对主体工程和施工技术资料进行了细致全面的检查后，专家组对现场检查情况进行了逐项讲评，包括施工单位的施工质量、管理情况，工程质量的实际状况，工程质量管理体系的组织结构、程序、流程方法、措施等的科学性。最终，该项目以93.5分的成绩通过专家现场复审。
Cao qiguang, the representative of the expert group headed by Gao naishe, the executive manager of the directional resettlement housing project of block B5, chengshousi, Fengtai District, Zhang Dapeng, the supervision director, Su Lei, the chief engineer of the structure of Jianyi group, and all members of the project department participated in the on-site review. Manager Cao introduced the innovative characteristics of the project and the construction process of concealed parts of the project to the experts of the on-site review group, and the representatives of the construction, design, supervision and construction units reported respectively. After a detailed and comprehensive inspection of the main works and construction technical data, the expert group commented on the on-site inspection one by one, including the construction quality and management of the construction unit, the actual situation of the project quality, and the scientificity of the organizational structure, procedures, process methods and measures of the project quality management system. Finally, the project passed the on-site review of experts with a score of 93.5.
▼ 评审会现场&颁奖仪式，On site & Award Ceremony of the review meeting
“北京钢结构金奖”由北京市钢结构行业协会、北京市建设工程物资协会建筑钢结构分会组织评定的钢结构行业荣誉奖，旨在鼓励在钢结构工程制作安装中的创新优质工程。评审包括初审（材料审查）和复审（现场评审），主要考察工程质量、施工难度、技术创新、施工管理。
"Beijing steel structure Gold Award" is an honorary award for the steel structure industry organized and evaluated by the Beijing Steel Structure Industry Association and the construction steel structure branch of Beijing Construction Engineering Materials Association, which aims to encourage innovative high-quality projects in the production and installation of steel structures. The review includes preliminary review (material review) and review (on-site review), mainly focusing on project quality, construction difficulty, technological innovation and construction management.
项目信息
项目名称：北京建谊一成寿寺B5地块项目BIM和BIM平台应用
设计团队：苏磊
文章分类：建筑设计-BIM设计
设计公司：建谊集团
项目地址：北京
项目规模：6691.2㎡
Project information
Project Name: Bim and BIM platform application of Beijing Jianyi Chengshou Temple block B5 project
Design team: Su Lei
Article category: Architectural Design BIM design
Design company: Jianyi group
Project address: Beijing
Project scale: 6691.2 ㎡
