岱山县官山至秀山公路秀山大桥BIM技术，浙江/市政

Project Overview: the main bridge of Xiushan bridge is a double tower three span continuous elastic support system suspension bridge, with a span arrangement of 264 + 926 + 357 = 1547m

二.无人机数据管理

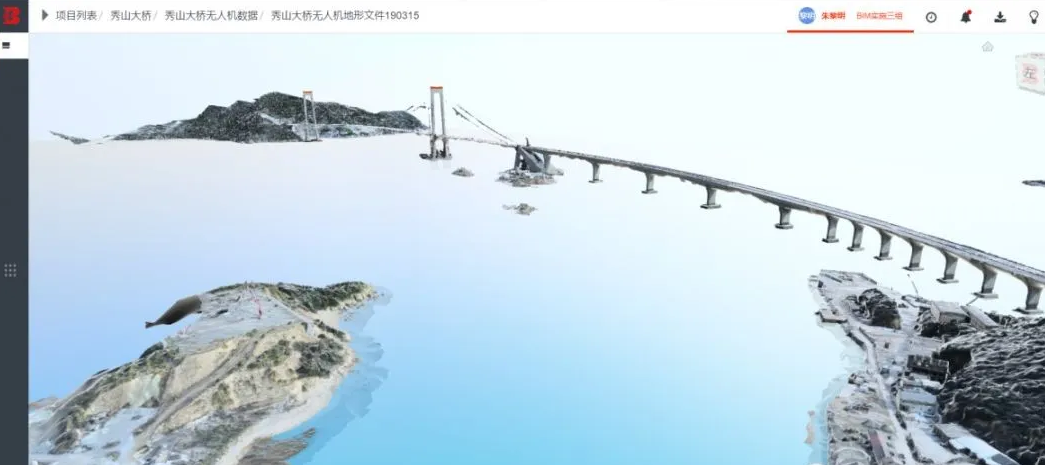

通过平台能够快速查看到项目的BIM三维模型以及周边的建筑、道路、地形等环境信息，为三维报建提供技术模型。利用BIM软件建立项目各施工阶段的三维场地布置BIM模型，进行整体施工整体部署，采用无人机3D激光扫描施工现场，利用扫描的点云数据与BIM模型进行对比分析进度偏差。

II UAV data management

Through the platform, you can quickly view the BIM three-dimensional model of the project and the surrounding buildings, roads, terrain and other environmental information, so as to provide a technical model for three-dimensional construction application. The BIM software is used to establish the three-dimensional site layout BIM model of each construction stage of the project, carry out the overall construction deployment, use the UAV 3D laser to scan the construction site, and compare the scanned point cloud data with the BIM model to analyze the progress deviation.

三.项目资料管理

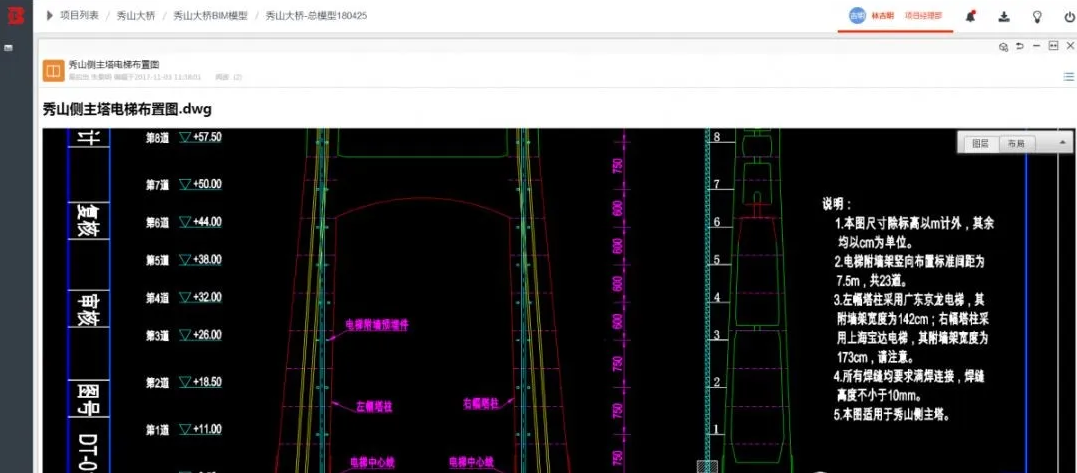

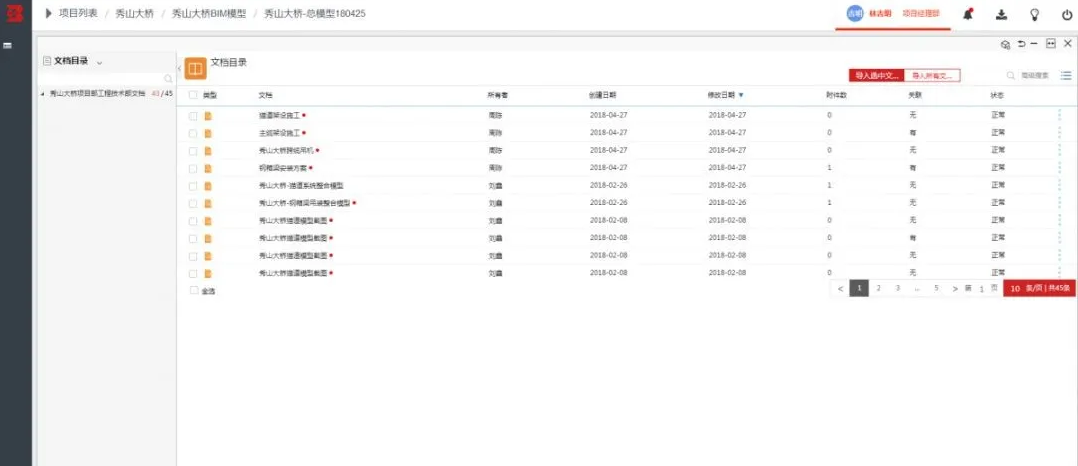

现场施工时管理人员可随时获取关于项目的施工图纸、施工方案、施工台账、合同文件、方案视频等。各资料统一在云端集成，确保信息资料的准确性、唯一性、及时性。

III Project data management

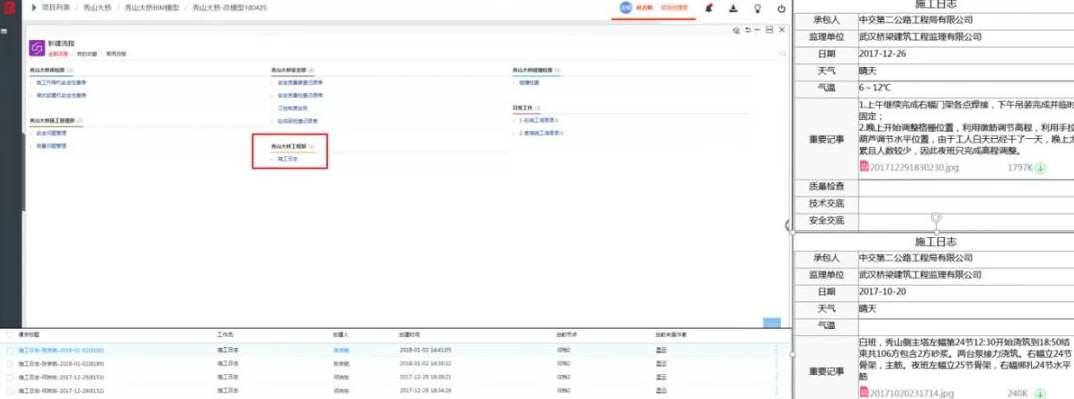

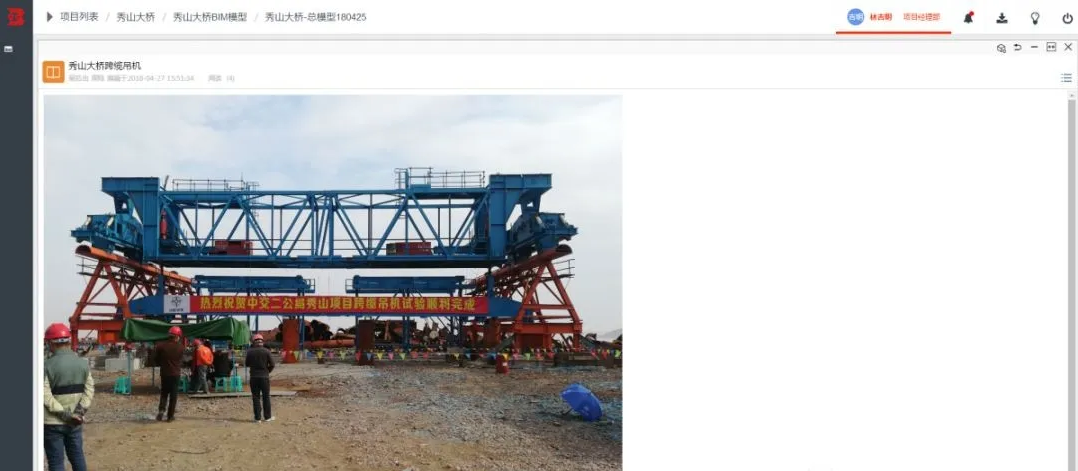

During on-site construction, the management personnel can obtain the construction drawings, construction schemes, construction accounts, contract documents, scheme videos, etc. of the project at any time. All data are integrated in the cloud to ensure the accuracy, uniqueness and timeliness of information.

四.二维码应用

将二维码通过二维码打印机打印粘贴在现场，项目人员在现场可以通过移动电子设备快速扫描二维码，快速获取工程任一结构物实时工程信息；同时后台赋予现场技术员相关权限，根据当前工程施工关键信息变动，使用手持移动端利用二维码技术快速定位构件，运用APP实时更改构件状态信息，再通过互联网快速将信息共享给各职能部门。

IV QR code application

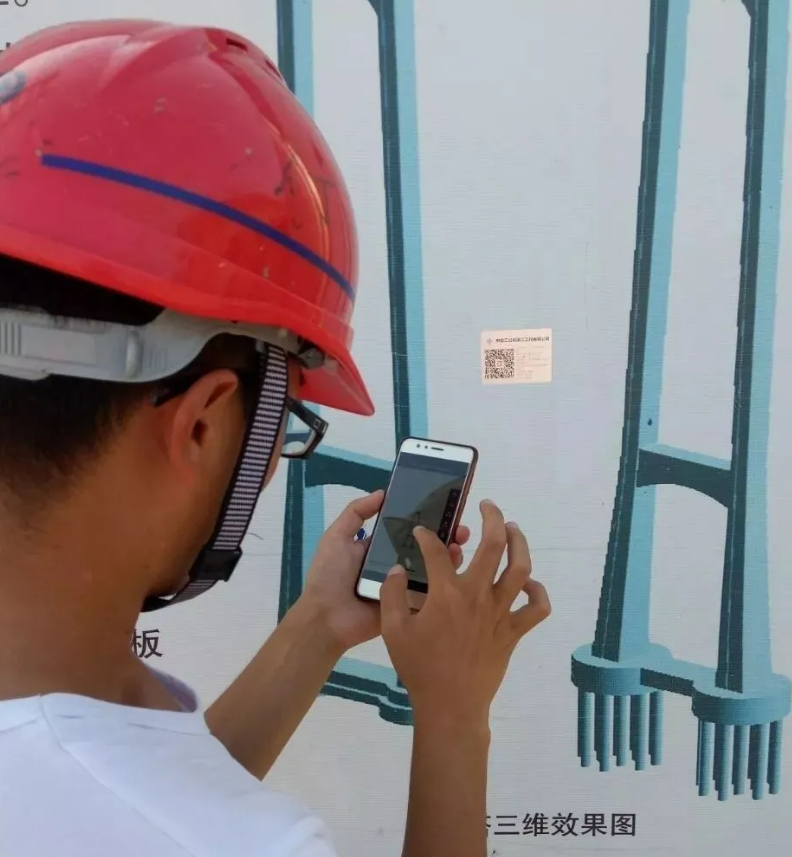

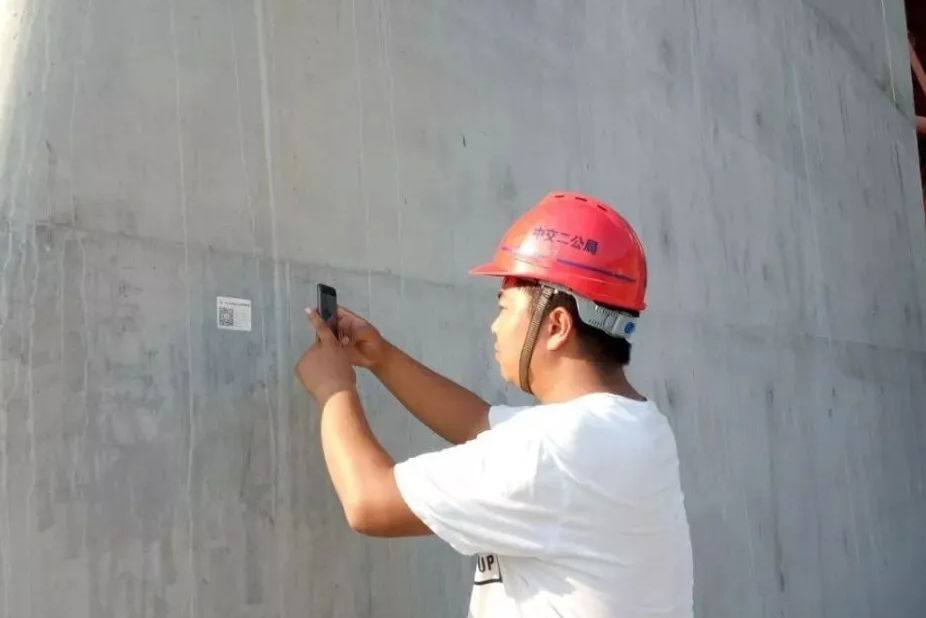

Print and paste the QR code on the site through the QR code printer, and the project personnel can quickly scan the QR code on the site through mobile electronic equipment to quickly obtain the real-time engineering information of any structure of the project; At the same time, the background gives relevant permissions to the on-site technicians. According to the changes of key information of the current project construction, the handheld mobile terminal is used to quickly locate the components by using QR code technology, the component status information is changed in real time by using app, and then the information is quickly shared to all functional departments through the Internet.

五.BIM模型分享

将BIM模型整体或按构件分享给项目各参与方人员，被分享的人员可以直接通过链接或扫描二维码打开模型进行浏览，对项目整体模型及构件有系统的了解，并基于BIM模型进行沟通协作。

V BIM model sharing

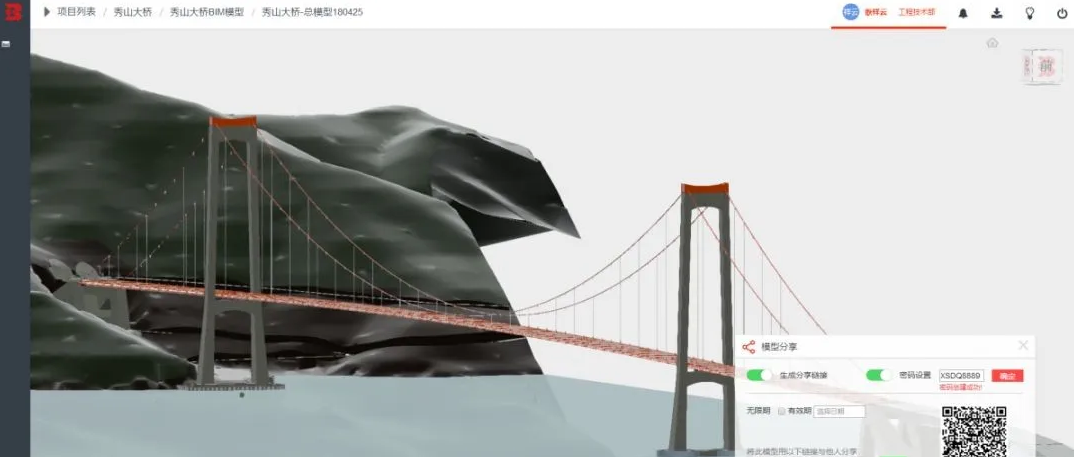

Share the BIM model as a whole or by components to the personnel of all participants of the project. The shared personnel can directly open the model through link or scan QR code to browse, have a systematic understanding of the overall model and components of the project, and communicate and cooperate based on the BIM model.

六.进度管理

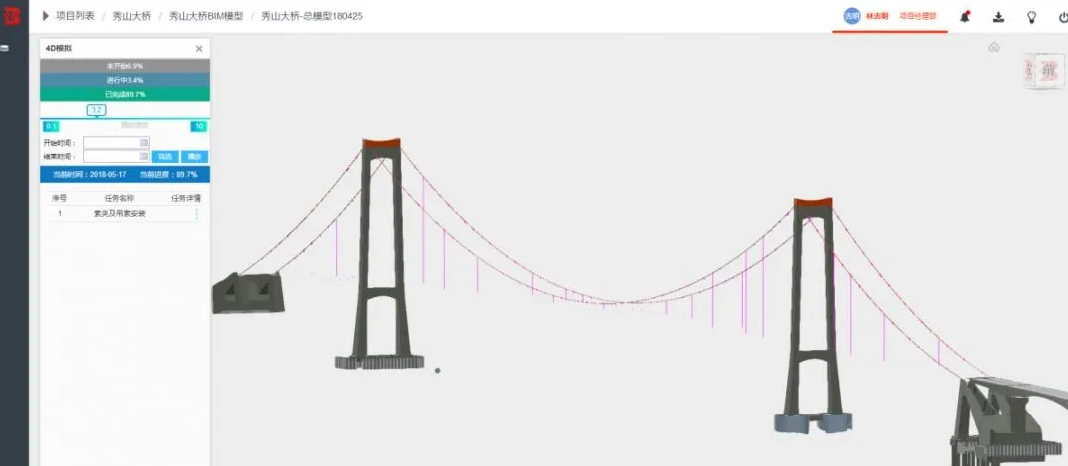

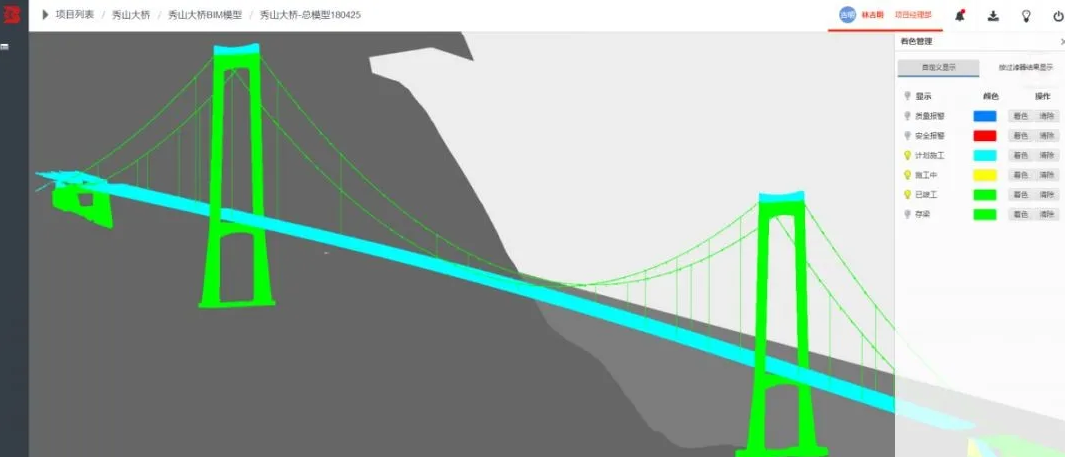

施工前期将分部分项任务与BIM模型进行关联，对工程计划进行虚拟排布及实际进度跟踪。通过点击任务列表中的明细进行反查，可以看到该条任务对应的模型部位。通过任务与模型的关联，可以方便业主随时查看工程形象进度，对于项目部的月报工程量复核也提供了有力的依据。

Vi Schedule management

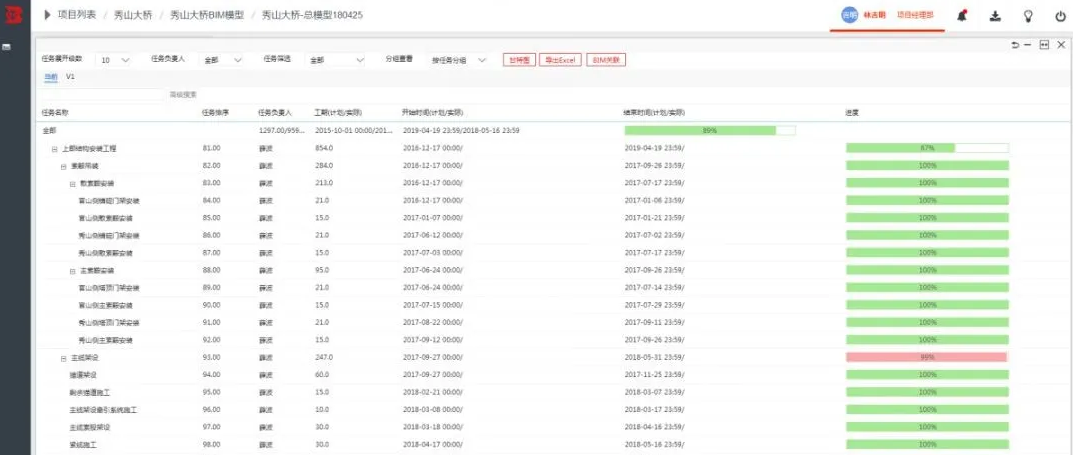

In the early stage of construction, the sub divisional and sub divisional tasks are associated with the BIM model to make virtual arrangement of the project plan and track the actual progress. By clicking the details in the task list to perform a reverse query, you can see the model part corresponding to the task. Through the association between the task and the model, it is convenient for the owner to check the project image progress at any time, and it also provides a strong basis for the monthly review of the quantities of the project department.

七.设计问题协同

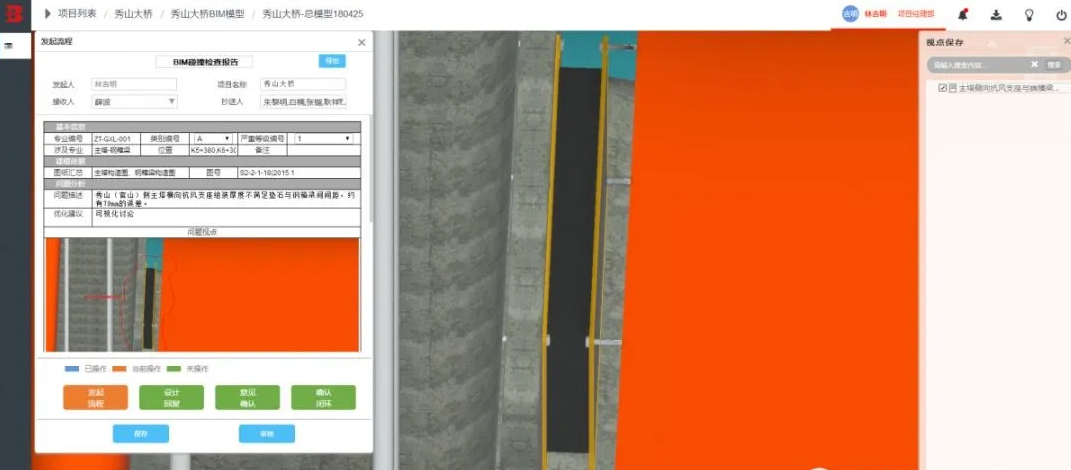

在浏览BIM模型时，直接针对碰撞问题进行实时沟通，形成碰撞检查报告，业主，设计方、施工方等可直接基于同一BIM模型进行问题的及时回复和解决，BIM平台系统自动形成记录及报告，可将碰撞报告导出到本地。

VII Design problem collaboration

When browsing the BIM model, conduct real-time communication directly for the collision problem and form the collision inspection report. The owner, designer and constructor can reply and solve the problem in time directly based on the same BIM model. The BIM platform system automatically forms records and reports and can export the collision report to the local.

八.项目门户定制

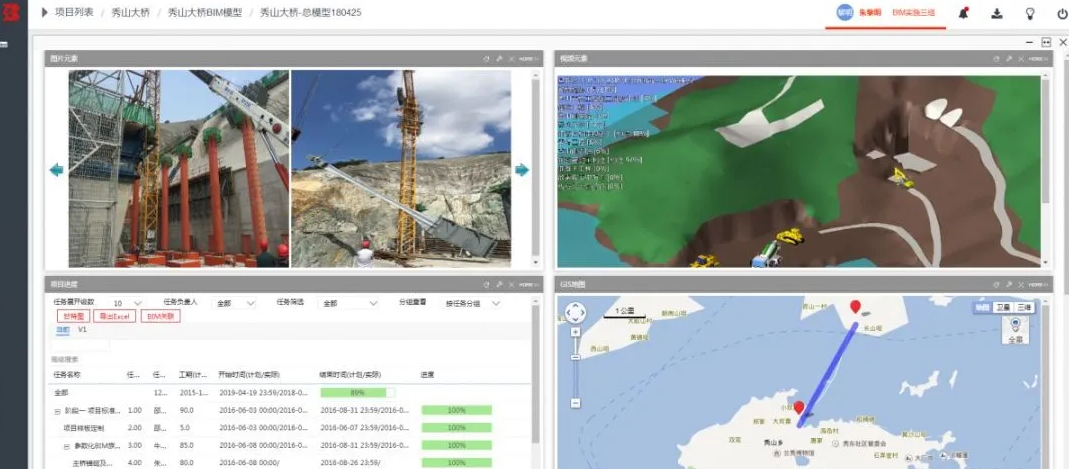

结合本项目特点、项目需求、项目组织架构等进行项目平台定制化配置，在前端可查看项目效果展示视频、现场施工照片、项目GIS定位、日历及日程等；将各种常用功能和重要信息及时呈现，项目所有参与人员登录平台后能第一时间看到和自己相关的文档、资料、工作任务、协同消息等。

VIII Project portal customization

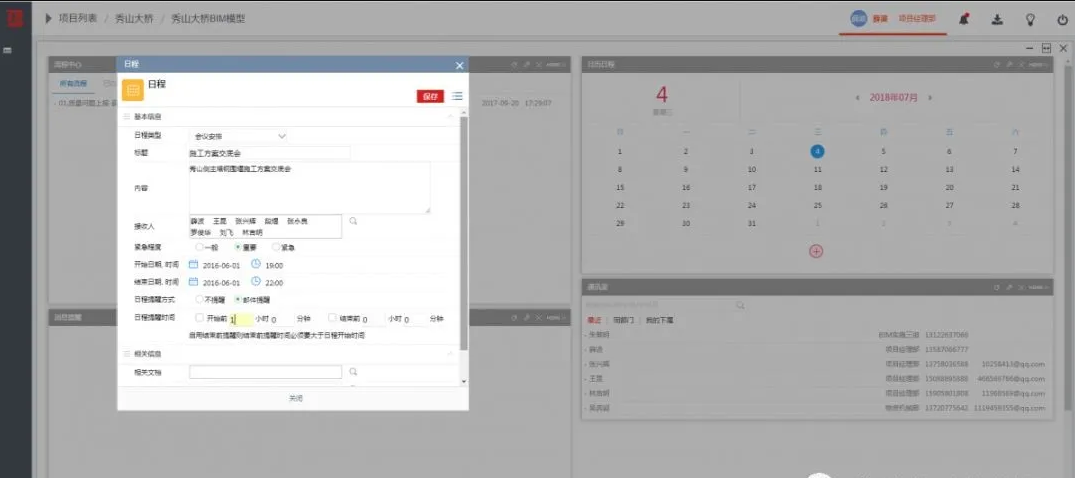

The customized configuration of the project platform is carried out in combination with the characteristics, needs and organizational structure of the project. The project effect display video, on-site construction photos, project GIS positioning, calendar and schedule can be viewed at the front end; Present various common functions and important information in time, and all participants of the project can see their relevant documents, materials, work tasks, collaboration messages, etc. at the first time after logging in to the platform.

九.BIM模型信息查看

在项目平台上可以对BIM模型概览、漫游、属性查看、剖切、测量、过滤、查询等各种操作，经过轻量化处理的模型，只需普通的网页浏览器即可轻松浏览BIM模型，无需高端配置的电脑，大大提高BIM模型应用普及性和便捷性。

IX BIM model information viewing

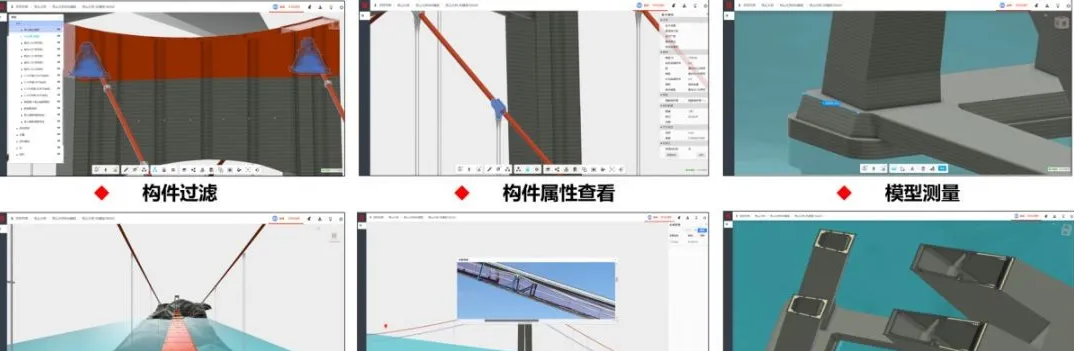

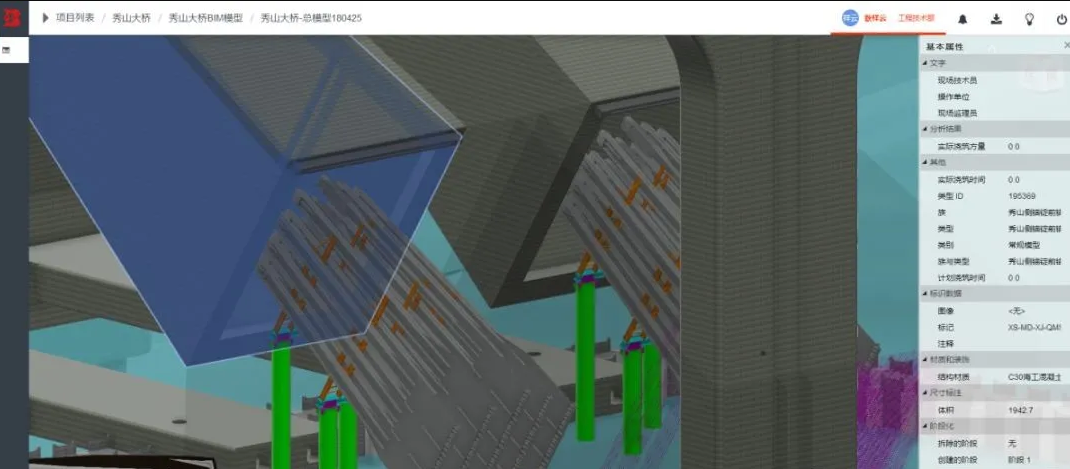

On the project platform, various operations such as BIM model overview, roaming, attribute viewing, sectioning, measurement, filtering, query and so on can be carried out. For the lightweight model, you can easily browse the BIM model with an ordinary web browser without a high-end configured computer, which greatly improves the popularity and convenience of BIM model application.

十.安全质量管理

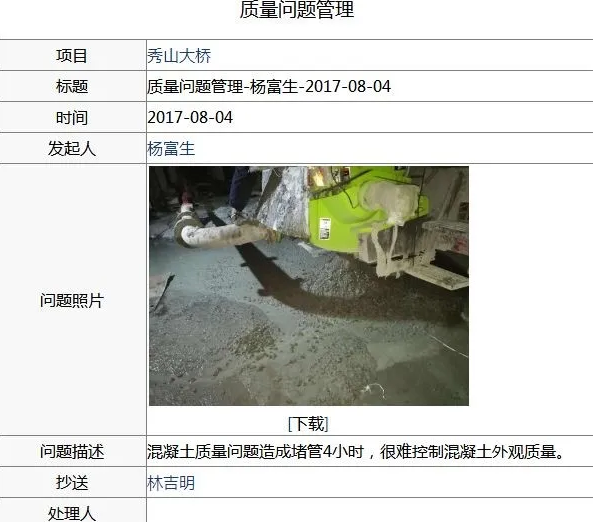

技术部和安全部人员,在现场巡查过程中及时上传质量、安全问题，生产工区人员在接到相关问题提醒后,及时进行整改，通过数据共享和集中分析，实现现场施工安全问题跟踪管理，隐患排查实时具体，落实整改更迅速及时。

X Safety and quality management

The personnel of the technology department and the safety department shall upload quality and safety problems in time during the on-site inspection. After receiving the reminder of relevant problems, the personnel in the production work area shall make rectification in time. Through data sharing and centralized analysis, the tracking management of on-site construction safety problems is realized, the hidden danger investigation is real-time and specific, and the rectification is implemented more quickly and timely.

十一.移动端应用

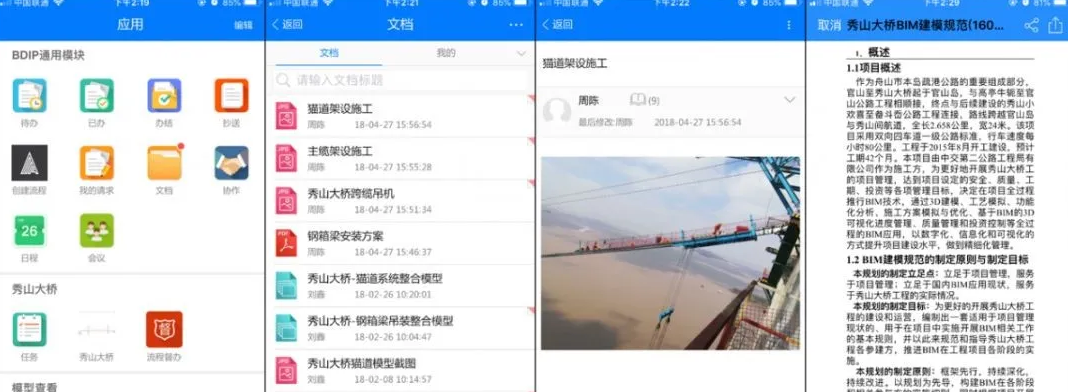

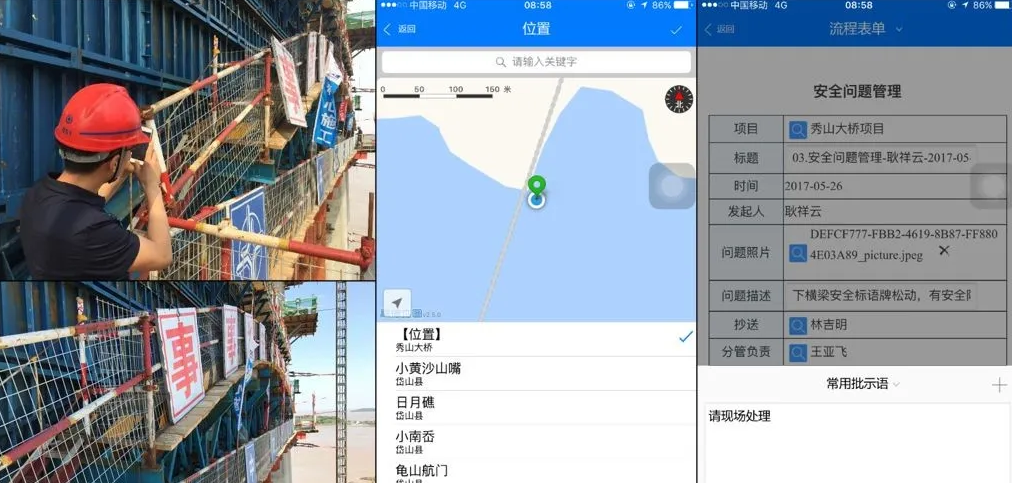

与PC端同时建立的移动端BIM协同APP，满足现场技管理人员对现场安全管理、质量安全的问题拍照保留和协作沟通，同时系统具备图纸浏览、模型查看、信息检索、考勤管理、实时讨论等功能。

Xi Mobile application

The mobile BIM collaboration app established simultaneously with the PC side meets the needs of on-site technical management personnel to take photos, retain and cooperate with and communicate with on-site safety management and quality and safety issues. At the same time, the system has the functions of drawing browsing, model viewing, information retrieval, attendance management, real-time discussion and so on.

十二.应用总结

本项目引进应用广泛、成熟稳定的BIM施工协同管理平台引入到桥梁施工应用中，已取得的应用效果显著。项目各参与方人员统一基于BDIP平台协作沟通、极速浏览BIM模型、实时查看项目实际施工进度、流程表单在线填写、审批、归档且可追溯；基于BDIP平台的信息化项目管理提高了项目参与方的沟通效率、参与度、项目施工管理更加高效。

XII Application Summary

The project introduces the widely used, mature and stable BIM construction collaborative management platform into the application of bridge construction, and the application effect has been remarkable. All participants of the project shall cooperate and communicate based on the bdip platform, browse the BIM model at a high speed, view the actual construction progress of the project in real time, and fill in, approve, archive and trace the process form online; The informatization project management based on bdip platform improves the communication efficiency, participation and project construction management of project participants.
