安之若宿·山，云南/建筑

2022-04-21 14:13:09建筑设计,旅游民宿,商业建筑 , 现代风格

项目标签

项目名称

安之若宿·山

文章分类

设计公司

项目地址

主持建筑师

设计团队

项目规模

结构

「安之若宿·山」是一家新锐精品民宿，位于腾冲和顺古镇，坐落在一条由古镇延展出来的繁杂老街上。基地是一纵狭窄而又曲折的山坡及一片山顶上的地块，平面合在一起构成一个倒「L」形。地块两端属性截然相反，一端处于闹市，一端隐于云天，中间仅由不足几方的细窄坡道维系。方向的转折和高差的跳跃，使场地区域间关联性变得十分薄弱，给建筑带来了极大的挑战。

ANNSO HILL, located in Heshun Ancient Town of Yunnan, is situated in a narrow alleyway lined with B&Bs and storefronts. The site is composed with two characteristically different lot spaces forming an inverted“L”shape, which begins with a compressed street front zone on a steep slope, and ends on a long serene hillside aligned with beautiful tall trees.

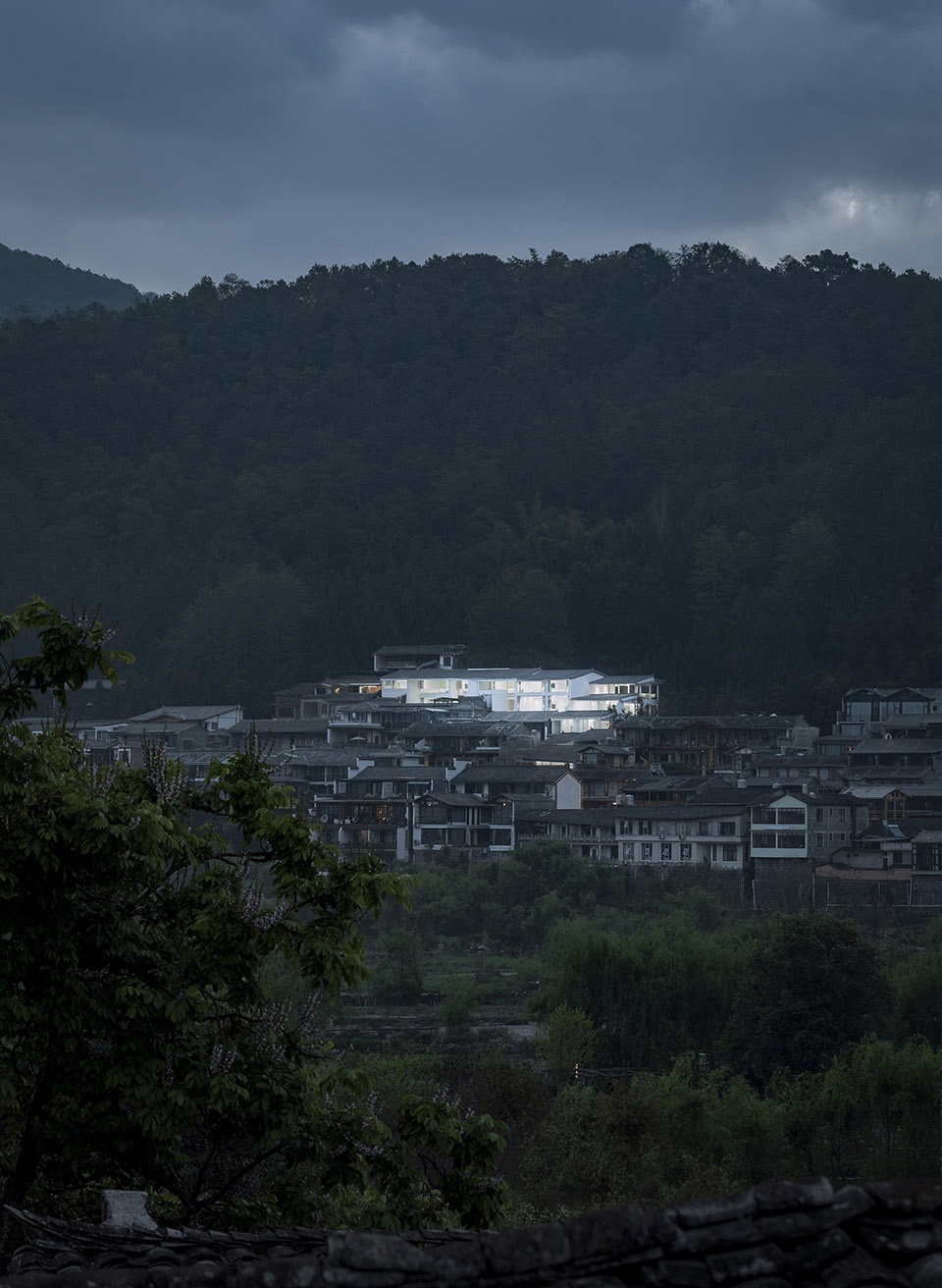

▼远眺古镇，overview of the ancient town

面对沿街立面的分毫必争，我们选择一种与世无争的姿态，以退为进地去寻找建筑的空间和尺度。入口被隐藏，立面被消解，屋顶的“存在”也被重新定义。建筑沿着山坡顺势爬升，屋顶覆盖在山坡上，沿着视觉动线折层而上。原本隐于房屋聚落背后的山林被打开，和近处的建筑形成一个全新的三维立面。

In the face of competing for every penny along the street facade, we choose a posture of being independent from the world and retreat to find the space and scale of the building. The entrance is hidden, the facade is dissolved, and the "existence" of the roof is redefined. The building climbs along the hillside, with the roof covering the hillside and folding up along the visual moving line. The mountains and forests hidden behind the houses and settlements were opened to form a new three-dimensional facade with the nearby buildings.

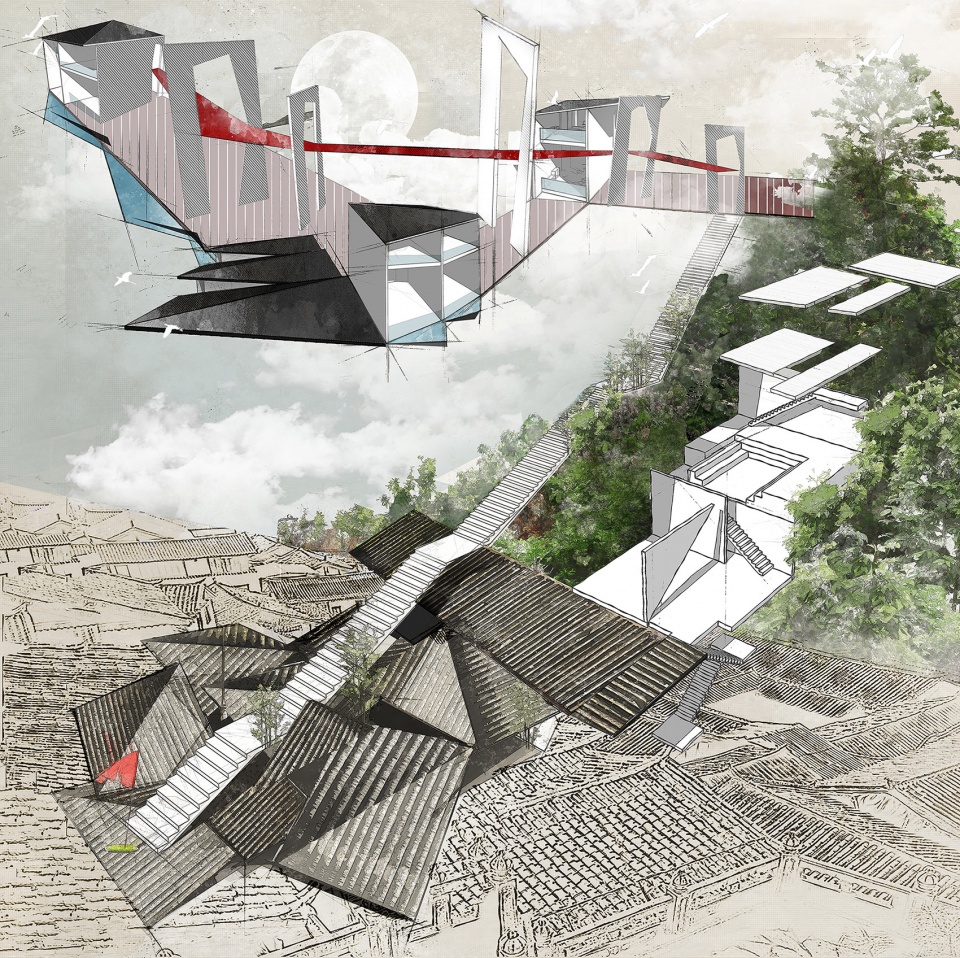

▼建筑与山林结合的三维立面，a three-dimensional facade of ancient town and mountain landscape

这是中国宋代山水画中的正观立面，犹如范宽在《溪山行旅图》中虚构的层次叠加的山水世界。卧倒的立面成为了一个人们可以停留、谈论或者摄影的街边合院，而不再是一家民宿的简单界墙。逼仄的小街动线瞬间被打开，社会性的主题被引入其中，重新唤醒了古镇邻里街巷的脉络。

This is the facade of Chinese landscape painting in the Song Dynasty, just like fan Kuan's fictional layered landscape world in his travel map of streams and mountains. The facade of lying down has become a street courtyard where people can stay, talk or take photos, rather than a simple boundary wall of a home stay. The narrow streets were opened in an instant, and the social theme was introduced, which awakened the context of the neighborhood streets of the ancient town.

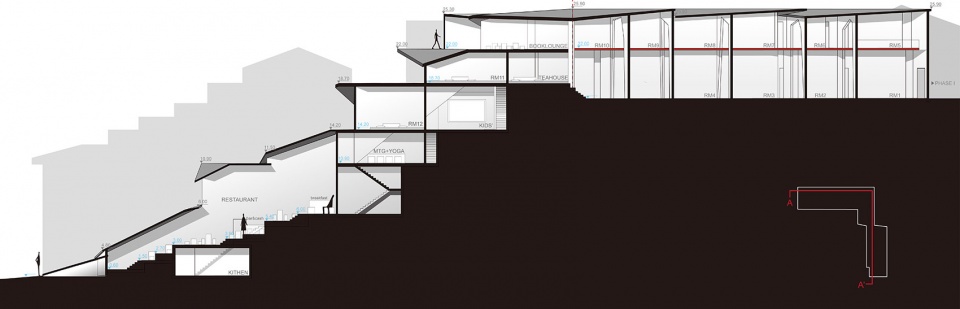

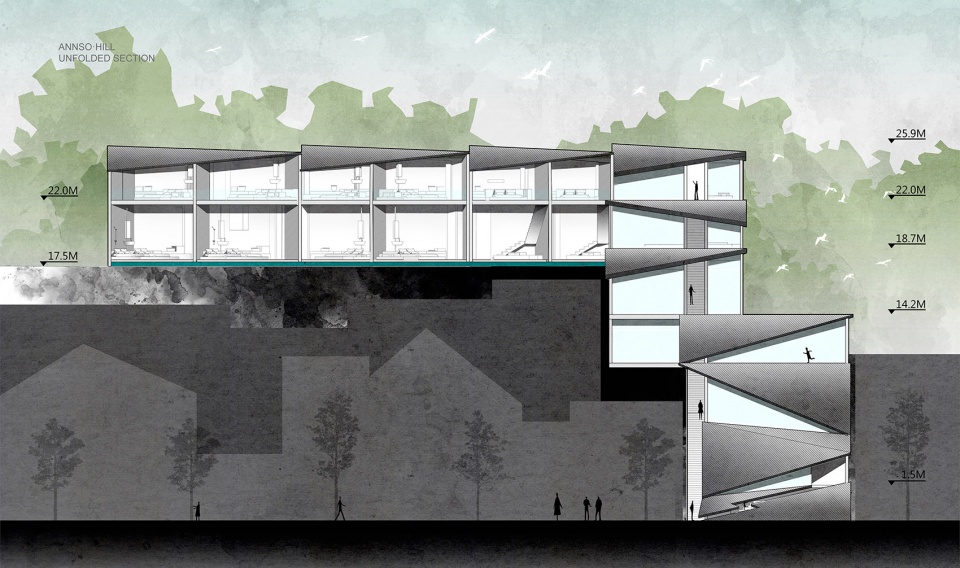

▼立面图，elevation

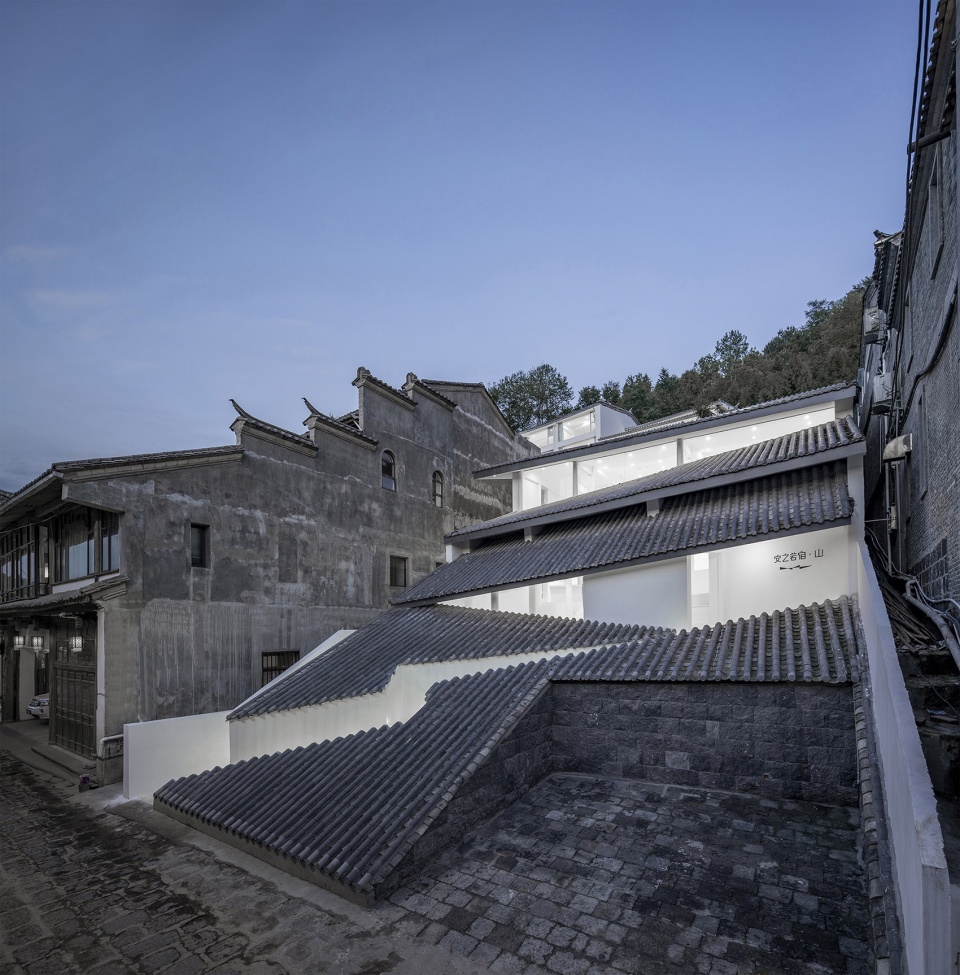

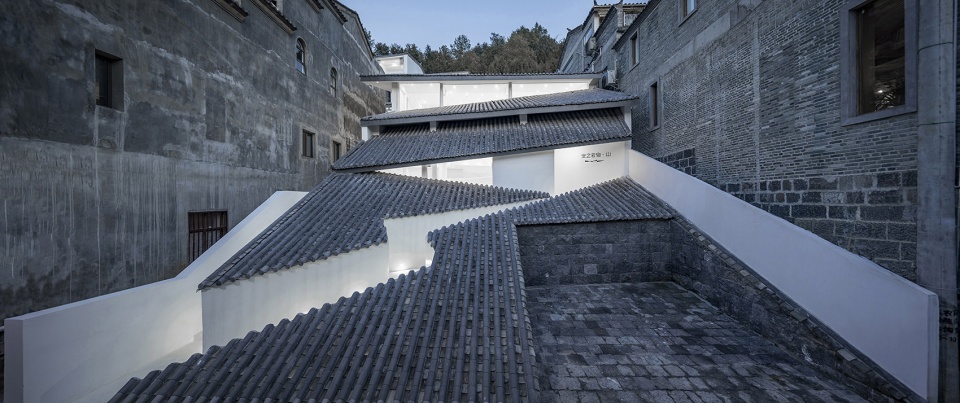

▼消解的立面，重新定义屋顶的“存在”，the deconstructed facade redefines the “existence” of the roof

「安之若宿·山」屋檐与地面之间微启的入口，将旅人引入室内的一个「另世界」。在这里，屋顶、墙体、立面和地面的界线被模糊，空间是一个“场域”而非被传统梁柱切割的“房间”（Architectural Field vs. Architectural Room）。建筑内部的功能和动线逐一应对山的走势，餐厅、酒吧、表演、茶台、阅读、文创，顺地势依次排开，上下相连。时间被纳入场域之中，活动的场景在不断的发生、互动。

The slightly opened entrance between the eaves and the ground of "an ruoshu mountain" introduces travelers into an "other world" indoors. Here, the boundaries of roof, wall, elevation and ground are blurred, and the space is a "field" rather than an "architectural field vs. architectural room" cut by traditional beams and columns. The functions and moving lines inside the building respond to the trend of the mountain one by one. Restaurants, bars, performances, tea tables, reading and cultural creation are arranged in turn along the terrain and connected up and down. Time is incorporated into the field, and the activity scene is constantly occurring and interacting.

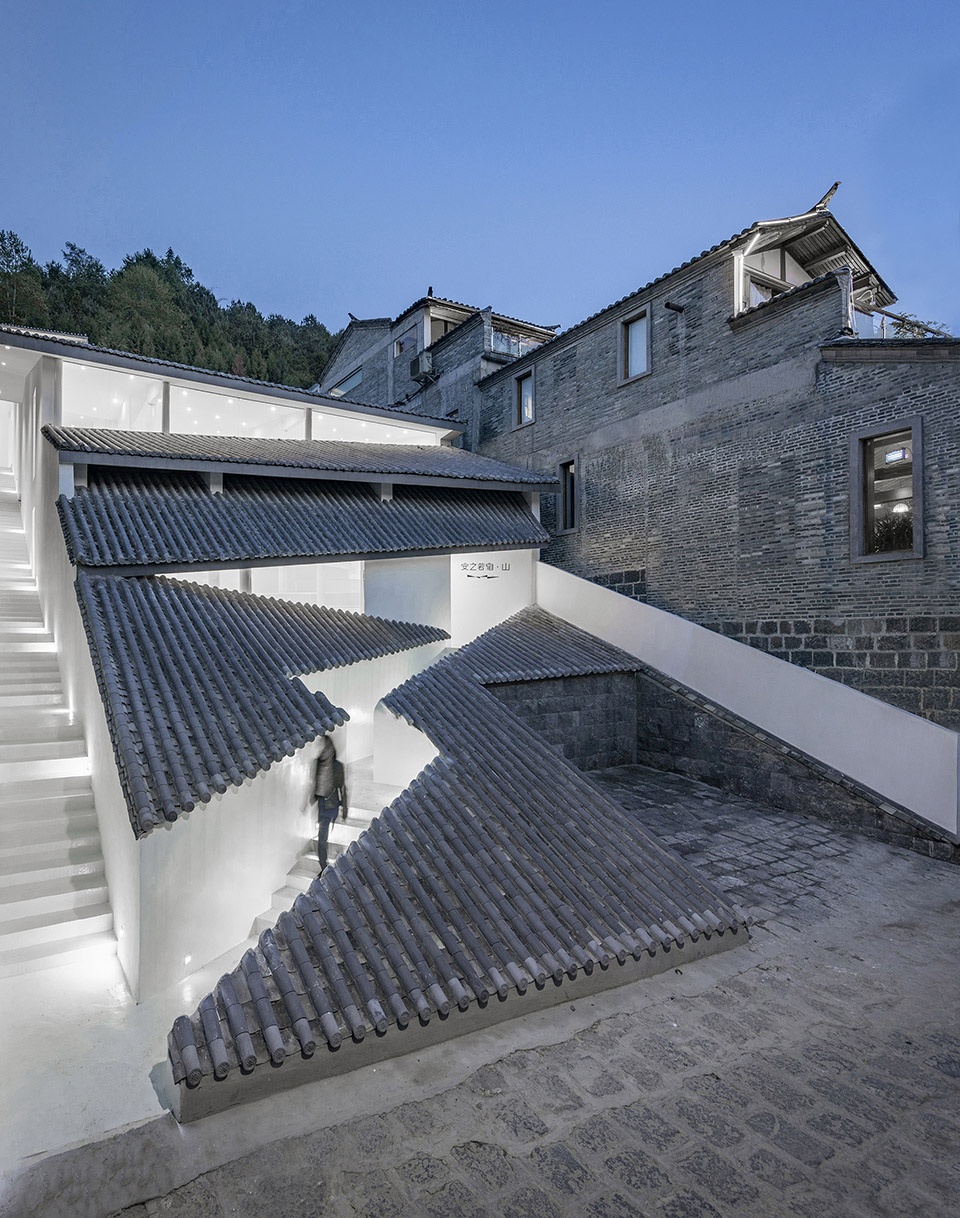

▼屋檐与地面之间微启的入口，the entrance opens slightly between the eaves and the ground

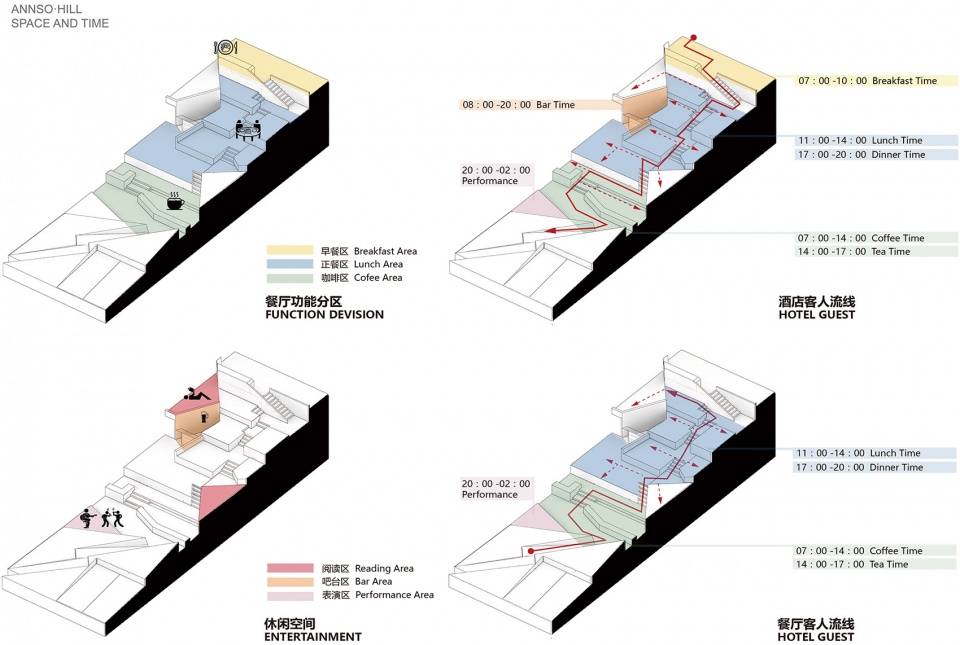

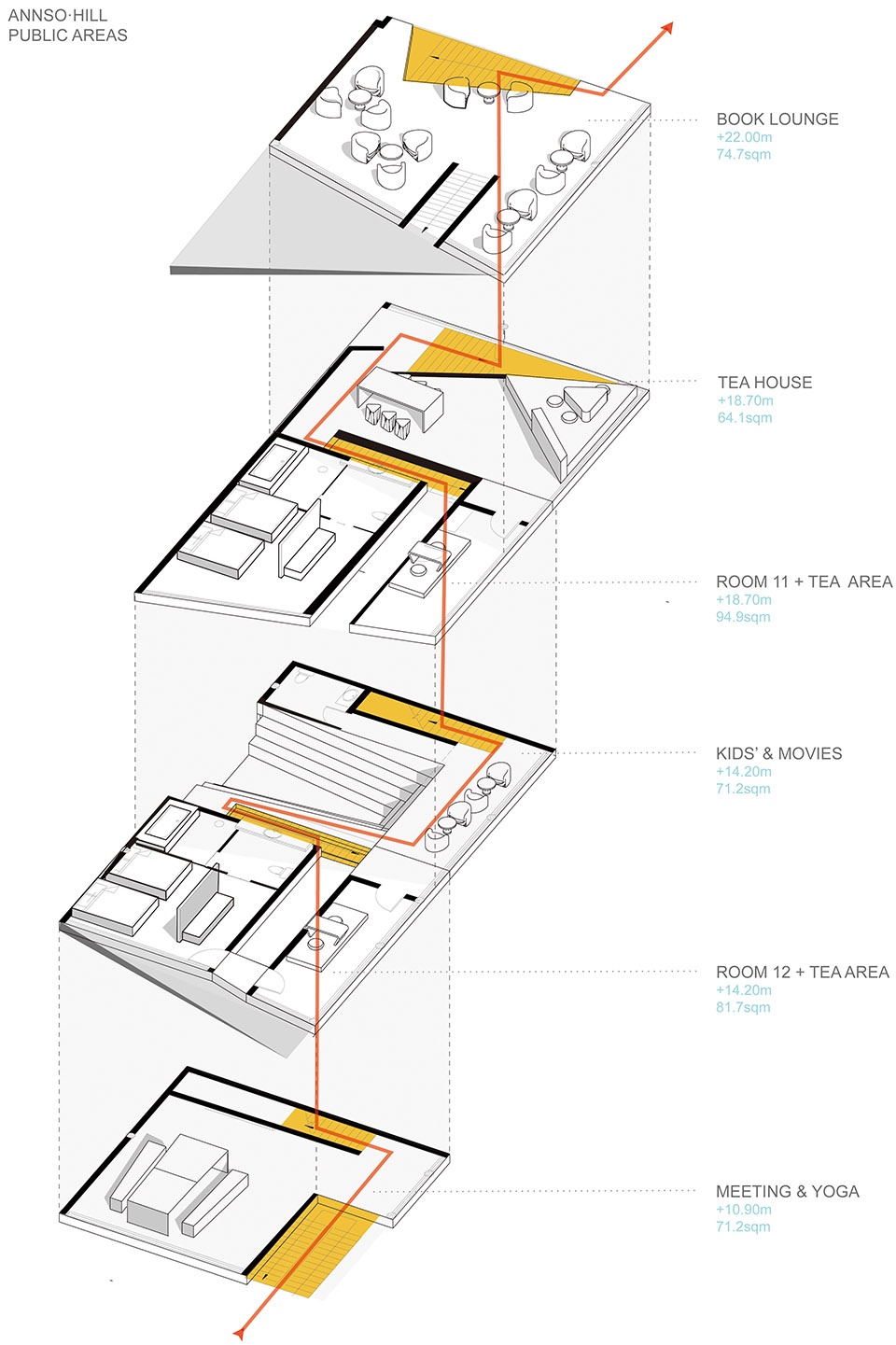

▼空间与时间关系示意图，space and time

▼进入餐厅后的第一个转折点，“场域”的概念

the first point after entering the restaurant, reflecting the concept of “architectural field”

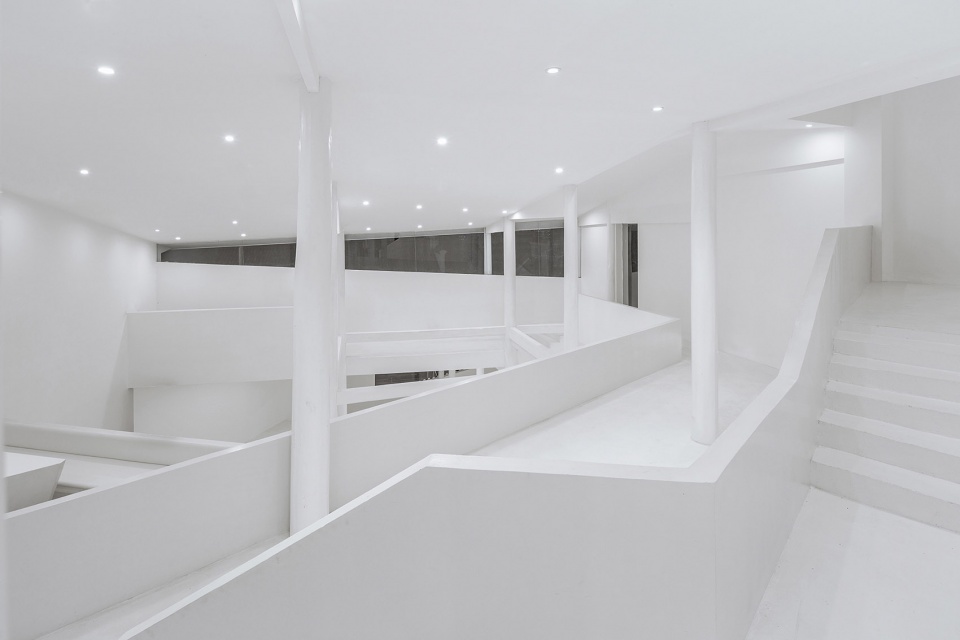

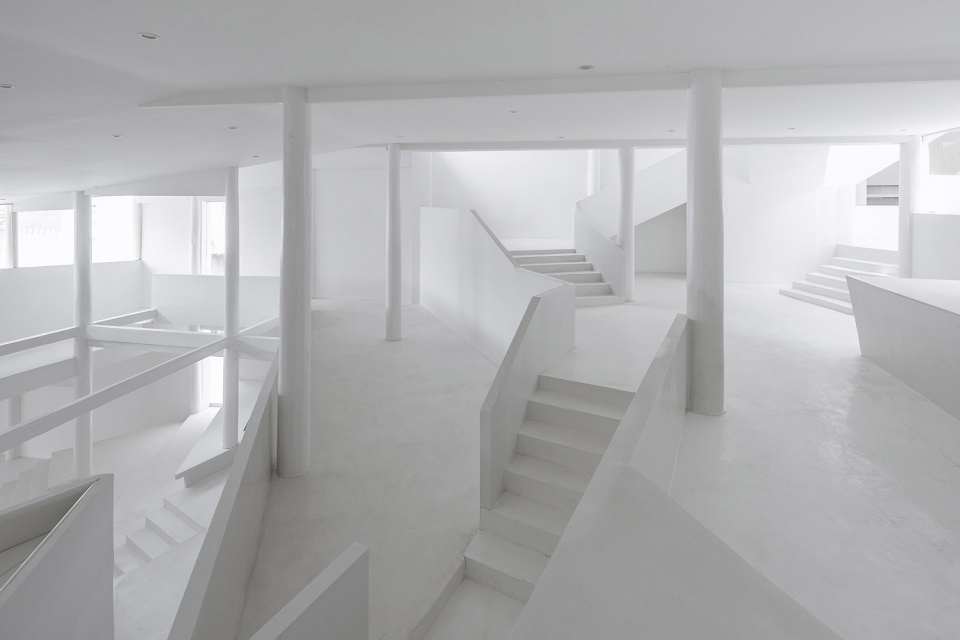

▼公共区域依附着山体生长，上下相连，阡陌交通

all of the interactive programs flow against the movements of the transitioning ground

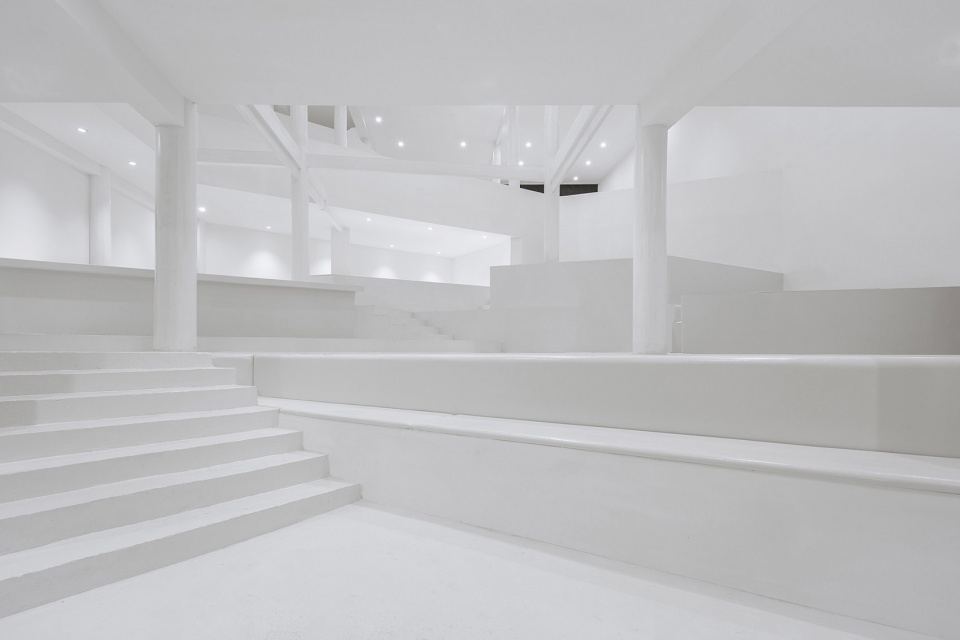

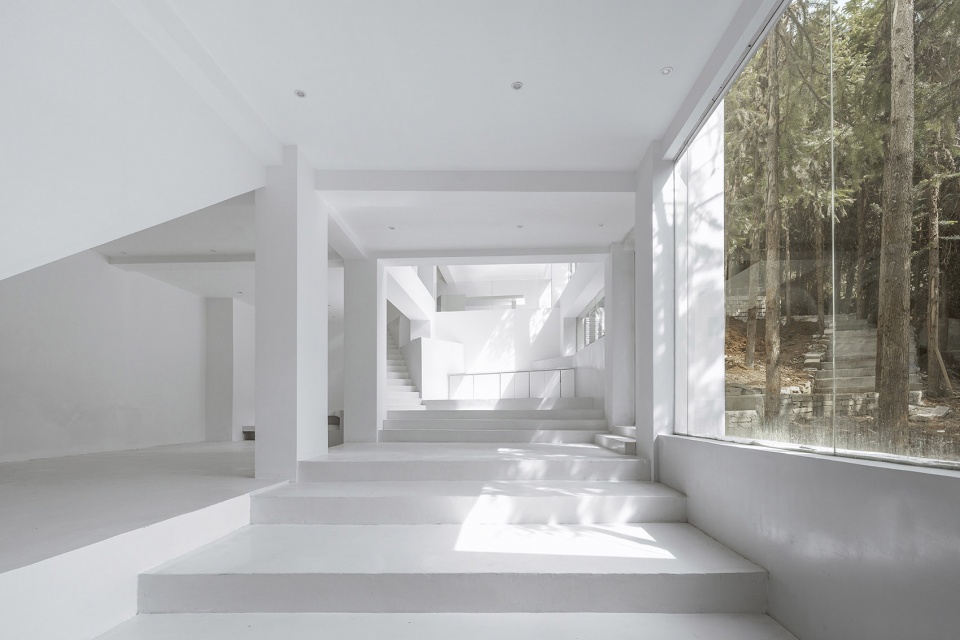

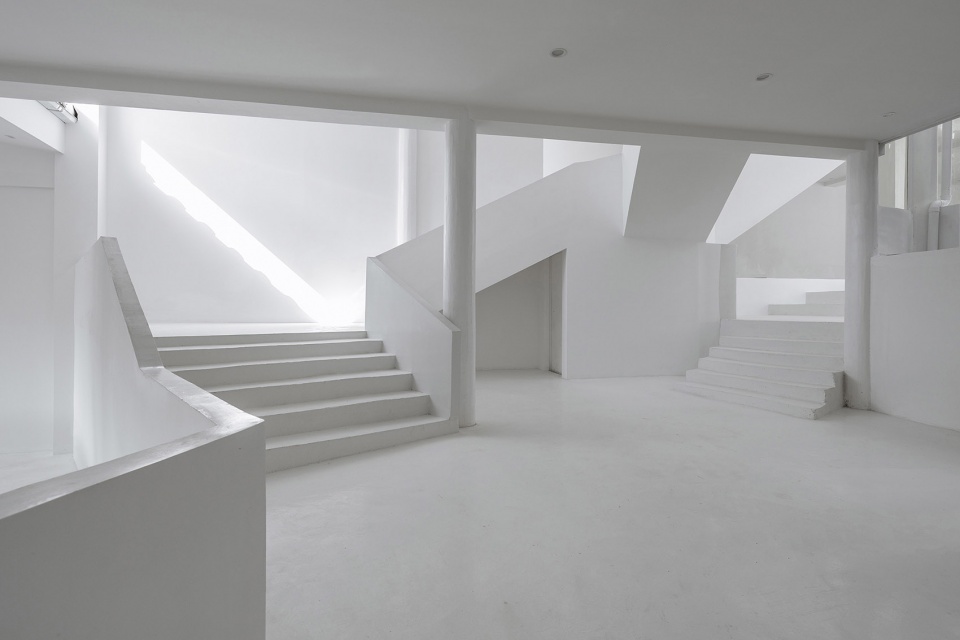

▼公共区域顺地势而上，依次排开，public spaces are arranged according to the “terrain” of the place

▼时间被纳入场域之中，the architectural field shows the flow of time

▼每一个转角都可能遇到新的惊喜，surprises happen in every corner of the space

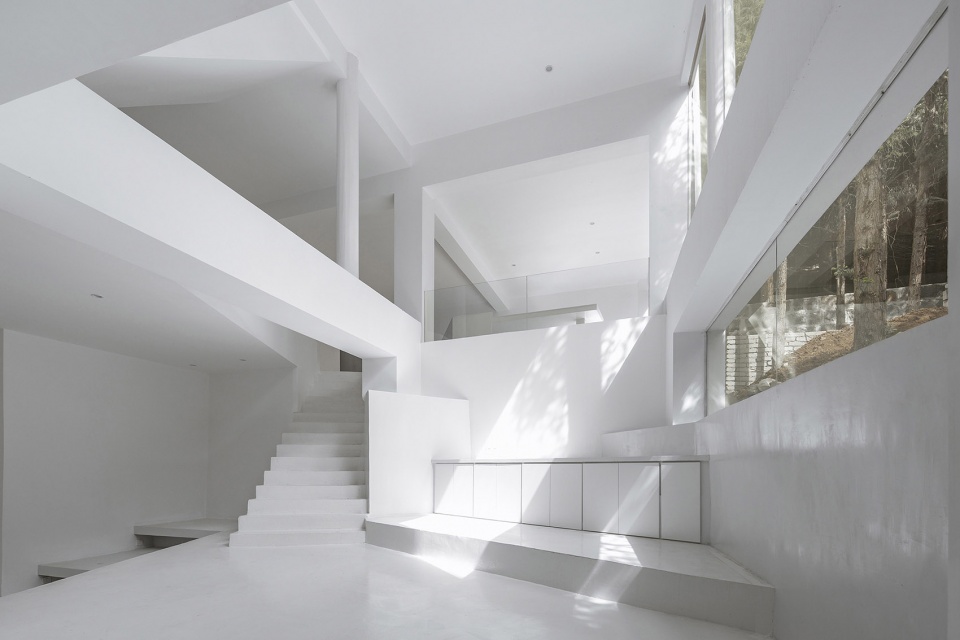

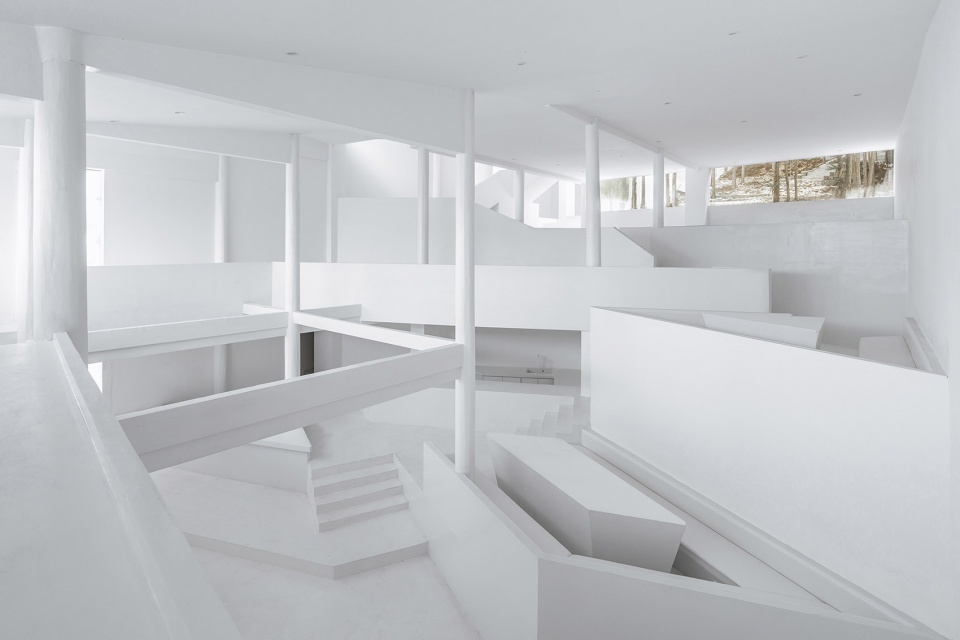

▼空间是一个“场域”而非被传统梁柱切割的“房间隔间”，a design of an “architectural field” instead of an“architectural room

▼活动的场景在不断地发生、互动，different scenes are continually happening and interacting

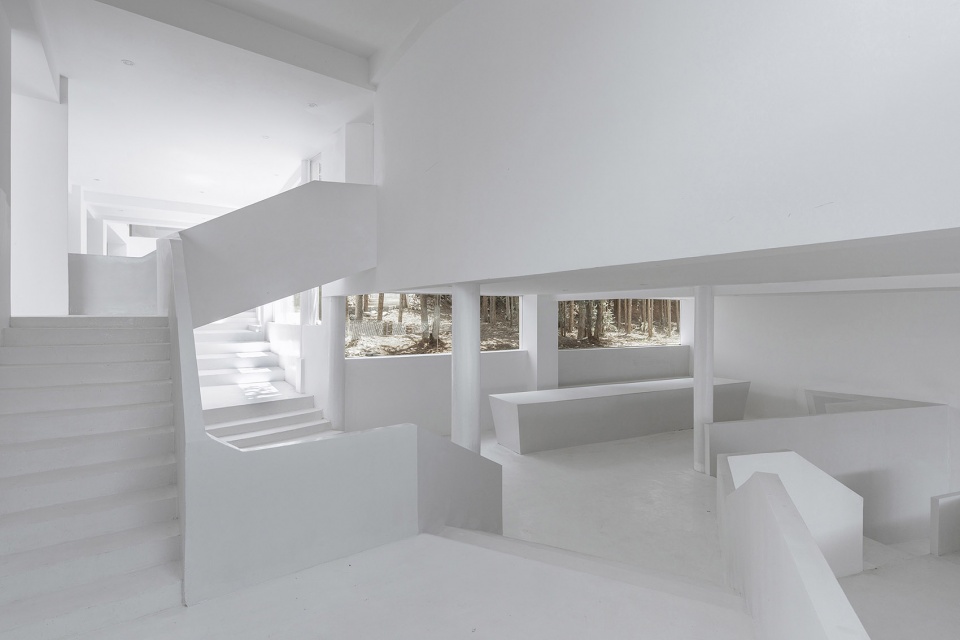

▼透过不同高度的窗捕捉到不同角度的林间景致，openings vary in height to capture unique views towards the forest

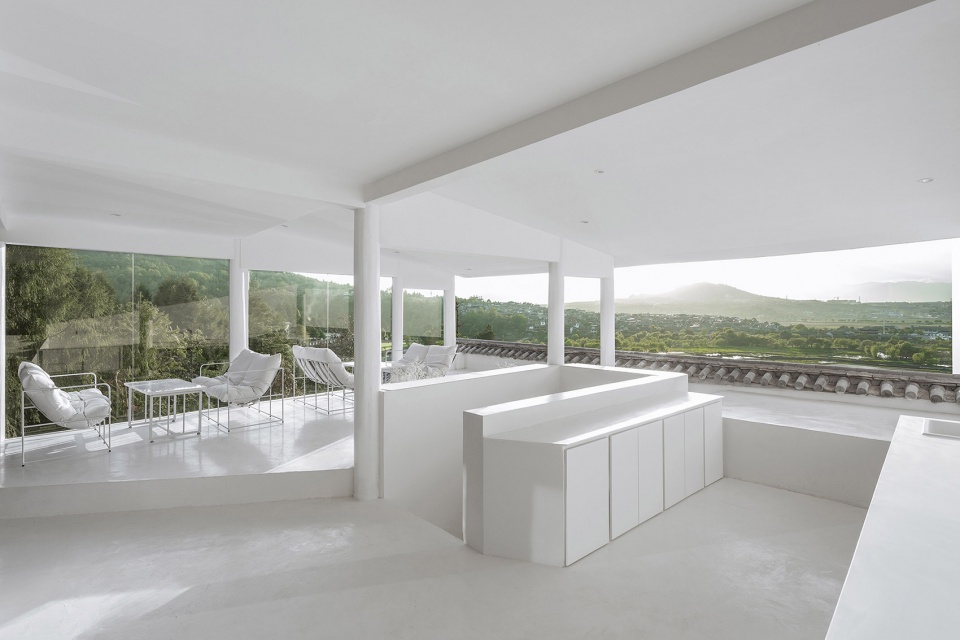

▼公区延伸至最顶端的茶室，整个和顺古镇展现在眼前，the public space extends to the tea room on the rooftop

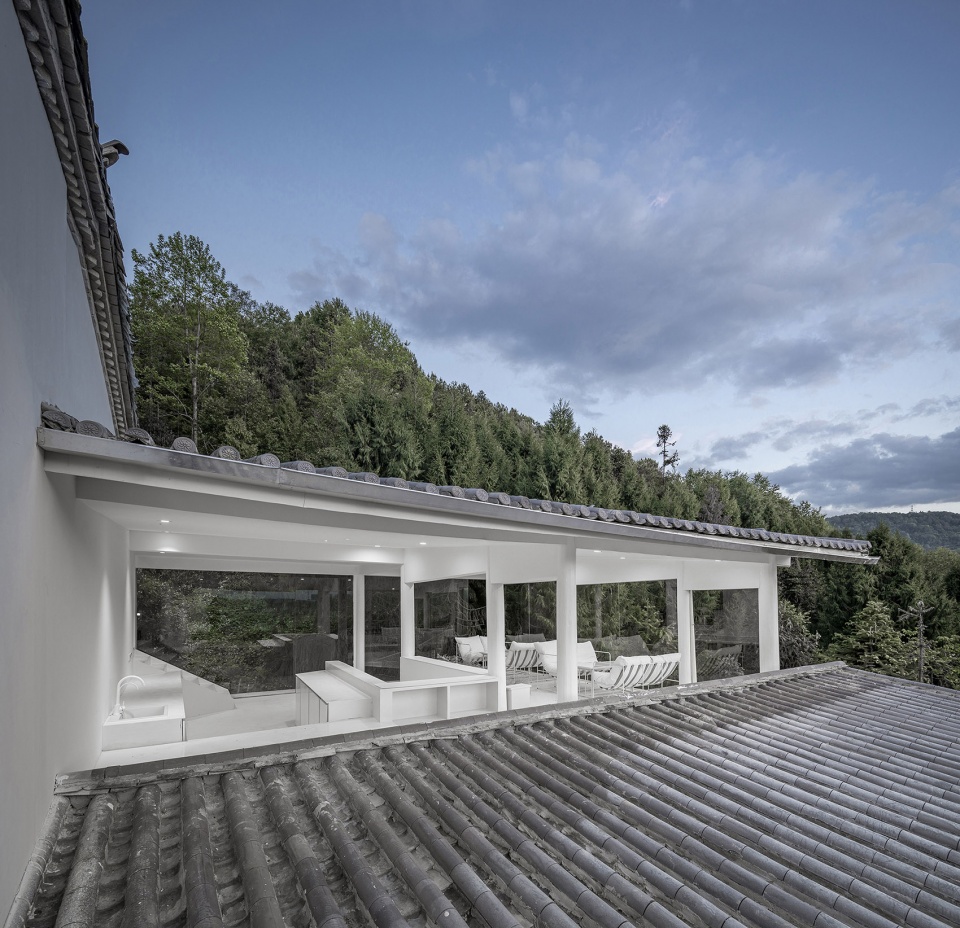

▼位于公区最顶端的茶亭，the tea pavilion on the top floor

我们置入了一把“天梯”去应对场地自身20米的巨大高差，从市井街巷直通云霄，总共133阶，让整个上山过程充满了“问道”的仪式感，也让上山过程变的清晰。更重要的是，天梯也成为了串联横竖两幅场地的核心线索，增强了场地的关联性和整体性。连接天梯的顶端是另一条穿梭于山林间的“飞廊”，把回房的动线架空于山中，光影的交错好比山间的一涧溪水，呈现出山林应有的姿态。

We put in a "ladder" to deal with the huge height difference of 20 meters of the site itself. It goes straight to the sky from the streets and alleys, with a total of 133 steps, which makes the whole climbing process full of the ritual sense of "asking questions" and makes the climbing process clear. More importantly, the ladder has also become the core clue of the two sites in series, enhancing the relevance and integrity of the site. The top of the connecting ladder is another "flying corridor" shuttling between the mountains and forests. The moving line back to the house is overhead in the mountains. The crisscross of light and shadow is like a stream in the mountains, showing the due posture of the mountains and forests.

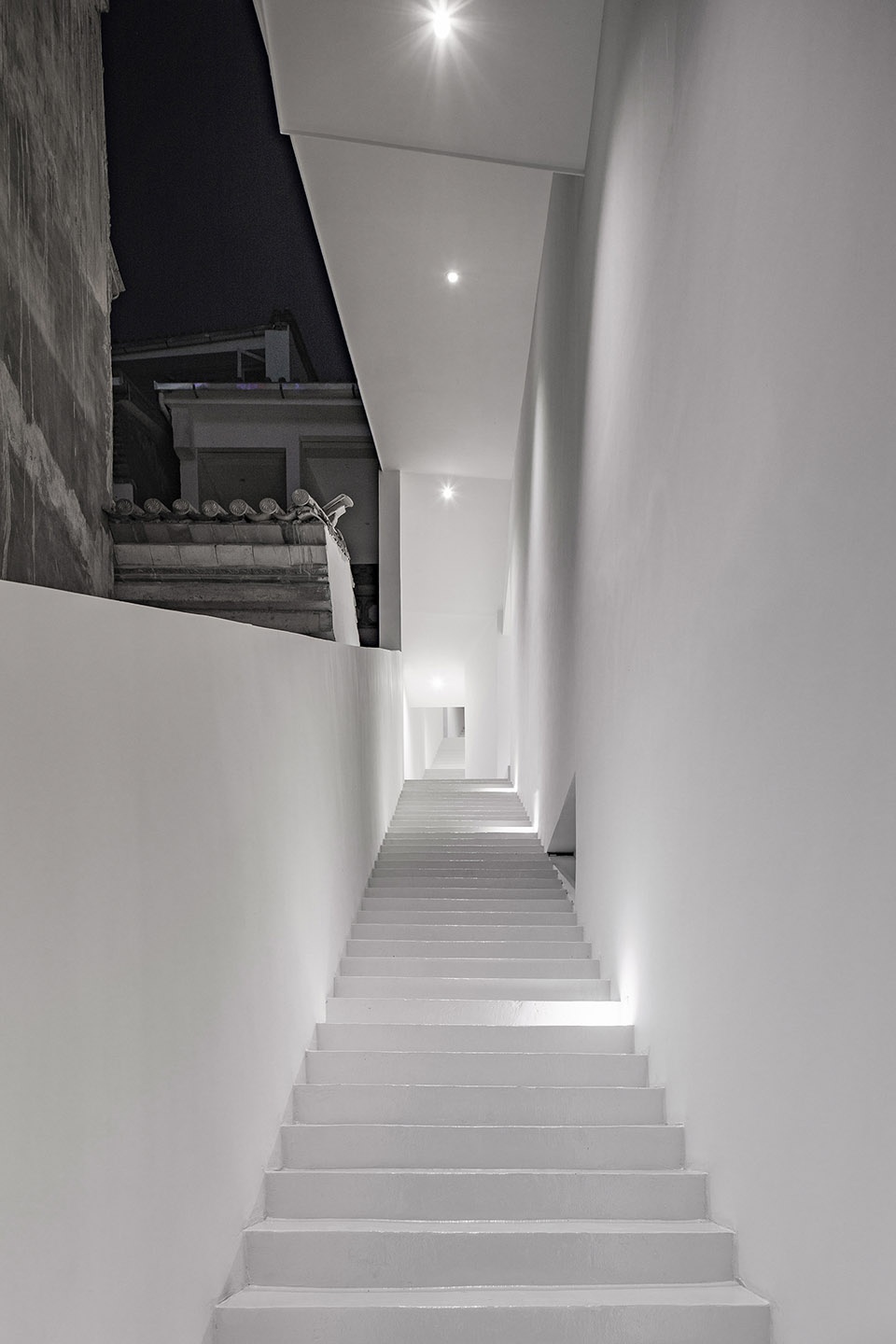

▼“天梯”一路向上，总共133阶，the high ladder with 133 steps

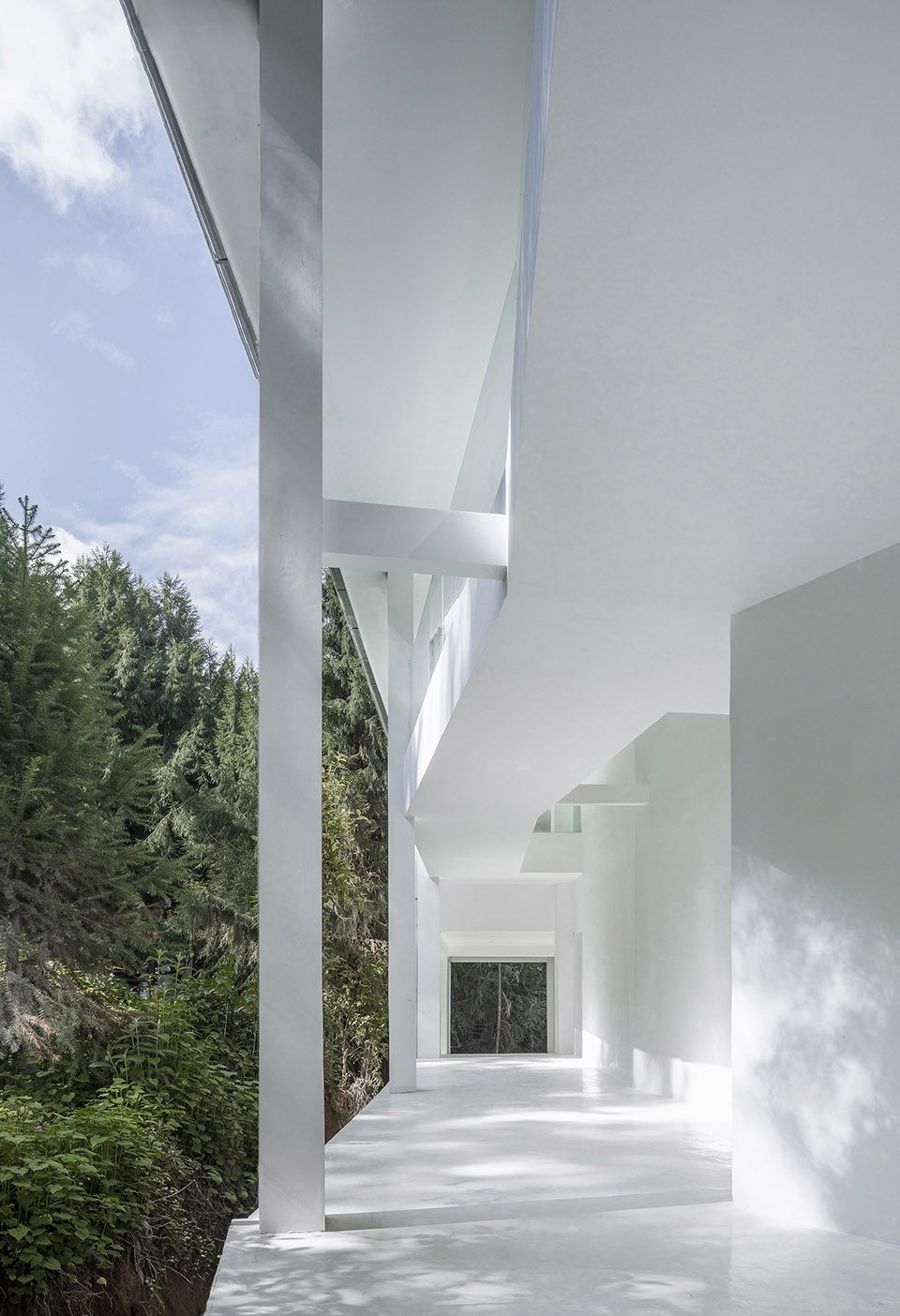

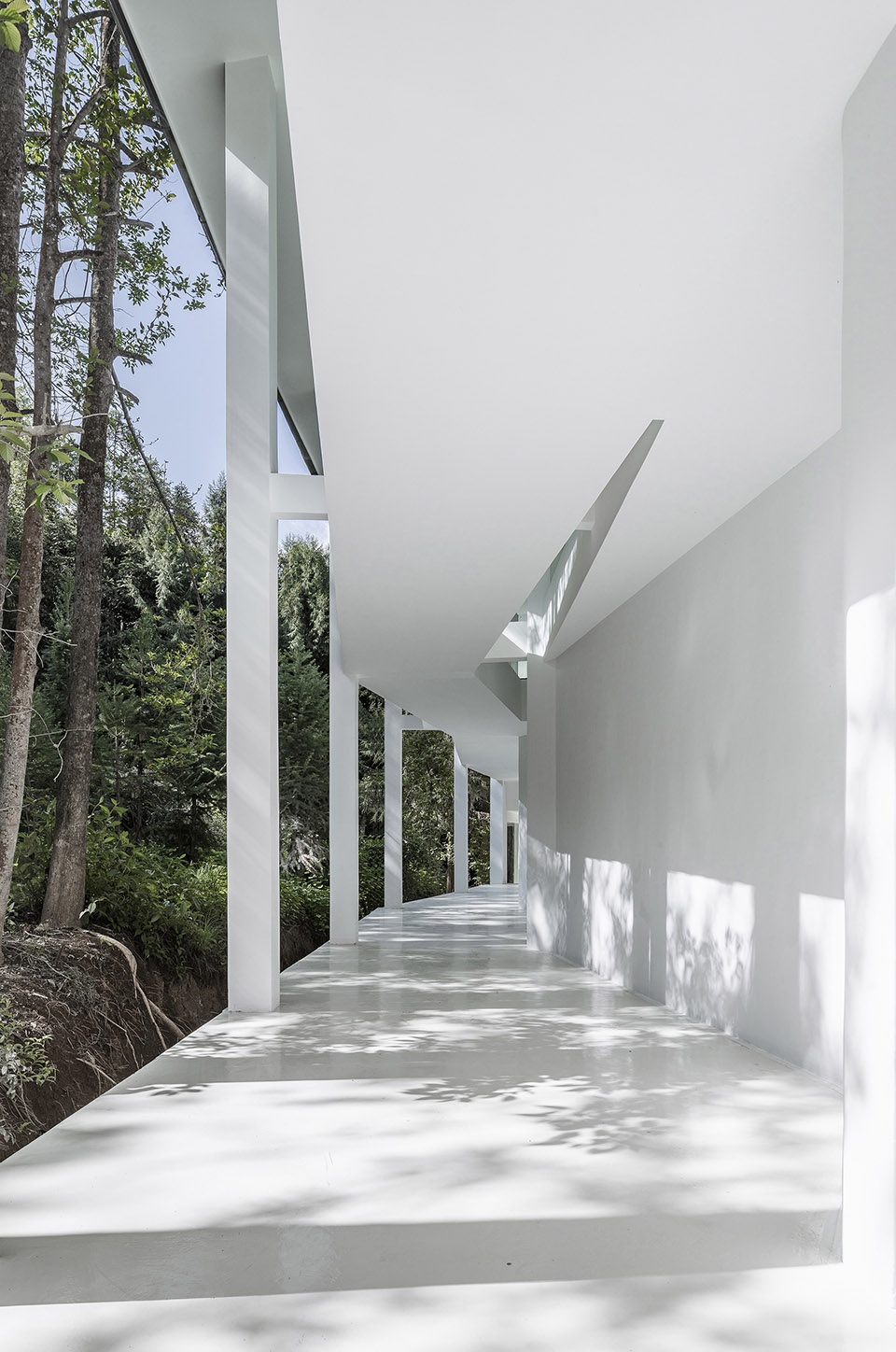

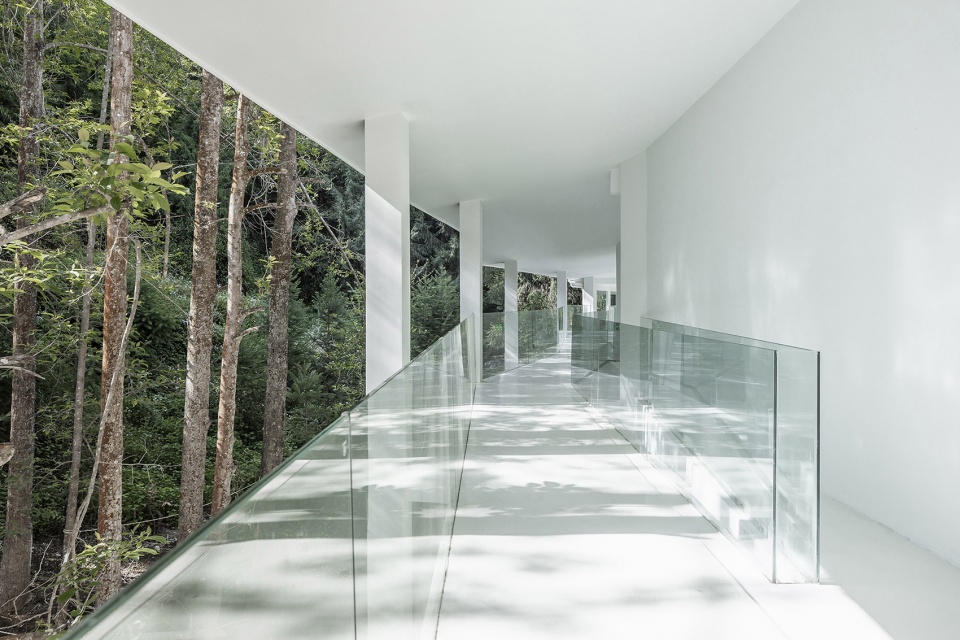

▼一条穿梭于山林间的“飞廊”，the flying corridor running through the landscape

▼“飞廊”把回房的动线架空于山中，the flying corridor lifts the route to the rooms from the mountain

▼“飞廊”光影的交错好比山间的一涧溪水，the play of lights and shadows recalls the streams in the mountain

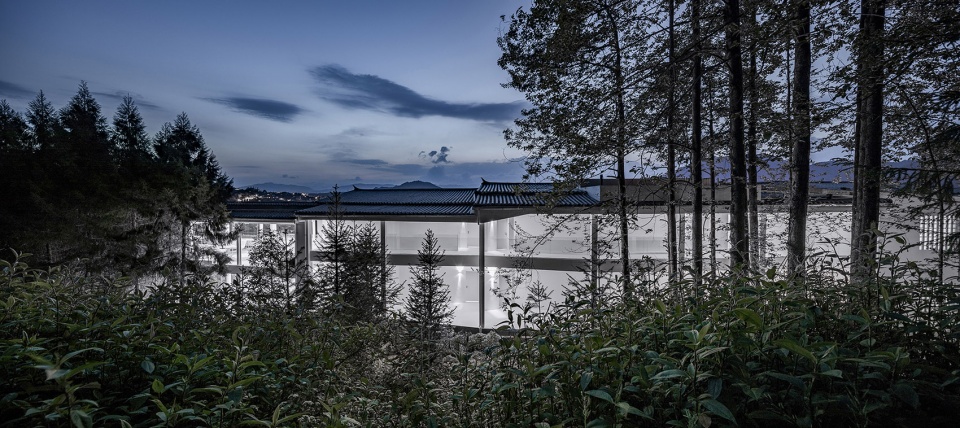

▼飞廊远景，a distant view to the flying corridor

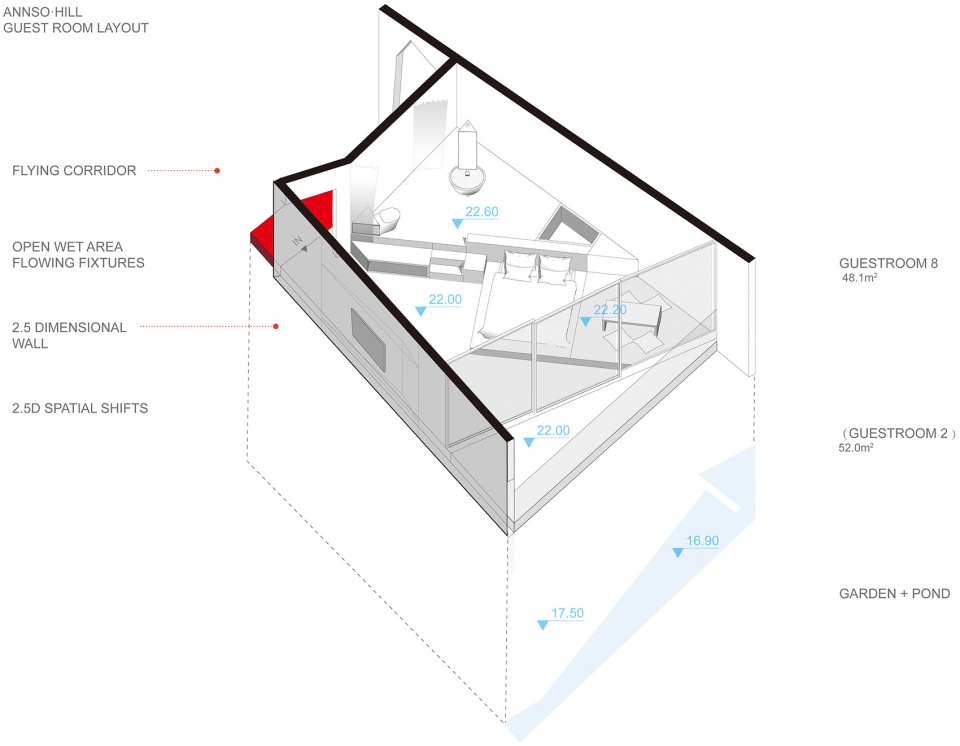

「安之若宿·山」的十五间客房运用2.5维建筑手法去应对复杂的场景关系，寻找最佳视觉景观面。进入客房，墙体多维度延展的几何趋势，和低浮在地面上的家具物件，把视野和焦点推向窗外的四时风景。墙、床和浴缸的角度位置互相交错，引导身体的挪移和视线的转换，捕捉多维度的景致和记忆。

A flying corridor connects all the guest rooms in the back of the serene and tranquil hill. All rooms are unique in their formal reactions to site specifications and their particularly exclusive axis of view. An architectural operation of 2.5-dimensional spatial strategy is introduced to identify specific visual movements and programmatic performances within each space. All walls are shifting and being slightly carved-in, in order to create another dimension of spatial reading and also for practical usage. There is an emphasis on the play of light and shadow through manipulating the geometrical relationship between walls and windows. All objects in the hotel-rooms are arranged in the lower horizontal zone, leaving the above space to collect the grand views of the outside.

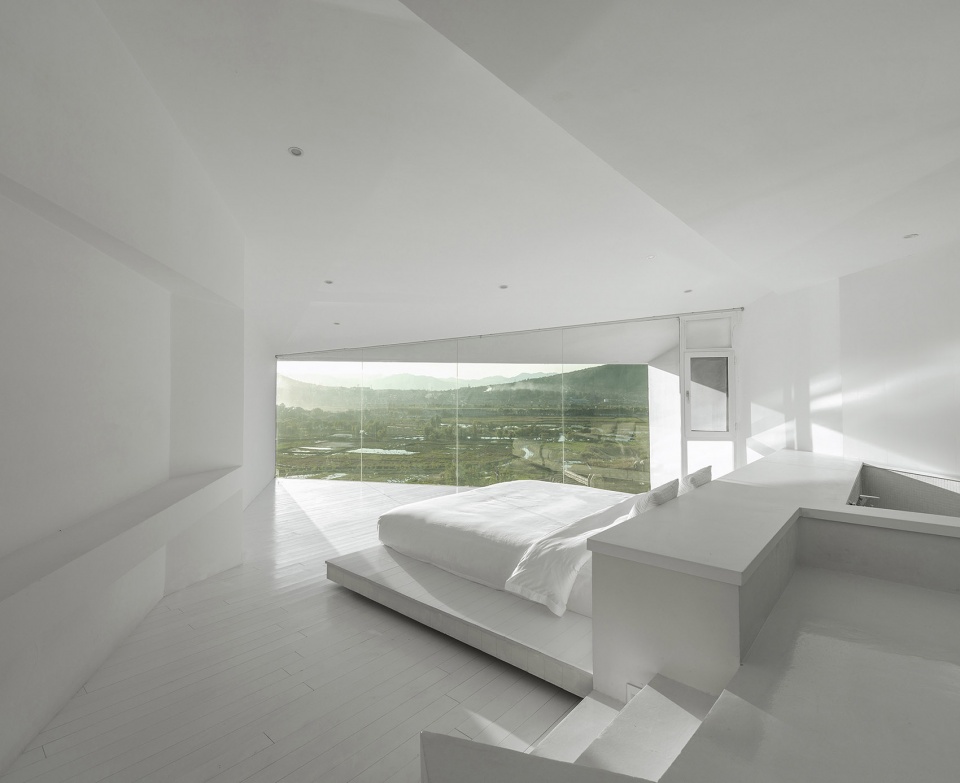

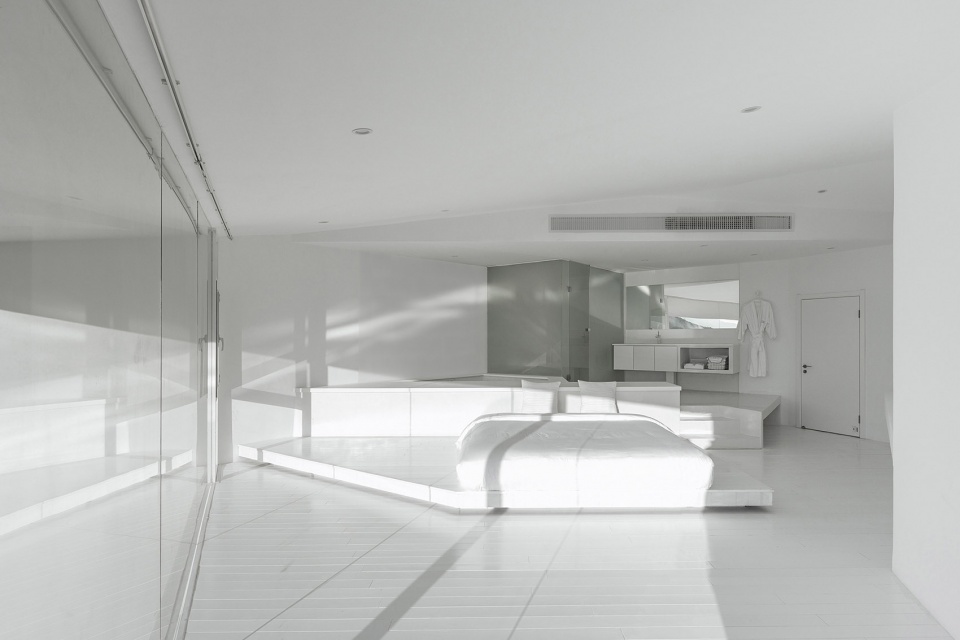

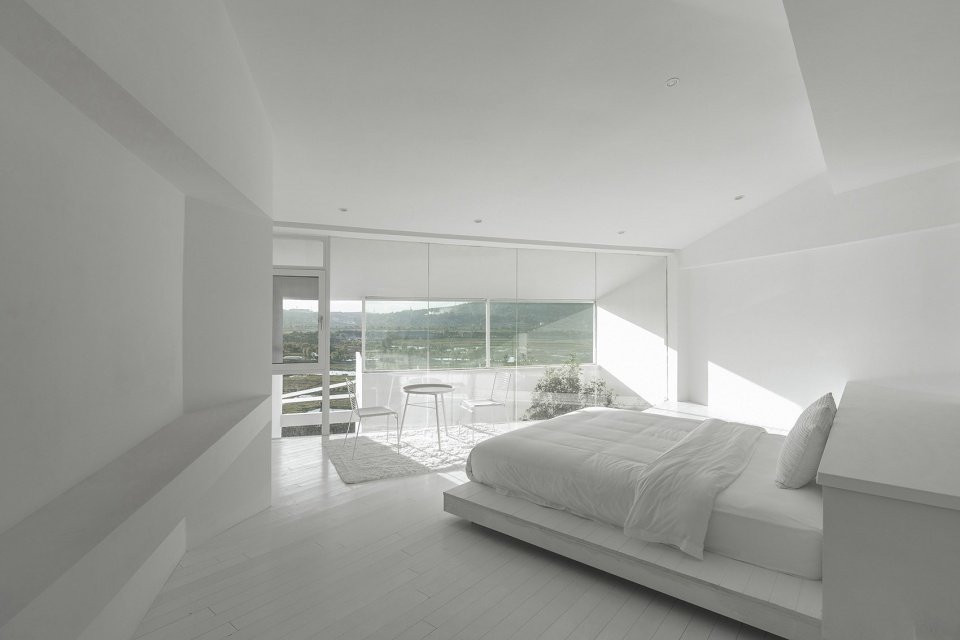

▼客房#9，2.5维建筑手法引导身体的挪移和视线的转换

room#9: 2.5-dimensional spatial strategy is introduced to identify specific visual movements and programmatic performances within each space

▼客房#9，其中运用2.5维“微墙体”空间手法，room#9: designed with a “micro-wall” spatial strategy

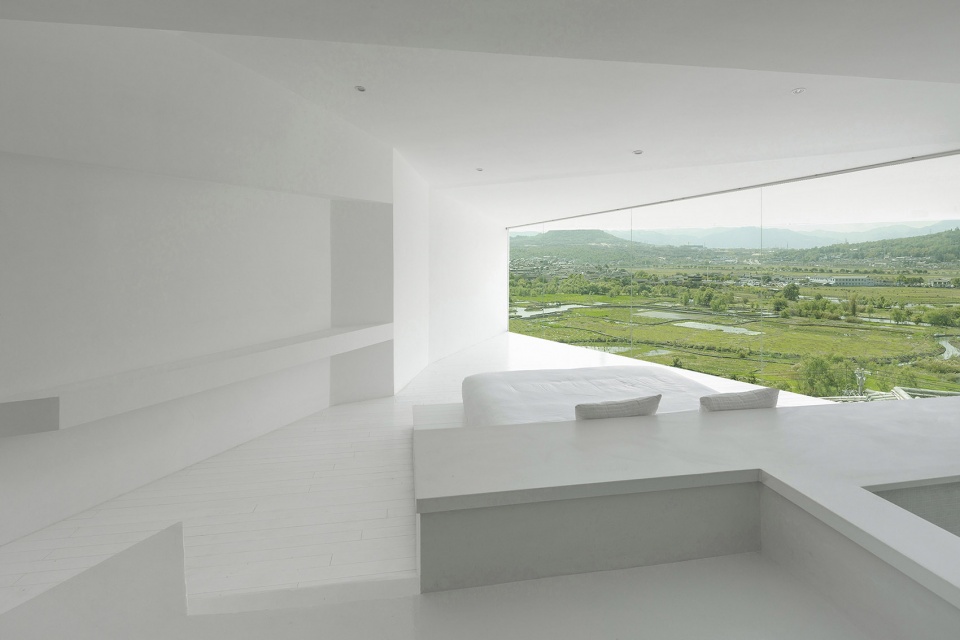

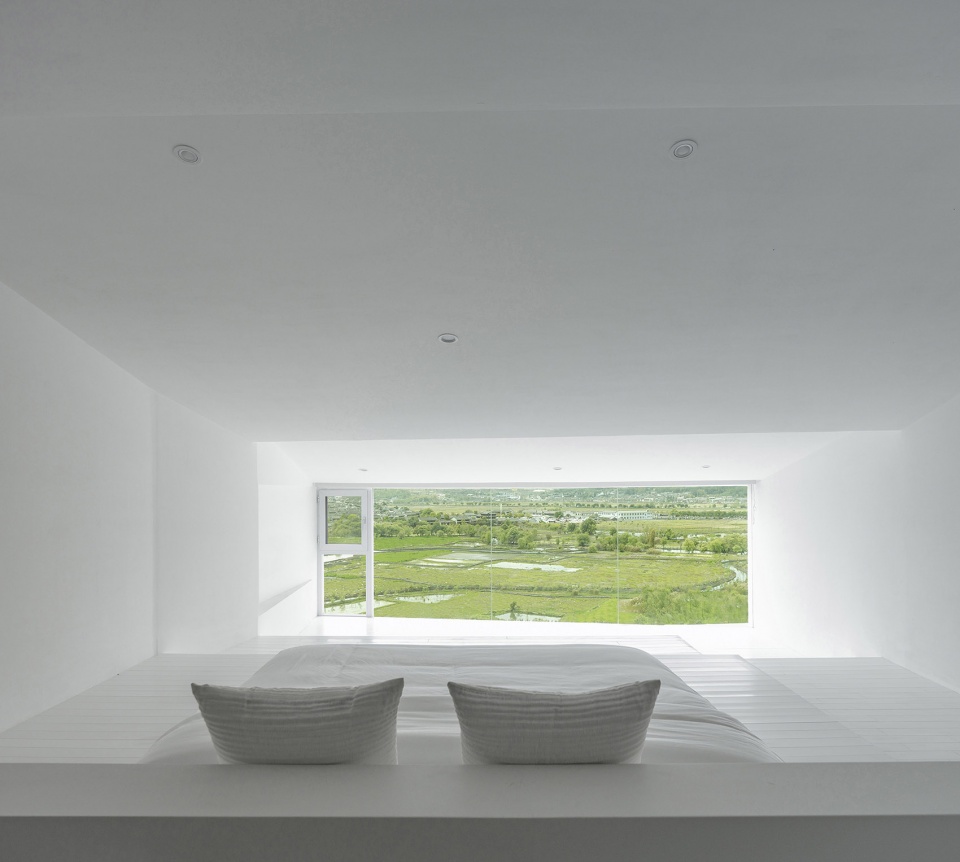

▼客房#12，寻找每一间的最佳景观面，room#12: to capture the optimum view from each room

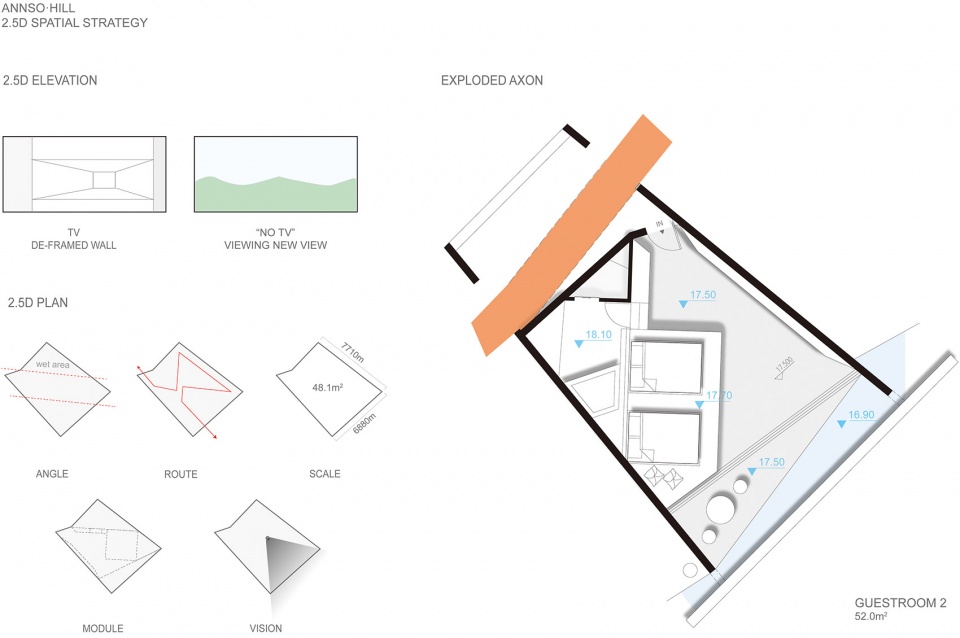

在这里，建筑墙体和空间界线的微妙关系被探讨和试验。我们希望强调的是，墙并非牢不可破，有时是一面脆弱的屏障，在瞬间可以被柔软的光影打散或消失。每间客房都运用了2.5维“微墙体”空间手法（类似于浮雕和强透视相结合的方式），使主要侧墙微微凹折，发展出另一个不经意的空间，随着昼夜光线的变化交替，时间被引入，空间开始错位，变得不可丈量。人的方位和视觉成为两组不同的线索，光影、记忆和故事在这里发生。

Here, the subtle relationship between building wall and space boundary is discussed and tested. We want to emphasize that the wall is not unbreakable. Sometimes it is a fragile barrier that can be scattered or disappeared by soft light and shadow in an instant. Each guest room adopts the 2.5-dimensional "micro wall" space technique (similar to the combination of relief and strong perspective), which makes the main side wall slightly concave and develop another inadvertent space. With the change of day and night light, time is introduced, and the space begins to dislocation and become immeasurable. Human orientation and vision become two different groups of clues, where light and shadow, memory and story happen.

从进入「安之若宿·山」开始，时间不再是线性发生的，空间也不再是规矩方正的。2.5维，不是被动套用经验，而是用微弱的界线，构建新的视觉记忆，提倡关于体验和感知的可能性。这就是我们想定义的「大美不言，安之若宿」。

From entering "an zhiruoshu mountain", time is no longer linear, and space is no longer regular and square. The 2.5 dimension is not a passive application of experience, but a weak boundary to build a new visual memory and advocate the possibility of experience and perception. This is what we want to define as "great beauty without words, if you live in peace".

▼客房#9，昼夜光线的变化交替，空间开始错位，room#9: the varying lighting though the day dislocates the experience of the space
