长源京基御景峯公馆，深圳/建筑

Changyuan Jingji yujingyi residence has successfully explored the maximization of natural landscape utilization and the aesthetic shaping of architectural field under the proposition of high plot ratio. Over the course of 7 years, it has finely built the character of Mountain Residence of the times.

场地

TOD开发理念，与地铁无缝连接

Site

Tod development concept, seamless connection with Metro

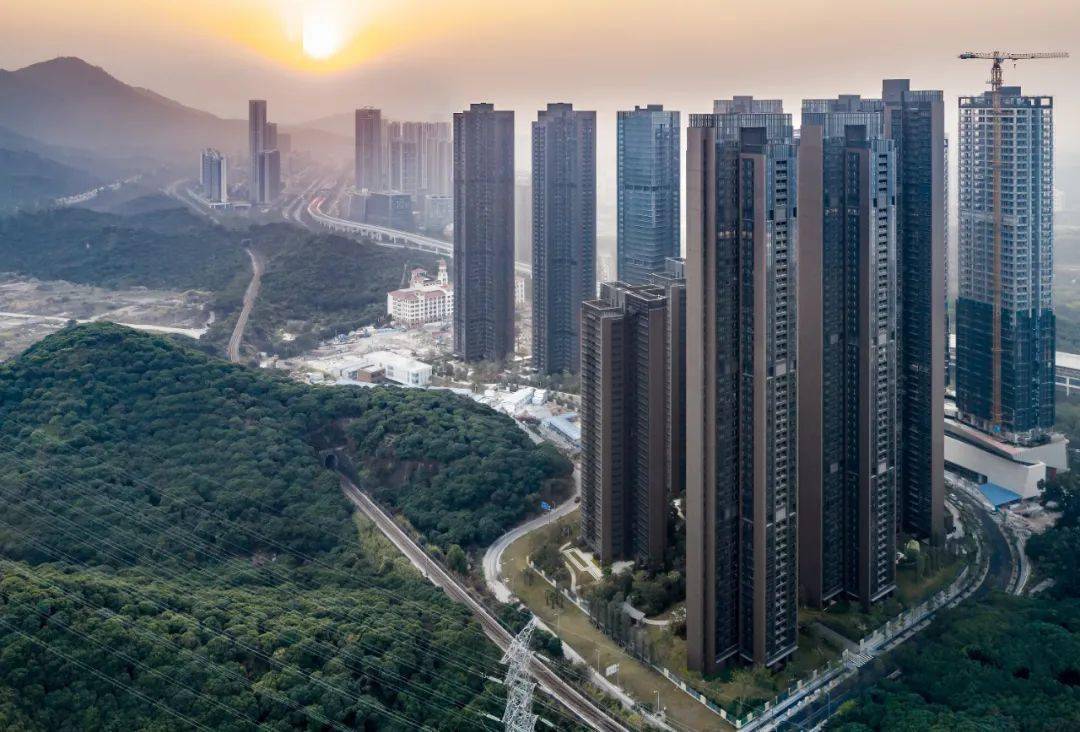

长源京基御景峯公馆位于深圳市南山区，临近长岭陂地铁站，四周群山环绕，北望长岭陂水库，景观资源十分优越。

Located in Nanshan District, Shenzhen, Changyuan Jingji yujingyi residence is close to changlingpo subway station, surrounded by mountains and facing changlingpo reservoir in the north. It has excellent landscape resources.

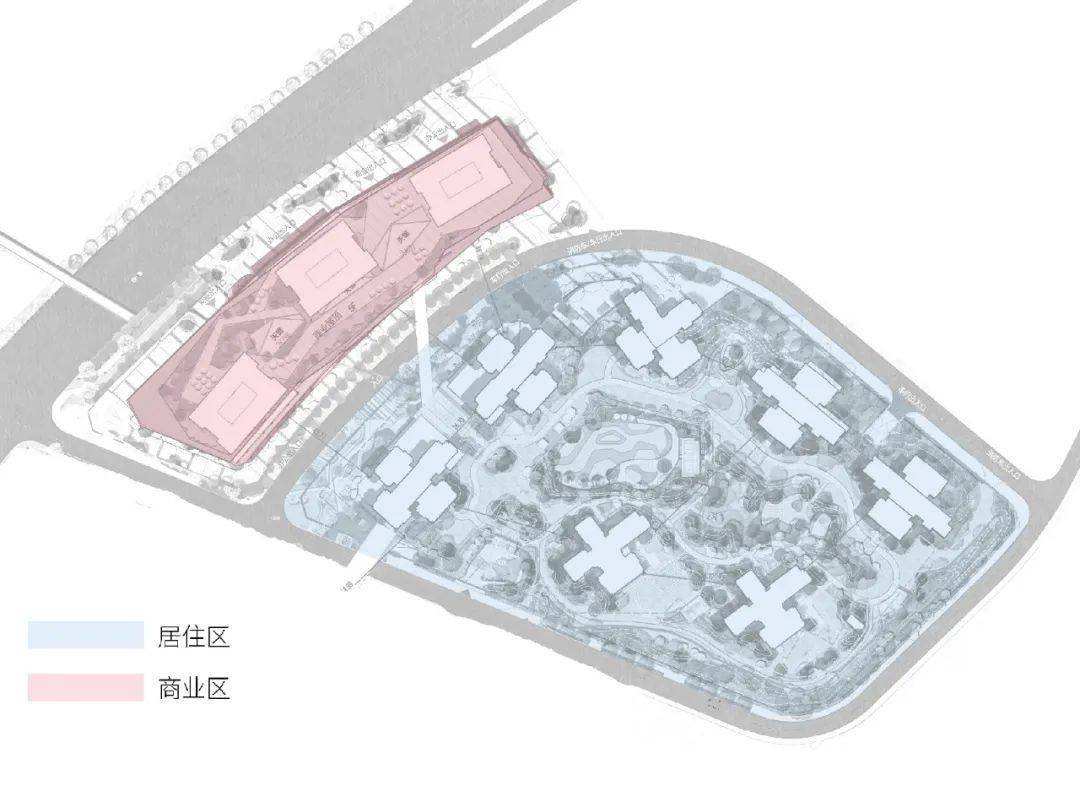

借助地铁资源优势，项目遵循TOD开发理念，商业临地铁布局，住区依山而立，既充分利用交通、景观资源优势，更形成“动、静分离”的社区体验。

With the help of the advantages of subway resources, the project follows the TOD development concept, the commercial layout is close to the subway, and the residential area stands close to the mountain. It not only makes full use of the advantages of transportation and landscape resources, but also forms a community experience of "dynamic and static separation".

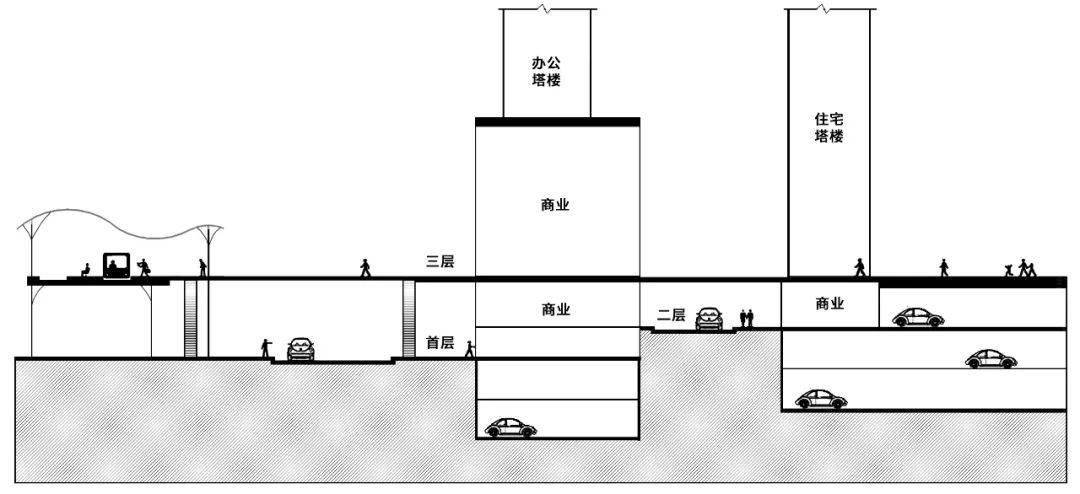

借助两侧地形高差，商业规划形成多首层，并与贯穿各住区的二层慢行体系相连，达成地铁与住区无缝链接，构建起内外高效接驳、住区间便捷互通的交通体系。

With the help of the terrain elevation difference on both sides, the business plan forms multiple first floors, which are connected with the two-story slow traffic system running through each residential area, achieving a seamless link between the subway and the residential area, and building a transportation system with efficient internal and external connections and convenient interchange between residential areas.

布局

点式十字塔楼围合布局，景观体验最大化

Layout

Point type cross tower enclosed layout maximizes landscape experience

从最大化景观优势出发，设计综合资源布局、建筑形体、功能划分等因素，经过4大类布局形态的近30种方案比选，最终确立点式十字塔楼布局形态。

Starting from the maximization of landscape advantages, the layout of comprehensive resources, architectural form, functional division and other factors are designed. After nearly 30 schemes of four major types of layout forms are compared, the layout form of point type cross tower is finally established.

点式塔楼间距构成社区视觉通廊，保证周边景观与社区的视觉贯通；十字户型布局实现每户均享有270°视角，充分将周围自然景观纳入居家日常，做到时时有景。

The spacing between the point type towers forms a visual corridor of the community, ensuring the visual connection between the surrounding landscape and the community; The cross house layout enables each household to enjoy a 270 ° angle of view, and fully integrates the surrounding natural landscape into the daily life of the home, so that there is scenery at all times.

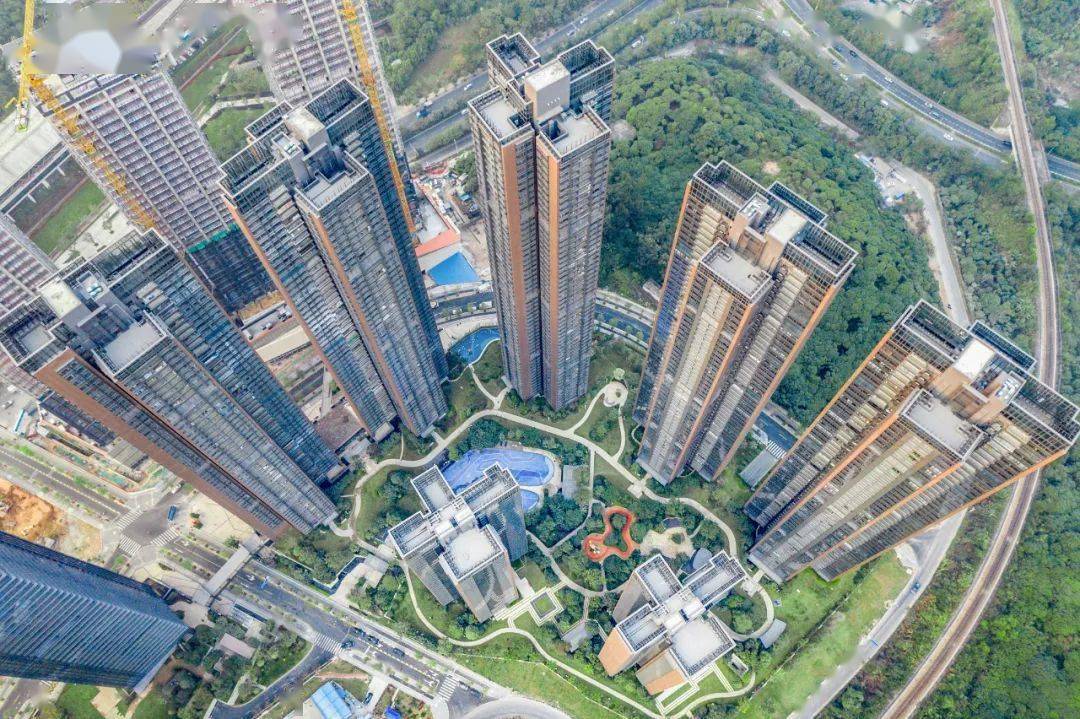

在社区营造上，塔楼沿地块围合布局，既让各塔楼与外围景观近距离接触，又充分实现社区庭院的最大化，为内部园林提供丰富的空间场景，达成步步有景的社区体验。

In terms of community construction, the towers are enclosed along the plot, which not only allows each tower to have close contact with the peripheral landscape, but also fully maximizes the community courtyard, provides rich space scenes for the internal gardens, and achieves a step-by-step community experience.

立面

精细打磨，演绎虚实对比

Facade

Finely polished, deducing the contrast between virtual and real

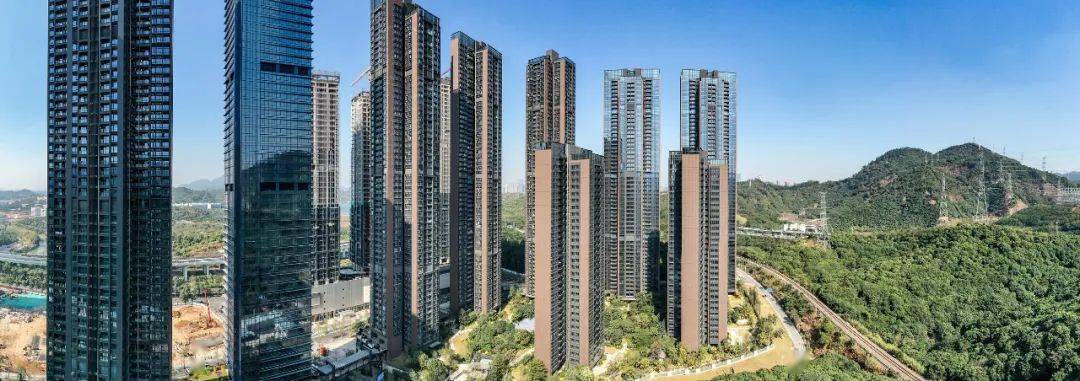

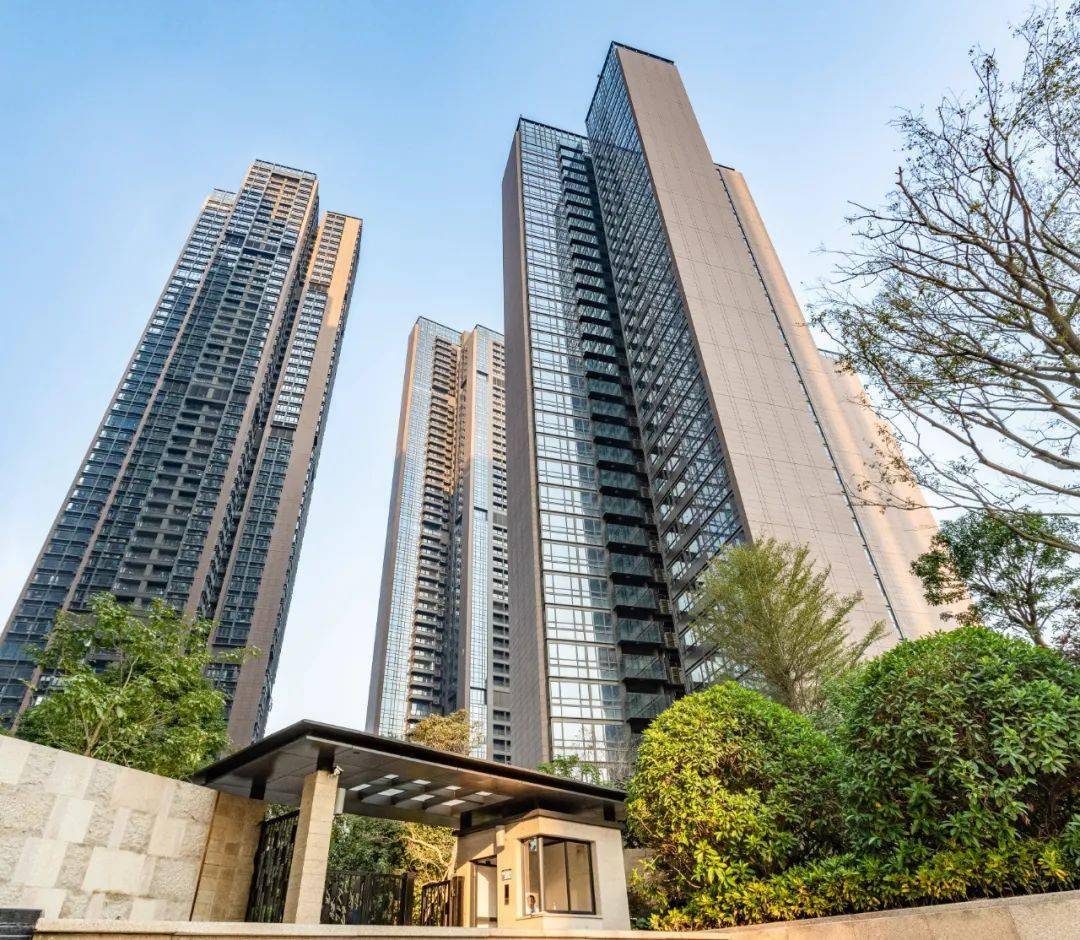

项目7栋塔楼高度分布在100米-180米之间，考虑到住宅立面中，凸窗、阳台、空调机位等元素较多，设计希望在庞大体量当中，制定简约、鲜明、统一，且具有个性化的立面语言，包容细部元素，刻画出自然与城市间的和谐韵律。

The height of the seven towers in the project is between 100m and 180m. Considering that there are many elements such as bay windows, balconies and air-conditioning stands in the residential facade, the design hopes to develop a simple, distinct and unified facade language with personalized features, including detailed elements, and depict the harmonious rhythm between nature and the city in the huge volume.

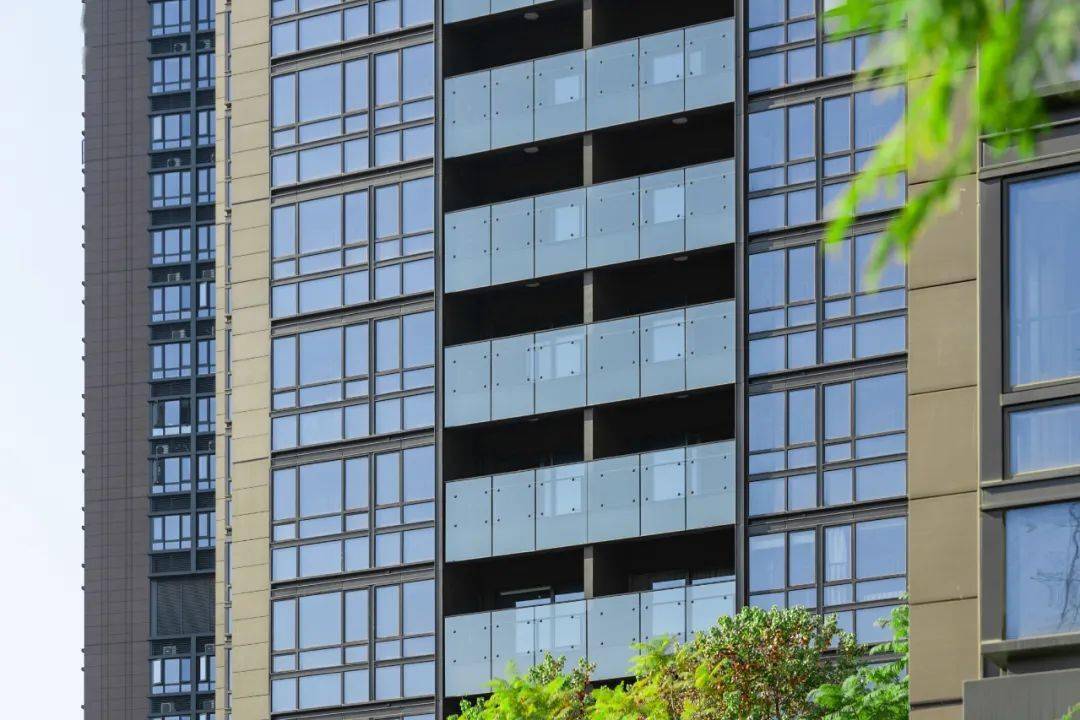

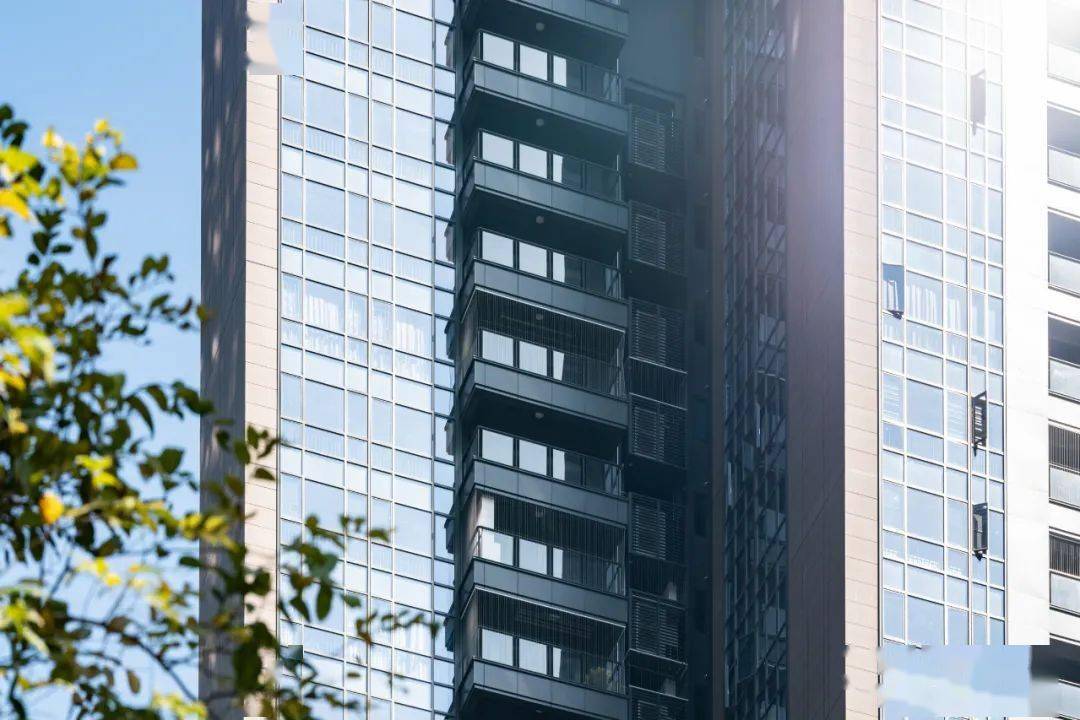

项目采用大实大虚、化繁为简的手法，山墙面使用陶板形成实面，挺拔硬朗；景观面采用玻璃形成虚面，轻盈剔透。

The project adopts the technique of "big solid and big empty" and "transforming complexity into simplicity". The mountain wall uses ceramic plates to form a solid surface, which is straight and strong; The landscape surface is made of glass, which is light and transparent.

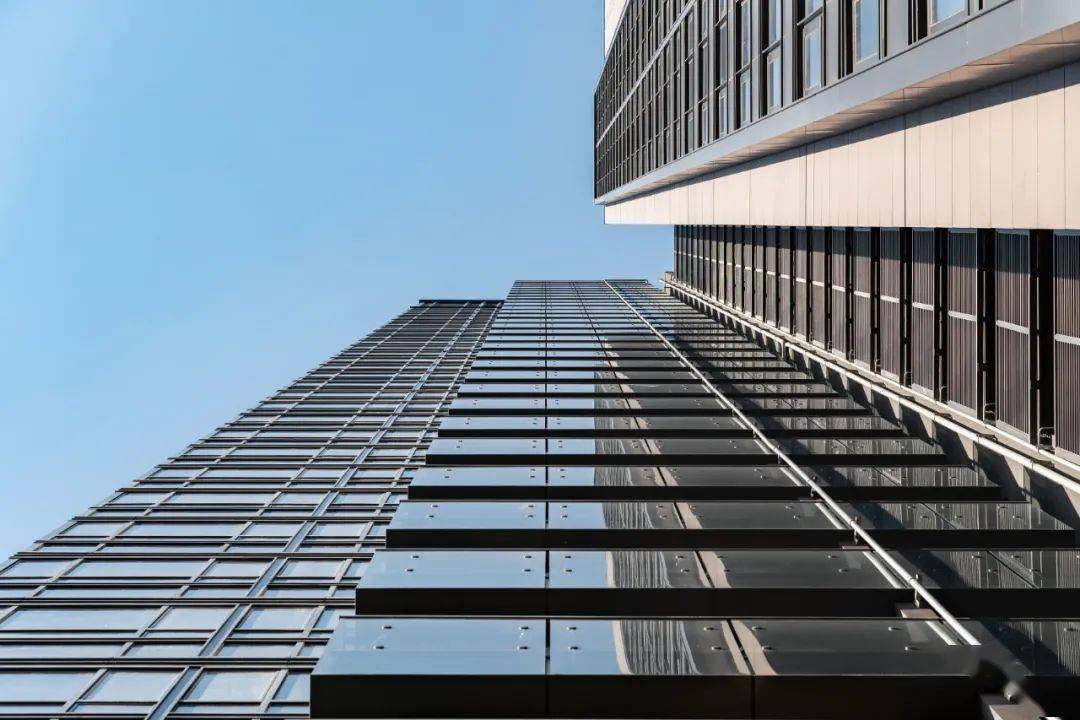

在造型设计中，设计通过幕墙体系、类幕墙体系和窗墙体系运用，充分表达单体的差异性和独特性。

In the modeling design, the design fully expresses the differences and uniqueness of the individual through the application of curtain wall system, curtain wall like system and window wall system.

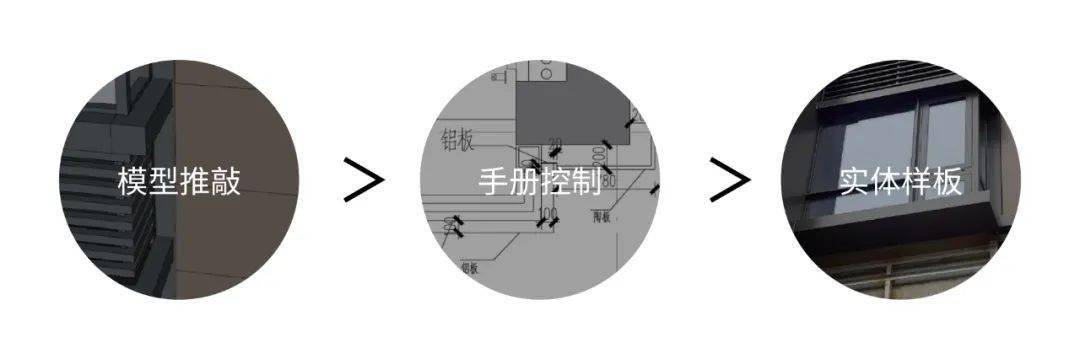

为达到立面细节的高品质建成，图纸历经模型推敲、手册控制、实体样板反复推敲后，应用于整体建设，从而以最大程度实现设计预想。

In order to achieve the high-quality completion of elevation details, the drawings are applied to the overall construction after model deliberation, manual control and repeated deliberation of entity templates, so as to achieve the design expectation to the greatest extent.

户型

从生活本真出发，推敲空间释放最优解

House type

Considering the optimal solution of space release from the reality of life

在居住建筑高度不断攀升的当下，结构设计关乎室内空间体验的优劣。项目采用的十字形结构布局，有效减少了结构尺寸，让每段收分更加均匀，在更大限度上释放户内空间，同时大大减少了户与户之间的干扰。

With the height of residential buildings rising, structural design is related to the quality of indoor space experience. The cross shaped structural layout adopted in the project effectively reduces the structural size, makes the score of each section more uniform, releases indoor space to a greater extent, and greatly reduces the interference between households.

在户型设计中，在做到南北通透、享受周边景观的基调下，通过走道长度缩减实现户型紧凑，并根据人居需求，规划动静分区，高效利用户内空间的同时，创造出城市山居独有的生活体验。

In the house type design, under the basic tone of being transparent from north to South and enjoying the surrounding landscape, the house type is compact through the reduction of the length of the walkway, and the dynamic and static zoning is planned according to the living needs, so as to efficiently benefit the internal space of users, and create a unique life experience of urban mountain dwellings.

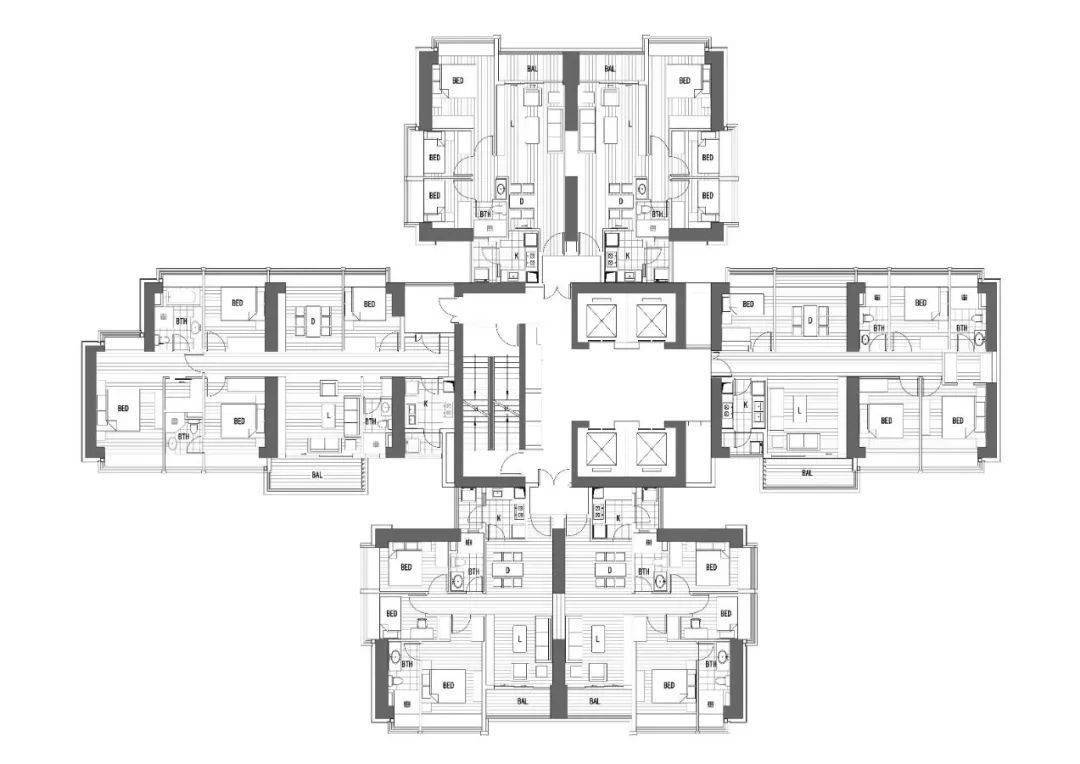

▼标准层，Standard floor

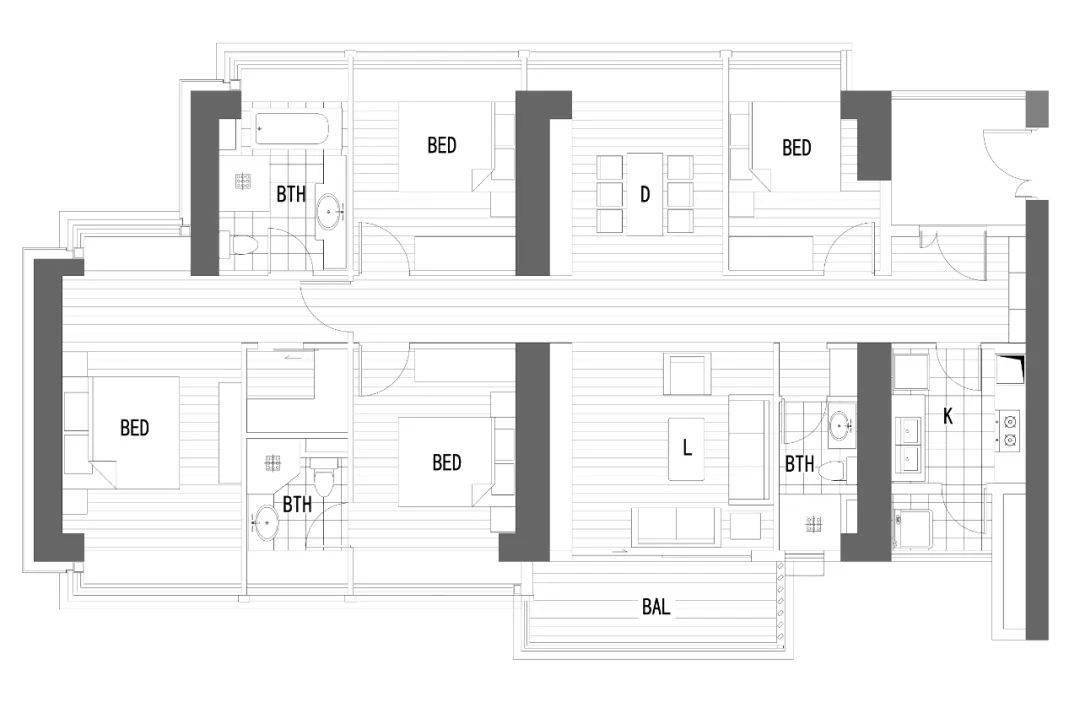

▼150㎡户型，150 ㎡ house type

居住建筑是城市资源演绎者，更是生活方式的记录者。在一次次实践中，华阳国际始终希望，通过延续与创新，打造经典，构建更和谐、丰富的人居环境。

Residential buildings are not only the interpreters of urban resources, but also the recorders of lifestyle. In practice, Huayang International has always hoped to create classics and build a more harmonious and rich living environment through continuation and innovation.

项目信息

项目名称：长源京基御景峯公馆

文章分类：综合商业

设计公司：深圳市华阳国际工程设计股份有限公司

项目地址：深圳南山

项目规模：64068m²

获奖案例：金块奖

项目年份：2021年

Project information

Project Name: Changyuan Jingji Royal Palace

Article category: comprehensive business

Design company: Shenzhen Huayang International Engineering Design Co., Ltd
