茂诚滨江国际酒店及商住项目，泉州/建筑

2023-04-20 14:22:51建筑设计,酒店会所,酒店建筑 , 现代风格

项目标签

项目名称

设计泉州茂诚滨江国际酒店及商住项目

文章分类

建筑设计-酒店会所

项目地址

福建省泉州市

设计公司

中外建华诚工程技术集团有限公司

工程概况：

该项目用地面积56406.95平方米，建筑面积283490平方米，占地面积18050平方米，绿化面积16922平方米，绿化率30%，容积率3.5，建筑密度32%，建筑层数38层。

Project Overview:

The project has a land area of 56406.95 square meters, a building area of 283490 square meters, an area of 18050 square meters, a green area of 16922 square meters, a greening rate of 30%, a plot ratio of 3.5, a building density of 32%, and 38 floors.

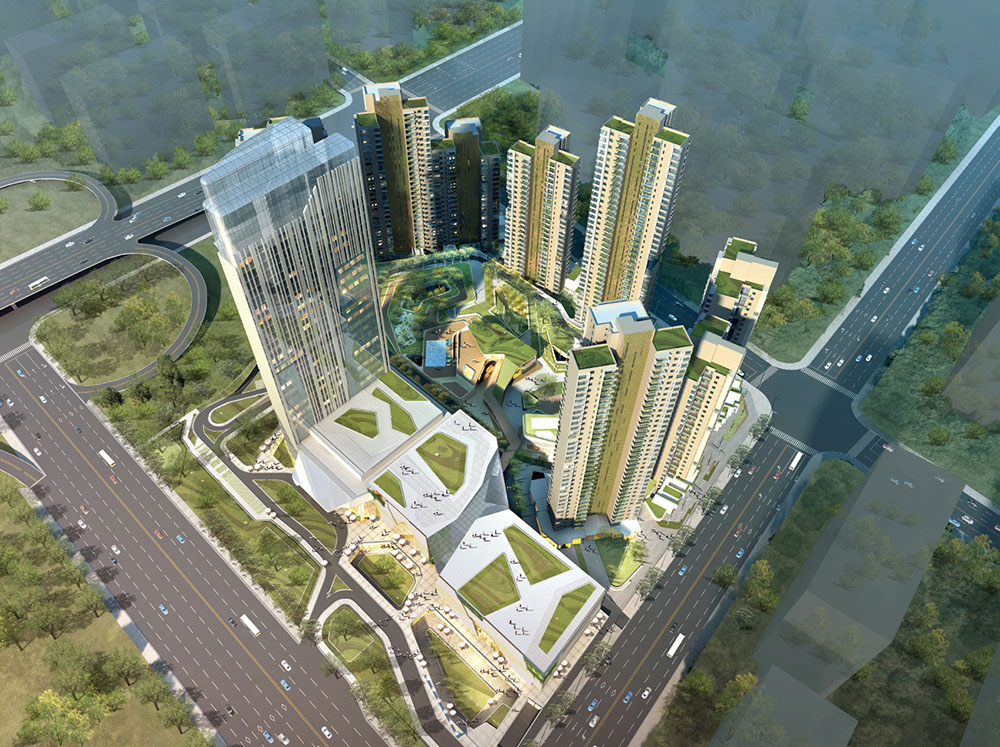

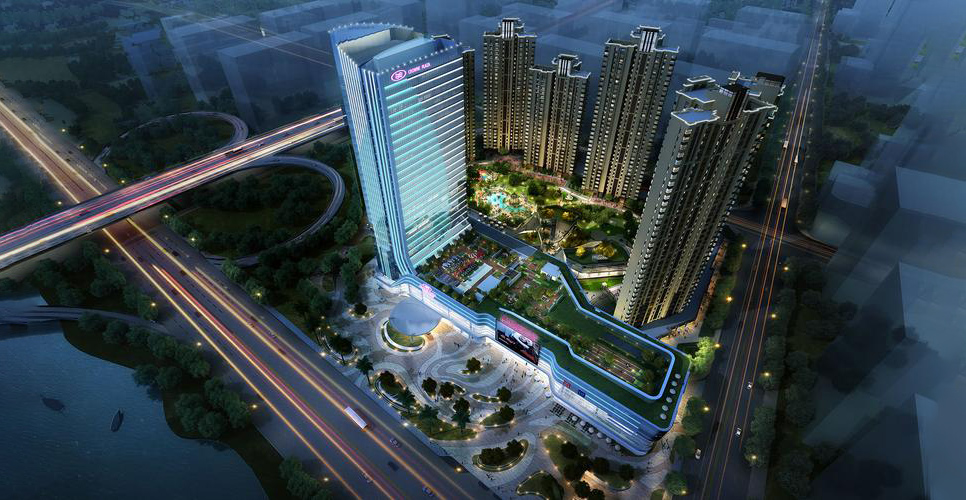

项目基地位于福建省泉州市鲤城区，处于江南片区的核心位置。地块四侧临路，交通便利：东接江滨南路，南侧毗邻规划中的跨江大桥—延陵大桥，西、北两侧临规划道路，整体呈不规则的梯形。总用地面积为56406.95平方米，约为84.6亩，按规划要求分为A、B两个地块，A地块为住宅功能，B地块为酒店功能，其中酒店部分占36%，用地约20306.5平方米，住宅及沿街商业部分占64%，合36100.4平方米，两个地块地上总建筑面积约为197000平方米，地块现状相对平坦。

The project base is located in Licheng District, Quanzhou City, Fujian Province, at the core of the Jiangnan area. The plot is bordered by roads on four sides, with convenient transportation: to the east is Jiangbin South Road, to the south is the planned cross river bridge - Yanling Bridge, and to the west and north are planned roads, forming an irregular trapezoidal shape. The total land area is 56406.95 square meters, approximately 84.6 acres. According to the planning requirements, it is divided into two plots: A and B. Plot A is for residential purposes, while Plot B is for hotel purposes. The hotel portion accounts for 36%, with approximately 20306.5 square meters of land used. The residential and commercial parts account for 64%, totaling 36100.4 square meters. The total aboveground construction area of the two plots is about 197000 square meters, and the current situation of the plot is relatively flat.

A地块（住宅）地上建筑面积126350平方米，包括6栋高层住宅和3栋超高层住宅，约1040户，最高层数为38层，带两层地下室，住宅约116776平方米，住宅沿街商业750 0平方米，公共设施2074平方米。地下部分建筑面积55050平方米（总机动车停车位1100辆）。

A plot (residential) has a ground floor area of 126350 square meters, including 6 high-rise residential buildings and 3 super high-rise residential buildings, with approximately 1040 households and a maximum of 38 floors. It has two basement floors, with approximately 116776 square meters of residential buildings, 7500 square meters of commercial buildings along the street, and 2074 square meters of public facilities. The underground construction area is 55050 square meters (with a total of 1100 motor vehicle parking spaces).

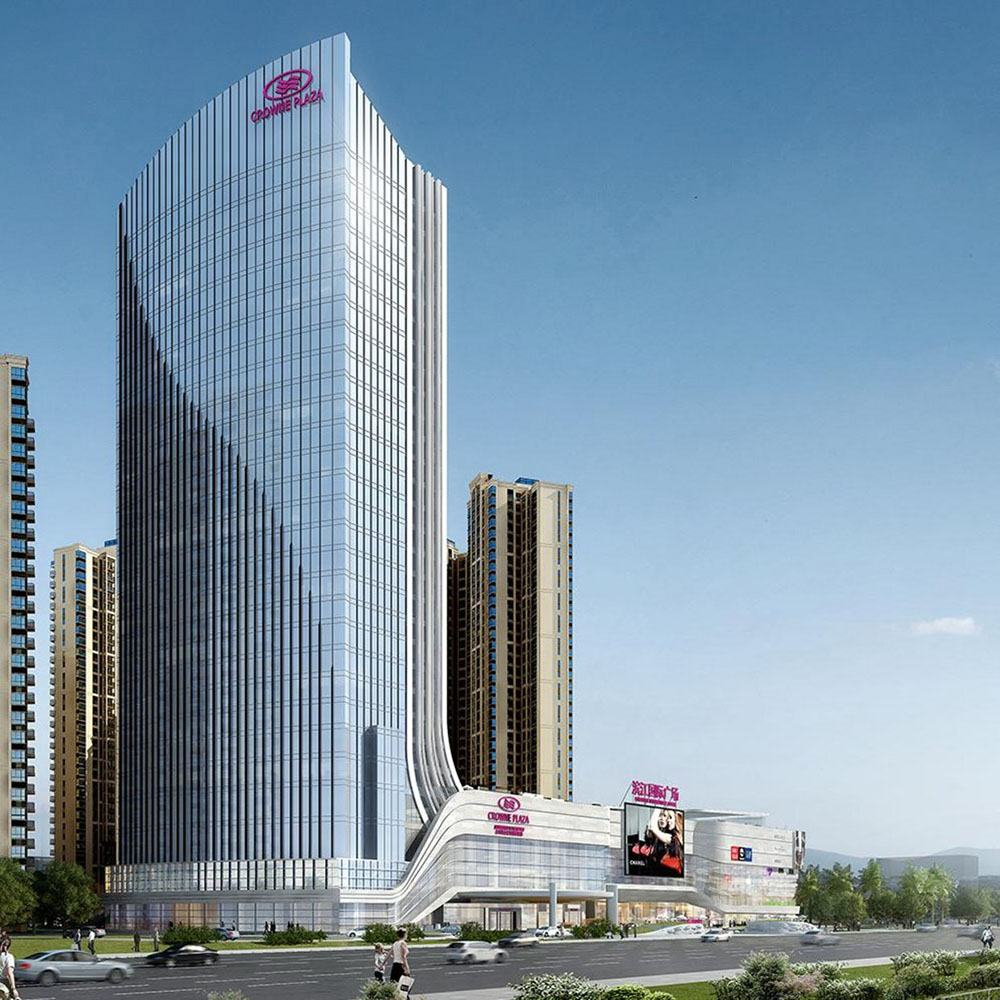

B地块酒店主楼设计为120米高，30层，裙房5层，地下室两层，按五星级酒店标准设计，酒店主楼是项目的标志性建筑。酒店地上建筑面积约71050平方米，地下面积约31717平方米，机动车停车位420辆。

The main building of the B plot hotel is designed with a height of 120 meters, 30 floors, a podium of 5 floors, and a basement of 2 floors. It is designed according to the standard of a five-star hotel. The main building of the hotel is a landmark building of the project. The hotel has an aboveground construction area of approximately 71050 square meters, an underground area of approximately 31717 square meters, and 420 motor vehicle parking spaces.
