项目名称

日照奎山体育中心体育场结构顾问咨询

文章分类

建筑设计-文化体育

项目地址

山东省日照市东港区

设计公司

北京市建筑设计研究院有限公司

日照奎山体育中心体育场项目位于山东省日照市开发区大连路以南、昭阳南路以西、秦皇岛路以北、信阳路以东。该项目为第24届山东省运动会主场馆，比赛期间将承担多类项目的比赛和训练，赛后作为举办国内单项体育赛事及全民健身使用。

Rizhao Kuishan Sports Center Stadium Project is located in the south of Dalian Road, the west of Zhaoyang South Road, the north of Qinhuangdao Road, and the east of Xinyang Road, Rizhao Development Zone, Shandong Province. This project is the main venue of the 24th Shandong Provincial Games. During the competition, it will undertake competitions and training for multiple types of events. After the competition, it will be used to host domestic individual sports events and national fitness.

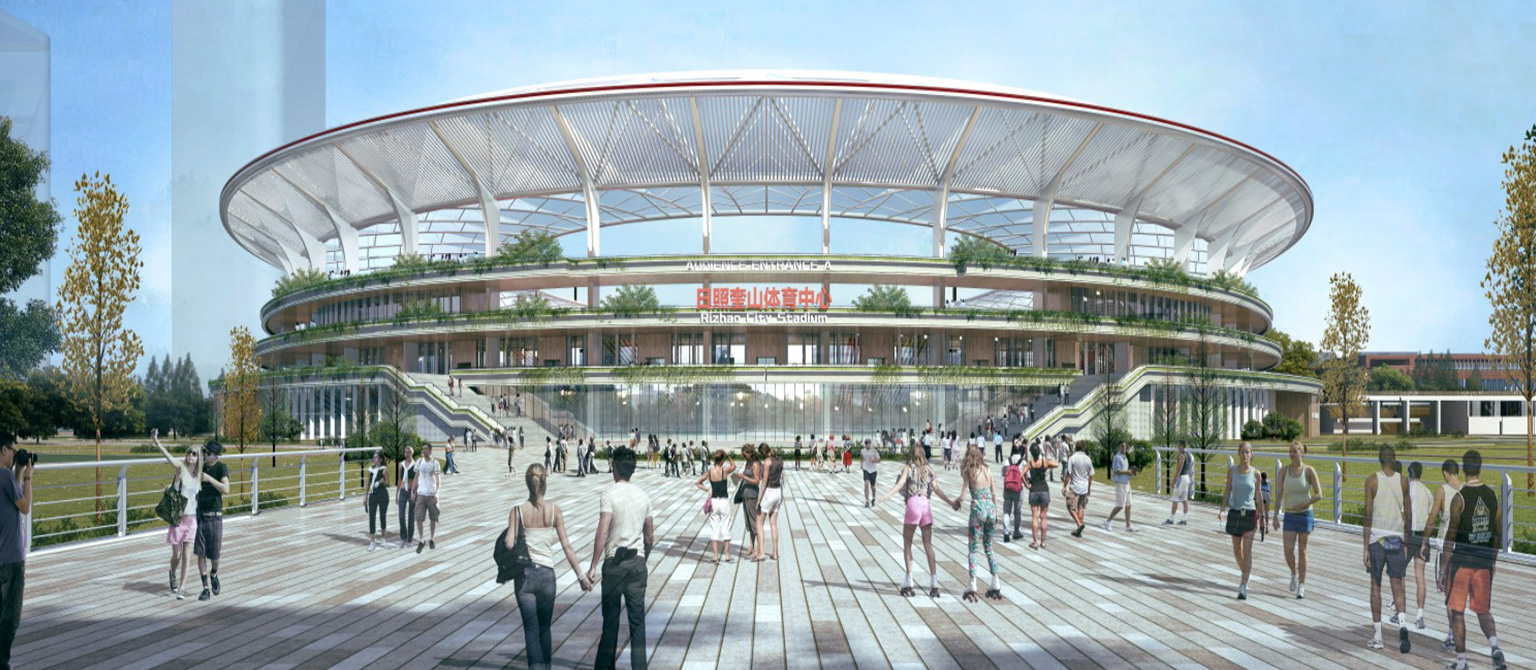

体育中心体育场主要由场馆及地下车库组成，总用地面积约117797㎡，总建筑面积约124700㎡，其中地上建筑面积约64850㎡。场馆建筑高度42m，平面尺寸为273m×242m,地上看台共4层，采用钢筋混凝土框架-剪力墙结构体系，层高分别为7.5m、6.0m、6.0m、 6.7m，看台各层主要为赛时及赛后配套用房。

The stadium of the Sports Center is mainly composed of venues and underground garages, with a total land area of about 117797 ㎡ and a total building area of about 124700 ㎡, including about 64850 ㎡ above ground. The height of the venue building is 42m, and the plan size is 273m × 242m, with a total of 4 floors above ground stands, using a reinforced concrete frame shear wall structure system, with story heights of 7.5m, 6.0m, 6.0m, and 6.7m respectively. The stands are mainly used for supporting buildings during and after the games.

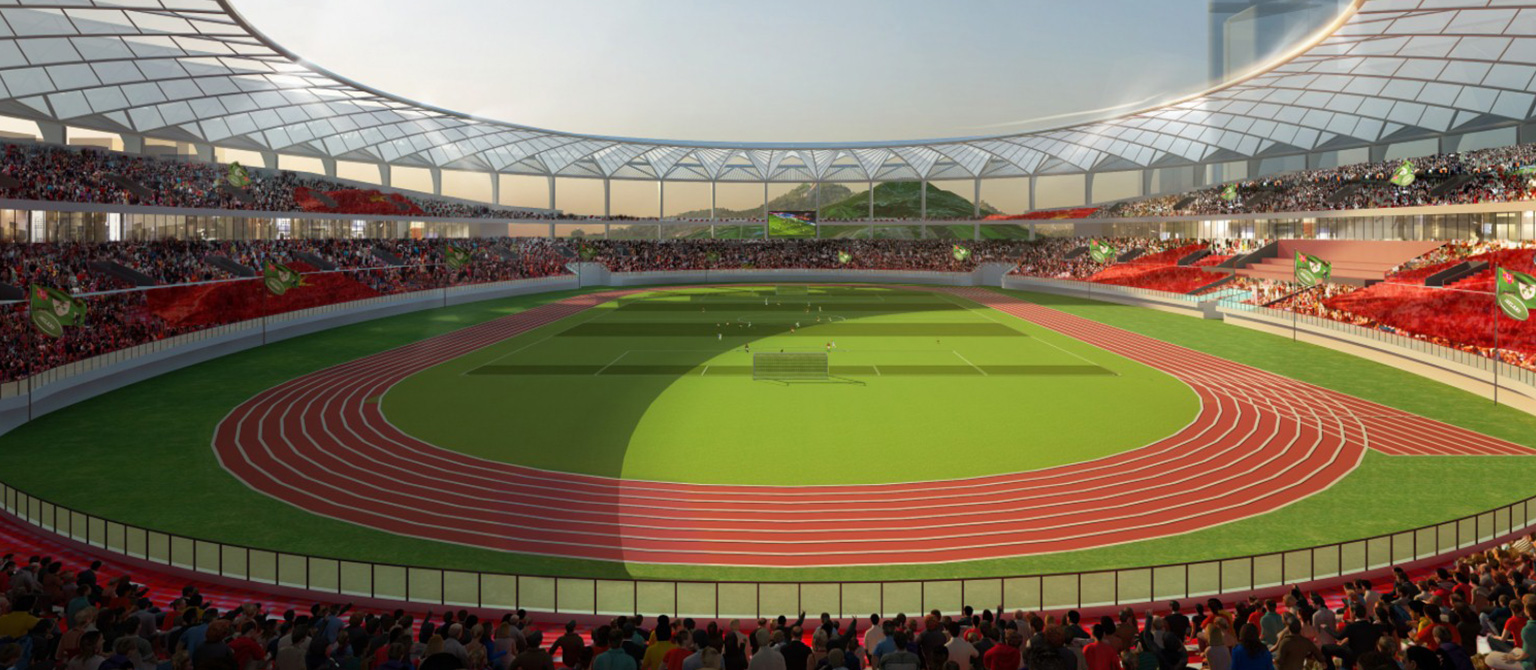

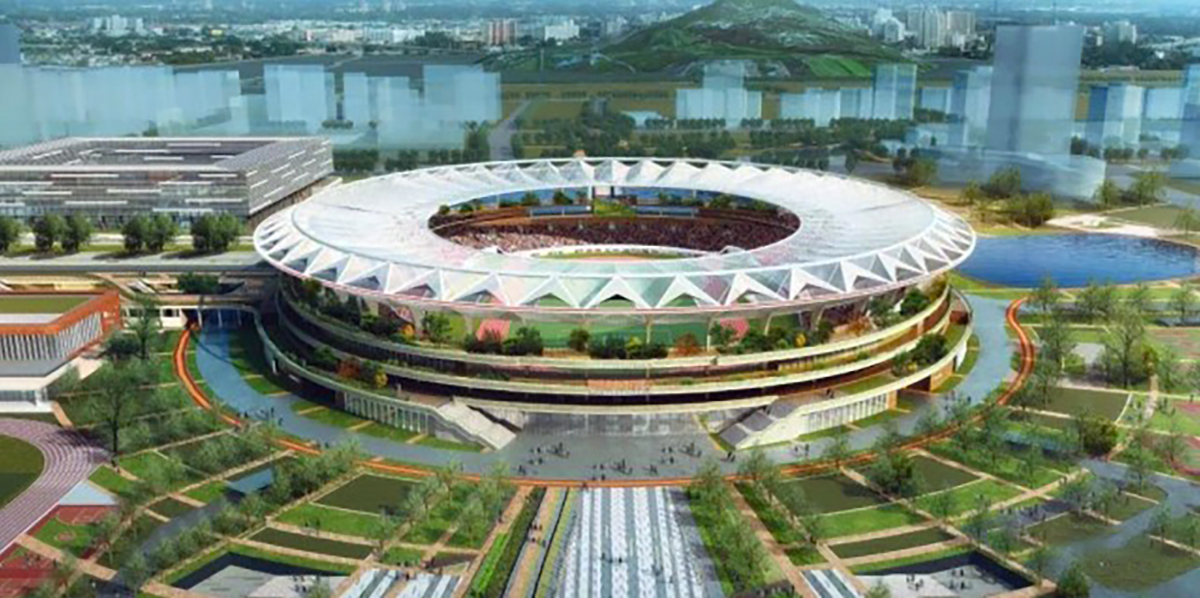

钢结构屋盖采用轮辐式索膜结构，由轮辐式拉索、PTFE膜及环桁架组成，内外环轴形状为椭圆形，悬挑长度43.m1~43.6m，索周边拉结于环桁架上，环桁架固定铰接在地上看台型钢混凝土巨柱顶部。

The steel structure roof adopts a spoke type cable membrane structure, which is composed of spoke type cables, PTFE membranes, and ring trusses. The inner and outer ring axes are elliptical in shape, with a cantilever length of 43.m1-43.6m. The cable periphery is tied to the ring truss, and the ring truss is fixed and hinged on the top of the steel concrete giant column on the ground stand.

日照奎山体育中心是日照市首个3.6万座体育场馆。

The Rizhao Kuishan Sports Center is the first 36000 seat sports stadium in Rizhao City.

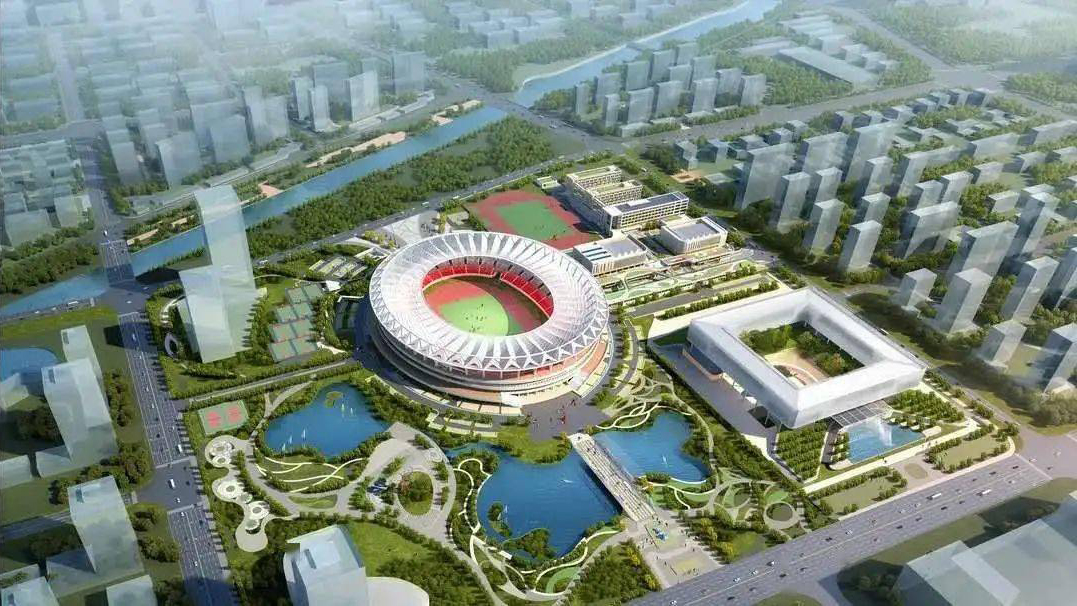

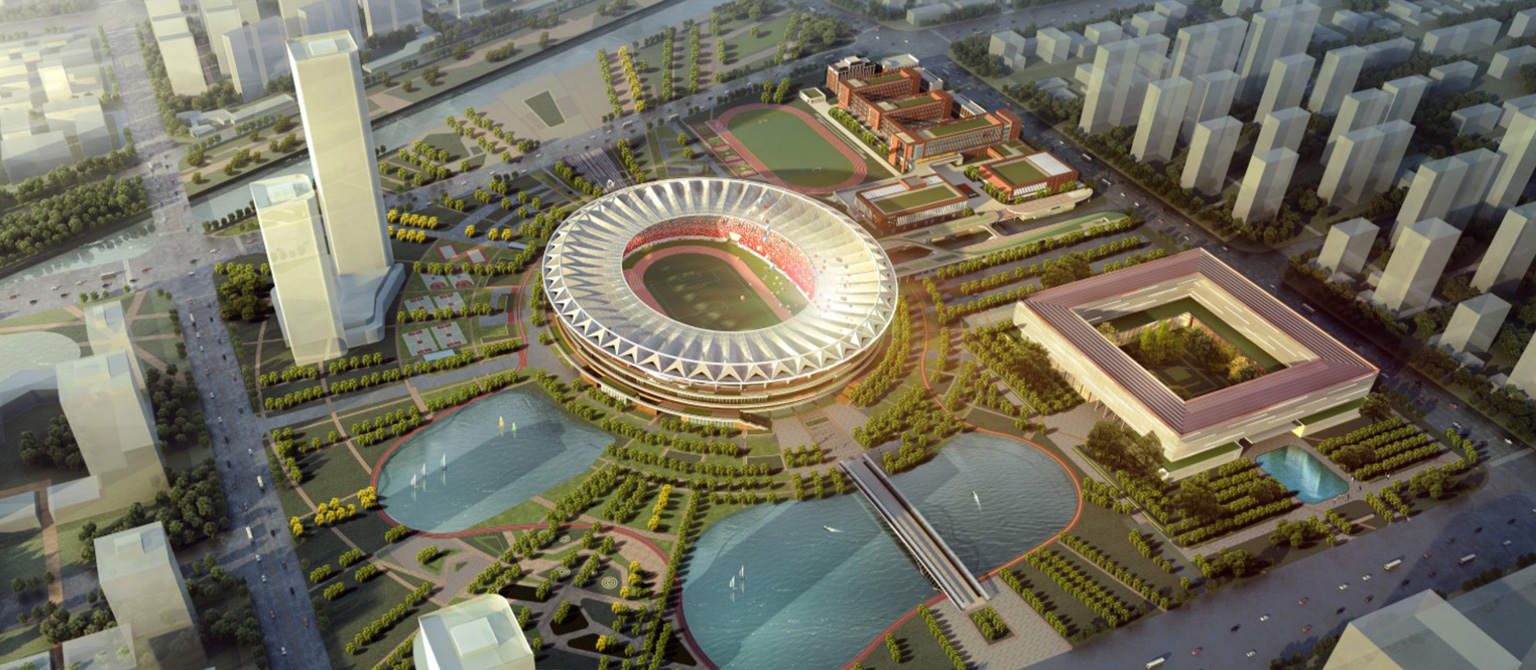

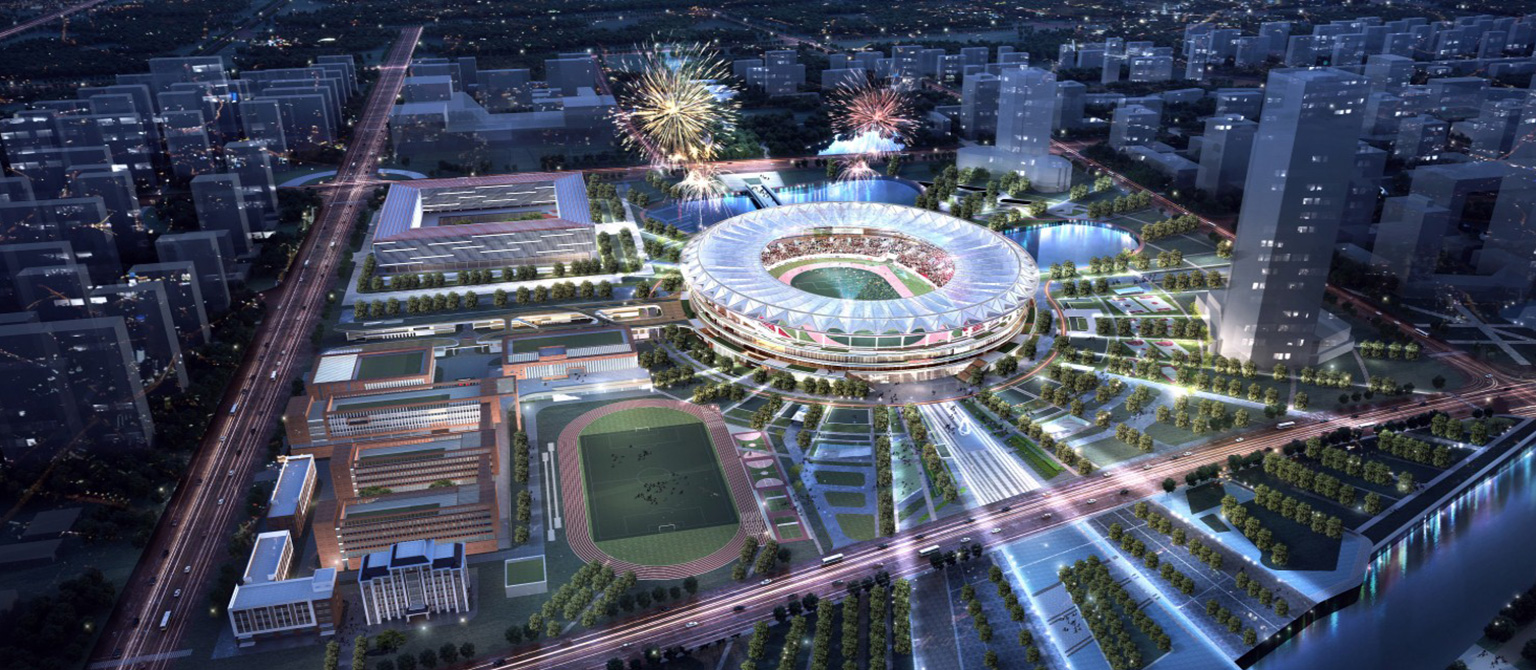

规划日照之光体育场、日照市体育学校、大地之美酒店综合体及全民健身体育公园等，计划打造集大型体育赛事、体育教育、商业运营及全民健身为一体的体育综合体。

Plan to build a sports complex that integrates large-scale sports events, sports education, commercial operations, and national fitness, including the Rizhao Sunshine Stadium, Rizhao Sports School, Dizhimei Hotel Complex, and National Fitness Sports Park.
