腾讯北京总部大楼，北京/建筑

2023-05-23 09:17:52建筑设计办公会议办公建筑现代风格

项目标签

项目名称

腾讯北京总部大楼

文章分类

建筑设计-办公会议

项目地址

北京市海淀区西北旺东路10号

设计公司

北京市建筑设计研究院有限公司

建设用地位于中关村软件园二期西南角，北临软件园南街，东临软件园西三路，南临西北旺南路，西临西北旺东路。本工程建设用地为两块，分别为M-1用地及N-3用地，主楼位于M-1用地，能源中心配楼位于N-3用地。项目交通组织与外部连接的主要出入口位于软件园南街与软件园西三路一侧。用地内部道路设置按人车分流原则，同时，合理设计车行流线，实现“简短、便捷”，与步行流线尽量减少交叉。

The construction land is located at the southwest corner of Zhongguancun Software Park Phase II, adjacent to Software Park South Street to the north, Software Park West Third Road to the east, Northwest Wangnan Road to the south, and Northwest Wangdong Road to the west. The construction land for this project is divided into two parts, namely M-1 land and N-3 land. The main building is located on M-1 land, and the energy center distribution building is located on N-3 land. The main entrance and exit for the project traffic organization and external connection are located on the side of Software Park South Street and Software Park West Third Road. The internal roads of the land should be set according to the principle of pedestrian and vehicle separation, and the vehicle flow line should be reasonably designed to achieve "brevity and convenience", while minimizing intersections with pedestrian flow lines.

项目位于中关村软件园二期(西扩）N-3、M-1地块，是腾讯科技（北京）有限公司在北京的总部办公楼，可容纳约7500名员工。建筑主要功能：办公区域占地上建筑面积的75%，约25%建筑面积用作多项设施，例如员工餐厅、运动设施、教育学院以及其他为腾讯员工提供支援，保证他们的福利、人际交流和持续性专业发展的设施。根据《民用建筑设计通则》和《建筑结构可靠度设计统一标准》（GB50068-2001），本工程为一级，耐久年限为50年。

The project is located on plot N-3 and M-1 of Zhongguancun Software Park Phase II (West Expansion), and is the headquarters office building of Tencent Technology (Beijing) Co., Ltd. in Beijing, which can accommodate approximately 7500 employees. Main functions of the building: The office area covers 75% of the total building area, with approximately 25% of the building area used for multiple facilities, such as employee restaurants, sports facilities, education colleges, and other facilities that provide support for Tencent employees, ensuring their welfare, interpersonal communication, and continuous professional development. According to the "General Principles for Design of Civil Buildings" and the "Unified Standard for Reliability Design of Building Structures" (GB50068-2001), this project is classified as Class I with a durability period of 50 years.

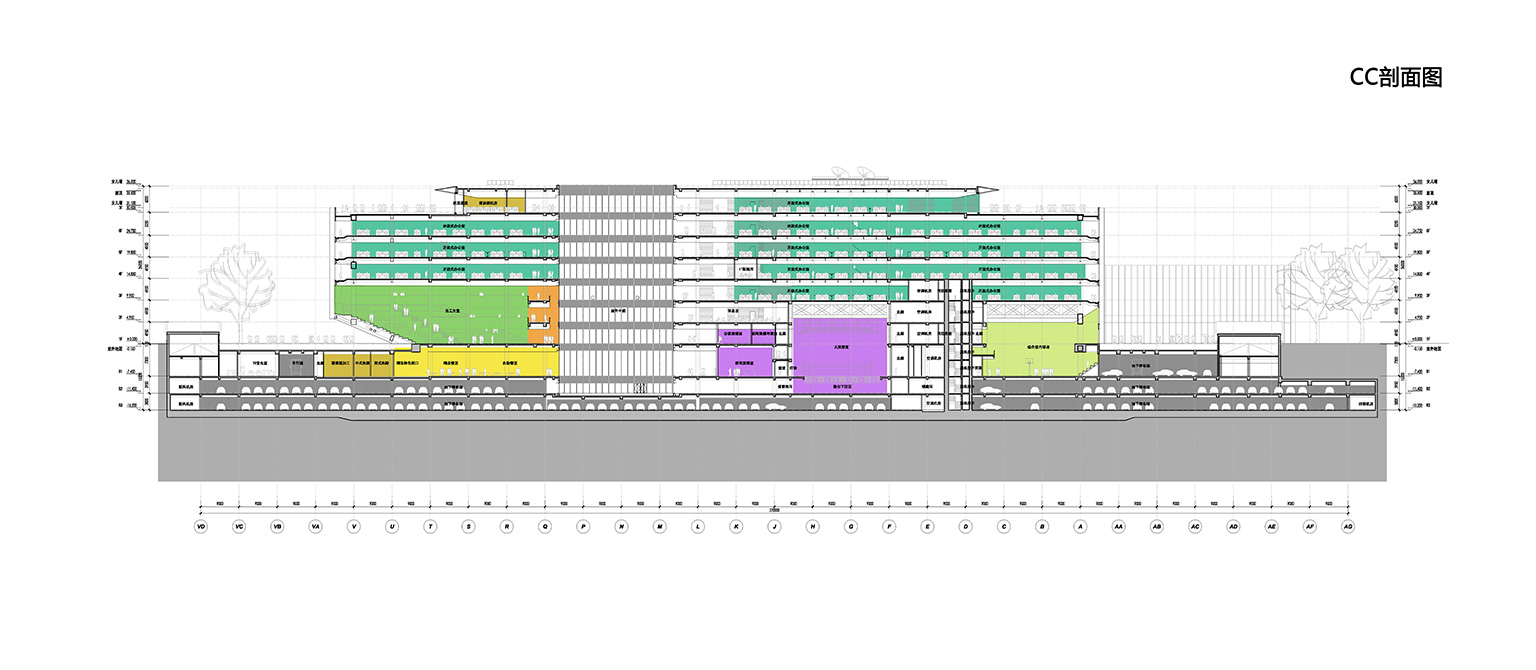

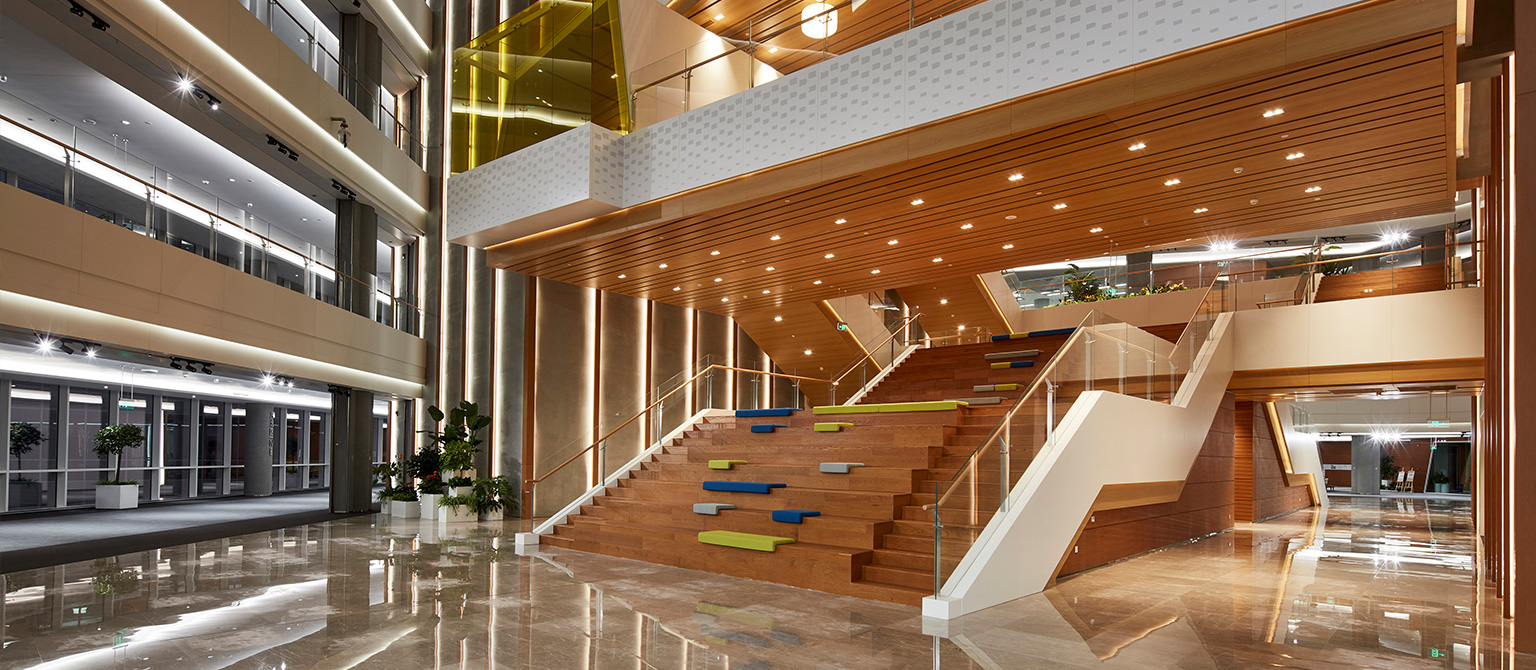

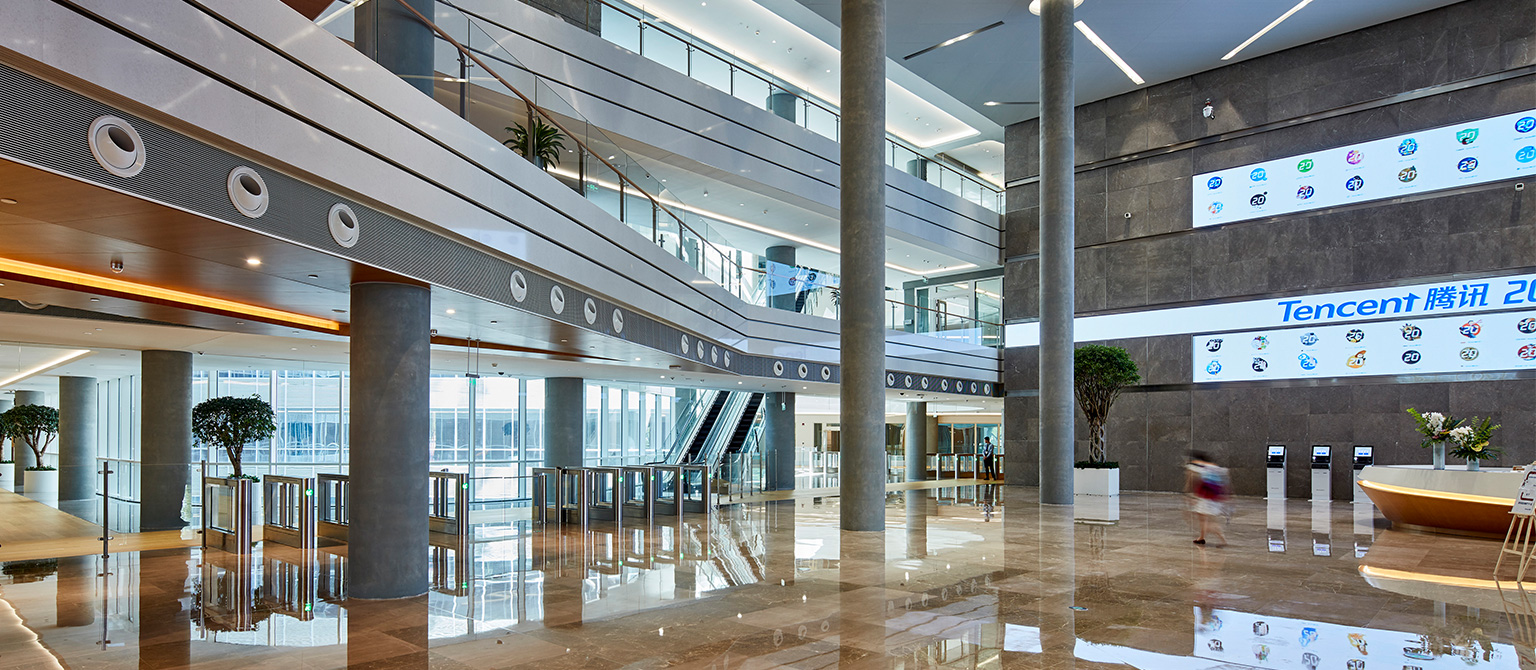

主楼地下三、二层为员工停车及设备用房；地下一层为访客停车，后场卸货区，北侧为形象店，餐厅与厨房，中区为演播功能和展厅，南区为员工运动设施及设备用房等。首层为员工大堂、早餐厅，中区为演播功能，南区为员工运动设施，西南侧为公众大堂，东南侧为VIP大堂。二层为行政办公，腾讯学院，开敞办公室，大中小教室，多功能厅，IT机房等。三至六层为开敞办公室。七层为总办餐厅及总办办公室等。能源中心配楼地下二层为制冷机房及其配电及控制室、IT中心制冷机房等。地下一层为员工自行车停车场、消防水池、消防水泵房、空调机房、空调机房、卫生间等。首层为锅炉房、热交换站、物业管理中心、柴油发电机房、10KV分界室、高压配电室、变电室等。

The third and second underground floors of the main building are for employee parking and equipment rooms; The basement level is for visitor parking, the back yard unloading area, the north side is for image stores, restaurants and kitchens, the middle area is for broadcasting functions and exhibition halls, and the south area is for employee sports facilities and equipment rooms. The first floor is the employee lobby and breakfast hall, the central area is for broadcasting, the southern area is for employee sports facilities, the southwest side is the public lobby, and the southeast side is the VIP lobby. On the second floor, there are administrative offices, Tencent Academy, open offices, classrooms for large, medium, and small schools, multifunctional halls, IT rooms, and more. The third to sixth floors are open offices. The seventh floor is the General Office Restaurant and General Office Office. The underground second floor of the energy center distribution building consists of a refrigeration room and its distribution and control room, as well as an IT center refrigeration room. The underground level includes employee bicycle parking lot, fire water pool, fire water pump room, air conditioning room, air conditioning room, bathroom, etc. The first floor is the boiler room, heat exchange station, property management center, diesel generator room, 10KV boundary room, high-voltage distribution room, transformer room.

建筑专业

Architecture major

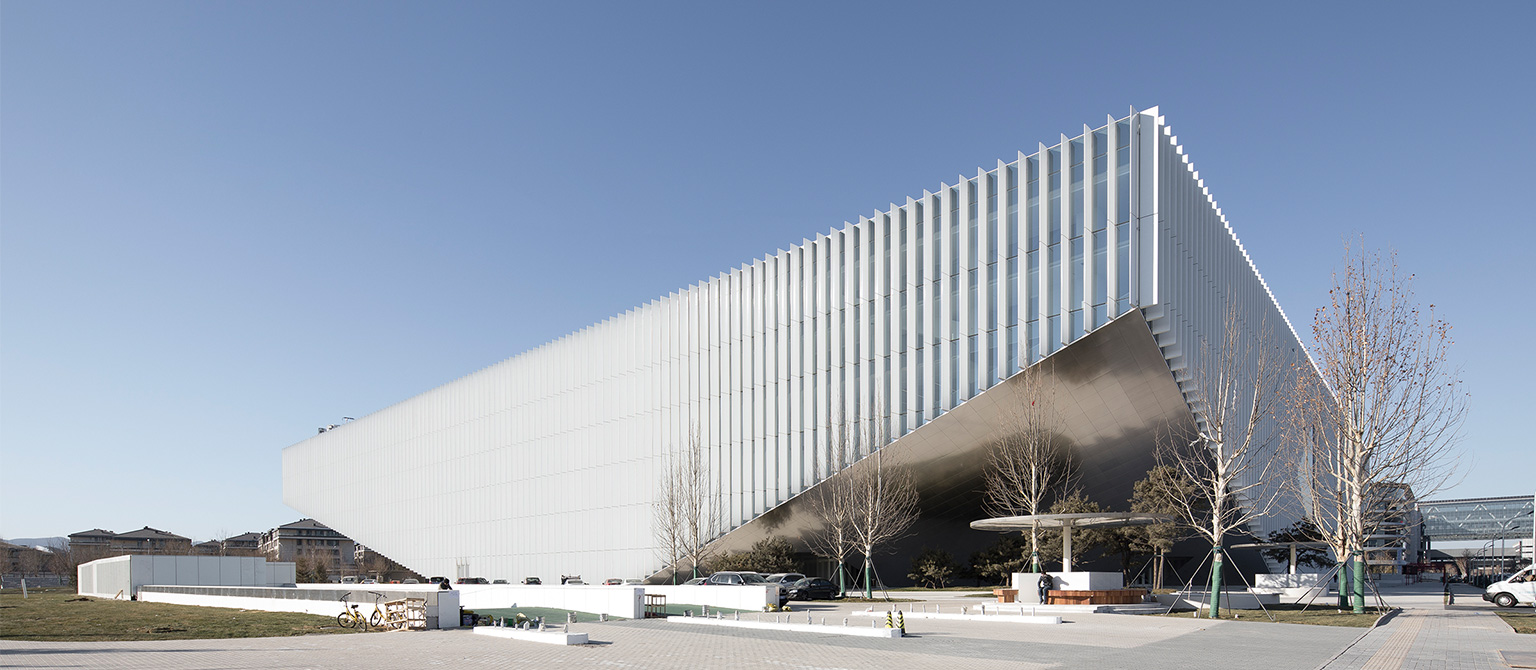

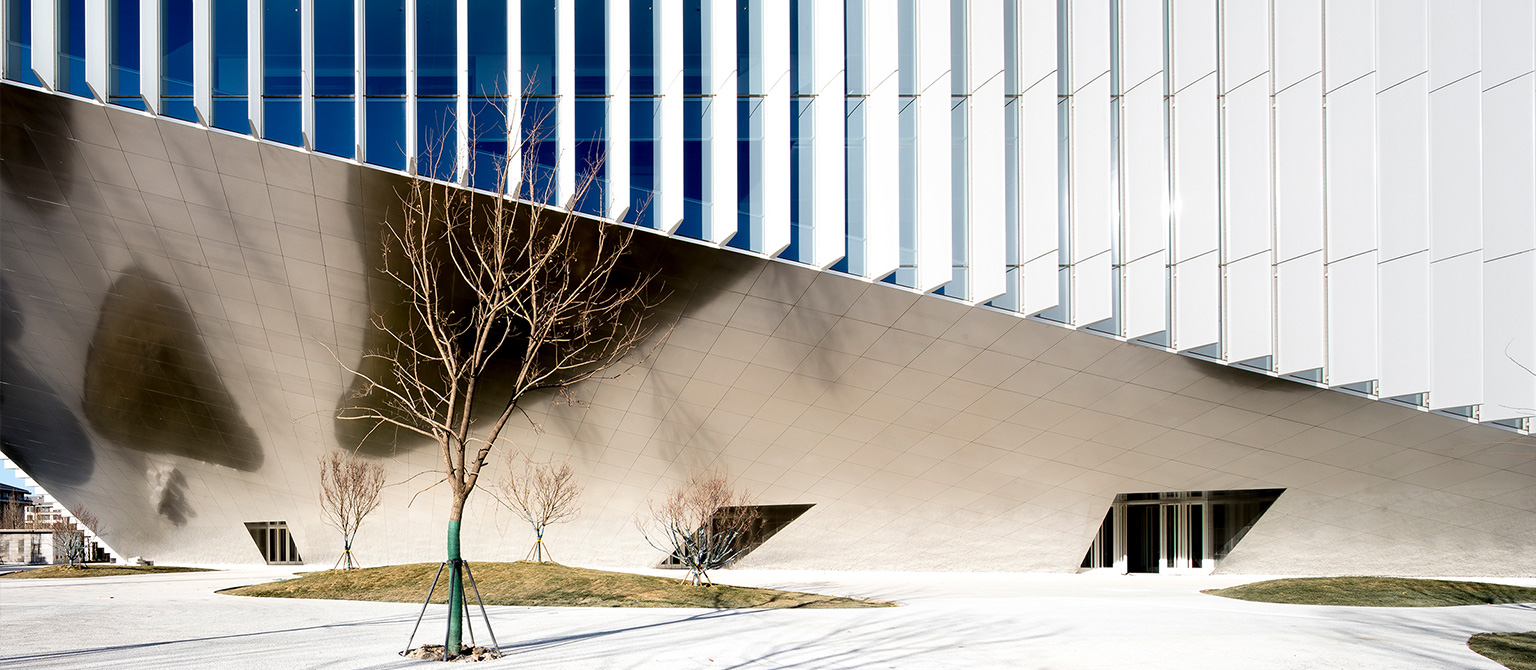

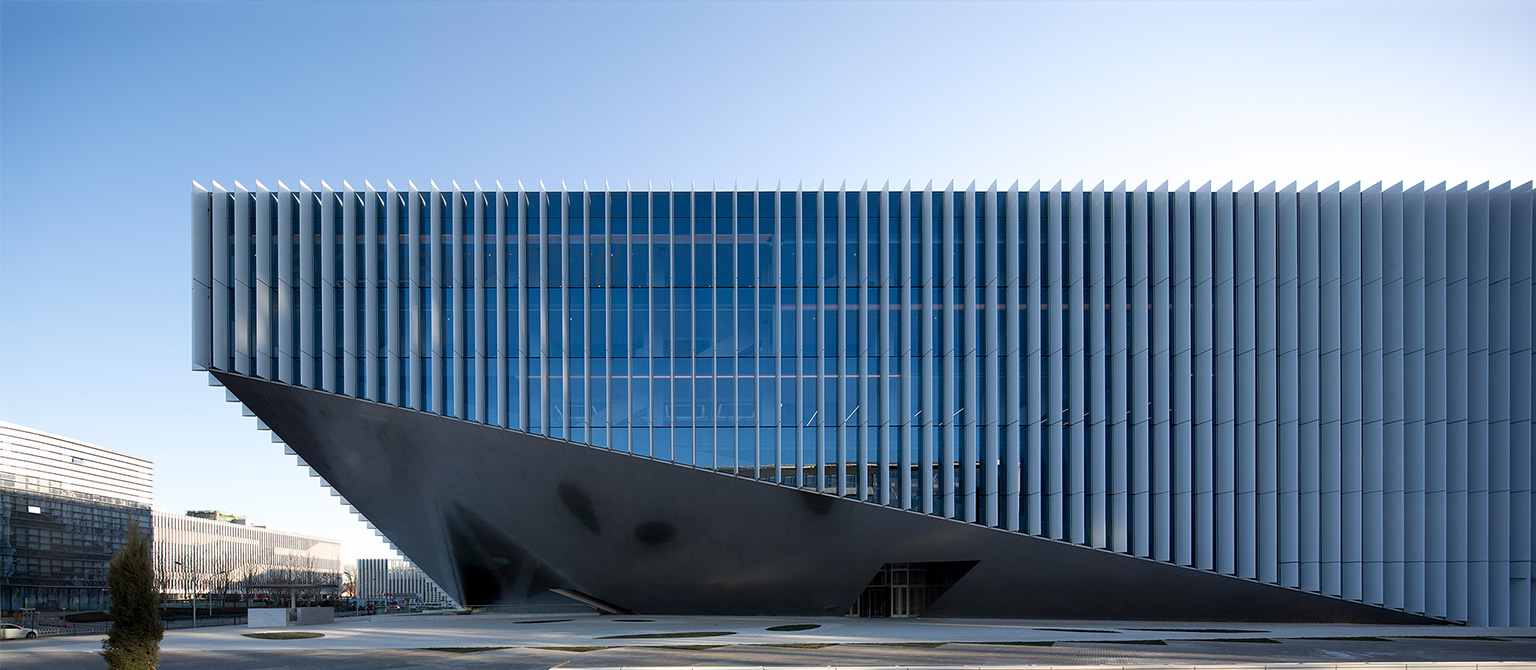

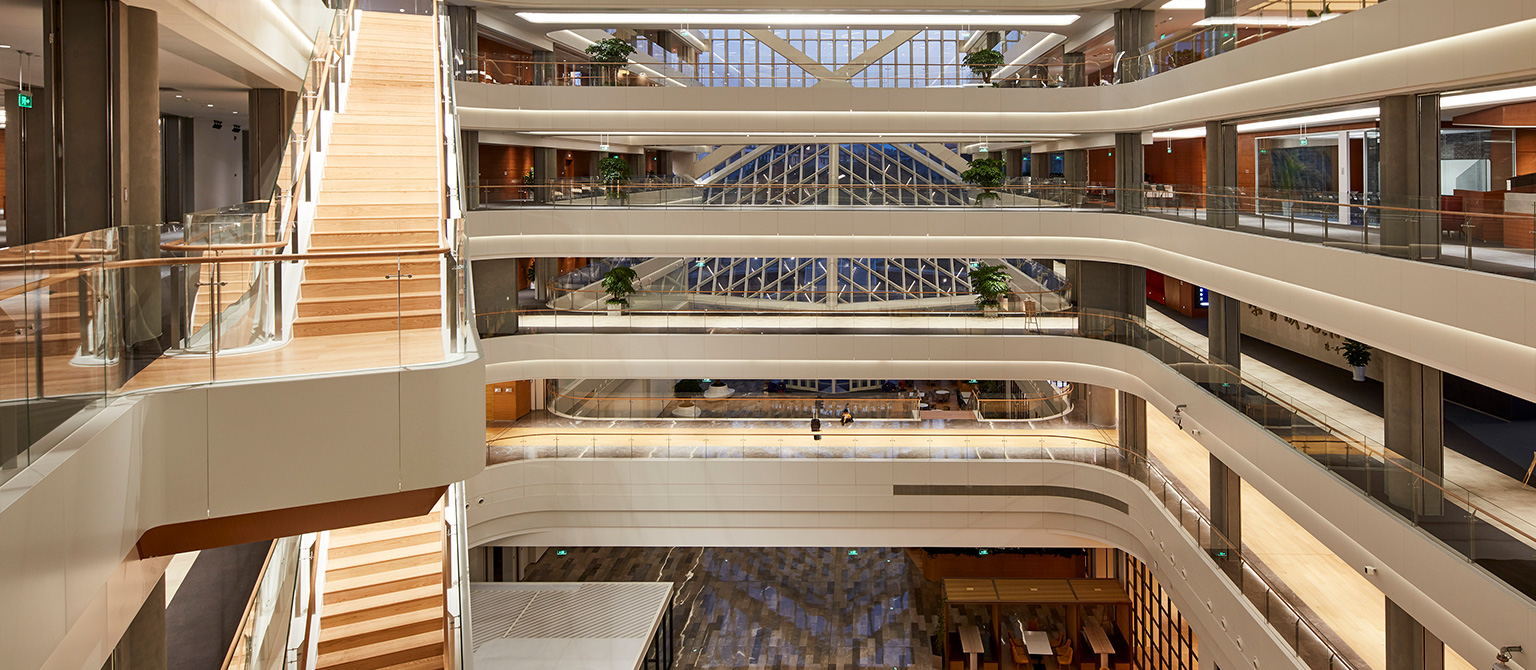

建筑设计的理念是“凝聚、融入、沟通”，为员工提供了全新的生活与工作方式。建筑的特点是 “外在整体，内部灵动”。建筑采用方形，稳固性、简约以及厚实感使其成为软件园的一个扎实的区块。180米X180米的超大平面促使室内工作环境更像是一座城市而非简单的一栋建筑。底部切角界定了入口，轻盈的视觉效果令建筑仿佛从地面浮起一般。顶部退台创造了环境优美的户外区域。室内外庭院使超大的楼层变得丰富多样，也提供了与自然的接触机会。

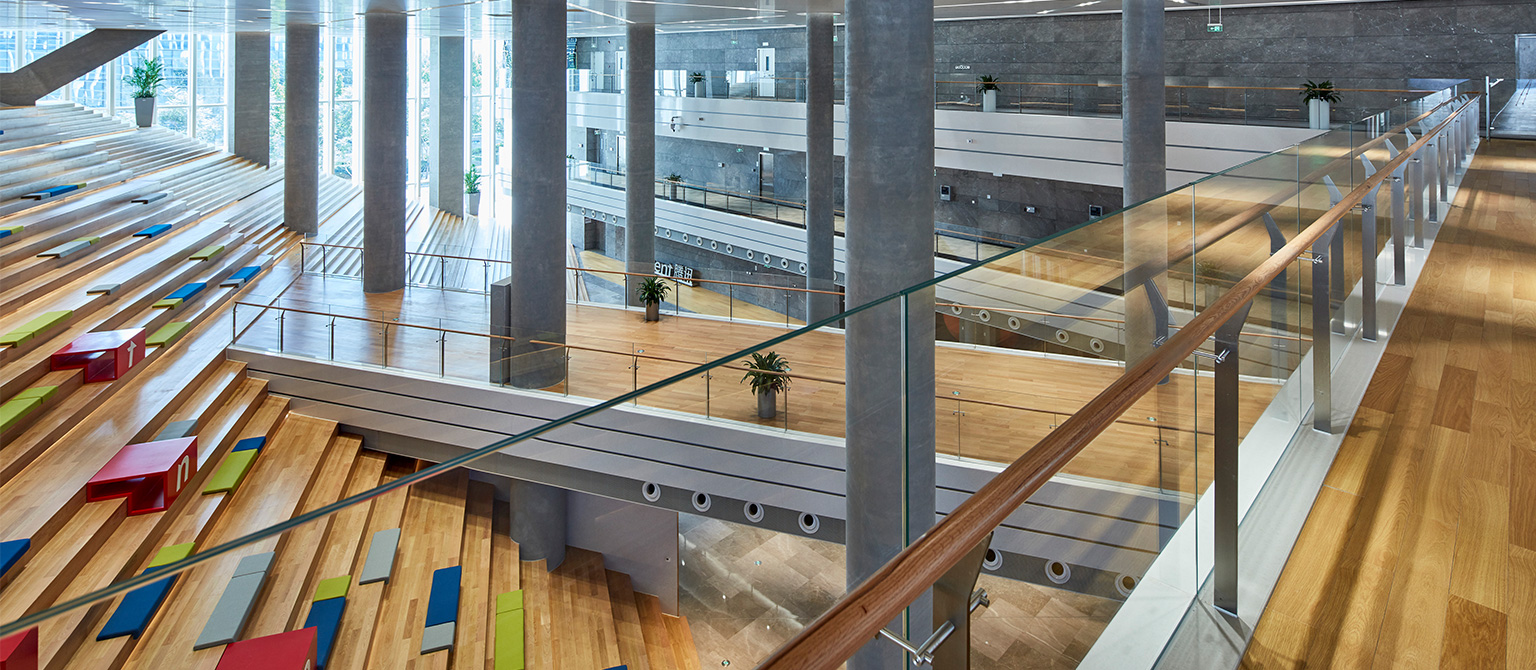

The concept of architectural design is "cohesion, integration, and communication", providing employees with a new way of life and work. The characteristic of architecture is' overall exterior, dynamic interior '. The building adopts a square shape, with stability, simplicity, and a sense of thickness, making it a solid block in the software park. The super large flat surface of 180 meters by 180 meters makes the indoor working environment more like a city rather than a simple building. The bottom chamfer defines the entrance, and the lightweight visual effect makes the building seem to float from the ground. The top retreat creates a beautiful outdoor area. The indoor and outdoor courtyards make the oversized floors rich and diverse, and also provide opportunities to interact with nature.

项目创造了一种全新的办公组织模式，对超大建筑平面的探索，从设计角度合理处理超大建筑平面的空间布局、交通组织、物理环境、消防等方面的问题，探索出一种平面布置新的可能性，可以为员工提供更多交流创新的机会，可以为企业提供更符合企业办公模式的建筑空间。

The project has created a brand new office organization model, exploring the spatial layout, traffic organization, physical environment, fire protection, and other issues of super large building planes from a design perspective. It has explored a new possibility for layout, which can provide more opportunities for employees to communicate and innovate, and provide enterprises with building spaces that are more in line with the enterprise's office model.

设计团队全程采用BIM正向设计的方式，通过设计策划，确定了设计流程，明确了技术路线，建立了协同平台，制定了BIM设计导则及编码手册。各专业设计师从方案阶段开始，初步设计、施工图设计阶段均采用全专业BIM技术系统协同平台工作，提高了设计质量，提高了设计效率。

The design team adopted a BIM forward design approach throughout the entire process. Through design planning, the design process was determined, the technical roadmap was clarified, a collaborative platform was established, and BIM design guidelines and coding manuals were developed. Starting from the scheme stage, all professional designers use a full professional BIM technology system collaboration platform to work in the preliminary design and construction drawing design stages, improving design quality and efficiency.

项目完成度高，社会反响好，建筑外观简洁有力又不失细节，是软件园西区最具张力、最醒目的一栋建筑。同时设计中采用了大量的绿色节能技术、智慧办公管理技术，给员工带来了高品质的室内环境体验，得到了入驻员工的高度评价。

The project has a high degree of completion, good social response, and a simple and powerful appearance without losing details. It is the most tense and eye-catching building in the west area of the software park. At the same time, a large number of green energy-saving technologies and smart office management technologies were adopted in the design, providing employees with a high-quality indoor environment experience and receiving high praise from the settled employees.

智能化专业-技术特点

1. 室外智能化管井构成环网，预留从各个方向引入市政通讯的条件；

2. CO、CO2、PM2.5、温度、湿度等环境传感器大量布置，同时与机电设备联调，确保环境空气质量，同时为指挥运营创造输入条件；

3. 能源管理系统检测电能、中水、给水、燃气、冷热量，同时进行能源预估及控制，制定节能减排措施；

4. 移动化、可靠性一体的网络架构，行政、安防、IT三网隔离；

5. 会议室以场景为驱动单元，综合空调、灯光、电声、投屏、窗帘、占位等设备同你集中控制；

6. 车库管理采用全视频快速同行及反向寻车技术；

7. 建立应急指挥调度中心，CCTV全天候，360度布防，与地图联动；视频监控与消防联动，确定事件的精准性的同时大幅减少事件的响应时间；

8. 通行闸机采用人脸识别技术及大数据技术。

Intelligent Professional - Technical Features

1. The outdoor intelligent pipe well forms a ring network, reserving conditions for introducing municipal communication from all directions;

2. A large number of environmental sensors such as CO, CO2, PM2.5, temperature, humidity, etc. are arranged, and they are coordinated with electromechanical equipment to ensure environmental air quality and create input conditions for command and operation;

3. The energy management system detects electrical energy, reclaimed water, water supply, gas, and cooling and heat, while also conducting energy estimation and control, and developing energy-saving and emission reduction measures;

4. A network architecture that integrates mobility and reliability, with administrative, security, and IT networks isolated;

5. The conference room is driven by the scene, with integrated air conditioning, lighting, electroacoustic, projection screen, curtains, space occupying and other equipment controlled centrally with you;

6. The garage management adopts full video fast walking and reverse car search technology;

7. Establish an emergency command and dispatch center with CCTV 24/7, 360 degree deployment, and linkage with the map; Video monitoring and fire protection linkage, ensuring the accuracy of events while significantly reducing the response time of events;

8. The access gate adopts facial recognition technology and big data technology.

所获奖项：

2015年“龙图杯”BIM大赛一等奖；2016欧特克全球最佳协同奖

2016欧特克全球卓越奖施工类二等奖

2017年第八届“创新杯”BIM应用大赛-优秀科研办公BIM应用奖及优秀绿色设计BIM应用奖

2017年第十二届中国钢结构金奖

2020年建筑学会建筑创作奖

Awards Received:

First prize in the 2015 "Longtu Cup" BIM Competition; 2016 Autodesk Global Best Collaboration Award

2016 Otec Global Excellence Award Construction Class Second Prize

2017 8th "Innovation Cup" BIM Application Competition - Excellent Research Office BIM Application Award and Excellent Green Design BIM Application Award

The 12th China Steel Structure Gold Award in 2017

2020 Architectural Society Architectural Creation Award
