华为研发园区，杭州 / HENN 海茵建筑
该研发园位于中国东部城市杭州，为全球领先的移动通信设备制造商华为提供了充足的研发空间。研发园位于杭州西北部， 占地 251,000 平方米，坐落在郁郁葱葱的水景之中，设有办公室、行政大楼和可容纳 8,000名员工的食堂。知识园和景观园和谐地融为一体。
Located in Hangzhou, eastern China, the R&D Park provides Huawei, one of the world’s leading manufacturersof mobile communication devices, with ample space for research and development. Embedded in a lushwaterscape, the 251,000-square-meter site located in the northwestern part of the city features offices,administrative buildings, and a canteen for 8,000 employees. The Knowledge Park and the Landscape Parkmerge into a harmonious whole.

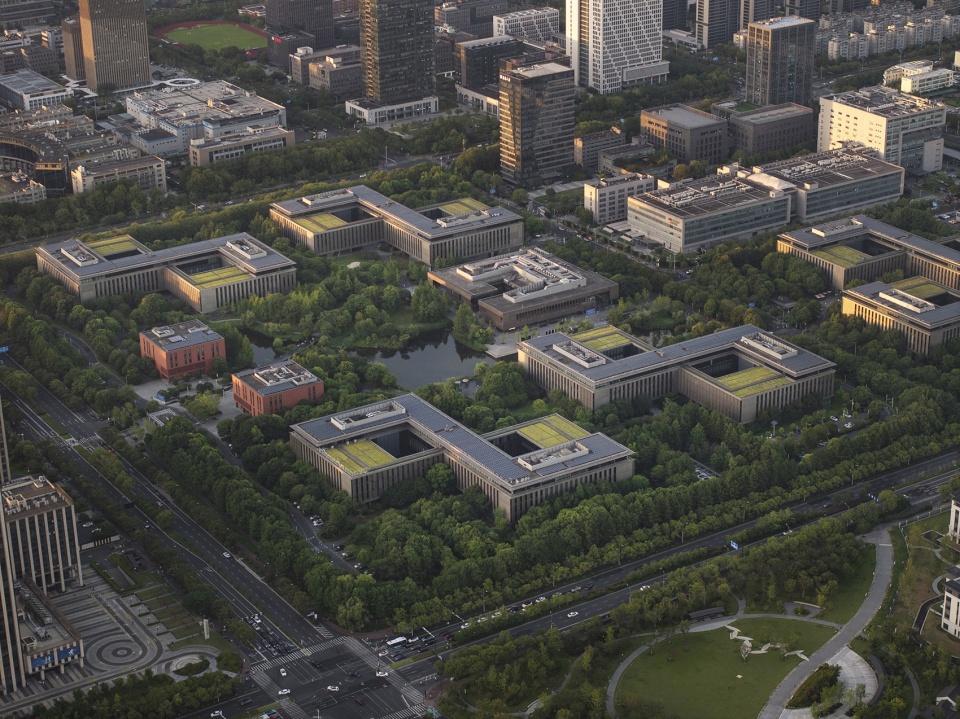

▼项目鸟瞰，Ariel view
园区所在的社区建筑密度高，而园区则被设计成一个带有低层建筑的宽敞公园——建筑和景观紧密交织。施工期间挖出的土壤被用来塑造高达七米的山丘，突出了广阔的景观，吸引游客前来发现和探索这个 公园。景观设计的核心是一个湖泊，它吸引游客漫步，并提供宜人的微气候。这个湖泊在水管理中也发挥着至关重要的作用。一条环形公路环绕着无车场地，将公园与交通区清晰地分隔开来。
Nestled into a densely developed neighborhood, the corporate campus is designed as a spacious park withlow-rise buildings – architecture and landscape are closely interwoven. The soil excavated during theconstruction phase was used to model hills to a height of up to seven meters, which accentuate the expansivelandscape, inviting visitors to discover and explore the park. The centerpiece of the landscape design is a lake,which stimulates the senses, invites visitors to stroll, and provides a pleasant microclimate. It also plays a vitalrole in water management. A ring road runs around the car-free site, clearly separating the park from the trafficareas.

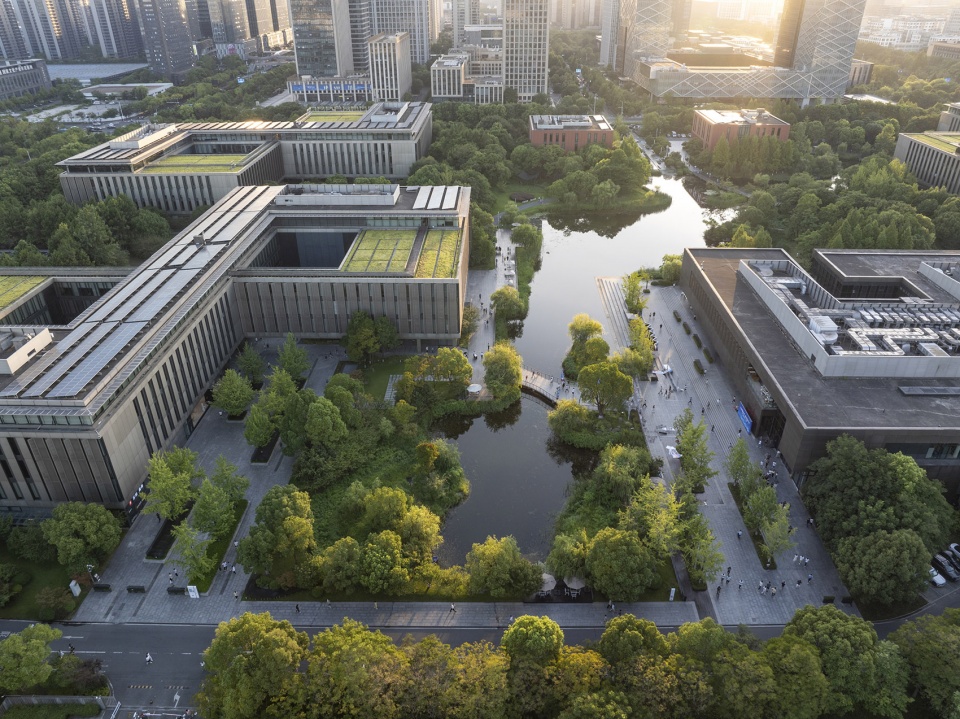

▼湖景鸟瞰图，lake Ariel view

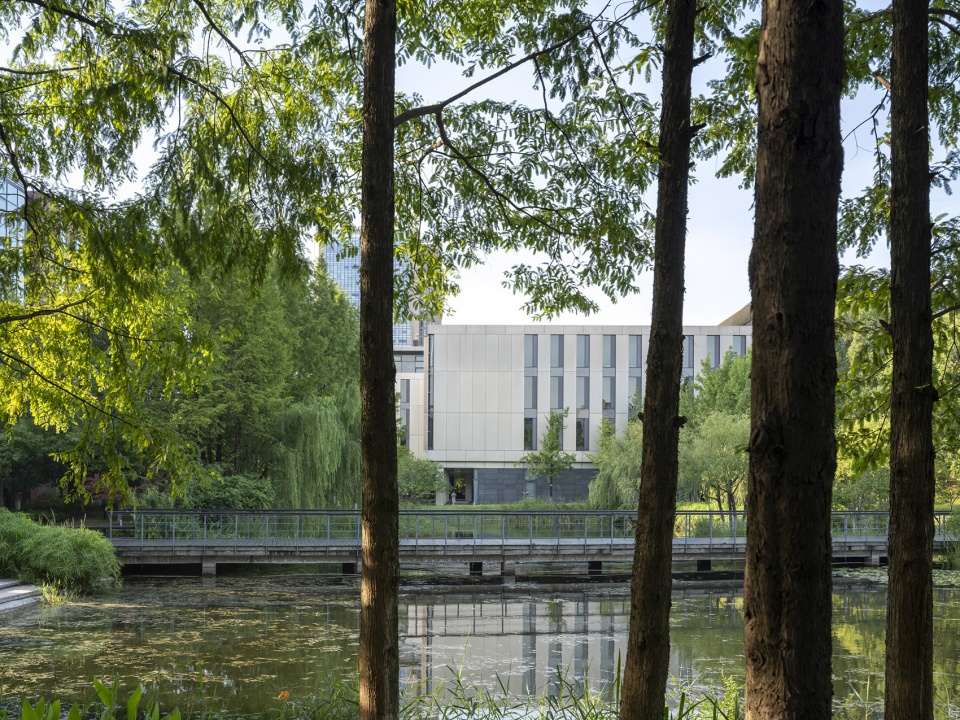

▼带桥的湖景，view with lake and bridge

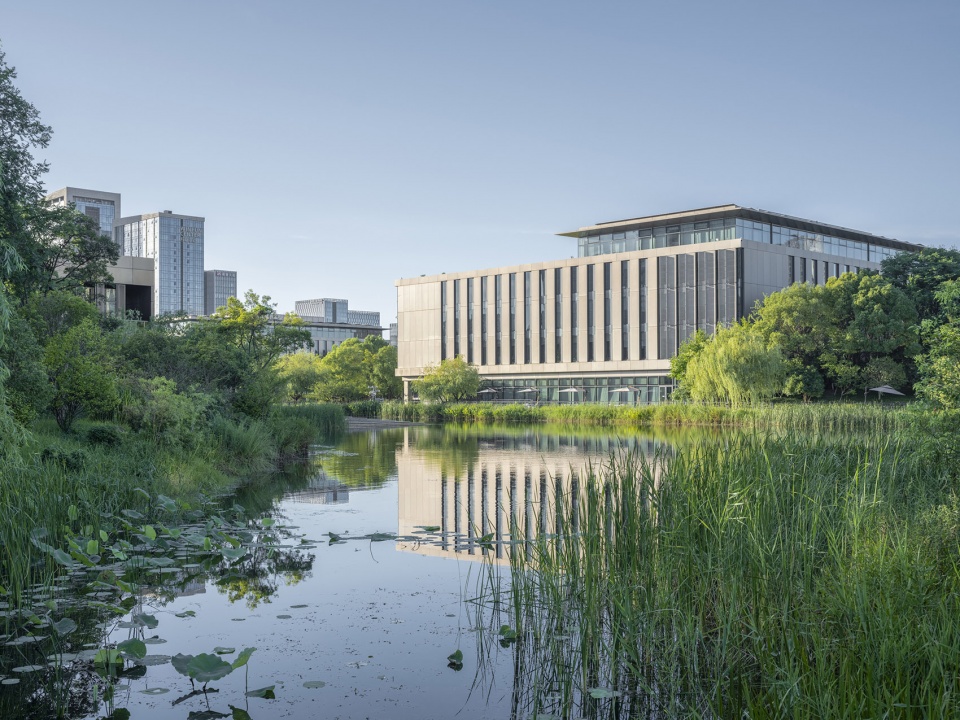

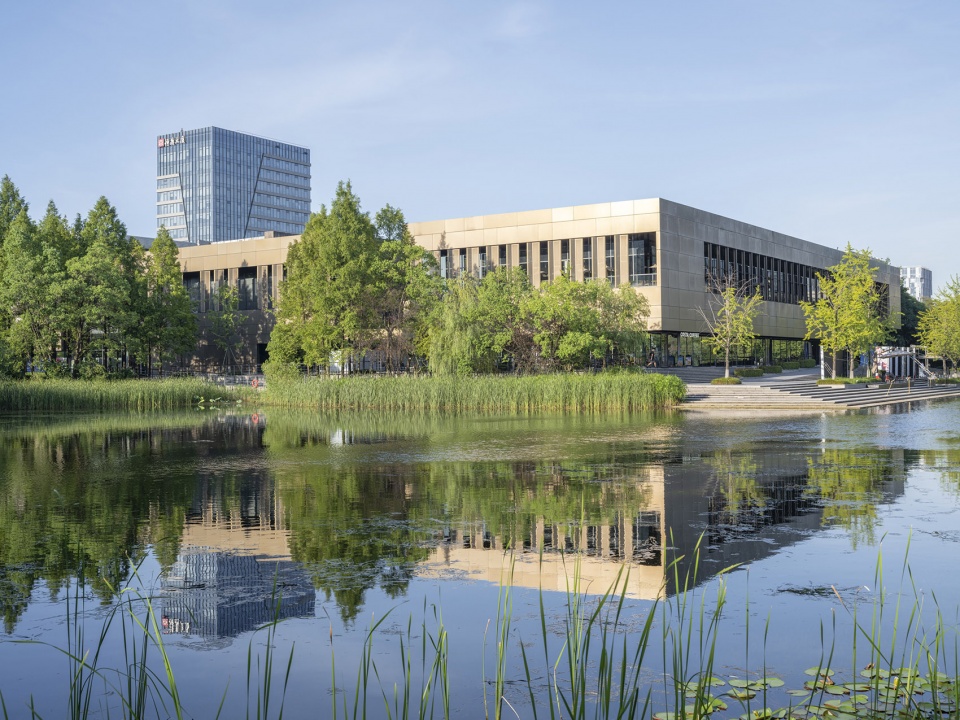

▼湖景，lake view
六座模块化建筑沿着细长的湖岸排列，用于容纳研究设施和办公室。这些直线形建 筑与有机地形和郁郁葱葱的自然环境形 成鲜明对比。五层建筑的定位类似于双纽线，象征无限：两个方形体量，每个体量都有一个中央庭院，它们在角落处相连。 在一楼，这些建筑通向将公园和庭院交织在一起的通道，创造了一个自然景观连续体。庭院还设有各个部门的入口。这个综合体由两个较小的模块组成，用于管理和服务部门、一个门卫室和一个位于园区中心湖岸的中心食堂。狭窄的露台将两层食堂的面积延伸到户外，可直接通往湖泊， 让人们不受干扰地欣赏到公园景观。

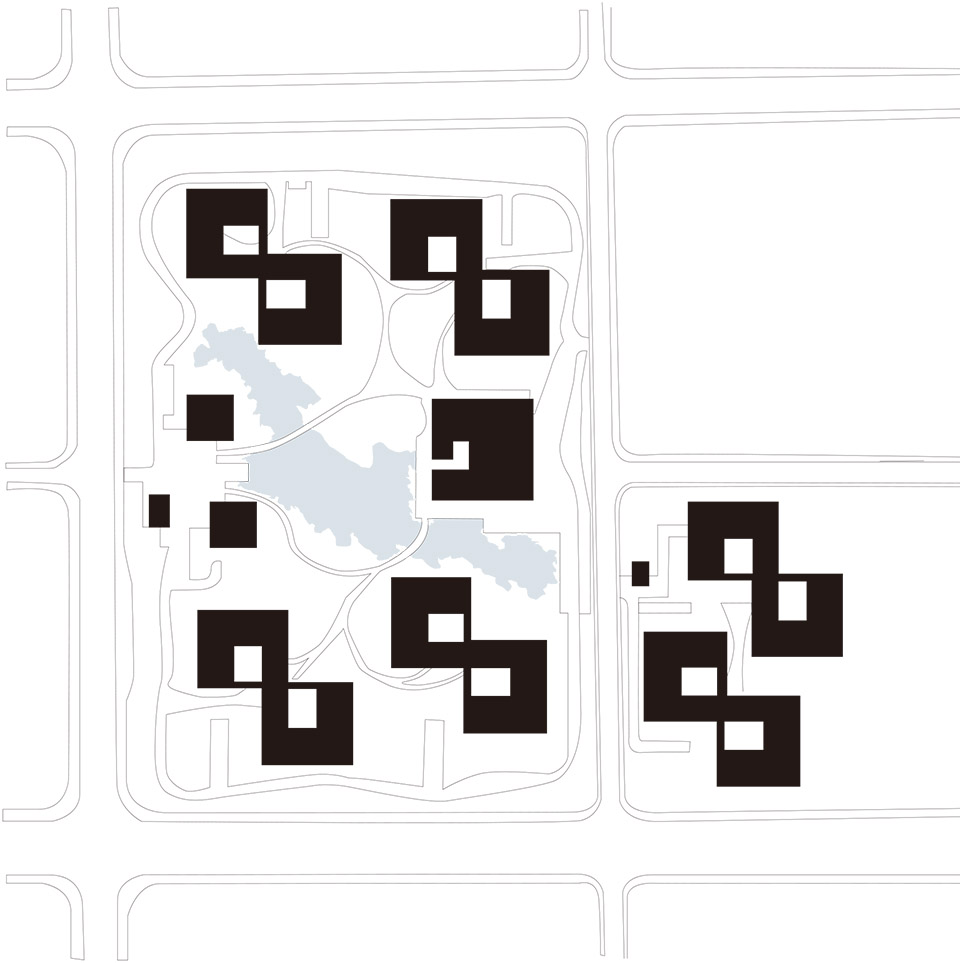

▼场地平面，site plan
A total of six modular structures accommodating research facilities and offices are arranged along the shoreof the elongated lake. The rectilinear buildings contrast with the organic topography and lush naturalsurroundings. The positioning of the five-story structures resembles a lemniscate, the symbol of infinity: Twosquare volumes each with a central courtyard connect at their corners. On the ground floor, the buildingsopen onto passageways that interweave the park and courtyards to create a natural landscape continuum.The courtyards also house the entrances to the individual departments. This complex is complemented bytwo smaller modules for administration and service units, a gatehouse, and a centrally located canteen situatedon the lakeshore in the middle of the campus. Narrow terraces extend the area of the two-story canteen tothe outside, providing direct access to the lake and an undisturbed parkscape view.

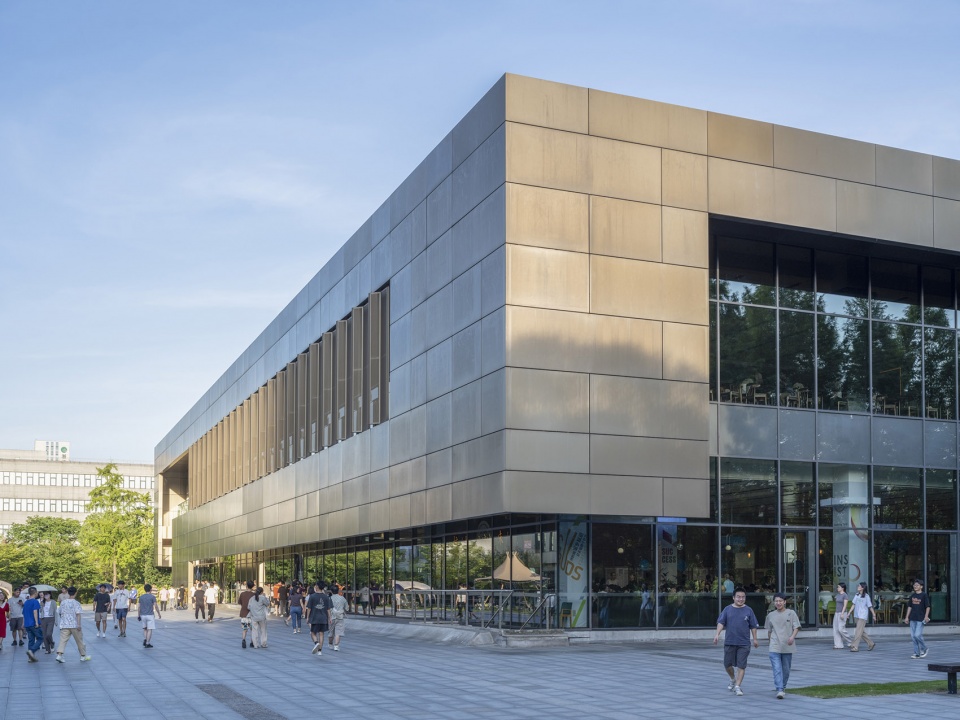

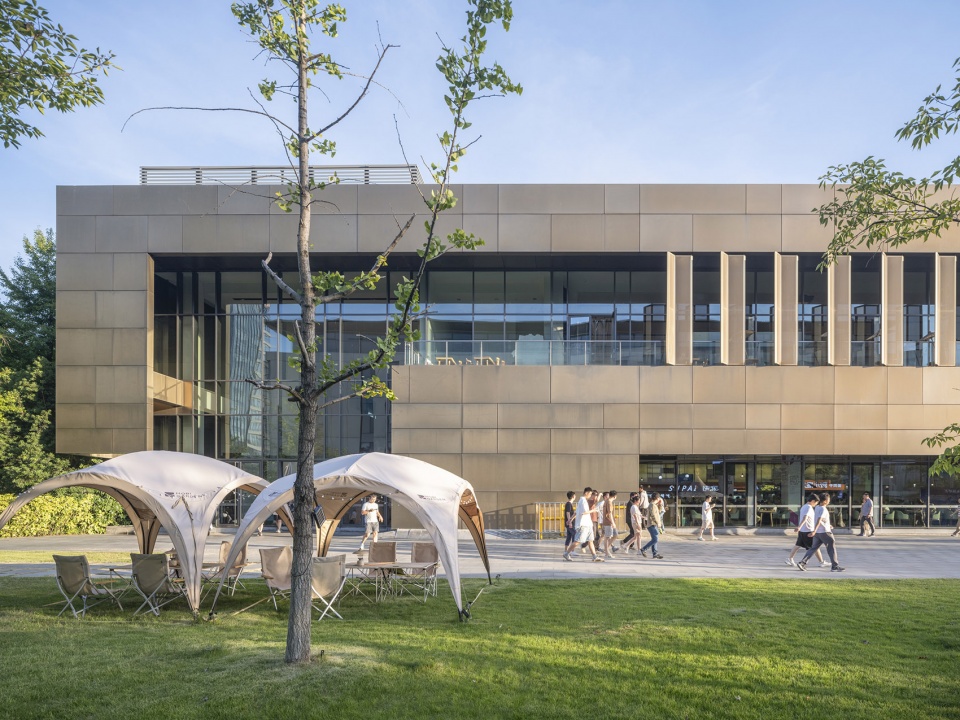

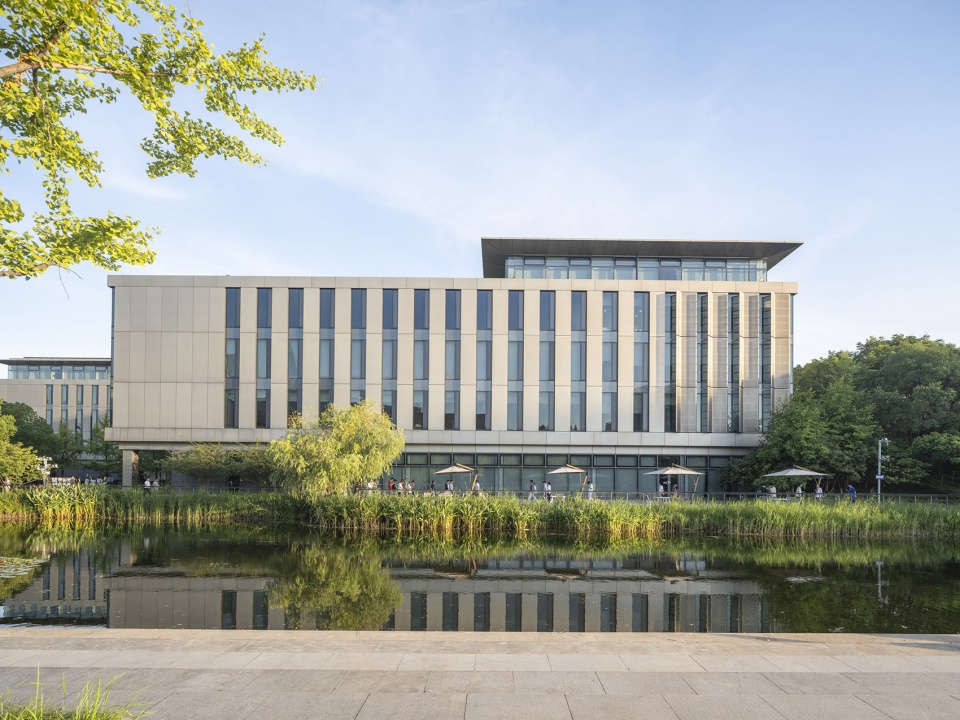

▼带露台的食堂，canteen with terraces
▼公园景观，view with park

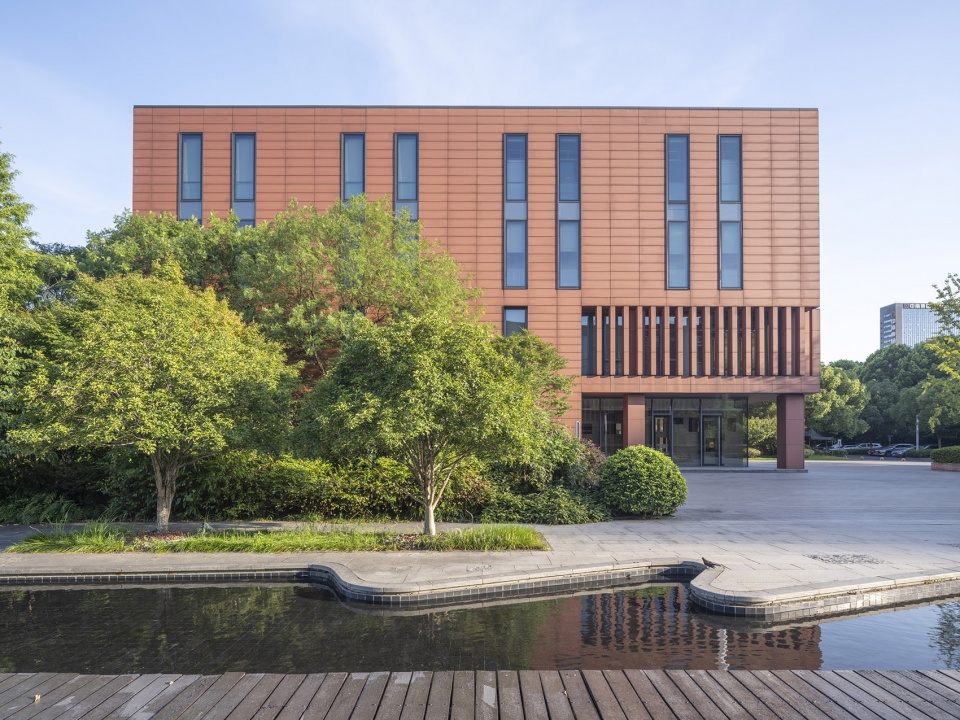

▼建筑周围景观，landscape around the building

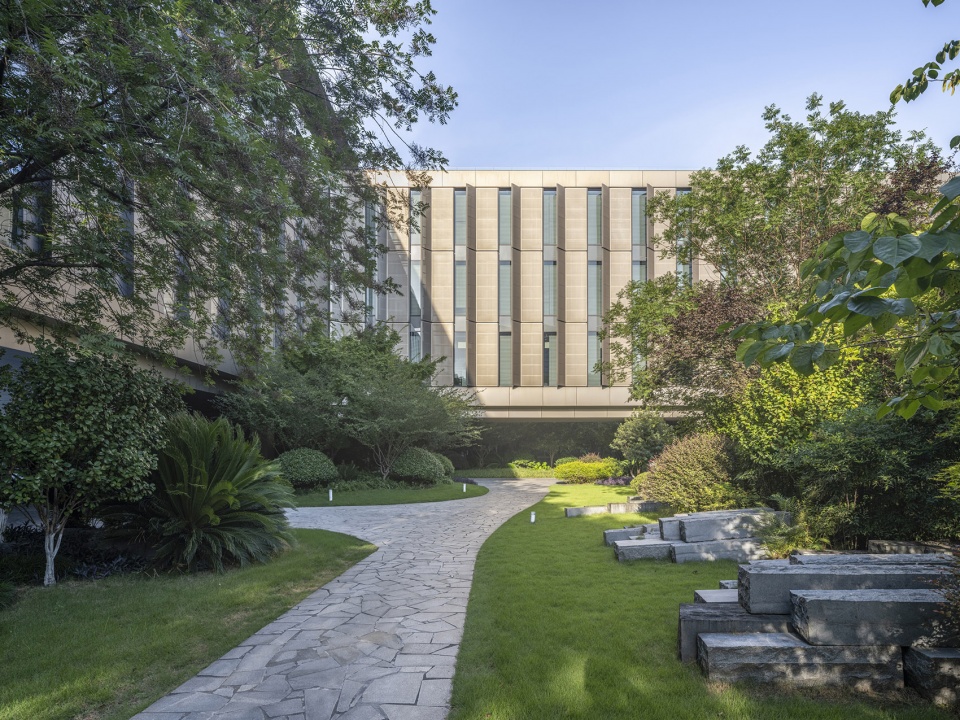

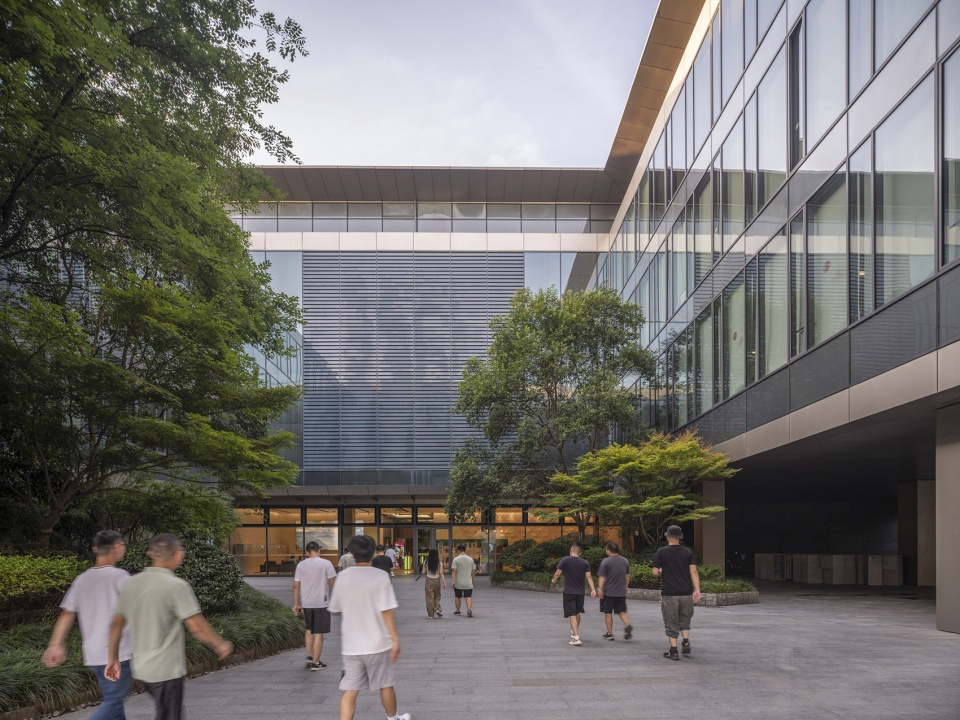

▼庭院，courtyard

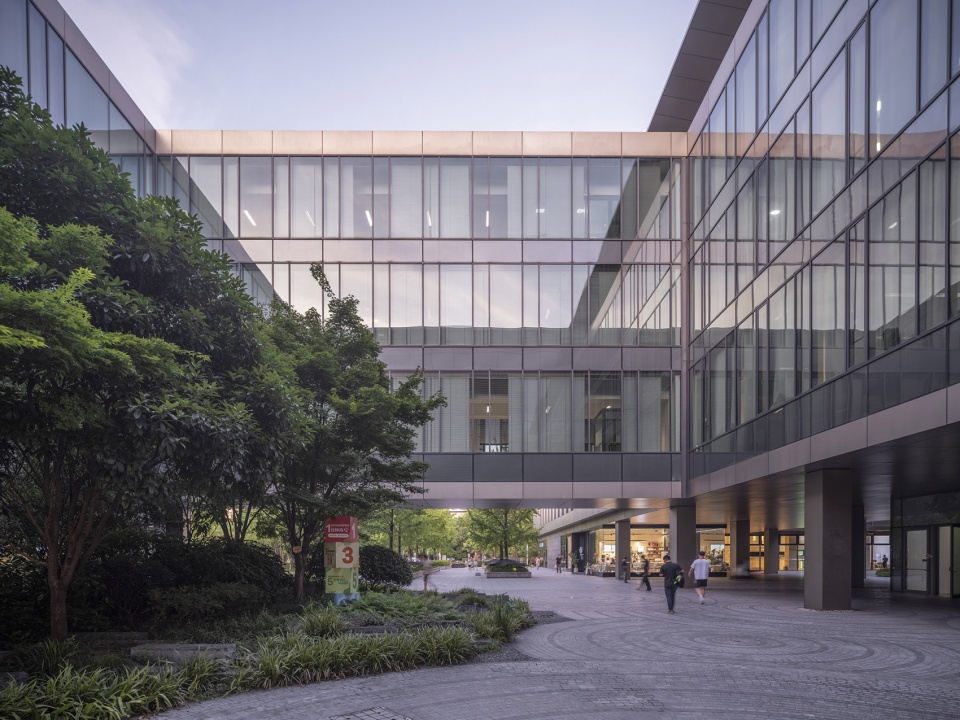

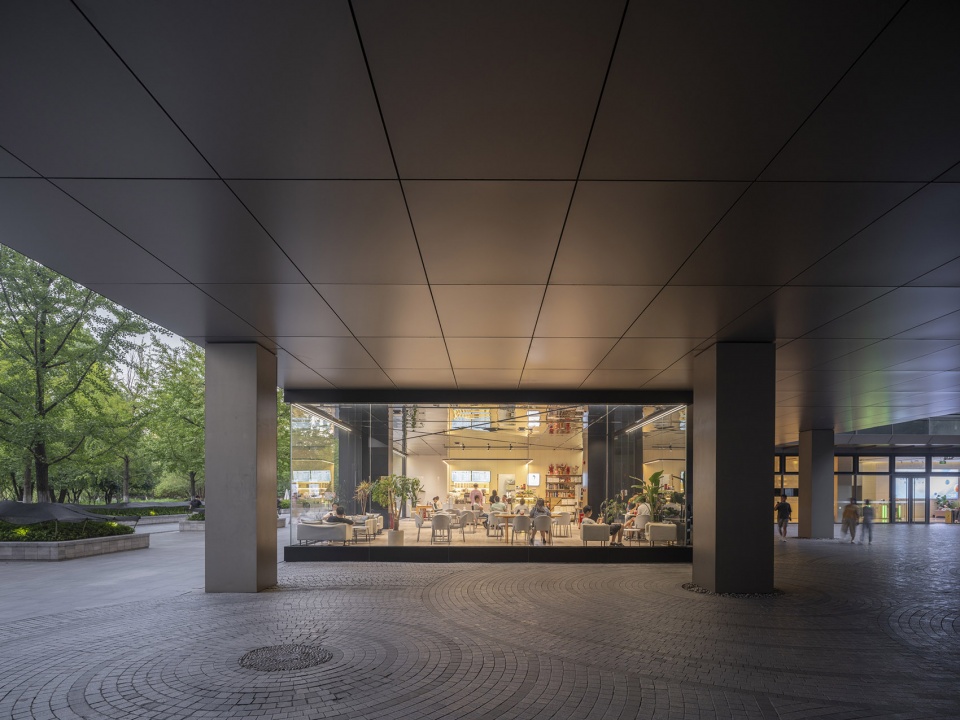

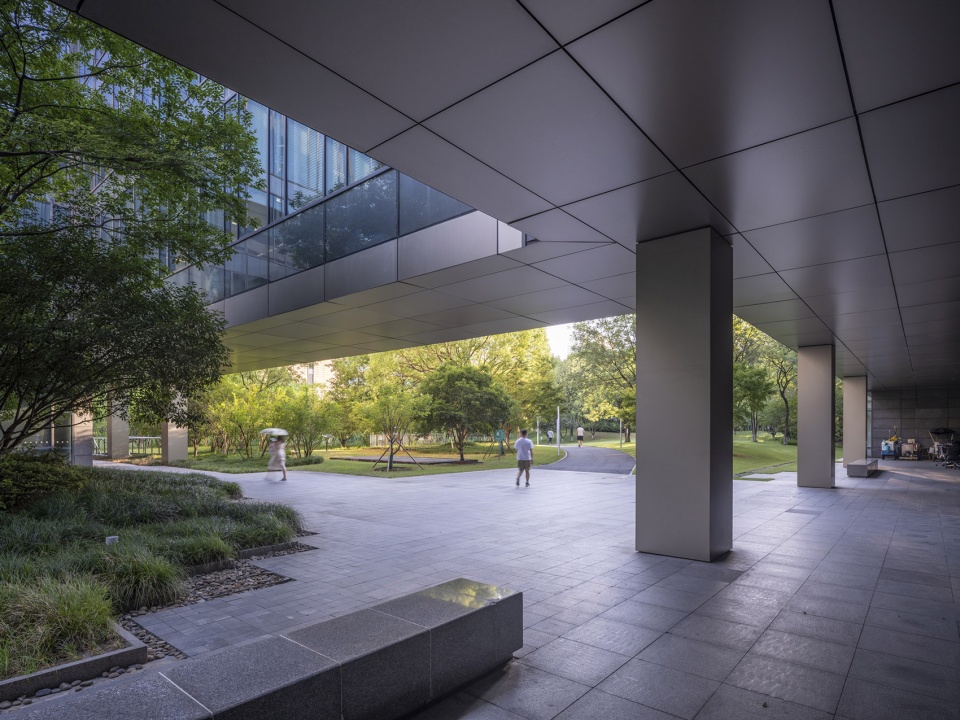

▼通道，passage
建筑模块的立面展现出实用的美感和清晰的结构。三个主楼层和一个后退的顶层补充了开放式底层布局。主楼层采用大窗户和阳极氧化铝制成的封闭表面，以及环绕建筑的外向遮阳板。配备屋顶光伏系统的顶层旨在通过后退的形式为绿色屋顶腾出空间。

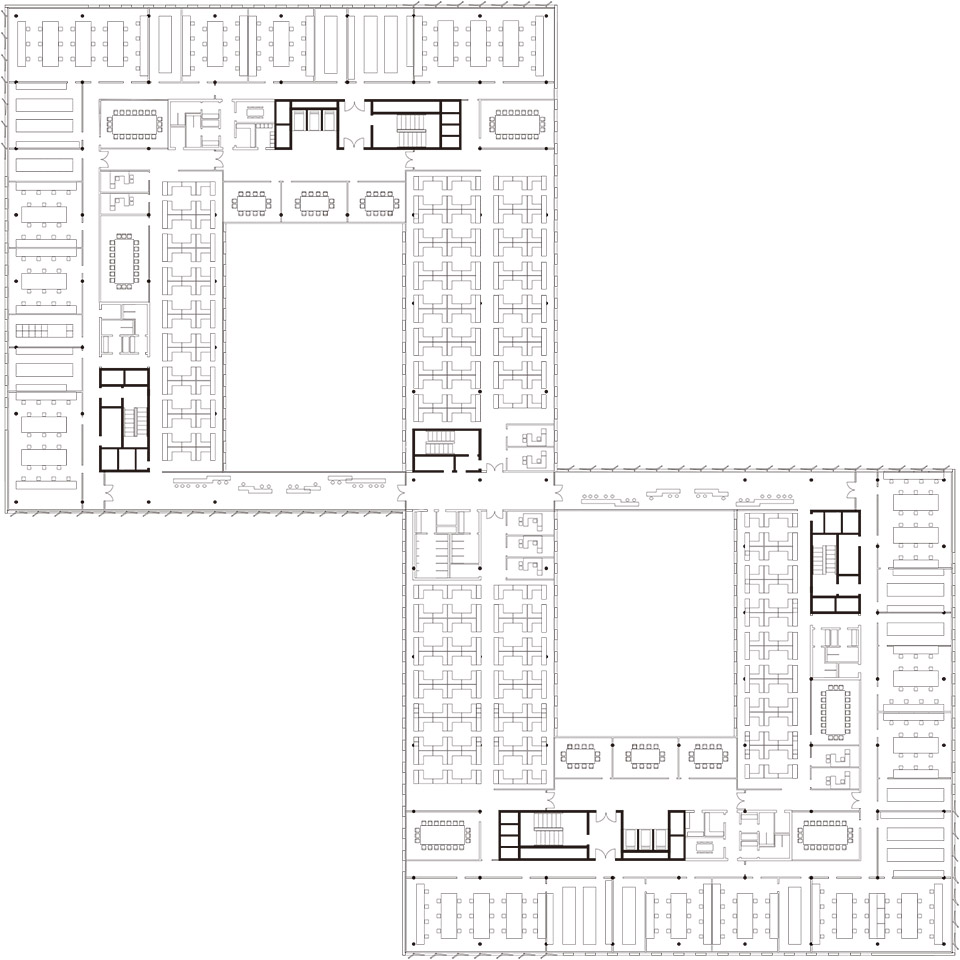

▼主楼层平面，main stories plan
The building modules’ façades show a functional aesthetic appeal and a clear structure. Three main stories anda recessed top floor complement the open ground-floor layout. The main floors feature large windows andclosed surfaces made from anodized aluminum, as well as outward-turning sunshades that wrap around thebuilding. The top floor equipped with a rooftop photovoltaic system is designed to provide additional topography through recesses to free up space for green roofs.

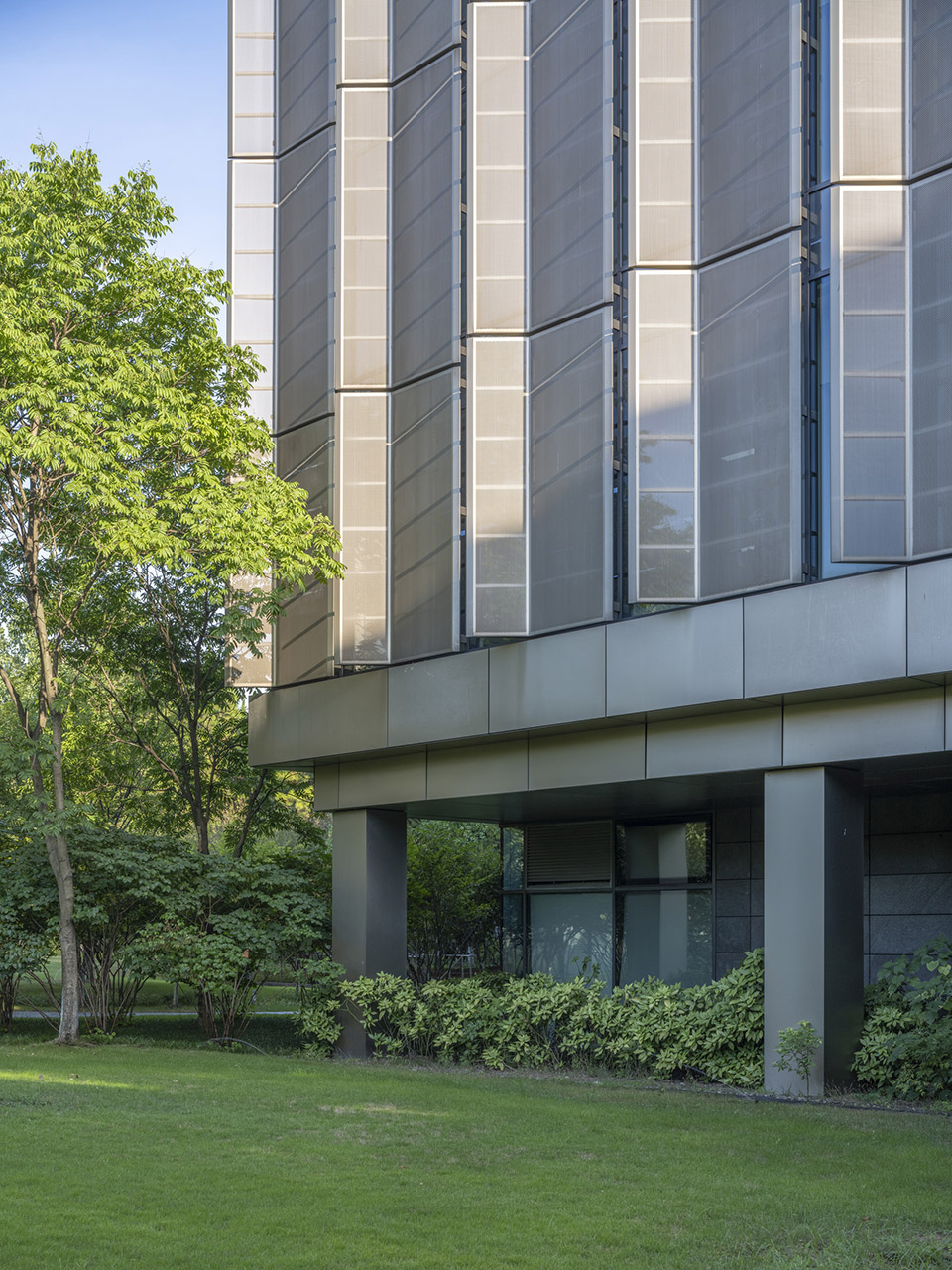

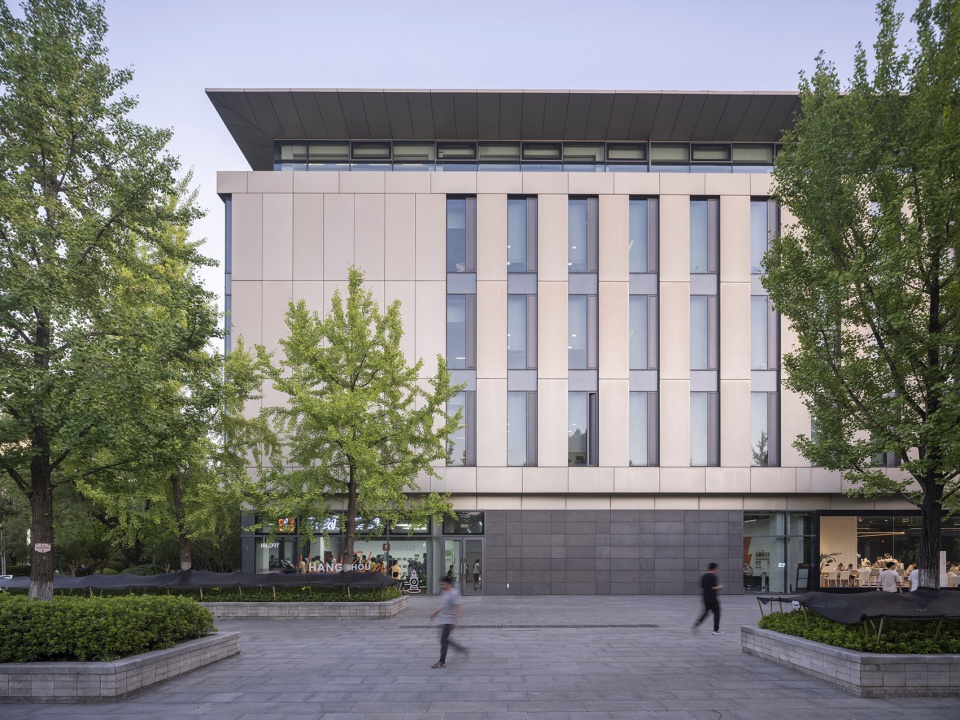

▼立面，facade

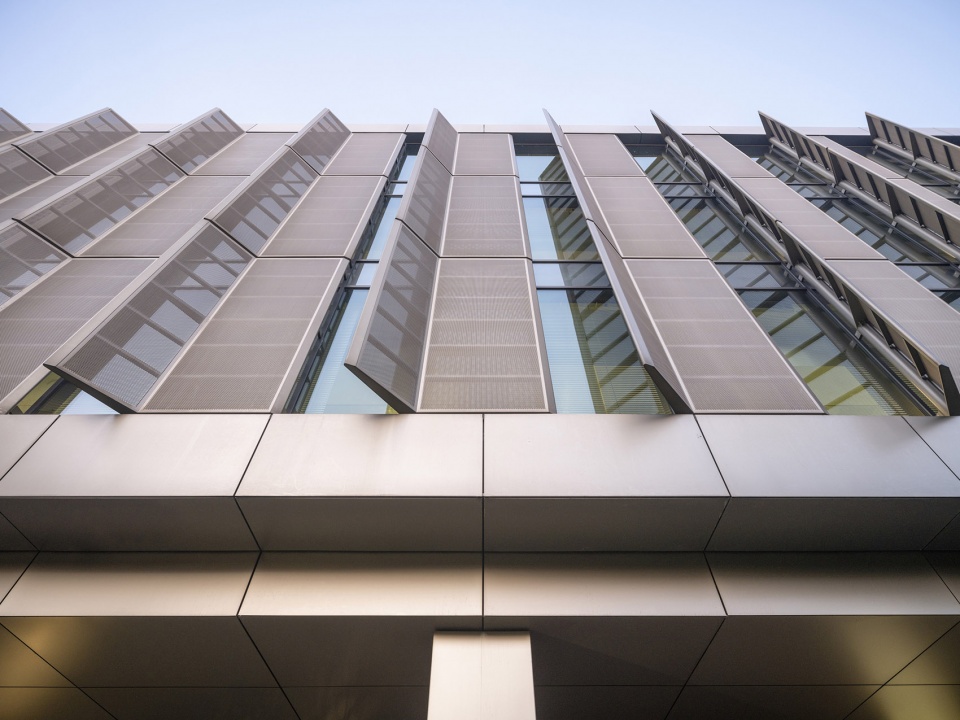

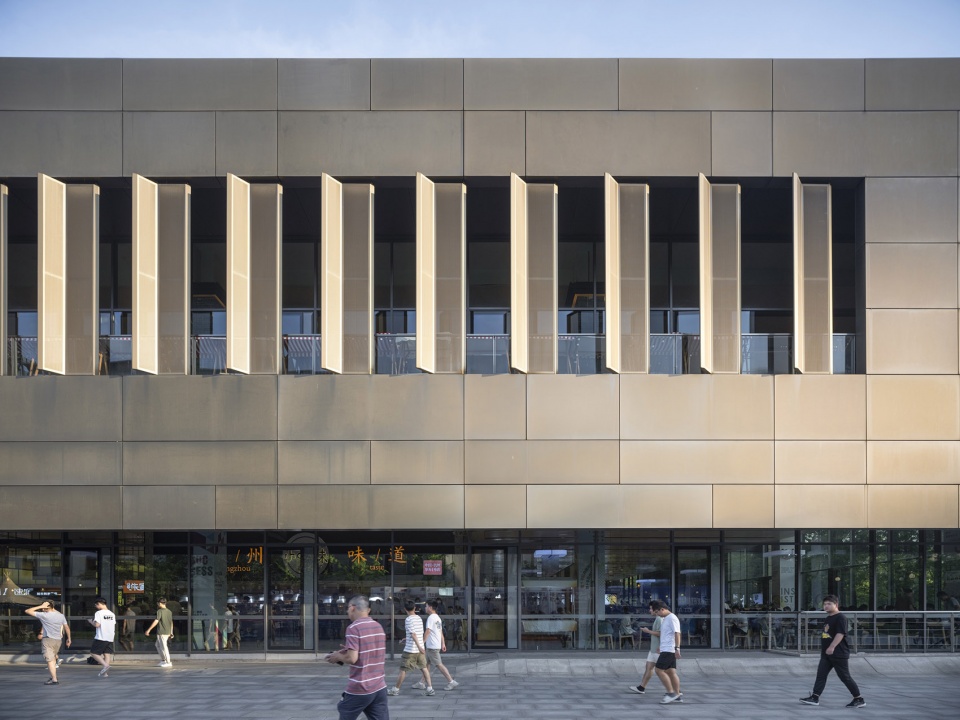

▼立面细节，facade detail

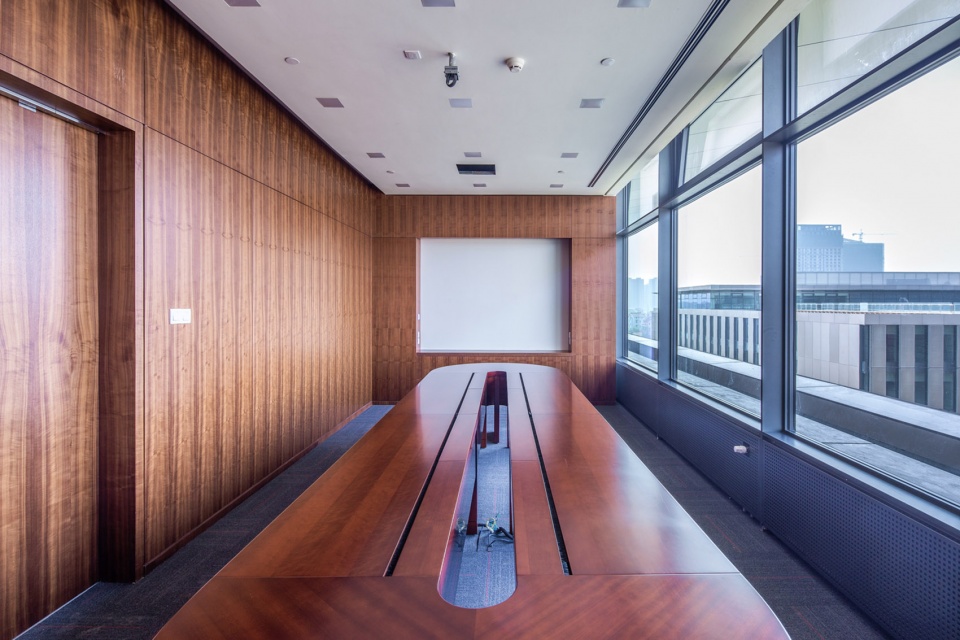

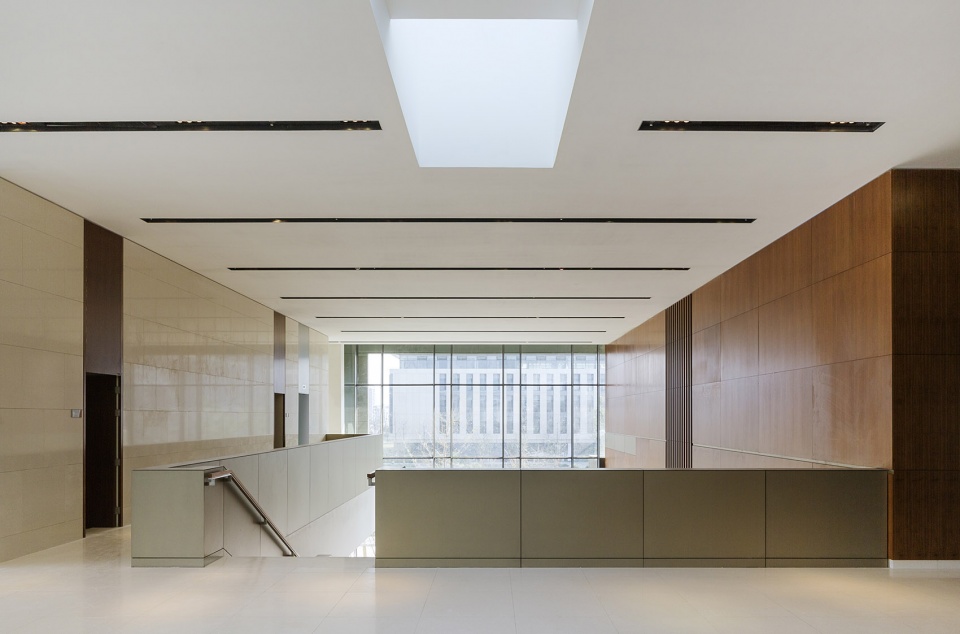

▼室内空间，indoor space
华为研发园区体现了精准工程与自然景观的协同作用，为前瞻性的研究和创新创造了一个鼓舞人心的环境。
The Huawei R&D Park embodies the synergy between engineering precision and natural landscape, creating an inspiring environment for forward-looking research and innovation.
▼为前瞻性的研究和创新创造了一个鼓舞人心的环境，
creating an inspiring environment for forward-looking research and innovation
Project start：2007
Construction start：2008
Completion：2013
Scope of work：Schematic Design, Design Development, Construction Documentation Review, Construction Management
Typology： Masterplan, New build
Client： Huawei Technologies Co., LtdAddress：Jianghong Load 410, Binjiang District,Hangzhou, China
Huawei
Technologies Co., Ltd
Site area: 251,000 m²
Gross floor area: 225,000 m²
Floors: 5 above ground, 1 below ground
Program: Research spaces/ Laboratories/Offices/Conference rooms / Seminar rooms / Auditorium /Showroom /Data centre / Archive /Foyer/Canteen /Administration /Gatehouse
Architecture: HENNProject team:
Partners in charge:Christian Bechtle, Georg Pichler
HENN
Project director: Georg Pichler
Design Principal: Martin Henn
Felix Beyreuther, Michael Böhm, Karolin Do-Tran,Carola Heidkamp, Attila Horvath, Katrin Jacobs, Sylvia Kipping, Fangyuan Li, Kathrin Mager, Janine Parvis, Jörgen Schädlich, Roman Schmidt, Kathrin Stamm, Xiaoye Wang, Qiang Xu
Local Planning Partner (LDI) ECADI – East China Architectural Design &Research Institute
Landscape architecture：Atelier Dreiseitl (现名: Ramboll Studio Dreiseitl)
Consultants：Werner Sobek AG (Structural engineer), ZWP Ingenieur-AG (Building services), PMI GmbH (Building physics), East China Architectural Design & Research Institute 华东建筑设计研究院 (Fire protection), iPb Ingenieurbüro Planung Blei, SuP Ingenieure GmbH (Façade), Lumen³ GbR (Lighting design)
