上海体育场（八万人体育场），上海/体育

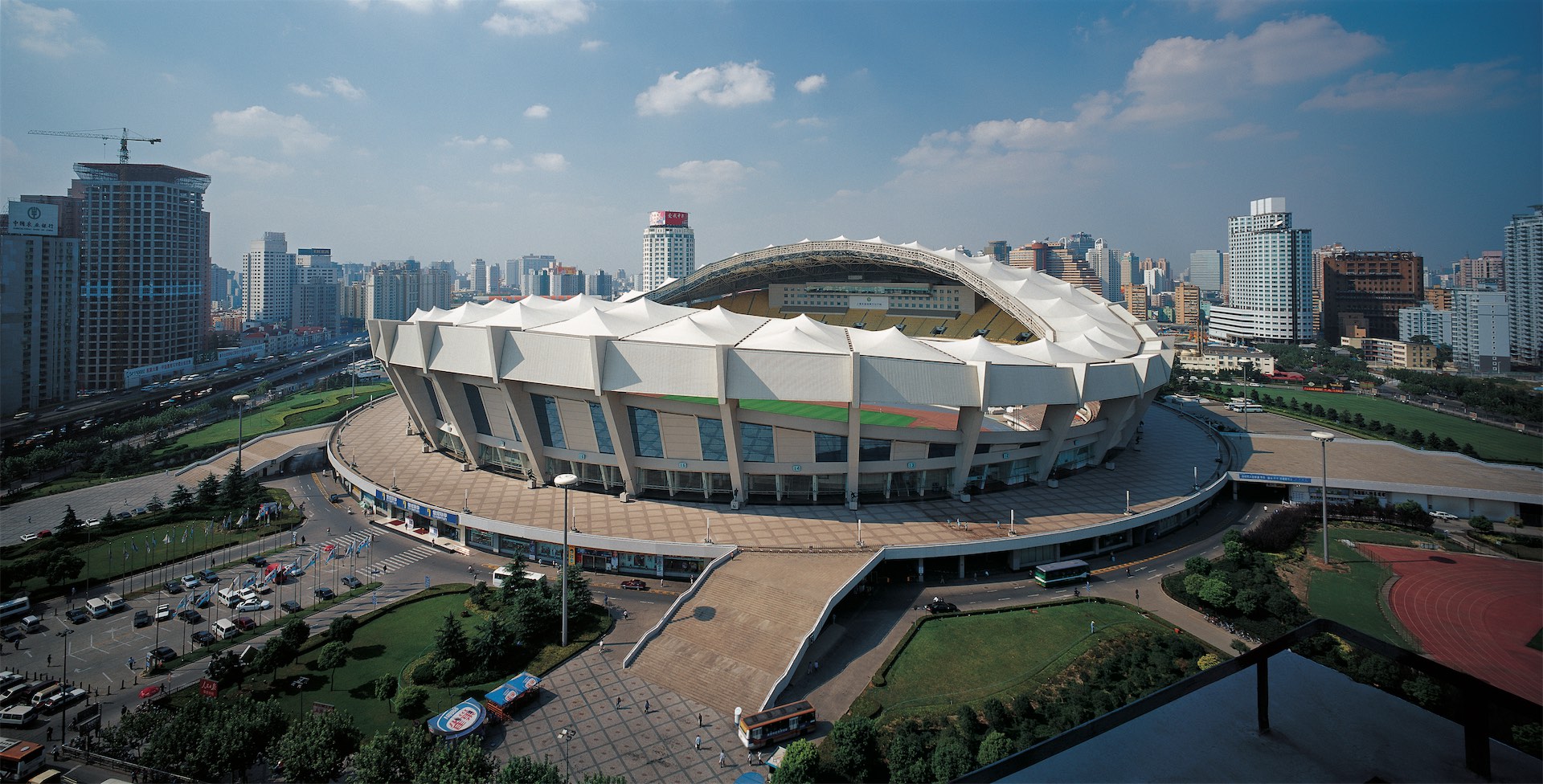

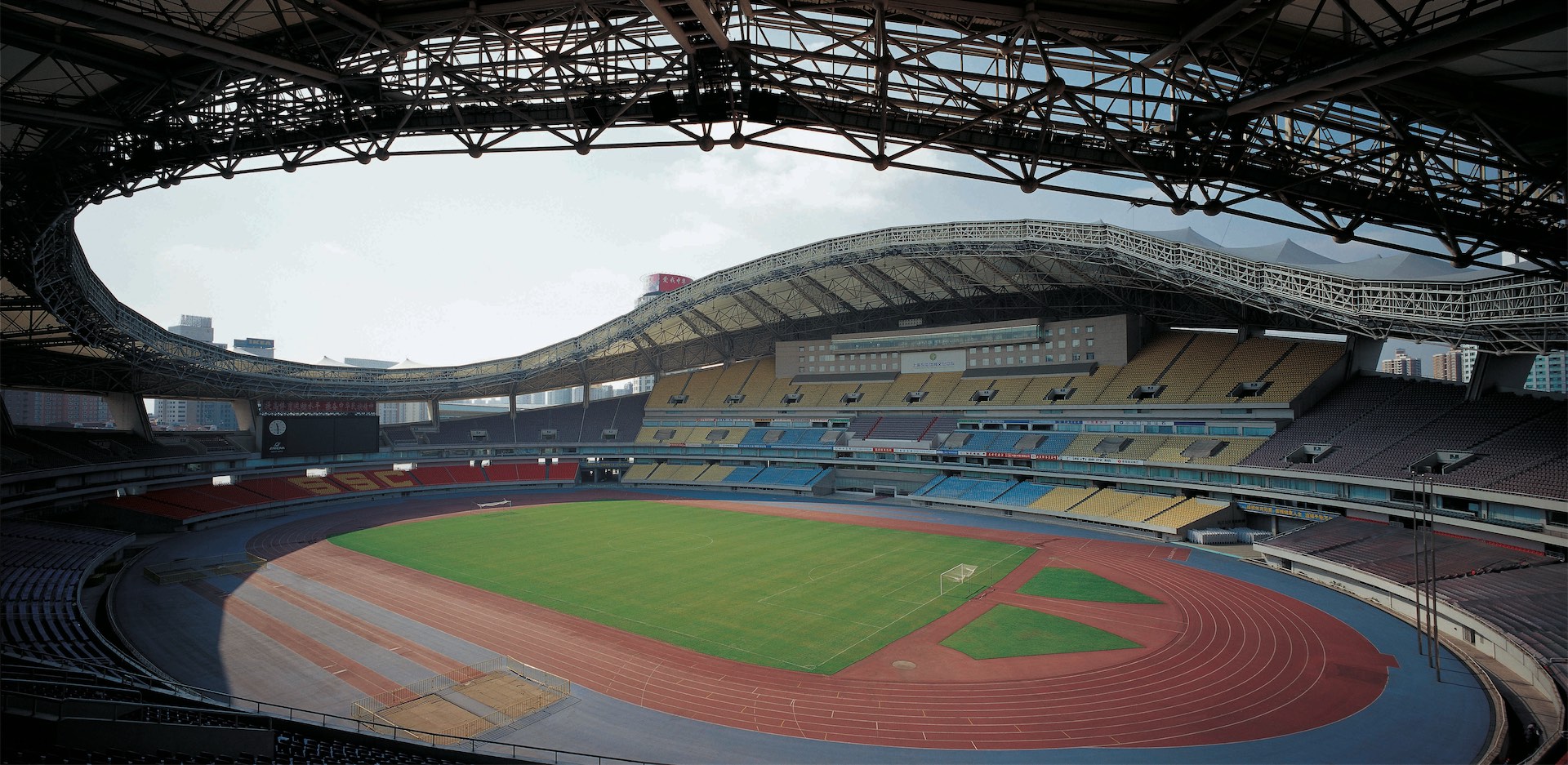

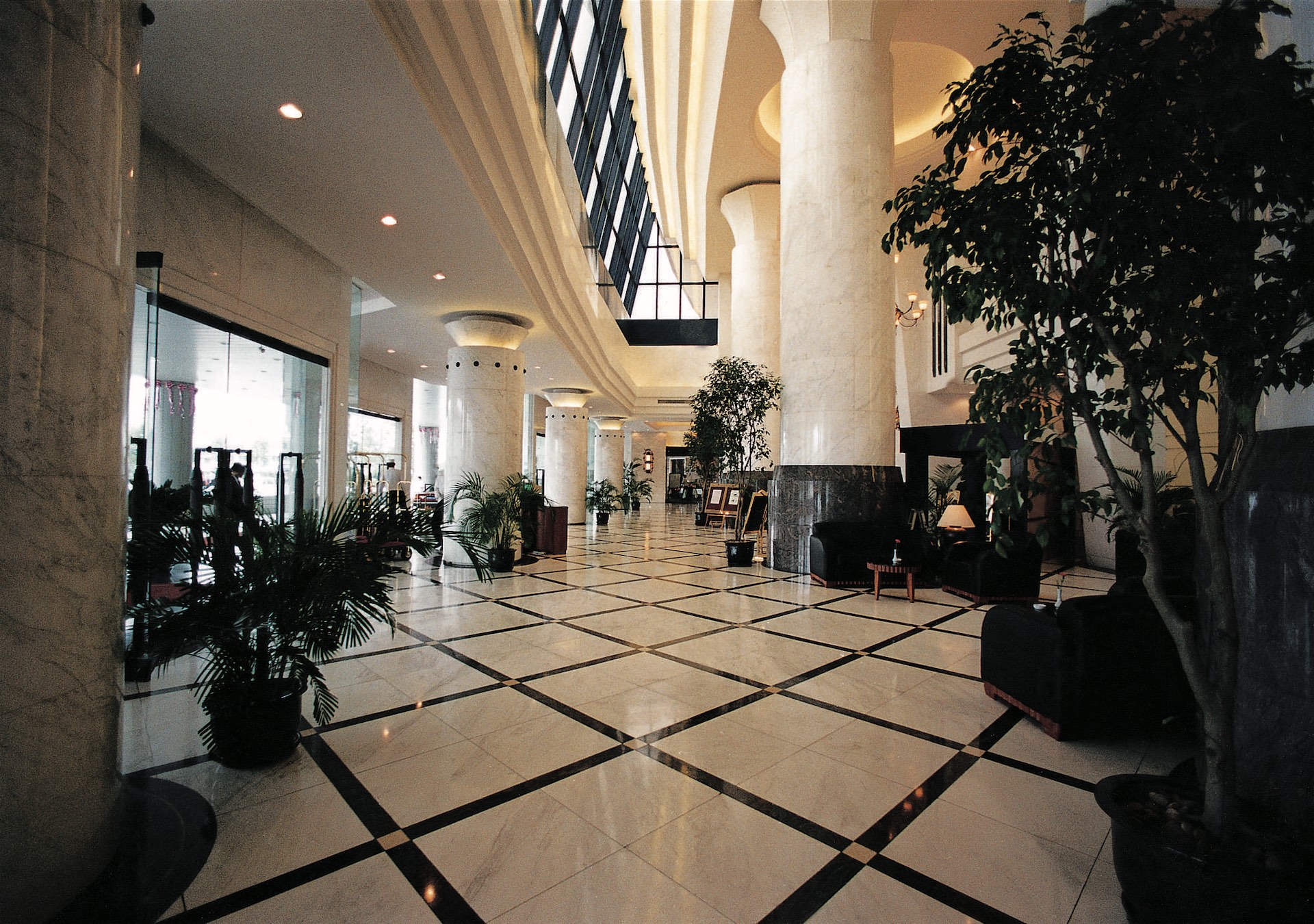

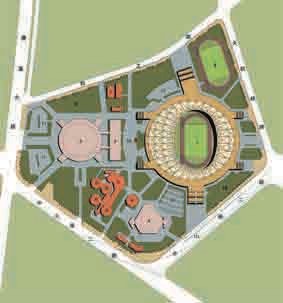

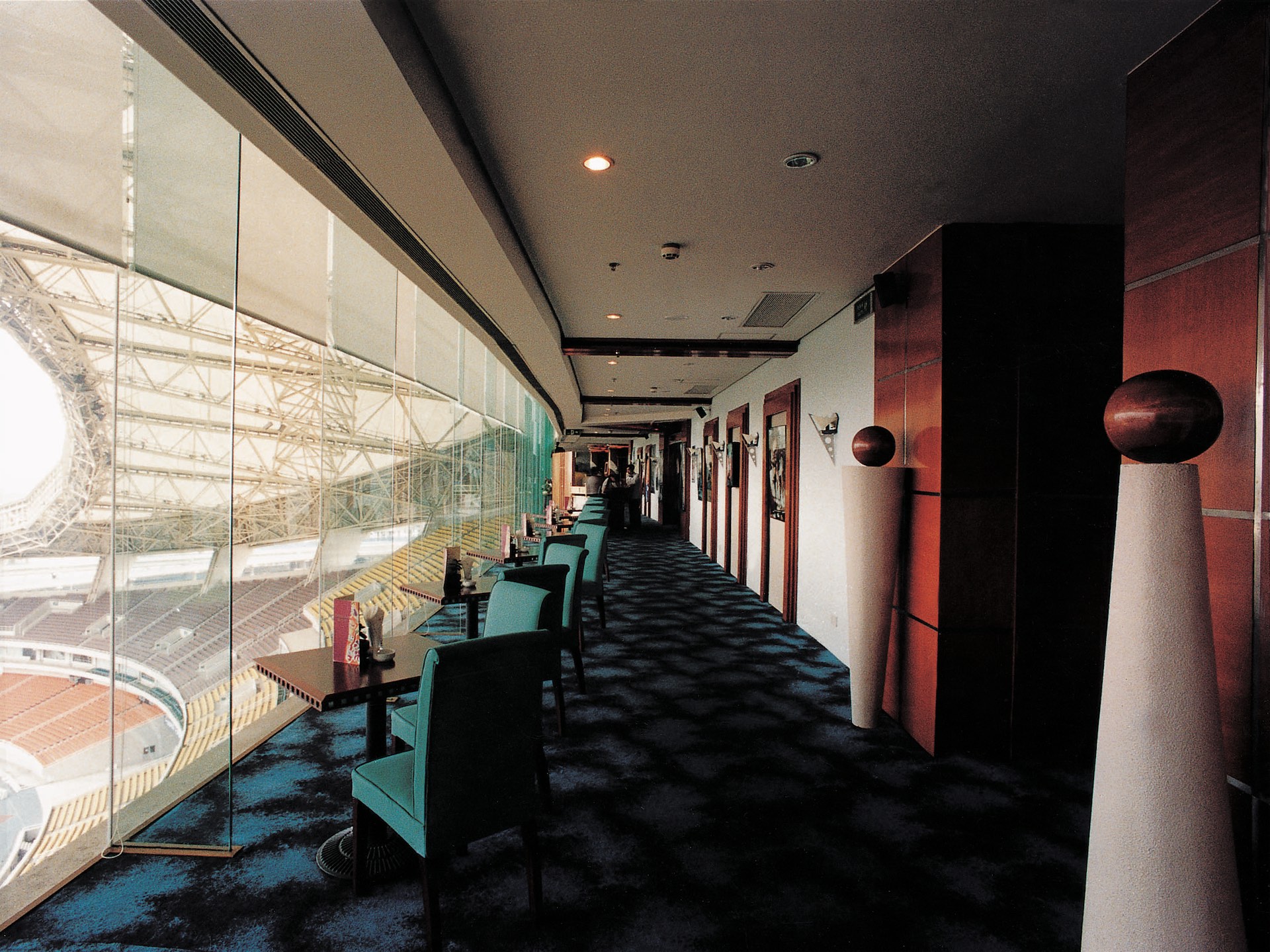

上海体育场是1997年第八届全国运动会开幕式的主会场，可容纳观众近8万人。体育场坐落于市区的西南部，与原有的上海体育馆、游泳馆和奥林匹克俱乐部共同组成上海体育中心。体育场体型为直径273m的圆形平面，中间为符合国际标准的草地足球场，周边设400m跑道及各类田径比赛场地。按国际比赛要求，底层设有赛前、赛后控制中心，运动员裁判员、官员、组委会等各类专业用房。除普通观众席外还设有主席台、记者席及100间包厢看台。利用看台下部有效空间设置了9层高，拥有360间标准客房的四星级酒店、体育俱乐部、各类展示厅、商场、新闻中心等。体育场造型简洁、新颖，富有时代气息。



Shanghai Stadium is the main venue of the opening ceremony of the Eighth National Games in 1997, with a capacity of nearly 80000 spectators. The stadium is located in the southwest of the urban area and forms the Shanghai Sports Center together with the original Shanghai gymnasium, natatorium and Olympic Club. The stadium is a circular plane with a diameter of 273m. In the middle is a grass football field that meets international standards. 400m runways and various track and field competition venues are set around it. According to the requirements of international competitions, the ground floor is equipped with pre competition and post competition control centers, athletes, referees, officials, organizing committees and other professional rooms. In addition to the ordinary audience, there are also a podium, a press box and 100 box stands. The effective space under the stand is used to set up a 9-storey four-star hotel with 360 standard rooms, sports clubs, various exhibition halls, shopping malls, news centers, etc. The shape of the stadium is simple, novel and full of the flavor of the times.



▼项目图集，Project Atlas



上海体育场是我国规模较大、设施较为先进的大型室外体育场和上海的标志性建筑之一，建筑面积达17万平方米。



Shanghai Stadium is a large-scale outdoor stadium with relatively advanced facilities in China and one of the landmark buildings in Shanghai, with a construction area of 170000 square meters.

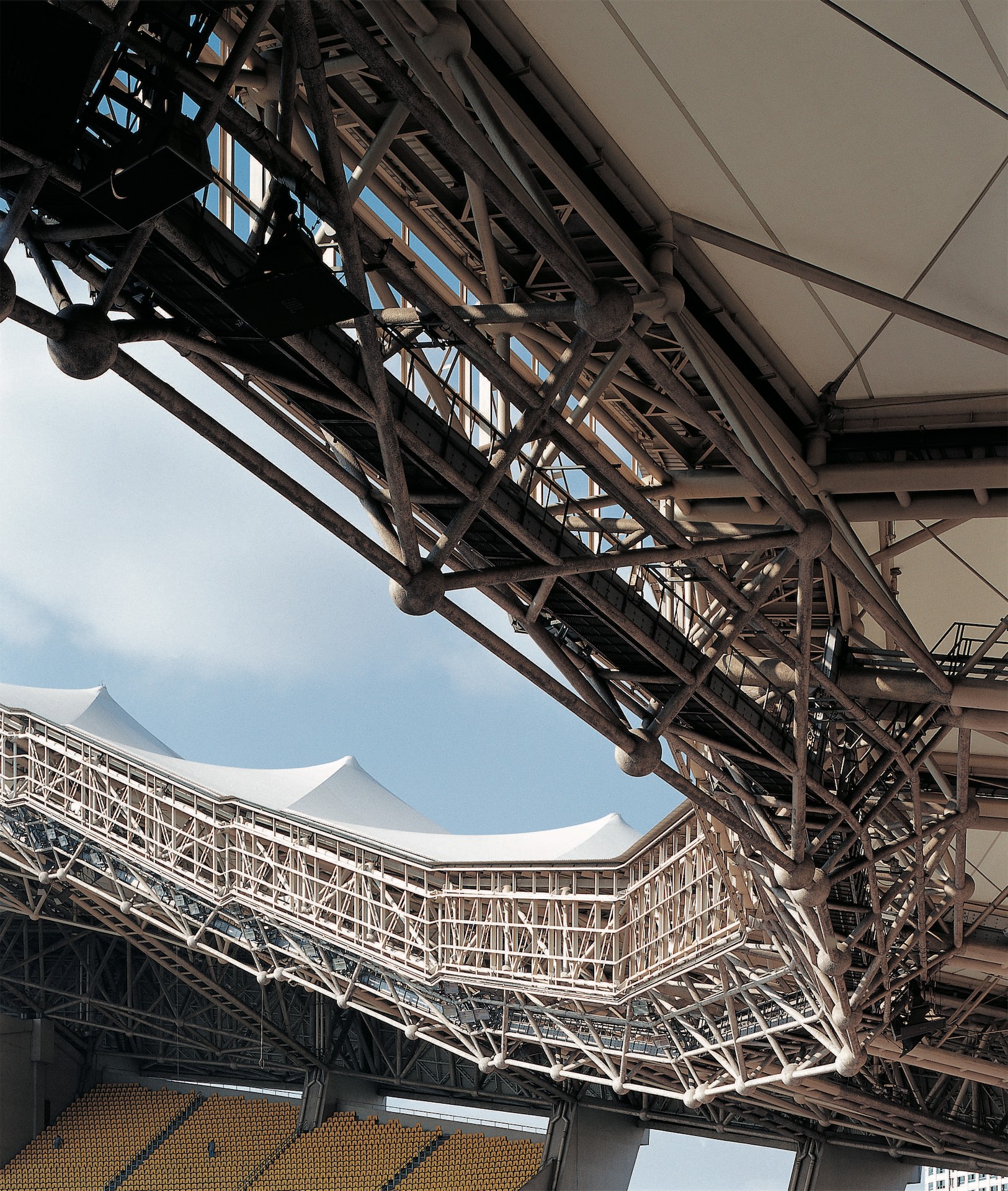

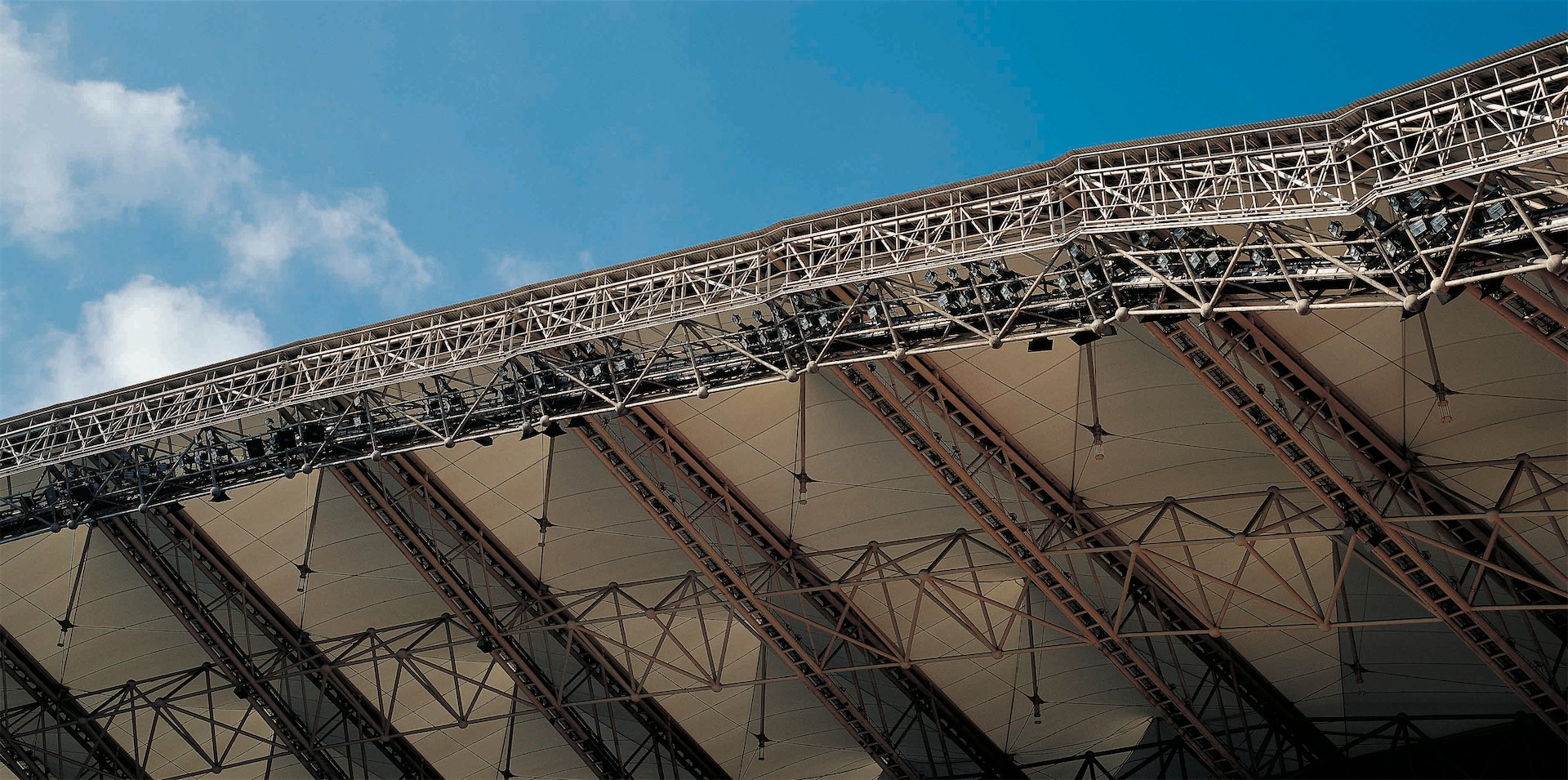

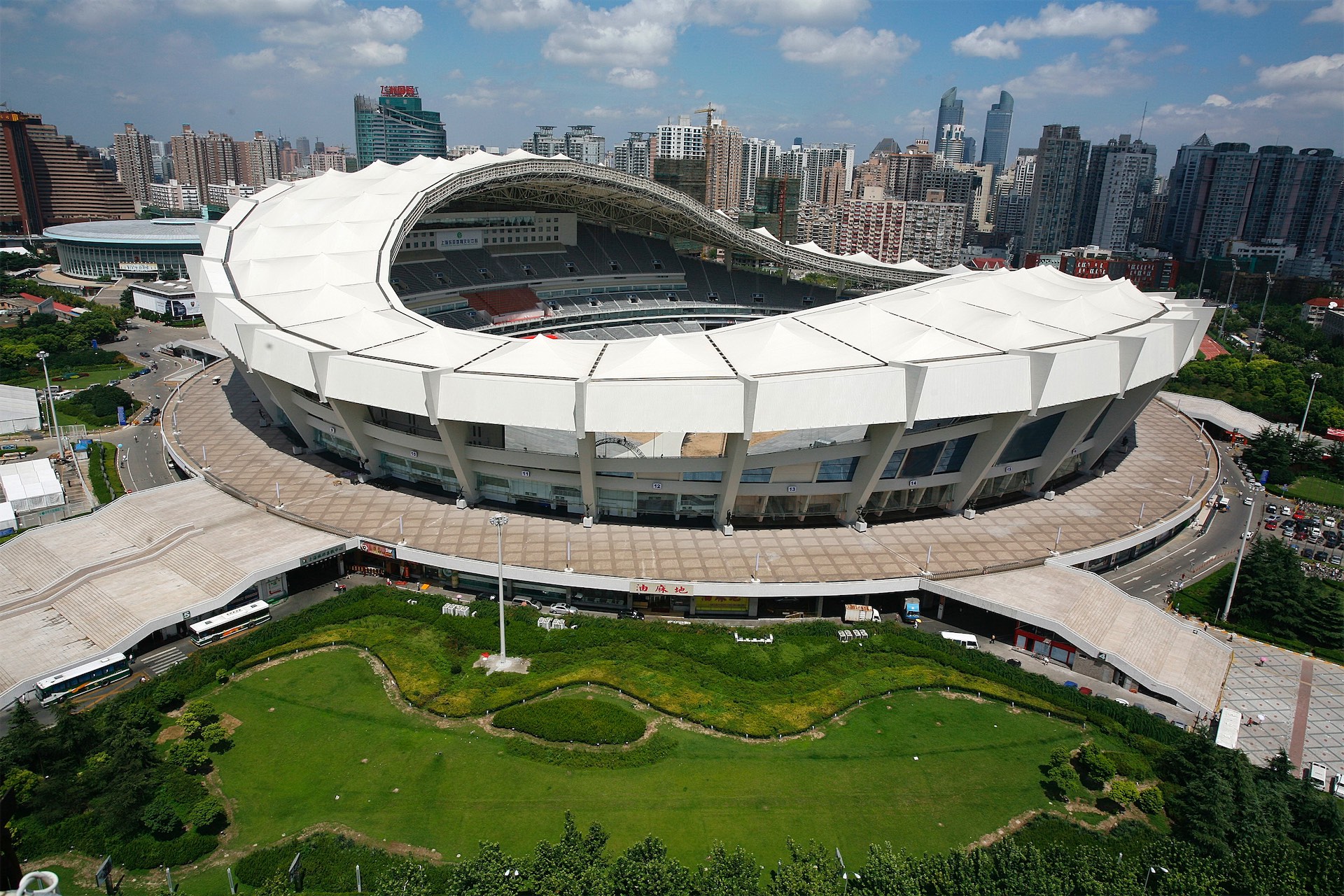

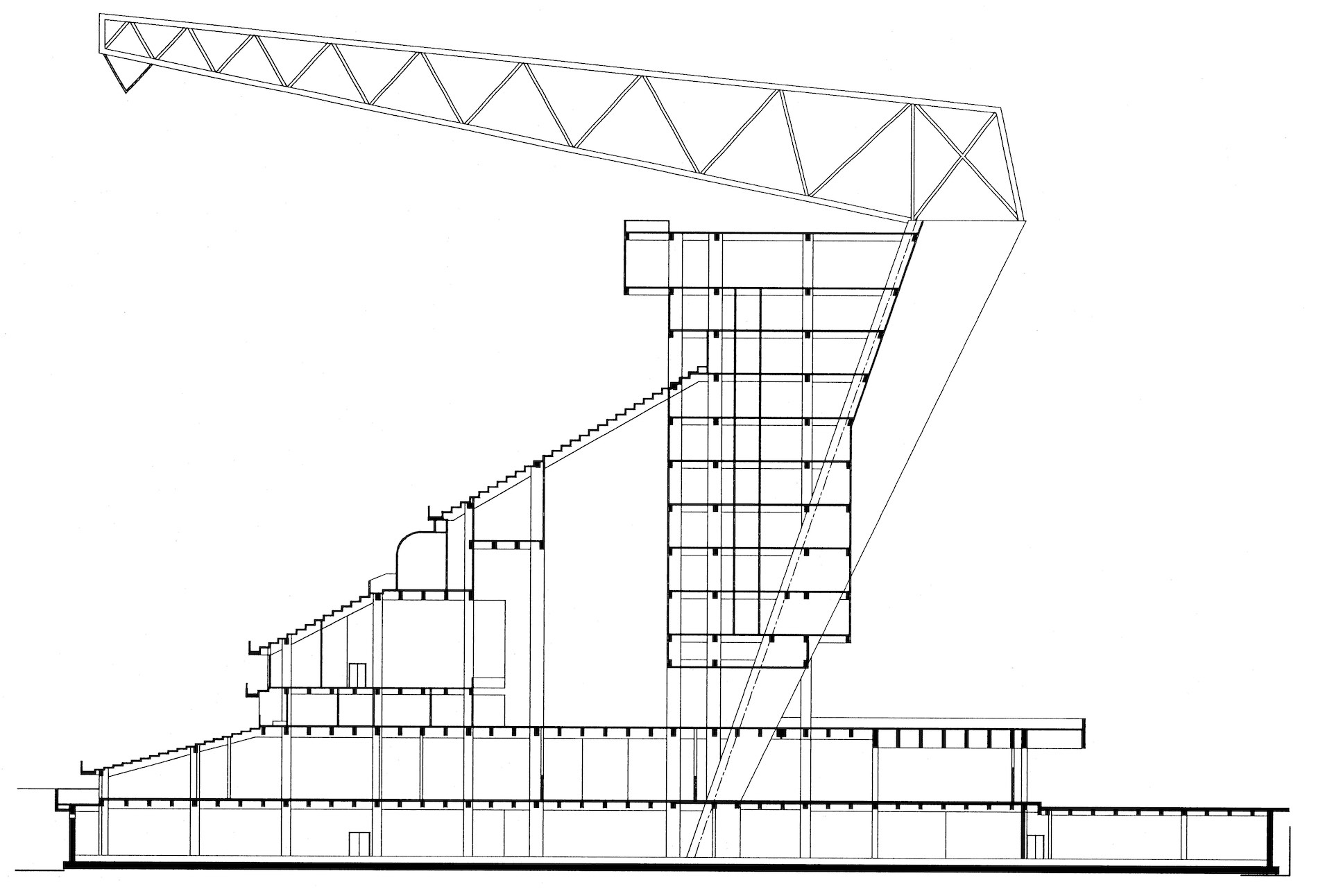

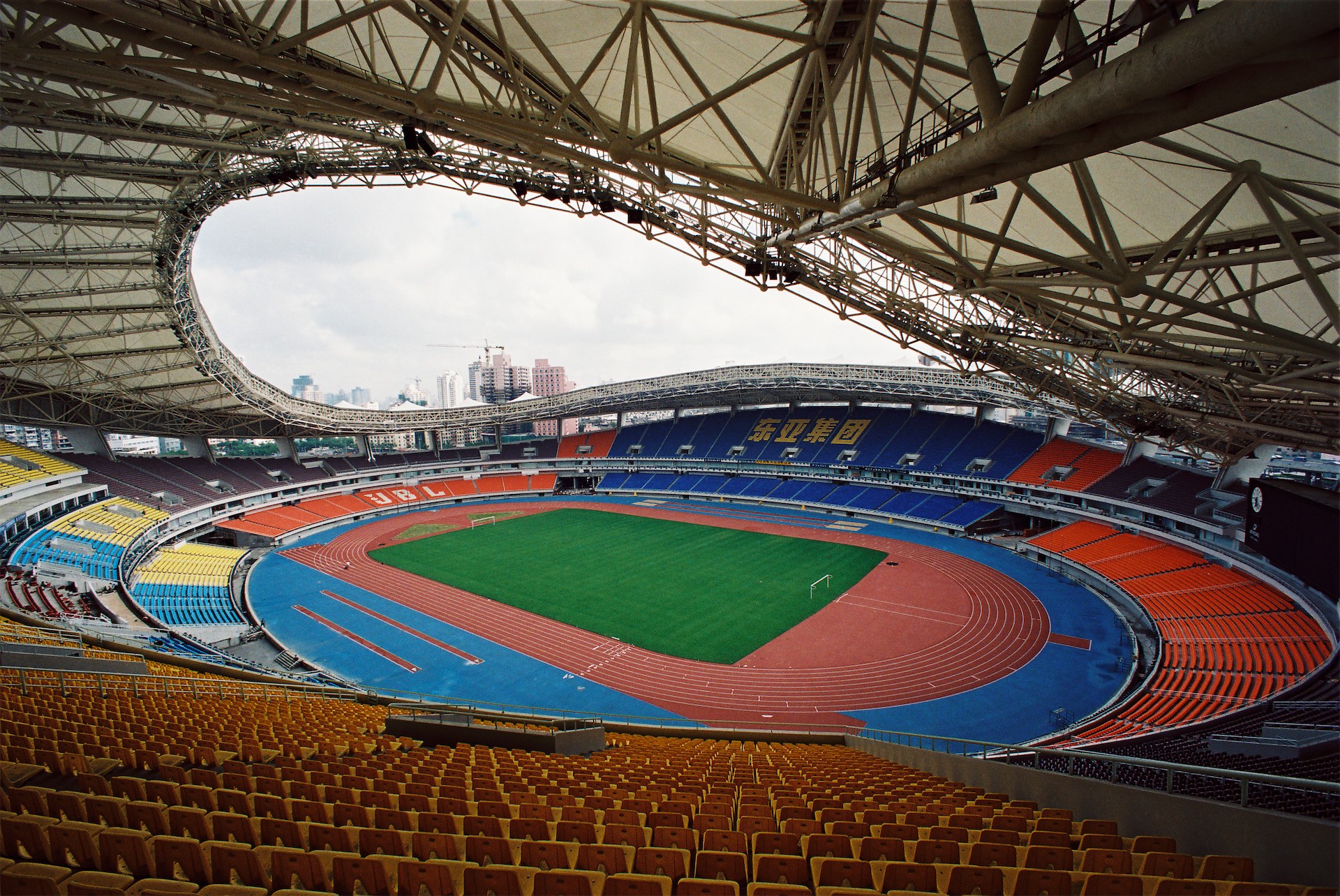

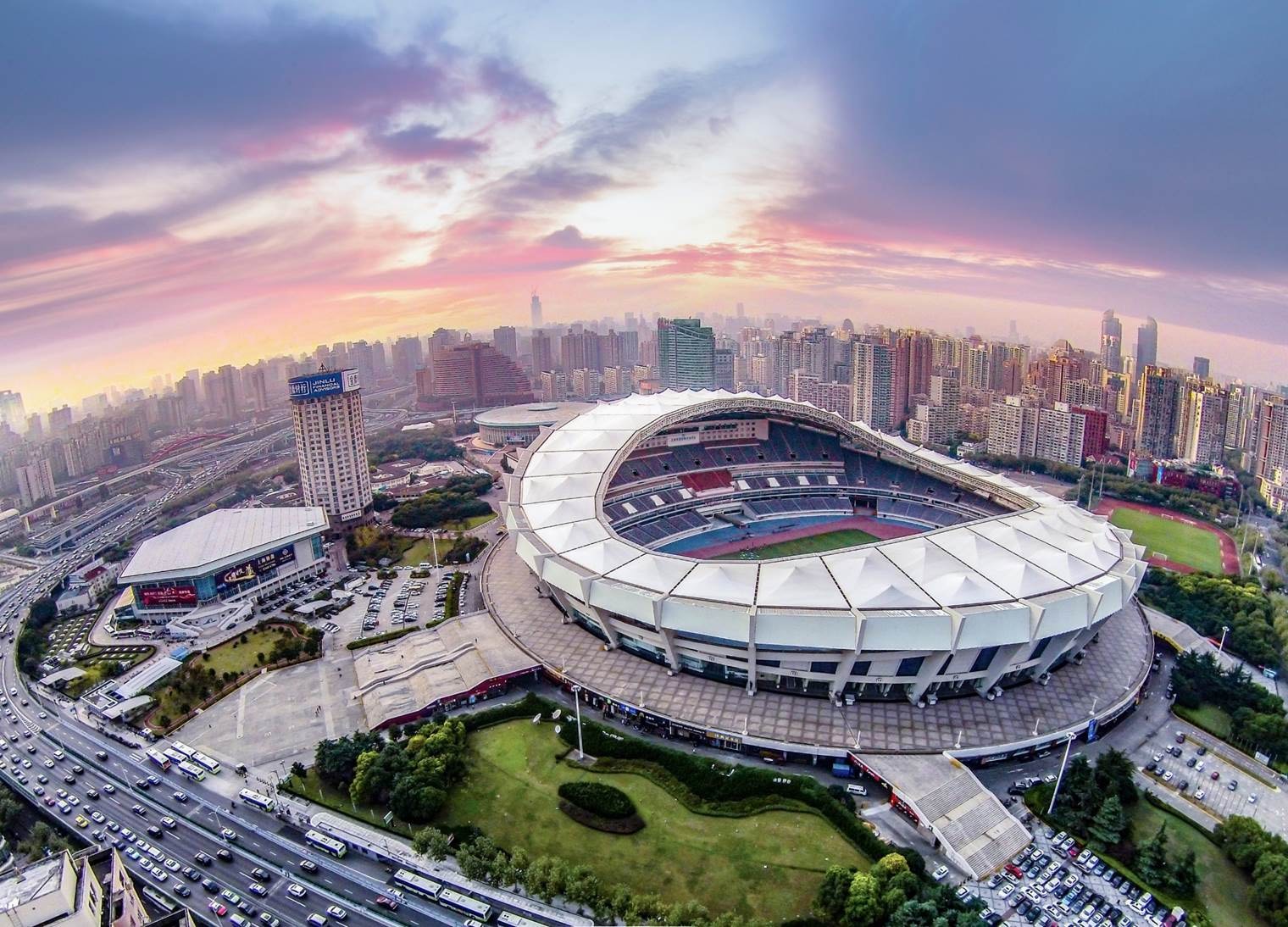

上海体育场这座跨世纪的大型建筑，设计上采用了外环圆形，内环椭圆形，呈波浪式马鞍形的整体结构，尽可能为观众提供最佳的视线质量。场周围宽30米，长1000米的巨大平台，则保证了观众疏散时道路畅通。当年体育场设计者将宾馆、包厢、裙房等设施纳入总体规划方案，为以后开展多种经营创造了条件。观众席上方采用马鞍形大悬挑钢管空间屋盖结构，覆以乳白色薄膜材料，面积为3.6万平方米，主席台正上方的一根最长单臂悬挑梁长73.5米，为世界建筑史之最。特别是体育场内第一块种植于黄沙之上的沙土草皮，完全达到了国际标准。从美国引进的“高羊毛”和“早熟禾”两种草皮，地下安装了排水系统，足球场上一片葱绿。



Shanghai Stadium, a large-scale building spanning the century, adopts an overall structure with a circular outer ring and an oval inner ring in a wavy saddle shape, so as to provide the best line of sight quality for the audience as far as possible. The huge platform with a width of 30 meters and a length of 1000 meters around the venue ensures that the road is unblocked during audience evacuation. At that time, the stadium designers included hotels, boxes, podiums and other facilities into the overall planning plan, creating conditions for diversified operation in the future. The upper part of the auditorium adopts a saddle shaped large cantilever steel pipe space roof structure, covered with milky white film material, with an area of 36000 square meters. The longest single arm cantilever beam directly above the rostrum is 73.5 meters long, which is the longest in the history of architecture in the world. In particular, the first sandy turf planted on yellow sand in the stadium has fully reached international standards. The "high wool" and "Kentucky bluegrass" turf introduced from the United States have drainage systems installed underground, and the football field is verdant.

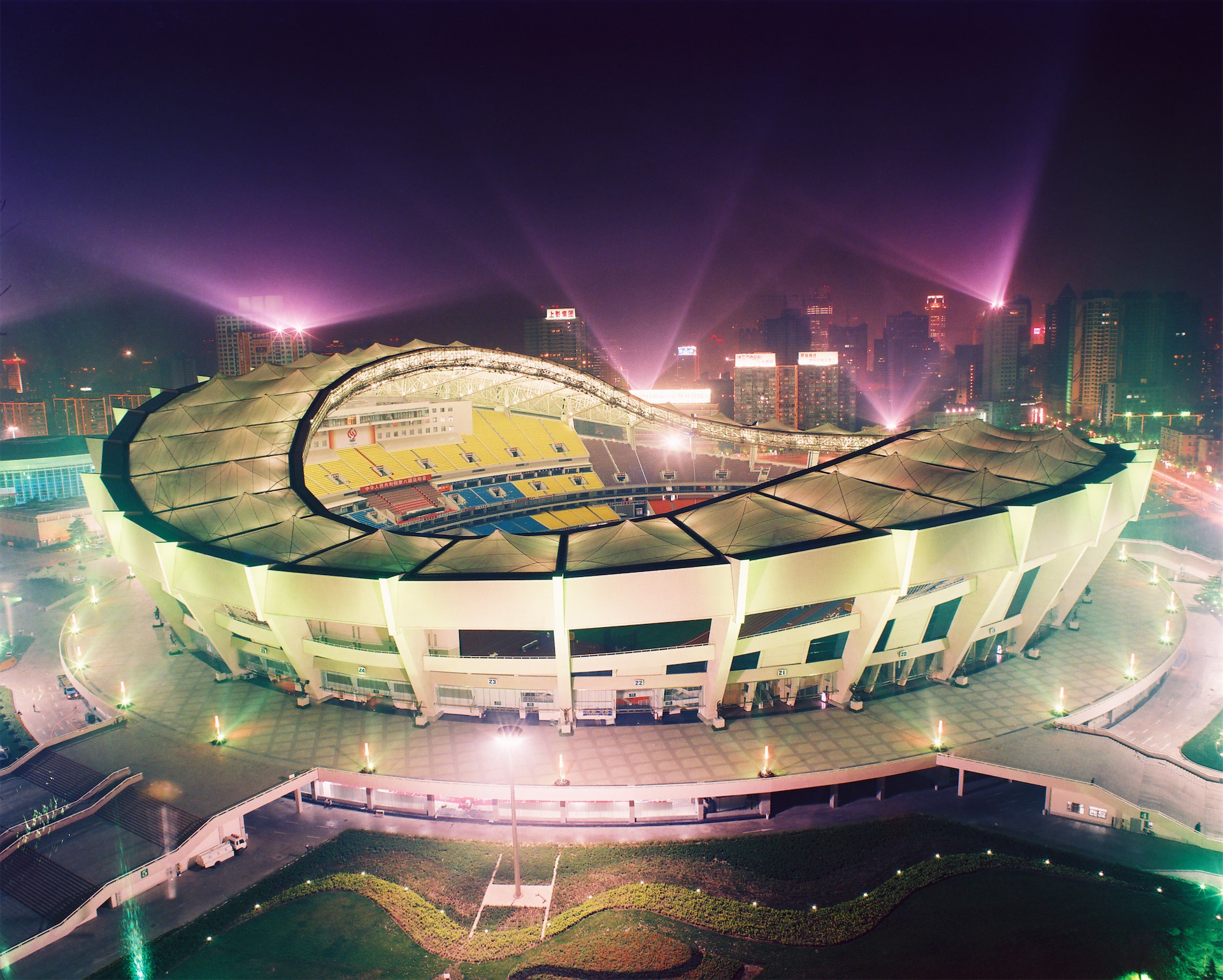

新建的上海八万人体育场雄踞在上海大都市的西南隅，无疑成了城市标志性的新景观。它是国内规模较大、设施较为先进的体育场所。它的鲜明特点是大跨度、大空间，其外形既充分展示了体育运动的力度和气势，又体现了简洁流畅的整体风格，是建筑技术和建筑艺术的结合。



The newly-built Shanghai 80000 people stadium, located in the southwest corner of Shanghai metropolis, has undoubtedly become a new landmark of the city. It is a large-scale sports venue with relatively advanced facilities in China. Its distinctive characteristics are large span and large space. Its shape not only fully shows the strength and momentum of sports, but also reflects the simple and smooth overall style. It is the combination of architectural technology and architectural art.
