上海轨道交通15号铜川路站，上海/市政
上海地铁15号线的梅岭北路站-铜川路站是站距非常近的两个站，它们之间的距离仅仅600多米，在上海市中心也属于站距非常近的两站。
Meiling North Road Station Tongchuan Road Station of Shanghai Metro Line 15 is two very close stations. The distance between them is only more than 600 meters. They are also two very close stations in the center of Shanghai.

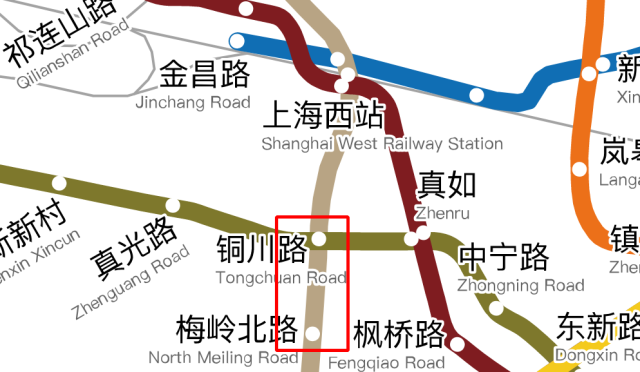

▼下面就是上海地铁15号线的梅岭北路站-铜川路站的位置
The following is the location of Meiling North Road Station Tongchuan Road Station of Shanghai Metro Line 15

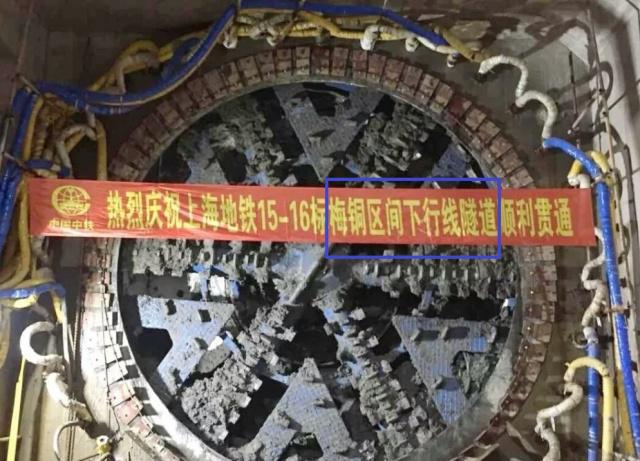

下面的照片就是上海地铁15号线梅-铜区的下行隧道，这也就是本线的16标段，从图中可以看出，北侧的铜川路也是上海地铁15号线和14号线的换乘站，梅岭北路站在其南侧。
The following photo is the downtunnel in Meitong District of Shanghai Metro Line 15, which is the bid section 16 of this line. It can be seen from the picture that Tongchuan road in the north is also the transfer station of Shanghai metro lines 15 and 14, and Meiling North Road station is in the south.
从施工的标志上可以看出，上海地铁15号线梅岭北路站-铜川路站的下行隧道已经顺利贯通，图中巨大的圆盘旧城地铁线路的通用盾构机。
It can be seen from the signs of construction that the down tunnel of Meiling North Road Station Tongchuan Road Station of Shanghai Metro Line 15 has been successfully connected, and the huge disk in the picture is the general shield machine of the old city metro line.

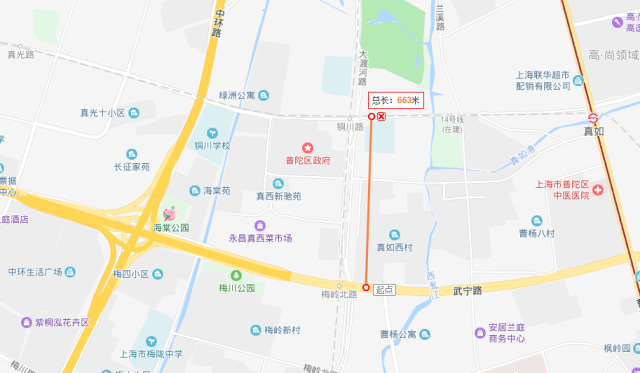

▼下面地图就是上海地铁15号线梅岭北路站-铜川路站的情况
The following map shows the situation of Meiling North Road Station Tongchuan Road Station of Shanghai Metro Line 15
从地图中可以看出，梅岭北路站到铜川路站一段仅仅有663米，这在上海地铁当中也是非常短的两站。这也是普陀区境内一块非常重要的交通节点，也是三条轨道交通汇合的地方。
As can be seen from the map, the section from Meiling North Road station to Tongchuan Road station is only 663 meters, which is also a very short two stations in Shanghai subway. This is also a very important transportation node in Putuo District and the place where the three rail transit meet.

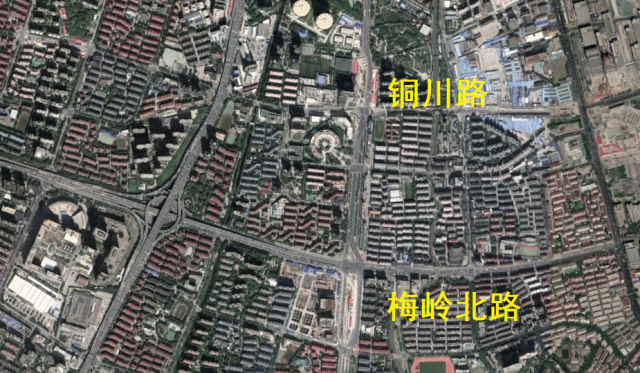

上海地铁15号线在大渡河路上面，附近的交通情况是：铜川路站位于大渡河路-铜川路的十字路口梅岭北路位于大渡河路-武宁路的十字路口下图就是上海地铁15号线梅-铜区间的卫星图。
Shanghai Metro Line 15 is above Daduhe road. The traffic situation nearby is: Tongchuan Road station is located at the intersection of Daduhe road and Tongchuan road. Meiling North Road is located at the intersection of Daduhe road and Wuning Road. The following figure is the satellite image of Mei Tong section of Shanghai Metro Line 15.
上海地铁15号线的梅岭北路站到铜川路站是整体线路非常关键的一段，前者是与14号线的换乘站，后者位于正在施工的武宁路上。这一段交通地位非常重要，但也是上海地铁15号线在苏州河以北比较艰难的一段。
Meiling North Road Station of Shanghai Metro Line 15 to Tongchuan Road station is a very critical section of the overall line. The former is a transfer station with line 14, and the latter is located on Wuning Road under construction. This section of traffic status is very important, but it is also a difficult section of Shanghai Metro Line 15 North of Suzhou River.

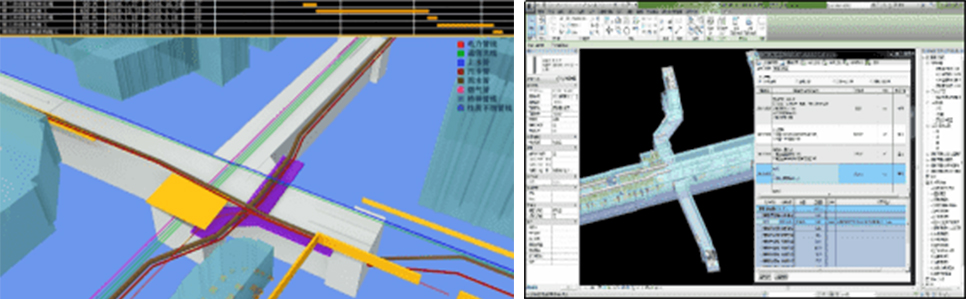

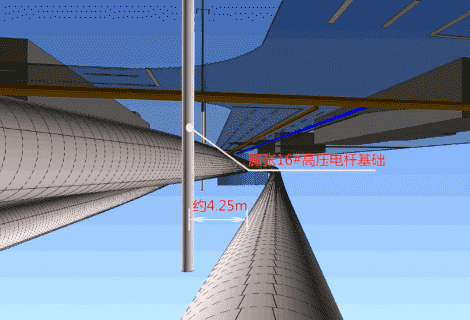

利用BIM技术解决轨道交通15号线项目协同设计问题多，处理效率低的问题，提高图纸设计质量。利用BIM技术的可模拟性，对站体所在的复杂地貌情况进行施工方案模拟，确保对周边建筑设置生活生产不产生影响，确保施工方案的可行性。
BIM Technology is used to solve the problems of many collaborative design problems and low efficiency of rail transit line 15 project, so as to improve the quality of drawing design. The simulatability of BIM Technology is used to simulate the construction scheme of the complex landform where the station is located, so as to ensure no impact on the living and production of the surrounding buildings and the feasibility of the construction scheme.
工程作为整个从设计到施工到运营全阶段试点实施BIM的项目，对于上海地铁项目推广落实BIM技术的实际应用具有重要的意义，且该项目工期紧、涉及的工艺复杂，对整个工程建设提出了更高的要求。有鉴于此，为更好地开展该工程的项目管理，达到项目设定的安全、质量、工期、投资等各项管理目标，上海轨道交通各条线的发展有限公司决定在项目的策划阶段、设计阶段、施工阶段的全过程推行BIM技术，通过3D建模、管线碰撞、功能化分析等BIM的应用，以数字化、信息化和可视化的方式提升项目建设水平，做到精细化管理。
As a pilot project to implement Bim in the whole stage from design to construction to operation, the project is of great significance to promote and implement the practical application of BIM Technology in Shanghai Metro project. Moreover, the project has a tight construction period and complex processes, which puts forward higher requirements for the whole project construction. In view of this, in order to better carry out the project management of the project and achieve the management objectives set by the project, such as safety, quality, construction period and investment, Shanghai Rail Transit Development Co., Ltd. decided to implement BIM Technology in the whole process of project planning stage, design stage and construction stage through the application of BIM such as 3D modeling, pipeline collision and functional analysis, Improve the project construction level by means of digitization, informatization and visualization, and achieve fine management.
项目信息
项目名称：上海轨道交通15号铜川路站
设计团队：毕埃慕
文章分类：建筑设计-BIM设计
设计公司：毕埃慕
项目地址：上海
项目规模：长663米
Project information
Project Name: Tongchuan Road station, No. 15, Shanghai Rail Transit
Design team: biemu
Article category: Architectural Design BIM design
Design company: biemu
Project address: Shanghai
Project scale: 663m long
