雄安新区宣武医院项目，雄安/规划

2023-05-22 14:25:13建筑设计康养医疗规划设计现代风格

项目标签

项目名称

北京市支持河北雄安新区建设医院项目

文章分类

建筑设计-康养医疗

项目地址

河北省雄安新区

设计公司

北京市建筑设计研究院有限公司

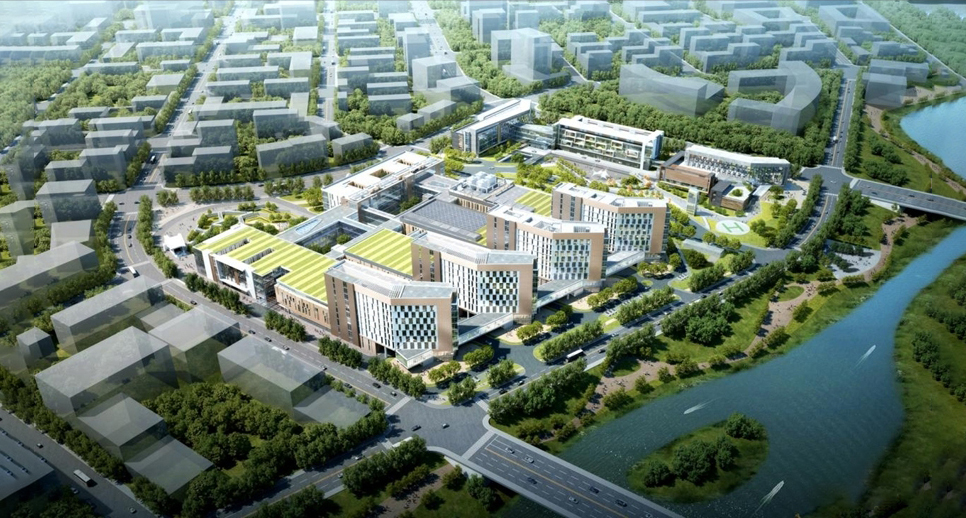

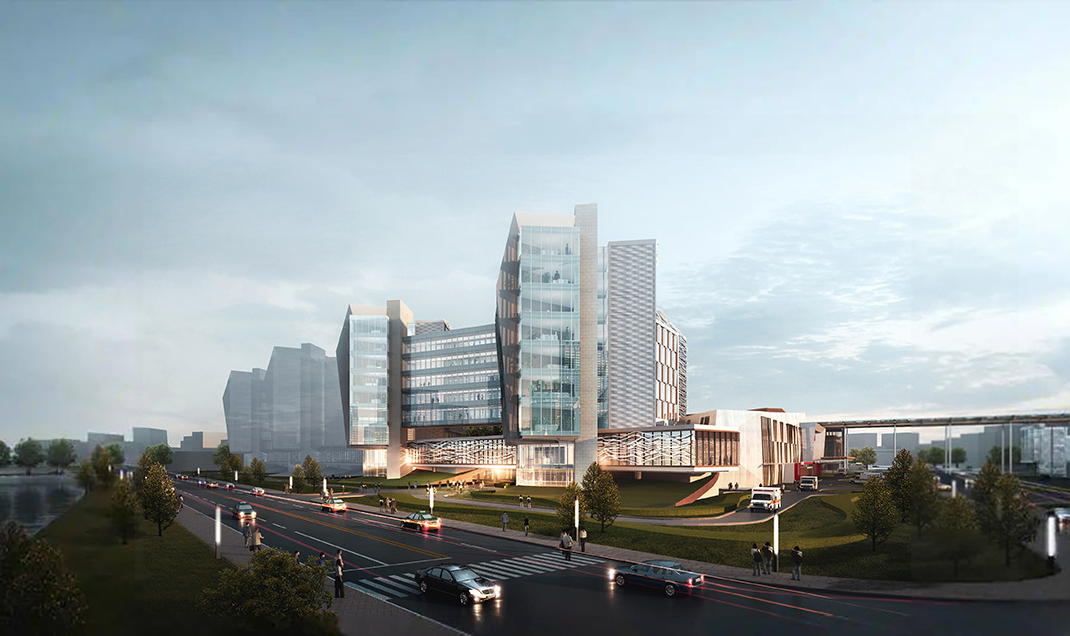

北京市支持河北雄安新区建设医院项目位于河北雄安新区启动区A-1、A-2地块，北京市政府投资以”交钥匙”方式支持雄安新区建设的三级综合医院，是区域医疗中心（1200床）的一期建设项目，床位数为600床，建筑高度45米，地上9层，地下2层。

The Beijing Municipal Government's support for the construction of a hospital in Xiong'an New Area, Hebei Province is located on plots A-1 and A-2 of the start-up area. The Beijing Municipal Government has invested in a "turnkey" approach to support the construction of a tertiary comprehensive hospital in Xiong'an New Area. It is a first phase construction project of a regional medical center (1200 beds), with 600 beds and a building height of 45 meters. It has 9 floors above ground and 2 floors underground.

建筑专业-设计理念与技术策略

Architecture - Design Philosophy and Technical Strategy

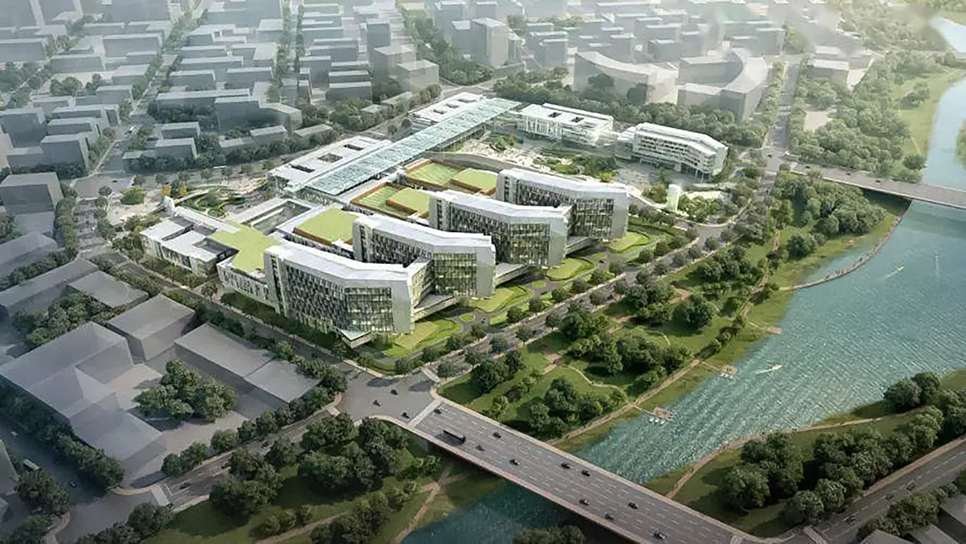

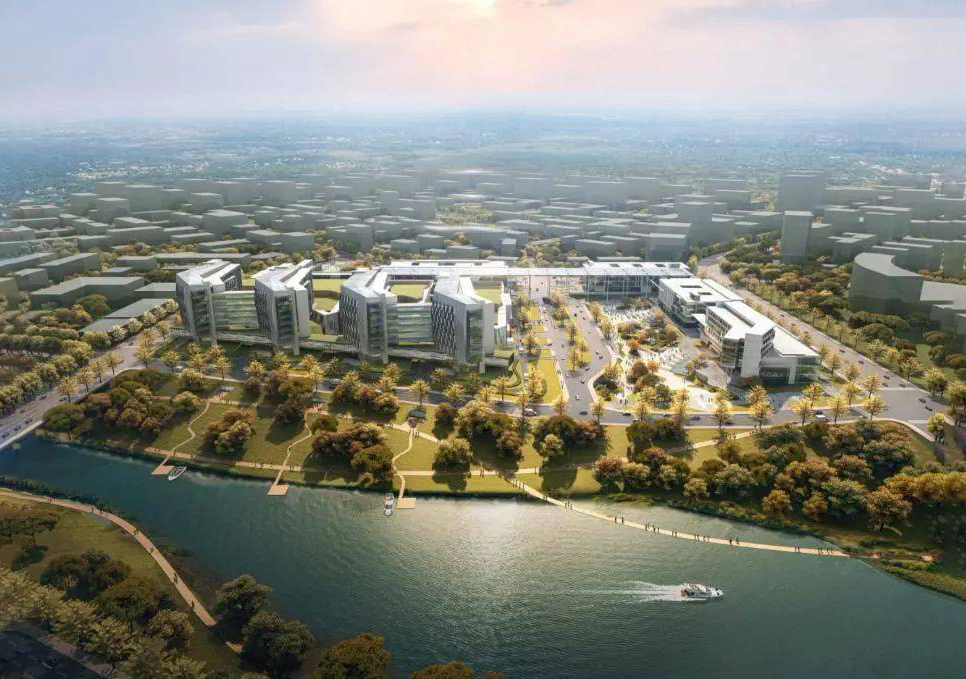

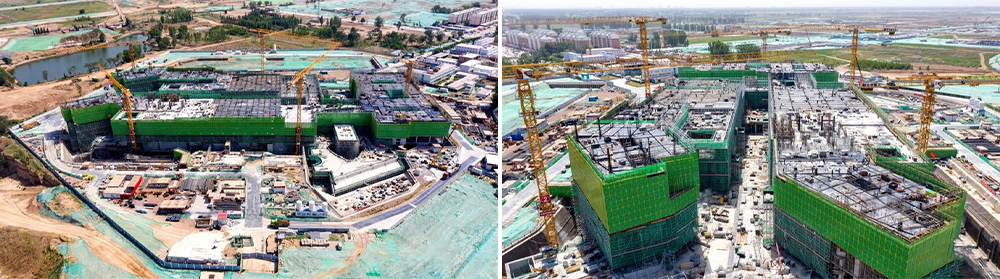

方案设计从白洋淀地貌汲取灵感，模拟淀泊形态，将北侧溪谷景观引入并贯穿用地。根据《启动区控制性详细规划》中城市设计要求：“传承中华营城理念，以蓝绿空间为骨架，以模数化格网为基础，构建秩序规整、平直方正、窄路密网的街区格局”。医院各种交通公共空间、室外庭院将门诊、医技、住院等功能空间连结成一个互不干扰、又紧密联系的生命体。

The scheme design draws inspiration from the Baiyangdian landform, simulates the shape of the lake, and introduces and runs through the northern valley landscape on the land. According to the urban design requirements in the "Detailed Control Plan for the Launch Zone": "Inherit the concept of Zhonghua Yingcheng, use blue and green spaces as the skeleton, and build an orderly, straight, square, and narrow road dense network block pattern based on modular grid. The various transportation public spaces and outdoor courtyards of hospitals connect functional spaces such as outpatient, medical technology, and inpatient services into a non-interference and closely connected living entity.

1、项目总体规划充分尊重雄安新区启动区城市设计要求，秩序规整、方正、符合雄安贴线率等城市设计要求。

1. The overall planning of the project fully respects the urban design requirements of the start-up area of Xiong'an New Area, and conforms to the urban design requirements of orderly, square, and in line with Xiong'an's line laying rate.

2、设计理念结合白洋淀地貌特征，较有特色，建筑形态舒展大方，建筑空间遵循中式礼仪空间理念，符合雄安新区导则中关于空间设计的要求。

2. The design concept combines the geomorphic characteristics of Baiyangdian Lake, which is quite distinctive. The architectural form is spacious and elegant, and the architectural space follows the Chinese etiquette space concept, meeting the requirements of spatial design in the guidelines of Xiong'an New Area.

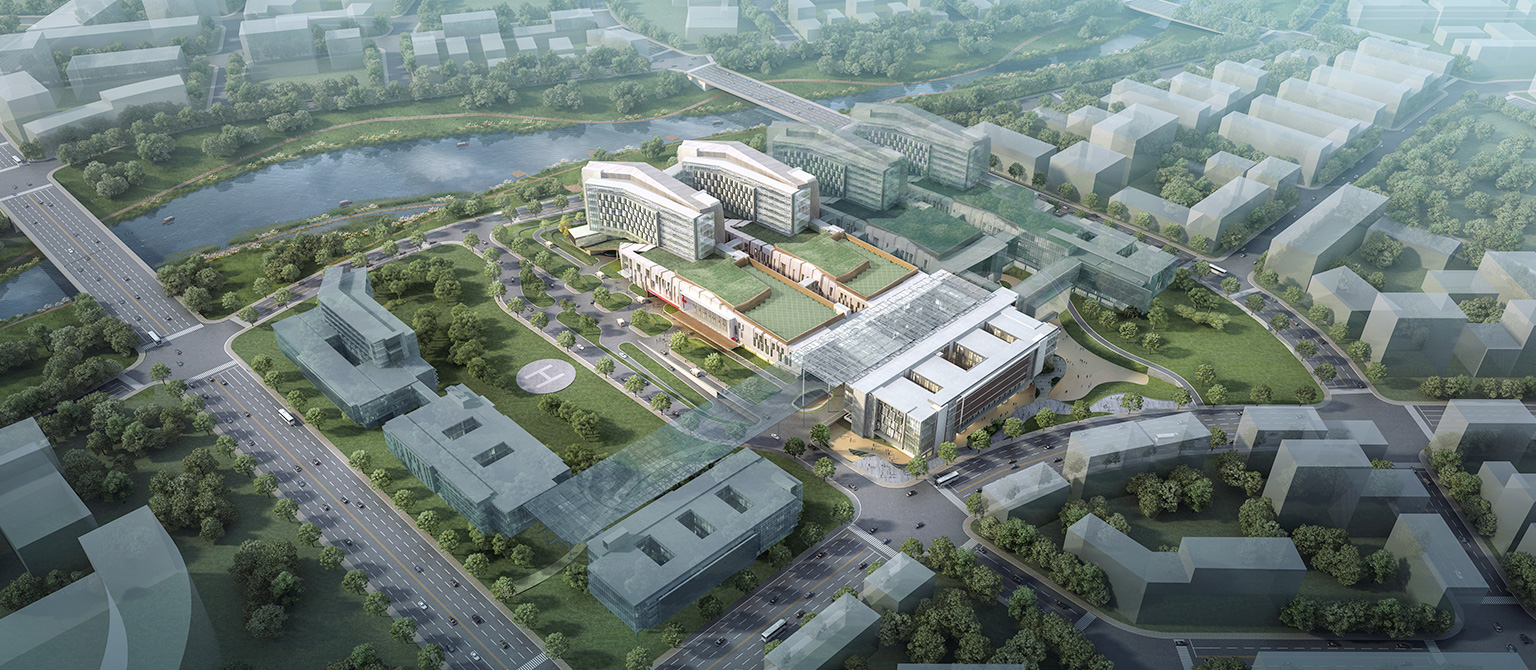

3、根据规划条件，设计将2号规划路与道路接口位置不变，进行适当变形，平衡医疗区及科研办公区用地的比例，并在建筑前区广场分流组织门诊人行出入口，设置开敞景观坡道直达地下一层门诊落客区。就诊患者可由下沉广场中的门厅通过扶梯进入医院，地面单独设置急诊急救机动车专用通道，以保障急诊急救通道的高效便捷。

3. According to the planning conditions, the design will maintain the position of the interface between No. 2 Planning Road and the road, undergo appropriate deformation, balance the proportion of land used in the medical area and scientific research office area, and organize outpatient pedestrian entrances and exits in the square in front of the building. An open landscape ramp will be set up to directly reach the outpatient drop off area on the underground floor. Patients can enter the hospital through escalators in the entrance hall of the sunken square, and a separate emergency and emergency motor vehicle dedicated passage is set up on the ground to ensure the efficient and convenient emergency passage.

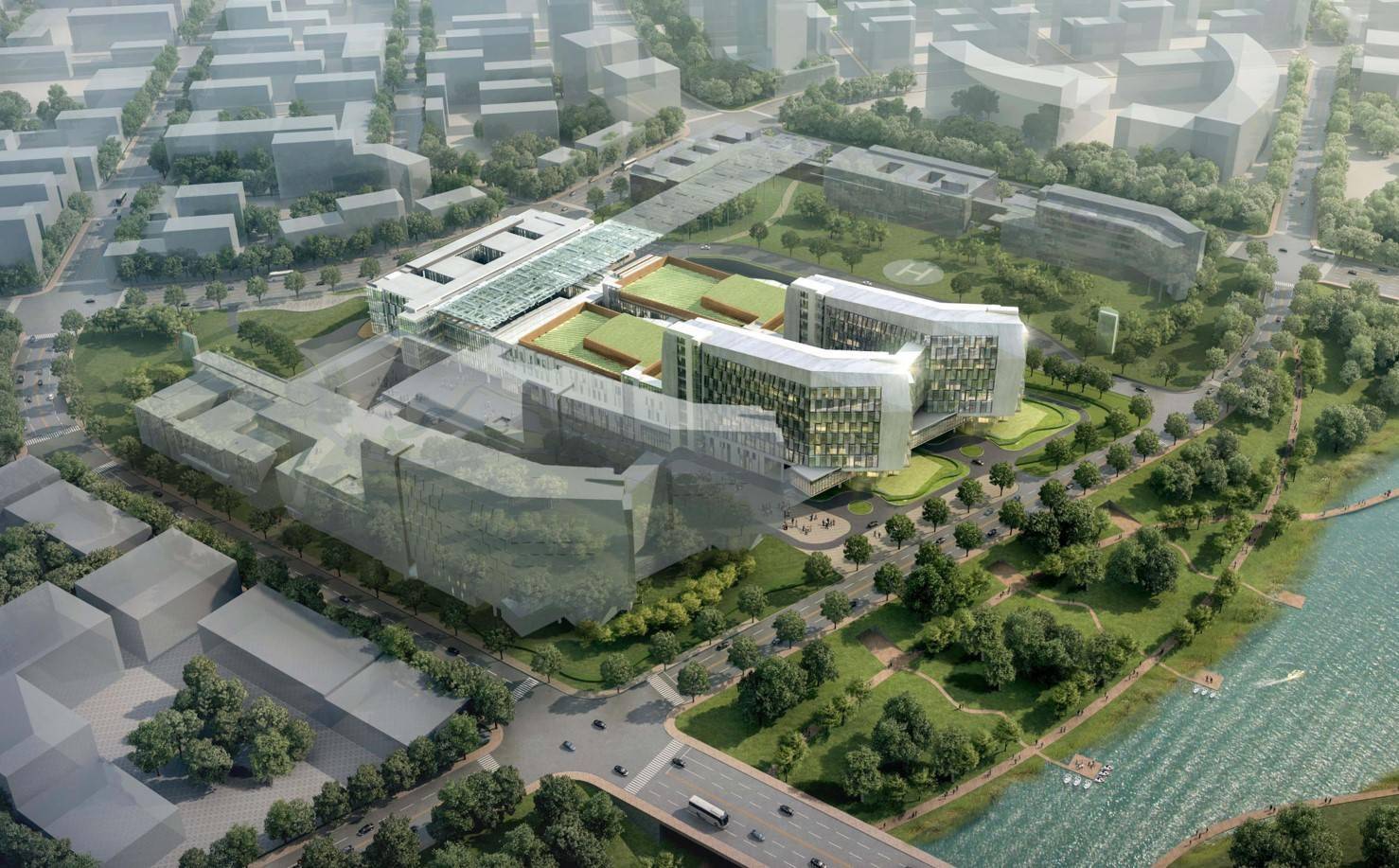

4、方案重视启动区城市设计理念，提倡共享空间的概念，将院区内部设计下沉广场供市民使用，并直接与地铁口衔接，充分考虑患者就诊方便。

4. The plan attaches great importance to the urban design concept of the start-up area, advocates the concept of shared space, and designs a sunken square inside the hospital area for citizens to use, directly connecting with the subway entrance, fully considering the convenience of patients seeking medical treatment.

结构专业-设计特点

Structural Specialty - Design Features

本工程结构设计使用年限50年；抗震设防烈度为8度，设计基本地震加速度为0.3g，设计地震分组为第二组，场地类别为III类；抗震设防类别为乙类。

The structural design service life of this project is 50 years; The seismic fortification intensity is 8 degrees, the design basic seismic acceleration is 0.3g, the design earthquake group is the second group, and the site category is Class III; The seismic fortification category is Class B.

地上部分通过抗震缝划分为1#门诊楼、1#医技楼、2#医技楼、1#住院楼和2#住院楼五个结构单元。各结构单元均采用现浇钢筋混凝土框架-剪力墙结构；各结构单元中，局部框架柱、剪力墙暗柱中需设置钢骨。

The above ground part is divided into five structural units through seismic joints: 1 # outpatient building, 1 # medical technology building, 2 # medical technology building, 1 # inpatient building, and 2 # inpatient building. Each structural unit adopts a cast-in-place reinforced concrete frame shear wall structure; Steel ribs need to be installed in local frame columns and hidden columns of shear walls in each structural unit.

本工程1#、2#住院楼为高层建筑结构，仅框架、剪力墙无法满足结构强度和刚度的要求，故采用了增加消能减震装置的方案。经比选，采用粘滞阻尼器+剪切型软钢阻尼器的方案，其中粘滞阻尼器仅提供结构附加阻尼比，不改变结构刚度，剪切型软钢阻尼器提供部分刚度及大震下的附加阻尼比。增加消能减震装置后，结构的强度及刚度均满足规范要求。

The 1 # and 2 # inpatient buildings in this project are high-rise building structures, and only the frame and shear walls cannot meet the requirements of structural strength and stiffness. Therefore, the plan of adding energy dissipation and shock absorption devices has been adopted. After comparison and selection, the scheme of using viscous dampers and shear type soft steel dampers is adopted. Viscous dampers only provide additional damping ratio of the structure without changing its stiffness, while shear type soft steel dampers provide partial stiffness and additional damping ratio under large earthquakes. After adding energy dissipation and shock absorption devices, the strength and stiffness of the structure meet the specification requirements.

本工程主体结构大部分采用天然地基，梁板式筏形基础；2#住院楼局部采用3：7灰土换填。

Most of the main structure of the project adopts natural foundation, beam slab raft foundation; Part of the 2 # inpatient building is replaced with 3:7 lime soil.

暖通专业-技术特点

HVAC Specialty - Technical Features

1. 本项目办公、诊室、病房采用风机盘管+新风系统，内区采用四管制风机盘管；手术部、中心供应等洁净区域采用洁净空调系统加洁净新风系统，四管制系统，核磁等大型仪器场所、信息机房等采用恒温恒湿空调系统。

1. The office, consultation room, and ward of this project adopt a fan coil unit+fresh air system, and the inner area adopts a four pipe fan coil unit; The clean areas such as the operating department and central supply center adopt a clean air conditioning system with a clean fresh air system, a four pipe system, and large instrument rooms such as nuclear magnetic resonance and information rooms adopt a constant temperature and humidity air conditioning system.

2. 在集中空调系统和风机盘管机组的回风口上加设低阻力、高效率净化设备。

2. Install low resistance and high efficiency purification equipment on the return air outlet of the central air conditioning system and fan coil unit.

3. 净化区域的空调机组采用蒸汽加湿，其余采用高压微雾加湿。

3. The air conditioning unit in the purification area adopts steam humidification, while the rest adopts high-pressure micro mist humidification.

4. 一层感染科各诊室，一层急诊输液，急诊留观区，等人员密度较高且随时间变化大的区域设置智能通风系统，可以满足医院对空气安全、空气品质的高要求。

4. Intelligent ventilation systems are installed in areas with high personnel density and significant changes over time, such as the first floor infection department and various consultation rooms, the first floor emergency infusion area, and the emergency observation area, which can meet the hospital's high requirements for air safety and air quality.

5. 人员密度相对较大且变化较大的房间设置室内CO2浓度检测及TVOC浓度监测，同时启动排风系统并与新风联动。

5. Rooms with relatively high personnel density and significant changes should be equipped with indoor CO2 concentration detection and TVOC concentration monitoring. At the same time, the exhaust system should be activated and linked with fresh air.

6. 地下停车库通风系统根据车流量和车库内的CO浓度控制风机启停，节省风机能耗。

6. The ventilation system of the underground parking garage controls the start and stop of the fan based on the traffic flow and CO concentration in the garage, saving fan energy consumption.

给排水、消防系统-技术特点

Water supply and drainage, fire protection system - technical characteristics

1. 设置集中生活热水，高区采用无动力太阳能集热器作为高区热水的预热，集热器设于裙房屋面

1. Set up centralized domestic hot water, and use unpowered solar collectors in high areas as preheating for hot water in high areas. The collectors are located on the roof of the podium

2. 中水供水系统采用市政中水作为水源，用于室外绿化、道路浇洒和车库冲洗

2. The reclaimed water supply system uses municipal reclaimed water as the water source for outdoor greening, road sprinkling, and garage flushing

3. 室外场地设置雨水调蓄池，满足雨水调蓄错峰和回用。雨水经处理单元的沉淀、消毒后用于室外绿化和浇洒

3. Outdoor sites should be equipped with rainwater storage tanks to meet the requirements of peak regulation and reuse of rainwater. The rainwater is precipitated and disinfected by the treatment unit before being used for outdoor greening and watering

4. 一二期统一规划设置消防系统，避免消防水池、泵房及屋顶水箱间重复设置

4. Unified planning and installation of fire protection systems in Phase I and Phase II to avoid duplicate installation of fire water tanks, pump rooms, and roof water tanks

5. 变配电室及其夹层、病案库、数据机房及UPS间设置设NN100氮气气体灭火系统。气体介质更加安全环保，更换时间长，降低后续运维成本

5. The transformer and distribution room, its mezzanine, medical record warehouse, data room, and UPS room are equipped with an NN100 nitrogen gas fire extinguishing system. Gas medium is safer and more environmentally friendly, with longer replacement time and lower subsequent operation and maintenance costs

6. 用水器具全部采用节水型器具，用水效率等级达到1级

6. All water using appliances are water-saving, with a water efficiency level of 1

电气专业-综合效益

Electrical major - comprehensive benefits

本项目为大型综合医院建设工程,电气专业设计满足现行相关医疗机构设计规范规程及标准要求，是针对供电方案设计出经济的、安全的、有效的供配电系统，各项电气指标均以负荷计算为主，以指标法校验为辅，具有很高的准确性，满足建筑功能使用条件和限额设计的要求，并通过公司科技质量中心的审核，如期交付设计图纸，给国家和人民交上了一份优秀的答卷，为雄安的医疗事业做出了突出的贡献。

This project is a large-scale comprehensive hospital construction project, and the electrical design meets the requirements of current relevant medical institution design specifications and standards. It is aimed at designing an economic, safe, and effective power supply and distribution system for the power supply scheme. All electrical indicators are mainly based on load calculation, supplemented by indicator method verification, with high accuracy, meeting the requirements of building functional usage conditions and quota design, And through the review of the company's technology quality center, the design drawings were delivered as scheduled, providing an excellent answer sheet to the country and people, and making outstanding contributions to the medical cause of Xiong'an.
