临港重装备产业区H36-02地块项目，上海/建筑

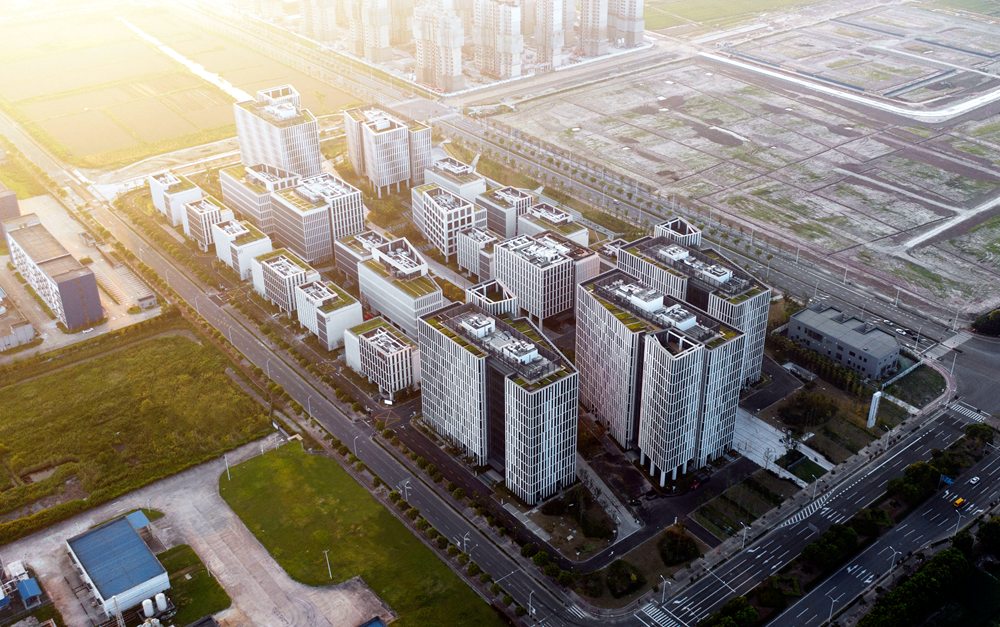

Lingang New City in Pudong New Area of Shanghai is building a science and technology innovation center with global influence. Lingang innovation and entrepreneurship belt is an important part of it, and this project is the first plot of Lingang mass entrepreneurship and entrepreneurship belt. The project is located in the port heavy equipment industrial zone and logistics park, and its main functions are R & D, pilot test and supporting facilities. With a total construction area of about 210000 m2, it is composed of 7 high-rise buildings and 17 multi-storey buildings, and is equipped with an underground garage.

项目建成后将汇聚全球高新科技科研成果，推进产业项目积聚，为创新创业新兴产业发展提供规模化、综合性的产业研发基地。

After the completion of the project, it will gather global high-tech scientific research achievements, promote the accumulation of industrial projects, and provide a large-scale and comprehensive industrial R & D base for the development of innovative and entrepreneurial emerging industries.

难点 Difficulties

作为首发地块的产城融合示范园，项目设计难点在于：

如何结合市场需求，汇产业、聚人气；

如何打造园区地标，兼顾多样化、统一性；

如何控制时间和成本，实现可持续的预制装配建筑。

As the first plot of the industry city integration demonstration park, the difficulties of the project design lie in:

How to combine the market demand to gather industry and popularity;

How to build the landmark of the park, taking into account diversity and unity;

How to control time and cost to realize sustainable prefabricated buildings.

总体 General layout

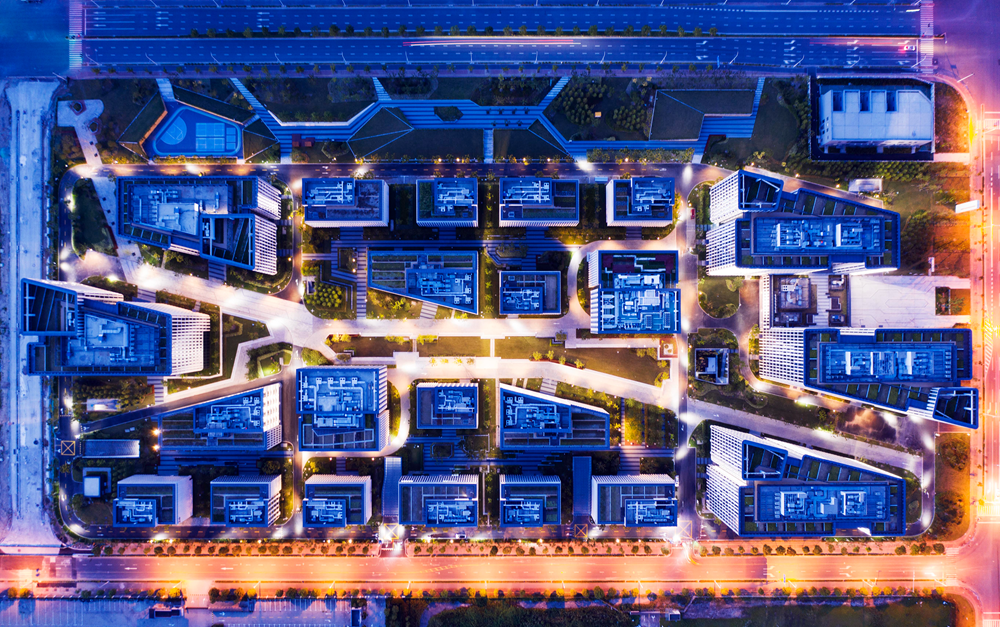

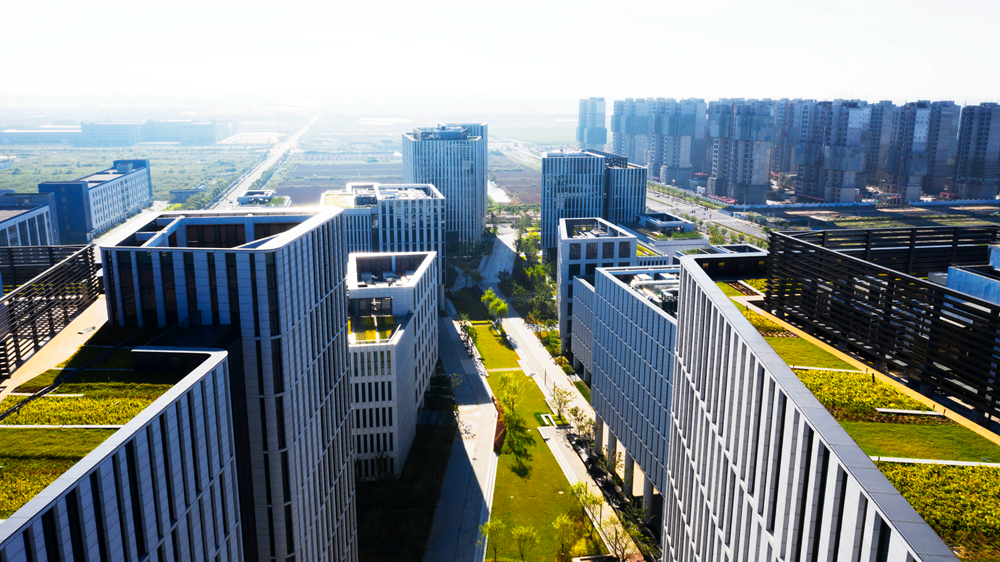

项目用地为长方形，面积约8万㎡。考虑到通常人们习惯斜穿对角线，这样距离最近，于是总体布局自然生成了"X形"景观廊道，将周边的居住小区和规划中的CBD、中央公园、BRT、公交站等紧密联系起来。同时将北侧退界30米的绿带营造为互利共生的产城融合带，结合绿化景观适当布置健身休闲设施。

The project land is rectangular, with an area of about 80000 square meters. Considering that people usually cross diagonals obliquely, which is the closest distance, the overall layout naturally generates an "X-shaped" landscape corridor, which closely connects the surrounding residential areas with the planned CBD, Central Park, BRT, bus stops, etc. At the same time, the green belt 30 meters away from the northern boundary will be built into a mutually beneficial industry city integration belt, and fitness and leisure facilities will be appropriately arranged in combination with the green landscape.

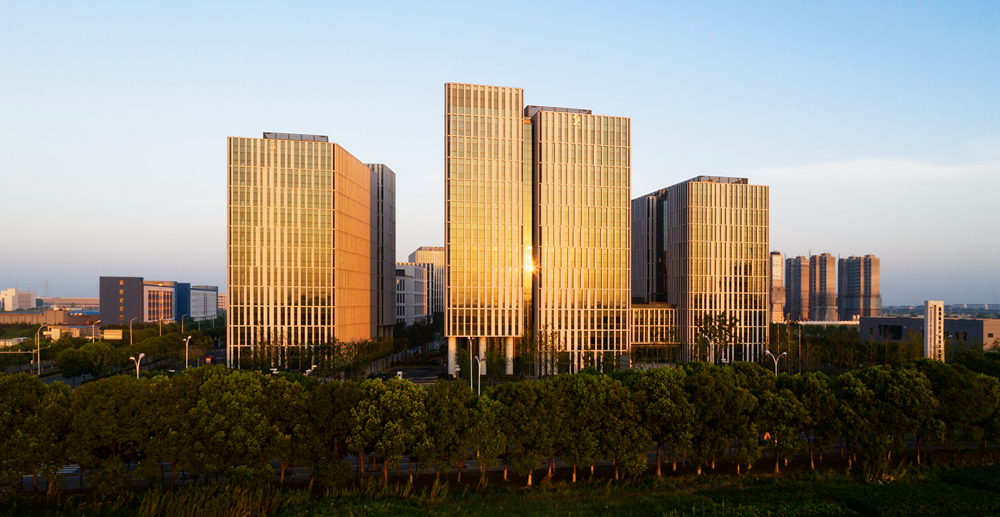

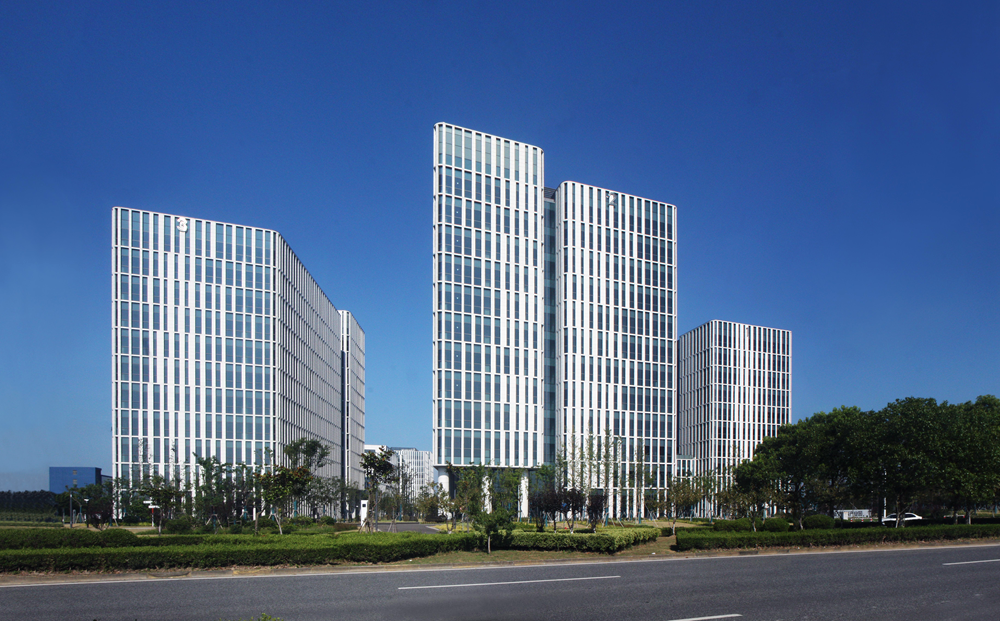

根据上位规划要求，项目建成后，需实现50%自持和50%销售。为适应多样变化的市场，共设计了四类建筑，尽可能做到可分可合、可租可售、弹性灵活。其中，东塔和西塔临近城市道路，设计成地标性高层，由于体量大，适合自持并出租；中部的小高层方塔体量适中，适合自用或销售；其他的多层独栋和双拼，体量小，适合整栋或半栋销售。

According to the upper planning requirements, after the completion of the project, it is necessary to achieve 50% self-sustaining and 50% sales. In order to adapt to the diverse and changing market, four types of buildings are designed, which can be divided and combined, rented and sold, and flexible as far as possible. Among them, the East Tower and west tower are close to urban roads and are designed as landmark high-rise buildings. Due to their large size, they are suitable for self-supporting and renting; The small high-rise square tower in the middle has a moderate volume, which is suitable for self use or sales; Other multi-storey single family and double family, small in size, suitable for whole or half family sales.

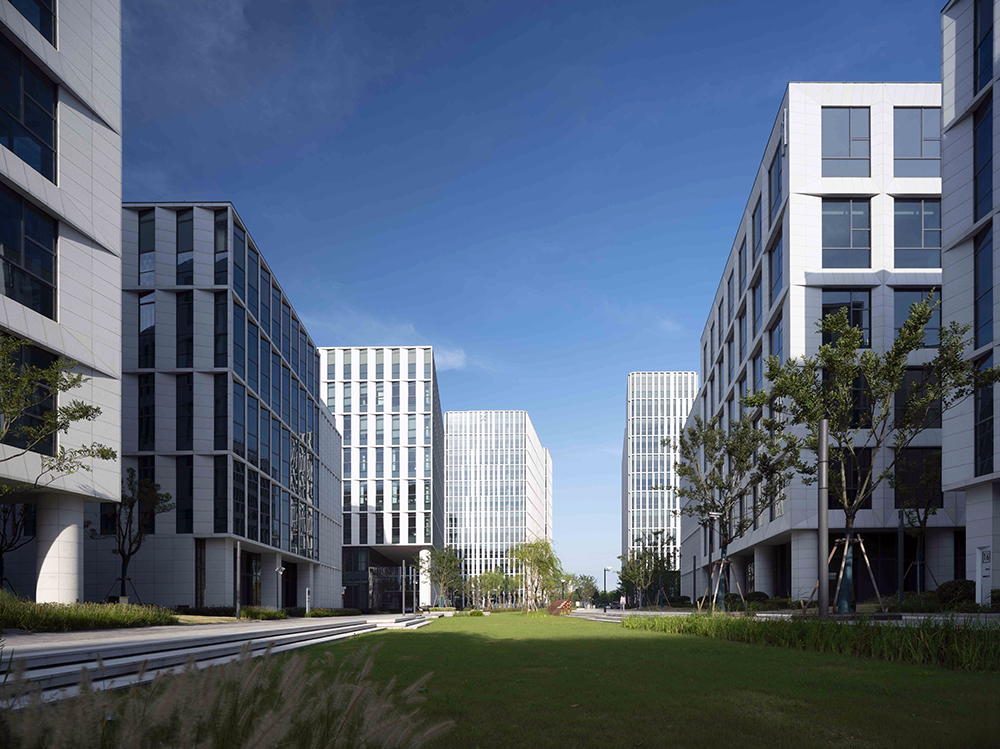

由此，突破了传统方盒子矩阵布局，形成秩序分明、简洁独特、多样统一的园区建筑空间肌理。

Thus, it breaks through the traditional square box matrix layout and forms a clear, concise, unique, diverse and unified space texture of the park.

单体多样统一 Unity of monomer diversity

充分体现科创精神，展现产业园区的审美特点，结合建筑功能及用户体验，建筑设计注重统一性和多样性。

Fully embody the spirit of scientific innovation, show the aesthetic characteristics of the industrial park, and pay attention to unity and diversity in architectural design in combination with architectural functions and user experience.

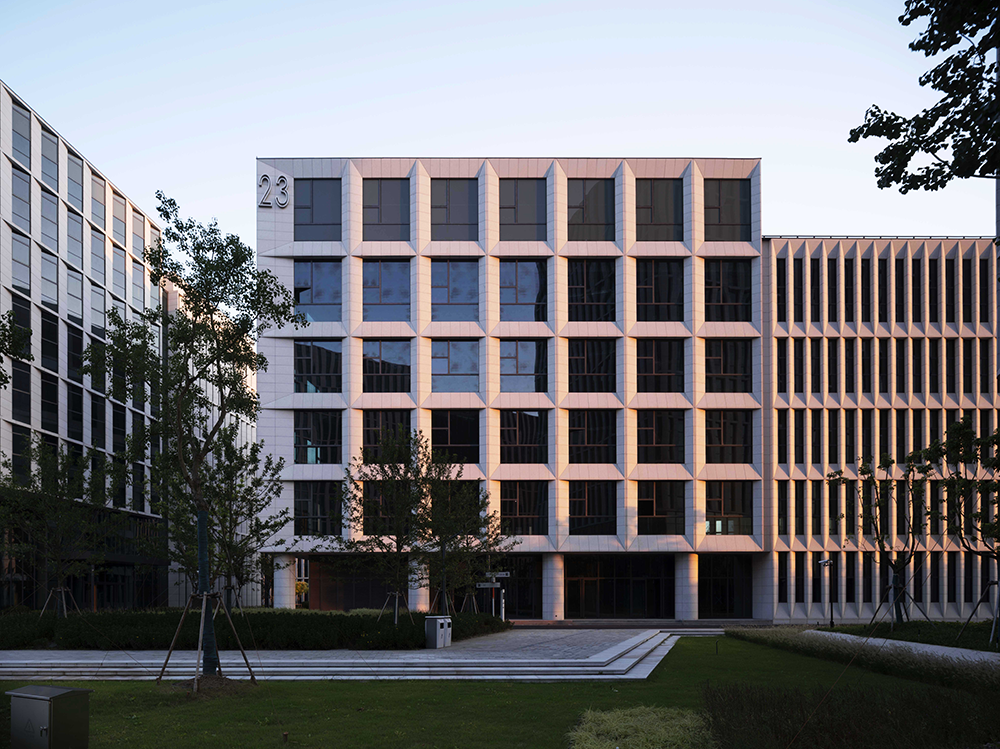

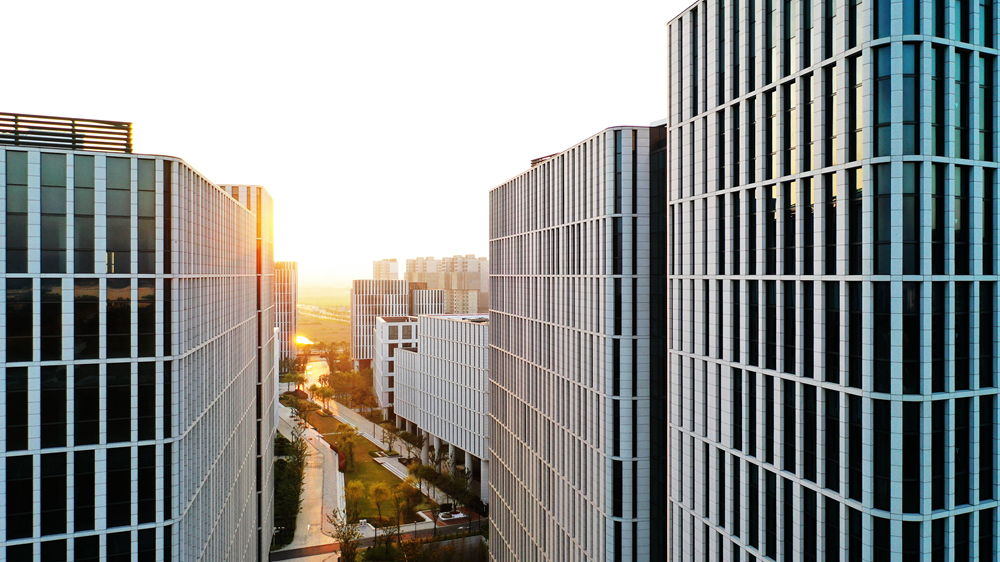

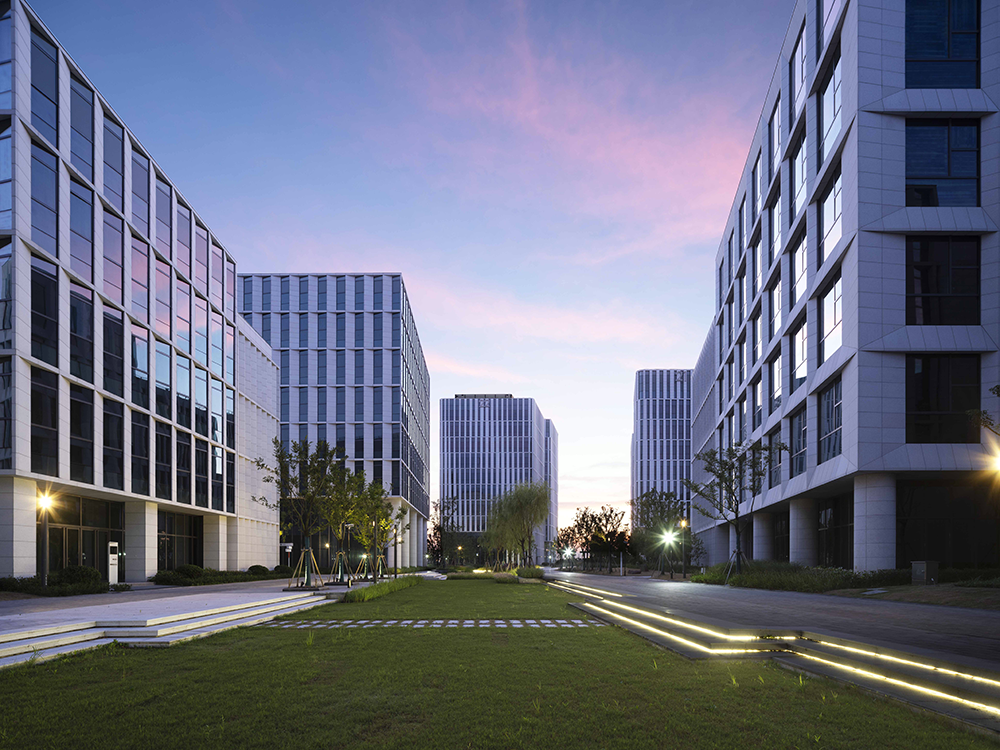

首先，将每个单体的顶层做局部提升，使得各个建筑从形体上有了更为轻盈灵动的共性语言。同时，外立面采用模块化设计：东塔高层建筑的立面模块尺寸统一为1.4m×4.2m，各模块的窗墙比不同，参数化组合后形成类似“跳动音符”的律动效果；西塔高层建筑的立面模块通过组合，形成了旋转上升的韵律；多层建筑的立面模块宽度由1.05m至4.2m，分作几种不同的宽窄进行组合，兼顾了私密性和室内视野。

First of all, the top floor of each single building is locally raised, so that each building has a more lightweight and flexible common language in form. At the same time, the facade adopts modular design: the facade module size of the east tower high-rise building is unified as 1.4m × 4.2m, the window wall ratio of each module is different, and a rhythm effect similar to "beating note" is formed after parametric combination; The facade modules of the west tower high-rise building are combined to form a rhythm of rotation and rise; The width of the facade module of the multi-storey building ranges from 1.05M to 4.2m, which is divided into several different widths for combination, taking into account privacy and indoor vision.

合理布置建筑平面，尤其是核心筒，以提升建筑使用系数，确保室内空间规整，并可根据市场需要灵活分隔，实现可分可合、可租可售。

Reasonably arrange the building plane, especially the core tube, to improve the building utilization coefficient, ensure that the indoor space is neat, and can be flexibly separated according to market needs, so as to realize separation, combination, rent and sale.

PC装配式的创新 Innovation of PC assembly

本项目规模大，单体数量多，成本控制严，同时又要满足混凝土构件的预制装配比例要求，对设计、施工与管理都是严峻的考验。设计通过以下4个方面的创新，显著提高了装配式公共建筑项目的落地性、实用性和可复制性，PC构件预制率达到40~47%。

① 设置黏滞阻尼器的装配整体式钢筋混凝土框架结构，即可消能减震，增加建筑抗震防灾能力，又能减少构件自重，并提升预制装配率；

② 优化了框架梁柱和节点的配筋及连接方式，提高装配式框架的施工效率；

③ 采用预制预应力混凝土双T板叠合楼盖技术，实现大跨室内空间；

④ 在装配式建筑中采用BIM和RFID（无线射频识别芯片）技术，实现装配式建筑的全生命周期信息化管理。

The project is large in scale, with a large number of monomers and strict cost control. At the same time, it also meets the requirements of precast assembly proportion of concrete components, which is a severe test for design, construction and management. Through innovations in the following four aspects, the design has significantly improved the landing, practicality and reproducibility of prefabricated public building projects, and the prefabrication rate of PC components has reached 40-47%.

① The assembled monolithic reinforced concrete frame structure with viscous dampers can dissipate energy and reduce vibration, increase the seismic and disaster prevention capacity of the building, reduce the dead weight of components, and improve the prefabrication and assembly rate;

② The reinforcement and connection methods of frame beams, columns and joints are optimized to improve the construction efficiency of the fabricated frame;

③ The technology of precast prestressed concrete double-T slab superimposed floor is adopted to realize large-span indoor space;

④ Bim and RFID (radio frequency identification chip) technology are used in prefabricated buildings to realize the full life cycle information management of prefabricated buildings.

上述创新示范技术已被成功应用于其他同类型项目中。通过核心研究成果的工程应用和集成示范，为相关标准规范和标准图集的编制提供了技术实践依据。

The above innovative demonstration technology has been successfully applied to other similar projects. Through the engineering application and integration demonstration of the core research results, it provides a technical practice basis for the preparation of relevant standards, specifications and standard atlas.

结语 Epilogue

经过业主、设计、施工等各方努力，本项目已获上海市一批重要奖项：建设工程优秀项目管理成果一等奖、装配式建筑示范项目、建筑业新技术应用示范工程、首届BIM技术应用创新大赛“最佳项目奖”、“园林杯”优质工程等。

Through the efforts of the owner, design, construction and other parties, this project has won a number of important awards in Shanghai: the first prize of excellent project management results of construction projects, prefabricated building demonstration projects, new technology application demonstration projects in the construction industry, the "best project award" of the first BIM Technology application innovation competition, and the "garden Cup" high-quality projects.
